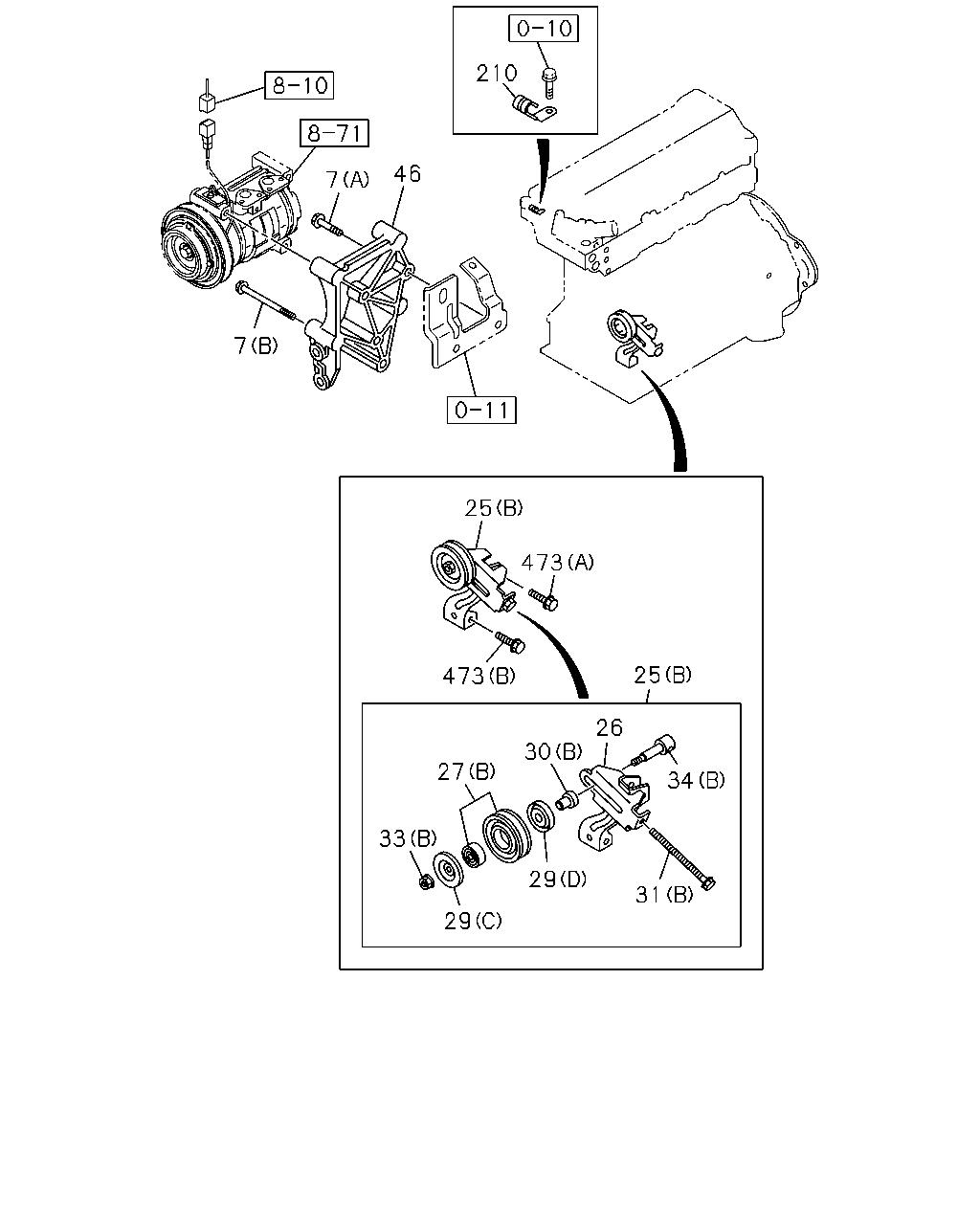

8-50 — AIR CONDITIONING SYSTEM; FRONT (#133448) — 77 parça

7 46 210 7 25 473 473 25 26 30 27 33 29 29 31 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	BOLT; BRKT 4HK1-TCS ENG<RJS> (A) M10X45 FLANGE THA	0-28151-045-0	02	1	1406-
7	BOLT; BRKT 4HK1-TCS ENG<RJS> (B) M10X80 FLANGE THA	0-28151-080-0	02	1	1406-
25	PULLEY ASM; IDLER,CMPR 4HK1-TCS ENG<RJS> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) 1-GROOVE	8-97161-198-1	01	1	1406-
25	PULLEY ASM; IDLER,CMPR (A)	8-97605-079-0	01	1	1402-1402
25	PULLEY ASM; IDLER,CMPR 6HK1-TCN ENG<82L> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A)	8-97605-079-0	01	1	1403-
26	BRACKET; IDLE PULLEY,A/C 4HK1-TCS ENG<RJS> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>	8-97161-031-1	01	1	1406-
27	PULLEY; IDLE,A/C 4HK1-TCS ENG<RJS> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B)	8-97386-869-0	01	1	1406-
27	PULLEY; IDLE,A/C (A)	8-97605-323-0	01	1	1402-1402
27	PULLEY; IDLE,A/C 6HK1-TCN ENG<82L> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A)	8-97605-323-0	01	1	1403-
29	COVER; DUST,IDLE PULLEY 4HK1-TCS ENG<RJS> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (C)	8-97384-114-0	01	1	1406-
29	COVER; DUST,IDLE PULLEY 4HK1-TCS ENG<RJS> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (D)	8-97384-115-0	01	1	1406-
29	COVER; DUST,IDLE PULLEY (A)	8-97605-329-0	01	1	1402-1402
29	COVER; DUST,IDLE PULLEY 6HK1-TCN ENG<82L> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A)	8-97605-329-0	01	1	1403-
29	COVER; DUST,IDLE PULLEY (B)	8-97605-330-0	01	1	1402-1402
29	COVER; DUST,IDLE PULLEY 6HK1-TCN ENG<82L> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B)	8-97605-330-0	01	1	1403-
30	COLLAR; IDLE PULLEY 4HK1-TCS ENG<RJS> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B)	8-97384-117-0	01	1	1406-
30	COLLAR; IDLE PULLEY (A)	8-97605-328-0	01	1	1402-1402
30	COLLAR; IDLE PULLEY 6HK1-TCN ENG<82L> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A)	8-97605-328-0	01	1	1403-
31	BOLT; ADJ,IDLE PULLEY 4HK1-TCS ENG<RJS> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B)	8-97384-113-0	01	1	1406-
31	BOLT; ADJ,IDLE PULLEY (A)	8-97605-325-0	01	1	1402-1402
31	BOLT; ADJ,IDLE PULLEY 6HK1-TCN ENG<82L> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A)	8-97605-325-0	01	1	1403-
33	NUT; IDLER PULLEY 4HK1-TCS ENG<RJS> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B)	8-97384-118-0	01	1	1406-
33	NUT; IDLER PULLEY (A)	8-97605-326-0	01	1	1402-1402
33	NUT; IDLER PULLEY 6HK1-TCN ENG<82L> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A)	8-97605-326-0	01	1	1403-
34	SHAFT; IDLE PULLEY 4HK1-TCS ENG<RJS> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B)	8-97384-116-0	01	1	1406-
34	SHAFT; IDLE PULLEY (A)	8-97605-327-0	01	1	1402-1402
34	SHAFT; IDLE PULLEY 6HK1-TCN ENG<82L> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A)	8-97605-327-0	01	1	1403-
46	BRACKET; CMPR 4HK1-TCS ENG<RJS>	8-98101-364-0	01	1	1406-
210	CLIP; HARNESS 4HK1-TCS ENG<RJS> ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1406-
473	BOLT; TENSIONER 4HK1-TCS ENG<RJS> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) M8X50 FLANGE THA	0-28050-850-0	01	1	1406-
473	BOLT; TENSIONER 4HK1-TCS ENG<RJS> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) M10X65 FLANGE	8-94344-540-1	01	1	1406-

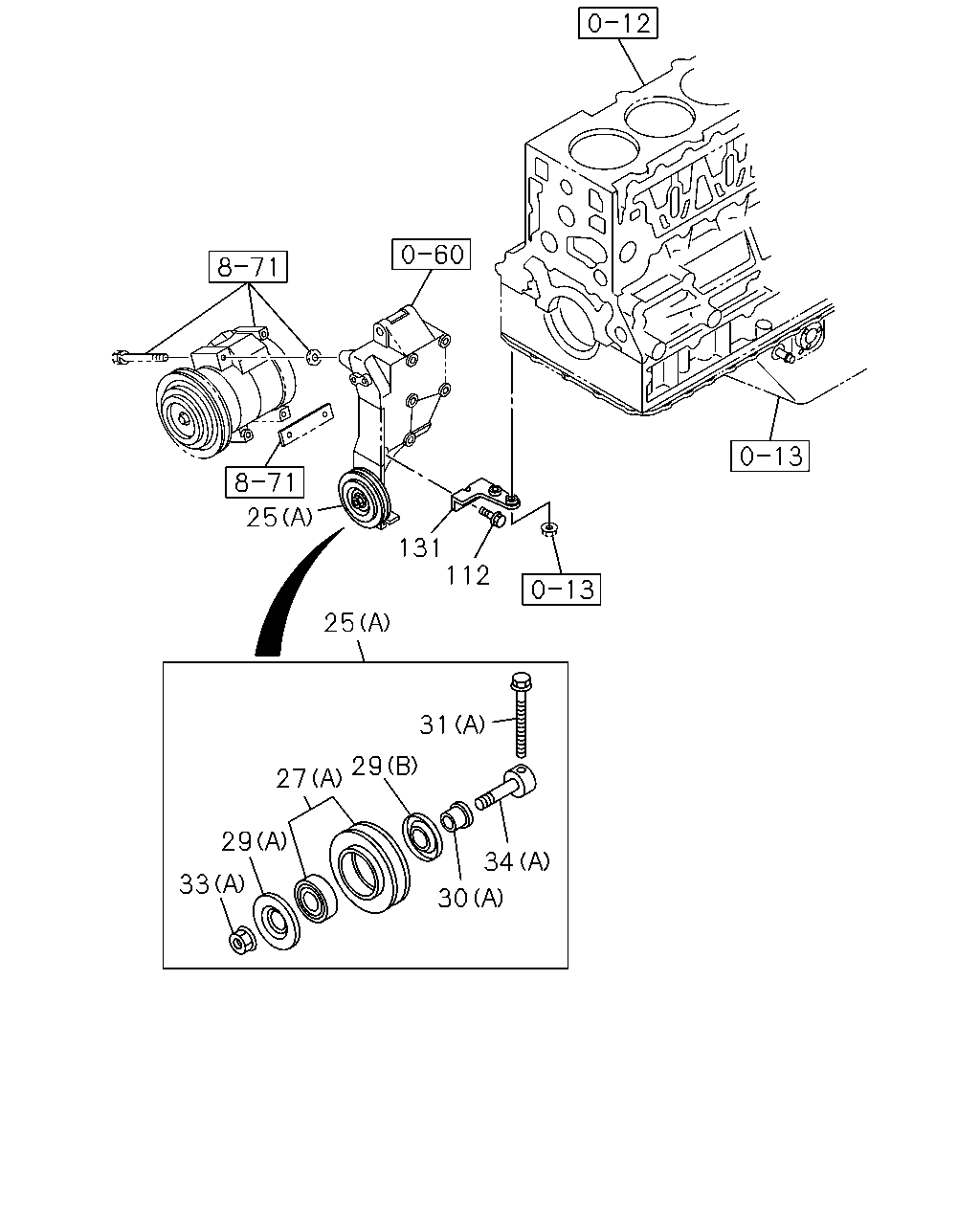

25 131 112 25 31 29 27 29 33 30 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	PULLEY ASM; IDLER,CMPR 4HK1-TCS ENG<RJS> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) 1-GROOVE	8-97161-198-1	01	1	1406-
25	PULLEY ASM; IDLER,CMPR (A)	8-97605-079-0	01	1	1402-1402
25	PULLEY ASM; IDLER,CMPR 6HK1-TCN ENG<82L> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A)	8-97605-079-0	01	1	1403-
27	PULLEY; IDLE,A/C 4HK1-TCS ENG<RJS> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B)	8-97386-869-0	01	1	1406-
27	PULLEY; IDLE,A/C (A)	8-97605-323-0	01	1	1402-1402
27	PULLEY; IDLE,A/C 6HK1-TCN ENG<82L> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A)	8-97605-323-0	01	1	1403-
29	COVER; DUST,IDLE PULLEY 4HK1-TCS ENG<RJS> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (C)	8-97384-114-0	01	1	1406-
29	COVER; DUST,IDLE PULLEY 4HK1-TCS ENG<RJS> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (D)	8-97384-115-0	01	1	1406-
29	COVER; DUST,IDLE PULLEY (A)	8-97605-329-0	01	1	1402-1402
29	COVER; DUST,IDLE PULLEY 6HK1-TCN ENG<82L> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A)	8-97605-329-0	01	1	1403-
29	COVER; DUST,IDLE PULLEY (B)	8-97605-330-0	01	1	1402-1402
29	COVER; DUST,IDLE PULLEY 6HK1-TCN ENG<82L> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B)	8-97605-330-0	01	1	1403-
30	COLLAR; IDLE PULLEY 4HK1-TCS ENG<RJS> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B)	8-97384-117-0	01	1	1406-
30	COLLAR; IDLE PULLEY (A)	8-97605-328-0	01	1	1402-1402
30	COLLAR; IDLE PULLEY 6HK1-TCN ENG<82L> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A)	8-97605-328-0	01	1	1403-
31	BOLT; ADJ,IDLE PULLEY 4HK1-TCS ENG<RJS> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B)	8-97384-113-0	01	1	1406-
31	BOLT; ADJ,IDLE PULLEY (A)	8-97605-325-0	01	1	1402-1402
31	BOLT; ADJ,IDLE PULLEY 6HK1-TCN ENG<82L> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A)	8-97605-325-0	01	1	1403-
33	NUT; IDLER PULLEY 4HK1-TCS ENG<RJS> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B)	8-97384-118-0	01	1	1406-
33	NUT; IDLER PULLEY (A)	8-97605-326-0	01	1	1402-1402
33	NUT; IDLER PULLEY 6HK1-TCN ENG<82L> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A)	8-97605-326-0	01	1	1403-
34	SHAFT; IDLE PULLEY 4HK1-TCS ENG<RJS> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B)	8-97384-116-0	01	1	1406-
34	SHAFT; IDLE PULLEY (A)	8-97605-327-0	01	1	1402-1402
34	SHAFT; IDLE PULLEY 6HK1-TCN ENG<82L> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A)	8-97605-327-0	01	1	1403-
112	BOLT; STAY M8X16 FLANGE THA	0-28050-816-0	02	1	1402-1402
112	BOLT; STAY 6HK1-TCN ENG<82L> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M8X16 FLANGE THA	0-28050-816-0	02	1	1403-
131	STAY; CMPR BRKT 6HK1-TCN ENG<82L>	8-94393-451-0	01	1	1402-

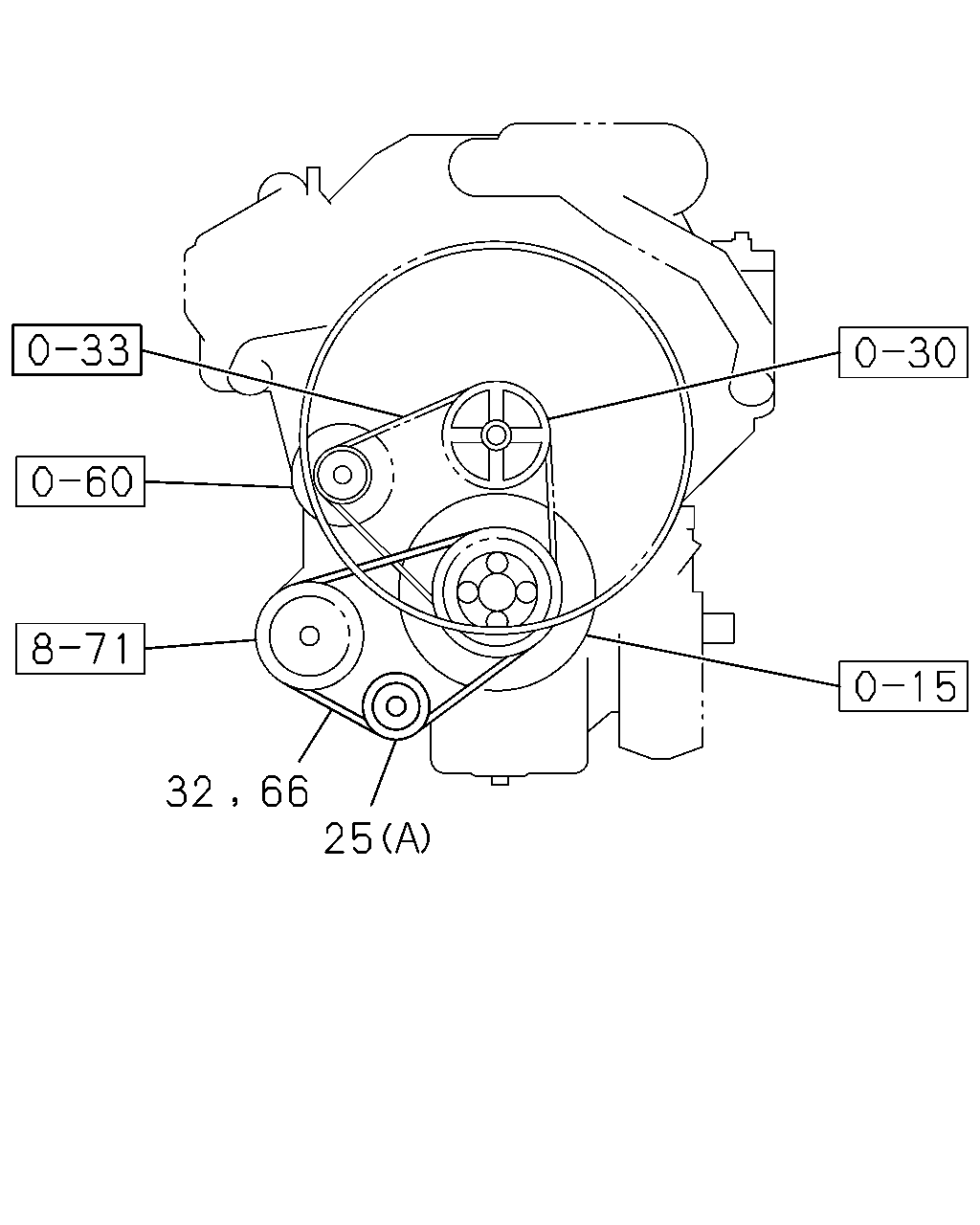

32 66 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	PULLEY ASM; IDLER,CMPR 4HK1-TCS ENG<RJS> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) 1-GROOVE	8-97161-198-1	01	1	1406-
25	PULLEY ASM; IDLER,CMPR (A)	8-97605-079-0	01	1	1402-1402
25	PULLEY ASM; IDLER,CMPR 6HK1-TCN ENG<82L> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A)	8-97605-079-0	01	1	1403-
32	BELT; A/C CMPR 6HK1-TCN ENG<82L> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> BEST VALUE PARTS	1-87610-104-0	01	1	1403-
32	BELT; A/C CMPR 4HK1-TCS ENG<RJS> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> BEST VALUE PARTS	1-87610-100-0	01	1	1406-
32	BELT; A/C CMPR 6HK1-TCN ENG<82L> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> L=1114	8-97605-102-0	01	1	1403-
32	BELT; A/C CMPR 4HK1-TCS ENG<RJS> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> L=1594	8-97383-577-1	01	1	1406-
66	BELT; A/C CMPR BEST VALUE PARTS	1-87610-104-0	01	1	1402-1402
66	BELT; A/C CMPR L=1114	8-97605-102-0	01	1	1402-1402

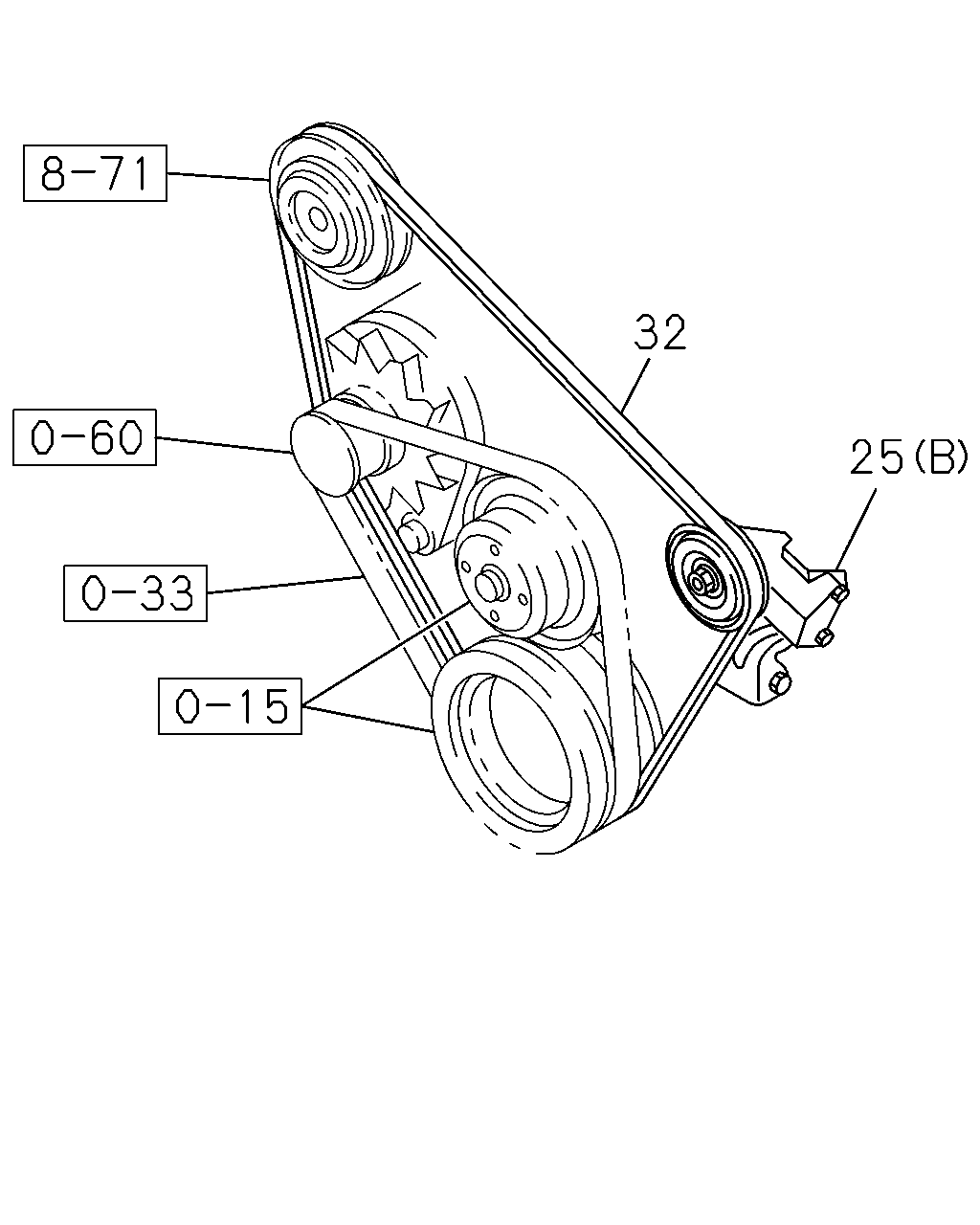

32 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	PULLEY ASM; IDLER,CMPR 4HK1-TCS ENG<RJS> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) 1-GROOVE	8-97161-198-1	01	1	1406-
25	PULLEY ASM; IDLER,CMPR (A)	8-97605-079-0	01	1	1402-1402
25	PULLEY ASM; IDLER,CMPR 6HK1-TCN ENG<82L> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A)	8-97605-079-0	01	1	1403-
32	BELT; A/C CMPR 6HK1-TCN ENG<82L> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> BEST VALUE PARTS	1-87610-104-0	01	1	1403-
32	BELT; A/C CMPR 4HK1-TCS ENG<RJS> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> BEST VALUE PARTS	1-87610-100-0	01	1	1406-
32	BELT; A/C CMPR 6HK1-TCN ENG<82L> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> L=1114	8-97605-102-0	01	1	1403-
32	BELT; A/C CMPR 4HK1-TCS ENG<RJS> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> L=1594	8-97383-577-1	01	1	1406-

201 378 378

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
201	CLIP; HOSE,CMPR TO EVAP 6HK1-TCN ENG<82L> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>	8-94423-042-0	01	1	1402-
378	HOSE; DRAIN,EVAPORATOR AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A)	8-98041-428-0	01	1	1402-
378	HOSE; DRAIN,EVAPORATOR AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B)	8-98204-846-0	01	1	1402-
