Isuzu WW
▶
TRUCKS
▶
FTR
▶
11575 - FTR(THAI)EURO3
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-28 - CHASSIS ELECTRICAL
▶
8-28 — CHASSIS ELECTRICAL
(#133446) — 28 parça
◀

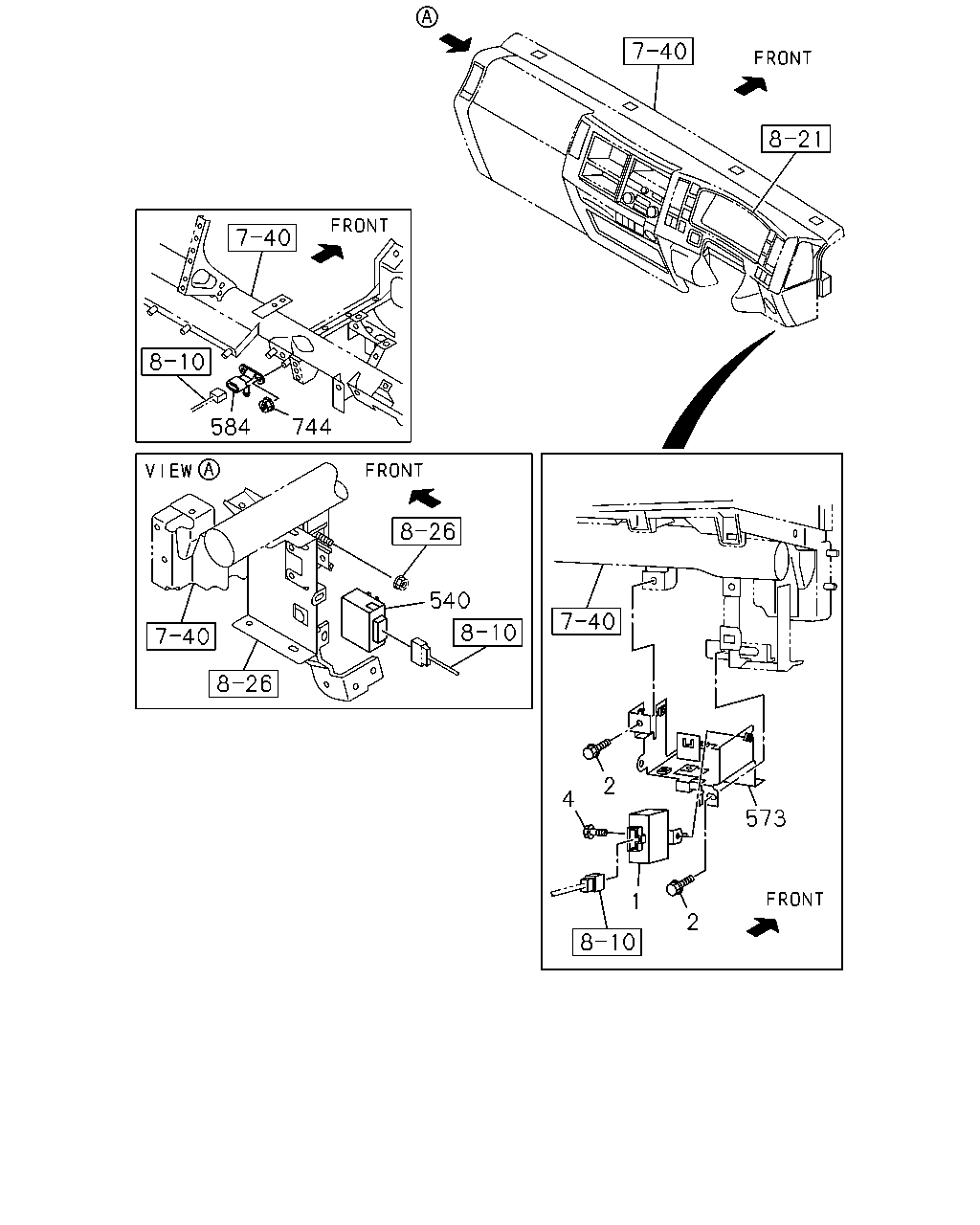

[828A] INST PANEL SIDE (7 parça)
[828A] VALVE;PTO CONT (14 parça)
[828A] FRAME SIDE (4 parça)
[828A] RELAY;FRAME HARNESS (2 parça)
[828A] RELAY;CAB HARNESS (1 parça)
▶
584
744
540
573
2
4
1
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
UNIT; FLASHER
8-98025-533-1
01
1
1402-
2
BOLT; FLASHER UNIT
M6X16 FLANGE THA
0-28650-616-0
02
1
1402-
4
SCREW; FLASHER UNIT
M6X16 FLANGE THA
0-28650-616-0
01
1
1402-
540
RELAY; WIPER INTERVAL
8-98233-976-0
01
1
1402-
573
BRACKET; FLASHER UNIT
8-97609-984-5
01
1
1402-
584
SENSOR; PRESSURE
8-98020-514-0
01
1
1402-
744
NUT; SENSOR
M6 FLANGE THA
0-91180-106-0
02
1
1402-
34
33
35
36
39
41
261
34
34
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
33
VALVE; MAG,PTO CONT
6HK1-TCN ENG<82L> PTO CONTROL<SV6> THA
8-97948-152-0
01
1
1402-1405
33
VALVE; MAG,PTO CONT
PTO CONTROL<SV6> THA
8-97948-152-0
01
1
1406-
34
CONNECTOR; MAG VLV,INL PORT
4HK1-TCS ENG<RJS> PTO CONTROL<SV6> (C)
8-98179-708-0
01
1
1406-
34
CONNECTOR; MAG VLV,INL PORT
6HK1-TCN ENG<82L> PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW
1-09650-430-0
01
1
1402-1405
34
CONNECTOR; MAG VLV,INL PORT
PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW
1-09650-430-0
01
1
1406-
34
CONNECTOR; MAG VLV,INL PORT
6HK1-TCN ENG<82L> PTO CONTROL<SV6> (A) DIN8X2 & R1/4 3WAY
1-09661-006-0
01
1
1402-
35
BRACKET; MAG VLV,PTO CONT
6HK1-TCN ENG<82L> PTO CONTROL<SV6>
8-98154-633-0
01
1
1402-1405
35
BRACKET; MAG VLV,PTO CONT
PTO CONTROL<SV6>
8-98154-633-0
01
1
1406-
36
BOLT; MAG VLV,PTO CONT
6HK1-TCN ENG<82L> PTO CONTROL<SV6> M8X20 FLANGE THA
0-28650-820-0
02
1
1402-1405
36
BOLT; MAG VLV,PTO CONT
PTO CONTROL<SV6> M8X20 FLANGE THA
0-28650-820-0
02
1
1406-
39
BOLT; BRKT,MAG VLV
PTO CONTROL<SV6> M8X35 FLANGE THA
0-28650-835-0
02
1
1402-
41
NUT; BRKT,MAG VLV
PTO CONTROL<SV6> M8 FLANGE THA
0-91180-108-0
02
1
1402-
261
PLUG; MAG VLV
6HK1-TCN ENG<82L> PTO CONTROL<SV6> PT1/4
9-99204-513-0
01
1
1402-1405
261
PLUG; MAG VLV
PTO CONTROL<SV6> PT1/4
9-99204-513-0
01
1
1406-

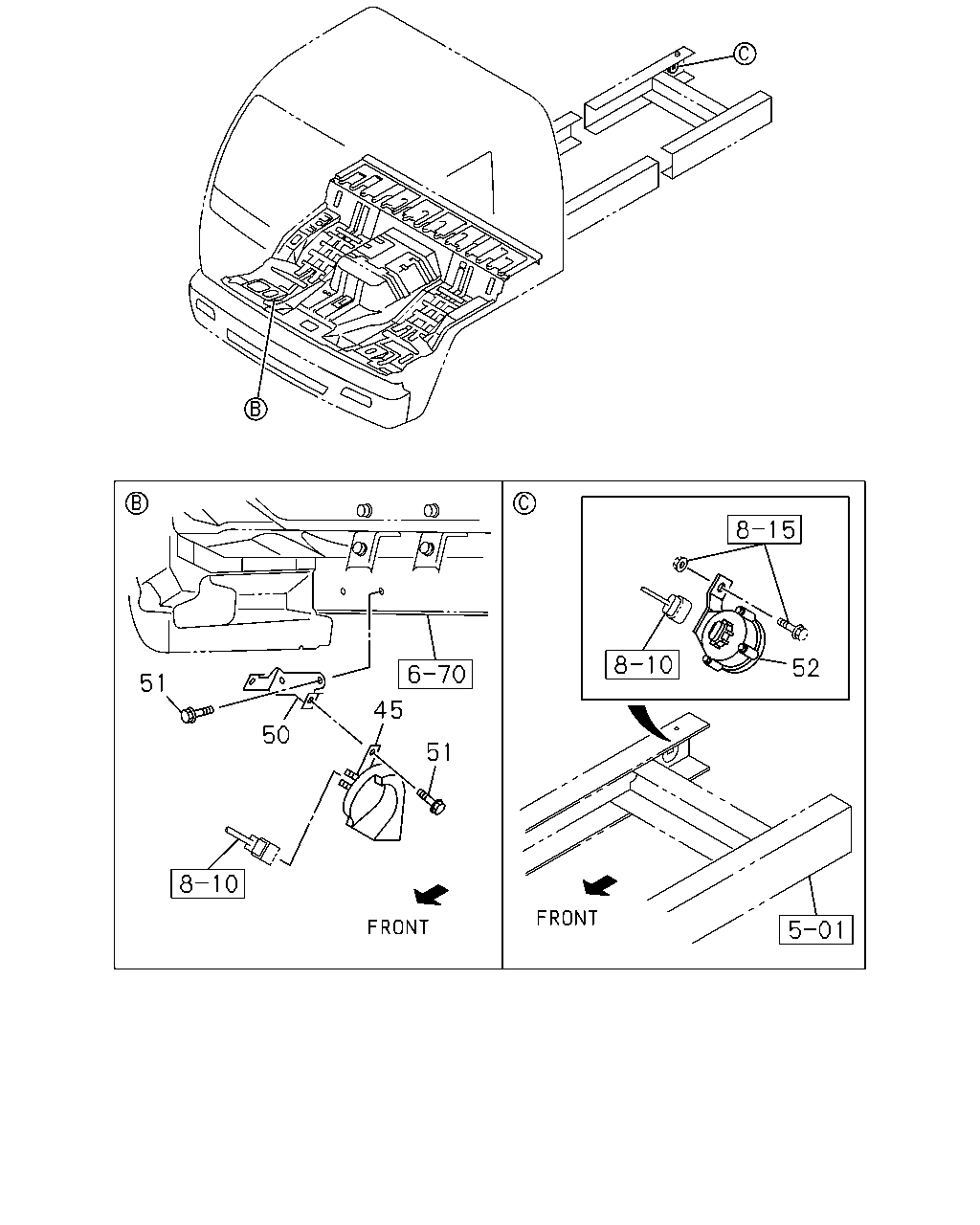

51
50
45
51
52
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
45
HORN; LOW NOTE
THA
8-97925-172-0
01
1
1402-
50
BRACKET; HORN
8-97613-300-2
01
1
1402-
51
BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER
8-97086-825-0
03
1
1402-
52
BUZZER; BACK
8-97617-027-0
01
1
1402-
531
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
531
RELAY; MAIN
24V 30A MITUBA
8-97238-540-0
01
1
1402-1402
531
RELAY; MAIN
24V 30A MITSUBA
8-98259-779-0
01
1
1403-
22
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
22
RELAY; STOP LAMP
24V 12.5A PANASONIC
8-97262-933-0
01
1
1402-
