Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#133442) — 285 parça

16 16 16 483 16 16 483 305 306 48 306 305 305 483 483

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

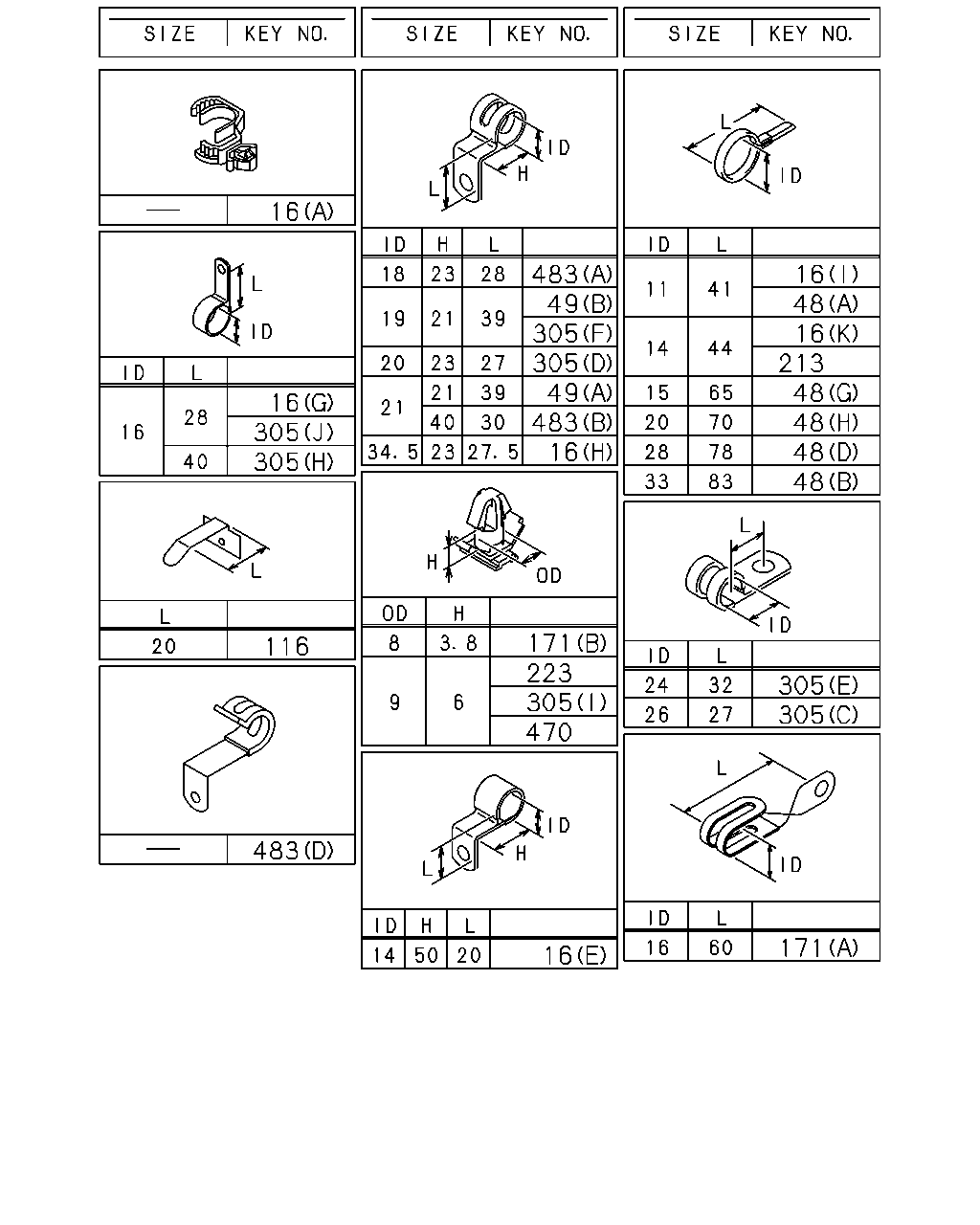

16	CLIP; HARNESS 4HK1-TCS ENG<RJS> (M) ID=24 L=24	1-09701-001-1	01	1	1406-
16	CLIP; HARNESS 4HK1-TCS ENG<RJS> (L) ID=17 L=21	8-98082-035-0	01	1	1406-
16	CLIP; HARNESS 4HK1-TCS ENG<RJS> EXC. ENGINE HIGH TORQUE<Q5W> (M) ID=24 L=24	1-09701-001-1	02	1	1406-
16	CLIP; HARNESS (G) ID=16 L=28	0-95235-556-0	02	1	1402-
16	CLIP; HARNESS (E) ID=14 H=50 L=20	1-09700-843-0	02	1	1402-
16	CLIP; HARNESS 6HK1-TCN ENG<82L> (H) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1402-
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1402-
16	CLIP; HARNESS (J) L=350	1-09707-183-0	02	1	1402-
16	CLIP; HARNESS (F) L=250	5-09707-030-1	03	1	1402-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1402-
16	CLIP; HARNESS (B) L=155 THA	8-97173-307-0	18	1	1402-
16	CLIP; HARNESS (D) L=40.6 THA	8-97229-357-0	02	1	1402-
16	CLIP; HARNESS (C) THA	8-98052-679-0	02	1	1402-
16	CLIP; HARNESS (K) ID=14 L=44	9-09917-427-0	03	1	1402-
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (I) ID=11 L=41	1-09700-403-0	02	1	1402-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG<RJS> (A) ID=11 L=41	1-09700-403-0	05	1	1406-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG<RJS> (G) ID=15 L=65	1-09700-466-0	01	1	1406-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG<RJS> (I) L=250	5-09707-030-1	01	1	1406-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> (G) ID=15 L=65	1-09700-466-0	04	1	1406-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG<82L> (A) ID=11 L=41	1-09700-403-0	02	1	1402-
48	CLIP; FRAME HARNESS (G) ID=15 L=65	1-09700-466-0	02	1	1402-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG<82L> (G) ID=15 L=65	1-09700-466-0	02	1	1402-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG<82L> (H) ID=20 L=70	1-09700-485-0	02	1	1402-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG<82L> (D) ID=28 L=78	1-09700-858-0	02	1	1402-
48	CLIP; FRAME HARNESS (E) ID=35 L=50	1-09701-214-0	01	1	1402-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG<82L> (B) ID=33 L=83	1-09701-291-0	04	1	1402-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	01	1	1402-
48	CLIP; FRAME HARNESS (F) L=140 THA	8-97920-656-0	02	1	1402-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG<82L> (H) ID=20 L=70	1-09700-485-0	01	1	1402-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG<82L> WHEEL BASE 3600MM<36W> (G) ID=15 L=65	1-09700-466-0	03	1	1402-
48	CLIP; FRAME HARNESS WHEEL BASE 3600MM<36W> (G) ID=15 L=65	1-09700-466-0	05	1	1402-
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM<42W> (A) ID=11 L=41	1-09700-403-0	01	1	1402-
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM<42W> (G) ID=15 L=65	1-09700-466-0	11	1	1402-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM<50W> (G) ID=15 L=65	1-09700-466-0	15	1	1402-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM<55W> (G) ID=15 L=65	1-09700-466-0	19	1	1402-
305	CLIP; ENG HARNESS 4HK1-TCS ENG<RJS> (K) L=300	1-09707-001-1	01	1	1406-
305	CLIP; ENG HARNESS 4HK1-TCS ENG<RJS> (L) L=140	5-09707-031-1	02	1	1406-1409
305	CLIP; ENG HARNESS 4HK1-TCS ENG<RJS> (L) L=140	5-09707-031-1	01	1	1410-
305	CLIP; ENG HARNESS 6HK1-TCN ENG<82L> (J) ID=16 L=28	0-95235-556-0	02	1	1402-
305	CLIP; ENG HARNESS 6HK1-TCN ENG<82L> (H) ID=16 L=40	0-95235-576-0	01	1	1402-
305	CLIP; ENG HARNESS 6HK1-TCN ENG<82L> (E) ID=24 L=32	1-09700-766-1	01	1	1402-
305	CLIP; ENG HARNESS 6HK1-TCN ENG<82L> (D) ID=20 H=23 L=27	1-09700-861-0	01	1	1402-
305	CLIP; ENG HARNESS 6HK1-TCN ENG<82L> (F) ID=19 L=39 H=21	1-09700-972-1	01	1	1402-
305	CLIP; ENG HARNESS 6HK1-TCN ENG<82L> (C) ID=26 L=27	1-09701-006-0	01	1	1402-
305	CLIP; ENG HARNESS 6HK1-TCN ENG<82L> (A) ID=25 L=60	1-09701-041-1	01	1	1402-
305	CLIP; ENG HARNESS 6HK1-TCN ENG<82L> (I) OD=9 H=6	1-09709-178-0	01	1	1402-
305	CLIP; ENG HARNESS (G) ID=21 L=47.5	8-94178-108-0	01	1	1402-1402
305	CLIP; ENG HARNESS 6HK1-TCN ENG<82L> (B) ID=18 L=44	8-97367-985-1	01	1	1402-
306	CLIP; HARNESS,ELEC GOV 6HK1-TCN ENG<82L> (A) ID=28 L=32	1-09701-107-1	01	1	1402-
306	CLIP; HARNESS,ELEC GOV 6HK1-TCN ENG<82L> (B) ID=28X2 L=28	1-09701-302-0	02	1	1402-
483	CLIP; ENG HARNESS 4HK1-TCS ENG<RJS> (A) ID=18 H=23 L=28	1-09700-860-0	01	1	1406-
483	CLIP; ENG HARNESS 4HK1-TCS ENG<RJS> (B) ID=21 L=30 H=40	1-09700-991-1	01	1	1406-
483	CLIP; ENG HARNESS 4HK1-TCS ENG<RJS> (C) ID=24 L=24	1-09701-001-1	01	1	1406-
483	CLIP; ENG HARNESS 4HK1-TCS ENG<RJS> (D)	1-09987-281-0	01	1	1406-
483	CLIP; ENG HARNESS 4HK1-TCS ENG<RJS> (E) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	1406-
483	CLIP; ENG HARNESS 4HK1-TCS ENG<RJS> (F) ID=21 L=47.5	8-94178-108-0	01	1	1406-
483	CLIP; ENG HARNESS 4HK1-TCS ENG<RJS> (G) L=36	8-94224-891-1	01	1	1406-

127 524 294 525 515 294 219 524 184 139 313 139 139 313 313 150 139 313 150 139 38 304 242 139 93 38 386 38 377 304 304 304 150 139 304 150 304 150 239

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS 6HK1-TCN ENG<82L> (A) M8X20 FLANGE THA	0-28650-820-0	01	1	1402-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE THA	0-28650-825-0	03	1	1402-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE THA	0-28650-825-0	03	1	1402-
38	BOLT; CLIP,HARNESS (C) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1402-
93	BOLT; ECM HARNESS CLIP 4HK1-TCS ENG<RJS> EXC. ENGINE HIGH TORQUE<Q5W> M8X20 FLANGE THA	0-28650-820-0	02	1	1406-
127	SCREW; FACIA HARNESS CLIP M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1402-
139	BOLT; BRKT 4HK1-TCS ENG<RJS> (G) M8X20 FLANGE THA	0-28650-820-0	01	1	1406-
139	BOLT; BRKT (E) M8X12 FLANGE THA	0-28050-812-0	01	1	1402-
139	BOLT; BRKT 6HK1-TCN ENG<82L> (A) M8X25 FLANGE THA	0-28650-825-0	01	1	1402-
139	BOLT; BRKT 6HK1-TCN ENG<82L> (B) M8X30 FLANGE THA	0-28650-830-0	01	1	1402-
139	BOLT; BRKT (C) M10X25 FLANGE THA	0-28651-025-0	02	1	1402-
139	BOLT; BRKT (D) M10X30 FLANGE THA	0-28651-030-0	01	1	1402-
139	BOLT; BRKT (F) M10X35 FLANGE THA	0-28651-035-0	01	1	1402-
150	BOLT; CLIP 4HK1-TCS ENG<RJS> (E) M6X16 FLANGE THA	0-28050-616-0	01	1	1501-
150	BOLT; CLIP 4HK1-TCS ENG<RJS> (C) M6X12 FLANGE THA	0-28050-612-0	02	1	1406-
150	BOLT; CLIP 4HK1-TCS ENG<RJS> (D) M8X12 FLANGE THA	0-28050-812-0	01	1	1406-
150	BOLT; CLIP (A) M8X25 FLANGE THA	0-28650-825-0	02	1	1402-
150	BOLT; CLIP (B) M8X30 FLANGE THA	0-28650-830-0	01	1	1402-
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1402-
184	WASHER; PL,STARTER EARTH 6HK1-TCN ENG<82L> ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1402-
219	NUT M8 FLANGE THA	0-91180-108-0	02	1	1402-
239	BOLT; GRAND 6HK1-TCN ENG<82L> M6X10 FLANGE THA	0-28050-610-0	01	1	1403-
242	BOLT; BRKT,HARNESS M8X20 FLANGE THA	0-28650-820-0	01	1	1402-
294	NUT 4HK1-TCS ENG<RJS> POOR QUALITY DIESEL FUEL<KF0> (B) M10 FLANGE THA	0-91180-210-0	01	1	1406-
294	NUT 6HK1-TCN ENG<82L> (A) M8 FLANGE THA	0-91180-108-0	02	1	1402-1405
294	NUT (A) M8 FLANGE THA	0-91180-108-0	02	1	1402-1405
294	NUT 4HK1-TCS ENG<RJS> (A) M8 FLANGE THA	0-91180-108-0	01	1	1406-
294	NUT 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> (A) M8 FLANGE THA	0-91180-108-0	01	1	1406-
294	NUT (A) M8 FLANGE THA	0-91180-108-0	01	1	1406-
294	NUT (B) M10 FLANGE THA	0-91180-210-0	02	1	1402-
294	NUT 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> (A) M8 FLANGE THA	0-91180-108-0	01	1	1402-1405
294	NUT (A) M8 FLANGE THA	0-91180-108-0	01	1	1402-1405
294	NUT (A) M8 FLANGE THA	0-91180-108-0	02	1	1406-
294	NUT (A) M8 FLANGE THA	0-91180-108-0	02	1	1406-
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG<82L> (F) M8X20 FLANGE THA	0-28650-820-0	01	1	1503-
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG<82L> (E) M6X12 FLANGE THA	0-28050-612-0	01	1	1402-
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG<82L> (D) M8X10 FLANGE THA	0-28050-810-0	01	1	1402-
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG<82L> (B) M8X12 FLANGE THA	0-28050-812-0	03	1	1402-
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG<82L> (C) M8X16 FLANGE THA	0-28050-816-0	03	1	1402-
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG<82L> (A) M8X20 FLANGE THA	0-28050-820-0	02	1	1402-
313	BOLT; BRKT 4HK1-TCS ENG<RJS> POOR QUALITY DIESEL FUEL<KF0> (D) M10X30 FLANGE THA	0-28651-030-0	01	1	1406-
313	BOLT; BRKT (B) M8X25 FLANGE THA	0-28650-825-0	01	1	1402-
313	BOLT; BRKT (A) M8X30 FLANGE THA	0-28650-830-0	01	1	1402-1405
313	BOLT; BRKT 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> (A) M8X30 FLANGE THA	0-28650-830-0	01	1	1402-1405
313	BOLT; BRKT (A) M8X30 FLANGE THA	0-28650-830-0	01	1	1406-
313	BOLT; BRKT 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> (A) M8X30 FLANGE THA	0-28650-830-0	01	1	1406-
313	BOLT; BRKT 4HK1-TCS ENG<RJS> (A) M8X30 FLANGE THA	0-28650-830-0	01	1	1406-
313	BOLT; BRKT 6HK1-TCN ENG<82L> (C) M8X35 FLANGE THA	0-28650-835-0	02	1	1402-
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	1402-
386	BOLT; GRAND HARNESS M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1402-
515	NUT; BRKT 4HK1-TCS ENG<RJS> EXC. ENGINE HIGH TORQUE<Q5W> M8 FLANGE THA	0-91180-108-0	01	1	1406-
524	NUT; HARNESS 4HK1-TCS ENG<RJS> (B) M10 FLANGE THA	0-91180-110-0	01	1	1406-
524	NUT; HARNESS (A) M6 FLANGE THA	0-91180-106-0	04	1	1402-
525	NUT; CLIP M8 FLANGE THA	0-91180-108-0	01	1	1402-
525	NUT; CLIP 6HK1-TCN ENG<82L> M8 FLANGE THA	0-91180-108-0	03	1	1402-

14 22 48 305 14 14 16 48 206 208 217 225 530 14 14 305 14 16 48 538 503 178 178 178 178 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER (B) ID=23 OD=27 L=80	8-97608-976-0	06	1	1402-1402
1	SLEEVE; RUBBER 6HK1-TCN ENG<82L> (B) ID=23 OD=27 L=80	8-97608-976-0	05	1	1403-
1	SLEEVE; RUBBER 6HK1-TCN ENG<82L> (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	1402-1406
1	SLEEVE; RUBBER (A) ID=10 OD=14 L=30	9-09956-682-0	04	1	1407-
14	CLIP; BAND,HARNESS 4HK1-TCS ENG<RJS> (D) L=140	5-09707-031-1	02	1	1406-
14	CLIP; BAND,HARNESS 4HK1-TCS ENG<RJS> (E) L=250	5-09707-030-1	01	1	1406-
14	CLIP; BAND,HARNESS 4HK1-TCS ENG<RJS> (F) L=150	8-97355-273-0	01	1	1406-
14	CLIP; BAND,HARNESS 4HK1-TCS ENG<RJS> (C) L=251	8-97619-917-0	02	1	1406-
14	CLIP; BAND,HARNESS 6HK1-TCN ENG<82L> (B) L=350	1-09707-183-0	01	1	1402-
14	CLIP; BAND,HARNESS (C) L=251	8-97619-917-0	01	1	1402-
14	CLIP; BAND,HARNESS 6HK1-TCN ENG<82L> (A) L=250	8-98216-430-0	14	1	1402-
16	CLIP; HARNESS 4HK1-TCS ENG<RJS> (M) ID=24 L=24	1-09701-001-1	01	1	1406-
16	CLIP; HARNESS 4HK1-TCS ENG<RJS> (L) ID=17 L=21	8-98082-035-0	01	1	1406-
16	CLIP; HARNESS 4HK1-TCS ENG<RJS> EXC. ENGINE HIGH TORQUE<Q5W> (M) ID=24 L=24	1-09701-001-1	02	1	1406-
16	CLIP; HARNESS (G) ID=16 L=28	0-95235-556-0	02	1	1402-
16	CLIP; HARNESS (E) ID=14 H=50 L=20	1-09700-843-0	02	1	1402-
16	CLIP; HARNESS 6HK1-TCN ENG<82L> (H) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1402-
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1402-
16	CLIP; HARNESS (J) L=350	1-09707-183-0	02	1	1402-
16	CLIP; HARNESS (F) L=250	5-09707-030-1	03	1	1402-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1402-
16	CLIP; HARNESS (B) L=155 THA	8-97173-307-0	18	1	1402-
16	CLIP; HARNESS (D) L=40.6 THA	8-97229-357-0	02	1	1402-
16	CLIP; HARNESS (C) THA	8-98052-679-0	02	1	1402-
16	CLIP; HARNESS (K) ID=14 L=44	9-09917-427-0	03	1	1402-
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (I) ID=11 L=41	1-09700-403-0	02	1	1402-
22	CLIP; ENG HARNESS 4HK1-TCS ENG<RJS> L=140	5-09707-031-1	02	1	1406-1412
48	CLIP; FRAME HARNESS 4HK1-TCS ENG<RJS> (A) ID=11 L=41	1-09700-403-0	05	1	1406-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG<RJS> (G) ID=15 L=65	1-09700-466-0	01	1	1406-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG<RJS> (I) L=250	5-09707-030-1	01	1	1406-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> (G) ID=15 L=65	1-09700-466-0	04	1	1406-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG<82L> (A) ID=11 L=41	1-09700-403-0	02	1	1402-
48	CLIP; FRAME HARNESS (G) ID=15 L=65	1-09700-466-0	02	1	1402-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG<82L> (G) ID=15 L=65	1-09700-466-0	02	1	1402-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG<82L> (H) ID=20 L=70	1-09700-485-0	02	1	1402-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG<82L> (D) ID=28 L=78	1-09700-858-0	02	1	1402-
48	CLIP; FRAME HARNESS (E) ID=35 L=50	1-09701-214-0	01	1	1402-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG<82L> (B) ID=33 L=83	1-09701-291-0	04	1	1402-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	01	1	1402-
48	CLIP; FRAME HARNESS (F) L=140 THA	8-97920-656-0	02	1	1402-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG<82L> (H) ID=20 L=70	1-09700-485-0	01	1	1402-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG<82L> WHEEL BASE 3600MM<36W> (G) ID=15 L=65	1-09700-466-0	03	1	1402-
48	CLIP; FRAME HARNESS WHEEL BASE 3600MM<36W> (G) ID=15 L=65	1-09700-466-0	05	1	1402-
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM<42W> (A) ID=11 L=41	1-09700-403-0	01	1	1402-
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM<42W> (G) ID=15 L=65	1-09700-466-0	11	1	1402-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM<50W> (G) ID=15 L=65	1-09700-466-0	15	1	1402-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM<55W> (G) ID=15 L=65	1-09700-466-0	19	1	1402-
178	GROMMET; HARNESS 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W>,WHEEL BASE 4200MM<42W>, WHEELBASE 5000MM<50W> (C) ID=24 OD=30 T=17	9-09956-092-1	01	1	1406-
178	GROMMET; HARNESS 4HK1-TCS ENG<RJS> WHEEL BASE 5500MM<55W> (D) ID=24 OD=30 T=22	1-09332-104-0	01	1	1406-
178	GROMMET; HARNESS WHEEL BASE 3600MM<36W>,WHEEL BASE 4200MM<42W>, WHEELBASE 5000MM<50W> (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	1402-
178	GROMMET; HARNESS WHEEL BASE 3600MM<36W>,WHEEL BASE 4200MM<42W>, WHEELBASE 5000MM<50W> POOR QUALITY DIESEL FUEL<KF0> (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	1402-1405
178	GROMMET; HARNESS 6HK1-TCN ENG<82L> WHEEL BASE 3600MM<36W>,WHEEL BASE 4200MM<42W>, WHEELBASE 5000MM<50W> (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	1402-1405
178	GROMMET; HARNESS 6HK1-TCN ENG<82L> WHEEL BASE 3600MM<36W>,WHEEL BASE 4200MM<42W>, WHEELBASE 5000MM<50W> (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	1402-1405
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	1402-1405
178	GROMMET; HARNESS 4HK1-TCS ENG<RJS> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	1406-
178	GROMMET; HARNESS WHEEL BASE 3600MM<36W>,WHEEL BASE 4200MM<42W>, WHEELBASE 5000MM<50W> POOR QUALITY DIESEL FUEL<KF0> (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	1406-
178	GROMMET; HARNESS WHEEL BASE 3600MM<36W>,WHEEL BASE 4200MM<42W>, WHEELBASE 5000MM<50W> (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	1406-
178	GROMMET; HARNESS 6HK1-TCN ENG<82L> WHEEL BASE 3600MM<36W>,WHEEL BASE 4200MM<42W>, WHEELBASE 5000MM<50W> (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	1406-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	1406-
178	GROMMET; HARNESS WHEEL BASE 5500MM<55W> (B) ID=28 OD=35 T=25	1-09332-011-1	02	1	1402-
178	GROMMET; HARNESS 6HK1-TCN ENG<82L> WHEEL BASE 5500MM<55W> (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	1402-
178	GROMMET; HARNESS WHEEL BASE 5500MM<55W> (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	1402-
178	GROMMET; HARNESS WHEEL BASE 5500MM<55W> POOR QUALITY DIESEL FUEL<KF0> (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	1402-
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	05	1	1402-
208	CLIP; HARNESS,MAG VLV 6HK1-TCN ENG<82L> PTO CONTROL<SV6> L=250	5-09707-030-1	01	1	1402-1405
208	CLIP; HARNESS,MAG VLV 6HK1-TCN ENG<82L> PTO CONTROL<SV6> L=250	5-09707-030-1	01	1	1406-
208	CLIP; HARNESS,MAG VLV 4HK1-TCS ENG<RJS> L=250	5-09707-030-1	01	1	1406-
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	02	1	1402-
225	CLIP; AIR TANK HARNESS L=250	5-09707-030-1	02	1	1402-
305	CLIP; ENG HARNESS 4HK1-TCS ENG<RJS> (K) L=300	1-09707-001-1	01	1	1406-
305	CLIP; ENG HARNESS 4HK1-TCS ENG<RJS> (L) L=140	5-09707-031-1	02	1	1406-1409
305	CLIP; ENG HARNESS 4HK1-TCS ENG<RJS> (L) L=140	5-09707-031-1	01	1	1410-
305	CLIP; ENG HARNESS 6HK1-TCN ENG<82L> (J) ID=16 L=28	0-95235-556-0	02	1	1402-
305	CLIP; ENG HARNESS 6HK1-TCN ENG<82L> (H) ID=16 L=40	0-95235-576-0	01	1	1402-
305	CLIP; ENG HARNESS 6HK1-TCN ENG<82L> (E) ID=24 L=32	1-09700-766-1	01	1	1402-
305	CLIP; ENG HARNESS 6HK1-TCN ENG<82L> (D) ID=20 H=23 L=27	1-09700-861-0	01	1	1402-
305	CLIP; ENG HARNESS 6HK1-TCN ENG<82L> (F) ID=19 L=39 H=21	1-09700-972-1	01	1	1402-
305	CLIP; ENG HARNESS 6HK1-TCN ENG<82L> (C) ID=26 L=27	1-09701-006-0	01	1	1402-
305	CLIP; ENG HARNESS 6HK1-TCN ENG<82L> (A) ID=25 L=60	1-09701-041-1	01	1	1402-
305	CLIP; ENG HARNESS 6HK1-TCN ENG<82L> (I) OD=9 H=6	1-09709-178-0	01	1	1402-
305	CLIP; ENG HARNESS (G) ID=21 L=47.5	8-94178-108-0	01	1	1402-1402
305	CLIP; ENG HARNESS 6HK1-TCN ENG<82L> (B) ID=18 L=44	8-97367-985-1	01	1	1402-
503	CONNECTOR 6HK1-TCN ENG<82L>	1-82690-668-0	01	1	1402-
530	SEAL; HARNESS 180X40	1-72498-019-1	06	1	1402-
538	SEAL; HOLE OD=25 BLACK THA	1-76798-019-0	01	1	1402-

16 16 305 305 116 483 483 49 305 305 49 483 16 171 223 305 470 16 16 48 16 213 48 48 48 48 305 305 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS 4HK1-TCS ENG<RJS> (M) ID=24 L=24	1-09701-001-1	01	1	1406-
16	CLIP; HARNESS 4HK1-TCS ENG<RJS> (L) ID=17 L=21	8-98082-035-0	01	1	1406-
16	CLIP; HARNESS 4HK1-TCS ENG<RJS> EXC. ENGINE HIGH TORQUE<Q5W> (M) ID=24 L=24	1-09701-001-1	02	1	1406-
16	CLIP; HARNESS (G) ID=16 L=28	0-95235-556-0	02	1	1402-
16	CLIP; HARNESS (E) ID=14 H=50 L=20	1-09700-843-0	02	1	1402-
16	CLIP; HARNESS 6HK1-TCN ENG<82L> (H) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1402-
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1402-
16	CLIP; HARNESS (J) L=350	1-09707-183-0	02	1	1402-
16	CLIP; HARNESS (F) L=250	5-09707-030-1	03	1	1402-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1402-
16	CLIP; HARNESS (B) L=155 THA	8-97173-307-0	18	1	1402-
16	CLIP; HARNESS (D) L=40.6 THA	8-97229-357-0	02	1	1402-
16	CLIP; HARNESS (C) THA	8-98052-679-0	02	1	1402-
16	CLIP; HARNESS (K) ID=14 L=44	9-09917-427-0	03	1	1402-
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (I) ID=11 L=41	1-09700-403-0	02	1	1402-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG<RJS> (A) ID=11 L=41	1-09700-403-0	05	1	1406-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG<RJS> (G) ID=15 L=65	1-09700-466-0	01	1	1406-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG<RJS> (I) L=250	5-09707-030-1	01	1	1406-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> (G) ID=15 L=65	1-09700-466-0	04	1	1406-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG<82L> (A) ID=11 L=41	1-09700-403-0	02	1	1402-
48	CLIP; FRAME HARNESS (G) ID=15 L=65	1-09700-466-0	02	1	1402-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG<82L> (G) ID=15 L=65	1-09700-466-0	02	1	1402-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG<82L> (H) ID=20 L=70	1-09700-485-0	02	1	1402-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG<82L> (D) ID=28 L=78	1-09700-858-0	02	1	1402-
48	CLIP; FRAME HARNESS (E) ID=35 L=50	1-09701-214-0	01	1	1402-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG<82L> (B) ID=33 L=83	1-09701-291-0	04	1	1402-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	01	1	1402-
48	CLIP; FRAME HARNESS (F) L=140 THA	8-97920-656-0	02	1	1402-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG<82L> (H) ID=20 L=70	1-09700-485-0	01	1	1402-
48	CLIP; FRAME HARNESS 6HK1-TCN ENG<82L> WHEEL BASE 3600MM<36W> (G) ID=15 L=65	1-09700-466-0	03	1	1402-
48	CLIP; FRAME HARNESS WHEEL BASE 3600MM<36W> (G) ID=15 L=65	1-09700-466-0	05	1	1402-
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM<42W> (A) ID=11 L=41	1-09700-403-0	01	1	1402-
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM<42W> (G) ID=15 L=65	1-09700-466-0	11	1	1402-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM<50W> (G) ID=15 L=65	1-09700-466-0	15	1	1402-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM<55W> (G) ID=15 L=65	1-09700-466-0	19	1	1402-
49	CLIP; GEN HARNESS 4HK1-TCS ENG<RJS> (A) ID=21 H=21 L=39	8-98230-579-0	01	1	1406-
49	CLIP; GEN HARNESS 4HK1-TCS ENG<RJS> EXC. ENGINE HIGH TORQUE<Q5W> (B) ID=19 L=39 H=21	1-09700-972-1	01	1	1406-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	03	1	1402-
171	CLIP; STARTER HARNESS 4HK1-TCS ENG<RJS> (B) OD=8 H=3.8	1-09709-309-0	01	1	1406-
171	CLIP; STARTER HARNESS 4HK1-TCS ENG<RJS> (A)	8-97101-436-0	01	1	1406-
213	CLIP; END CROSS HARNESS ID=14 L=44	9-09917-427-0	03	1	1402-
223	CLIP; AIR TANK HARNESS OD=9 H=6	1-09709-178-0	01	1	1402-
305	CLIP; ENG HARNESS 4HK1-TCS ENG<RJS> (K) L=300	1-09707-001-1	01	1	1406-
305	CLIP; ENG HARNESS 4HK1-TCS ENG<RJS> (L) L=140	5-09707-031-1	02	1	1406-1409
305	CLIP; ENG HARNESS 4HK1-TCS ENG<RJS> (L) L=140	5-09707-031-1	01	1	1410-
305	CLIP; ENG HARNESS 6HK1-TCN ENG<82L> (J) ID=16 L=28	0-95235-556-0	02	1	1402-
305	CLIP; ENG HARNESS 6HK1-TCN ENG<82L> (H) ID=16 L=40	0-95235-576-0	01	1	1402-
305	CLIP; ENG HARNESS 6HK1-TCN ENG<82L> (E) ID=24 L=32	1-09700-766-1	01	1	1402-
305	CLIP; ENG HARNESS 6HK1-TCN ENG<82L> (D) ID=20 H=23 L=27	1-09700-861-0	01	1	1402-
305	CLIP; ENG HARNESS 6HK1-TCN ENG<82L> (F) ID=19 L=39 H=21	1-09700-972-1	01	1	1402-
305	CLIP; ENG HARNESS 6HK1-TCN ENG<82L> (C) ID=26 L=27	1-09701-006-0	01	1	1402-
305	CLIP; ENG HARNESS 6HK1-TCN ENG<82L> (A) ID=25 L=60	1-09701-041-1	01	1	1402-
305	CLIP; ENG HARNESS 6HK1-TCN ENG<82L> (I) OD=9 H=6	1-09709-178-0	01	1	1402-
305	CLIP; ENG HARNESS (G) ID=21 L=47.5	8-94178-108-0	01	1	1402-1402
305	CLIP; ENG HARNESS 6HK1-TCN ENG<82L> (B) ID=18 L=44	8-97367-985-1	01	1	1402-
470	CLIP; HARNESS,LICENSE LAMP OD=9 H=6	1-09709-178-0	01	1	1402-
483	CLIP; ENG HARNESS 4HK1-TCS ENG<RJS> (A) ID=18 H=23 L=28	1-09700-860-0	01	1	1406-
483	CLIP; ENG HARNESS 4HK1-TCS ENG<RJS> (B) ID=21 L=30 H=40	1-09700-991-1	01	1	1406-
483	CLIP; ENG HARNESS 4HK1-TCS ENG<RJS> (C) ID=24 L=24	1-09701-001-1	01	1	1406-
483	CLIP; ENG HARNESS 4HK1-TCS ENG<RJS> (D)	1-09987-281-0	01	1	1406-
483	CLIP; ENG HARNESS 4HK1-TCS ENG<RJS> (E) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	1406-
483	CLIP; ENG HARNESS 4HK1-TCS ENG<RJS> (F) ID=21 L=47.5	8-94178-108-0	01	1	1406-
483	CLIP; ENG HARNESS 4HK1-TCS ENG<RJS> (G) L=36	8-94224-891-1	01	1	1406-

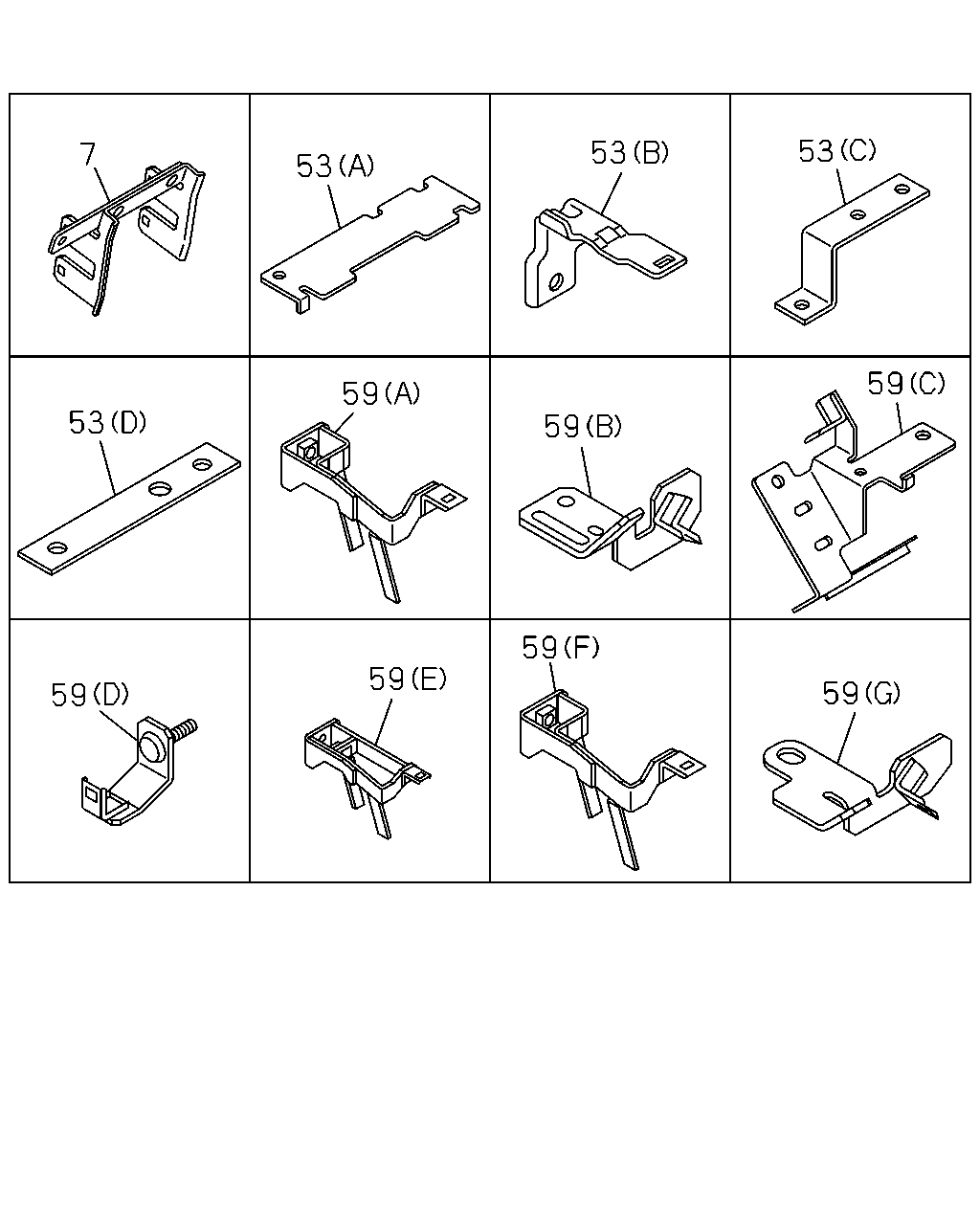

7 53 53 53 59 59 59 53 59 59 59 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	BRACKET; CONNECTOR THA	8-97925-591-0	01	1	1402-
53	BRACKET; HARNESS 4HK1-TCS ENG<RJS> POOR QUALITY DIESEL FUEL<KF0> (D) L=170	1-47479-380-0	01	1	1406-
53	BRACKET; HARNESS (B)	8-98052-458-0	01	1	1402-
53	BRACKET; HARNESS (A)	8-98127-093-0	01	1	1402-
53	BRACKET; HARNESS 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> (C)	8-98124-778-0	01	1	1402-
59	BRACKET; FRAME HARNESS 4HK1-TCS ENG<RJS> (D)	8-97612-957-1	02	1	1406-
59	BRACKET; FRAME HARNESS 4HK1-TCS ENG<RJS> (E)	8-98099-963-0	01	1	1406-
59	BRACKET; FRAME HARNESS 4HK1-TCS ENG<RJS> (F)	8-98211-162-0	01	1	1406-
59	BRACKET; FRAME HARNESS 6HK1-TCN ENG<82L> (A)	8-97609-264-2	01	1	1402-
59	BRACKET; FRAME HARNESS (B)	8-97616-305-0	01	1	1402-1502
59	BRACKET; FRAME HARNESS (G)	8-98254-592-0	01	1	1503-
59	BRACKET; FRAME HARNESS 6HK1-TCN ENG<82L> (C)	8-98107-611-0	01	1	1402-

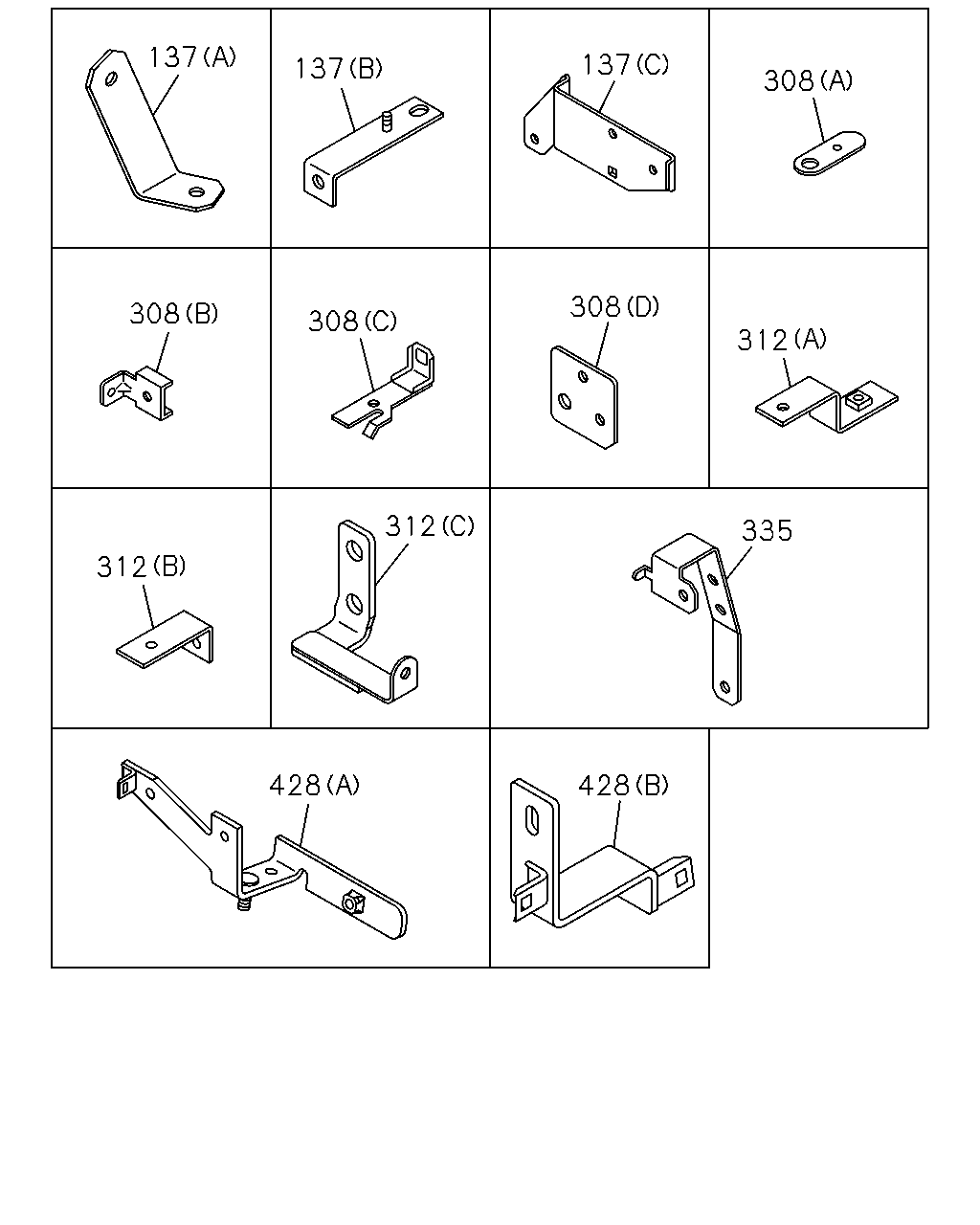

137 137 137 308 312 308 308 308 312 312 335 428 428

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
137	BRACKET; HARNESS CLAMP 4HK1-TCS ENG<RJS> (C)	8-98193-417-0	01	1	1406-
137	BRACKET; HARNESS CLAMP 6HK1-TCN ENG<82L> (A)	8-97614-728-1	01	1	1402-
137	BRACKET; HARNESS CLAMP 6HK1-TCN ENG<82L> (B)	8-97624-013-0	01	1	1402-
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG<82L> (A)	8-97601-310-0	03	1	1402-
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG<82L> (B)	8-97614-078-0	01	1	1402-
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG<82L> (C)	8-98021-291-2	01	1	1402-
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG<82L> (D)	8-98021-692-1	01	1	1402-
312	BRACKET; CLIP HARNESS 4HK1-TCS ENG<RJS> (C)	8-98094-804-0	01	1	1406-
312	BRACKET; CLIP HARNESS (B) L=55	1-47475-304-0	01	1	1402-
312	BRACKET; CLIP HARNESS (A)	8-97609-110-1	01	1	1402-
335	BRACKET; CONNECTOR	8-97619-097-1	01	1	1402-
428	BRACKET 4HK1-TCS ENG<RJS> (B)	8-98203-354-2	01	1	1406-
428	BRACKET 6HK1-TCN ENG<82L> (A)	8-98212-082-1	01	1	1402-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
