3 - Brakes, Brake System
▶

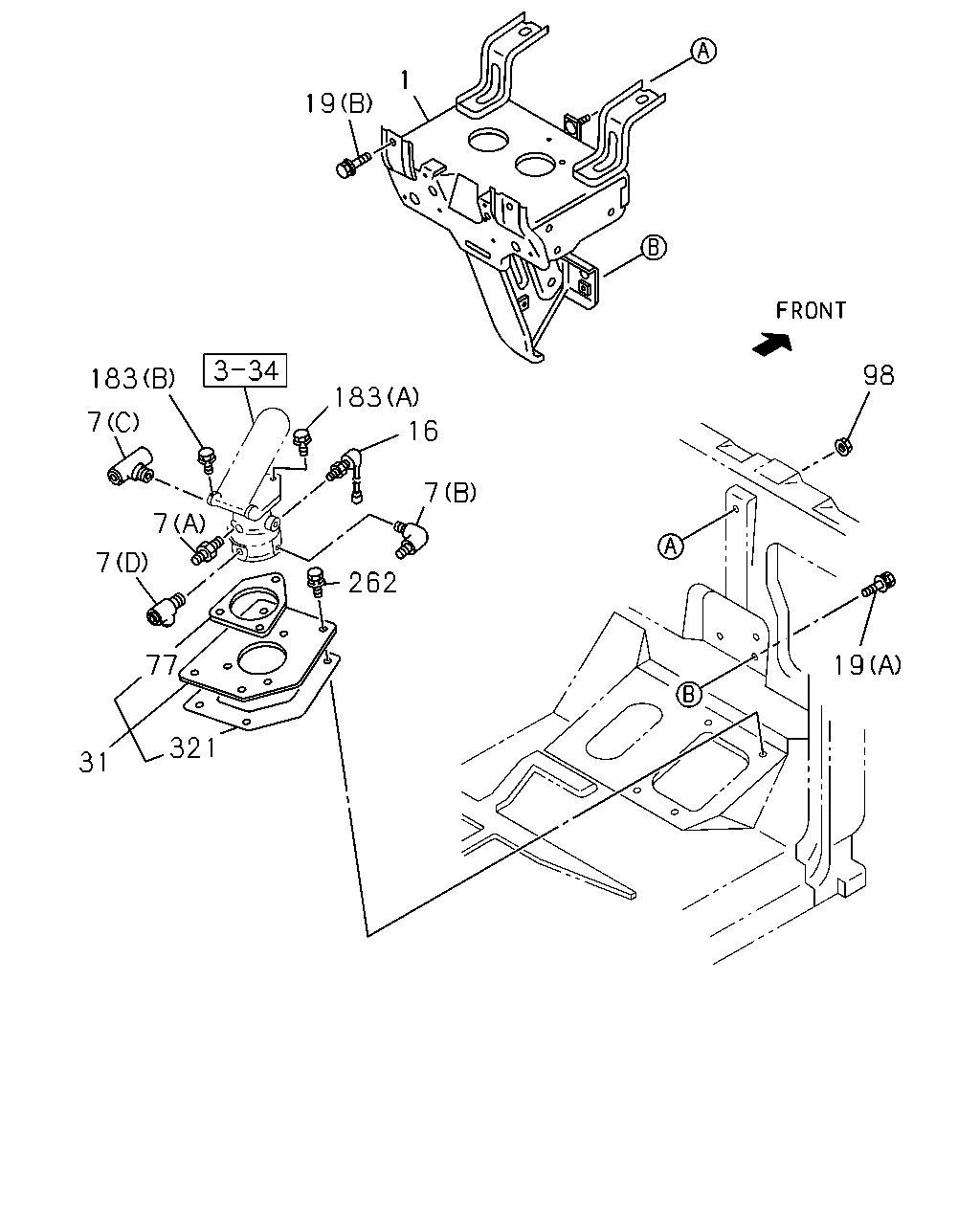

3-10 - BRAKE PEDAL AND CONTROL
▶
3-10 — BRAKE PEDAL AND CONTROL
(#13344) — 16 parça
Tümü
A - CXZ5MC
B - CXZ5MF
98
19
1
19
183
7
16
262
321
31
77
7
7
7
183
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
BRACKET ASM; PEDAL
ISUZU M/T<X9A>,FULLER M/T<X9B>
1-73908-280-1
01
1
0105-
●
●
1
BRACKET ASM; PEDAL
ZF M/T<X9E>
1-73907-392-6
01
1
0105-
●
●
7
CONNECTOR; BRK VALVE
(B) DIN8 & R3/8 ELBOW
1-09660-957-0
01
1
0105-
●
●
7
CONNECTOR; BRK VALVE
(A) DIN8 & R3/8 STRAIGHT
1-09660-964-0
01
1
0105-
●
●
7
CONNECTOR; BRK VALVE
(C)
1-09661-284-0
01
1
0105-
●
●
7
CONNECTOR; BRK VALVE
(D)
1-09661-285-0
01
1
0105-
●
●
16
SWITCH; STOP LAMP
GREEN
1-82410-176-1
02
1
0105-
●
●
19
BOLT; BRKT
(A) M8X20
1-79198-002-0
02
1
0105-
●
●
19
BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER
8-94279-208-0
02
1
0105-
●
●
31
PLATE; MTG,BRKT VLV
1-73996-271-3
01
1
0105-
●
●
77
RUBBER; SEAL,BRK
1-73996-207-0
01
1
0105-
●
●
98
NUT; BRKT
M8 FLANGE W/RUBBER
1-09984-176-0
02
1
0105-
●
●
183
BOLT; BRK VLV
(A) M10X25 W/LK WASHER
1-09980-503-0
01
1
0105-
●
●
183
BOLT; BRK VLV
(B) M10X35 W/LK WASHER
1-09980-504-0
02
1
0105-
●
●
262
BOLT; PLATE
M8X24.5 W/LK&PL WASHER
8-94279-208-0
04
1
0105-
●
●
321
SEAL; VALVE
1-73996-143-0
01
1
0105-
●
●
