Isuzu WW
▶
TRUCKS
▶
FTR
▶
11575 - FTR(THAI)EURO3
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-40 - INSTRUMENT PANEL AND BOX
▶
7-40 — INSTRUMENT PANEL AND BOX
(#133431) — 108 parça
◀

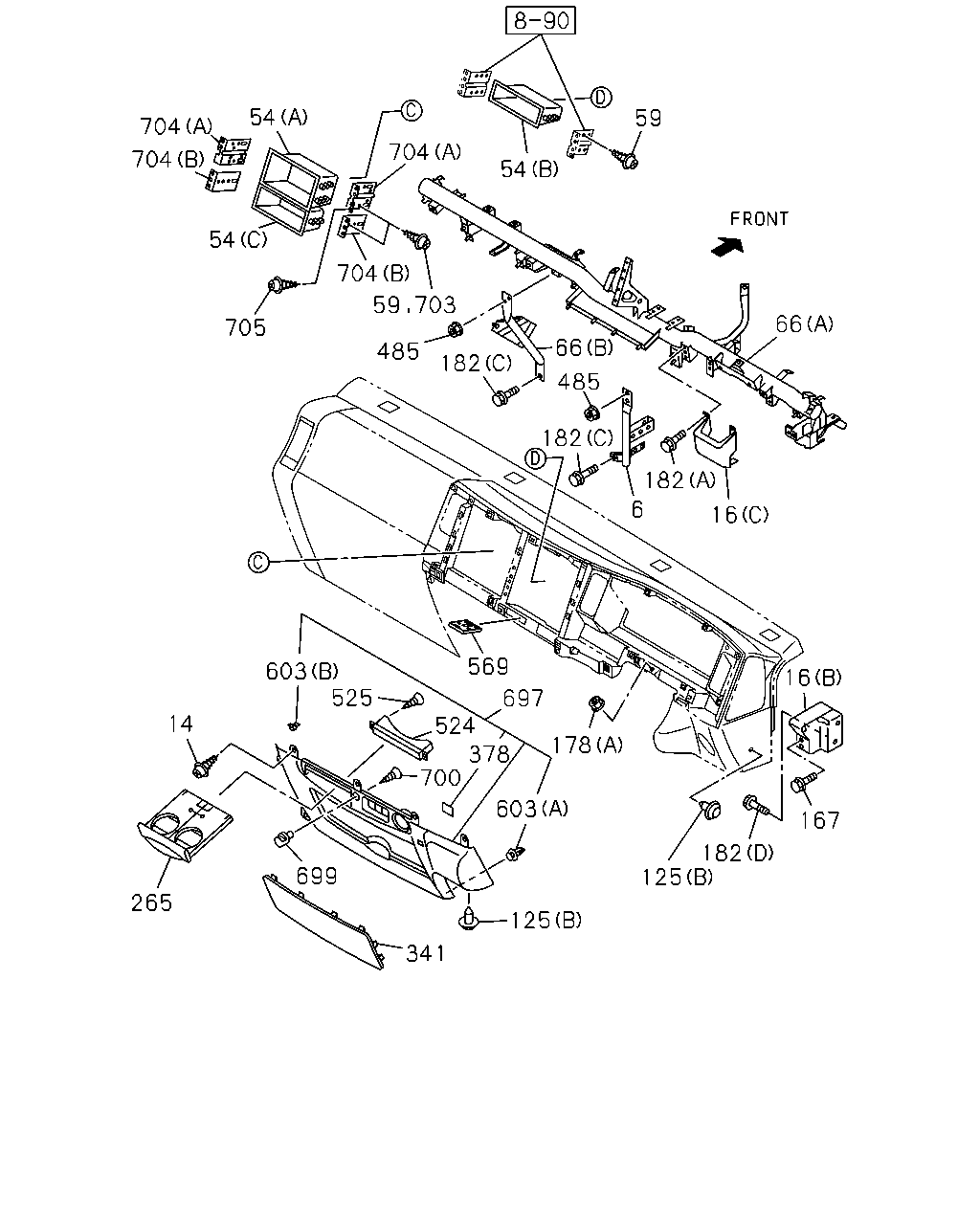

[740A] REINFORCEMENT AND OTHER PARTS (41 parça)

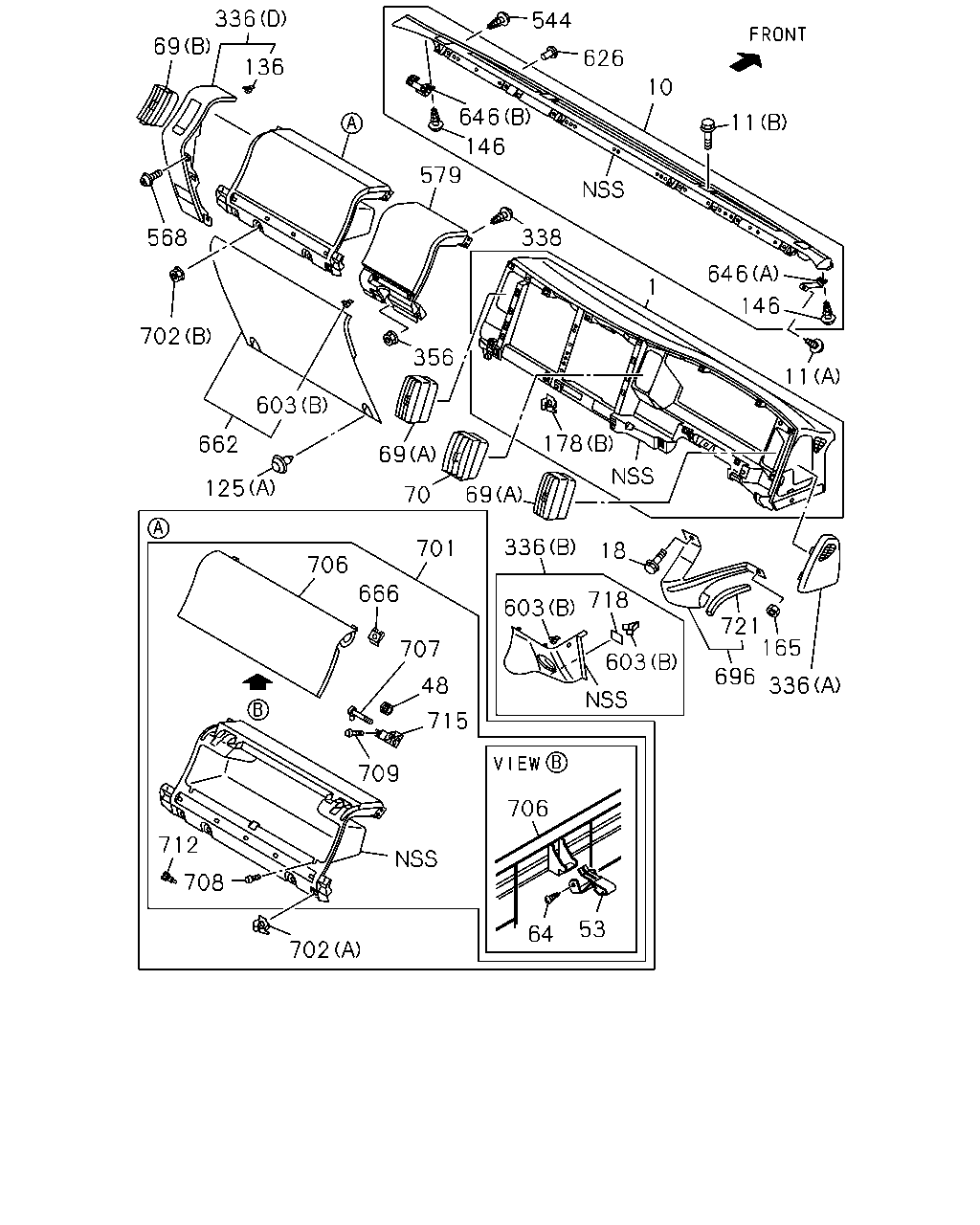

[740A] INST PANEL AND OTHER PARTS (49 parça)

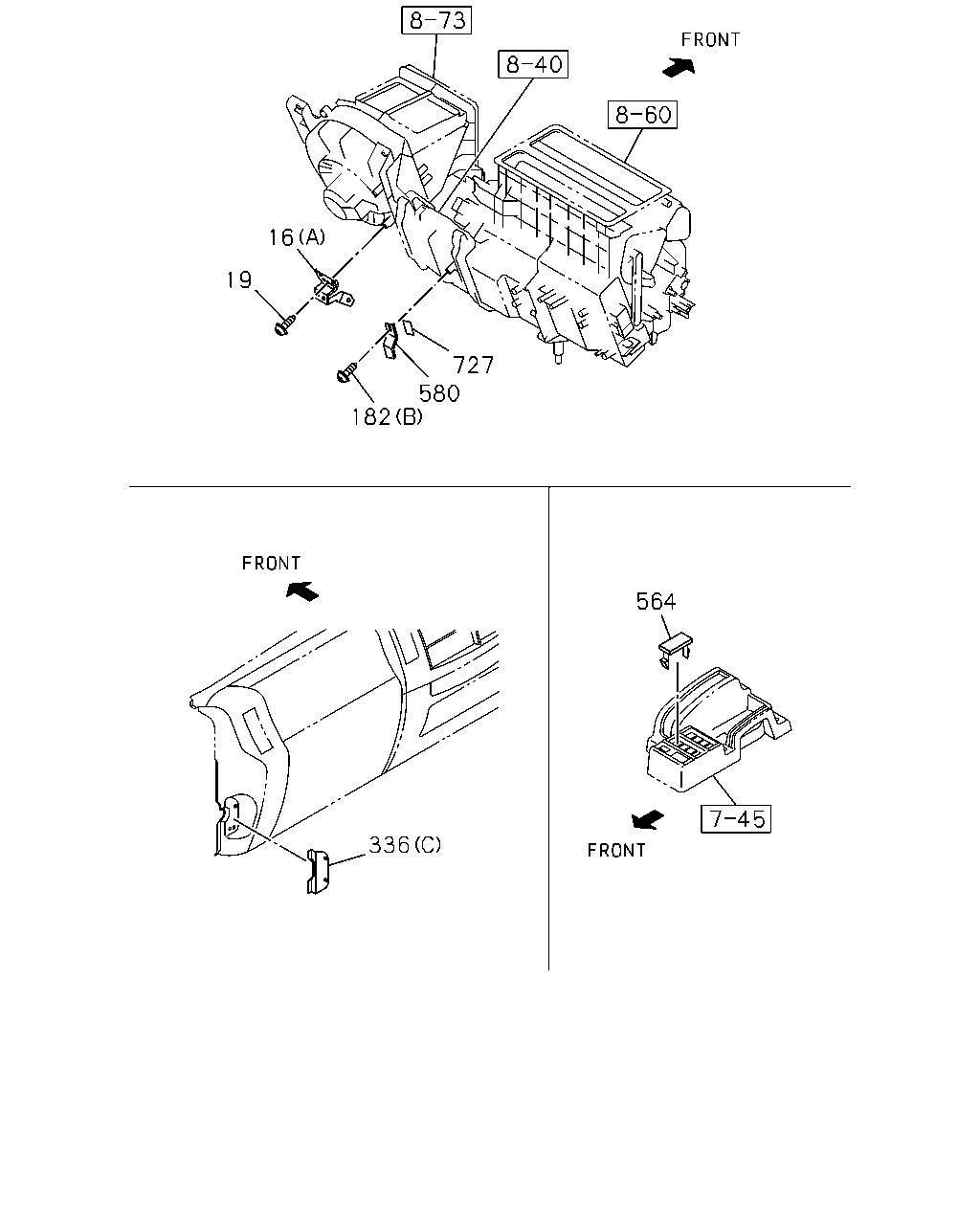

[740A] BRACKET AND COVER (18 parça)
▶
704
704
54
705
704
704
54
59
703
182
485
66
54
59
66
485
182
182
16
6
603
569
697
524
525
700
603
16
167
182
125
125
341
699
265
14
178
378
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
SUPPORT; INST PANEL
8-98196-255-0
01
1
1402-
14
SCREW; INST PNL
T25 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
04
1
1402-
16
BRACKET; INST PNL
(A)
8-97585-612-2
01
1
1402-
16
BRACKET; INST PNL
(C)
8-98053-711-0
01
1
1402-
16
BRACKET; INST PNL
(B) THA
8-97926-512-0
01
1
1402-
16
BRACKET; INST PNL
(B) THA
8-97926-511-0
01
1
1402-
54
POCKET; CENTER CLUSTER
(B) THA
8-97926-412-0
01
1
1402-
54
POCKET; CENTER CLUSTER
(C) THA
8-97926-414-0
01
1
1402-
54
POCKET; CENTER CLUSTER
(A) THA
8-97926-874-0
01
1
1402-
59
SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR
8-98058-632-0
04
1
1402-
66
REINFORCEMENT; INST PANEL
(B)
8-98151-167-0
01
1
1402-
66
REINFORCEMENT; INST PANEL
(A)
8-98174-904-1
01
1
1402-1406
66
REINFORCEMENT; INST PANEL
(A)
8-98240-609-0
01
1
1407-
125
CLIP; INST PANEL
(B) GRAY
8-97408-817-0
04
1
1402-
125
CLIP; INST PANEL
(A) GRAY
8-97419-968-1
02
1
1402-
167
BOLT; REINF TO INST
M8X23 FLANGE
8-97264-766-0
04
1
1402-
178
NUT; INST PANEL
(A) M6 FLANGE THA
0-91180-106-0
01
1
1402-
178
NUT; INST PANEL
(B) THA
8-97926-385-0
30
1
1402-
182
BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE THA
0-28050-816-0
04
1
1402-
182
BOLT; BRKT,INST PANEL
(A) T25 M6X12 HEXALOBULAR SOCKET THA
0-38050-612-0
02
1
1402-
182
BOLT; BRKT,INST PANEL
(B) T25 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
01
1
1402-
182
BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER
8-98018-439-0
01
1
1402-
265
HOLDER; CUP
GRAY
8-97418-528-0
01
1
1402-
341
LID; FUSE BOX
THA
8-97926-881-0
01
1
1402-
378
SEAL; INST PANEL
THA
8-97926-891-0
01
1
1402-
485
NUT; SUPPORT CLIP,HARNESS
M6 FLANGE THA
0-91180-106-0
04
1
1402-
524
STAND ASM; CUP,INST
8-98054-414-0
01
1
1402-
525
SCREW; CUP STAND
T25 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
03
1
1402-
569
HOLDER; CARD
8-97410-276-1
01
1
1402-
603
CLIP; COVER
(B) THA
8-97926-387-0
04
1
1402-
603
CLIP; COVER
(B) THA
8-97926-387-0
05
1
1402-
603
CLIP; COVER
(A) THA
8-97926-890-0
01
1
1402-
697
PANEL; INST CENTER
THA
8-97926-880-0
01
1
1402-
699
HOOK; INST PANEL
GRAY
8-97408-927-0
01
1
1402-
700
BOLT; HOOK
T25 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
01
1
1402-
703
SCREW; CENTER POCKET
T25 L=10 HEXALOBULAR
8-98058-632-0
04
1
1402-
704
BRACKET; CENTER POCKET
(B)
8-97585-616-2
02
1
1402-
704
BRACKET; CENTER POCKET
(A)
8-97585-618-2
02
1
1402-
705
SCREW; BRACKET CENTER POCKET
T25 M5X20 TAPPING HEXALOBULAR
0-72180-520-0
08
1
1402-
715
SUPPORT; TRAY,HINGE
THA
8-97926-396-0
01
1
1402-
715
SUPPORT; TRAY,HINGE
THA
8-97926-397-0
01
1
1402-
336
69
136
568
702
579
146
646
544
626
10
11
338
1
646
146
11
178
356
603
662
125
706
70
68
68
336
701
666
18
603
718
603
707
48
718
709
712
708
702
64
53
706
696
336
165
721
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PANEL; INST
THA
8-97926-376-1
01
1
1402-
10
PANEL ASM; GARNISH
GRAY
8-97422-097-1
01
1
1402-
11
BOLT; INST PNL
(A) T25 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
08
1
1402-
11
BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER
8-98018-440-0
04
1
1402-
18
BOLT; BRKT
T25 M6X12 HEXALOBULAR SOCKET THA
0-38050-612-0
01
1
1402-
48
SPRING; GLOVE BOX LID
THA
8-97926-410-0
01
1
1402-
48
SPRING; GLOVE BOX LID
THA
8-97926-411-0
01
1
1402-
53
STRIKER; GLOVE BOX
THA
8-97926-403-1
01
1
1402-
64
SCREW; STRIKER
M4X85 THA
8-97926-404-0
01
1
1402-
69
GRILLE; SIDE,AIR OUTLET
(A)
8-98028-561-2
02
1
1402-
69
GRILLE; SIDE,AIR OUTLET
(B)
8-98028-562-2
01
1
1402-
70
GRILLE; CENTER,AIR OUTLET
8-98028-563-2
01
1
1402-
125
CLIP; INST PANEL
(B) GRAY
8-97408-817-0
04
1
1402-
125
CLIP; INST PANEL
(A) GRAY
8-97419-968-1
02
1
1402-
136
CLIP; INST COVER
THA
8-97926-885-0
02
1
1402-
146
SCREW; TAP
T25 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
03
1
1402-
165
NUT; BRKT KNEE PAD
M6 FLANGE THA
0-91180-106-0
01
1
1402-
178
NUT; INST PANEL
(A) M6 FLANGE THA
0-91180-106-0
01
1
1402-
178
NUT; INST PANEL
(B) THA
8-97926-385-0
30
1
1402-
336
COVER; INST PANEL SIDE
(A) THA
8-97926-875-0
01
1
1402-
336
COVER; INST PANEL SIDE
(D) THA
8-97926-876-0
01
1
1402-
336
COVER; INST PANEL SIDE
(C) THA
8-97926-879-0
01
1
1402-
336
COVER; INST PANEL SIDE
(B) THA
8-97926-882-0
01
1
1402-
338
SCREW; COVER
T25 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
04
1
1402-
356
NUT; COVER
M6 FLANGE THA
0-91180-106-0
01
1
1402-
544
SCREW; TRAY
T25 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
03
1
1402-
568
BOLT; COVER
T25 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
01
1
1402-
579
COVER; INST PNL
THA
8-97926-878-0
01
1
1402-
603
CLIP; COVER
(B) THA
8-97926-387-0
04
1
1402-
603
CLIP; COVER
(B) THA
8-97926-387-0
05
1
1402-
603
CLIP; COVER
(A) THA
8-97926-890-0
01
1
1402-
626
RETAINER
OD=15 BLACK
8-94279-804-0
02
1
1402-
646
BRACKET; GARNISH PANEL
(A)
8-98051-490-2
01
1
1402-
646
BRACKET; GARNISH PANEL
(B)
8-98051-492-2
01
1
1402-
662
COVER; LWR,INST PANEL
THA
8-97926-877-0
01
1
1402-
666
INSERT; INST PANEL
M5 THA
8-97926-400-0
04
1
1402-
696
BRACKET; KNEE
8-98066-085-1
01
1
1402-
701
TRAY; INST
THA
8-97926-381-1
01
1
1402-
702
NUT; TRAY
(B) M6 FLANGE THA
0-91180-106-0
02
1
1402-
702
NUT; TRAY
(A)
8-98037-629-0
01
1
1402-
706
LID; TRAY INST
THA
8-97926-402-1
01
1
1402-
707
SHAFT; TRAY INST LID
THA
8-97926-393-0
02
1
1402-
708
STOPPER; TRAY INST LID
THA
8-97926-394-0
02
1
1402-
709
SCREW; TRAY INST
M5X16 TAPPING THA
0-71040-516-0
04
1
1402-
712
LOCK; TRAY INST LID
THA
8-97926-395-0
01
1
1402-
715
SUPPORT; TRAY,HINGE
THA
8-97926-396-0
01
1
1402-
715
SUPPORT; TRAY,HINGE
THA
8-97926-397-0
01
1
1402-
718
SEAL; COVER
THA
8-97926-893-0
01
1
1402-
721
FINISHER; BRKT,KNEE
L=140
8-97892-742-0
01
1
1402-
16
19
727
580
182
336
564
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
16
BRACKET; INST PNL
(A)
8-97585-612-2
01
1
1402-
16
BRACKET; INST PNL
(C)
8-98053-711-0
01
1
1402-
16
BRACKET; INST PNL
(B) THA
8-97926-512-0
01
1
1402-
16
BRACKET; INST PNL
(B) THA
8-97926-511-0
01
1
1402-
19
SCREW; BRKT
T25 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
01
1
1402-
182
BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE THA
0-28050-816-0
04
1
1402-
182
BOLT; BRKT,INST PANEL
(A) T25 M6X12 HEXALOBULAR SOCKET THA
0-38050-612-0
02
1
1402-
182
BOLT; BRKT,INST PANEL
(B) T25 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
01
1
1402-
182
BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER
8-98018-439-0
01
1
1402-
336
COVER; INST PANEL SIDE
(A) THA
8-97926-875-0
01
1
1402-
336
COVER; INST PANEL SIDE
(D) THA
8-97926-876-0
01
1
1402-
336
COVER; INST PANEL SIDE
(C) THA
8-97926-879-0
01
1
1402-
336
COVER; INST PANEL SIDE
(B) THA
8-97926-882-0
01
1
1402-
564
COVER; SW
8-97043-732-1
06
1
1402-
580
BRACKET; COVER
8-98017-528-1
01
1
1402-
715
SUPPORT; TRAY,HINGE
THA
8-97926-396-0
01
1
1402-
715
SUPPORT; TRAY,HINGE
THA
8-97926-397-0
01
1
1402-
727
SEAL; BRACKET
8-98186-934-0
01
1
1402-
