◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11575 - FTR(THAI)EURO3 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-20 - MIRROR AND MIRROR STAY ▶
7-20 — MIRROR AND MIRROR STAY (#133429) — 89 parça

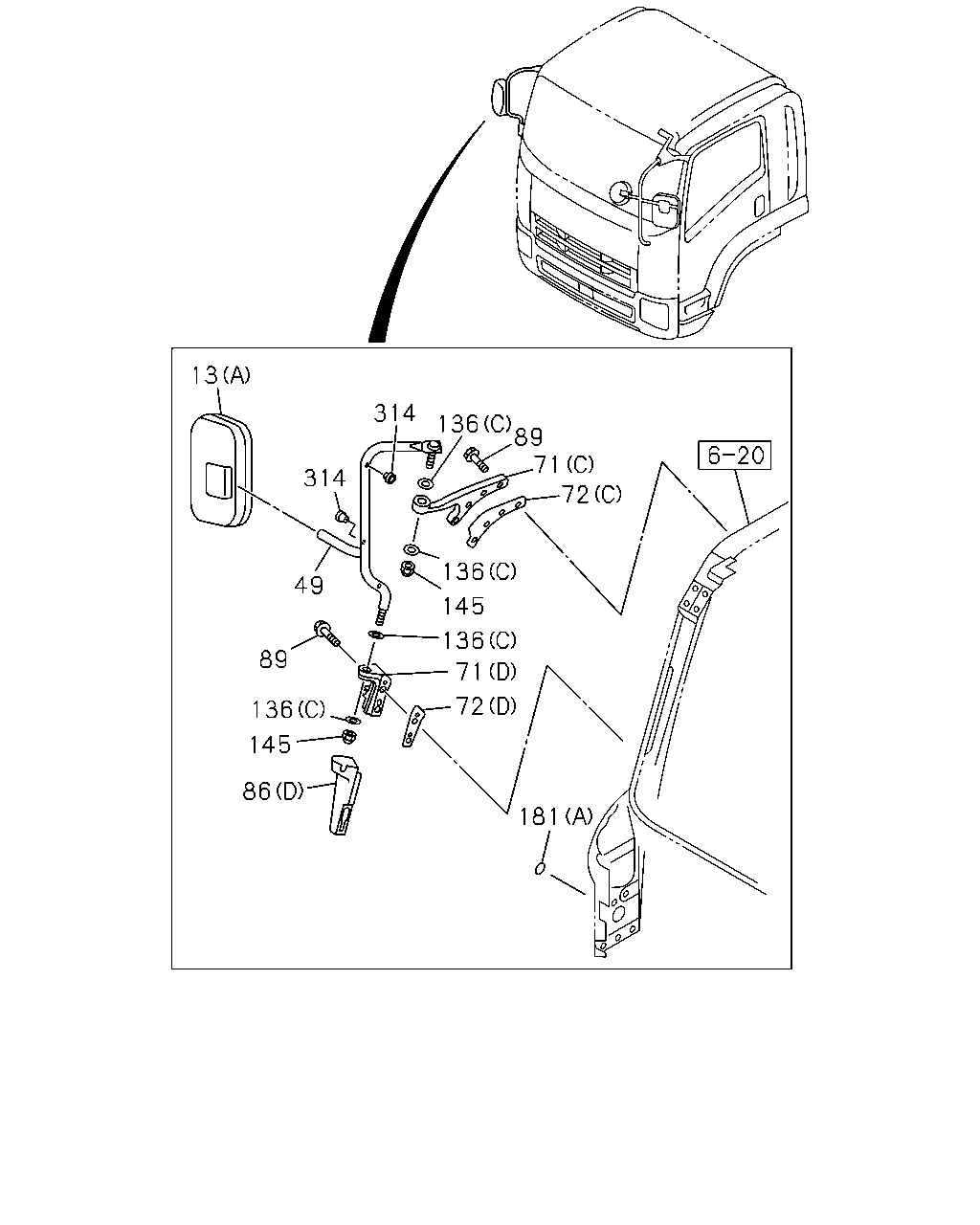

çizim 408030
13 314 314 136 89 71 72 136 145 136 71 72 49 89 136 145 86 181
BalonParca AdiParca NoAdetTipApplied Date
13 MIRROR ASM; OUTSIDE RR VIEW
(A) 		8-98028-332-0 01 1 1402-
13 MIRROR ASM; OUTSIDE RR VIEW
(B) 		8-98045-690-0 01 1 1402-
13 MIRROR ASM; OUTSIDE RR VIEW
(A) 		8-98104-068-0 01 1 1402-
13 MIRROR ASM; OUTSIDE RR VIEW
(B) 		8-98108-511-0 01 1 1402-
49 STAY; MIRROR SIDE 8-98085-112-1 01 1 1402-
49 STAY; MIRROR SIDE 8-98091-477-0 01 1 1402-1502
49 STAY; MIRROR SIDE 8-98305-582-0 01 1 1503-
71 BRACKET; OUTSIDE MIRROR
(E) 		1-71707-224-0 02 1 1402-
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98040-021-0 01 1 1402-
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98040-022-1 01 1 1402-
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98040-543-1 01 1 1402-
71 BRACKET; OUTSIDE MIRROR
(B) 		8-98201-957-0 01 1 1402-
72 SHEET
(C) 		8-98040-351-0 01 1 1402-
72 SHEET
(D) 		8-98040-353-1 01 1 1402-
72 SHEET
(A) 		8-98040-535-0 01 1 1402-
72 SHEET
(B) 		8-98040-537-1 01 1 1402-
86 COVER; STAY,OUTSIDE MIRROR
(A) BLACK 		1-71737-649-1 01 1 1402-
86 COVER; STAY,OUTSIDE MIRROR
(B) 		8-98040-545-1 01 1 1402-
86 COVER; STAY,OUTSIDE MIRROR
(C) 		8-98040-546-1 01 1 1402-
86 COVER; STAY,OUTSIDE MIRROR
(D) 		8-98040-541-1 01 1 1402-
89 SCREW; BRKT,OUTSIDE MIRROR
M8X26 W/PL WASHER 		8-98067-249-2 10 1 1402-
136 WASHER; LK,BRKT,MIRROR STAY
(A) ID=10 		1-09985-180-0 01 1 1402-
136 WASHER; LK,BRKT,MIRROR STAY
(B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 02 1 1402-
136 WASHER; LK,BRKT,MIRROR STAY
(C) ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 1402-
145 NUT; CAP,SUB STAY
M10 CAP NUT 		1-09984-134-0 03 1 1402-
181 SEAL; BRKT
(B) 25X25 		8-94272-533-0 01 1 1402-
181 SEAL; BRKT
(A) OD=25 BLACK THA 		1-76798-019-0 01 1 1402-
314 BUFFER; STOPPER 8-94314-317-0 02 1 1402-

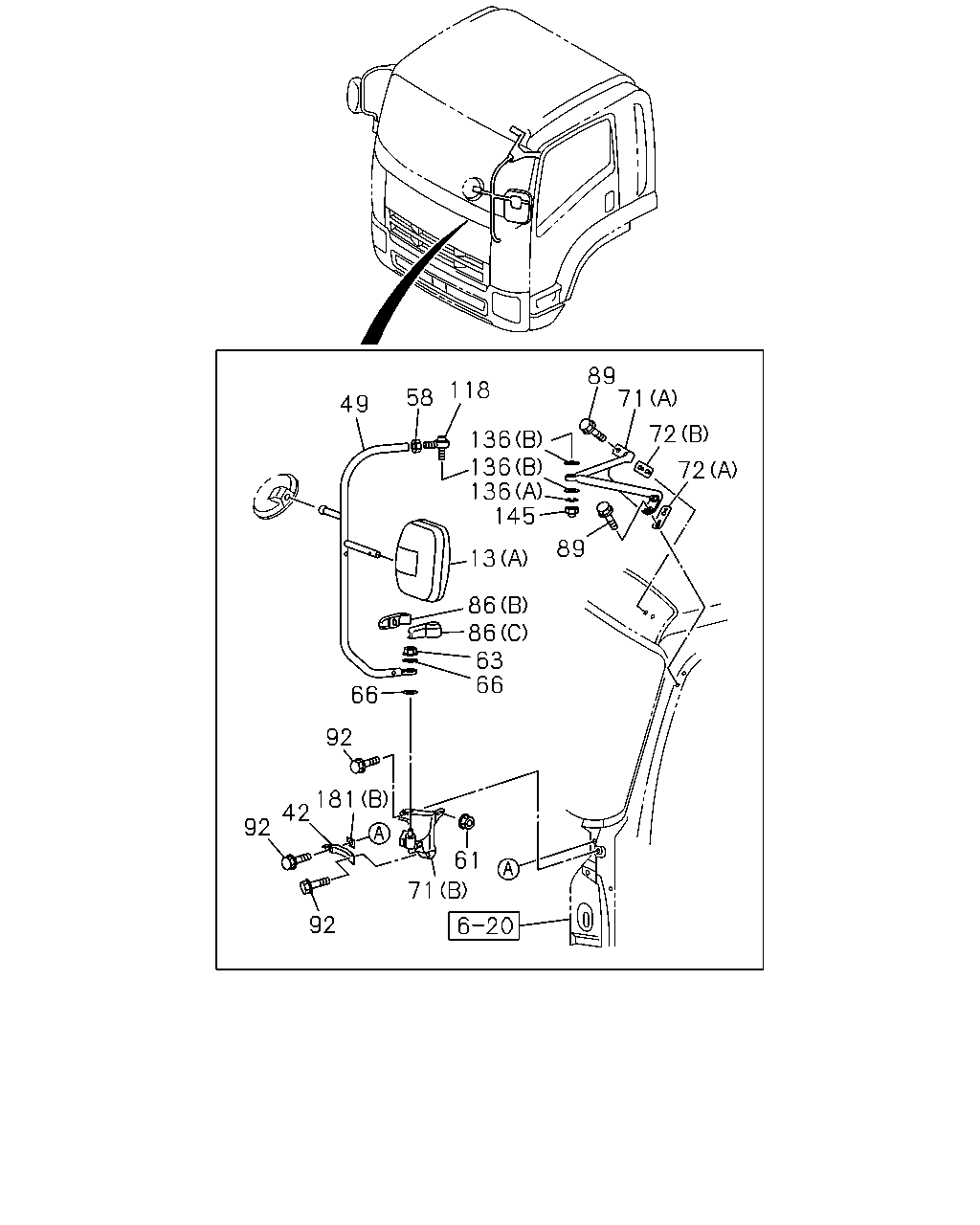

çizim 408119
49 58 118 136 136 136 145 89 13 86 86 63 66 66 92 181 42 92 92 71 61 72 72 71 89
BalonParca AdiParca NoAdetTipApplied Date
13 MIRROR ASM; OUTSIDE RR VIEW
(A) 		8-98028-332-0 01 1 1402-
13 MIRROR ASM; OUTSIDE RR VIEW
(B) 		8-98045-690-0 01 1 1402-
13 MIRROR ASM; OUTSIDE RR VIEW
(A) 		8-98104-068-0 01 1 1402-
13 MIRROR ASM; OUTSIDE RR VIEW
(B) 		8-98108-511-0 01 1 1402-
42 ATTACHMENT; OUTSIDE MIRROR 8-98070-643-0 01 1 1402-
49 STAY; MIRROR SIDE 8-98085-112-1 01 1 1402-
49 STAY; MIRROR SIDE 8-98091-477-0 01 1 1402-1502
49 STAY; MIRROR SIDE 8-98305-582-0 01 1 1503-
58 NUT; MIRROR STAY 8-98061-883-0 01 1 1402-
61 NUT; STAY,OUTSIDE MIRROR
M8 FLANGE THA 		0-91180-108-0 01 1 1402-
63 NUT; STAY
M14 TOUGH LOCK NUT W/FLANGE 		8-98174-339-0 01 1 1402-
66 WASHER; PL
LOWER 		0-91610-614-0 01 1 1402-
66 WASHER; PL
UPPER 		8-98201-756-0 01 1 1402-
71 BRACKET; OUTSIDE MIRROR
(E) 		1-71707-224-0 02 1 1402-
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98040-021-0 01 1 1402-
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98040-022-1 01 1 1402-
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98040-543-1 01 1 1402-
71 BRACKET; OUTSIDE MIRROR
(B) 		8-98201-957-0 01 1 1402-
72 SHEET
(C) 		8-98040-351-0 01 1 1402-
72 SHEET
(D) 		8-98040-353-1 01 1 1402-
72 SHEET
(A) 		8-98040-535-0 01 1 1402-
72 SHEET
(B) 		8-98040-537-1 01 1 1402-
86 COVER; STAY,OUTSIDE MIRROR
(A) BLACK 		1-71737-649-1 01 1 1402-
86 COVER; STAY,OUTSIDE MIRROR
(B) 		8-98040-545-1 01 1 1402-
86 COVER; STAY,OUTSIDE MIRROR
(C) 		8-98040-546-1 01 1 1402-
86 COVER; STAY,OUTSIDE MIRROR
(D) 		8-98040-541-1 01 1 1402-
89 SCREW; BRKT,OUTSIDE MIRROR
M8X26 W/PL WASHER 		8-98067-249-2 10 1 1402-
92 BOLT; STAY BRKT,MIRROR
M8X16 FLANGE THA 		8-97948-261-0 04 1 1402-
118 JOINT ASM; BALL 1-71798-356-2 01 1 1402-
136 WASHER; LK,BRKT,MIRROR STAY
(A) ID=10 		1-09985-180-0 01 1 1402-
136 WASHER; LK,BRKT,MIRROR STAY
(B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 02 1 1402-
136 WASHER; LK,BRKT,MIRROR STAY
(C) ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 1402-
145 NUT; CAP,SUB STAY
M10 CAP NUT 		1-09984-134-0 03 1 1402-
181 SEAL; BRKT
(B) 25X25 		8-94272-533-0 01 1 1402-
181 SEAL; BRKT
(A) OD=25 BLACK THA 		1-76798-019-0 01 1 1402-

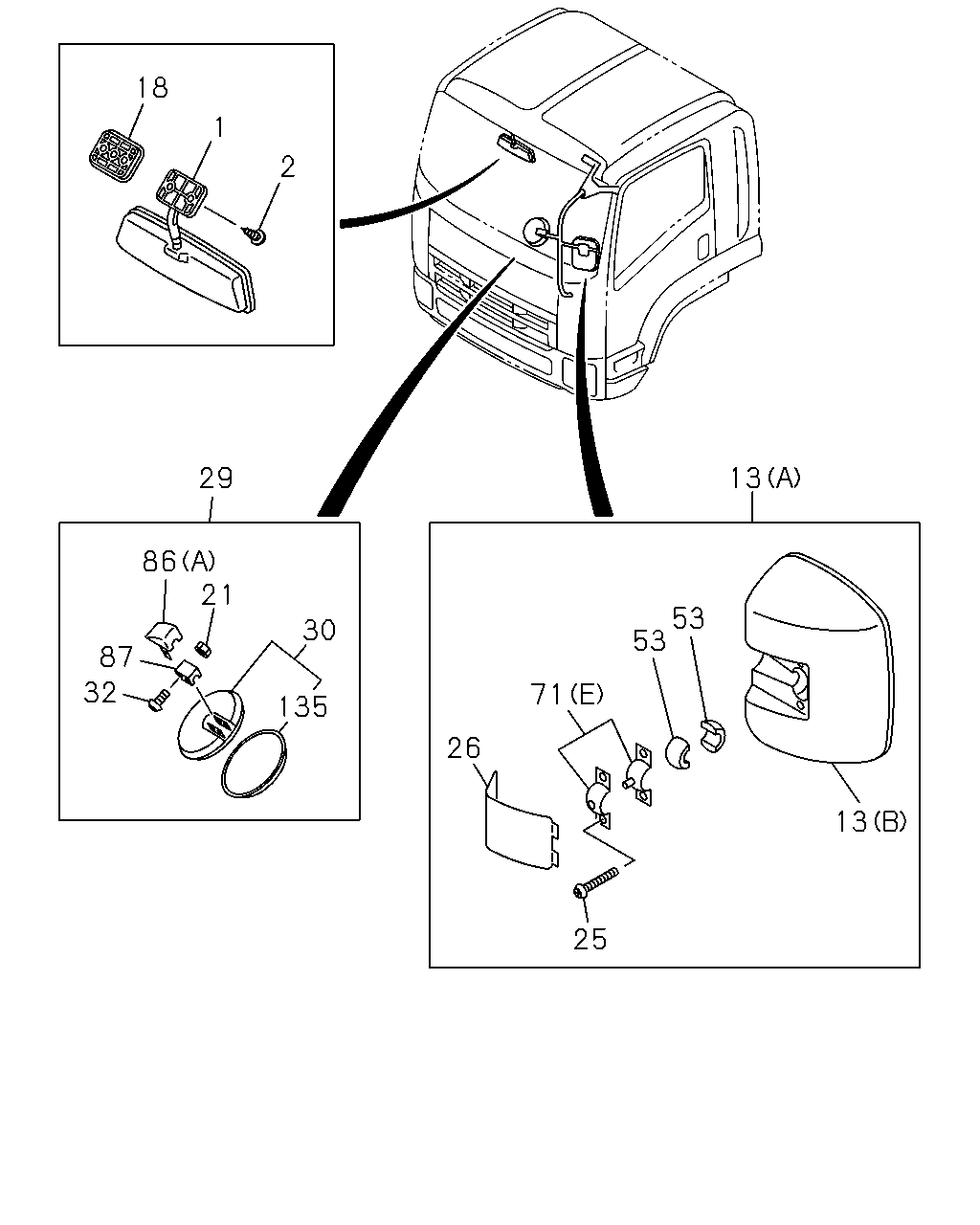

çizim 408392
18 1 2 29 86 21 30 135 87 32 26 71 53 53 13 13 25
BalonParca AdiParca NoAdetTipApplied Date
1 MIRROR; ROOM
THA 		8-97924-058-2 01 1 1402-
2 SCREW; MIRROR TO BODY
M6X26 		8-98033-674-0 02 1 1402-
13 MIRROR ASM; OUTSIDE RR VIEW
(A) 		8-98028-332-0 01 1 1402-
13 MIRROR ASM; OUTSIDE RR VIEW
(B) 		8-98045-690-0 01 1 1402-
13 MIRROR ASM; OUTSIDE RR VIEW
(A) 		8-98104-068-0 01 1 1402-
13 MIRROR ASM; OUTSIDE RR VIEW
(B) 		8-98108-511-0 01 1 1402-
18 CLIP; MIRROR
DARK GRAY 		8-97408-241-0 01 1 1402-
21 NUT; MIRROR
M5 		1-09984-124-0 02 1 1402-
25 SCREW; OUTSIDE MIRROR
M6X40 		1-71707-223-0 04 1 1402-
26 COVER; OUTSIDE MIRROR 1-71707-221-0 01 1 1402-
26 COVER; OUTSIDE MIRROR 1-71707-222-0 01 1 1402-
29 MIRROR ASM; UNDER 1-71798-422-0 01 1 1402-
30 MIRROR; UNDER 1-71798-591-1 01 1 1402-
32 SCREW; UNDER MIRROR
M5X40 W/PL WASHER 		1-71737-797-0 02 1 1402-
53 PIVOT; SIDE MIRROR
ID=22.2 		1-71736-489-2 04 1 1402-
71 BRACKET; OUTSIDE MIRROR
(E) 		1-71707-224-0 02 1 1402-
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98040-021-0 01 1 1402-
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98040-022-1 01 1 1402-
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98040-543-1 01 1 1402-
71 BRACKET; OUTSIDE MIRROR
(B) 		8-98201-957-0 01 1 1402-
86 COVER; STAY,OUTSIDE MIRROR
(A) BLACK 		1-71737-649-1 01 1 1402-
86 COVER; STAY,OUTSIDE MIRROR
(B) 		8-98040-545-1 01 1 1402-
86 COVER; STAY,OUTSIDE MIRROR
(C) 		8-98040-546-1 01 1 1402-
86 COVER; STAY,OUTSIDE MIRROR
(D) 		8-98040-541-1 01 1 1402-
87 SPACER 1-71737-646-2 01 1 1402-
135 LENS; MIRROR,SIDE UNDER 1-71798-838-0 01 1 1402-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
