◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10874 - CXZ RHD ▶ 3 - Brakes, Brake System ▶ 3-08B - PARKING BRAKE ▶
3-08B — PARKING BRAKE (#13342) — 52 parça

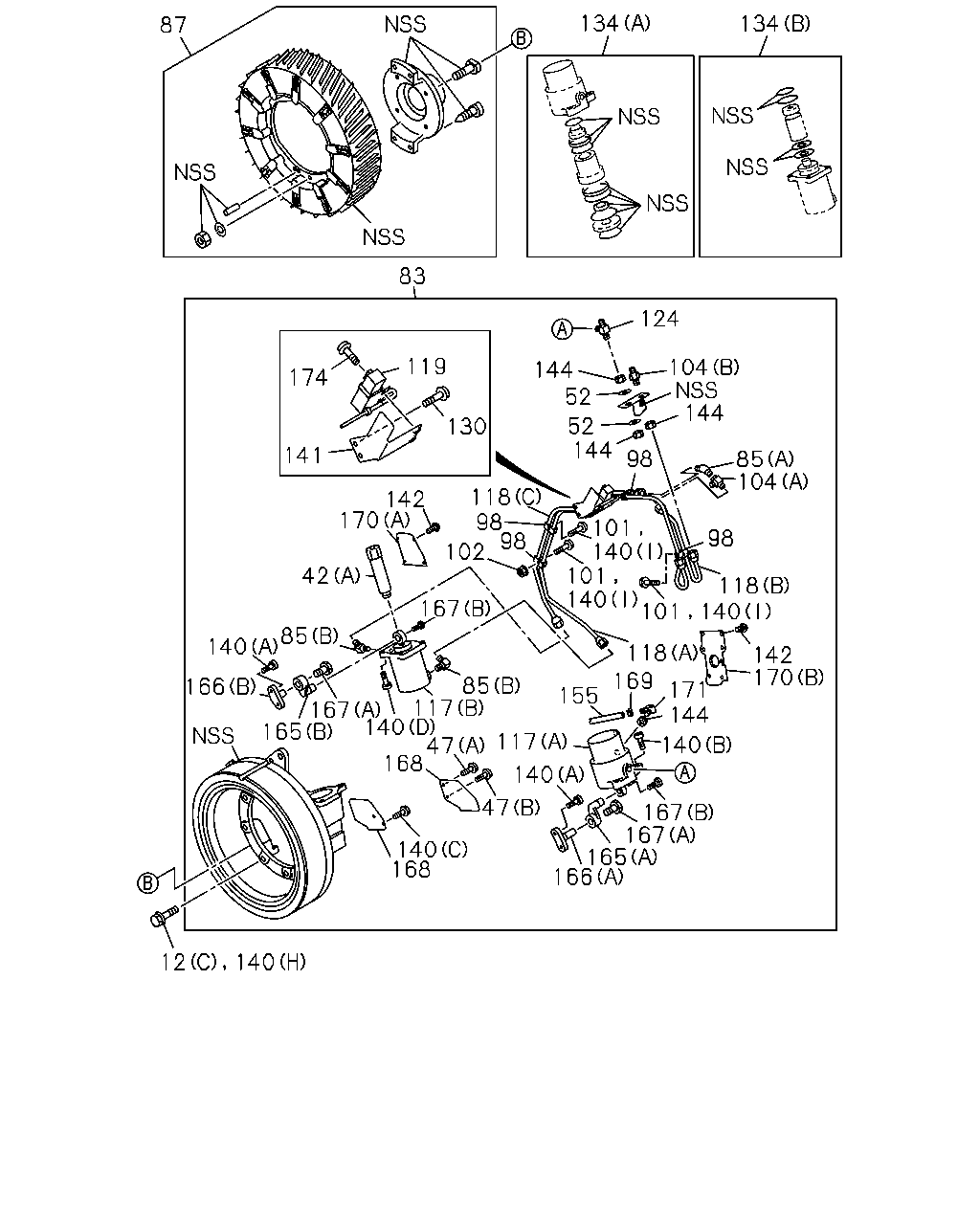

çizim 22136
134 134 87 83 124 144 52 144 52 144 104 98 85 104 98 101 101 140 140 118 101 140 118 142 170 171 169 144 140 167 167 165 166 168 140 47 117 140 155 168 140 12 47 85 117 140 167 165 166 140 85 167 102 98 98 118 142 170 42 141 174 130 119
BalonParca AdiParca NoAdetTipApplied Date
12 BOLT; FIX
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M12X35 FLANGE 		0-28791-235-0 08 1 0105-0312
42 SPRING; RETURN,LEVER
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-48629-071-1 01 1 0105-
47 BOLT; SUPPORT PLATE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6X10 HEX SOCKET 		1-48629-133-0 01 1 0105-
47 BOLT; SUPPORT PLATE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X14 HEX SOCKET 		1-48629-145-0 01 1 0105-
52 WASHER; PL
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=12.5 OD=26 		9-09160-612-0 02 1 0105-0206
52 WASHER; PL
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=12.5 OD=26 		9-09160-612-0 02 1 0207-
83 RETARDER ASM; PARKING BRK
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-46200-245-5 01 1 0105-
85 CONNECTOR; RETARDER
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-48629-150-0 01 1 0105-
85 CONNECTOR; RETARDER
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/8 		9-09224-306-2 02 1 0105-
87 DRUM; RETARDER,PARKING BRK
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-48610-460-2 01 1 0105-
98 CLIP; AIR PIPE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-48629-131-0 06 1 0105-
101 BOLT; CLIP
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X18 		1-48629-134-0 03 1 0105-0312
102 NUT; CLIP,AIR PIPE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE 		5-09440-004-0 01 1 0105-
104 CONNECTOR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-48629-149-0 01 1 0105-
104 CONNECTOR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-48629-187-0 01 1 0105-
117 CYLINDER ASM; AIR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-48629-142-0 01 1 0105-
117 CYLINDER ASM; AIR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-48629-146-0 01 1 0105-
118 PIPE ASM; AIR CYL
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-49115-875-0 01 1 0105-
118 PIPE ASM; AIR CYL
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) 		1-49115-877-0 01 1 0105-
118 PIPE ASM; AIR CYL
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-49118-551-0 01 1 0105-
119 SWITCH; THERMO
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82450-054-0 01 1 0105-0206
119 SWITCH; THERMO
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82450-054-0 01 1 0207-
124 CONNECTOR; FLEX HOSE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-48629-188-0 01 1 0105-
130 BOLT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6X14 HEX SOCKET 		1-48629-145-0 01 1 0105-
134 REPAIR KIT; AIR CYL
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-48629-137-0 01 1 0105-
134 REPAIR KIT; AIR CYL
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-48629-138-0 01 1 0105-
140 BOLT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (H) M12X35 FLANGE 		0-28791-235-0 08 1 0401-0512
140 BOLT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (H) M12X35 FLANGE 		0-28761-235-0 08 1 0601-
140 BOLT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (I) M8X18 		1-48629-134-0 03 1 0401-
140 BOLT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M10X20 		1-48629-070-0 04 1 0105-
140 BOLT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-48629-104-0 03 1 0105-
140 BOLT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M6X10 HEX SOCKET 		1-48629-133-0 01 1 0105-
140 BOLT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) 		1-48629-148-0 04 1 0105-
141 BRACKET
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-48629-111-2 01 1 0105-
142 SCREW
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M5X10 PAN-HD 		9-93490-510-0 11 1 0105-
144 NUT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M12 		9-09840-280-0 04 1 0105-0206
144 NUT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M12 		9-09840-280-0 04 1 0207-
155 TUBE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-48629-092-0 01 1 0105-0206
155 TUBE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-48629-092-0 01 1 0207-
165 LINK; RETARDER
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-48629-140-0 01 1 0105-
165 LINK; RETARDER
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-48629-141-0 01 1 0105-
166 ATTACHMENT; YOKE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-48629-066-0 01 1 0105-
166 ATTACHMENT; YOKE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-48629-067-0 01 1 0105-
167 STOPPER; LINKAGE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-48629-069-0 02 1 0105-
167 STOPPER; LINKAGE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-48629-127-0 02 1 0105-
168 PROTECTOR; HEAT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-48629-190-0 02 1 0105-
169 CLAMP
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-48629-126-0 01 1 0105-0312
170 COVER; CASE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-48629-063-0 01 1 0105-
170 COVER; CASE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-48629-240-0 01 1 0105-
171 BREATHER
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-48629-144-0 01 1 0105-0206
171 BREATHER
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-48629-144-0 01 1 0207-
174 BOLT; SWITCH
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6X10 HEX SOCKET 		1-48629-133-0 02 1 0105-
