Sayfa 3-08A - Isuzu EPC

3-08A — PARKING BRAKE (#13341) — 280 parça

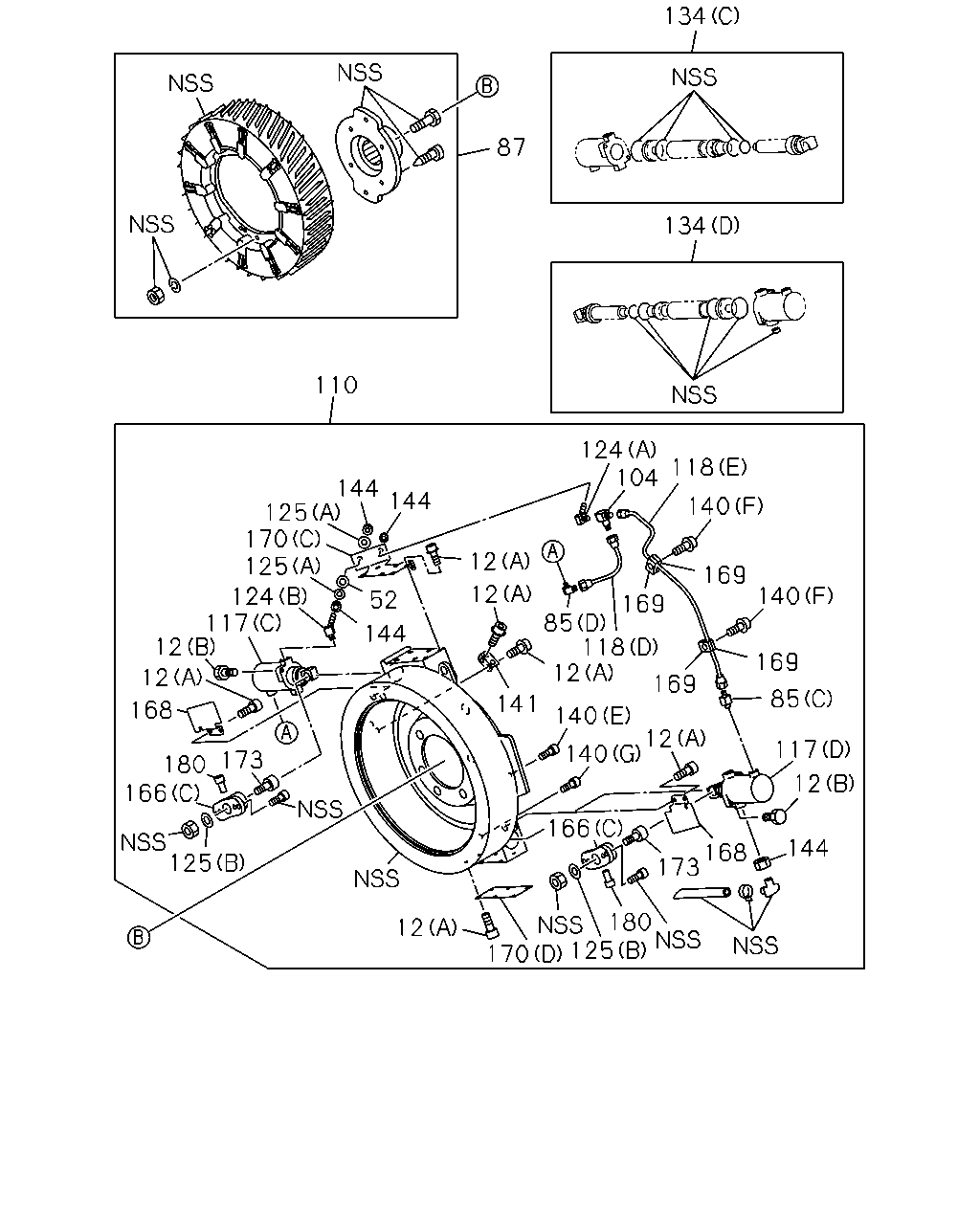

134 134 87 110 124 118 104 169 140 140 169 85 117 12 144 168 173 180 125 170 12 166 140 141 12 140 169 169 12 85 118 12 12 144 144 125 170 124 125 117 12 12 168 173 180 166 125 144 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
12	BOLT; FIX BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M12X35 FLANGE	0-28791-235-0	08	1	0105-0312	●	●	●	●	●	●
12	BOLT; FIX BRAKE SYSTEM RETARDER<RE2> (B) M6X14 HEX SOCKET	1-48629-145-0	20	1	0107-	●
12	BOLT; FIX BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-170-0	04	1	0107-	●
52	WASHER; PL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=12.5 OD=26	9-09160-612-0	02	1	0105-0206	●	●	●	●	●	●
52	WASHER; PL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=12.5 OD=26	9-09160-612-0	02	1	0207-		●	●	●	●	●
52	WASHER; PL BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=12.5 OD=26	9-09160-612-0	02	1	0207-	●
52	WASHER; PL BRAKE SYSTEM RETARDER<RE2> ID=16.2	1-09503-223-0	04	1	0107-	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-150-0	01	1	0105-	●	●	●	●	●	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/8	9-09224-306-2	02	1	0105-	●	●	●	●	●	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER<RE2> (C)	1-48629-211-0	01	1	0107-	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER<RE2> (D) M12 & PT1/8	9-09224-306-2	01	1	0107-	●
87	DRUM; RETARDER,PARKING BRK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48610-460-2	01	1	0105-	●	●	●	●	●	●
87	DRUM; RETARDER,PARKING BRK BRAKE SYSTEM RETARDER<RE2>	1-48610-392-2	01	1	0107-	●
104	CONNECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-149-0	01	1	0105-	●	●	●	●	●	●
104	CONNECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-187-0	01	1	0105-	●	●	●	●	●	●
104	CONNECTOR BRAKE SYSTEM RETARDER<RE2>	1-48629-202-0	01	1	0107-	●
110	BRAKE ASM; PARKING BRAKE SYSTEM RETARDER<RE2>	1-48610-381-2	01	1	0107-	●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-142-0	01	1	0105-	●	●	●	●	●	●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-146-0	01	1	0105-	●	●	●	●	●	●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER<RE2> (C)	1-48629-192-0	01	1	0107-	●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER<RE2> (D)	1-48629-193-0	01	1	0107-	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-49115-875-0	01	1	0105-	●	●	●	●	●	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C)	1-49115-877-0	01	1	0105-	●	●	●	●	●	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-49118-551-0	01	1	0105-	●	●	●	●	●	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (D)	1-48629-201-0	01	1	0107-	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (E)	1-48629-210-0	01	1	0107-	●
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-188-0	01	1	0105-	●	●	●	●	●	●
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-203-0	01	1	0107-	●
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-204-0	01	1	0107-	●
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-206-0	02	1	0107-	●
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (A) ID=16.2	9-09150-516-0	04	1	0107-0603	●
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (A) ID=16.2	0-91510-516-0	04	1	0604-	●
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-137-0	01	1	0105-	●	●	●	●	●	●
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-138-0	01	1	0105-	●	●	●	●	●	●
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER<RE2> (C)	1-48629-217-0	01	1	0107-	●
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER<RE2> (D)	1-48629-218-0	01	1	0107-	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (H) M12X35 FLANGE	0-28791-235-0	08	1	0401-0512	●	●	●	●	●	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (H) M12X35 FLANGE	0-28761-235-0	08	1	0601-	●	●	●	●	●	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (I) M8X18	1-48629-134-0	03	1	0401-	●	●	●	●	●	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M10X20	1-48629-070-0	04	1	0105-	●	●	●	●	●	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-104-0	03	1	0105-	●	●	●	●	●	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M6X10 HEX SOCKET	1-48629-133-0	01	1	0105-	●	●	●	●	●	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D)	1-48629-148-0	04	1	0105-	●	●	●	●	●	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (E) M10X20	1-48629-070-0	08	1	0107-	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (F) M8X18	1-48629-134-0	02	1	0107-	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (G) M8X12	1-48629-205-0	02	1	0107-	●
141	BRACKET BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-111-2	01	1	0105-	●	●	●	●	●	●
141	BRACKET BRAKE SYSTEM RETARDER<RE2>	1-48629-172-0	01	1	0107-	●
144	NUT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M12	9-09840-280-0	04	1	0105-0206	●	●	●	●	●	●
144	NUT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M12	9-09840-280-0	04	1	0207-		●	●	●	●	●
144	NUT BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M12	9-09840-280-0	04	1	0207-	●
144	NUT BRAKE SYSTEM RETARDER<RE2> M16	9-99110-516-0	04	1	0107-0512	●
144	NUT BRAKE SYSTEM RETARDER<RE2> M16	0-91110-516-0	04	1	0601-	●
166	ATTACHMENT; YOKE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-066-0	01	1	0105-	●	●	●	●	●	●
166	ATTACHMENT; YOKE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-067-0	01	1	0105-	●	●	●	●	●	●
166	ATTACHMENT; YOKE BRAKE SYSTEM RETARDER<RE2> (C)	1-48629-191-0	02	1	0107-	●
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-190-0	02	1	0105-	●	●	●	●	●	●
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER<RE2>	1-48629-194-0	02	1	0107-	●
169	CLAMP BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-126-0	01	1	0105-0312	●	●	●	●	●	●
169	CLAMP BRAKE SYSTEM RETARDER<RE2>	1-48629-209-0	04	1	0107-	●
170	COVER; CASE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-063-0	01	1	0105-	●	●	●	●	●	●
170	COVER; CASE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-240-0	01	1	0105-	●	●	●	●	●	●
170	COVER; CASE BRAKE SYSTEM RETARDER<RE2> (C)	1-48629-195-0	01	1	0107-	●
170	COVER; CASE BRAKE SYSTEM RETARDER<RE2> (D)	1-48629-196-0	01	1	0107-	●
173	FOLLOWER BRAKE SYSTEM RETARDER<RE2>	1-48629-159-0	02	1	0107-	●
180	PIN; RETAINING BRAKE SYSTEM RETARDER<RE2>	1-48629-198-0	02	1	0107-	●

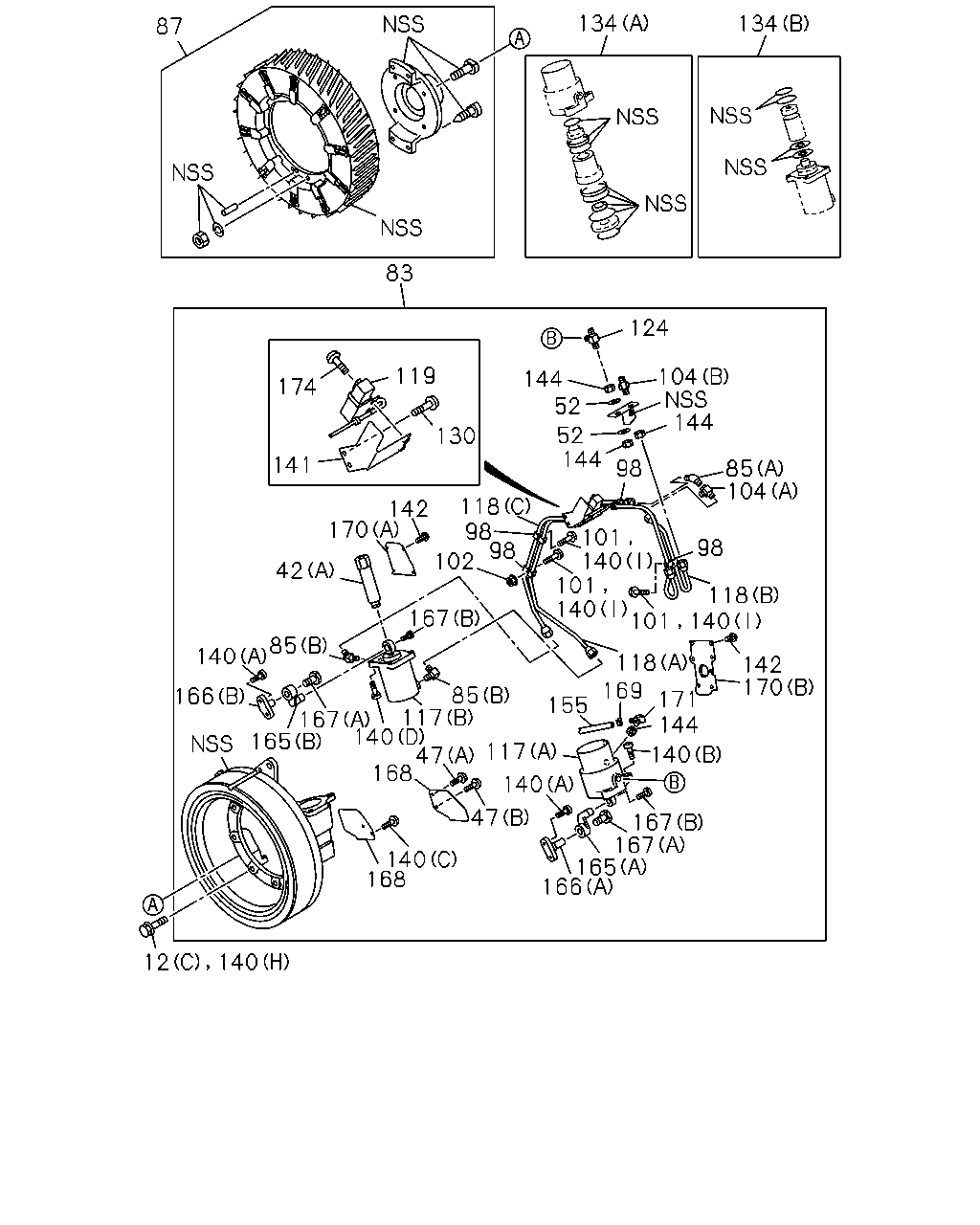

12 140 168 140 47 166 165 167 167 140 144 171 170 142 140 118 98 101 118 169 155 117 140 85 117 140 168 47 167 165 166 140 85 42 170 142 118 98 98 102 167 140 101 140 101 104 85 144 104 124 144 144 52 52 98 130 119 174 141 83 87 134 134

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
12	BOLT; FIX BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M12X35 FLANGE	0-28791-235-0	08	1	0105-0312	●	●	●	●	●	●
12	BOLT; FIX BRAKE SYSTEM RETARDER<RE2> (B) M6X14 HEX SOCKET	1-48629-145-0	20	1	0107-	●
12	BOLT; FIX BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-170-0	04	1	0107-	●
42	SPRING; RETURN,LEVER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-071-1	01	1	0105-	●	●	●	●	●	●
42	SPRING; RETURN,LEVER (B)	1-09583-128-0	01	1	0105-0108					●
42	SPRING; RETURN,LEVER PARKING BRAKE TRANSMISSION REAR<PJ8> (B)	1-09583-128-0	01	1	0109-0109	●
42	SPRING; RETURN,LEVER (B)	1-09583-128-0	01	1	0109-0109					●
42	SPRING; RETURN,LEVER PARKING BRAKE TRANSMISSION REAR<PJ8> (B)	1-09583-128-0	01	1	0110-	●		●
42	SPRING; RETURN,LEVER (B)	1-09583-128-0	01	1	0110-					●
47	BOLT; SUPPORT PLATE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6X10 HEX SOCKET	1-48629-133-0	01	1	0105-	●	●	●	●	●	●
47	BOLT; SUPPORT PLATE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X14 HEX SOCKET	1-48629-145-0	01	1	0105-	●	●	●	●	●	●
52	WASHER; PL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=12.5 OD=26	9-09160-612-0	02	1	0105-0206	●	●	●	●	●	●
52	WASHER; PL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=12.5 OD=26	9-09160-612-0	02	1	0207-		●	●	●	●	●
52	WASHER; PL BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=12.5 OD=26	9-09160-612-0	02	1	0207-	●
52	WASHER; PL BRAKE SYSTEM RETARDER<RE2> ID=16.2	1-09503-223-0	04	1	0107-	●
83	RETARDER ASM; PARKING BRK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-46200-245-5	01	1	0105-	●	●	●	●	●	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-150-0	01	1	0105-	●	●	●	●	●	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/8	9-09224-306-2	02	1	0105-	●	●	●	●	●	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER<RE2> (C)	1-48629-211-0	01	1	0107-	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER<RE2> (D) M12 & PT1/8	9-09224-306-2	01	1	0107-	●
87	DRUM; RETARDER,PARKING BRK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48610-460-2	01	1	0105-	●	●	●	●	●	●
87	DRUM; RETARDER,PARKING BRK BRAKE SYSTEM RETARDER<RE2>	1-48610-392-2	01	1	0107-	●
98	CLIP; AIR PIPE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-131-0	06	1	0105-	●	●	●	●	●	●
101	BOLT; CLIP BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X18	1-48629-134-0	03	1	0105-0312	●	●	●	●	●	●
102	NUT; CLIP,AIR PIPE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE	5-09440-004-0	01	1	0105-	●	●	●	●	●	●
104	CONNECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-149-0	01	1	0105-	●	●	●	●	●	●
104	CONNECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-187-0	01	1	0105-	●	●	●	●	●	●
104	CONNECTOR BRAKE SYSTEM RETARDER<RE2>	1-48629-202-0	01	1	0107-	●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-142-0	01	1	0105-	●	●	●	●	●	●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-146-0	01	1	0105-	●	●	●	●	●	●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER<RE2> (C)	1-48629-192-0	01	1	0107-	●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER<RE2> (D)	1-48629-193-0	01	1	0107-	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-49115-875-0	01	1	0105-	●	●	●	●	●	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C)	1-49115-877-0	01	1	0105-	●	●	●	●	●	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-49118-551-0	01	1	0105-	●	●	●	●	●	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (D)	1-48629-201-0	01	1	0107-	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (E)	1-48629-210-0	01	1	0107-	●
119	SWITCH; THERMO BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82450-054-0	01	1	0105-0206	●	●	●	●	●	●
119	SWITCH; THERMO BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82450-054-0	01	1	0207-		●	●	●	●	●
119	SWITCH; THERMO BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82450-054-0	01	1	0207-	●
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-188-0	01	1	0105-	●	●	●	●	●	●
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-203-0	01	1	0107-	●
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-204-0	01	1	0107-	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X30 FLANGE	0-28080-830-0	02	1	0105-0512	●	●	●	●	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X30 FLANGE	0-28050-830-0	02	1	0601-	●	●	●	●	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X25 FLANGE	0-28080-825-0	02	1	0105-0512	●	●	●	●	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X25 FLANGE	0-28050-825-0	02	1	0601-	●	●	●	●	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6X14 HEX SOCKET	1-48629-145-0	01	1	0105-	●	●	●	●	●	●
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-137-0	01	1	0105-	●	●	●	●	●	●
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-138-0	01	1	0105-	●	●	●	●	●	●
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER<RE2> (C)	1-48629-217-0	01	1	0107-	●
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER<RE2> (D)	1-48629-218-0	01	1	0107-	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (H) M12X35 FLANGE	0-28791-235-0	08	1	0401-0512	●	●	●	●	●	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (H) M12X35 FLANGE	0-28761-235-0	08	1	0601-	●	●	●	●	●	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (I) M8X18	1-48629-134-0	03	1	0401-	●	●	●	●	●	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M10X20	1-48629-070-0	04	1	0105-	●	●	●	●	●	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-104-0	03	1	0105-	●	●	●	●	●	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M6X10 HEX SOCKET	1-48629-133-0	01	1	0105-	●	●	●	●	●	●
140	BOLT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D)	1-48629-148-0	04	1	0105-	●	●	●	●	●	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (E) M10X20	1-48629-070-0	08	1	0107-	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (F) M8X18	1-48629-134-0	02	1	0107-	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (G) M8X12	1-48629-205-0	02	1	0107-	●
141	BRACKET BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-111-2	01	1	0105-	●	●	●	●	●	●
141	BRACKET BRAKE SYSTEM RETARDER<RE2>	1-48629-172-0	01	1	0107-	●
142	SCREW BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M5X10 PAN-HD	9-93490-510-0	11	1	0105-	●	●	●	●	●	●
144	NUT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M12	9-09840-280-0	04	1	0105-0206	●	●	●	●	●	●
144	NUT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M12	9-09840-280-0	04	1	0207-		●	●	●	●	●
144	NUT BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M12	9-09840-280-0	04	1	0207-	●
144	NUT BRAKE SYSTEM RETARDER<RE2> M16	9-99110-516-0	04	1	0107-0512	●
144	NUT BRAKE SYSTEM RETARDER<RE2> M16	0-91110-516-0	04	1	0601-	●
155	TUBE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-092-0	01	1	0105-0206	●	●	●	●	●	●
155	TUBE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-092-0	01	1	0207-		●	●	●	●	●
155	TUBE BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-092-0	01	1	0207-	●
165	LINK; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-140-0	01	1	0105-	●	●	●	●	●	●
165	LINK; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-141-0	01	1	0105-	●	●	●	●	●	●
166	ATTACHMENT; YOKE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-066-0	01	1	0105-	●	●	●	●	●	●
166	ATTACHMENT; YOKE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-067-0	01	1	0105-	●	●	●	●	●	●
166	ATTACHMENT; YOKE BRAKE SYSTEM RETARDER<RE2> (C)	1-48629-191-0	02	1	0107-	●
167	STOPPER; LINKAGE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-069-0	02	1	0105-	●	●	●	●	●	●
167	STOPPER; LINKAGE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-127-0	02	1	0105-	●	●	●	●	●	●
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-190-0	02	1	0105-	●	●	●	●	●	●
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER<RE2>	1-48629-194-0	02	1	0107-	●
169	CLAMP BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-126-0	01	1	0105-0312	●	●	●	●	●	●
169	CLAMP BRAKE SYSTEM RETARDER<RE2>	1-48629-209-0	04	1	0107-	●
170	COVER; CASE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-063-0	01	1	0105-	●	●	●	●	●	●
170	COVER; CASE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-240-0	01	1	0105-	●	●	●	●	●	●
170	COVER; CASE BRAKE SYSTEM RETARDER<RE2> (C)	1-48629-195-0	01	1	0107-	●
170	COVER; CASE BRAKE SYSTEM RETARDER<RE2> (D)	1-48629-196-0	01	1	0107-	●
171	BREATHER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-144-0	01	1	0105-0206	●	●	●	●	●	●
171	BREATHER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-144-0	01	1	0207-		●	●	●	●	●
171	BREATHER BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-144-0	01	1	0207-	●
174	BOLT; SWITCH BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6X10 HEX SOCKET	1-48629-133-0	02	1	0105-	●	●	●	●	●	●

113 92 92 50 131 92 50 130 137 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
50	ADAPTER; PARK BRK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> DIN8 & M12 STRAIGHT	1-09660-873-0	02	1	0105-	●	●	●	●	●	●
92	HOSE; FLEX,RETARDER W-SERIES ENG<1A2> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> L=430	1-09363-623-0	02	1	0105-0302	●
92	HOSE; FLEX,RETARDER W-SERIES ENG<1A2> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> OD=12.7 L=450	1-09363-631-0	02	1	0303-	●
113	CLIP; HOSE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=10 & 10	1-09709-277-1	01	1	0105-0106	●	●	●	●	●
113	CLIP; HOSE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=10 & 10	1-09709-277-1	01	1	0107-	●	●	●	●	●	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X30 FLANGE	0-28080-830-0	02	1	0105-0512	●	●	●	●	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X30 FLANGE	0-28050-830-0	02	1	0601-	●	●	●	●	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X25 FLANGE	0-28080-825-0	02	1	0105-0512	●	●	●	●	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X25 FLANGE	0-28050-825-0	02	1	0601-	●	●	●	●	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6X14 HEX SOCKET	1-48629-145-0	01	1	0105-	●	●	●	●	●	●
131	NUT; BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●	●	●	●	●
131	NUT; BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●	●	●
137	BRACKET; AIR PIPE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-47477-635-0	01	1	0105-	●	●	●	●	●	●

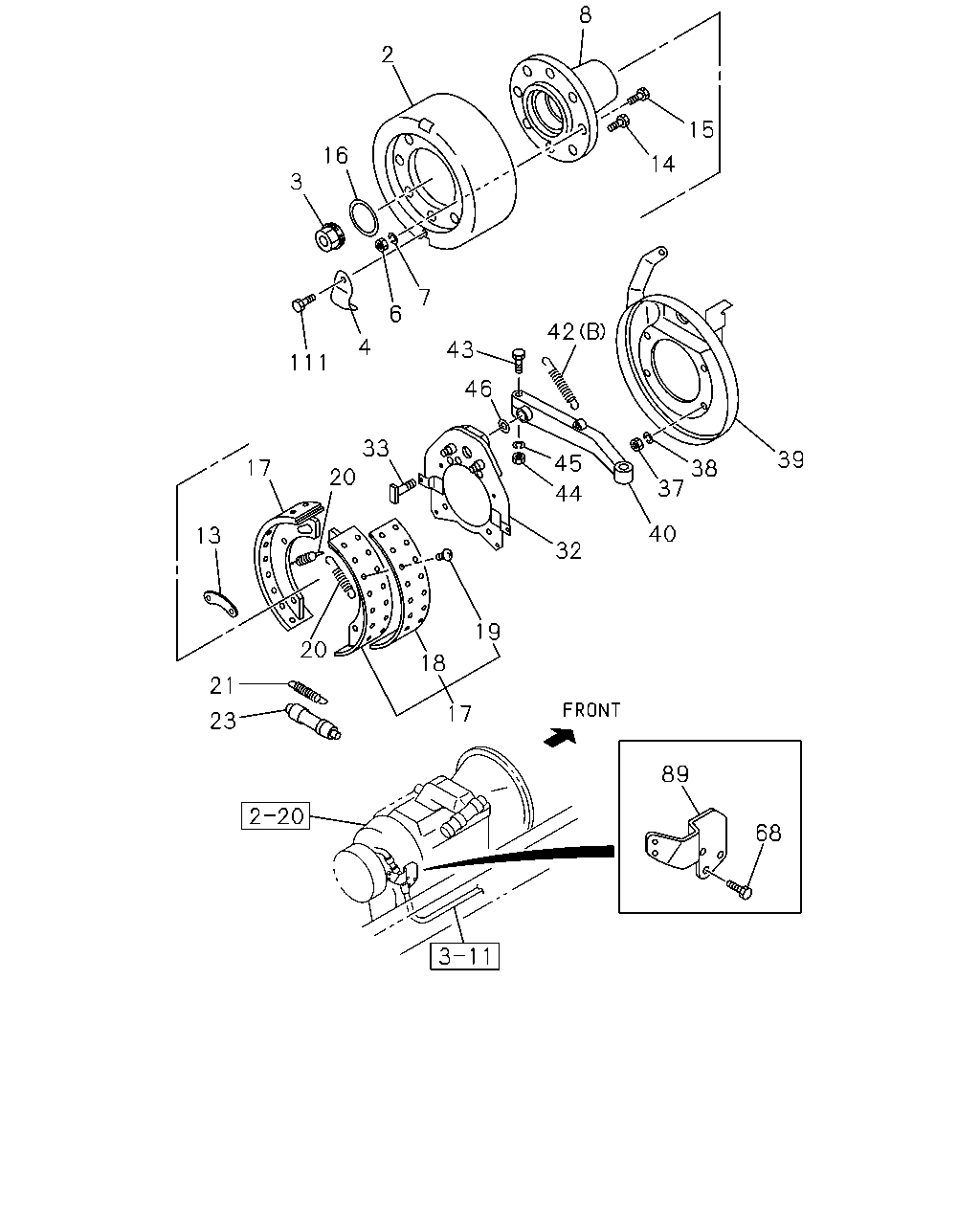

68 89 17 18 19 20 21 23 13 17 33 20 46 43 42 45 44 32 40 37 38 39 14 15 8 2 16 3 7 6 4 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	DRUM; PARKING BRK	1-46211-026-1	01	1	0105-0108					●
2	DRUM; PARKING BRK PARKING BRAKE TRANSMISSION REAR<PJ8>	1-46211-026-1	01	1	0109-0109	●				●
2	DRUM; PARKING BRK PARKING BRAKE TRANSMISSION REAR<PJ8>	1-46211-026-1	01	1	0110-	●		●		●
3	NUT; LK PARKING BRAKE TRANSMISSION REAR<PJ8> M44	1-09449-076-0	01	1	0110-			●
3	NUT; LK M46	1-09449-062-0	01	1	0105-0108					●
3	NUT; LK PARKING BRAKE TRANSMISSION REAR<PJ8> M46	1-09449-062-0	01	1	0109-	●
3	NUT; LK M46	1-09449-062-0	01	1	0109-					●
4	COVER; ADJ HOLE	1-46219-019-0	02	1	0105-0108					●
4	COVER; ADJ HOLE PARKING BRAKE TRANSMISSION REAR<PJ8>	1-46219-019-0	02	1	0109-0109	●				●
4	COVER; ADJ HOLE PARKING BRAKE TRANSMISSION REAR<PJ8>	1-46219-019-0	02	1	0110-	●		●		●
6	NUT; FLANGE M16	9-99110-516-0	02	1	0105-0108					●
6	NUT; FLANGE PARKING BRAKE TRANSMISSION REAR<PJ8> M16	9-99110-516-0	02	1	0109-0109	●				●
6	NUT; FLANGE PARKING BRAKE TRANSMISSION REAR<PJ8> M16	9-99110-516-0	02	1	0110-0512	●		●		●
6	NUT; FLANGE PARKING BRAKE TRANSMISSION REAR<PJ8> M16	0-91110-516-0	02	1	0601-	●		●		●
7	WASHER; LK,FLANGE ID=16.2	9-09150-516-0	02	1	0105-0108					●
7	WASHER; LK,FLANGE PARKING BRAKE TRANSMISSION REAR<PJ8> ID=16.2	9-09150-516-0	02	1	0109-0109	●				●
7	WASHER; LK,FLANGE PARKING BRAKE TRANSMISSION REAR<PJ8> ID=16.2	9-09150-516-0	02	1	0110-0603	●		●		●
7	WASHER; LK,FLANGE PARKING BRAKE TRANSMISSION REAR<PJ8> ID=16.2	0-91510-516-0	02	1	0604-	●		●		●
8	FLANGE; PARKING BRK PARKING BRAKE TRANSMISSION REAR<PJ8>	1-37243-213-0	01	1	0110-			●
8	FLANGE; PARKING BRK	1-37243-215-0	01	1	0105-0108					●
8	FLANGE; PARKING BRK PARKING BRAKE TRANSMISSION REAR<PJ8>	1-37243-215-0	01	1	0109-	●				●
13	BRACE; PARKING BRK	9-46239-002-0	01	1	0105-0108					●
13	BRACE; PARKING BRK PARKING BRAKE TRANSMISSION REAR<PJ8>	9-46239-002-0	01	1	0109-0109	●				●
13	BRACE; PARKING BRK PARKING BRAKE TRANSMISSION REAR<PJ8>	9-46239-002-0	01	1	0110-	●		●		●
14	BOLT; DRUM TO FLANGE M16X38	1-46219-010-0	02	1	0105-0108					●
14	BOLT; DRUM TO FLANGE PARKING BRAKE TRANSMISSION REAR<PJ8> M16X38	1-46219-010-0	02	1	0109-0109	●				●
14	BOLT; DRUM TO FLANGE PARKING BRAKE TRANSMISSION REAR<PJ8> M16X38	1-46219-010-0	02	1	0110-	●		●		●
15	BOLT; FLANGE M16X55	1-46219-039-0	04	1	0105-0108					●
15	BOLT; FLANGE PARKING BRAKE TRANSMISSION REAR<PJ8> M16X55	1-46219-039-0	04	1	0109-0109	●				●
15	BOLT; FLANGE PARKING BRAKE TRANSMISSION REAR<PJ8> M16X55	1-46219-039-0	04	1	0110-	●		●		●
16	GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T). PARKING BRAKE TRANSMISSION REAR<PJ8>	9-09920-607-0	01	1	0110-			●
16	GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T).	1-09623-305-0	01	1	0105-0108					●
16	GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T). PARKING BRAKE TRANSMISSION REAR<PJ8>.	1-09623-305-0	01	1	0109-	●
16	GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T).	1-09623-305-0	01	1	0109-					●
17	SHOE; PARKING BRK	1-46220-022-0	02	1	0105-0108					●
17	SHOE; PARKING BRK PARKING BRAKE TRANSMISSION REAR<PJ8>	1-46220-022-0	02	1	0109-0109	●				●
17	SHOE; PARKING BRK PARKING BRAKE TRANSMISSION REAR<PJ8>	1-46220-022-0	02	1	0110-	●		●		●
18	LINING; BRK,PARKING	1-46225-023-0	02	1	0105-0108					●
18	LINING; BRK,PARKING PARKING BRAKE TRANSMISSION REAR<PJ8>	1-46225-023-0	02	1	0109-0109	●				●
18	LINING; BRK,PARKING PARKING BRAKE TRANSMISSION REAR<PJ8>	1-46225-023-0	02	1	0110-	●		●		●
19	RIVET; LINING,PARKING BRK	1-09732-012-0	32	1	0105-0108					●
19	RIVET; LINING,PARKING BRK PARKING BRAKE TRANSMISSION REAR<PJ8>	1-09732-012-0	32	1	0109-0109	●				●
19	RIVET; LINING,PARKING BRK PARKING BRAKE TRANSMISSION REAR<PJ8>	1-09732-012-0	32	1	0110-	●		●		●
20	SPRING; RETURN,SECONDARY,PARKING BRK	9-09942-434-0	02	1	0105-0108					●
20	SPRING; RETURN,SECONDARY,PARKING BRK PARKING BRAKE TRANSMISSION REAR<PJ8>	9-09942-434-0	02	1	0109-0109	●				●
20	SPRING; RETURN,SECONDARY,PARKING BRK PARKING BRAKE TRANSMISSION REAR<PJ8>	9-09942-434-0	02	1	0110-	●		●		●
21	SPRING; RETURN,PARKING BRK SHOE	9-09942-516-0	01	1	0105-0108					●
21	SPRING; RETURN,PARKING BRK SHOE PARKING BRAKE TRANSMISSION REAR<PJ8>	9-09942-516-0	01	1	0109-0109	●				●
21	SPRING; RETURN,PARKING BRK SHOE PARKING BRAKE TRANSMISSION REAR<PJ8>	9-09942-516-0	01	1	0110-	●		●		●
23	SCREW; ADJ,PARKING BRK SHOE	1-46240-003-0	01	1	0105-0108					●
23	SCREW; ADJ,PARKING BRK SHOE PARKING BRAKE TRANSMISSION REAR<PJ8>	1-46240-003-0	01	1	0109-0109	●				●
23	SCREW; ADJ,PARKING BRK SHOE PARKING BRAKE TRANSMISSION REAR<PJ8>	1-46240-003-0	01	1	0110-	●		●		●
32	PLATE; SUPPORT,PARKING BRK	1-46213-033-0	01	1	0105-0108					●
32	PLATE; SUPPORT,PARKING BRK PARKING BRAKE TRANSMISSION REAR<PJ8>	1-46213-033-0	01	1	0109-0109	●				●
32	PLATE; SUPPORT,PARKING BRK PARKING BRAKE TRANSMISSION REAR<PJ8>	1-46213-033-0	01	1	0110-	●		●		●
33	SHAFT; CAM,PARKING BRK	9-46251-069-0	01	1	0105-0108					●
33	SHAFT; CAM,PARKING BRK PARKING BRAKE TRANSMISSION REAR<PJ8>	9-46251-069-0	01	1	0109-0109	●				●
33	SHAFT; CAM,PARKING BRK PARKING BRAKE TRANSMISSION REAR<PJ8>	9-46251-069-0	01	1	0110-	●		●		●
37	NUT; SUPPORT PLATE M16	9-99110-516-0	04	1	0105-0108					●
37	NUT; SUPPORT PLATE PARKING BRAKE TRANSMISSION REAR<PJ8> M16	9-99110-516-0	04	1	0109-0109	●
37	NUT; SUPPORT PLATE M16	9-99110-516-0	04	1	0109-0109					●
37	NUT; SUPPORT PLATE PARKING BRAKE TRANSMISSION REAR<PJ8> M16	9-99110-516-0	04	1	0110-0512	●		●
37	NUT; SUPPORT PLATE M16	9-99110-516-0	04	1	0110-0512					●
37	NUT; SUPPORT PLATE PARKING BRAKE TRANSMISSION REAR<PJ8> M16	0-91110-516-0	04	1	0601-	●		●
37	NUT; SUPPORT PLATE M16	0-91110-516-0	04	1	0601-					●
38	WASHER; LK,SUPPORT PLATE ID=16.2	9-09150-516-0	04	1	0105-0108					●
38	WASHER; LK,SUPPORT PLATE PARKING BRAKE TRANSMISSION REAR<PJ8> ID=16.2	9-09150-516-0	04	1	0109-0109	●
38	WASHER; LK,SUPPORT PLATE ID=16.2	9-09150-516-0	04	1	0109-0109					●
38	WASHER; LK,SUPPORT PLATE PARKING BRAKE TRANSMISSION REAR<PJ8> ID=16.2	9-09150-516-0	04	1	0110-0603	●		●
38	WASHER; LK,SUPPORT PLATE ID=16.2	9-09150-516-0	04	1	0110-0603					●
38	WASHER; LK,SUPPORT PLATE PARKING BRAKE TRANSMISSION REAR<PJ8> ID=16.2	0-91510-516-0	04	1	0604-	●		●
38	WASHER; LK,SUPPORT PLATE ID=16.2	0-91510-516-0	04	1	0604-					●
39	COVER; DUST,PARKING BRK	1-46213-066-1	01	1	0105-0108					●
39	COVER; DUST,PARKING BRK PARKING BRAKE TRANSMISSION REAR<PJ8>	1-46213-066-1	01	1	0109-0109	●				●
39	COVER; DUST,PARKING BRK PARKING BRAKE TRANSMISSION REAR<PJ8>	1-46213-066-1	01	1	0110-	●		●		●
40	LEVER; CM/SHF,PARKING BRK	1-46252-014-0	01	1	0105-0108					●
40	LEVER; CM/SHF,PARKING BRK PARKING BRAKE TRANSMISSION REAR<PJ8>	1-46252-014-0	01	1	0109-0109	●				●
40	LEVER; CM/SHF,PARKING BRK PARKING BRAKE TRANSMISSION REAR<PJ8>	1-46252-014-0	01	1	0110-	●		●		●
42	SPRING; RETURN,LEVER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-071-1	01	1	0105-	●	●	●	●	●	●
42	SPRING; RETURN,LEVER (B)	1-09583-128-0	01	1	0105-0108					●
42	SPRING; RETURN,LEVER PARKING BRAKE TRANSMISSION REAR<PJ8> (B)	1-09583-128-0	01	1	0109-0109	●
42	SPRING; RETURN,LEVER (B)	1-09583-128-0	01	1	0109-0109					●
42	SPRING; RETURN,LEVER PARKING BRAKE TRANSMISSION REAR<PJ8> (B)	1-09583-128-0	01	1	0110-	●		●
42	SPRING; RETURN,LEVER (B)	1-09583-128-0	01	1	0110-					●
43	BOLT; LEVER TO CM/SHF	0-10811-045-0	01	1	0105-0108					●
43	BOLT; LEVER TO CM/SHF PARKING BRAKE TRANSMISSION REAR<PJ8>	0-10811-045-0	01	1	0109-0109	●				●
43	BOLT; LEVER TO CM/SHF PARKING BRAKE TRANSMISSION REAR<PJ8>	0-10811-045-0	01	1	0110-	●		●		●
44	NUT; LEVER TO CM/SHF M10	9-09111-410-0	01	1	0105-0108					●
44	NUT; LEVER TO CM/SHF PARKING BRAKE TRANSMISSION REAR<PJ8> M10	9-09111-410-0	01	1	0109-0109	●				●
44	NUT; LEVER TO CM/SHF PARKING BRAKE TRANSMISSION REAR<PJ8> M10	9-09111-410-0	01	1	0110-0512	●		●		●
44	NUT; LEVER TO CM/SHF PARKING BRAKE TRANSMISSION REAR<PJ8> M10	0-91111-510-0	01	1	0601-	●		●		●
45	WASHER; LK,LEVER TO CM/SHF ID=10.2	9-09150-510-0	01	1	0105-0108					●
45	WASHER; LK,LEVER TO CM/SHF PARKING BRAKE TRANSMISSION REAR<PJ8> ID=10.2	9-09150-510-0	01	1	0109-0109	●				●
45	WASHER; LK,LEVER TO CM/SHF PARKING BRAKE TRANSMISSION REAR<PJ8> ID=10.2	9-09150-510-0	01	1	0110-0603	●		●		●
45	WASHER; LK,LEVER TO CM/SHF PARKING BRAKE TRANSMISSION REAR<PJ8> ID=10.2	0-91510-510-0	01	1	0604-	●		●		●
46	WASHER; LEVER	9-09855-362-0	01	1	0105-0108					●
46	WASHER; LEVER PARKING BRAKE TRANSMISSION REAR<PJ8>	9-09855-362-0	01	1	0109-0109	●				●
46	WASHER; LEVER PARKING BRAKE TRANSMISSION REAR<PJ8>	9-09855-362-0	01	1	0110-	●		●		●
68	BOLT; BRKT,PARKING BRK CONT M10X22 FLANGE	0-28181-022-0	03	1	0105-0108					●
68	BOLT; BRKT,PARKING BRK CONT PARKING BRAKE TRANSMISSION REAR<PJ8> M10X22 FLANGE	0-28181-022-0	03	1	0109-0109	●
68	BOLT; BRKT,PARKING BRK CONT M10X22 FLANGE	0-28181-022-0	03	1	0109-0109					●
68	BOLT; BRKT,PARKING BRK CONT PARKING BRAKE TRANSMISSION REAR<PJ8> M10X22 FLANGE	0-28181-022-0	03	1	0110-	●		●
68	BOLT; BRKT,PARKING BRK CONT M10X22 FLANGE	0-28181-022-0	03	1	0110-					●
89	BRACKET; PARKING BRK CONT PARKING BRAKE TRANSMISSION REAR<PJ8>	1-46147-295-0	01	1	0109-0109	●
89	BRACKET; PARKING BRK CONT PARKING BRAKE TRANSMISSION REAR<PJ8>	1-46147-295-0	01	1	0110-	●		●
89	BRACKET; PARKING BRK CONT	1-46147-198-1	01	1	0105-					●
111	BOLT; COVER,CHECK HOLE M8X20 W/LK WASHER	0-50040-820-0	02	1	0105-0108					●
111	BOLT; COVER,CHECK HOLE PARKING BRAKE TRANSMISSION REAR<PJ8> M8X20 W/LK WASHER	0-50040-820-0	02	1	0109-0109	●				●
111	BOLT; COVER,CHECK HOLE PARKING BRAKE TRANSMISSION REAR<PJ8> M8X20 W/LK WASHER	0-50040-820-0	02	1	0110-	●		●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
