Isuzu WW
▶
TRUCKS
▶
FTR
▶
11575 - FTR(THAI)EURO3
▶
5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶

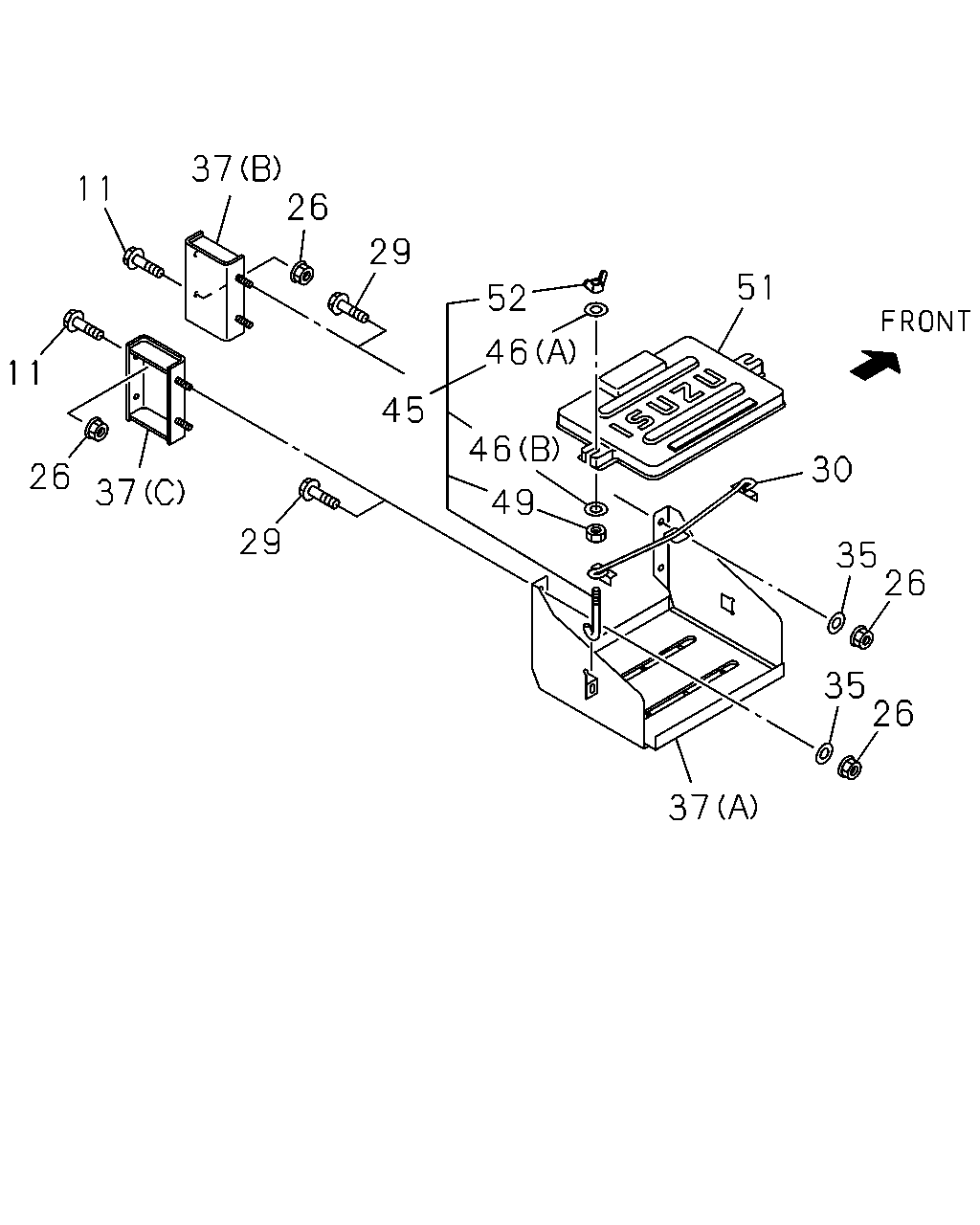

5-20 — BATTERY CARRIER
(#133404) — 15 parça
11
11
26
29
37
26
37
29
46
52
45
51
46
30
49
35
35
26
26
37
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
BOLT; BRKT FIX
6HK1-TCN ENG<82L> M10X40 FLANGE THA
0-28651-040-0
04
1
1402-
26
NUT; BRKT
M10 FLANGE THA
0-91180-210-0
04
1
1402-
26
NUT; BRKT
6HK1-TCN ENG<82L> M10 FLANGE THA
0-91180-210-0
04
1
1402-
29
BOLT; BRKT TO FRAME
4HK1-TCS ENG<RJS> M10X40 FLANGE THA
0-28651-040-0
04
1
1406-
30
PLATE; BATTERY
THA
8-97910-232-0
01
1
1402-
35
WASHER; PL,BATTERY CARRIER
ID=10.5 OD=22
0-91614-610-0
04
1
1402-
37
BRACKET; BATTERY
(A) THA
8-97923-653-1
01
1
1402-
37
BRACKET; BATTERY
6HK1-TCN ENG<82L> (B) THA
8-97948-024-0
01
1
1402-
37
BRACKET; BATTERY
6HK1-TCN ENG<82L> (C) THA
8-98162-291-0
01
1
1402-
45
ROD; TENSION,BATTERY
THA
8-97926-647-0
02
1
1402-
46
WASHER; PL,BATTERY TO CARRIER
(A) ID=8.4 OD=18
0-91614-608-0
02
1
1402-
46
WASHER; PL,BATTERY TO CARRIER
(B) ID=8.4 OD=22 THA
0-91614-708-0
02
1
1402-
49
NUT; ROD,BATTERY
M8
0-91110-508-0
02
1
1402-
51
COVER; BATTERY
THA
8-97915-940-0
01
1
1402-
52
NUT; WING,COVER FIX
M8 WING NUT THA
0-91118-408-0
02
1
1402-
