Isuzu WW
▶
TRUCKS
▶
FTR
▶
11575 - FTR(THAI)EURO3
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-50 - FRONT SUSPENSION
▶

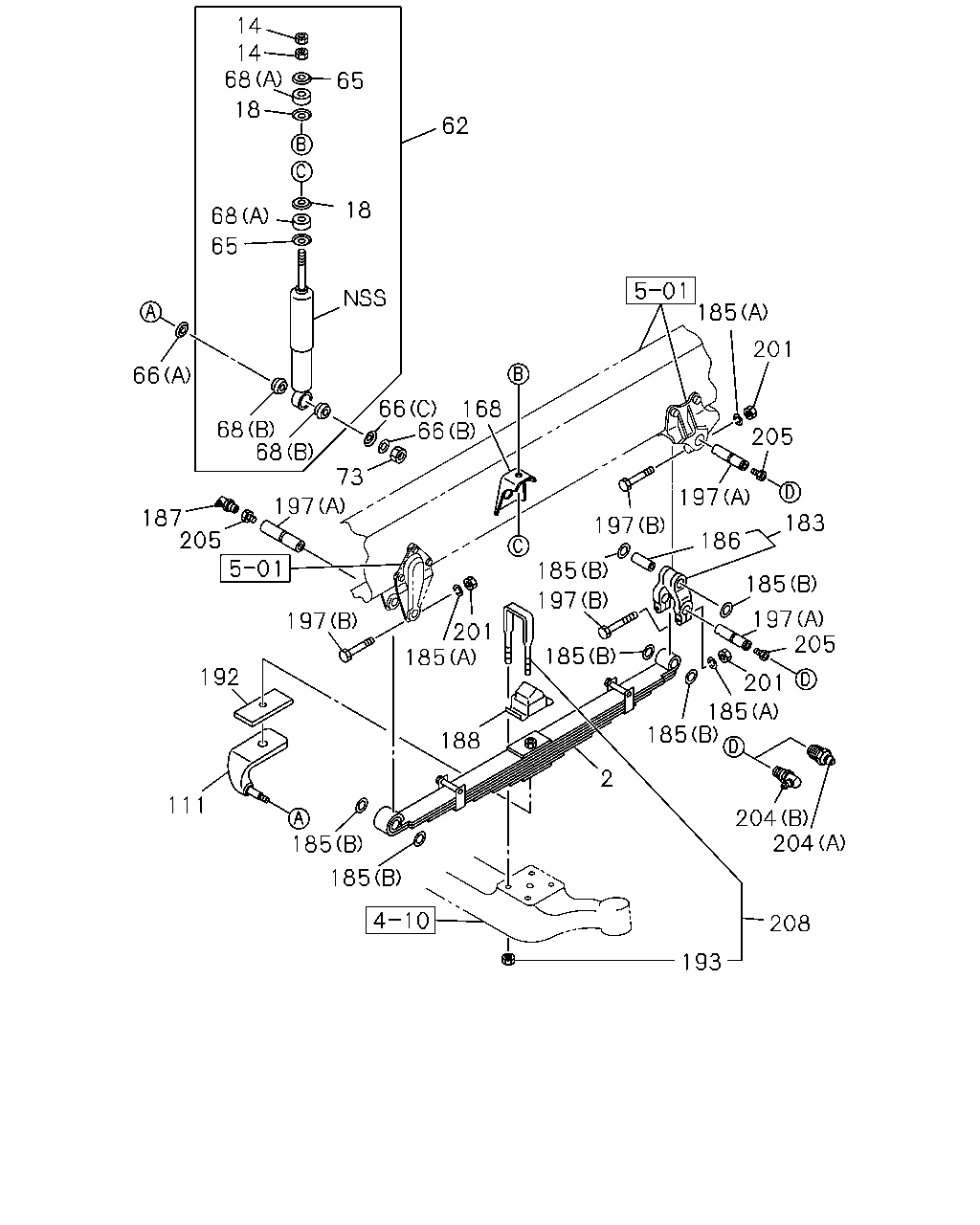

4-50 — FRONT SUSPENSION
(#133396) — 30 parça
14
14
18
65
62
18
68
65
66
68
68
197
187
205
197
192
111
185
185
188
185
201
185
197
185
2
185
185
201
205
197
185
183
197
186
197
205
201
185
204
204
208
193
68
66
168
66
73
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 4HK1-TCS ENG<RJS> 8-LEAF THA
8-98228-700-0
02
1
1406-
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6HK1-TCN ENG<82L> 7-LEAF THA
8-97948-186-0
02
1
1402-
14
NUT; S/ABS,UPR
M12 THA
8-98010-412-0
04
1
1402-
18
WASHER; CENTERING,S/ABS
ID=16.8
1-51631-022-0
04
1
1402-
62
ABSORBER ASM; SHOCK,FRT
THA
8-97924-225-0
02
1
1402-
65
WASHER; S/ABS
ID=14.5
9-51631-051-0
04
1
1402-
66
WASHER; LK,S/ABS SETTING
(B) ID=17 OD=30
0-91610-516-0
02
1
1402-
66
WASHER; LK,S/ABS SETTING
(A) ID=23
1-51631-019-0
02
1
1402-
66
WASHER; LK,S/ABS SETTING
(C) ID=17
1-51631-020-0
02
1
1402-
68
BUSHING; S/ABS
(B) THA
1-51631-009-1
04
1
1402-
68
BUSHING; S/ABS
(A)
9-51631-050-0
04
1
1402-
73
NUT; BRKT,SHOCK
M16 THA
0-91110-516-0
02
1
1402-
111
SUPPORTER; S/ABS,FRT SUSP
THA
8-97948-500-0
01
1
1402-
111
SUPPORTER; S/ABS,FRT SUSP
THA
8-97948-499-0
01
1
1402-
168
BRACKET; S/ABS,FRT SUSP
1-51681-306-0
02
1
1402-
183
SHACKLE; FRT SUSP
1-51162-029-5
02
1
1402-
185
WASHER; LK,PIN
(A) ID=12.2
0-91510-612-0
12
1
1402-
185
WASHER; LK,PIN
(B) ID=32.4
1-51169-018-0
12
1
1402-
186
BUSHING; SHACKLE
OD=38
8-98081-829-0
02
1
1402-
187
NIPPLE; GREASE,FRT
PT1/8 ELBOW
0-90301-610-0
02
1
1402-
188
RUBBER; CLAMP,U-BOLT,FRT SPR
THA
8-97948-187-0
02
1
1402-
192
PIECE; DIST
80X144 ID=17.5
1-51177-284-1
AR
1
1402-
193
NUT; U BOLT
M22
8-98179-318-0
08
1
1402-
197
PIN; FRT SPR,FRT
(B) M12X80
0-10856-280-0
12
1
1402-
197
PIN; FRT SPR,FRT
(A) THA
8-97948-141-0
06
1
1402-
201
NUT; PIN LK
M12
0-91110-512-0
12
1
1402-
204
NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT
0-90301-410-0
02
1
1402-
204
NIPPLE; GREASE,RR
(B) PT1/8 ELBOW 67.5 DEGREES
0-90301-510-0
02
1
1402-
205
ATTACHMENT; GREASE NIPPLE
9-43165-001-0
06
1
1402-
208
U-BOLT SET; FRT SPRING
L=230
1-87870-493-0
04
1
1402-
