◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11575 - FTR(THAI)EURO3 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-42 - POWER STEERING OIL PUMP ▶
4-42 — POWER STEERING OIL PUMP (#133395) — 43 parça

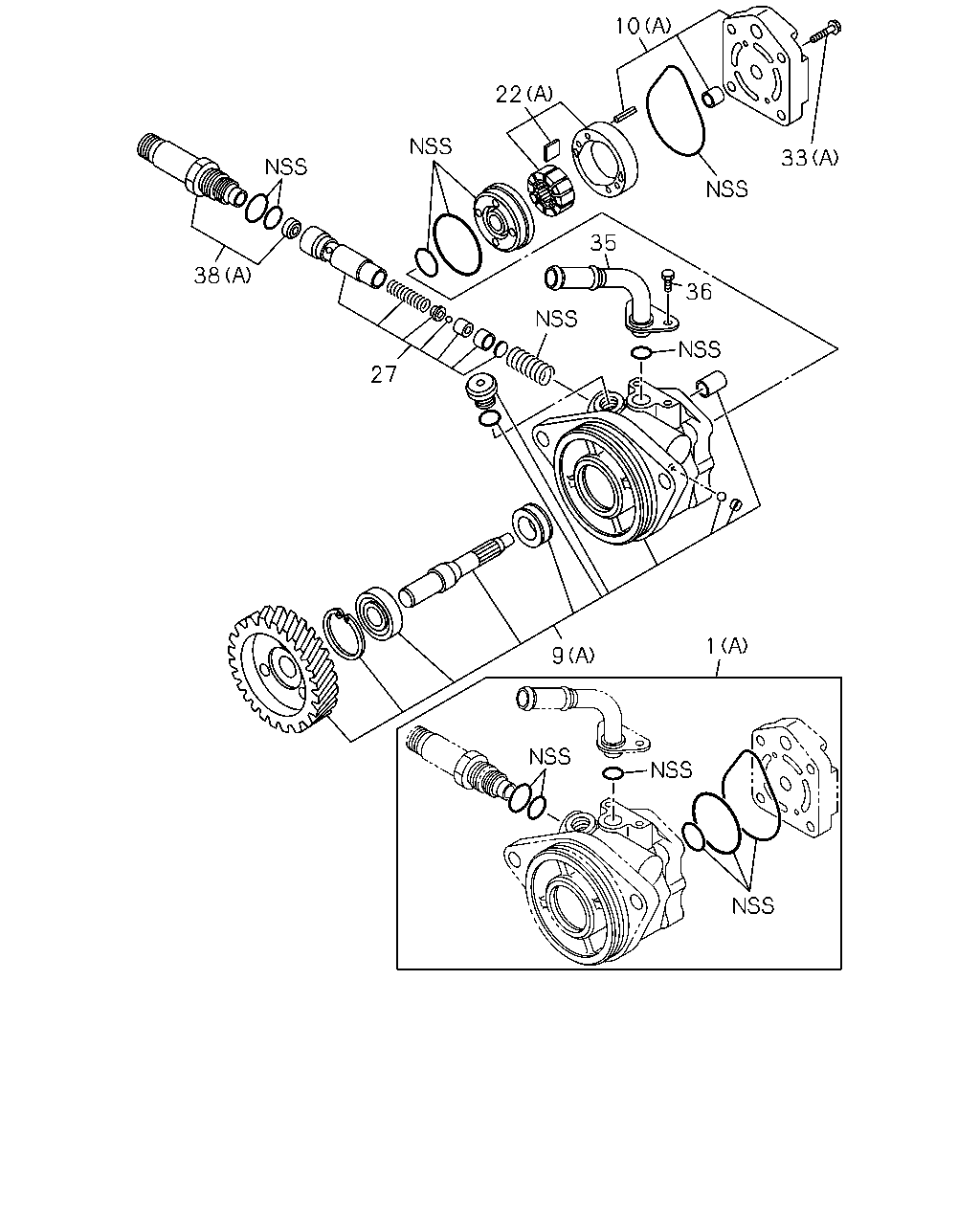

çizim 407736
38 27 35 36 9 1 22 10 33
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; OIL PUMP
(B) ASM PART: B = 8-98190-459-0 		1-85574-073-0 01 1 -
1 REPAIR KIT; OIL PUMP
(A) ASM PART: A = 1-19500-629-1 		8-98077-484-0 01 1 -
9 BODY ASM; FRT,OIL PUMP
(B) ASM PART: B = 8-98190-459-0 		1-19511-162-1 01 1 -
9 BODY ASM; FRT,OIL PUMP
(A) ASM PART: A = 1-19500-629-1 		8-98077-485-0 01 1 -
10 BODY ASM; RR,OIL PUMP
(B) ASM PART: B = 8-98190-459-0 		1-19511-160-0 01 1 -
10 BODY ASM; RR,OIL PUMP
(A) ASM PART: A = 1-19500-629-1 		8-98077-477-0 01 1 -
22 CARTRIDGE ASM; OIL PUMP
(B) ASM PART: B = 8-98190-459-0 		1-19519-342-0 01 1 -
22 CARTRIDGE ASM; OIL PUMP
(A) ASM PART: A = 1-19500-629-1 		8-98077-476-0 01 1 -
27 VALVE ASM; OIL PUMP
ASM PART: A = 1-19500-629-1 		8-98077-479-0 01 1 -
33 BOLT; COVER
(B) ASM PART: B = 8-98190-459-0 		1-19519-346-1 04 1 -
33 BOLT; COVER
(A) ASM PART: A = 1-19500-629-1 		8-98077-478-0 04 1 -
35 PIPE; HOSE CONN,OIL PUMP
ASM PART: A = 1-19500-629-1 		8-98077-482-0 01 1 -
36 BOLT; CONN,PIPE
ASM PART: A = 1-19500-629-1 		8-97184-763-0 02 1 -
38 CONNECTOR; OIL PUMP
(B) ASM PART: B = 8-98190-459-0 		8-98072-517-0 01 1 -
38 CONNECTOR; OIL PUMP
(A) ASM PART: A = 1-19500-629-1 		8-98077-481-0 01 1 -
38 CONNECTOR; OIL PUMP
(C) ASM PART: B = 8-98190-459-0 		8-98162-180-0 01 1 -
çizim 426315
38 38 39 32 24 22 25 21 10 33 37 21 39 1 21 37 39 21 39 39 19 15 14 15 13 19 9 39 8
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; OIL PUMP
(B) ASM PART: B = 8-98190-459-0 		1-85574-073-0 01 1 -
1 REPAIR KIT; OIL PUMP
(A) ASM PART: A = 1-19500-629-1 		8-98077-484-0 01 1 -
8 KEY; SHAFT,OIL PUMP
ASM PART: B = 8-98190-459-0 		9-19519-089-0 01 1 -
9 BODY ASM; FRT,OIL PUMP
(B) ASM PART: B = 8-98190-459-0 		1-19511-162-1 01 1 -
9 BODY ASM; FRT,OIL PUMP
(A) ASM PART: A = 1-19500-629-1 		8-98077-485-0 01 1 -
10 BODY ASM; RR,OIL PUMP
(B) ASM PART: B = 8-98190-459-0 		1-19511-160-0 01 1 -
10 BODY ASM; RR,OIL PUMP
(A) ASM PART: A = 1-19500-629-1 		8-98077-477-0 01 1 -
13 SHAFT KIT; RET
ASM PART: B = 8-98190-459-0 		1-19521-038-0 01 1 -
14 RING; RET,OIL PUMP
ASM PART: B = 8-98190-459-0 		1-19519-257-0 01 1 -
15 BEARING; BALL,OIL PUMP
ASM PART: B = 8-98190-459-0 		1-19519-264-0 01 1 -
19 SEAL; OIL,OIL PUMP
ASM PART: B = 8-98190-459-0 		1-19519-256-0 01 1 -
21 GASKET; FRT COVER TO BODY
(B) ASM PART: B = 8-98190-459-0 		1-19519-345-0 01 1 -
21 GASKET; FRT COVER TO BODY
(A) ASM PART: B = 8-98190-459-0 		8-97182-099-0 01 1 -
22 CARTRIDGE ASM; OIL PUMP
(B) ASM PART: B = 8-98190-459-0 		1-19519-342-0 01 1 -
22 CARTRIDGE ASM; OIL PUMP
(A) ASM PART: A = 1-19500-629-1 		8-98077-476-0 01 1 -
24 PLATE ASM; THRUST
ASM PART: B = 8-98190-459-0 		8-97182-103-0 01 1 -
25 PIN; HSG,P/S
ASM PART: B = 8-98190-459-0 		1-33739-345-0 02 1 -
32 SPRING; OIL PUMP
ASM PART: B = 8-98190-459-0 		8-94475-376-0 01 1 -
33 BOLT; COVER
(B) ASM PART: B = 8-98190-459-0 		1-19519-346-1 04 1 -
33 BOLT; COVER
(A) ASM PART: A = 1-19500-629-1 		8-98077-478-0 04 1 -
37 GASKET; PIPE CONN,OIL PUMP
ASM PART: B = 8-98190-459-0 		1-33739-070-0 01 1 -
38 CONNECTOR; OIL PUMP
(B) ASM PART: B = 8-98190-459-0 		8-98072-517-0 01 1 -
38 CONNECTOR; OIL PUMP
(A) ASM PART: A = 1-19500-629-1 		8-98077-481-0 01 1 -
38 CONNECTOR; OIL PUMP
(C) ASM PART: B = 8-98190-459-0 		8-98162-180-0 01 1 -
39 GASKET; OIL PUMP
(A) ASM PART: B = 8-98190-459-0 		1-19519-259-0 01 1 -
39 GASKET; OIL PUMP
(C) ASM PART: B = 8-98190-459-0 		1-19519-308-0 01 1 -
39 GASKET; OIL PUMP
(B) ASM PART: B = 8-98190-459-0 		9-48429-028-0 01 1 -
