Sayfa 4-35 - Isuzu EPC

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#133392) — 209 parça

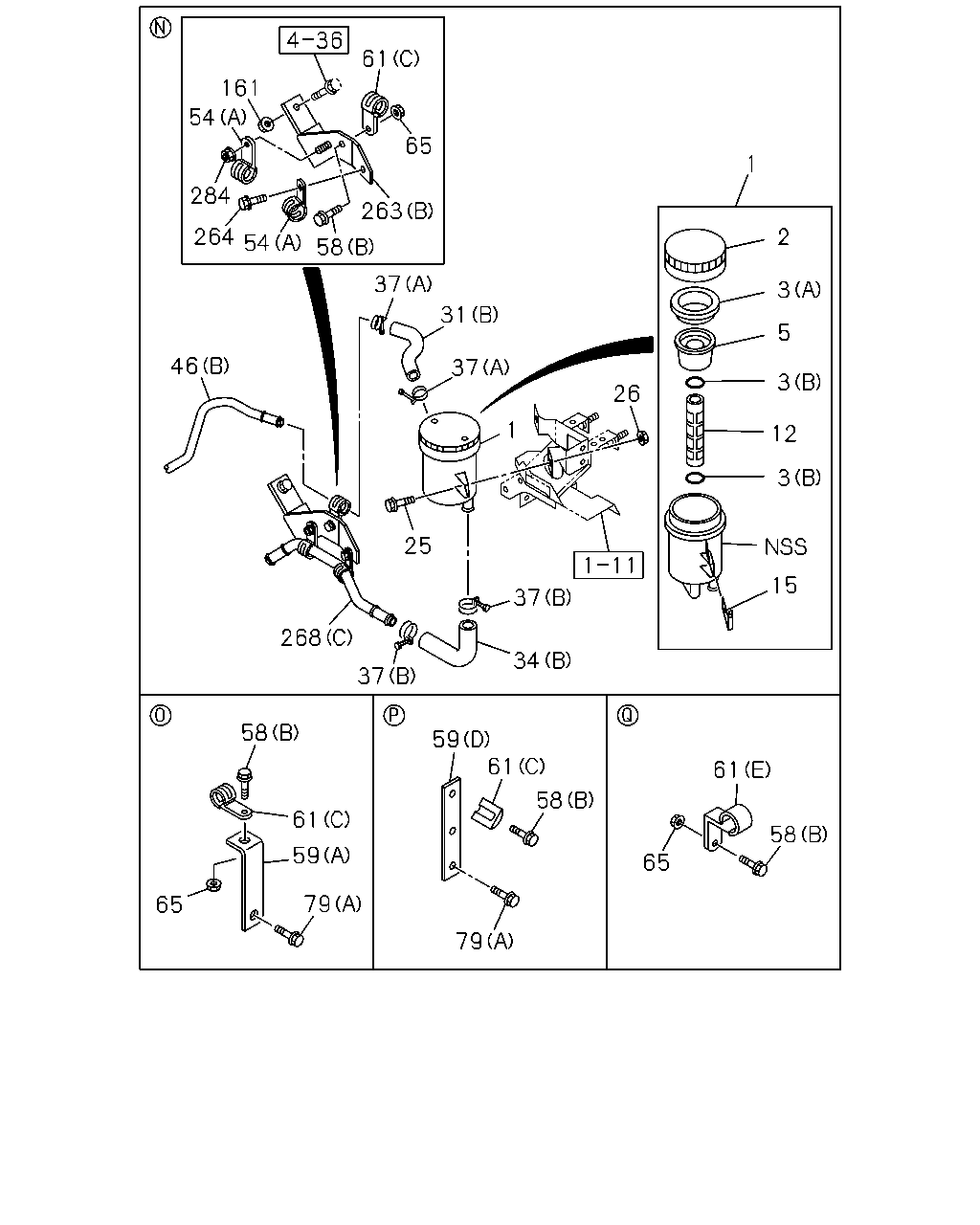

1 2 3 5 3 12 3 15 26 1 37 34 37 268 25 37 31 37 46 61 58 58 61 65 59 79 277 39 284 263 284 54 264 58 61 59 65 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S THA	8-97948-302-2	01	1	1402-
2	CAP; OIL TANK,P/S THA	8-97948-291-0	01	1	1402-
3	GASKET; OIL TANK,P/S (B) THA	8-97948-979-0	02	1	1402-
3	GASKET; OIL TANK,P/S (A) THA	8-97948-295-0	01	1	1402-
5	STRAINER; OIL TANK,P/S THA	8-98246-550-0	01	1	1402-
12	FILTER; MICROBON,OIL TANK,P/S THA	8-97948-300-0	01	1	1402-
15	PLATE; FILTER,OIL TANK THA	8-97948-297-0	02	1	1402-
25	BOLT; OIL TANK BRKT M8X25 FLANGE THA	0-28650-825-0	02	1	1402-
26	NUT; OIL TANK TO BRKT M8 FLANGE THA	0-91180-108-0	02	1	1402-
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG<RJS> (B)	8-98196-261-0	01	1	1406-
31	HOSE; P/S OIL TANK,INL 6HK1-TCN ENG<82L> (A)	8-98092-730-0	01	1	1402-
34	HOSE; P/S OIL TANK,OUTLET 4HK1-TCS ENG<RJS> (B)	8-98194-565-0	01	1	1406-
34	HOSE; P/S OIL TANK,OUTLET 6HK1-TCN ENG<82L> (A)	8-98021-827-0	01	1	1402-
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1402-
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1402-
39	CLIP; FLEX HOSE 6HK1-TCN ENG<82L> (A) ID=19 L=58	1-09700-733-1	01	1	1402-
39	CLIP; FLEX HOSE 6HK1-TCN ENG<82L> (B) ID=40	8-94226-553-0	01	1	1402-
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG<RJS> (B) L=3126 THA	8-98239-365-0	01	1	1406-
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG<82L> (A) L=2771 THA	8-98123-973-0	01	1	1402-
54	CLIP; OIL PIPE 4HK1-TCS ENG<RJS> (A) ID=19 L=20	0-95235-836-0	02	1	1406-
54	CLIP; OIL PIPE 4HK1-TCS ENG<RJS> (B)	1-09701-284-0	02	1	1406-1406
54	CLIP; OIL PIPE 4HK1-TCS ENG<RJS> (B)	1-09701-284-0	04	1	1407-
54	CLIP; OIL PIPE 4HK1-TCS ENG<RJS> (C) ID=32	1-09704-085-0	02	1	1406-
54	CLIP; OIL PIPE 6HK1-TCN ENG<82L> (A) ID=19 L=20	0-95235-836-0	01	1	1402-
58	BOLT; CLIP 4HK1-TCS ENG<RJS> (B) M8X20 FLANGE THA	0-28650-820-0	05	1	1406-
58	BOLT; CLIP 4HK1-TCS ENG<RJS> (D) M8X30 FLANGE THA	0-28650-830-0	01	1	1406-
58	BOLT; CLIP 4HK1-TCS ENG<RJS> (E) M8X45 FLANGE THA	0-28050-845-0	01	1	1406-1406
58	BOLT; CLIP 4HK1-TCS ENG<RJS> (E) M8X45 FLANGE THA	0-28050-845-0	02	1	1407-
58	BOLT; CLIP 6HK1-TCN ENG<82L> (A) M8X16 FLANGE THA	0-28050-816-0	02	1	1402-
58	BOLT; CLIP 6HK1-TCN ENG<82L> (B) M8X20 FLANGE THA	0-28650-820-0	02	1	1402-
58	BOLT; CLIP 6HK1-TCN ENG<82L> (C) M8X40 FLANGE THA	0-28650-840-0	01	1	1402-
59	BRACKET; CLIP,OIL PIPE 4HK1-TCS ENG<RJS> (D)	1-36183-202-0	01	1	1406-
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG<82L> (C)	1-21464-481-0	01	1	1402-
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG<82L> (B)	1-47475-427-1	01	1	1402-
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1402-
61	CLIP; OIL PIPE 4HK1-TCS ENG<RJS> (D) ID=13 L=50	0-95235-286-0	01	1	1406-
61	CLIP; OIL PIPE 4HK1-TCS ENG<RJS> (C) ID=16 L=20 THA	0-95235-536-0	04	1	1406-
61	CLIP; OIL PIPE 4HK1-TCS ENG<RJS> (E) ID=15 H=24 L=20	1-09700-606-0	01	1	1406-
61	CLIP; OIL PIPE 6HK1-TCN ENG<82L> (C) ID=16 L=20 THA	0-95235-536-0	02	1	1402-
61	CLIP; OIL PIPE 6HK1-TCN ENG<82L> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1402-
61	CLIP; OIL PIPE 6HK1-TCN ENG<82L> (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1402-
65	NUT; BRKT 4HK1-TCS ENG<RJS> M8 FLANGE THA	0-91180-108-0	04	1	1406-
65	NUT; BRKT 6HK1-TCN ENG<82L> M8 FLANGE THA	0-91180-108-0	01	1	1402-
65	NUT; BRKT 6HK1-TCN ENG<82L> M8 FLANGE THA	0-91180-108-0	02	1	1402-
79	BOLT; BRKT 4HK1-TCS ENG<RJS> (A) M8X25 FLANGE THA	0-28650-825-0	02	1	1406-
79	BOLT; BRKT 6HK1-TCN ENG<82L> (B) M8X20 FLANGE THA	0-28650-820-0	01	1	1402-
79	BOLT; BRKT 6HK1-TCN ENG<82L> (A) M8X25 FLANGE THA	0-28650-825-0	01	1	1402-
79	BOLT; BRKT 6HK1-TCN ENG<82L> (C) M8X30 FLANGE THA	0-28650-830-0	01	1	1402-
263	BRACKET; P/S PIPE 4HK1-TCS ENG<RJS> (B)	8-98249-963-0	01	1	1406-
263	BRACKET; P/S PIPE 6HK1-TCN ENG<82L> (A)	8-98081-189-0	01	1	1402-
264	BOLT; PIPE BRKT M8X20 FLANGE THA	0-28650-820-0	01	1	1402-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG<RJS> (C)	8-98249-962-0	01	1	1406-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCN ENG<82L> (A) THA	8-98090-330-0	01	1	1402-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCN ENG<82L> (B)	8-98092-722-0	01	1	1402-
277	BOLT; HOSE CLIP 6HK1-TCN ENG<82L> M8X16 FLANGE THA	0-28050-816-0	02	1	1402-
284	NUT; PIPE 4HK1-TCS ENG<RJS> M8 FLANGE THA	0-91180-108-0	01	1	1406-
284	NUT; PIPE 6HK1-TCN ENG<82L> M8 FLANGE THA	0-91180-108-0	02	1	1402-

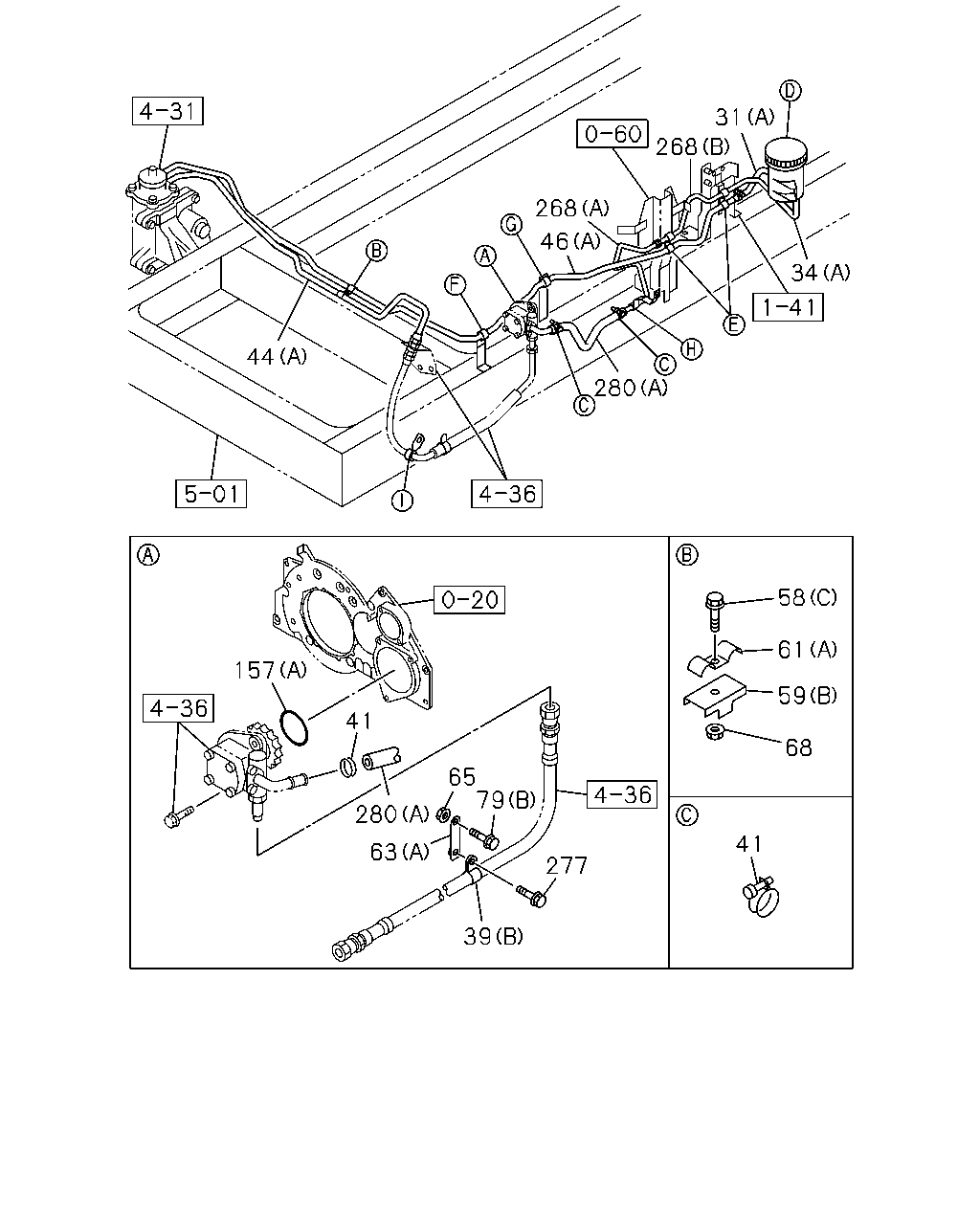

31 268 34 280 46 268 44 157 41 280 63 65 79 277 41 39 68 59 61 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG<RJS> (B)	8-98196-261-0	01	1	1406-
31	HOSE; P/S OIL TANK,INL 6HK1-TCN ENG<82L> (A)	8-98092-730-0	01	1	1402-
34	HOSE; P/S OIL TANK,OUTLET 4HK1-TCS ENG<RJS> (B)	8-98194-565-0	01	1	1406-
34	HOSE; P/S OIL TANK,OUTLET 6HK1-TCN ENG<82L> (A)	8-98021-827-0	01	1	1402-
39	CLIP; FLEX HOSE 6HK1-TCN ENG<82L> (A) ID=19 L=58	1-09700-733-1	01	1	1402-
39	CLIP; FLEX HOSE 6HK1-TCN ENG<82L> (B) ID=40	8-94226-553-0	01	1	1402-
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1402-
44	PIPE; OIL,P/S UNIT TO NIPPLE 4HK1-TCS ENG<RJS> (B) THA	8-98205-780-0	01	1	1406-
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HK1-TCN ENG<82L> (A) THA	8-97948-229-0	01	1	1402-
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG<RJS> (B) L=3126 THA	8-98239-365-0	01	1	1406-
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG<82L> (A) L=2771 THA	8-98123-973-0	01	1	1402-
58	BOLT; CLIP 4HK1-TCS ENG<RJS> (B) M8X20 FLANGE THA	0-28650-820-0	05	1	1406-
58	BOLT; CLIP 4HK1-TCS ENG<RJS> (D) M8X30 FLANGE THA	0-28650-830-0	01	1	1406-
58	BOLT; CLIP 4HK1-TCS ENG<RJS> (E) M8X45 FLANGE THA	0-28050-845-0	01	1	1406-1406
58	BOLT; CLIP 4HK1-TCS ENG<RJS> (E) M8X45 FLANGE THA	0-28050-845-0	02	1	1407-
58	BOLT; CLIP 6HK1-TCN ENG<82L> (A) M8X16 FLANGE THA	0-28050-816-0	02	1	1402-
58	BOLT; CLIP 6HK1-TCN ENG<82L> (B) M8X20 FLANGE THA	0-28650-820-0	02	1	1402-
58	BOLT; CLIP 6HK1-TCN ENG<82L> (C) M8X40 FLANGE THA	0-28650-840-0	01	1	1402-
59	BRACKET; CLIP,OIL PIPE 4HK1-TCS ENG<RJS> (D)	1-36183-202-0	01	1	1406-
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG<82L> (C)	1-21464-481-0	01	1	1402-
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG<82L> (B)	1-47475-427-1	01	1	1402-
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1402-
61	CLIP; OIL PIPE 4HK1-TCS ENG<RJS> (D) ID=13 L=50	0-95235-286-0	01	1	1406-
61	CLIP; OIL PIPE 4HK1-TCS ENG<RJS> (C) ID=16 L=20 THA	0-95235-536-0	04	1	1406-
61	CLIP; OIL PIPE 4HK1-TCS ENG<RJS> (E) ID=15 H=24 L=20	1-09700-606-0	01	1	1406-
61	CLIP; OIL PIPE 6HK1-TCN ENG<82L> (C) ID=16 L=20 THA	0-95235-536-0	02	1	1402-
61	CLIP; OIL PIPE 6HK1-TCN ENG<82L> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1402-
61	CLIP; OIL PIPE 6HK1-TCN ENG<82L> (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1402-
63	BRACKET; CLIP,P/S 4HK1-TCS ENG<RJS> (B)	8-97375-107-0	01	1	1406-
63	BRACKET; CLIP,P/S 6HK1-TCN ENG<82L> (A)	1-47476-396-1	01	1	1402-
65	NUT; BRKT 4HK1-TCS ENG<RJS> M8 FLANGE THA	0-91180-108-0	04	1	1406-
65	NUT; BRKT 6HK1-TCN ENG<82L> M8 FLANGE THA	0-91180-108-0	01	1	1402-
65	NUT; BRKT 6HK1-TCN ENG<82L> M8 FLANGE THA	0-91180-108-0	02	1	1402-
68	NUT; CLIP,OIL PIPE 6HK1-TCN ENG<82L> M8 FLANGE THA	0-91180-108-0	01	1	1402-
79	BOLT; BRKT 4HK1-TCS ENG<RJS> (A) M8X25 FLANGE THA	0-28650-825-0	02	1	1406-
79	BOLT; BRKT 6HK1-TCN ENG<82L> (B) M8X20 FLANGE THA	0-28650-820-0	01	1	1402-
79	BOLT; BRKT 6HK1-TCN ENG<82L> (A) M8X25 FLANGE THA	0-28650-825-0	01	1	1402-
79	BOLT; BRKT 6HK1-TCN ENG<82L> (C) M8X30 FLANGE THA	0-28650-830-0	01	1	1402-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 4HK1-TCS ENG<RJS> (B) ID=105.6	8-97386-295-0	01	1	1406-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1-TCN ENG<82L> (A) ID=96.4	1-09623-467-0	01	1	1402-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG<RJS> (C)	8-98249-962-0	01	1	1406-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCN ENG<82L> (A) THA	8-98090-330-0	01	1	1402-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCN ENG<82L> (B)	8-98092-722-0	01	1	1402-
277	BOLT; HOSE CLIP 6HK1-TCN ENG<82L> M8X16 FLANGE THA	0-28050-816-0	02	1	1402-
280	HOSE; P/S OIL PUMP,INL 4HK1-TCS ENG<RJS> (B)	8-98179-991-0	01	1	1406-
280	HOSE; P/S OIL PUMP,INL 6HK1-TCN ENG<82L> (A)	8-98081-190-0	01	1	1402-

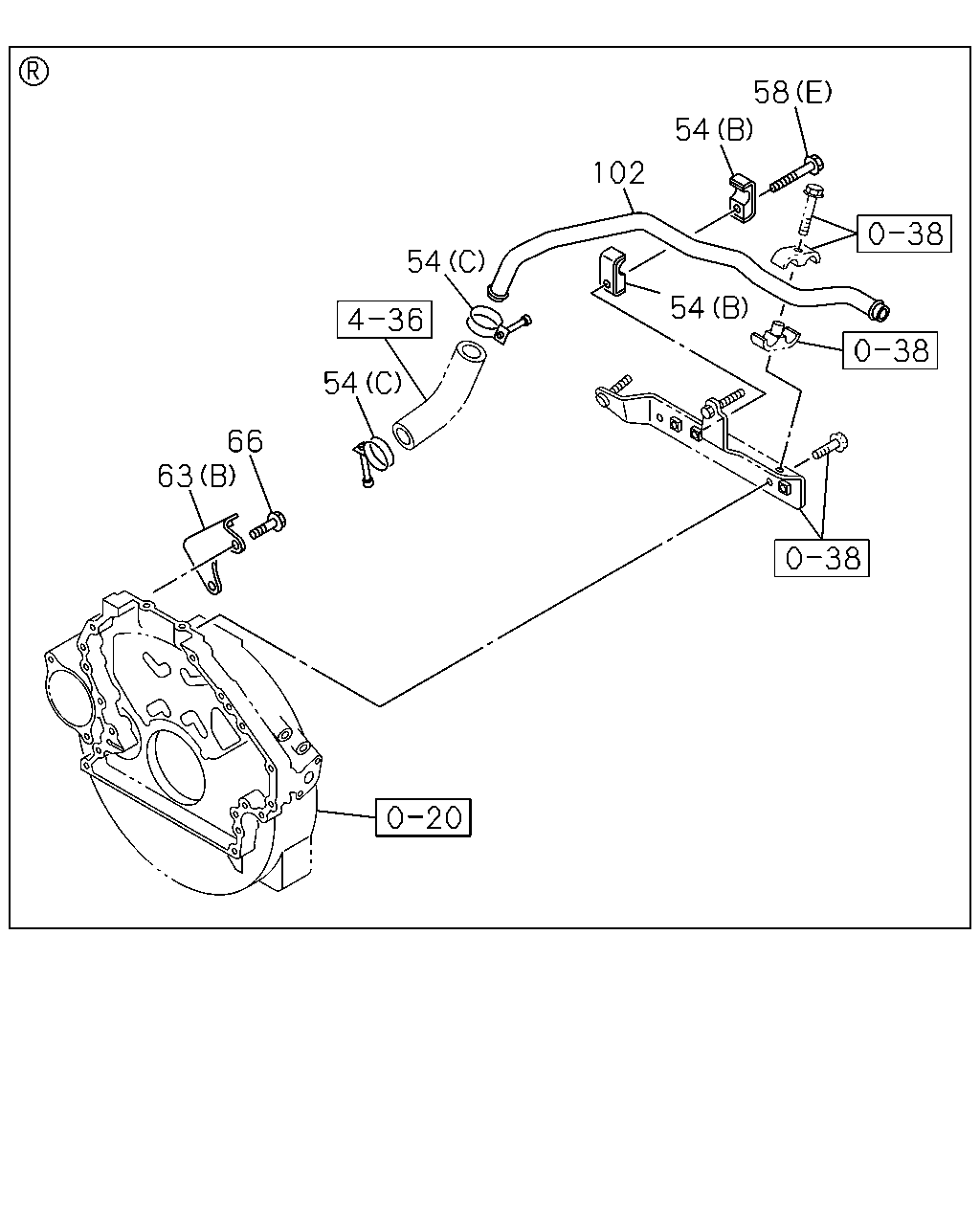

63 66 54 54 102 54 58 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
54	CLIP; OIL PIPE 4HK1-TCS ENG<RJS> (A) ID=19 L=20	0-95235-836-0	02	1	1406-
54	CLIP; OIL PIPE 4HK1-TCS ENG<RJS> (B)	1-09701-284-0	02	1	1406-1406
54	CLIP; OIL PIPE 4HK1-TCS ENG<RJS> (B)	1-09701-284-0	04	1	1407-
54	CLIP; OIL PIPE 4HK1-TCS ENG<RJS> (C) ID=32	1-09704-085-0	02	1	1406-
54	CLIP; OIL PIPE 6HK1-TCN ENG<82L> (A) ID=19 L=20	0-95235-836-0	01	1	1402-
58	BOLT; CLIP 4HK1-TCS ENG<RJS> (B) M8X20 FLANGE THA	0-28650-820-0	05	1	1406-
58	BOLT; CLIP 4HK1-TCS ENG<RJS> (D) M8X30 FLANGE THA	0-28650-830-0	01	1	1406-
58	BOLT; CLIP 4HK1-TCS ENG<RJS> (E) M8X45 FLANGE THA	0-28050-845-0	01	1	1406-1406
58	BOLT; CLIP 4HK1-TCS ENG<RJS> (E) M8X45 FLANGE THA	0-28050-845-0	02	1	1407-
58	BOLT; CLIP 6HK1-TCN ENG<82L> (A) M8X16 FLANGE THA	0-28050-816-0	02	1	1402-
58	BOLT; CLIP 6HK1-TCN ENG<82L> (B) M8X20 FLANGE THA	0-28650-820-0	02	1	1402-
58	BOLT; CLIP 6HK1-TCN ENG<82L> (C) M8X40 FLANGE THA	0-28650-840-0	01	1	1402-
63	BRACKET; CLIP,P/S 4HK1-TCS ENG<RJS> (B)	8-97375-107-0	01	1	1406-
63	BRACKET; CLIP,P/S 6HK1-TCN ENG<82L> (A)	1-47476-396-1	01	1	1402-
66	BOLT; BRKT,OIL PIPE 4HK1-TCS ENG<RJS> M8X16 FLANGE THA	0-28050-816-0	02	1	1406-
102	PIPE; SUCTION,P/S 4HK1-TCS ENG<RJS>	8-98080-186-2	01	1	1406-

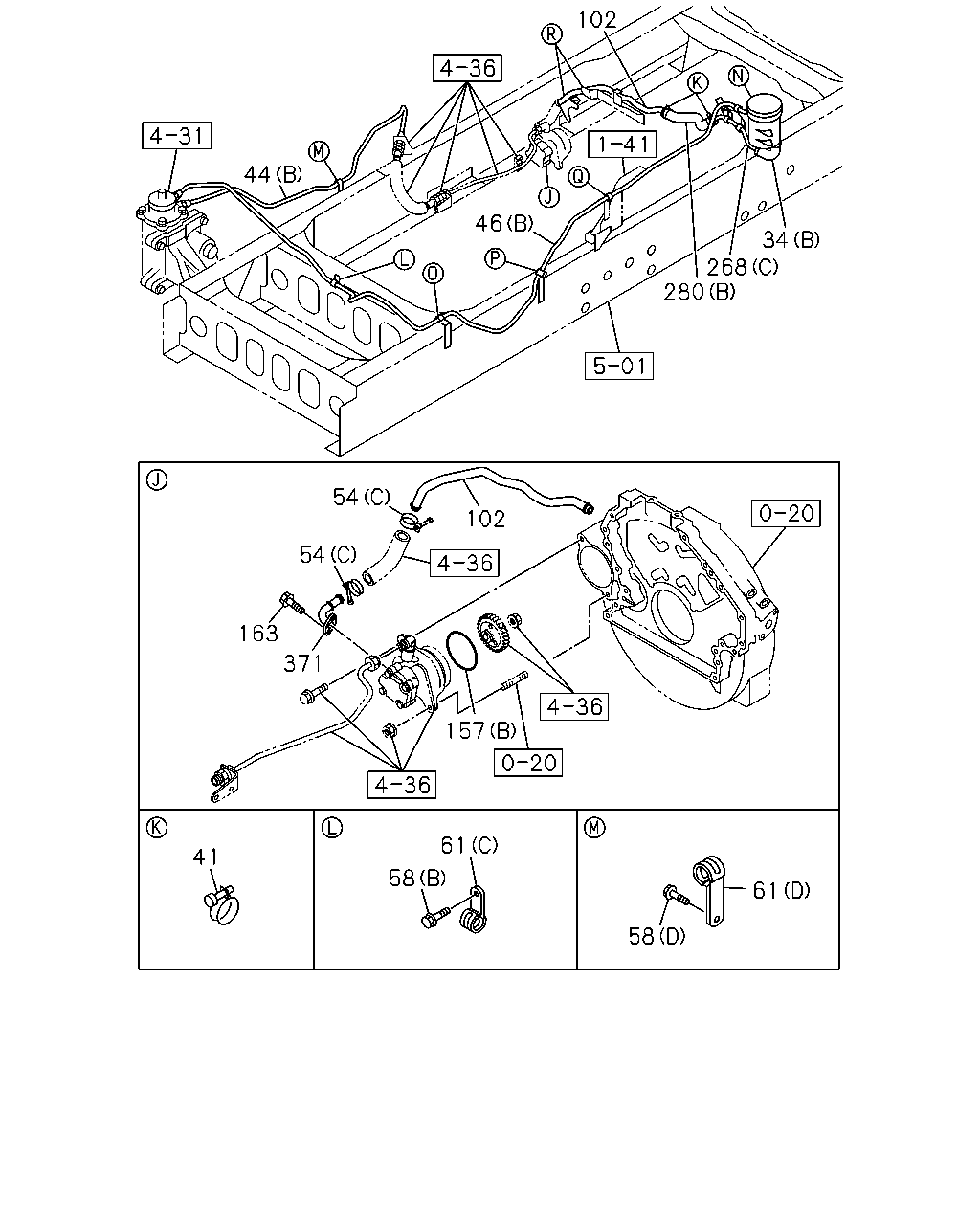

102 34 268 280 46 44 102 54 54 163 371 61 58 61 58 41 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	HOSE; P/S OIL TANK,OUTLET 4HK1-TCS ENG<RJS> (B)	8-98194-565-0	01	1	1406-
34	HOSE; P/S OIL TANK,OUTLET 6HK1-TCN ENG<82L> (A)	8-98021-827-0	01	1	1402-
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1402-
44	PIPE; OIL,P/S UNIT TO NIPPLE 4HK1-TCS ENG<RJS> (B) THA	8-98205-780-0	01	1	1406-
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HK1-TCN ENG<82L> (A) THA	8-97948-229-0	01	1	1402-
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG<RJS> (B) L=3126 THA	8-98239-365-0	01	1	1406-
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG<82L> (A) L=2771 THA	8-98123-973-0	01	1	1402-
54	CLIP; OIL PIPE 4HK1-TCS ENG<RJS> (A) ID=19 L=20	0-95235-836-0	02	1	1406-
54	CLIP; OIL PIPE 4HK1-TCS ENG<RJS> (B)	1-09701-284-0	02	1	1406-1406
54	CLIP; OIL PIPE 4HK1-TCS ENG<RJS> (B)	1-09701-284-0	04	1	1407-
54	CLIP; OIL PIPE 4HK1-TCS ENG<RJS> (C) ID=32	1-09704-085-0	02	1	1406-
54	CLIP; OIL PIPE 6HK1-TCN ENG<82L> (A) ID=19 L=20	0-95235-836-0	01	1	1402-
58	BOLT; CLIP 4HK1-TCS ENG<RJS> (B) M8X20 FLANGE THA	0-28650-820-0	05	1	1406-
58	BOLT; CLIP 4HK1-TCS ENG<RJS> (D) M8X30 FLANGE THA	0-28650-830-0	01	1	1406-
58	BOLT; CLIP 4HK1-TCS ENG<RJS> (E) M8X45 FLANGE THA	0-28050-845-0	01	1	1406-1406
58	BOLT; CLIP 4HK1-TCS ENG<RJS> (E) M8X45 FLANGE THA	0-28050-845-0	02	1	1407-
58	BOLT; CLIP 6HK1-TCN ENG<82L> (A) M8X16 FLANGE THA	0-28050-816-0	02	1	1402-
58	BOLT; CLIP 6HK1-TCN ENG<82L> (B) M8X20 FLANGE THA	0-28650-820-0	02	1	1402-
58	BOLT; CLIP 6HK1-TCN ENG<82L> (C) M8X40 FLANGE THA	0-28650-840-0	01	1	1402-
61	CLIP; OIL PIPE 4HK1-TCS ENG<RJS> (D) ID=13 L=50	0-95235-286-0	01	1	1406-
61	CLIP; OIL PIPE 4HK1-TCS ENG<RJS> (C) ID=16 L=20 THA	0-95235-536-0	04	1	1406-
61	CLIP; OIL PIPE 4HK1-TCS ENG<RJS> (E) ID=15 H=24 L=20	1-09700-606-0	01	1	1406-
61	CLIP; OIL PIPE 6HK1-TCN ENG<82L> (C) ID=16 L=20 THA	0-95235-536-0	02	1	1402-
61	CLIP; OIL PIPE 6HK1-TCN ENG<82L> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1402-
61	CLIP; OIL PIPE 6HK1-TCN ENG<82L> (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1402-
102	PIPE; SUCTION,P/S 4HK1-TCS ENG<RJS>	8-98080-186-2	01	1	1406-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 4HK1-TCS ENG<RJS> (B) ID=105.6	8-97386-295-0	01	1	1406-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1-TCN ENG<82L> (A) ID=96.4	1-09623-467-0	01	1	1402-
163	BOLT; OIL PIPE 4HK1-TCS ENG<RJS> M8X16 FLANGE THA	0-28050-816-0	02	1	1406-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG<RJS> (C)	8-98249-962-0	01	1	1406-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCN ENG<82L> (A) THA	8-98090-330-0	01	1	1402-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCN ENG<82L> (B)	8-98092-722-0	01	1	1402-
280	HOSE; P/S OIL PUMP,INL 4HK1-TCS ENG<RJS> (B)	8-98179-991-0	01	1	1406-
280	HOSE; P/S OIL PUMP,INL 6HK1-TCN ENG<82L> (A)	8-98081-190-0	01	1	1402-
371	PIPE; OIL,INLET 4HK1-TCS ENG<RJS>	8-98072-089-1	01	1	1406-

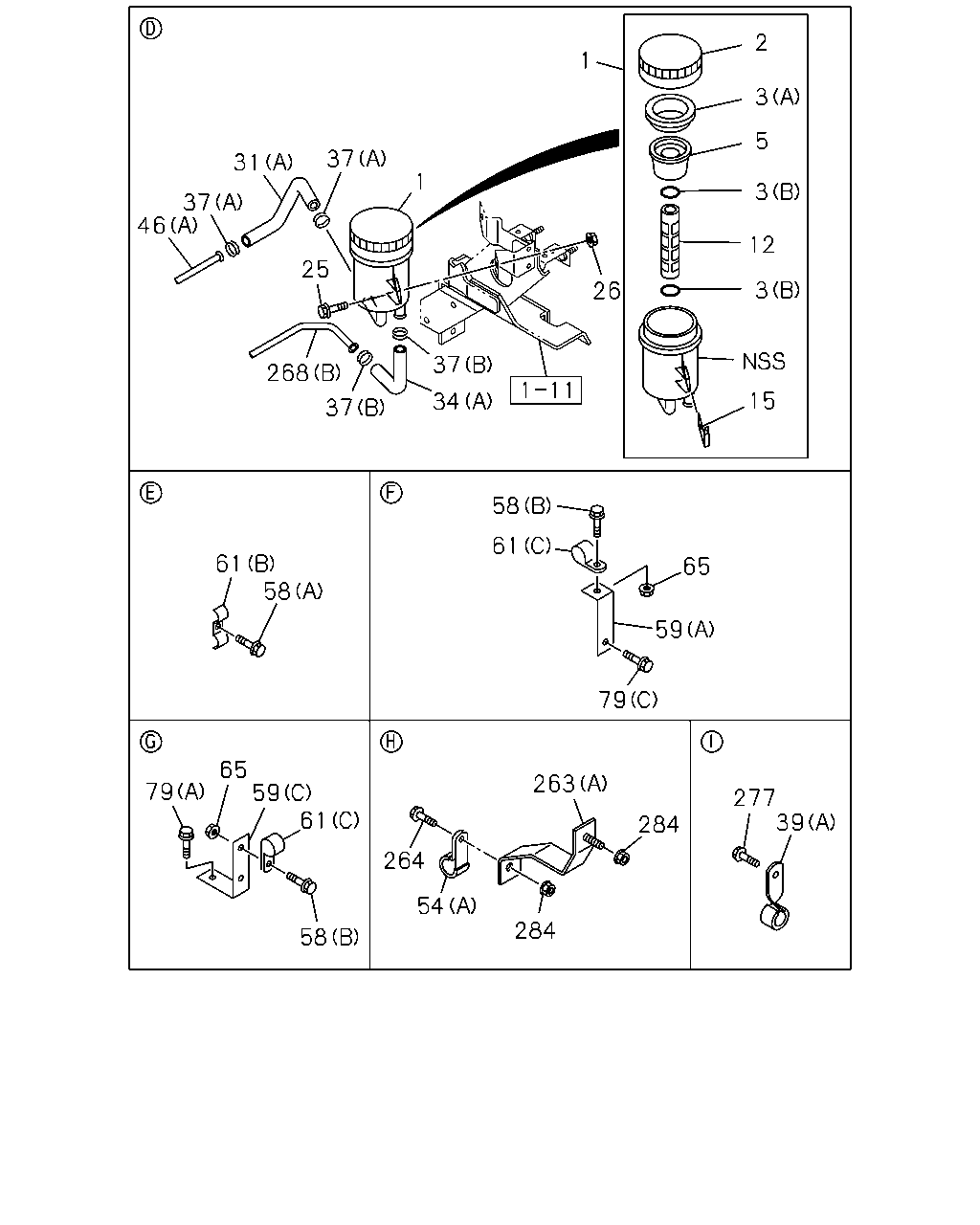

1 2 3 5 3 12 3 15 58 61 65 58 61 59 79 61 59 79 58 65 268 37 25 37 1 31 26 37 46 263 58 54 264 284 54 161 61 65 37 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S THA	8-97948-302-2	01	1	1402-
2	CAP; OIL TANK,P/S THA	8-97948-291-0	01	1	1402-
3	GASKET; OIL TANK,P/S (B) THA	8-97948-979-0	02	1	1402-
3	GASKET; OIL TANK,P/S (A) THA	8-97948-295-0	01	1	1402-
5	STRAINER; OIL TANK,P/S THA	8-98246-550-0	01	1	1402-
12	FILTER; MICROBON,OIL TANK,P/S THA	8-97948-300-0	01	1	1402-
15	PLATE; FILTER,OIL TANK THA	8-97948-297-0	02	1	1402-
25	BOLT; OIL TANK BRKT M8X25 FLANGE THA	0-28650-825-0	02	1	1402-
26	NUT; OIL TANK TO BRKT M8 FLANGE THA	0-91180-108-0	02	1	1402-
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG<RJS> (B)	8-98196-261-0	01	1	1406-
31	HOSE; P/S OIL TANK,INL 6HK1-TCN ENG<82L> (A)	8-98092-730-0	01	1	1402-
34	HOSE; P/S OIL TANK,OUTLET 4HK1-TCS ENG<RJS> (B)	8-98194-565-0	01	1	1406-
34	HOSE; P/S OIL TANK,OUTLET 6HK1-TCN ENG<82L> (A)	8-98021-827-0	01	1	1402-
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1402-
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1402-
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG<RJS> (B) L=3126 THA	8-98239-365-0	01	1	1406-
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG<82L> (A) L=2771 THA	8-98123-973-0	01	1	1402-
54	CLIP; OIL PIPE 4HK1-TCS ENG<RJS> (A) ID=19 L=20	0-95235-836-0	02	1	1406-
54	CLIP; OIL PIPE 4HK1-TCS ENG<RJS> (B)	1-09701-284-0	02	1	1406-1406
54	CLIP; OIL PIPE 4HK1-TCS ENG<RJS> (B)	1-09701-284-0	04	1	1407-
54	CLIP; OIL PIPE 4HK1-TCS ENG<RJS> (C) ID=32	1-09704-085-0	02	1	1406-
54	CLIP; OIL PIPE 6HK1-TCN ENG<82L> (A) ID=19 L=20	0-95235-836-0	01	1	1402-
58	BOLT; CLIP 4HK1-TCS ENG<RJS> (B) M8X20 FLANGE THA	0-28650-820-0	05	1	1406-
58	BOLT; CLIP 4HK1-TCS ENG<RJS> (D) M8X30 FLANGE THA	0-28650-830-0	01	1	1406-
58	BOLT; CLIP 4HK1-TCS ENG<RJS> (E) M8X45 FLANGE THA	0-28050-845-0	01	1	1406-1406
58	BOLT; CLIP 4HK1-TCS ENG<RJS> (E) M8X45 FLANGE THA	0-28050-845-0	02	1	1407-
58	BOLT; CLIP 6HK1-TCN ENG<82L> (A) M8X16 FLANGE THA	0-28050-816-0	02	1	1402-
58	BOLT; CLIP 6HK1-TCN ENG<82L> (B) M8X20 FLANGE THA	0-28650-820-0	02	1	1402-
58	BOLT; CLIP 6HK1-TCN ENG<82L> (C) M8X40 FLANGE THA	0-28650-840-0	01	1	1402-
59	BRACKET; CLIP,OIL PIPE 4HK1-TCS ENG<RJS> (D)	1-36183-202-0	01	1	1406-
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG<82L> (C)	1-21464-481-0	01	1	1402-
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG<82L> (B)	1-47475-427-1	01	1	1402-
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1402-
61	CLIP; OIL PIPE 4HK1-TCS ENG<RJS> (D) ID=13 L=50	0-95235-286-0	01	1	1406-
61	CLIP; OIL PIPE 4HK1-TCS ENG<RJS> (C) ID=16 L=20 THA	0-95235-536-0	04	1	1406-
61	CLIP; OIL PIPE 4HK1-TCS ENG<RJS> (E) ID=15 H=24 L=20	1-09700-606-0	01	1	1406-
61	CLIP; OIL PIPE 6HK1-TCN ENG<82L> (C) ID=16 L=20 THA	0-95235-536-0	02	1	1402-
61	CLIP; OIL PIPE 6HK1-TCN ENG<82L> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1402-
61	CLIP; OIL PIPE 6HK1-TCN ENG<82L> (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1402-
65	NUT; BRKT 4HK1-TCS ENG<RJS> M8 FLANGE THA	0-91180-108-0	04	1	1406-
65	NUT; BRKT 6HK1-TCN ENG<82L> M8 FLANGE THA	0-91180-108-0	01	1	1402-
65	NUT; BRKT 6HK1-TCN ENG<82L> M8 FLANGE THA	0-91180-108-0	02	1	1402-
79	BOLT; BRKT 4HK1-TCS ENG<RJS> (A) M8X25 FLANGE THA	0-28650-825-0	02	1	1406-
79	BOLT; BRKT 6HK1-TCN ENG<82L> (B) M8X20 FLANGE THA	0-28650-820-0	01	1	1402-
79	BOLT; BRKT 6HK1-TCN ENG<82L> (A) M8X25 FLANGE THA	0-28650-825-0	01	1	1402-
79	BOLT; BRKT 6HK1-TCN ENG<82L> (C) M8X30 FLANGE THA	0-28650-830-0	01	1	1402-
161	NUT; P/S PIPE 4HK1-TCS ENG<RJS> M8 FLANGE THA	0-91180-108-0	01	1	1406-
263	BRACKET; P/S PIPE 4HK1-TCS ENG<RJS> (B)	8-98249-963-0	01	1	1406-
263	BRACKET; P/S PIPE 6HK1-TCN ENG<82L> (A)	8-98081-189-0	01	1	1402-
264	BOLT; PIPE BRKT M8X20 FLANGE THA	0-28650-820-0	01	1	1402-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG<RJS> (C)	8-98249-962-0	01	1	1406-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCN ENG<82L> (A) THA	8-98090-330-0	01	1	1402-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCN ENG<82L> (B)	8-98092-722-0	01	1	1402-
284	NUT; PIPE 4HK1-TCS ENG<RJS> M8 FLANGE THA	0-91180-108-0	01	1	1406-
284	NUT; PIPE 6HK1-TCN ENG<82L> M8 FLANGE THA	0-91180-108-0	02	1	1402-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
