Isuzu WW
▶
TRUCKS
▶
FTR
▶
11575 - FTR(THAI)EURO3
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-11 - FRONT HUB AND DRUM OR ROTOR
▶

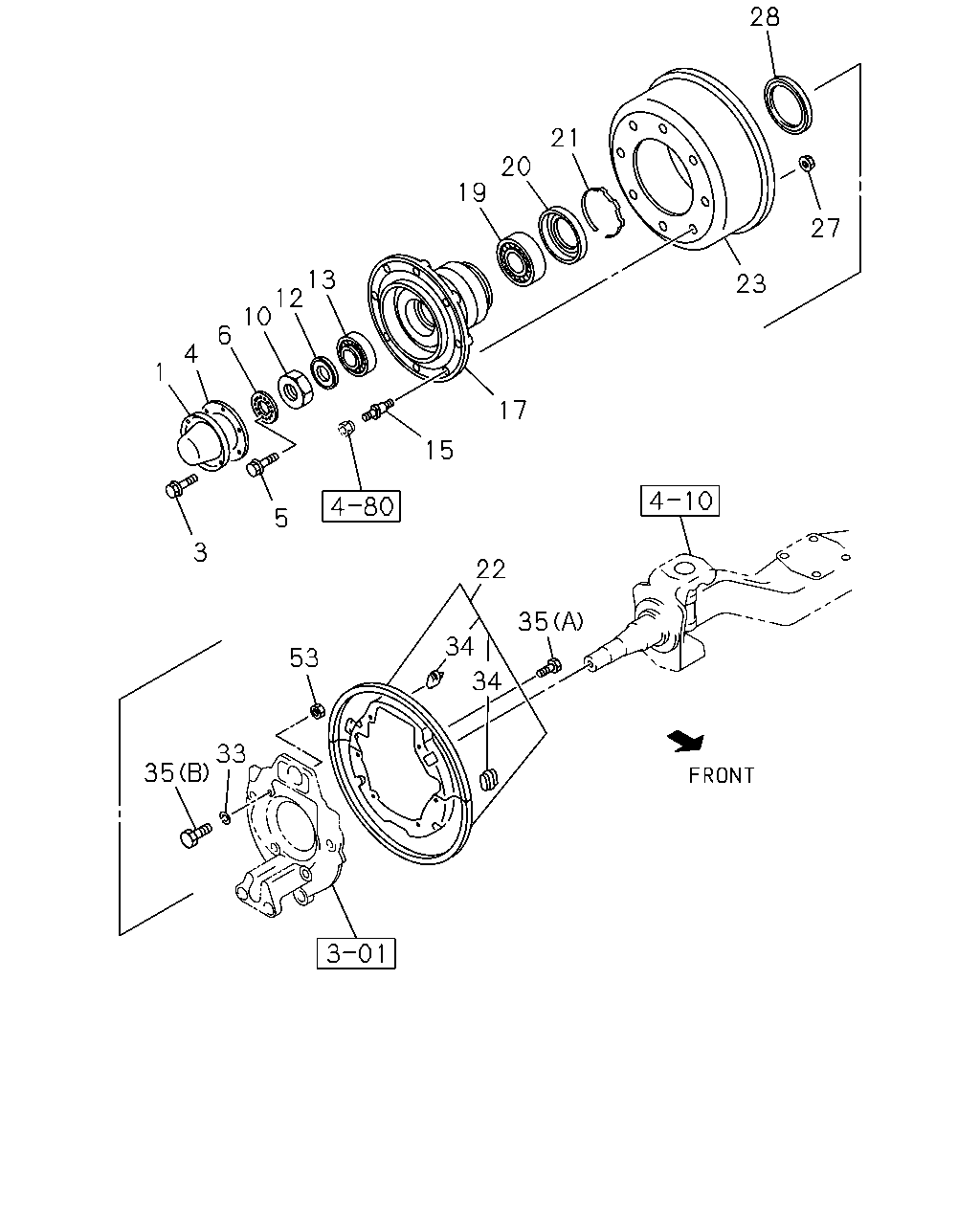

4-11 — FRONT HUB AND DRUM OR ROTOR
(#133386) — 24 parça
28
21
20
19
13
12
10
6
4
1
17
15
5
3
53
33
35
35
22
34
34
23
27
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CAP; HUB,FRT AXLE
OD=156
9-42313-123-2
02
1
1402-
3
BOLT; HUB CAP,FRT WHEEL
M8X12 FLANGE THA
0-28050-812-0
12
1
1402-
4
GASKET; HUB CAP,FRT WHEEL
1-42319-185-2
02
1
1402-
5
BOLT; LK WASHER
M6X16 FLANGE
8-98200-943-0
04
1
1402-
6
WASHER; LK,FRT HUB
ID=48
8-98084-561-0
02
1
1402-
10
NUT; FRT HUB BRG
M48
1-09840-012-5
02
1
1402-
12
WASHER; LK,FRT HUB BRG
ID=48
8-98156-755-0
02
1
1402-
13
BEARING; HUB OUTER,FRT AXLE
JTEKT
1-09812-234-0
02
1
1402-
15
PIN; WHEEL,FRT AXLE
M24X37.0,M22X57.5 RH THREAD THA
8-97916-068-0
08
1
1402-
15
PIN; WHEEL,FRT AXLE
M24X37.0 LH THREAD,M22X57.5 RH THREAD THA
8-97916-070-0
08
1
1402-
17
HUB; FRT AXLE
8-97520-621-0
02
1
1402-
19
BEARING; HUB INNER,FRT AXLE
JTEKT
1-09812-231-0
02
1
1402-
20
COVER; HUB BRG INNER
1-42319-039-0
02
1
1402-
21
RING; SNAP,HUB
1-09587-017-0
02
1
1402-
22
COVER SET; FRT BRK DRUM
1-47151-458-1
02
1
1402-
23
DRUM; BRK,FRT
THA
1-42315-355-0
02
1
1402-1408
23
DRUM; BRK,FRT
THA
8-98293-381-0
02
1
1409-
27
NUT; WHEEL PIN,FRT AXLE
M22 FLANGE THA
8-97914-195-0
16
1
1402-
28
SEAL; OIL,FRT HUB
OD=140
1-09625-041-0
02
1
1402-
33
WASHER; LK,DRUM COVER
ID=16.2
0-91510-816-0
04
1
1402-
34
COVER; CHECK HOLE,DRUM COVER
THA
1-09333-151-0
04
1
1402-
35
BOLT; DRUM COVER
(B) M16X52
1-09044-120-0
04
1
1402-
35
BOLT; DRUM COVER
(A) M10X12 THA
1-47159-187-0
12
1
1402-
53
NUT; DRUM COVER
M16 THA
0-91110-516-0
04
1
1402-
