◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11575 - FTR(THAI)EURO3 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#133383) — 483 parça

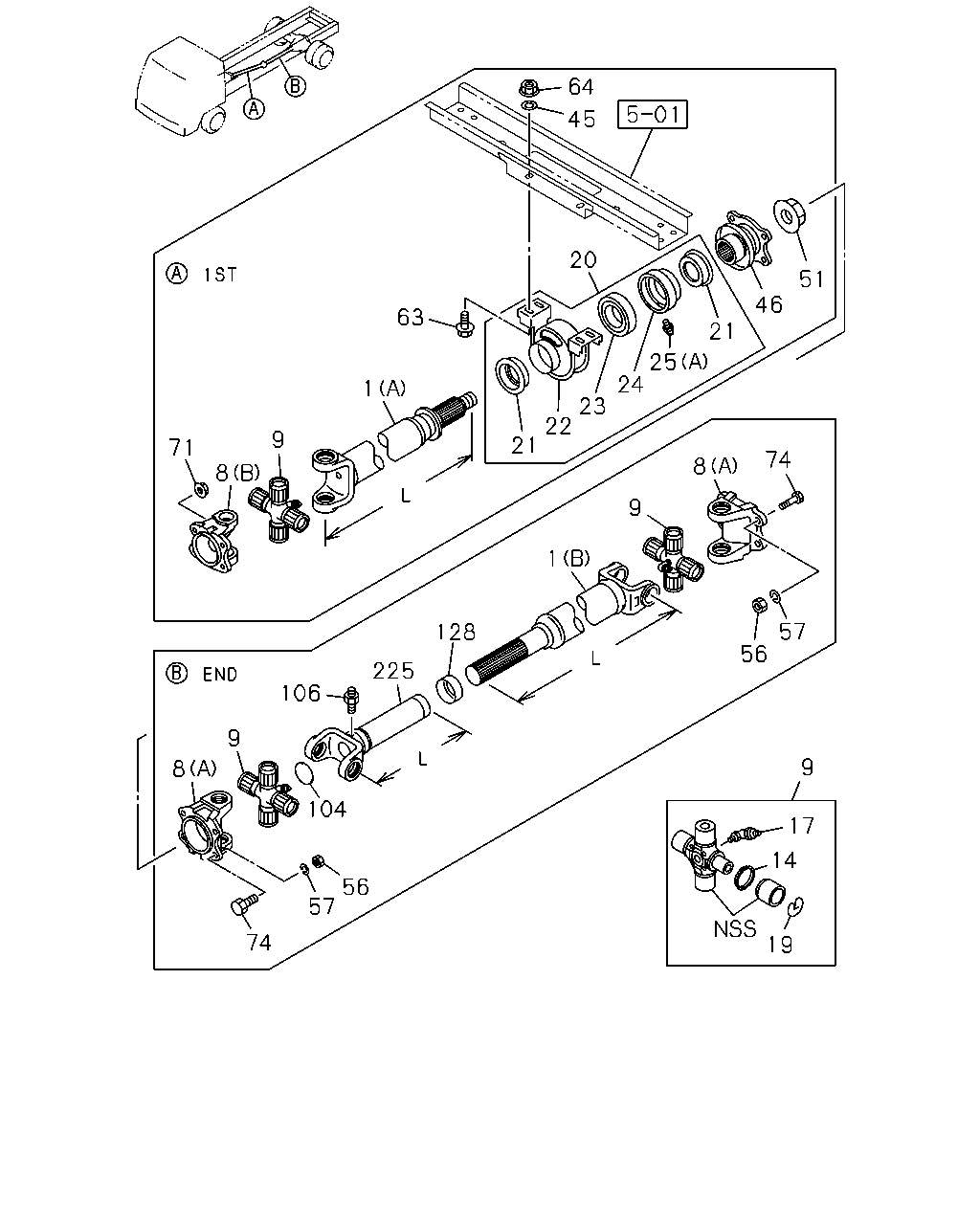

çizim 406647
64 45 51 46 21 20 25 24 23 22 21 63 1 9 8 71 8 9 106 225 128 1 9 8 74 57 56 9 17 14 19 104 56 57 74
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
4HK1-TCS ENG<RJS> (B) L=1061 		1-37152-787-0 01 1 1406- ●
1 SHAFT; PROP
4HK1-TCS ENG<RJS> (A) L=666 THA 		8-98217-269-0 01 1 1406- ●
1 SHAFT; PROP
4HK1-TCS ENG<RJS> (C) L=1084 		8-98083-013-0 01 1 1406- ● ● ●
1 SHAFT; PROP
4HK1-TCS ENG<RJS> (D) L=584 THA 		8-98180-201-0 01 1 1406- ●
1 SHAFT; PROP
4HK1-TCS ENG<RJS> (D) L=1104 		8-98217-160-0 01 1 1406- ●
1 SHAFT; PROP
(A) L=651 THA 		1-37151-645-1 01 1 1402-1405 ●
1 SHAFT; PROP
6HK1-TCN ENG<82L> (A) L=651 THA 		1-37151-645-1 01 1 1406- ●
1 SHAFT; PROP
(B) L=831 THA 		8-98069-670-0 01 1 1402-1405 ●
1 SHAFT; PROP
6HK1-TCN ENG<82L> (B) L=831 THA 		8-98069-670-0 01 1 1406- ●
1 SHAFT; PROP
(C) L=849 THA 		8-98069-584-0 01 1 1402-1405 ●
1 SHAFT; PROP
6HK1-TCN ENG<82L> (C) L=849 THA 		8-98069-584-0 01 1 1406- ●
1 SHAFT; PROP
(E) L=1226 THA 		8-98090-989-0 01 1 1402- ●
1 SHAFT; PROP
(E) L=1366 THA 		8-98069-684-0 01 1 1402- ●
1 SHAFT; PROP
(C) L=1504 THA 		8-98090-933-0 01 1 1402-1405 ●
1 SHAFT; PROP
6HK1-TCN ENG<82L> (C) L=1504 THA 		8-98090-933-0 01 1 1406- ●
1 SHAFT; PROP
(D) L=1234 THA 		8-98069-590-0 01 1 1402-1405 ●
1 SHAFT; PROP
6HK1-TCN ENG<82L> (D) L=1234 THA 		8-98069-590-0 01 1 1406- ●
1 SHAFT; PROP
(C) L=719 THA 		8-98069-957-0 01 1 1402-1405 ●
1 SHAFT; PROP
6HK1-TCN ENG<82L> (C) L=719 THA 		8-98069-957-0 01 1 1406- ●
1 SHAFT; PROP
(E) L=1351 THA 		8-98090-992-0 01 1 1402- ●
8 YOKE; FLANGE,PROP SHAFT
(A) THA 		1-37211-056-3 02 1 1402- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) THA 		8-98178-052-0 01 1 1402- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) THA 		1-37211-056-3 01 1 1402-1405 ●
8 YOKE; FLANGE,PROP SHAFT
4HK1-TCS ENG<RJS> (A) THA 		1-37211-056-3 01 1 1406- ●
8 YOKE; FLANGE,PROP SHAFT
(A) THA 		1-37211-056-3 01 1 1406- ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-0 AR 1 1402- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-0 02 1 1402- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-0 01 1 1402-1405 ●
9 JOURNAL ASM; PROP SHAFT
4HK1-TCS ENG<RJS> 		8-98048-925-0 01 1 1406- ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-0 01 1 1406- ●
14 COVER; DUST,SPIDER
THA 		8-98020-800-0 04 1 1402-1405 ● ● ● ●
14 COVER; DUST,SPIDER
THA 		8-98020-800-0 04 1 1402-1405 ●
14 COVER; DUST,SPIDER
THA 		8-98020-800-0 04 1 1406- ● ● ● ●
14 COVER; DUST,SPIDER
4HK1-TCS ENG<RJS> THA 		8-98020-800-0 04 1 1406- ●
14 COVER; DUST,SPIDER
THA 		8-98020-800-0 04 1 1406- ●
14 COVER; DUST,SPIDER
THA 		8-98020-800-0 08 1 1402- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1402-1405 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1402-1405 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1406- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
4HK1-TCS ENG<RJS> PT1/8 ELBOW 		0-90301-610-0 01 1 1406- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1406- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1402- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 04 1 1402-1405 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 04 1 1402-1405 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 04 1 1406- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
4HK1-TCS ENG<RJS> OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 04 1 1406- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 04 1 1406- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 08 1 1402- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 04 1 1402-1405 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 04 1 1402-1405 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 04 1 1406- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
4HK1-TCS ENG<RJS> OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 04 1 1406- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 04 1 1406- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 08 1 1402- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 04 1 1402-1405 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 04 1 1402-1405 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 04 1 1406- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
4HK1-TCS ENG<RJS> OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 04 1 1406- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 04 1 1406- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 08 1 1402- ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
THA 		8-98020-881-0 01 1 1402-1405 ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
THA 		8-98020-881-0 01 1 1402-1405 ●
20 BEARING ASM; CTR,PROP SHAFT
THA 		8-98020-881-0 01 1 1406- ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
4HK1-TCS ENG<RJS> THA 		8-98020-881-0 01 1 1406- ●
20 BEARING ASM; CTR,PROP SHAFT
THA 		8-98020-881-0 01 1 1406- ●
21 SEAL; OIL,CENTER BRG
ID=54 THA 		1-09625-161-0 02 1 1402-1405 ● ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 THA 		1-09625-161-0 02 1 1402-1405 ●
21 SEAL; OIL,CENTER BRG
ID=54 THA 		1-09625-161-0 02 1 1406- ● ● ● ●
21 SEAL; OIL,CENTER BRG
4HK1-TCS ENG<RJS> ID=54 THA 		1-09625-161-0 02 1 1406- ●
21 SEAL; OIL,CENTER BRG
ID=54 THA 		1-09625-161-0 02 1 1406- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
THA 		1-37516-059-0 01 1 1402-1405 ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
THA 		1-37516-059-0 01 1 1402-1405 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
THA 		1-37516-059-0 01 1 1406- ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
4HK1-TCS ENG<RJS> THA 		1-37516-059-0 01 1 1406- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
THA 		1-37516-059-0 01 1 1406- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1402-1405 ● ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1402-1405 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1406- ● ● ● ●
23 BEARING; CENTER,PROP SHAFT
4HK1-TCS ENG<RJS> 		9-00090-071-0 01 1 1406- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1406- ●
24 RETAINER; CENTER BRG,1ST
THA 		8-98020-882-0 01 1 1402-1405 ● ● ● ●
24 RETAINER; CENTER BRG,1ST
THA 		8-98020-882-0 01 1 1402-1405 ●
24 RETAINER; CENTER BRG,1ST
THA 		8-98020-882-0 01 1 1406- ● ● ● ●
24 RETAINER; CENTER BRG,1ST
4HK1-TCS ENG<RJS> THA 		8-98020-882-0 01 1 1406- ●
24 RETAINER; CENTER BRG,1ST
THA 		8-98020-882-0 01 1 1406- ●
25 NIPPLE; GREASE,CENTER BRG
(A) MT6 STRAIGHT THA 		1-09380-006-0 01 1 1402- ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
(B) THA 		8-98020-889-0 01 1 1402-1405 ●
25 NIPPLE; GREASE,CENTER BRG
4HK1-TCS ENG<RJS> (B) THA 		8-98020-889-0 01 1 1406- ●
25 NIPPLE; GREASE,CENTER BRG
(B) THA 		8-98020-889-0 01 1 1406- ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 1402- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
THA 		8-98020-815-0 01 1 1402-1405 ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
THA 		8-98020-815-0 01 1 1402-1405 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
THA 		8-98020-815-0 01 1 1406- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
4HK1-TCS ENG<RJS> THA 		8-98020-815-0 01 1 1406- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
THA 		8-98020-815-0 01 1 1406- ●
51 NUT; FLANGE,SPLINED
M30 THA 		8-97160-857-0 01 1 1402-1405 ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 THA 		8-97160-857-0 01 1 1402-1405 ●
51 NUT; FLANGE,SPLINED
M30 THA 		8-97160-857-0 01 1 1406- ● ● ● ●
51 NUT; FLANGE,SPLINED
4HK1-TCS ENG<RJS> M30 THA 		8-97160-857-0 01 1 1406- ●
51 NUT; FLANGE,SPLINED
M30 THA 		8-97160-857-0 01 1 1406- ●
56 NUT; YOKE
M14 THA 		0-91110-514-0 04 1 1402- ● ● ● ●
56 NUT; YOKE
M14 THA 		0-91110-514-0 04 1 1402- ● ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1402- ● ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1402- ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE THA 		0-28651-035-0 04 1 1402-1405 ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE THA 		0-28651-035-0 04 1 1402-1405 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE THA 		0-28651-035-0 04 1 1406- ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
4HK1-TCS ENG<RJS> M10X35 FLANGE THA 		0-28651-035-0 04 1 1406- ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE THA 		0-28651-035-0 04 1 1406- ●
64 NUT; RET TO BRKT
M10 FLANGE THA 		0-91180-210-0 04 1 1402-1405 ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE THA 		0-91180-210-0 04 1 1402-1405 ●
64 NUT; RET TO BRKT
M10 FLANGE THA 		0-91180-210-0 04 1 1406- ● ● ● ●
64 NUT; RET TO BRKT
4HK1-TCS ENG<RJS> M10 FLANGE THA 		0-91180-210-0 04 1 1406- ●
64 NUT; RET TO BRKT
M10 FLANGE THA 		0-91180-210-0 04 1 1406- ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 1402- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1402-1405 ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1402-1405 ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1402-1405 ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1406- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1406- ● ● ● ●
74 BOLT; YOKE,TRANS
4HK1-TCS ENG<RJS> M14X37 		1-09000-121-0 04 1 1406- ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1406- ●
104 PLUG; SLEEVE YOKE
THA 		1-09600-064-0 01 1 1402- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT THA 		0-90301-406-0 01 1 1402- ● ● ● ●
128 SEAL; SLEEVE
THA 		1-37247-024-0 01 1 1402- ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=254 THA 		8-98020-885-0 01 1 1402- ● ● ● ●

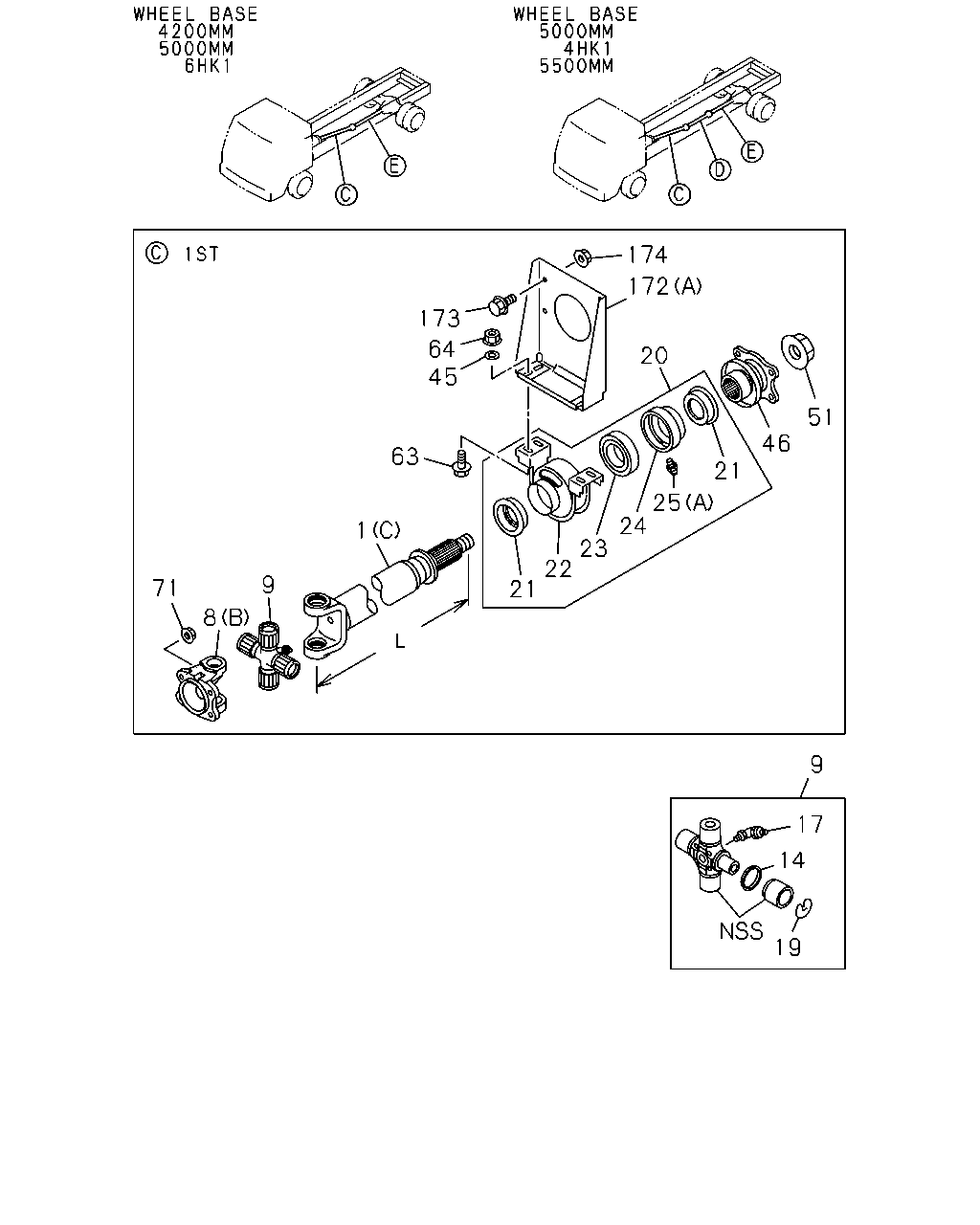

çizim 406687
173 174 172 20 64 45 51 46 21 25 24 23 22 21 63 1 9 8 71 9 17 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
4HK1-TCS ENG<RJS> (B) L=1061 		1-37152-787-0 01 1 1406- ●
1 SHAFT; PROP
4HK1-TCS ENG<RJS> (A) L=666 THA 		8-98217-269-0 01 1 1406- ●
1 SHAFT; PROP
4HK1-TCS ENG<RJS> (C) L=1084 		8-98083-013-0 01 1 1406- ● ● ●
1 SHAFT; PROP
4HK1-TCS ENG<RJS> (D) L=584 THA 		8-98180-201-0 01 1 1406- ●
1 SHAFT; PROP
4HK1-TCS ENG<RJS> (D) L=1104 		8-98217-160-0 01 1 1406- ●
1 SHAFT; PROP
(A) L=651 THA 		1-37151-645-1 01 1 1402-1405 ●
1 SHAFT; PROP
6HK1-TCN ENG<82L> (A) L=651 THA 		1-37151-645-1 01 1 1406- ●
1 SHAFT; PROP
(B) L=831 THA 		8-98069-670-0 01 1 1402-1405 ●
1 SHAFT; PROP
6HK1-TCN ENG<82L> (B) L=831 THA 		8-98069-670-0 01 1 1406- ●
1 SHAFT; PROP
(C) L=849 THA 		8-98069-584-0 01 1 1402-1405 ●
1 SHAFT; PROP
6HK1-TCN ENG<82L> (C) L=849 THA 		8-98069-584-0 01 1 1406- ●
1 SHAFT; PROP
(E) L=1226 THA 		8-98090-989-0 01 1 1402- ●
1 SHAFT; PROP
(E) L=1366 THA 		8-98069-684-0 01 1 1402- ●
1 SHAFT; PROP
(C) L=1504 THA 		8-98090-933-0 01 1 1402-1405 ●
1 SHAFT; PROP
6HK1-TCN ENG<82L> (C) L=1504 THA 		8-98090-933-0 01 1 1406- ●
1 SHAFT; PROP
(D) L=1234 THA 		8-98069-590-0 01 1 1402-1405 ●
1 SHAFT; PROP
6HK1-TCN ENG<82L> (D) L=1234 THA 		8-98069-590-0 01 1 1406- ●
1 SHAFT; PROP
(C) L=719 THA 		8-98069-957-0 01 1 1402-1405 ●
1 SHAFT; PROP
6HK1-TCN ENG<82L> (C) L=719 THA 		8-98069-957-0 01 1 1406- ●
1 SHAFT; PROP
(E) L=1351 THA 		8-98090-992-0 01 1 1402- ●
8 YOKE; FLANGE,PROP SHAFT
(A) THA 		1-37211-056-3 02 1 1402- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) THA 		8-98178-052-0 01 1 1402- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) THA 		1-37211-056-3 01 1 1402-1405 ●
8 YOKE; FLANGE,PROP SHAFT
4HK1-TCS ENG<RJS> (A) THA 		1-37211-056-3 01 1 1406- ●
8 YOKE; FLANGE,PROP SHAFT
(A) THA 		1-37211-056-3 01 1 1406- ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-0 AR 1 1402- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-0 02 1 1402- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-0 01 1 1402-1405 ●
9 JOURNAL ASM; PROP SHAFT
4HK1-TCS ENG<RJS> 		8-98048-925-0 01 1 1406- ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-0 01 1 1406- ●
14 COVER; DUST,SPIDER
THA 		8-98020-800-0 04 1 1402-1405 ● ● ● ●
14 COVER; DUST,SPIDER
THA 		8-98020-800-0 04 1 1402-1405 ●
14 COVER; DUST,SPIDER
THA 		8-98020-800-0 04 1 1406- ● ● ● ●
14 COVER; DUST,SPIDER
4HK1-TCS ENG<RJS> THA 		8-98020-800-0 04 1 1406- ●
14 COVER; DUST,SPIDER
THA 		8-98020-800-0 04 1 1406- ●
14 COVER; DUST,SPIDER
THA 		8-98020-800-0 08 1 1402- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1402-1405 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1402-1405 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1406- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
4HK1-TCS ENG<RJS> PT1/8 ELBOW 		0-90301-610-0 01 1 1406- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1406- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1402- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 04 1 1402-1405 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 04 1 1402-1405 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 04 1 1406- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
4HK1-TCS ENG<RJS> OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 04 1 1406- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 04 1 1406- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 08 1 1402- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 04 1 1402-1405 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 04 1 1402-1405 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 04 1 1406- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
4HK1-TCS ENG<RJS> OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 04 1 1406- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 04 1 1406- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 08 1 1402- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 04 1 1402-1405 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 04 1 1402-1405 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 04 1 1406- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
4HK1-TCS ENG<RJS> OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 04 1 1406- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 04 1 1406- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 08 1 1402- ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
THA 		8-98020-881-0 01 1 1402-1405 ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
THA 		8-98020-881-0 01 1 1402-1405 ●
20 BEARING ASM; CTR,PROP SHAFT
THA 		8-98020-881-0 01 1 1406- ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
4HK1-TCS ENG<RJS> THA 		8-98020-881-0 01 1 1406- ●
20 BEARING ASM; CTR,PROP SHAFT
THA 		8-98020-881-0 01 1 1406- ●
21 SEAL; OIL,CENTER BRG
ID=54 THA 		1-09625-161-0 02 1 1402-1405 ● ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 THA 		1-09625-161-0 02 1 1402-1405 ●
21 SEAL; OIL,CENTER BRG
ID=54 THA 		1-09625-161-0 02 1 1406- ● ● ● ●
21 SEAL; OIL,CENTER BRG
4HK1-TCS ENG<RJS> ID=54 THA 		1-09625-161-0 02 1 1406- ●
21 SEAL; OIL,CENTER BRG
ID=54 THA 		1-09625-161-0 02 1 1406- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
THA 		1-37516-059-0 01 1 1402-1405 ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
THA 		1-37516-059-0 01 1 1402-1405 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
THA 		1-37516-059-0 01 1 1406- ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
4HK1-TCS ENG<RJS> THA 		1-37516-059-0 01 1 1406- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
THA 		1-37516-059-0 01 1 1406- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1402-1405 ● ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1402-1405 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1406- ● ● ● ●
23 BEARING; CENTER,PROP SHAFT
4HK1-TCS ENG<RJS> 		9-00090-071-0 01 1 1406- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1406- ●
24 RETAINER; CENTER BRG,1ST
THA 		8-98020-882-0 01 1 1402-1405 ● ● ● ●
24 RETAINER; CENTER BRG,1ST
THA 		8-98020-882-0 01 1 1402-1405 ●
24 RETAINER; CENTER BRG,1ST
THA 		8-98020-882-0 01 1 1406- ● ● ● ●
24 RETAINER; CENTER BRG,1ST
4HK1-TCS ENG<RJS> THA 		8-98020-882-0 01 1 1406- ●
24 RETAINER; CENTER BRG,1ST
THA 		8-98020-882-0 01 1 1406- ●
25 NIPPLE; GREASE,CENTER BRG
(A) MT6 STRAIGHT THA 		1-09380-006-0 01 1 1402- ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
(B) THA 		8-98020-889-0 01 1 1402-1405 ●
25 NIPPLE; GREASE,CENTER BRG
4HK1-TCS ENG<RJS> (B) THA 		8-98020-889-0 01 1 1406- ●
25 NIPPLE; GREASE,CENTER BRG
(B) THA 		8-98020-889-0 01 1 1406- ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 1402- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
THA 		8-98020-815-0 01 1 1402-1405 ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
THA 		8-98020-815-0 01 1 1402-1405 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
THA 		8-98020-815-0 01 1 1406- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
4HK1-TCS ENG<RJS> THA 		8-98020-815-0 01 1 1406- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
THA 		8-98020-815-0 01 1 1406- ●
51 NUT; FLANGE,SPLINED
M30 THA 		8-97160-857-0 01 1 1402-1405 ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 THA 		8-97160-857-0 01 1 1402-1405 ●
51 NUT; FLANGE,SPLINED
M30 THA 		8-97160-857-0 01 1 1406- ● ● ● ●
51 NUT; FLANGE,SPLINED
4HK1-TCS ENG<RJS> M30 THA 		8-97160-857-0 01 1 1406- ●
51 NUT; FLANGE,SPLINED
M30 THA 		8-97160-857-0 01 1 1406- ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE THA 		0-28651-035-0 04 1 1402-1405 ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE THA 		0-28651-035-0 04 1 1402-1405 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE THA 		0-28651-035-0 04 1 1406- ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
4HK1-TCS ENG<RJS> M10X35 FLANGE THA 		0-28651-035-0 04 1 1406- ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE THA 		0-28651-035-0 04 1 1406- ●
64 NUT; RET TO BRKT
M10 FLANGE THA 		0-91180-210-0 04 1 1402-1405 ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE THA 		0-91180-210-0 04 1 1402-1405 ●
64 NUT; RET TO BRKT
M10 FLANGE THA 		0-91180-210-0 04 1 1406- ● ● ● ●
64 NUT; RET TO BRKT
4HK1-TCS ENG<RJS> M10 FLANGE THA 		0-91180-210-0 04 1 1406- ●
64 NUT; RET TO BRKT
M10 FLANGE THA 		0-91180-210-0 04 1 1406- ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 1402- ● ● ● ●
172 BRACKET; CENTER BRG
4HK1-TCS ENG<RJS> (A) 		1-37515-071-2 01 1 1406- ●
172 BRACKET; CENTER BRG
4HK1-TCS ENG<RJS> (B) 		1-37515-074-1 01 1 1406- ●
172 BRACKET; CENTER BRG
4HK1-TCS ENG<RJS> (B) 		8-98178-537-0 01 1 1406- ●
172 BRACKET; CENTER BRG
(A) 		8-98084-678-0 01 1 1402-1405 ●
172 BRACKET; CENTER BRG
6HK1-TCN ENG<82L> (A) 		8-98084-678-0 01 1 1406- ●
172 BRACKET; CENTER BRG
(A) 		1-37515-136-0 01 1 1402-1405 ●
172 BRACKET; CENTER BRG
6HK1-TCN ENG<82L> (A) 		1-37515-136-0 01 1 1406- ●
172 BRACKET; CENTER BRG
(B) 		1-37515-101-0 01 1 1402-1405 ●
172 BRACKET; CENTER BRG
6HK1-TCN ENG<82L> (B) 		1-37515-101-0 01 1 1406- ●
172 BRACKET; CENTER BRG
(A) 		1-37515-102-0 01 1 1402-1405 ●
172 BRACKET; CENTER BRG
4HK1-TCS ENG<RJS> (A) 		1-37515-102-0 01 1 1406- ●
172 BRACKET; CENTER BRG
(A) 		1-37515-102-0 01 1 1406- ●
173 BOLT; BRKT
M10X25 FLANGE THA 		0-28651-025-0 04 1 1402-1405 ● ● ●
173 BOLT; BRKT
M10X25 FLANGE THA 		0-28651-025-0 04 1 1402-1405 ●
173 BOLT; BRKT
M10X25 FLANGE THA 		0-28651-025-0 04 1 1406- ● ● ●
173 BOLT; BRKT
4HK1-TCS ENG<RJS> M10X25 FLANGE THA 		0-28651-025-0 04 1 1406- ●
173 BOLT; BRKT
M10X25 FLANGE THA 		0-28651-025-0 04 1 1406- ●
174 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 04 1 1402- ● ● ●

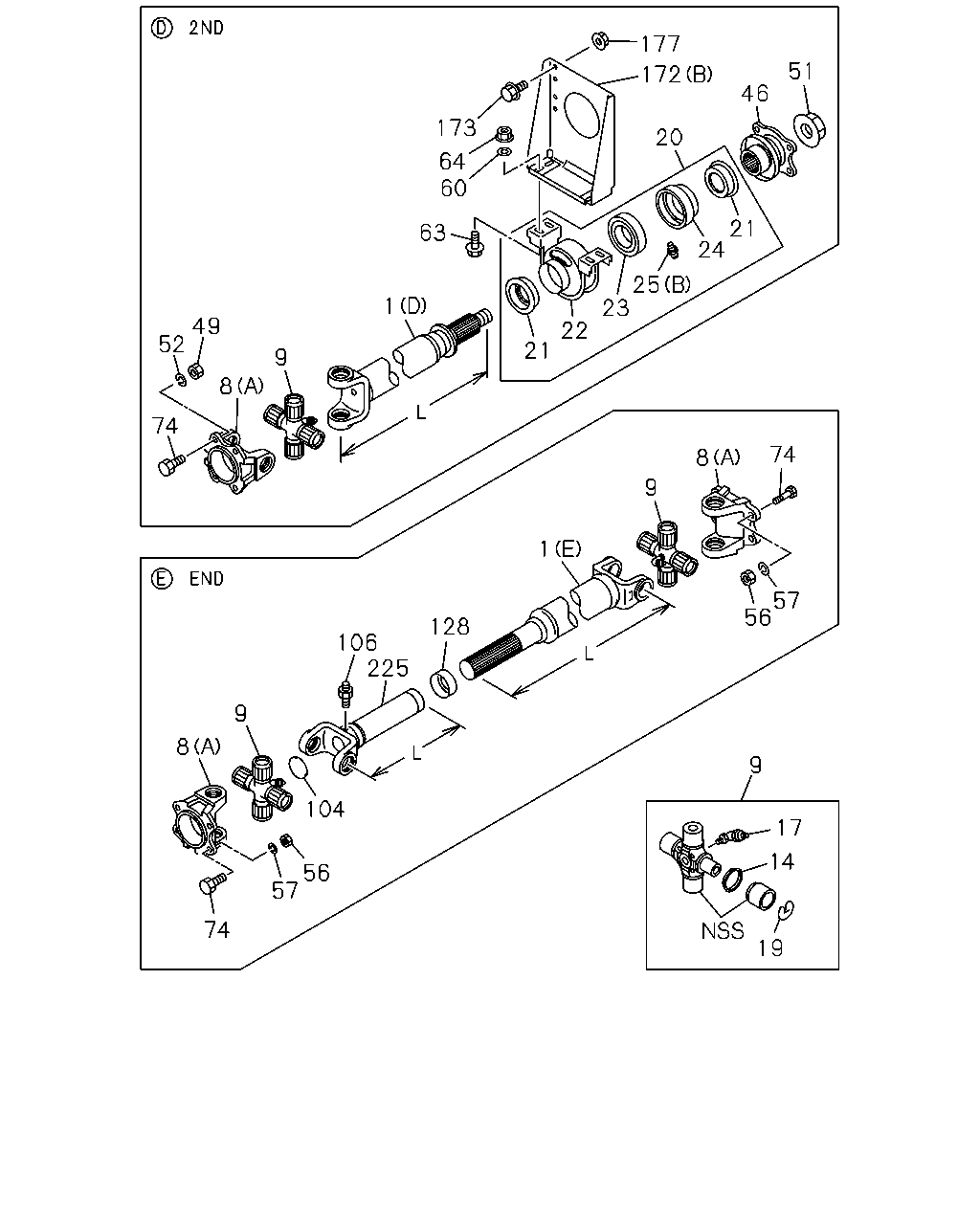

çizim 407272
177 173 172 64 60 63 20 46 51 21 24 25 23 22 21 1 9 49 8 52 74 8 9 106 225 128 1 9 8 74 57 56 104 56 57 74 9 17 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
4HK1-TCS ENG<RJS> (B) L=1061 		1-37152-787-0 01 1 1406- ●
1 SHAFT; PROP
4HK1-TCS ENG<RJS> (A) L=666 THA 		8-98217-269-0 01 1 1406- ●
1 SHAFT; PROP
4HK1-TCS ENG<RJS> (C) L=1084 		8-98083-013-0 01 1 1406- ● ● ●
1 SHAFT; PROP
4HK1-TCS ENG<RJS> (D) L=584 THA 		8-98180-201-0 01 1 1406- ●
1 SHAFT; PROP
4HK1-TCS ENG<RJS> (D) L=1104 		8-98217-160-0 01 1 1406- ●
1 SHAFT; PROP
(A) L=651 THA 		1-37151-645-1 01 1 1402-1405 ●
1 SHAFT; PROP
6HK1-TCN ENG<82L> (A) L=651 THA 		1-37151-645-1 01 1 1406- ●
1 SHAFT; PROP
(B) L=831 THA 		8-98069-670-0 01 1 1402-1405 ●
1 SHAFT; PROP
6HK1-TCN ENG<82L> (B) L=831 THA 		8-98069-670-0 01 1 1406- ●
1 SHAFT; PROP
(C) L=849 THA 		8-98069-584-0 01 1 1402-1405 ●
1 SHAFT; PROP
6HK1-TCN ENG<82L> (C) L=849 THA 		8-98069-584-0 01 1 1406- ●
1 SHAFT; PROP
(E) L=1226 THA 		8-98090-989-0 01 1 1402- ●
1 SHAFT; PROP
(E) L=1366 THA 		8-98069-684-0 01 1 1402- ●
1 SHAFT; PROP
(C) L=1504 THA 		8-98090-933-0 01 1 1402-1405 ●
1 SHAFT; PROP
6HK1-TCN ENG<82L> (C) L=1504 THA 		8-98090-933-0 01 1 1406- ●
1 SHAFT; PROP
(D) L=1234 THA 		8-98069-590-0 01 1 1402-1405 ●
1 SHAFT; PROP
6HK1-TCN ENG<82L> (D) L=1234 THA 		8-98069-590-0 01 1 1406- ●
1 SHAFT; PROP
(C) L=719 THA 		8-98069-957-0 01 1 1402-1405 ●
1 SHAFT; PROP
6HK1-TCN ENG<82L> (C) L=719 THA 		8-98069-957-0 01 1 1406- ●
1 SHAFT; PROP
(E) L=1351 THA 		8-98090-992-0 01 1 1402- ●
8 YOKE; FLANGE,PROP SHAFT
(A) THA 		1-37211-056-3 02 1 1402- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) THA 		8-98178-052-0 01 1 1402- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) THA 		1-37211-056-3 01 1 1402-1405 ●
8 YOKE; FLANGE,PROP SHAFT
4HK1-TCS ENG<RJS> (A) THA 		1-37211-056-3 01 1 1406- ●
8 YOKE; FLANGE,PROP SHAFT
(A) THA 		1-37211-056-3 01 1 1406- ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-0 AR 1 1402- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-0 02 1 1402- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-0 01 1 1402-1405 ●
9 JOURNAL ASM; PROP SHAFT
4HK1-TCS ENG<RJS> 		8-98048-925-0 01 1 1406- ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-0 01 1 1406- ●
14 COVER; DUST,SPIDER
THA 		8-98020-800-0 04 1 1402-1405 ● ● ● ●
14 COVER; DUST,SPIDER
THA 		8-98020-800-0 04 1 1402-1405 ●
14 COVER; DUST,SPIDER
THA 		8-98020-800-0 04 1 1406- ● ● ● ●
14 COVER; DUST,SPIDER
4HK1-TCS ENG<RJS> THA 		8-98020-800-0 04 1 1406- ●
14 COVER; DUST,SPIDER
THA 		8-98020-800-0 04 1 1406- ●
14 COVER; DUST,SPIDER
THA 		8-98020-800-0 08 1 1402- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1402-1405 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1402-1405 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1406- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
4HK1-TCS ENG<RJS> PT1/8 ELBOW 		0-90301-610-0 01 1 1406- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1406- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1402- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 04 1 1402-1405 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 04 1 1402-1405 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 04 1 1406- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
4HK1-TCS ENG<RJS> OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 04 1 1406- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 04 1 1406- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 08 1 1402- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 04 1 1402-1405 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 04 1 1402-1405 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 04 1 1406- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
4HK1-TCS ENG<RJS> OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 04 1 1406- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 04 1 1406- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 08 1 1402- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 04 1 1402-1405 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 04 1 1402-1405 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 04 1 1406- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
4HK1-TCS ENG<RJS> OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 04 1 1406- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 04 1 1406- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 08 1 1402- ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
THA 		8-98020-881-0 01 1 1402-1405 ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
THA 		8-98020-881-0 01 1 1402-1405 ●
20 BEARING ASM; CTR,PROP SHAFT
THA 		8-98020-881-0 01 1 1406- ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
4HK1-TCS ENG<RJS> THA 		8-98020-881-0 01 1 1406- ●
20 BEARING ASM; CTR,PROP SHAFT
THA 		8-98020-881-0 01 1 1406- ●
21 SEAL; OIL,CENTER BRG
ID=54 THA 		1-09625-161-0 02 1 1402-1405 ● ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 THA 		1-09625-161-0 02 1 1402-1405 ●
21 SEAL; OIL,CENTER BRG
ID=54 THA 		1-09625-161-0 02 1 1406- ● ● ● ●
21 SEAL; OIL,CENTER BRG
4HK1-TCS ENG<RJS> ID=54 THA 		1-09625-161-0 02 1 1406- ●
21 SEAL; OIL,CENTER BRG
ID=54 THA 		1-09625-161-0 02 1 1406- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
THA 		1-37516-059-0 01 1 1402-1405 ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
THA 		1-37516-059-0 01 1 1402-1405 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
THA 		1-37516-059-0 01 1 1406- ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
4HK1-TCS ENG<RJS> THA 		1-37516-059-0 01 1 1406- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
THA 		1-37516-059-0 01 1 1406- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1402-1405 ● ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1402-1405 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1406- ● ● ● ●
23 BEARING; CENTER,PROP SHAFT
4HK1-TCS ENG<RJS> 		9-00090-071-0 01 1 1406- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 1406- ●
24 RETAINER; CENTER BRG,1ST
THA 		8-98020-882-0 01 1 1402-1405 ● ● ● ●
24 RETAINER; CENTER BRG,1ST
THA 		8-98020-882-0 01 1 1402-1405 ●
24 RETAINER; CENTER BRG,1ST
THA 		8-98020-882-0 01 1 1406- ● ● ● ●
24 RETAINER; CENTER BRG,1ST
4HK1-TCS ENG<RJS> THA 		8-98020-882-0 01 1 1406- ●
24 RETAINER; CENTER BRG,1ST
THA 		8-98020-882-0 01 1 1406- ●
25 NIPPLE; GREASE,CENTER BRG
(A) MT6 STRAIGHT THA 		1-09380-006-0 01 1 1402- ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
(B) THA 		8-98020-889-0 01 1 1402-1405 ●
25 NIPPLE; GREASE,CENTER BRG
4HK1-TCS ENG<RJS> (B) THA 		8-98020-889-0 01 1 1406- ●
25 NIPPLE; GREASE,CENTER BRG
(B) THA 		8-98020-889-0 01 1 1406- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
THA 		8-98020-815-0 01 1 1402-1405 ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
THA 		8-98020-815-0 01 1 1402-1405 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
THA 		8-98020-815-0 01 1 1406- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
4HK1-TCS ENG<RJS> THA 		8-98020-815-0 01 1 1406- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
THA 		8-98020-815-0 01 1 1406- ●
49 NUT; YOKE
M14 THA 		0-91110-514-0 04 1 1402-1405 ●
49 NUT; YOKE
4HK1-TCS ENG<RJS> M14 THA 		0-91110-514-0 04 1 1406- ●
49 NUT; YOKE
M14 THA 		0-91110-514-0 04 1 1406- ●
51 NUT; FLANGE,SPLINED
M30 THA 		8-97160-857-0 01 1 1402-1405 ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 THA 		8-97160-857-0 01 1 1402-1405 ●
51 NUT; FLANGE,SPLINED
M30 THA 		8-97160-857-0 01 1 1406- ● ● ● ●
51 NUT; FLANGE,SPLINED
4HK1-TCS ENG<RJS> M30 THA 		8-97160-857-0 01 1 1406- ●
51 NUT; FLANGE,SPLINED
M30 THA 		8-97160-857-0 01 1 1406- ●
52 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1402-1405 ●
52 WASHER; LK,YOKE
4HK1-TCS ENG<RJS> ID=14.2 		0-91510-614-0 04 1 1406- ●
52 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1406- ●
56 NUT; YOKE
M14 THA 		0-91110-514-0 04 1 1402- ● ● ● ●
56 NUT; YOKE
M14 THA 		0-91110-514-0 04 1 1402- ● ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1402- ● ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1402- ● ● ● ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 1402-1405 ●
60 WASHER; PL,RET TO BRKT
4HK1-TCS ENG<RJS> ID=10.5 OD=22 		0-91614-610-0 04 1 1406- ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 1406- ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE THA 		0-28651-035-0 04 1 1402-1405 ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE THA 		0-28651-035-0 04 1 1402-1405 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE THA 		0-28651-035-0 04 1 1406- ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
4HK1-TCS ENG<RJS> M10X35 FLANGE THA 		0-28651-035-0 04 1 1406- ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE THA 		0-28651-035-0 04 1 1406- ●
64 NUT; RET TO BRKT
M10 FLANGE THA 		0-91180-210-0 04 1 1402-1405 ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE THA 		0-91180-210-0 04 1 1402-1405 ●
64 NUT; RET TO BRKT
M10 FLANGE THA 		0-91180-210-0 04 1 1406- ● ● ● ●
64 NUT; RET TO BRKT
4HK1-TCS ENG<RJS> M10 FLANGE THA 		0-91180-210-0 04 1 1406- ●
64 NUT; RET TO BRKT
M10 FLANGE THA 		0-91180-210-0 04 1 1406- ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1402-1405 ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1402-1405 ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1402-1405 ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1406- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1406- ● ● ● ●
74 BOLT; YOKE,TRANS
4HK1-TCS ENG<RJS> M14X37 		1-09000-121-0 04 1 1406- ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1406- ●
104 PLUG; SLEEVE YOKE
THA 		1-09600-064-0 01 1 1402- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT THA 		0-90301-406-0 01 1 1402- ● ● ● ●
128 SEAL; SLEEVE
THA 		1-37247-024-0 01 1 1402- ● ● ● ●
172 BRACKET; CENTER BRG
4HK1-TCS ENG<RJS> (A) 		1-37515-071-2 01 1 1406- ●
172 BRACKET; CENTER BRG
4HK1-TCS ENG<RJS> (B) 		1-37515-074-1 01 1 1406- ●
172 BRACKET; CENTER BRG
4HK1-TCS ENG<RJS> (B) 		8-98178-537-0 01 1 1406- ●
172 BRACKET; CENTER BRG
(A) 		8-98084-678-0 01 1 1402-1405 ●
172 BRACKET; CENTER BRG
6HK1-TCN ENG<82L> (A) 		8-98084-678-0 01 1 1406- ●
172 BRACKET; CENTER BRG
(A) 		1-37515-136-0 01 1 1402-1405 ●
172 BRACKET; CENTER BRG
6HK1-TCN ENG<82L> (A) 		1-37515-136-0 01 1 1406- ●
172 BRACKET; CENTER BRG
(B) 		1-37515-101-0 01 1 1402-1405 ●
172 BRACKET; CENTER BRG
6HK1-TCN ENG<82L> (B) 		1-37515-101-0 01 1 1406- ●
172 BRACKET; CENTER BRG
(A) 		1-37515-102-0 01 1 1402-1405 ●
172 BRACKET; CENTER BRG
4HK1-TCS ENG<RJS> (A) 		1-37515-102-0 01 1 1406- ●
172 BRACKET; CENTER BRG
(A) 		1-37515-102-0 01 1 1406- ●
173 BOLT; BRKT
M10X25 FLANGE THA 		0-28651-025-0 04 1 1402-1405 ● ● ●
173 BOLT; BRKT
M10X25 FLANGE THA 		0-28651-025-0 04 1 1402-1405 ●
173 BOLT; BRKT
M10X25 FLANGE THA 		0-28651-025-0 04 1 1406- ● ● ●
173 BOLT; BRKT
4HK1-TCS ENG<RJS> M10X25 FLANGE THA 		0-28651-025-0 04 1 1406- ●
173 BOLT; BRKT
M10X25 FLANGE THA 		0-28651-025-0 04 1 1406- ●
177 NUT
M10 FLANGE THA 		0-91180-210-0 04 1 1402-1405 ●
177 NUT
4HK1-TCS ENG<RJS> M10 FLANGE THA 		0-91180-210-0 04 1 1406- ●
177 NUT
M10 FLANGE THA 		0-91180-210-0 04 1 1406- ●
225 YOKE; SLEEVE,PROP SHAFT
L=254 THA 		8-98020-885-0 01 1 1402- ● ● ● ●

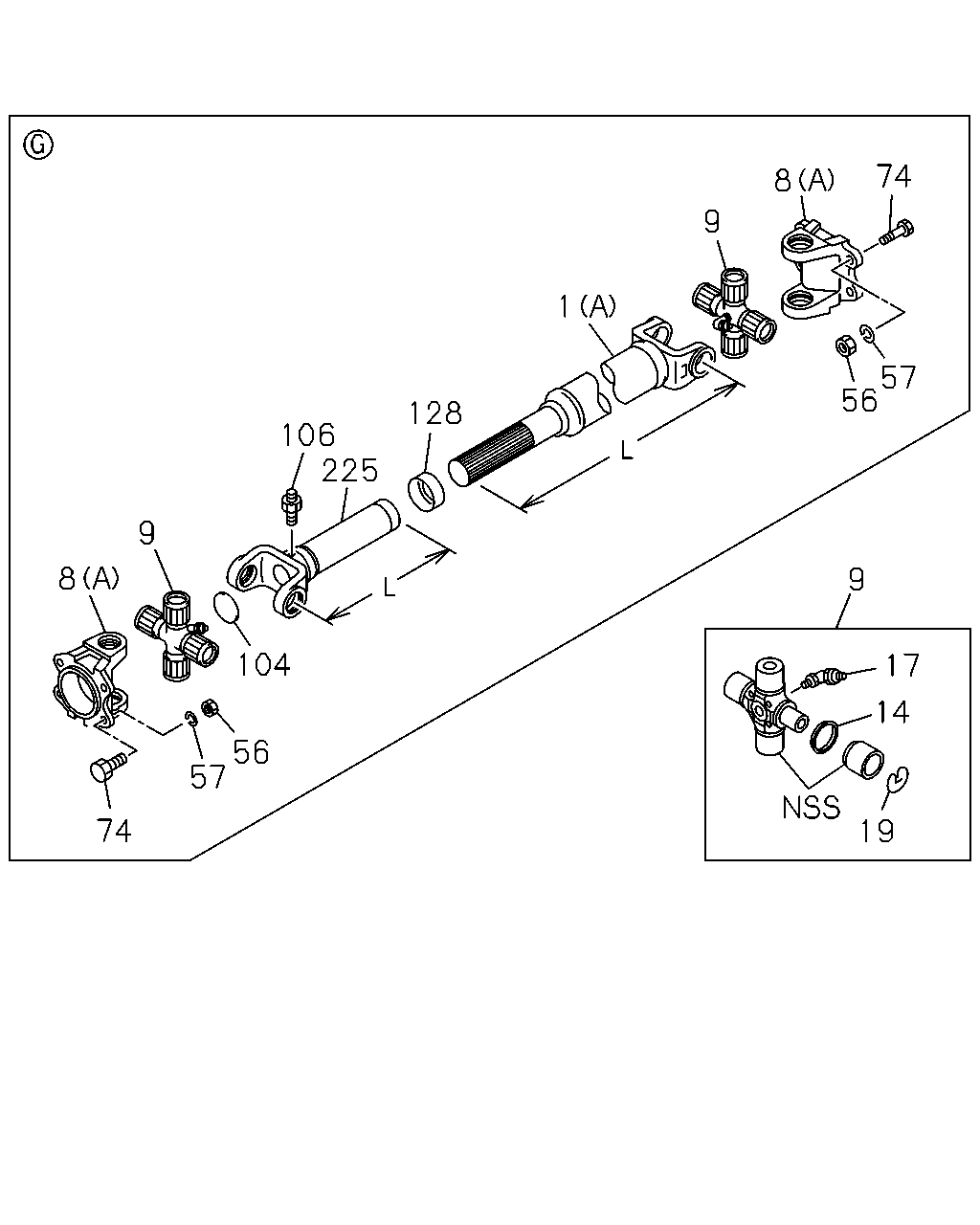

çizim 407568
9 17 14 19 56 57 74 8 9 1 128 106 225 9 8 104 56 57 74
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
4HK1-TCS ENG<RJS> (B) L=1061 		1-37152-787-0 01 1 1406- ●
1 SHAFT; PROP
4HK1-TCS ENG<RJS> (A) L=666 THA 		8-98217-269-0 01 1 1406- ●
1 SHAFT; PROP
4HK1-TCS ENG<RJS> (C) L=1084 		8-98083-013-0 01 1 1406- ● ● ●
1 SHAFT; PROP
4HK1-TCS ENG<RJS> (D) L=584 THA 		8-98180-201-0 01 1 1406- ●
1 SHAFT; PROP
4HK1-TCS ENG<RJS> (D) L=1104 		8-98217-160-0 01 1 1406- ●
1 SHAFT; PROP
(A) L=651 THA 		1-37151-645-1 01 1 1402-1405 ●
1 SHAFT; PROP
6HK1-TCN ENG<82L> (A) L=651 THA 		1-37151-645-1 01 1 1406- ●
1 SHAFT; PROP
(B) L=831 THA 		8-98069-670-0 01 1 1402-1405 ●
1 SHAFT; PROP
6HK1-TCN ENG<82L> (B) L=831 THA 		8-98069-670-0 01 1 1406- ●
1 SHAFT; PROP
(C) L=849 THA 		8-98069-584-0 01 1 1402-1405 ●
1 SHAFT; PROP
6HK1-TCN ENG<82L> (C) L=849 THA 		8-98069-584-0 01 1 1406- ●
1 SHAFT; PROP
(E) L=1226 THA 		8-98090-989-0 01 1 1402- ●
1 SHAFT; PROP
(E) L=1366 THA 		8-98069-684-0 01 1 1402- ●
1 SHAFT; PROP
(C) L=1504 THA 		8-98090-933-0 01 1 1402-1405 ●
1 SHAFT; PROP
6HK1-TCN ENG<82L> (C) L=1504 THA 		8-98090-933-0 01 1 1406- ●
1 SHAFT; PROP
(D) L=1234 THA 		8-98069-590-0 01 1 1402-1405 ●
1 SHAFT; PROP
6HK1-TCN ENG<82L> (D) L=1234 THA 		8-98069-590-0 01 1 1406- ●
1 SHAFT; PROP
(C) L=719 THA 		8-98069-957-0 01 1 1402-1405 ●
1 SHAFT; PROP
6HK1-TCN ENG<82L> (C) L=719 THA 		8-98069-957-0 01 1 1406- ●
1 SHAFT; PROP
(E) L=1351 THA 		8-98090-992-0 01 1 1402- ●
8 YOKE; FLANGE,PROP SHAFT
(A) THA 		1-37211-056-3 02 1 1402- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) THA 		8-98178-052-0 01 1 1402- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) THA 		1-37211-056-3 01 1 1402-1405 ●
8 YOKE; FLANGE,PROP SHAFT
4HK1-TCS ENG<RJS> (A) THA 		1-37211-056-3 01 1 1406- ●
8 YOKE; FLANGE,PROP SHAFT
(A) THA 		1-37211-056-3 01 1 1406- ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-0 AR 1 1402- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-0 02 1 1402- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-0 01 1 1402-1405 ●
9 JOURNAL ASM; PROP SHAFT
4HK1-TCS ENG<RJS> 		8-98048-925-0 01 1 1406- ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-0 01 1 1406- ●
14 COVER; DUST,SPIDER
THA 		8-98020-800-0 04 1 1402-1405 ● ● ● ●
14 COVER; DUST,SPIDER
THA 		8-98020-800-0 04 1 1402-1405 ●
14 COVER; DUST,SPIDER
THA 		8-98020-800-0 04 1 1406- ● ● ● ●
14 COVER; DUST,SPIDER
4HK1-TCS ENG<RJS> THA 		8-98020-800-0 04 1 1406- ●
14 COVER; DUST,SPIDER
THA 		8-98020-800-0 04 1 1406- ●
14 COVER; DUST,SPIDER
THA 		8-98020-800-0 08 1 1402- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1402-1405 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1402-1405 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1406- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
4HK1-TCS ENG<RJS> PT1/8 ELBOW 		0-90301-610-0 01 1 1406- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1406- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1402- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 04 1 1402-1405 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 04 1 1402-1405 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 04 1 1406- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
4HK1-TCS ENG<RJS> OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 04 1 1406- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 04 1 1406- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE THA 		1-09587-086-0 08 1 1402- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 04 1 1402-1405 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 04 1 1402-1405 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 04 1 1406- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
4HK1-TCS ENG<RJS> OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 04 1 1406- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 04 1 1406- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE THA 		1-09587-087-2 08 1 1402- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 04 1 1402-1405 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 04 1 1402-1405 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 04 1 1406- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
4HK1-TCS ENG<RJS> OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 04 1 1406- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 04 1 1406- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW THA 		1-09587-088-1 08 1 1402- ● ● ● ●
56 NUT; YOKE
M14 THA 		0-91110-514-0 04 1 1402- ● ● ● ●
56 NUT; YOKE
M14 THA 		0-91110-514-0 04 1 1402- ● ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1402- ● ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1402- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1402-1405 ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1402-1405 ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1402-1405 ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1406- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1406- ● ● ● ●
74 BOLT; YOKE,TRANS
4HK1-TCS ENG<RJS> M14X37 		1-09000-121-0 04 1 1406- ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1406- ●
104 PLUG; SLEEVE YOKE
THA 		1-09600-064-0 01 1 1402- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
M6 STRAIGHT THA 		0-90301-406-0 01 1 1402- ● ● ● ●
128 SEAL; SLEEVE
THA 		1-37247-024-0 01 1 1402- ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=254 THA 		8-98020-885-0 01 1 1402- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
