3-78 — FIXING PARTS; AIR PIPING (#133382) — 67 parça

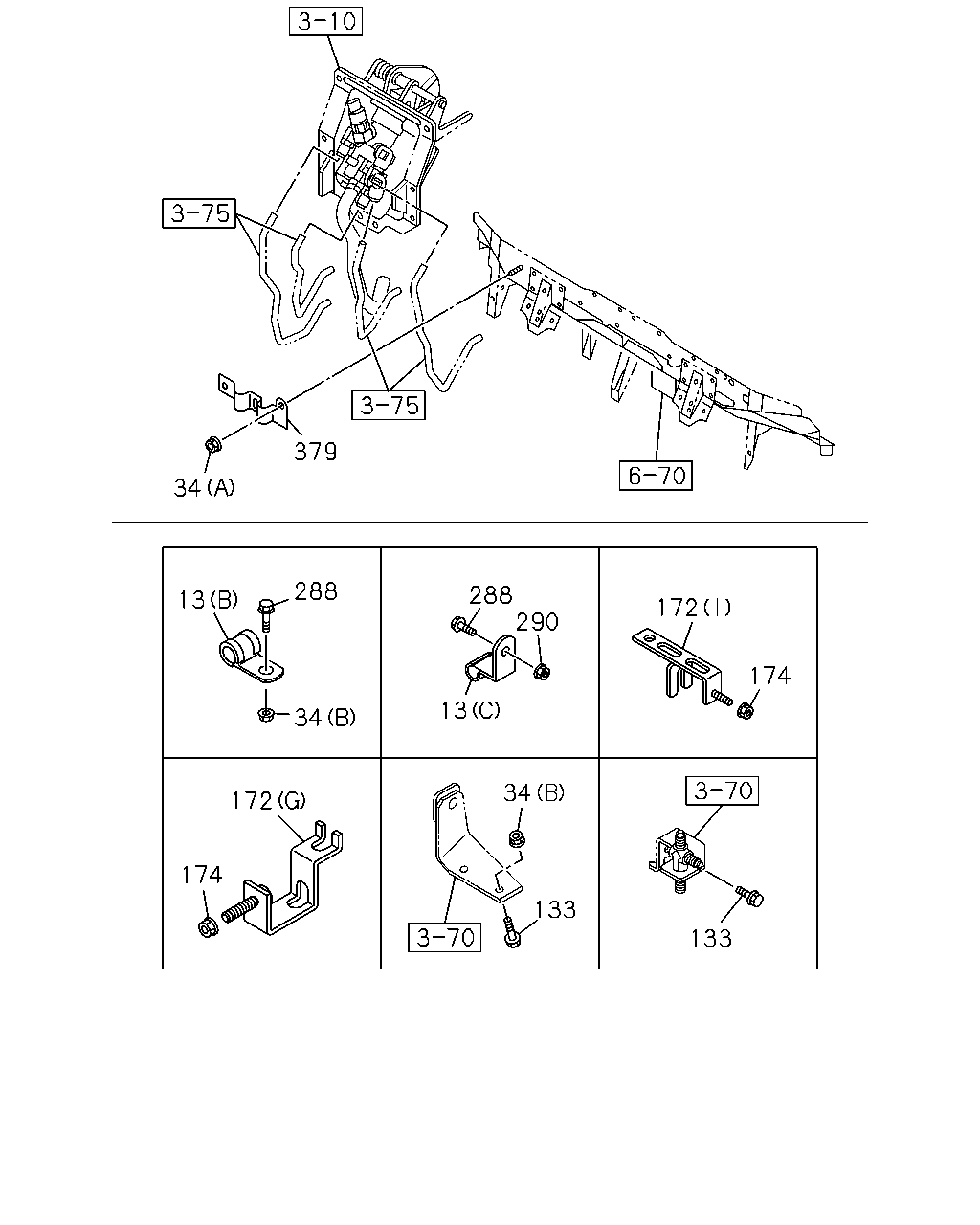

379 34 13 288 34 172 174 34 133 133 288 290 13 172 174

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	CLIP; AIR PIPE 6HK1-TCN ENG<82L> (B) ID=7 L=16	0-95234-625-0	01	1	1402-
13	CLIP; AIR PIPE 6HK1-TCN ENG<82L> (C) ID=6 H=20 L=20	1-09700-603-0	01	1	1402-
13	CLIP; AIR PIPE (A) ID=6.35 & 6.35	1-09709-273-1	01	1	1402-
13	CLIP; AIR PIPE 6HK1-TCN ENG<82L> (A) ID=6.35 & 15	1-09709-276-1	01	1	1402-
34	NUT; BRKT (A) M6 FLANGE THA	0-91180-106-0	02	1	1402-
34	NUT; BRKT 6HK1-TCN ENG<82L> (B) M8 FLANGE THA	0-91180-108-0	02	1	1402-
133	BOLT; BRKT 6HK1-TCN ENG<82L> M8X20 FLANGE THA	0-28650-820-0	03	1	1402-
172	BRACKET; TUBE CLIP 4HK1-TCS ENG<RJS> (C) L=225	1-47477-646-3	02	1	1406-
172	BRACKET; TUBE CLIP 4HK1-TCS ENG<RJS> (E) L=115 H=30	1-47477-715-3	01	1	1406-
172	BRACKET; TUBE CLIP 4HK1-TCS ENG<RJS> (E) L=60 H=30	1-47477-716-1	02	1	1406-
172	BRACKET; TUBE CLIP 4HK1-TCS ENG<RJS> (L) L=125	1-47477-975-1	02	1	1406-
172	BRACKET; TUBE CLIP 4HK1-TCS ENG<RJS> (L) L=130	1-47479-575-0	01	1	1406-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG<82L> (F)	1-47477-514-3	01	1	1402-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG<82L> (A) L=150 H=30	1-47477-629-2	01	1	1402-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG<82L> (A) L=100 H=30	1-47477-645-2	02	1	1402-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG<82L> (C) L=225	1-47477-646-3	01	1	1402-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG<82L> (E) L=60 H=30	1-47477-716-1	03	1	1402-
172	BRACKET; TUBE CLIP (B)	1-47479-693-0	02	1	1402-
172	BRACKET; TUBE CLIP (D)	8-98031-420-2	01	1	1402-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG<82L> (H)	8-98047-730-0	02	1	1402-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG<82L> (G)	8-98169-222-0	01	1	1402-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG<82L> (I)	8-98177-873-0	01	1	1402-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG<82L> WHEEL BASE 3600MM<36W>,WHEEL BASE 4200MM<42W>, WHEELBASE 5000MM<50W> (J)	8-98139-764-0	01	1	1402-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG<82L> WHEEL BASE 3600MM<36W>,WHEEL BASE 4200MM<42W>, WHEELBASE 5000MM<50W> (K)	8-98182-764-0	01	1	1402-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG<82L> WHEEL BASE 5500MM<55W> (J) THA	8-98139-765-0	01	1	1402-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG<82L> WHEEL BASE 5500MM<55W> (K)	8-98182-760-0	01	1	1402-
174	NUT; CLIP BRKT 4HK1-TCS ENG<RJS> M8 FLANGE THA	0-91180-108-0	09	1	1406-
174	NUT; CLIP BRKT 6HK1-TCN ENG<82L> M8 FLANGE THA	0-91180-108-0	15	1	1402-
288	BOLT; CLIP,AIR PIPE 6HK1-TCN ENG<82L> M8X20 FLANGE THA	0-28650-820-0	01	1	1402-
288	BOLT; CLIP,AIR PIPE 6HK1-TCN ENG<82L> M8X20 FLANGE THA	0-28650-820-0	01	1	1402-
290	NUT; CLIP,AIR PIPE 6HK1-TCN ENG<82L> M8 FLANGE THA	0-91180-108-0	01	1	1402-
379	BRACKET; NYLON TUBE	8-98044-013-0	01	1	1402-

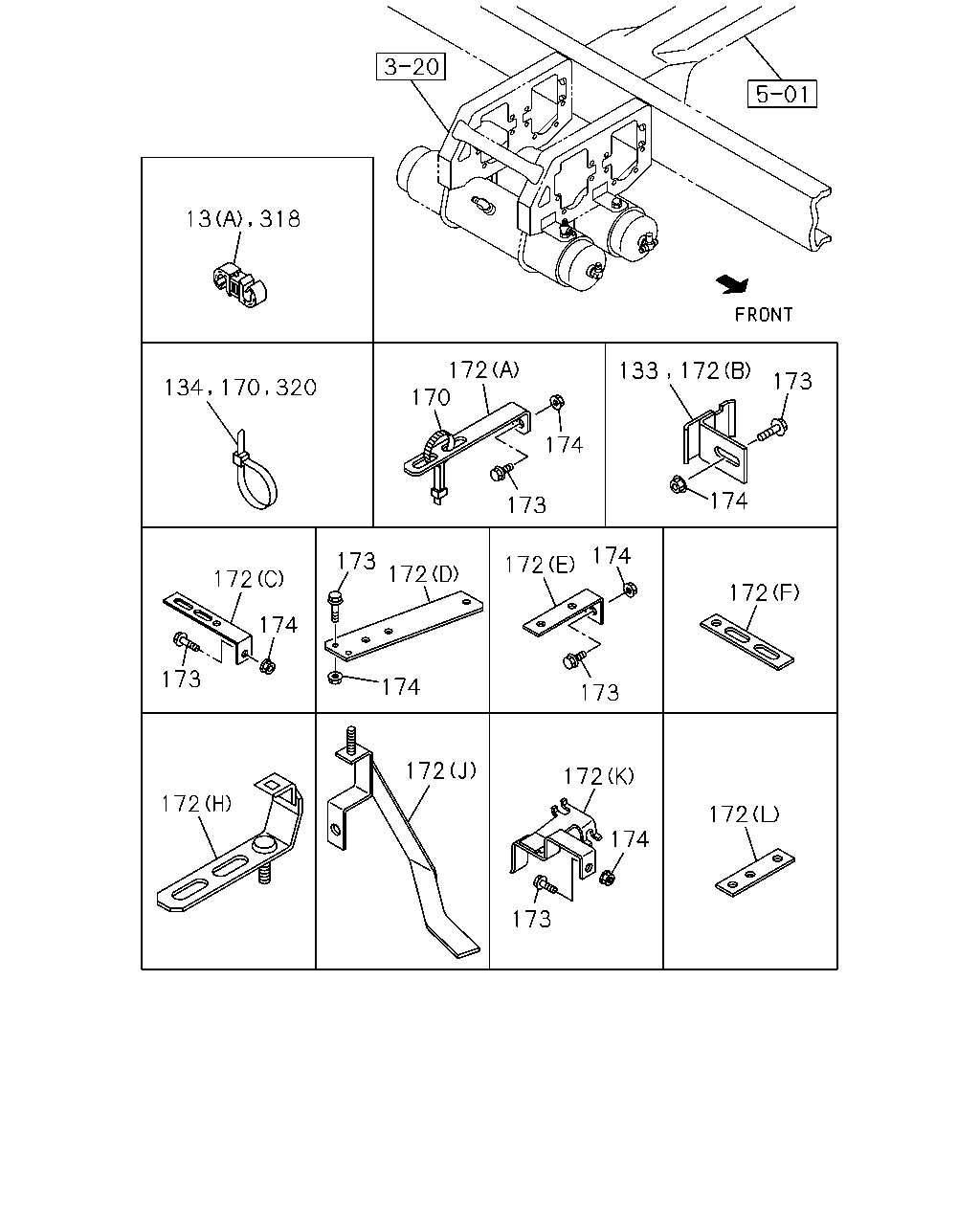

318 13 320 170 134 172 174 173 172 172 172 174 173 172 172 174 172 173 172 173 174 174 172 133 172 170 174 173 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	CLIP; AIR PIPE 6HK1-TCN ENG<82L> (B) ID=7 L=16	0-95234-625-0	01	1	1402-
13	CLIP; AIR PIPE 6HK1-TCN ENG<82L> (C) ID=6 H=20 L=20	1-09700-603-0	01	1	1402-
13	CLIP; AIR PIPE (A) ID=6.35 & 6.35	1-09709-273-1	01	1	1402-
13	CLIP; AIR PIPE 6HK1-TCN ENG<82L> (A) ID=6.35 & 15	1-09709-276-1	01	1	1402-
133	BOLT; BRKT 6HK1-TCN ENG<82L> M8X20 FLANGE THA	0-28650-820-0	03	1	1402-
134	CLIP; AIR PIPE L=350	1-09707-183-0	01	1	1402-
170	CLIP; NYLON TUBE 4HK1-TCS ENG<RJS> L=350	1-09707-183-0	21	1	1406-
170	CLIP; NYLON TUBE 6HK1-TCN ENG<82L> L=350	1-09707-183-0	26	1	1402-
172	BRACKET; TUBE CLIP 4HK1-TCS ENG<RJS> (C) L=225	1-47477-646-3	02	1	1406-
172	BRACKET; TUBE CLIP 4HK1-TCS ENG<RJS> (E) L=115 H=30	1-47477-715-3	01	1	1406-
172	BRACKET; TUBE CLIP 4HK1-TCS ENG<RJS> (E) L=60 H=30	1-47477-716-1	02	1	1406-
172	BRACKET; TUBE CLIP 4HK1-TCS ENG<RJS> (L) L=125	1-47477-975-1	02	1	1406-
172	BRACKET; TUBE CLIP 4HK1-TCS ENG<RJS> (L) L=130	1-47479-575-0	01	1	1406-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG<82L> (F)	1-47477-514-3	01	1	1402-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG<82L> (A) L=150 H=30	1-47477-629-2	01	1	1402-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG<82L> (A) L=100 H=30	1-47477-645-2	02	1	1402-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG<82L> (C) L=225	1-47477-646-3	01	1	1402-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG<82L> (E) L=60 H=30	1-47477-716-1	03	1	1402-
172	BRACKET; TUBE CLIP (B)	1-47479-693-0	02	1	1402-
172	BRACKET; TUBE CLIP (D)	8-98031-420-2	01	1	1402-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG<82L> (H)	8-98047-730-0	02	1	1402-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG<82L> (G)	8-98169-222-0	01	1	1402-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG<82L> (I)	8-98177-873-0	01	1	1402-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG<82L> WHEEL BASE 3600MM<36W>,WHEEL BASE 4200MM<42W>, WHEELBASE 5000MM<50W> (J)	8-98139-764-0	01	1	1402-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG<82L> WHEEL BASE 3600MM<36W>,WHEEL BASE 4200MM<42W>, WHEELBASE 5000MM<50W> (K)	8-98182-764-0	01	1	1402-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG<82L> WHEEL BASE 5500MM<55W> (J) THA	8-98139-765-0	01	1	1402-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG<82L> WHEEL BASE 5500MM<55W> (K)	8-98182-760-0	01	1	1402-
173	BOLT; CLIP BRKT 4HK1-TCS ENG<RJS> M8X30 FLANGE THA	0-28650-830-0	05	1	1406-
173	BOLT; CLIP BRKT M8X20 FLANGE THA	0-28650-820-0	05	1	1402-
173	BOLT; CLIP BRKT M8X25 FLANGE THA	0-28650-825-0	02	1	1402-
173	BOLT; CLIP BRKT 6HK1-TCN ENG<82L> M8X30 FLANGE THA	0-28650-830-0	06	1	1402-
174	NUT; CLIP BRKT 4HK1-TCS ENG<RJS> M8 FLANGE THA	0-91180-108-0	09	1	1406-
174	NUT; CLIP BRKT 6HK1-TCN ENG<82L> M8 FLANGE THA	0-91180-108-0	15	1	1402-
318	CLIP; AIR PIPE 6HK1-TCN ENG<82L> ID=6.35 & 15	1-09709-276-1	04	1	1402-
320	CLIP; BAND,FLEX FIX 6HK1-TCN ENG<82L> L=250	5-09707-030-1	01	1	1402-
