Sayfa 3-70 - Isuzu EPC

3-70 — BRAKE PIPING; AIR,AIR MASTER (#133379) — 70 parça

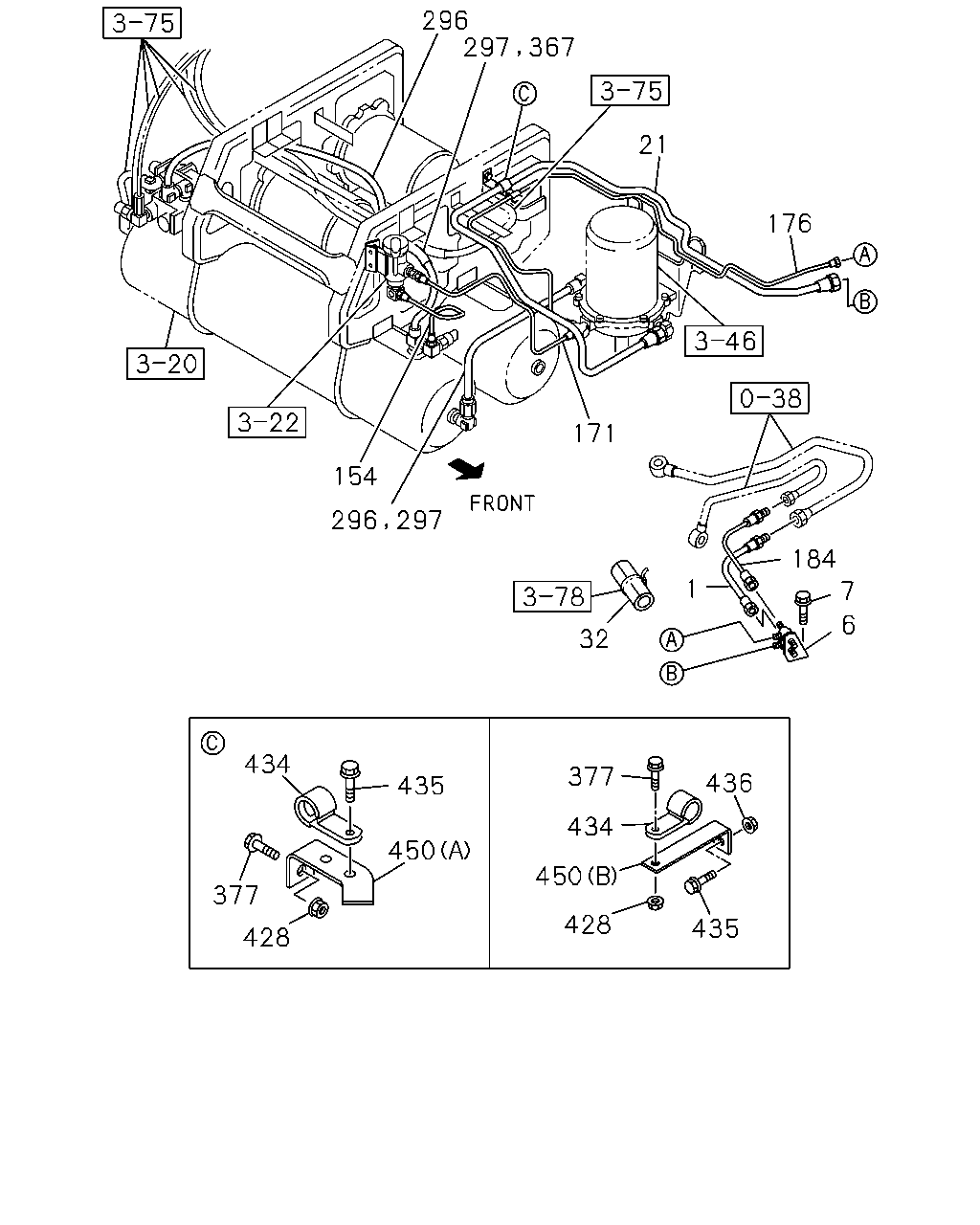

296 297 367 21 176 171 1 184 7 6 32 154 435 434 377 428 450 377 436 434 450 428 435 297 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK 4HK1-TCS ENG<RJS> L=430	1-09363-653-0	01	1	1406-
1	HOSE; FLEX,AIR TANK 6HK1-TCN ENG<82L> L=310	8-97607-730-0	01	1	1402-
6	BRACKET; FLEX HOSE,AIR TANK 6HK1-TCN ENG<82L>	8-98117-117-0	01	1	1402-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE THA	0-28650-830-0	02	1	1402-
21	PIPE; AIR,UNION TO AIR DRYER 4HK1-TCS ENG<RJS> L=1955 THA	8-98226-430-0	01	1	1406-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG<82L> L=1819 THA	8-98211-170-0	01	1	1402-
32	SLEEVE; RUBBER,AIR PIPE 6HK1-TCN ENG<82L> ID=32 OD=36 L=50	1-09337-023-0	01	1	1402-
154	PIPE; AIR,AIR TANK TO AIR GOV 6HK1-TCN ENG<82L> THA	8-98189-830-0	01	1	1402-
171	PIPE; AIR,GOV TO AIR DRYER 6HK1-TCN ENG<82L> L=521 SERVICED BY L=550	1-47428-808-0	01	1	1402-
176	PIPE; AIR,AIR DRYER TO UNION 6HK1-TCN ENG<82L> L=852 SERVICED BY L=900	1-47428-813-0	01	1	1402-
184	HOSE; FLEX,AIR GOV 6HK1-TCN ENG<82L> L=350	1-09363-624-0	01	1	1402-
296	TUBE; NYLON SERVICED BY L=2000 OD=8 THA	1-87411-006-0	AR	1	1402-
296	TUBE; NYLON SERVICED BY L=2000 OD=12 THA	1-87411-011-0	AR	1	1402-
297	TUBE; NYLON SERVICED BY L=2000 OD=8 THA	1-87411-006-0	AR	1	1402-
367	TUBE; CORRUGATE 6HK1-TCN ENG<82L> SERVICED BY L=2000 ID=10 THA	1-87411-019-0	01	1	1402-1405
367	TUBE; CORRUGATE 6HK1-TCN ENG<82L> SERVICED BY L=2000 ID=10 THA	1-87411-019-0	01	1	1402-1405
367	TUBE; CORRUGATE 6HK1-TCN ENG<82L> SERVICED BY L=2000 ID=10 THA	1-87411-019-0	01	1	1406-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10 THA	1-87411-019-0	01	1	1406-
377	BOLT; BRKT FIX 4HK1-TCS ENG<RJS> M8X30 FLANGE THA	0-28650-830-0	01	1	1406-
377	BOLT; BRKT FIX 6HK1-TCN ENG<82L> M8X30 FLANGE THA	0-28650-830-0	02	1	1402-
428	NUT; BRKT 4HK1-TCS ENG<RJS> M8 FLANGE THA	0-91180-108-0	01	1	1406-
428	NUT; BRKT 6HK1-TCN ENG<82L> M8 FLANGE THA	0-91180-108-0	02	1	1402-
434	CLIP ID=16 L=20 THA	0-95235-536-0	02	1	1402-
435	BOLT; CLIP M8X20 FLANGE THA	0-28650-820-0	02	1	1402-
436	NUT; CLIP 4HK1-TCS ENG<RJS> M8 FLANGE THA	0-91180-108-0	02	1	1406-
436	NUT; CLIP 6HK1-TCN ENG<82L> M8 FLANGE THA	0-91180-108-0	01	1	1402-
450	BRACKET; CLIP (B) L=90 B=25	1-47475-530-0	01	1	1402-
450	BRACKET; CLIP 6HK1-TCN ENG<82L> (A)	8-98232-692-0	01	1	1402-

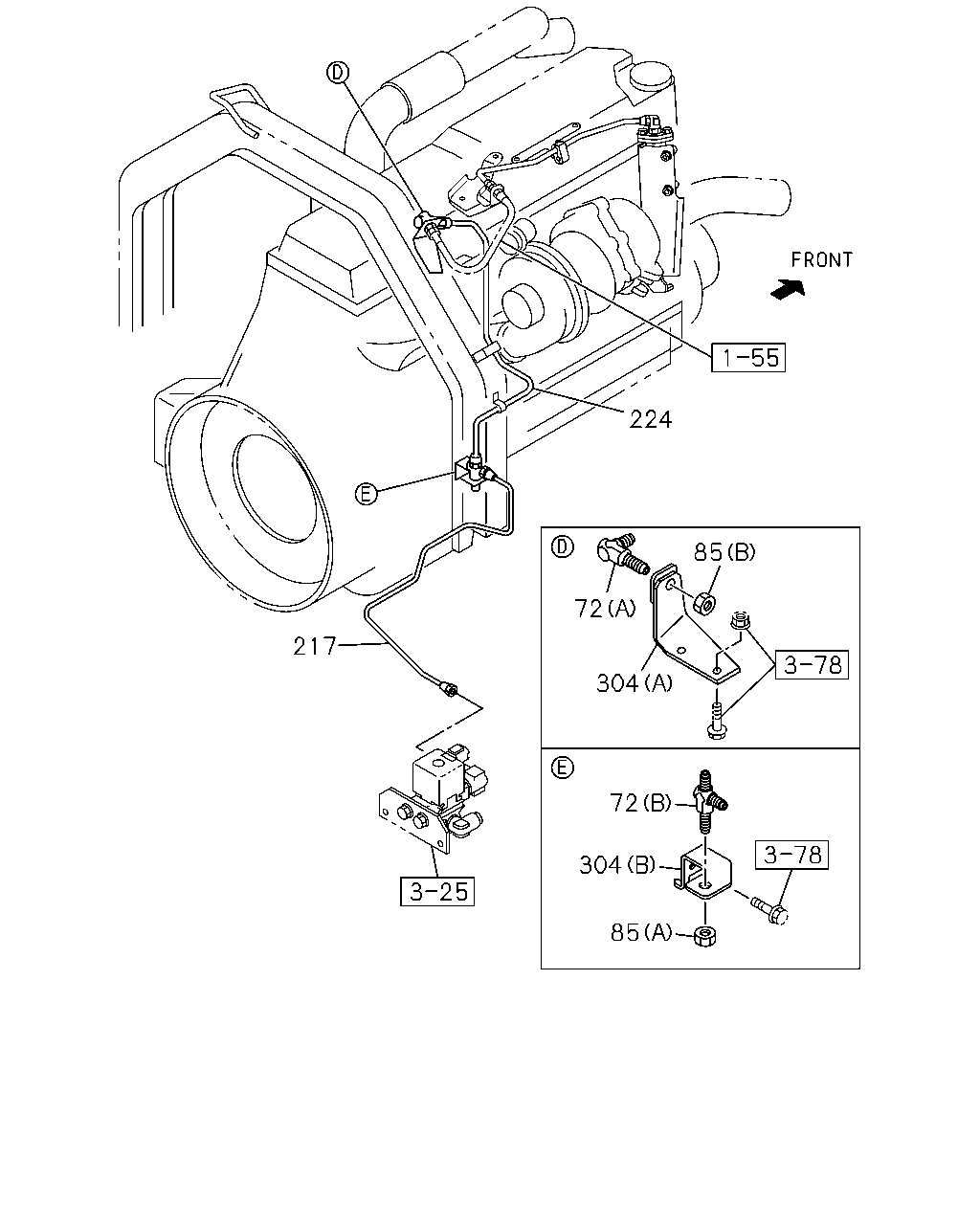

224 217 72 85 304 72 304 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
72	UNION; AIR PIPE 6HK1-TCN ENG<82L> (A) M12 ELBOW	0-92125-006-0	01	1	1402-
72	UNION; AIR PIPE 6HK1-TCN ENG<82L> (B) M12 2WAY	1-09654-059-2	01	1	1402-
85	NUT; UNION 6HK1-TCN ENG<82L> (A) M12	0-91111-512-0	01	1	1402-
85	NUT; UNION 6HK1-TCN ENG<82L> (B) M12	9-09840-280-0	01	1	1402-
217	PIPE; VAC,UNION TO MAG VLV 6HK1-TCN ENG<82L> L=891 SERVICED BY L=900	1-47428-813-0	01	1	1402-
224	PIPE; AIR,UNION TO FLEX HOSE 6HK1-TCN ENG<82L> L=667 SERVICED BY L=700	1-47428-811-0	01	1	1402-
304	BRACKET; UNION 4HK1-TCS ENG<RJS> (C)	8-98226-311-0	01	1	1406-
304	BRACKET; UNION 6HK1-TCN ENG<82L> (B)	8-98211-164-1	01	1	1402-
304	BRACKET; UNION 6HK1-TCN ENG<82L> (A)	8-98229-691-0	01	1	1402-

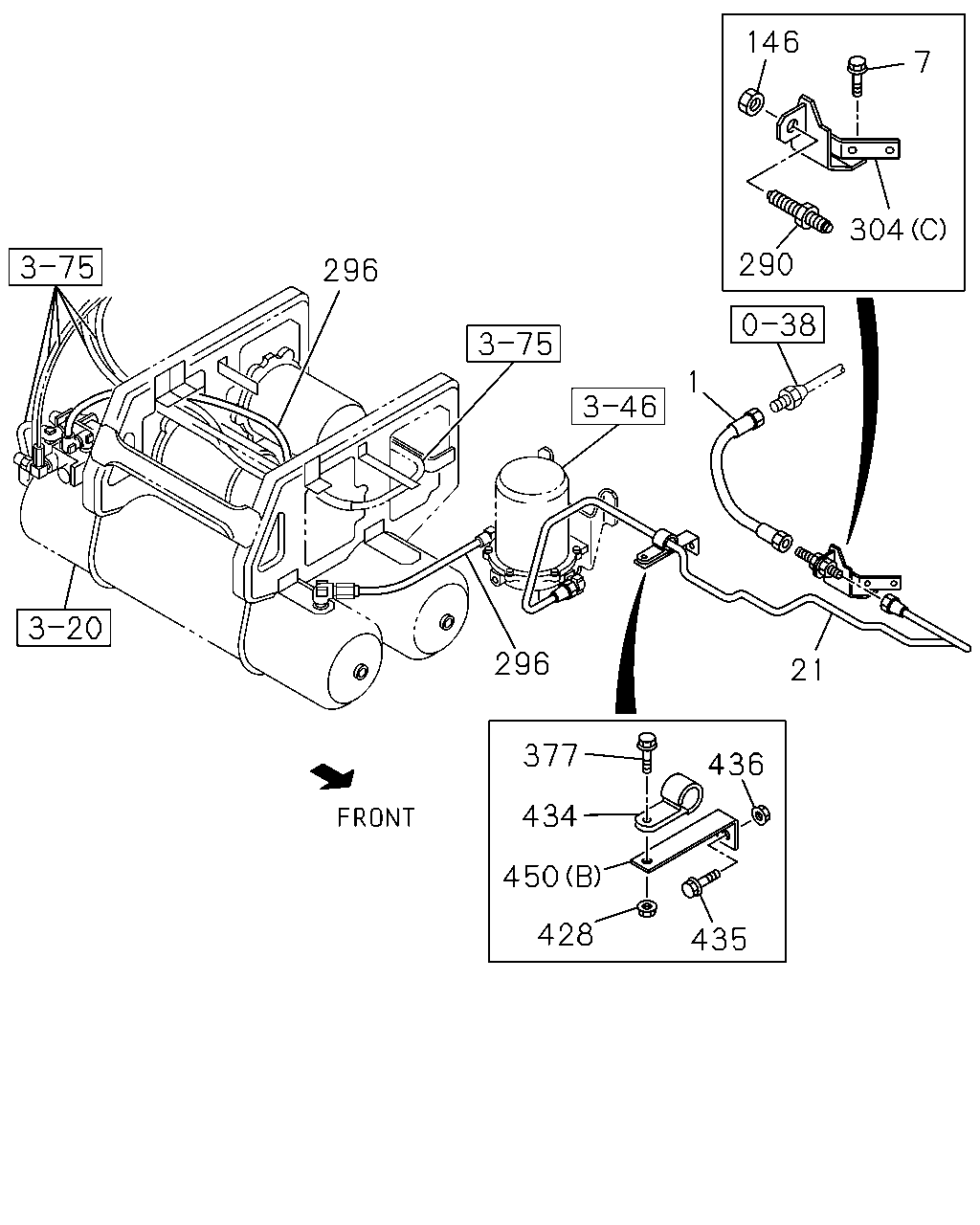

146 7 304 290 296 1 21 296 377 434 436 450 428 435

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK 4HK1-TCS ENG<RJS> L=430	1-09363-653-0	01	1	1406-
1	HOSE; FLEX,AIR TANK 6HK1-TCN ENG<82L> L=310	8-97607-730-0	01	1	1402-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE THA	0-28650-830-0	02	1	1402-
21	PIPE; AIR,UNION TO AIR DRYER 4HK1-TCS ENG<RJS> L=1955 THA	8-98226-430-0	01	1	1406-
21	PIPE; AIR,UNION TO AIR DRYER 6HK1-TCN ENG<82L> L=1819 THA	8-98211-170-0	01	1	1402-
146	NUT; UNION 4HK1-TCS ENG<RJS> M22	0-91110-522-0	01	1	1406-
290	UNION; AIR PIPE 4HK1-TCS ENG<RJS> M22	0-92123-315-0	01	1	1406-
296	TUBE; NYLON SERVICED BY L=2000 OD=8 THA	1-87411-006-0	AR	1	1402-
296	TUBE; NYLON SERVICED BY L=2000 OD=12 THA	1-87411-011-0	AR	1	1402-
304	BRACKET; UNION 4HK1-TCS ENG<RJS> (C)	8-98226-311-0	01	1	1406-
304	BRACKET; UNION 6HK1-TCN ENG<82L> (B)	8-98211-164-1	01	1	1402-
304	BRACKET; UNION 6HK1-TCN ENG<82L> (A)	8-98229-691-0	01	1	1402-
377	BOLT; BRKT FIX 4HK1-TCS ENG<RJS> M8X30 FLANGE THA	0-28650-830-0	01	1	1406-
377	BOLT; BRKT FIX 6HK1-TCN ENG<82L> M8X30 FLANGE THA	0-28650-830-0	02	1	1402-
428	NUT; BRKT 4HK1-TCS ENG<RJS> M8 FLANGE THA	0-91180-108-0	01	1	1406-
428	NUT; BRKT 6HK1-TCN ENG<82L> M8 FLANGE THA	0-91180-108-0	02	1	1402-
434	CLIP ID=16 L=20 THA	0-95235-536-0	02	1	1402-
435	BOLT; CLIP M8X20 FLANGE THA	0-28650-820-0	02	1	1402-
436	NUT; CLIP 4HK1-TCS ENG<RJS> M8 FLANGE THA	0-91180-108-0	02	1	1406-
436	NUT; CLIP 6HK1-TCN ENG<82L> M8 FLANGE THA	0-91180-108-0	01	1	1402-
450	BRACKET; CLIP (B) L=90 B=25	1-47475-530-0	01	1	1402-
450	BRACKET; CLIP 6HK1-TCN ENG<82L> (A)	8-98232-692-0	01	1	1402-

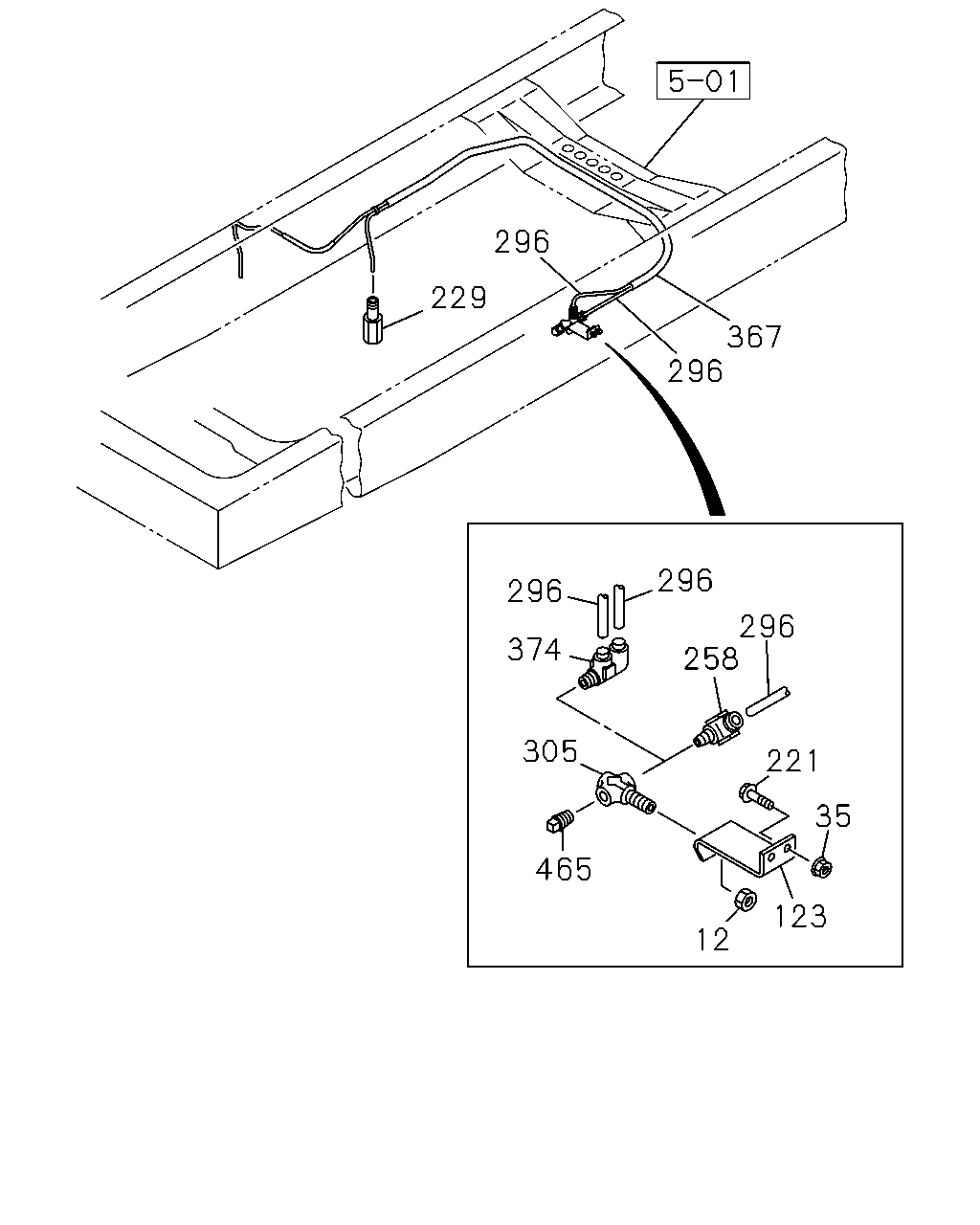

296 229 364 296 296 296 374 258 296 221 35 123 12 465 305

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	NUT; UNION EXC. PTO CONTROL<SV6> M12	0-91111-512-0	01	1	1402-
35	NUT; BRKT EXC. PTO CONTROL<SV6> M8 FLANGE THA	0-91180-108-0	02	1	1402-
123	BRACKET; UNION EXC. PTO CONTROL<SV6>	8-98118-545-0	01	1	1402-
221	BOLT; BRKT EXC. PTO CONTROL<SV6> M8X35 FLANGE THA	0-28650-835-0	02	1	1402-
229	ADAPTER; NYLON TUBE DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1402-
258	CONNECTOR; NYLON TUBE 6HK1-TCN ENG<82L> EXC. PTO CONTROL<SV6> DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	1402-
296	TUBE; NYLON SERVICED BY L=2000 OD=8 THA	1-87411-006-0	AR	1	1402-
296	TUBE; NYLON SERVICED BY L=2000 OD=12 THA	1-87411-011-0	AR	1	1402-
305	UNION ASM; NYLON TUBE EXC. PTO CONTROL<SV6>	8-98120-049-0	01	1	1402-
374	CONNECTOR 4HK1-TCS ENG<RJS> EXC. PTO CONTROL<SV6>	8-98179-708-0	01	1	1406-
465	PLUG EXC. PTO CONTROL<SV6> PT1/4	9-99204-513-0	01	1	1402-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
