3-58 — FIXING PARTS; OIL PIPING
(#133378) — 20 parça
◀

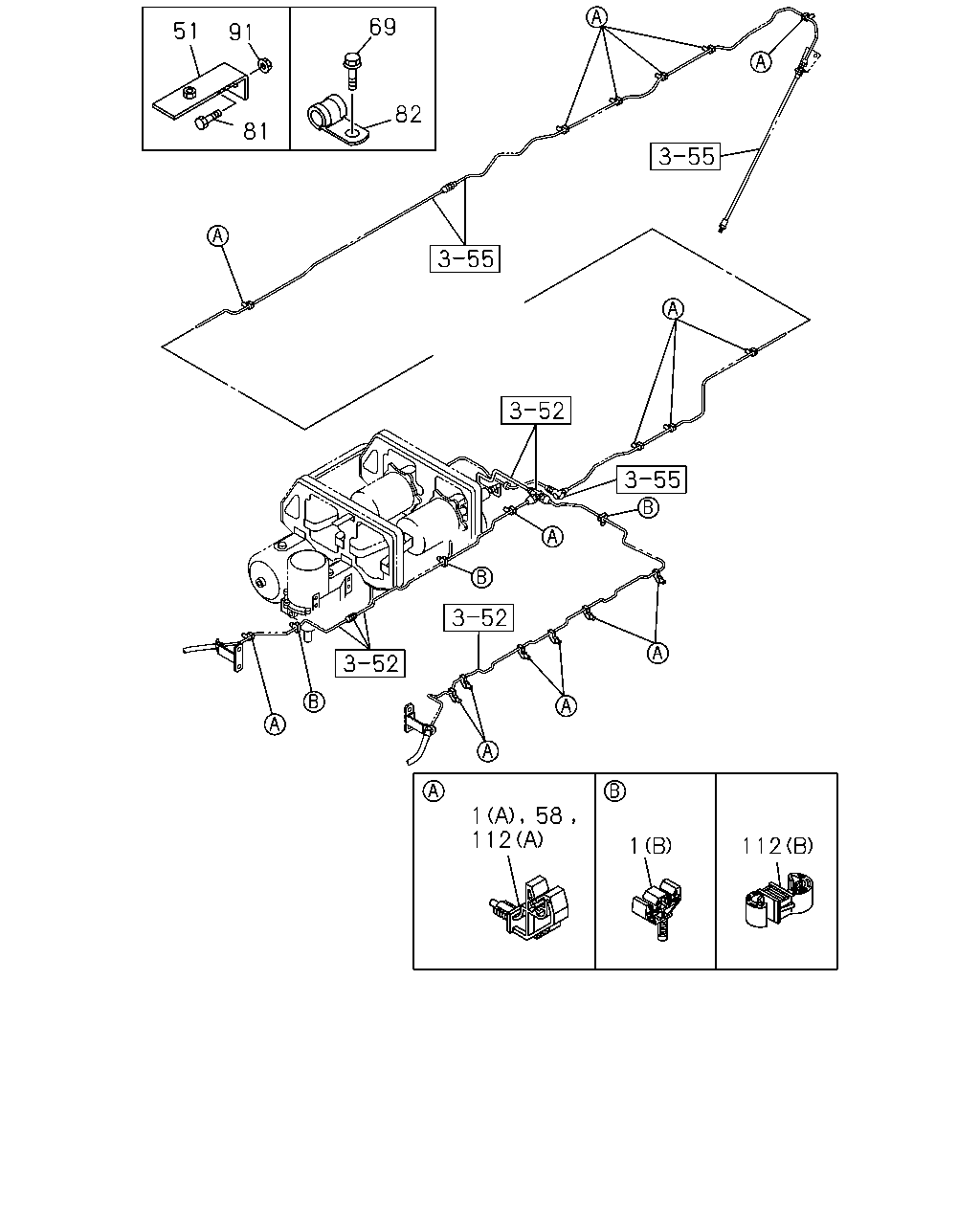

[358A] FRAME SIDE (18 parça)
[358A] REAR AXLE SIDE (2 parça)
▶
51
91
81
69
82
1
58
112
1
112
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CLIP; OIL PIPE TO BODY
4HK1-TCS ENG<RJS> (A) ID=6.35
1-09701-247-1
04
1
1406-
1
CLIP; OIL PIPE TO BODY
4HK1-TCS ENG<RJS> (B)
8-98012-254-1
06
1
1406-
1
CLIP; OIL PIPE TO BODY
6HK1-TCN ENG<82L> (A) ID=6.35
1-09701-247-1
06
1
1402-
1
CLIP; OIL PIPE TO BODY
6HK1-TCN ENG<82L> (B)
8-98012-254-1
04
1
1402-
51
BRACKET; OIL PIPE
1-47475-519-0
01
1
1402-
58
CLIP; OIL PIPE
ID=6.35
1-09701-247-1
05
1
1402-
69
BOLT; CLIP
M8X20 FLANGE THA
0-28650-820-0
01
1
1402-
81
BOLT; BRKT,OIL PIPE
M8X30 FLANGE THA
0-28650-830-0
01
1
1402-
82
CLIP; OIL PIPE
ID=7 L=16
0-95234-625-0
01
1
1402-
91
NUT; BRKT,OIL PIPE
4HK1-TCS ENG<RJS> M8 FLANGE THA
0-91180-108-0
01
1
1406-
112
CLIP; OIL PIPE
4HK1-TCS ENG<RJS> WHEEL BASE 5500MM<55W> (A) ID=6.35
1-09701-247-1
06
1
1406-
112
CLIP; OIL PIPE
(B) ID=6.35 & 6.35
1-09709-273-1
01
1
1402-
112
CLIP; OIL PIPE
WHEEL BASE 3600MM<36W> (A) ID=6.35
1-09701-247-1
01
1
1402-
112
CLIP; OIL PIPE
WHEEL BASE 4200MM<42W> (A) ID=6.35
1-09701-247-1
03
1
1402-
112
CLIP; OIL PIPE
6HK1-TCN ENG<82L> WHEEL BASE 5000MM<50W> (A) ID=6.35
1-09701-247-1
04
1
1402-
112
CLIP; OIL PIPE
6HK1-TCN ENG<82L> WHEEL BASE 5500MM<55W> (A) ID=6.35
1-09701-247-1
05
1
1402-1405
112
CLIP; OIL PIPE
4HK1-TCS ENG<RJS> WHEEL BASE 5000MM<50W> (A) ID=6.35
1-09701-247-1
05
1
1406-
112
CLIP; OIL PIPE
6HK1-TCN ENG<82L> WHEEL BASE 5500MM<55W> (A) ID=6.35
1-09701-247-1
05
1
1406-
59
57
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
57
CLIP; BRK PIPE,RR AXLE
ID=7 L=20
0-95234-635-0
04
1
1402-
59
BOLT; BRK PIPE,RR AXLE
M8X10 FLANGE THA
0-28050-810-0
04
1
1402-
