◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11575 - FTR(THAI)EURO3 ▶ 3 - Brakes, Brake System ▶ 3-46 - AIR DRYER ▶
3-46 — AIR DRYER (#133375) — 79 parça
çizim 406648
2 3 68 70 65
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; AIR DRYER
4HK1-TCS ENG<RJS> (B) THA 		8-98226-323-0 01 1 1406-
2 REPAIR KIT; AIR DRYER
6HK1-TCN ENG<82L> (A) THA 		1-85576-217-0 01 1 1402-
3 PISTON KIT; AIR DRYER
4HK1-TCS ENG<RJS> (B) THA 		8-98226-322-0 01 1 1406-
3 PISTON KIT; AIR DRYER
6HK1-TCN ENG<82L> (A) THA 		1-85576-193-0 01 1 1402-
65 BOLT; PURGE VLV
4HK1-TCS ENG<RJS> THA 		1-48199-517-0 01 1 1406-
65 BOLT; PURGE VLV
6HK1-TCN ENG<82L> THA 		1-48199-393-0 01 1 1402-
68 BODY; VALVE
4HK1-TCS ENG<RJS> THA 		1-48199-515-0 01 1 1406-
68 BODY; VALVE
6HK1-TCN ENG<82L> THA 		1-48199-408-0 01 1 1402-
70 VALVE; AIR DRYER
4HK1-TCS ENG<RJS> THA 		1-48199-504-0 01 1 1406-
70 VALVE; AIR DRYER
6HK1-TCN ENG<82L> THA 		1-48199-105-0 01 1 1402-

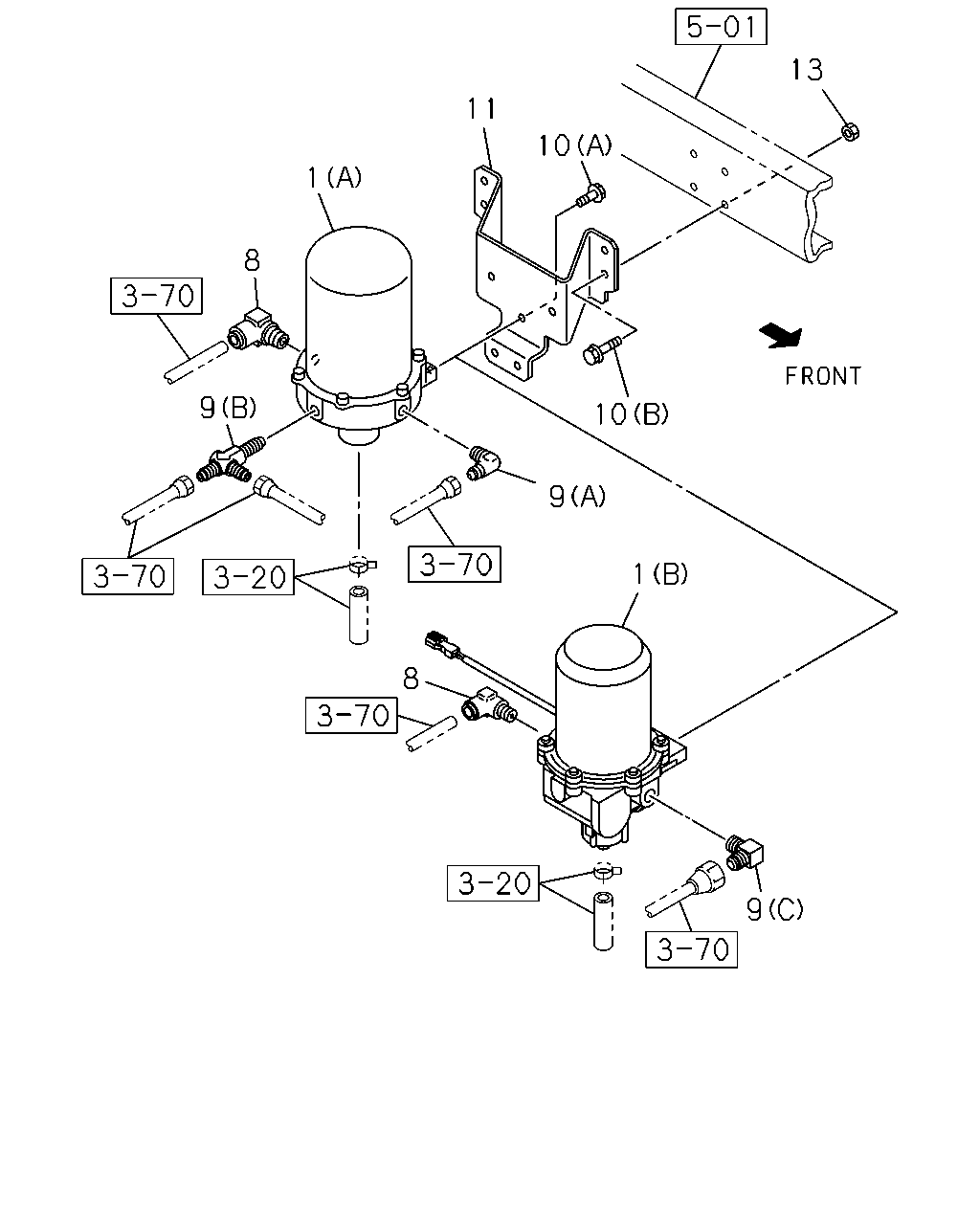

çizim 406744
11 10 13 10 9 1 9 8 9 8 1
BalonParca AdiParca NoAdetTipApplied Date
1 DRYER; AIR
4HK1-TCS ENG<RJS> (B) THA 		8-97948-209-1 01 1 1406-
1 DRYER; AIR
6HK1-TCN ENG<82L> (A) THA 		8-97948-206-0 01 1 1402-
8 CONNECTOR; OUT,AIR DRYER
DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 1402-
9 CONNECTOR; PIPE,AIR DRYER
4HK1-TCS ENG<RJS> (C) M22 & PT1/2 ELBOW 		0-92134-315-0 01 1 1406-
9 CONNECTOR; PIPE,AIR DRYER
6HK1-TCN ENG<82L> (B) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 1402-
9 CONNECTOR; PIPE,AIR DRYER
6HK1-TCN ENG<82L> (A) M22 & R1/2 W/VALVE 		1-48320-026-2 01 1 1402-
10 BOLT; AIR DRYER
4HK1-TCS ENG<RJS> (A) M10X25 FLANGE THA 		0-28051-025-0 03 1 1406-
10 BOLT; AIR DRYER
6HK1-TCN ENG<82L> (A) M10X20 FLANGE THA 		0-28051-020-0 03 1 1402-
10 BOLT; AIR DRYER
(B) M10X35 FLANGE THA 		0-28651-035-0 04 1 1402-
11 BRACKET; AIR DRYER 8-97614-691-1 01 1 1402-
13 NUT; AIR DRYER
M10 FLANGE THA 		0-91180-210-0 04 1 1402-

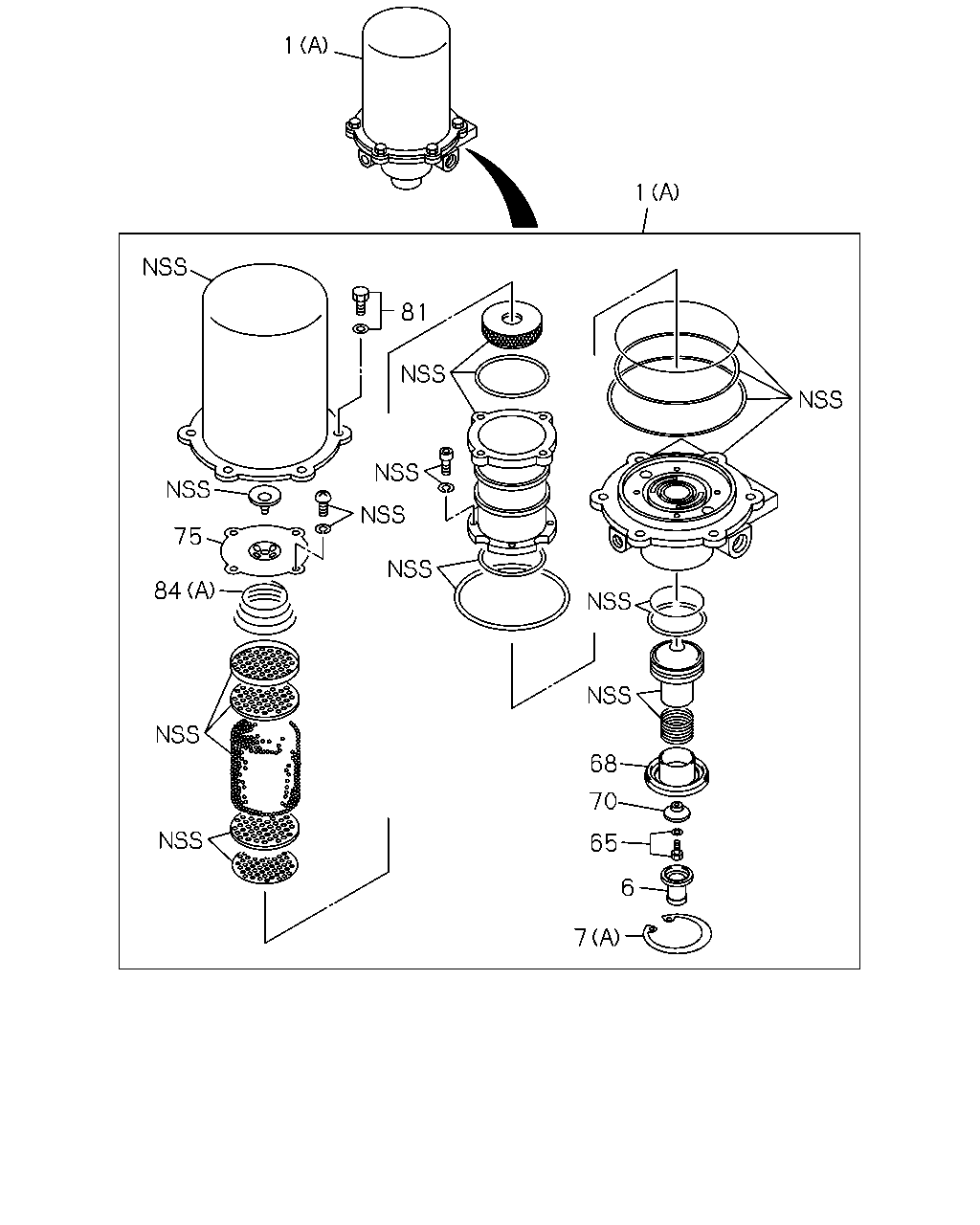

çizim 407498
1 1 81 68 70 65 6 7 84 75
BalonParca AdiParca NoAdetTipApplied Date
1 DRYER; AIR
4HK1-TCS ENG<RJS> (B) THA 		8-97948-209-1 01 1 1406-
1 DRYER; AIR
6HK1-TCN ENG<82L> (A) THA 		8-97948-206-0 01 1 1402-
6 COVER; EXH,AIR DRYER
6HK1-TCN ENG<82L> THA 		1-48199-404-0 01 1 1402-
7 RING; SNAP,AIR DRYER
4HK1-TCS ENG<RJS> (C) THA 		1-48199-520-0 02 1 1406-
7 RING; SNAP,AIR DRYER
4HK1-TCS ENG<RJS> (B) THA 		1-48199-529-0 01 1 1406-
7 RING; SNAP,AIR DRYER
4HK1-TCS ENG<RJS> (D) THA 		1-48199-579-0 01 1 1406-
7 RING; SNAP,AIR DRYER
6HK1-TCN ENG<82L> (A) THA 		1-48199-403-0 01 1 1402-
65 BOLT; PURGE VLV
4HK1-TCS ENG<RJS> THA 		1-48199-517-0 01 1 1406-
65 BOLT; PURGE VLV
6HK1-TCN ENG<82L> THA 		1-48199-393-0 01 1 1402-
68 BODY; VALVE
4HK1-TCS ENG<RJS> THA 		1-48199-515-0 01 1 1406-
68 BODY; VALVE
6HK1-TCN ENG<82L> THA 		1-48199-408-0 01 1 1402-
70 VALVE; AIR DRYER
4HK1-TCS ENG<RJS> THA 		1-48199-504-0 01 1 1406-
70 VALVE; AIR DRYER
6HK1-TCN ENG<82L> THA 		1-48199-105-0 01 1 1402-
75 COVER; CASE,AIR DRYER
THA 		1-48199-427-0 01 1 1402-
81 BOLT; CASE,AIR DRYER
THA 		1-48199-436-0 06 1 1402-
84 SPRING; AIR DRYER
4HK1-TCS ENG<RJS> (B) THA 		1-48199-523-0 01 1 1406-
84 SPRING; AIR DRYER
(A) THA 		1-48199-425-0 01 1 1402-

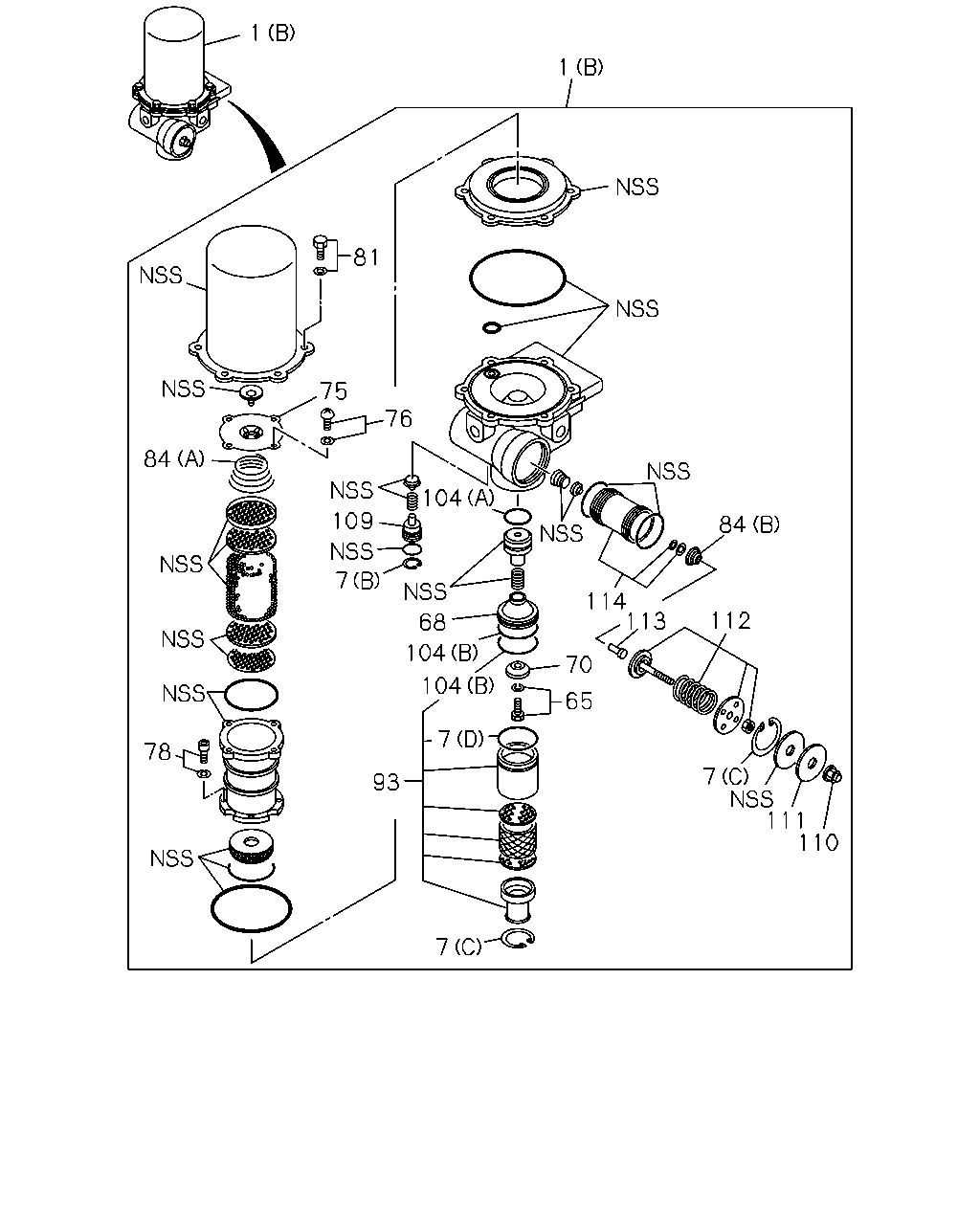

çizim 426280
1 1 81 75 76 84 104 109 7 84 112 114 113 7 111 110 7 93 70 65 7 104 104 68 78
BalonParca AdiParca NoAdetTipApplied Date
1 DRYER; AIR
4HK1-TCS ENG<RJS> (B) THA 		8-97948-209-1 01 1 1406-
1 DRYER; AIR
6HK1-TCN ENG<82L> (A) THA 		8-97948-206-0 01 1 1402-
7 RING; SNAP,AIR DRYER
4HK1-TCS ENG<RJS> (C) THA 		1-48199-520-0 02 1 1406-
7 RING; SNAP,AIR DRYER
4HK1-TCS ENG<RJS> (B) THA 		1-48199-529-0 01 1 1406-
7 RING; SNAP,AIR DRYER
4HK1-TCS ENG<RJS> (D) THA 		1-48199-579-0 01 1 1406-
7 RING; SNAP,AIR DRYER
6HK1-TCN ENG<82L> (A) THA 		1-48199-403-0 01 1 1402-
65 BOLT; PURGE VLV
4HK1-TCS ENG<RJS> THA 		1-48199-517-0 01 1 1406-
65 BOLT; PURGE VLV
6HK1-TCN ENG<82L> THA 		1-48199-393-0 01 1 1402-
68 BODY; VALVE
4HK1-TCS ENG<RJS> THA 		1-48199-515-0 01 1 1406-
68 BODY; VALVE
6HK1-TCN ENG<82L> THA 		1-48199-408-0 01 1 1402-
70 VALVE; AIR DRYER
4HK1-TCS ENG<RJS> THA 		1-48199-504-0 01 1 1406-
70 VALVE; AIR DRYER
6HK1-TCN ENG<82L> THA 		1-48199-105-0 01 1 1402-
75 COVER; CASE,AIR DRYER
THA 		1-48199-427-0 01 1 1402-
76 BOLT; COVER,AIR DRYER
4HK1-TCS ENG<RJS> THA 		1-48199-412-0 04 1 1406-
78 BOLT; OIL FILTER,AIR DRYER
4HK1-TCS ENG<RJS> THA 		1-48199-417-0 04 1 1406-
81 BOLT; CASE,AIR DRYER
THA 		1-48199-436-0 06 1 1402-
84 SPRING; AIR DRYER
4HK1-TCS ENG<RJS> (B) THA 		1-48199-523-0 01 1 1406-
84 SPRING; AIR DRYER
(A) THA 		1-48199-425-0 01 1 1402-
93 SILENCER; AIR DRYER
4HK1-TCS ENG<RJS> THA 		1-48199-619-0 01 1 1406-
104 GASKET
4HK1-TCS ENG<RJS> (B) THA 		1-48199-496-0 02 1 1406-
104 GASKET
4HK1-TCS ENG<RJS> (A) THA 		8-98226-321-0 01 1 1406-
109 STOPPER; CHECK VALVE
4HK1-TCS ENG<RJS> THA 		1-48199-539-0 01 1 1406-
110 NUT; CAP
4HK1-TCS ENG<RJS> THA 		1-48199-527-0 01 1 1406-
111 PLATE; GOVERNOR
4HK1-TCS ENG<RJS> THA 		1-48199-526-0 01 1 1406-
112 SCREW & SPRING ASM; AIR DRYER
4HK1-TCS ENG<RJS> THA 		1-48199-524-0 01 1 1406-1408
112 SCREW & SPRING ASM; AIR DRYER
4HK1-TCS ENG<RJS> THA 		8-98292-687-0 01 1 1409-
113 STEM; EXHAUST
4HK1-TCS ENG<RJS> THA 		1-48199-522-0 01 1 1406-
114 PISTON ASM; GOVERNOR
4HK1-TCS ENG<RJS> THA 		1-48199-521-0 01 1 1406-1408
114 PISTON ASM; GOVERNOR
4HK1-TCS ENG<RJS> THA 		8-98292-688-0 01 1 1409-

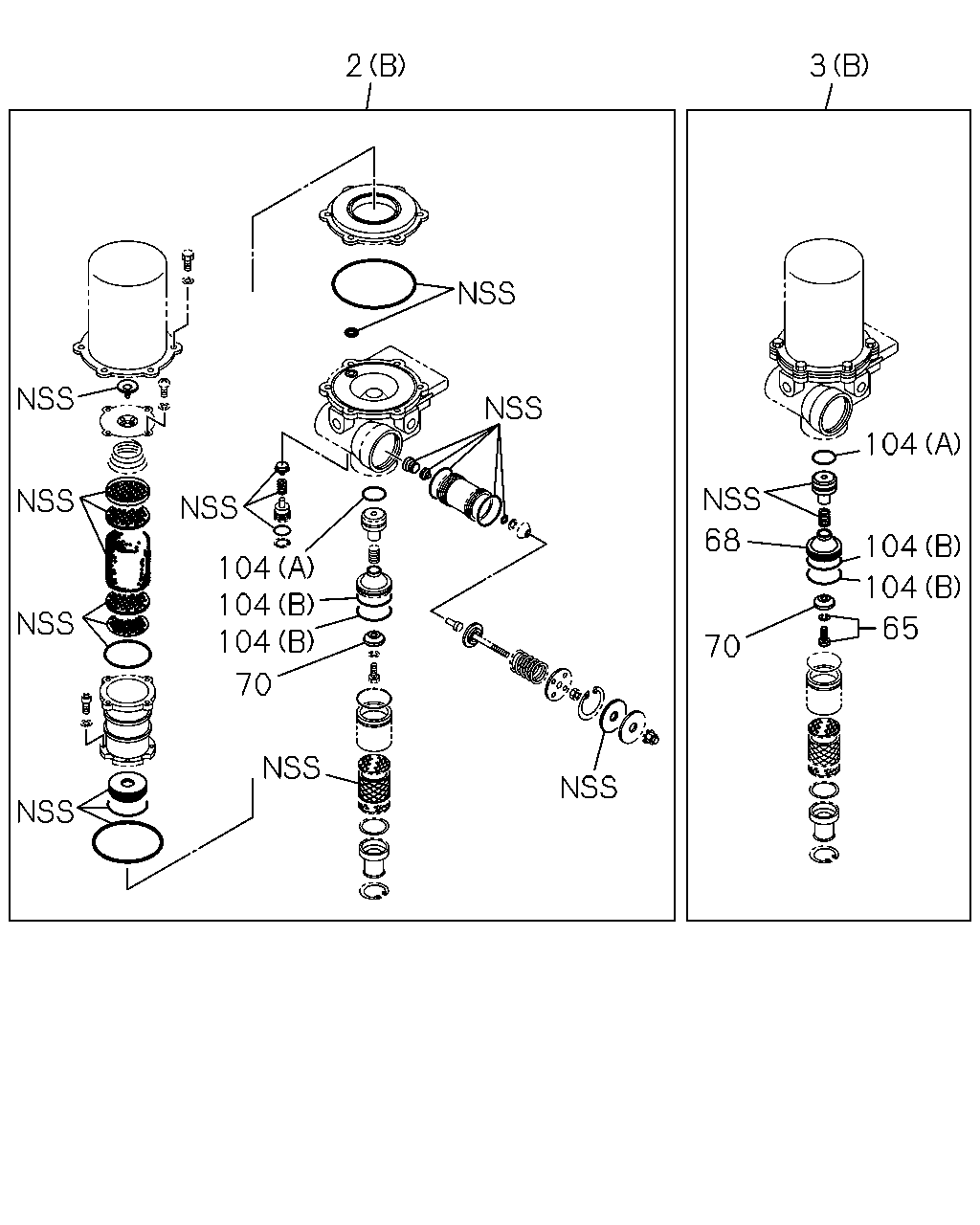

çizim 426281
2 3 104 104 104 65 68 70 104 104 104 70
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; AIR DRYER
4HK1-TCS ENG<RJS> (B) THA 		8-98226-323-0 01 1 1406-
2 REPAIR KIT; AIR DRYER
6HK1-TCN ENG<82L> (A) THA 		1-85576-217-0 01 1 1402-
3 PISTON KIT; AIR DRYER
4HK1-TCS ENG<RJS> (B) THA 		8-98226-322-0 01 1 1406-
3 PISTON KIT; AIR DRYER
6HK1-TCN ENG<82L> (A) THA 		1-85576-193-0 01 1 1402-
65 BOLT; PURGE VLV
4HK1-TCS ENG<RJS> THA 		1-48199-517-0 01 1 1406-
65 BOLT; PURGE VLV
6HK1-TCN ENG<82L> THA 		1-48199-393-0 01 1 1402-
68 BODY; VALVE
4HK1-TCS ENG<RJS> THA 		1-48199-515-0 01 1 1406-
68 BODY; VALVE
6HK1-TCN ENG<82L> THA 		1-48199-408-0 01 1 1402-
70 VALVE; AIR DRYER
4HK1-TCS ENG<RJS> THA 		1-48199-504-0 01 1 1406-
70 VALVE; AIR DRYER
6HK1-TCN ENG<82L> THA 		1-48199-105-0 01 1 1402-
104 GASKET
4HK1-TCS ENG<RJS> (B) THA 		1-48199-496-0 02 1 1406-
104 GASKET
4HK1-TCS ENG<RJS> (A) THA 		8-98226-321-0 01 1 1406-
