3-20 — AIR TANK (#133370) — 77 parça

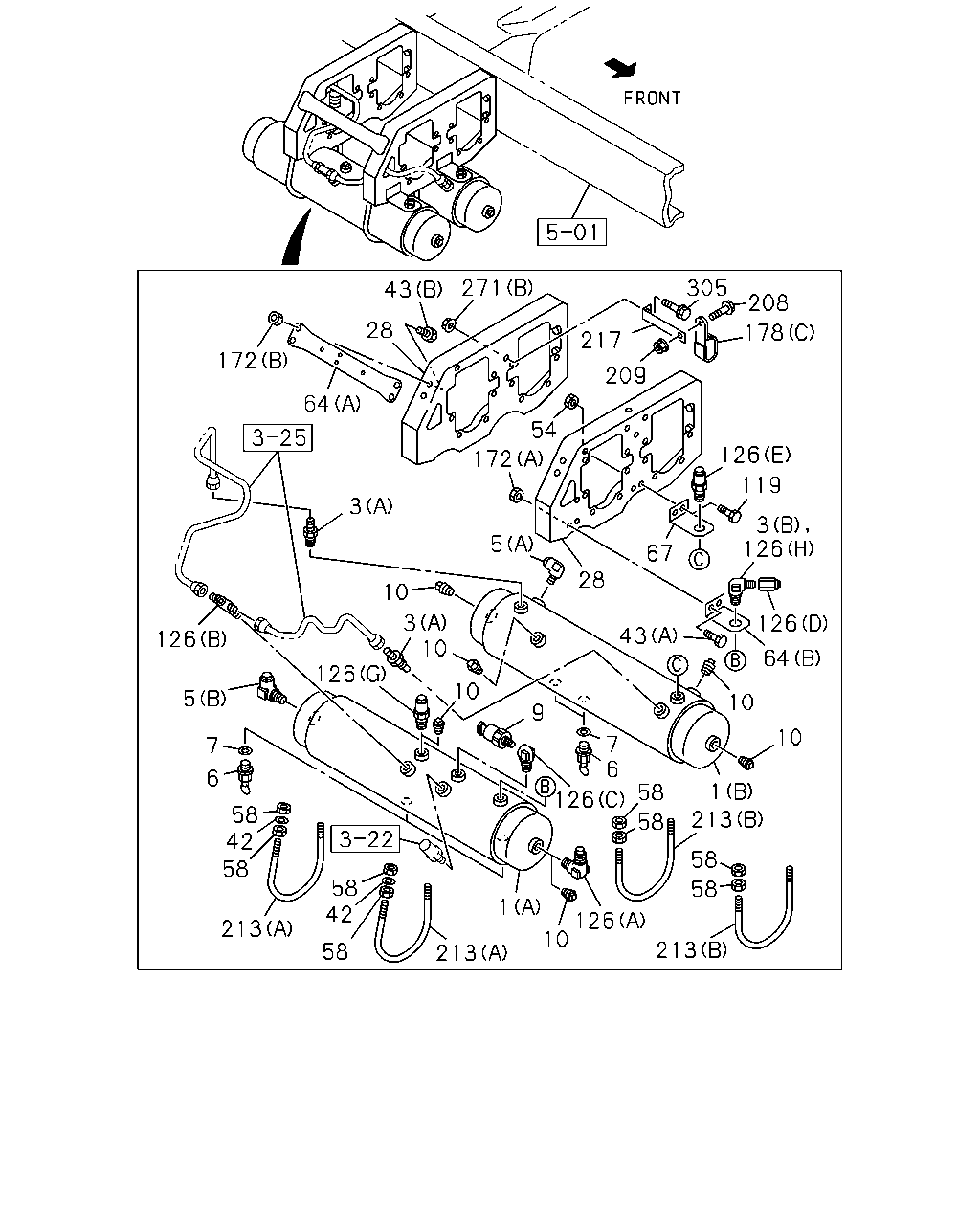

çizim 406746
43 271 28 172 64 217 209 305 208 178 126 54 119 3 126 67 172 5 28 43 126 64 10 10 1 213 58 58 213 126 58 58 6 7 9 126 10 10 3 10 3 126 5 7 6 58 42 58 213 58 42 58 1 213 10 126
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
(A) 		1-48330-598-0 01 1 1402-
1 TANK ASM; AIR
(B) 		1-48370-541-0 01 1 1402-
3 VALVE; CHECK,AIR TANK
6HK1-TCN ENG<82L> (B) M22 & PT3/4 ELBOW 		1-48410-134-3 01 1 1402-
3 VALVE; CHECK,AIR TANK
(A) 		1-48410-182-3 02 1 1402-
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1402-
5 UNION; AIR TANK
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1402-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 04 1 1402-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 1402-
9 SWITCH; LOW PRESSURE GAGE,AIR TANK
STAMP 5.5 		8-97609-249-0 01 1 1402-
10 PLUG; AIR TANK
4HK1-TCS ENG<RJS> PT1/4 		9-99204-513-0 06 1 1406-
10 PLUG; AIR TANK
6HK1-TCN ENG<82L> PT1/4 		9-99204-513-0 04 1 1402-
28 BRACKET; AIR TANK
THA 		8-97913-537-3 02 1 1402-
42 WASHER; PL
ID=8.4 OD=18 THA 		0-91610-608-0 04 1 1402-
43 BOLT; STAY,AIR TANK,MAIN
(A) M8X20 FLANGE THA 		0-28650-820-0 02 1 1402-
43 BOLT; STAY,AIR TANK,MAIN
(B) M10X25 FLANGE THA 		0-28651-025-0 04 1 1402-
54 NUT; STAY
M8 FLANGE THA 		0-91180-108-0 02 1 1402-
58 NUT; BAND,AIR TANK
M8 		0-91110-508-0 16 1 1402-
64 STAY; AIR TANK,MAIN
(A) 		1-53318-293-1 01 1 1402-
64 STAY; AIR TANK,MAIN
(B) 		8-94301-490-0 01 1 1402-
67 STAY; SUB TANK 1-48317-349-0 01 1 1402-
119 BOLT; STAY
M8X20 FLANGE THA 		0-28650-820-0 02 1 1402-
126 CONNECTOR; ELBOW
4HK1-TCS ENG<RJS> (H) M22 		1-09650-277-0 01 1 1406-
126 CONNECTOR; ELBOW
6HK1-TCN ENG<82L> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1402-
126 CONNECTOR; ELBOW
(B) M20X2 & PT3/8 3WAY 		1-09656-340-1 01 1 1402-
126 CONNECTOR; ELBOW
(C) PT1/4 2WAY 		1-09660-693-0 01 1 1402-
126 CONNECTOR; ELBOW
(D) DIN12 & M12 STRAIGHT 		1-09660-878-0 01 1 1402-
126 CONNECTOR; ELBOW
(E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1402-
126 CONNECTOR; ELBOW
(F) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1402-
126 CONNECTOR; ELBOW
6HK1-TCN ENG<82L> (G) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 1402-
172 NUT; STAY,AIR TANK,MAIN
(A) M8 FLANGE THA 		0-91180-108-0 02 1 1402-
172 NUT; STAY,AIR TANK,MAIN
(B) M10 FLANGE THA 		0-91180-210-0 04 1 1402-
178 CLIP; HOSE
(B) ID=12 & 12 		1-09709-280-1 01 1 1402-
178 CLIP; HOSE
(A) ID=21 		8-94242-034-0 01 1 1402-
178 CLIP; HOSE
(C) 		9-09917-171-0 01 1 1402-
208 BOLT; CLIP
M8X20 FLANGE THA 		0-28650-820-0 01 1 1402-
209 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 01 1 1402-
213 BOLT; U AIR TANK
(A) L=97.5 		1-48317-323-1 02 1 1402-
213 BOLT; U AIR TANK
(B) L=195 		1-48317-367-2 02 1 1402-
217 BRACKET; RUBBER HOSE
L=112 		1-47475-694-1 01 1 1402-
271 NUT; BRKT,HOSE
(B) M8 FLANGE THA 		0-91180-108-0 01 1 1402-
271 NUT; BRKT,HOSE
(A) M10 FLANGE THA 		0-91180-210-0 02 1 1402-
305 BOLT; BRKT,HOSE
M8X20 FLANGE THA 		0-28650-820-0 01 1 1402-

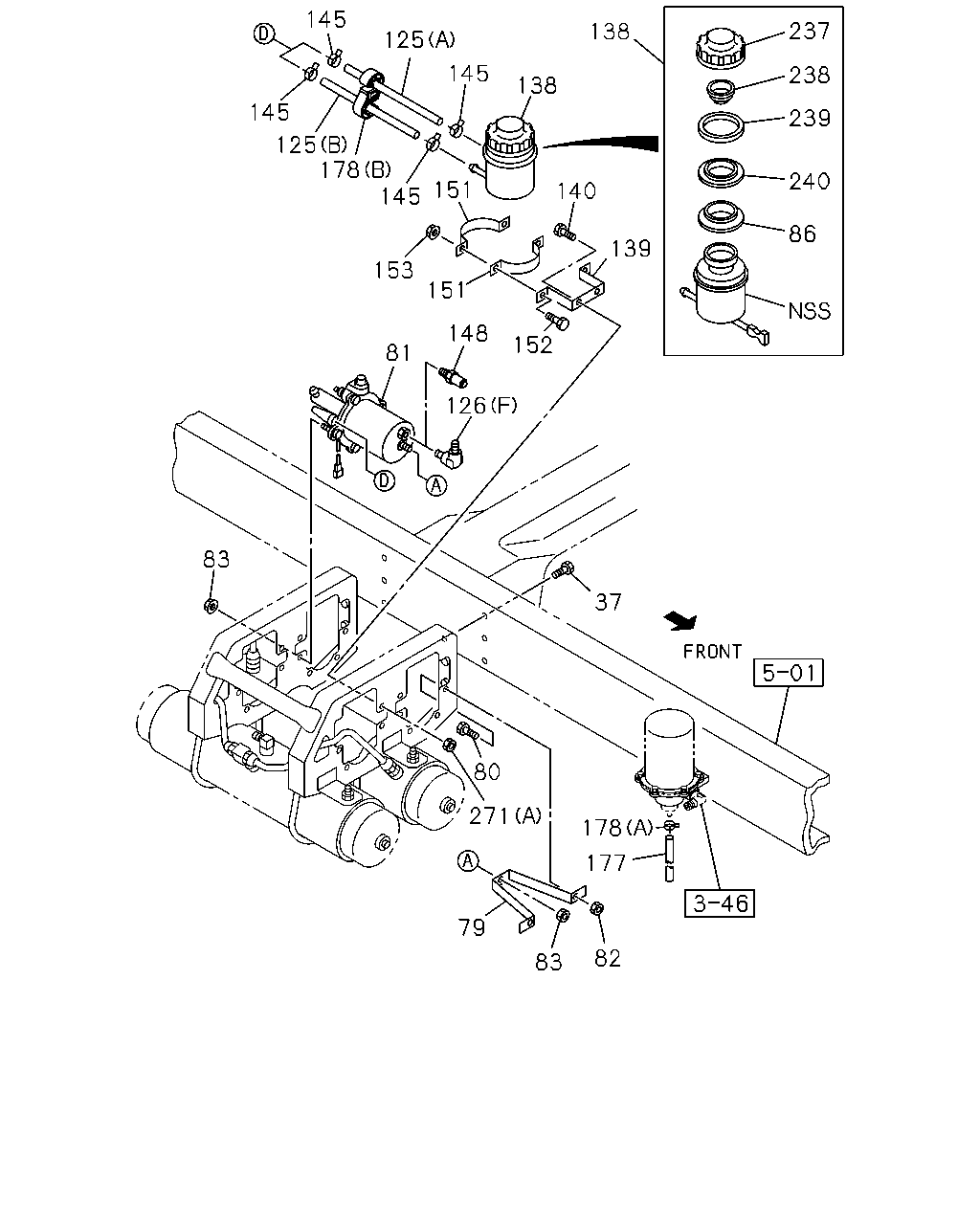

çizim 407428
145 125 145 138 138 140 139 151 145 178 125 145 153 151 148 152 81 126 237 238 239 240 86 37 83 80 271 178 177 79 83 82
BalonParca AdiParca NoAdetTipApplied Date
37 BOLT; AIR TANK
M12X40 FLANGE 		0-28651-240-0 06 1 1402-
79 STAY; AIR MASTER TO BRKT 8-98120-254-0 02 1 1402-
80 BOLT; BRKT
M10X25 FLANGE THA 		0-28651-025-0 04 1 1402-
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. 		1-47800-663-1 02 1 1402-
82 NUT; STAY,AIR MASTER BRKT
M10 FLANGE THA 		0-91180-210-0 04 1 1402-
83 NUT; AIR MASTER
M10 FLANGE THA 		0-91180-210-0 10 1 1402-
86 SEAL; DUST 1-47529-019-0 01 1 1402-
125 HOSE; OIL TANK TO AIR MASTER
(A) L=270 SERVICED BY L=1800 		1-09360-320-0 01 1 1402-
125 HOSE; OIL TANK TO AIR MASTER
(B) 		8-98197-596-0 01 1 1402-
126 CONNECTOR; ELBOW
4HK1-TCS ENG<RJS> (H) M22 		1-09650-277-0 01 1 1406-
126 CONNECTOR; ELBOW
6HK1-TCN ENG<82L> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1402-
126 CONNECTOR; ELBOW
(B) M20X2 & PT3/8 3WAY 		1-09656-340-1 01 1 1402-
126 CONNECTOR; ELBOW
(C) PT1/4 2WAY 		1-09660-693-0 01 1 1402-
126 CONNECTOR; ELBOW
(D) DIN12 & M12 STRAIGHT 		1-09660-878-0 01 1 1402-
126 CONNECTOR; ELBOW
(E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1402-
126 CONNECTOR; ELBOW
(F) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1402-
126 CONNECTOR; ELBOW
6HK1-TCN ENG<82L> (G) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 1402-
138 TANK ASM; OIL,AIR MASTER 1-47530-185-1 01 1 1402-
139 BRACKET; OIL TANK 1-47537-081-2 01 1 1402-
140 BOLT; OIL TANK TO BRKT
M10X25 FLANGE THA 		0-28651-025-0 02 1 1402-
145 CLIP; OIL TANK TO AIR MASTER HOSE
ID=14 		1-09704-102-0 04 1 1402-
148 CONNECTOR; AIR MASTER
DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1402-
151 BAND; OIL TANK,AIR MASTER 1-47537-056-2 02 1 1402-
152 BOLT; OIL TANK TO BAND
M8X20 FLANGE THA 		0-28650-820-0 02 1 1402-
153 NUT; OIL TANK TO BAND
M8 		0-91110-508-0 02 1 1402-
177 HOSE; RUBBER,DRAIN
L=60 SERVICED BY L=3000 		0-03566-300-0 01 1 1402-
178 CLIP; HOSE
(B) ID=12 & 12 		1-09709-280-1 01 1 1402-
178 CLIP; HOSE
(A) ID=21 		8-94242-034-0 01 1 1402-
178 CLIP; HOSE
(C) 		9-09917-171-0 01 1 1402-
237 CAP; OIL TANK 1-47525-030-0 01 1 1402-
238 PLATE; BAFFLE 1-47529-022-0 01 1 1402-
239 FILTER; DUST 1-47529-017-0 01 1 1402-
240 HOLDER; FILTER 1-47529-018-0 01 1 1402-
271 NUT; BRKT,HOSE
(B) M8 FLANGE THA 		0-91180-108-0 01 1 1402-
271 NUT; BRKT,HOSE
(A) M10 FLANGE THA 		0-91180-210-0 02 1 1402-
