3-11 — PARKING BRAKE CONTROL (#133369) — 78 parça

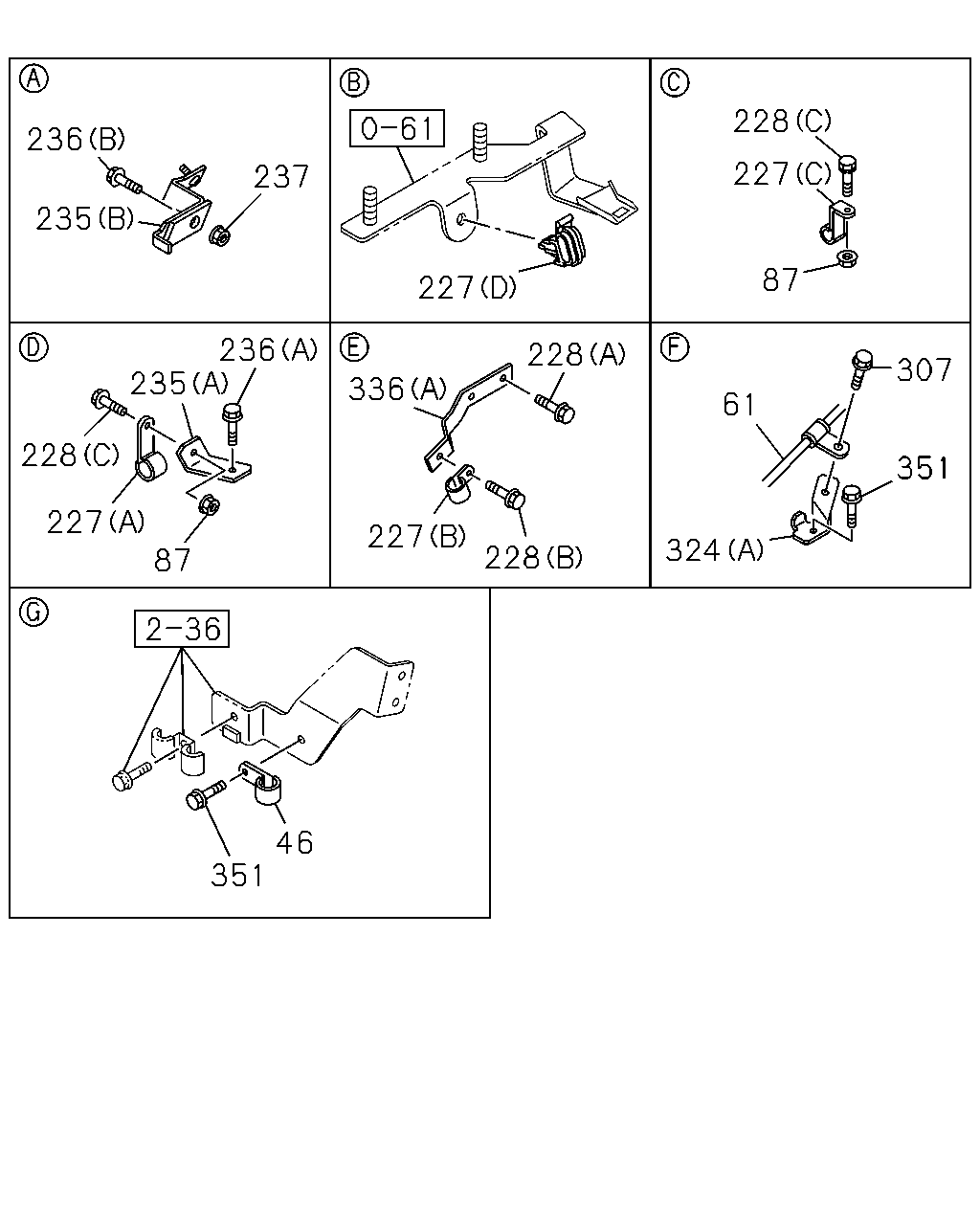

236 235 237 227 228 227 87 307 351 61 324 228 336 227 228 236 235 228 227 87 46 351

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
46	CLIP; FRT CABLE TO FLOOR ID=13 L=20	0-95235-235-0	01	1	1402-
61	CABLE; PARKING BRK 4HK1-TCS ENG<RJS> L=4233	8-98257-636-0	01	1	1406-
61	CABLE; PARKING BRK 6HK1-TCN ENG<82L> L=4631 THA	8-98257-633-0	01	1	1402-
87	NUT 4HK1-TCS ENG<RJS> M8 FLANGE THA	0-91180-108-0	04	1	1406-
87	NUT 6HK1-TCN ENG<82L> M8 FLANGE THA	0-91180-108-0	02	1	1402-
227	CLIP; RAD 4HK1-TCS ENG<RJS> (E) ID=16 L=20	0-95235-535-0	01	1	1406-
227	CLIP; RAD 4HK1-TCS ENG<RJS> (F) ID=13 & 13 L=32	8-97389-264-0	02	1	1406-
227	CLIP; RAD 4HK1-TCS ENG<RJS> (G) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1406-
227	CLIP; RAD 4HK1-TCS ENG<RJS> (H)	8-98080-966-0	01	1	1406-
227	CLIP; RAD 6HK1-TCN ENG<82L> (B) ID=13 L=20	0-95235-235-0	02	1	1402-
227	CLIP; RAD 6HK1-TCN ENG<82L> (C) ID=25 H=60 L=35	1-09701-103-0	01	1	1402-
227	CLIP; RAD (D) ID=9.5	5-09709-020-0	01	1	1402-
227	CLIP; RAD 6HK1-TCN ENG<82L> (A) ID=14.5 L=40	8-98119-885-0	01	1	1402-
228	BOLT; CLIP RAD MTG (B) M8X16 FLANGE THA	0-28050-816-0	01	1	1402-
228	BOLT; CLIP RAD MTG (C) M8X25 FLANGE THA	0-28650-825-0	02	1	1402-
228	BOLT; CLIP RAD MTG (A) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	1402-
235	BRACKET; CONT CABLE TO FRAME 4HK1-TCS ENG<RJS> (C)	8-98077-903-2	01	1	1406-
235	BRACKET; CONT CABLE TO FRAME 4HK1-TCS ENG<RJS> (D)	8-98126-426-0	01	1	1406-
235	BRACKET; CONT CABLE TO FRAME 4HK1-TCS ENG<RJS> (E)	8-98126-934-0	01	1	1406-
235	BRACKET; CONT CABLE TO FRAME 6HK1-TCN ENG<82L> (A)	1-82699-199-0	01	1	1402-
235	BRACKET; CONT CABLE TO FRAME 6HK1-TCN ENG<82L> (B)	8-98111-492-0	01	1	1402-
236	BOLT; BRKT TO FRAME (A) M8X25 FLANGE THA	0-28650-825-0	01	1	1402-
236	BOLT; BRKT TO FRAME (B) M10X35 FLANGE THA	0-28651-035-0	01	1	1402-
237	NUT; BRKT TO FRAME 4HK1-TCS ENG<RJS> M10 FLANGE THA	0-91180-210-0	02	1	1406-
237	NUT; BRKT TO FRAME 6HK1-TCN ENG<82L> M10 FLANGE THA	0-91180-210-0	01	1	1402-
307	BOLT; BRKT,PARKING BRK CABLE 6HK1-TCN ENG<82L> M8X25 W/WASHER	0-51640-825-0	01	1	1402-
324	BRACKET 4HK1-TCS ENG<RJS> (C)	8-98227-661-1	01	1	1406-
324	BRACKET 4HK1-TCS ENG<RJS> (B)	8-98227-663-1	01	1	1406-
324	BRACKET 6HK1-TCN ENG<82L> (A)	8-98067-482-1	01	1	1402-
336	BRACKET; RADIATOR 4HK1-TCS ENG<RJS> (B)	8-98208-200-4	01	1	1406-
336	BRACKET; RADIATOR 6HK1-TCN ENG<82L> (A)	8-98044-680-0	01	1	1402-
351	BOLT; CLIP M8X25 W/WASHER	0-51640-825-0	03	1	1402-

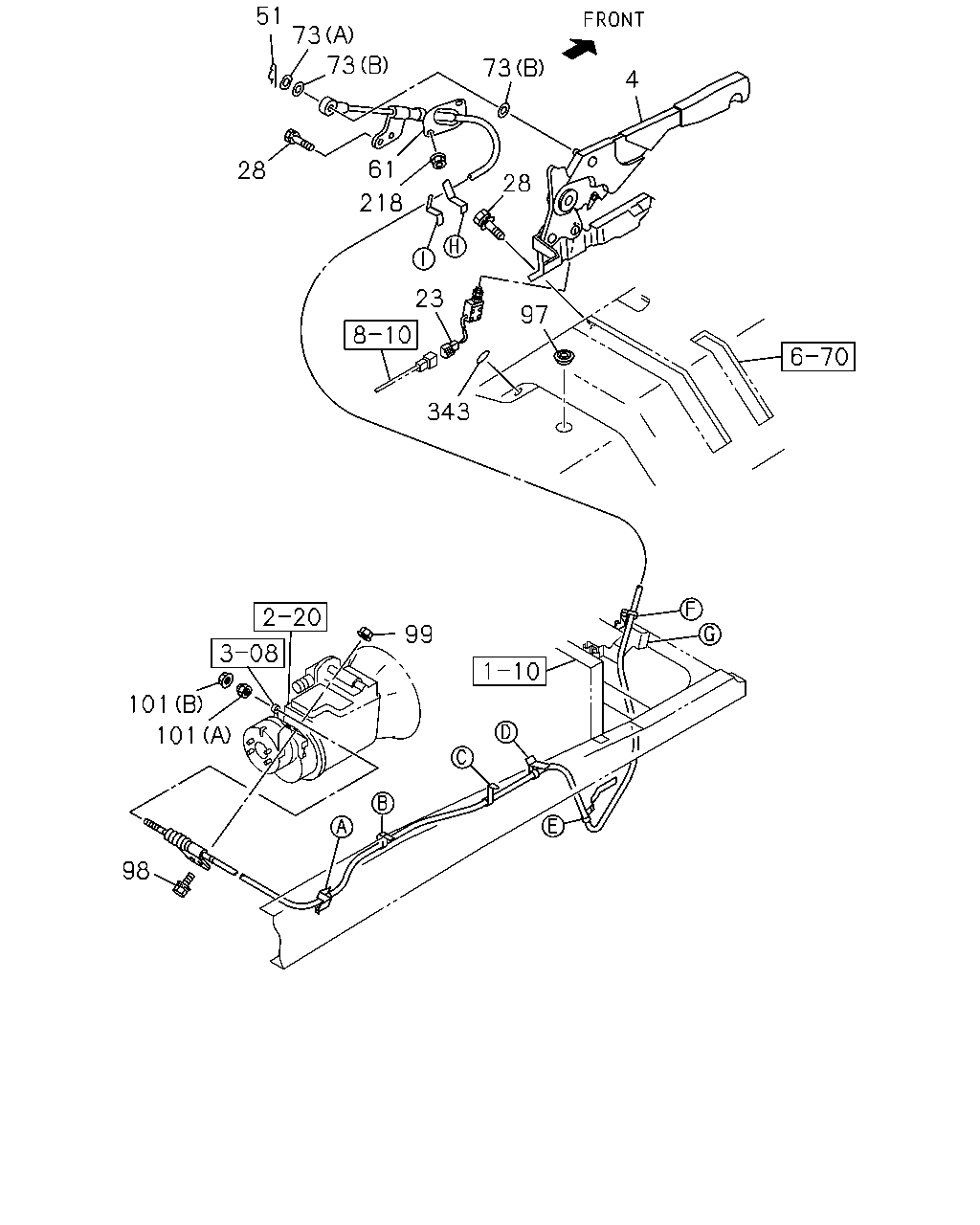

73 4 51 73 73 28 61 218 28 23 97 343 99 101 101 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	STEM; PARKING BRK	1-79996-549-0	01	1	1402-
23	SWITCH; PARKING BRK	1-82440-100-0	01	1	1402-
28	BOLT; HAND BRK LEVER M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	1402-
51	PIN; JOINT,RELAY LEVER	1-09987-243-1	01	1	1402-
61	CABLE; PARKING BRK 4HK1-TCS ENG<RJS> L=4233	8-98257-636-0	01	1	1406-
61	CABLE; PARKING BRK 6HK1-TCN ENG<82L> L=4631 THA	8-98257-633-0	01	1	1402-
73	WASHER; PL,CABLE (A) ID=17 OD=30	0-91610-516-0	01	1	1402-
73	WASHER; PL,CABLE (B) ID=19	8-94206-429-1	02	1	1402-
97	GROMMET; PARKING BRK CABLE OD=35	8-94122-971-0	01	1	1402-
98	BOLT; RR COVER M10X30 FLANGE THA	0-28651-030-0	02	1	1402-
99	NUT; CONT CABLE M10 FLANGE THA	0-91180-210-0	02	1	1402-
101	NUT; CABLE TO LEVER (B) M8 FLANGE THA	0-91180-108-0	01	1	1402-
101	NUT; CABLE TO LEVER (A)	1-46259-007-0	01	1	1402-
218	NUT; BRKT,PARKING BRK CABLE 4HK1-TCS ENG<RJS> M8 FLANGE THA	0-91180-108-0	04	1	1406-
218	NUT; BRKT,PARKING BRK CABLE 6HK1-TCN ENG<82L> M8 FLANGE THA	0-91180-108-0	02	1	1402-
343	SEAL OD=25 BLACK THA	1-76798-019-0	04	1	1402-

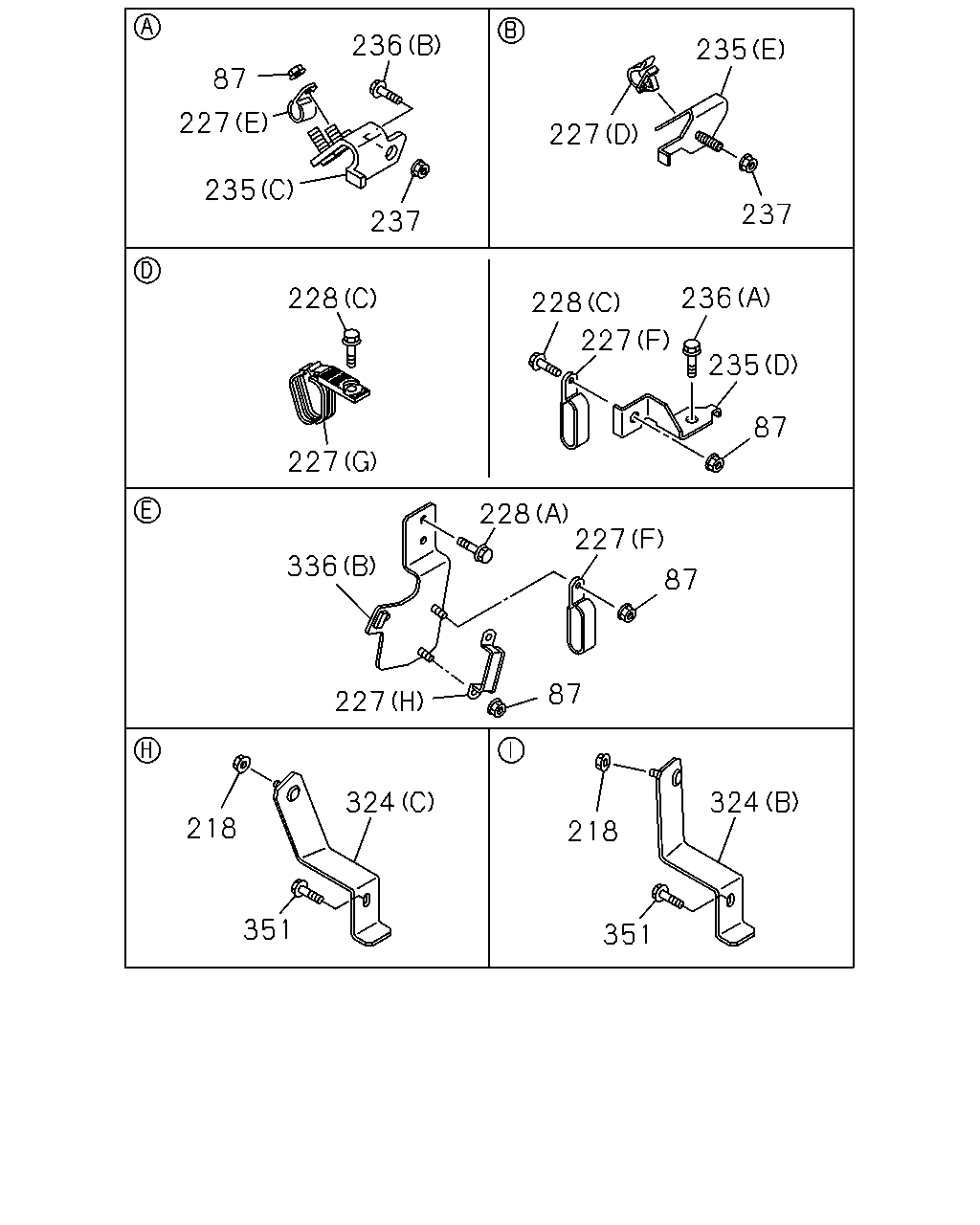

236 87 227 235 237 235 227 237 228 236 227 235 87 228 227 336 228 227 87 87 227 218 324 351 218 324 351

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
87	NUT 4HK1-TCS ENG<RJS> M8 FLANGE THA	0-91180-108-0	04	1	1406-
87	NUT 6HK1-TCN ENG<82L> M8 FLANGE THA	0-91180-108-0	02	1	1402-
218	NUT; BRKT,PARKING BRK CABLE 4HK1-TCS ENG<RJS> M8 FLANGE THA	0-91180-108-0	04	1	1406-
218	NUT; BRKT,PARKING BRK CABLE 6HK1-TCN ENG<82L> M8 FLANGE THA	0-91180-108-0	02	1	1402-
227	CLIP; RAD 4HK1-TCS ENG<RJS> (E) ID=16 L=20	0-95235-535-0	01	1	1406-
227	CLIP; RAD 4HK1-TCS ENG<RJS> (F) ID=13 & 13 L=32	8-97389-264-0	02	1	1406-
227	CLIP; RAD 4HK1-TCS ENG<RJS> (G) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1406-
227	CLIP; RAD 4HK1-TCS ENG<RJS> (H)	8-98080-966-0	01	1	1406-
227	CLIP; RAD 6HK1-TCN ENG<82L> (B) ID=13 L=20	0-95235-235-0	02	1	1402-
227	CLIP; RAD 6HK1-TCN ENG<82L> (C) ID=25 H=60 L=35	1-09701-103-0	01	1	1402-
227	CLIP; RAD (D) ID=9.5	5-09709-020-0	01	1	1402-
227	CLIP; RAD 6HK1-TCN ENG<82L> (A) ID=14.5 L=40	8-98119-885-0	01	1	1402-
228	BOLT; CLIP RAD MTG (B) M8X16 FLANGE THA	0-28050-816-0	01	1	1402-
228	BOLT; CLIP RAD MTG (C) M8X25 FLANGE THA	0-28650-825-0	02	1	1402-
228	BOLT; CLIP RAD MTG (A) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	1402-
235	BRACKET; CONT CABLE TO FRAME 4HK1-TCS ENG<RJS> (C)	8-98077-903-2	01	1	1406-
235	BRACKET; CONT CABLE TO FRAME 4HK1-TCS ENG<RJS> (D)	8-98126-426-0	01	1	1406-
235	BRACKET; CONT CABLE TO FRAME 4HK1-TCS ENG<RJS> (E)	8-98126-934-0	01	1	1406-
235	BRACKET; CONT CABLE TO FRAME 6HK1-TCN ENG<82L> (A)	1-82699-199-0	01	1	1402-
235	BRACKET; CONT CABLE TO FRAME 6HK1-TCN ENG<82L> (B)	8-98111-492-0	01	1	1402-
236	BOLT; BRKT TO FRAME (A) M8X25 FLANGE THA	0-28650-825-0	01	1	1402-
236	BOLT; BRKT TO FRAME (B) M10X35 FLANGE THA	0-28651-035-0	01	1	1402-
237	NUT; BRKT TO FRAME 4HK1-TCS ENG<RJS> M10 FLANGE THA	0-91180-210-0	02	1	1406-
237	NUT; BRKT TO FRAME 6HK1-TCN ENG<82L> M10 FLANGE THA	0-91180-210-0	01	1	1402-
324	BRACKET 4HK1-TCS ENG<RJS> (C)	8-98227-661-1	01	1	1406-
324	BRACKET 4HK1-TCS ENG<RJS> (B)	8-98227-663-1	01	1	1406-
324	BRACKET 6HK1-TCN ENG<82L> (A)	8-98067-482-1	01	1	1402-
336	BRACKET; RADIATOR 4HK1-TCS ENG<RJS> (B)	8-98208-200-4	01	1	1406-
336	BRACKET; RADIATOR 6HK1-TCN ENG<82L> (A)	8-98044-680-0	01	1	1402-
351	BOLT; CLIP M8X25 W/WASHER	0-51640-825-0	03	1	1402-
