◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11575 - FTR(THAI)EURO3 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-85 - POWER TAKE OFF CONTROL ▶
2-85 — POWER TAKE OFF CONTROL (#133364) — 11 parça

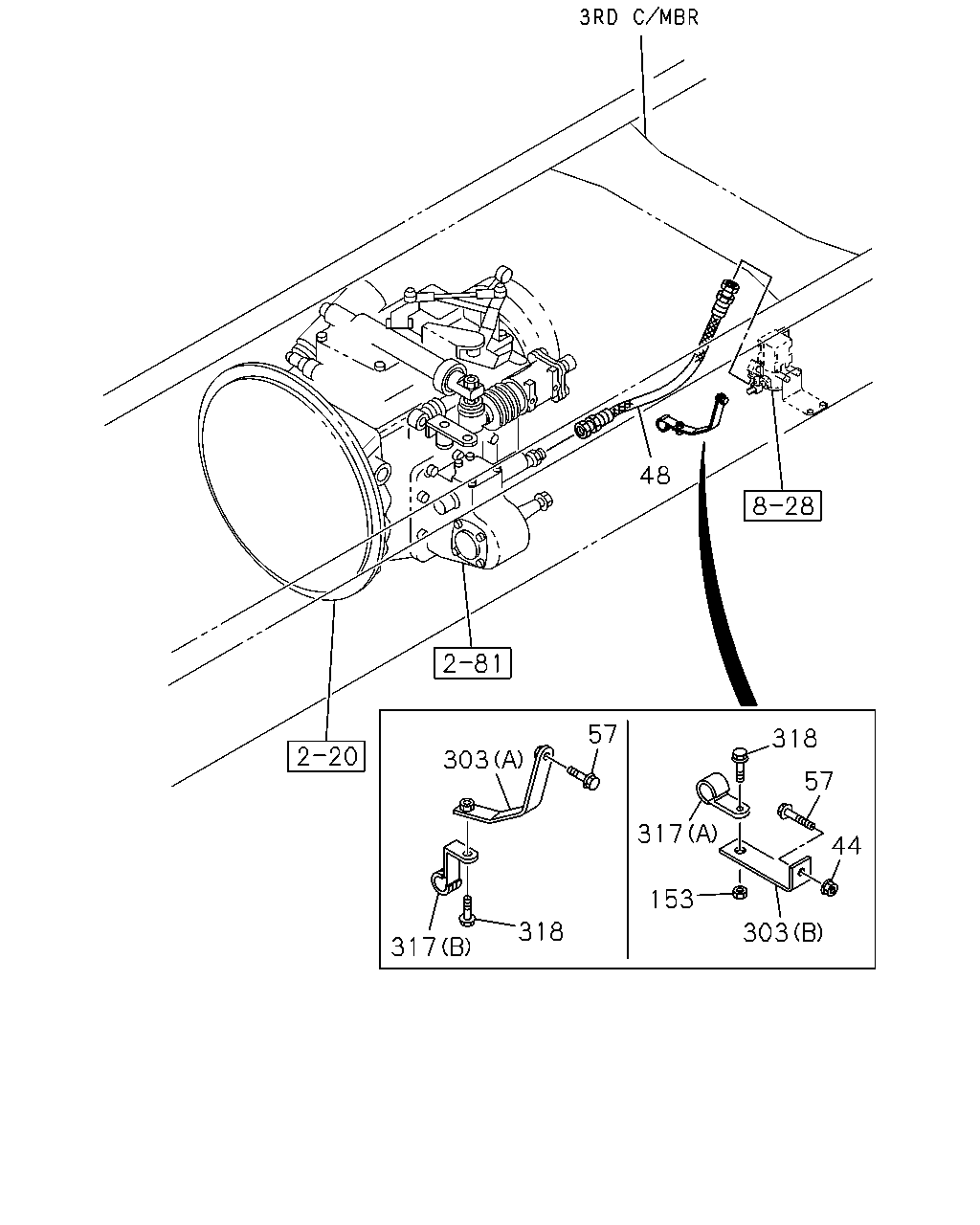

çizim 406612
48 303 57 317 318 317 318 57 44 153 303
BalonParca AdiParca NoAdetTipApplied Date
44 NUT; BRKT
4HK1-TCS ENG<RJS> PTO CONTROL<SV6> M8 FLANGE THA 		0-91180-108-0 01 1 1406-
48 HOSE; FLEX,PTO
4HK1-TCS ENG<RJS> PTO CONTROL<SV6> L=720 		1-09363-970-0 01 1 1406-
48 HOSE; FLEX,PTO
6HK1-TCN ENG<82L> PTO CONTROL<SV6> L=490 		1-09363-966-0 01 1 1402-
57 BOLT; BRKT
4HK1-TCS ENG<RJS> PTO CONTROL<SV6> M8X35 FLANGE THA 		0-28650-835-0 01 1 1406-
57 BOLT; BRKT
4HK1-TCS ENG<RJS> PTO CONTROL<SV6> M10X25 FLANGE THA 		0-28651-025-0 01 1 1406-
153 NUT; CLIP
4HK1-TCS ENG<RJS> PTO CONTROL<SV6> M8 FLANGE THA 		0-91180-108-0 01 1 1406-
303 BRACKET; CLIP
4HK1-TCS ENG<RJS> PTO CONTROL<SV6> (B) L=145 		1-47475-655-0 01 1 1406-
303 BRACKET; CLIP
4HK1-TCS ENG<RJS> PTO CONTROL<SV6> (A) 		8-98136-973-0 01 1 1406-
317 CLIP; NYLON TUBE
4HK1-TCS ENG<RJS> PTO CONTROL<SV6> (A) ID=13 L=32 		0-95235-265-0 01 1 1406-
317 CLIP; NYLON TUBE
4HK1-TCS ENG<RJS> PTO CONTROL<SV6> (B) ID=15 L=22 H=30 		1-09701-215-1 01 1 1406-
318 BOLT; CLIP
4HK1-TCS ENG<RJS> PTO CONTROL<SV6> M8X20 FLANGE THA 		0-28650-820-0 02 1 1406-
