Isuzu WW
▶
TRUCKS
▶
FTR
▶
11575 - FTR(THAI)EURO3
▶
2 - Clutch, Transmission, Trans Axle
▶
2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE
▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE
(#133361) — 45 parça
◀

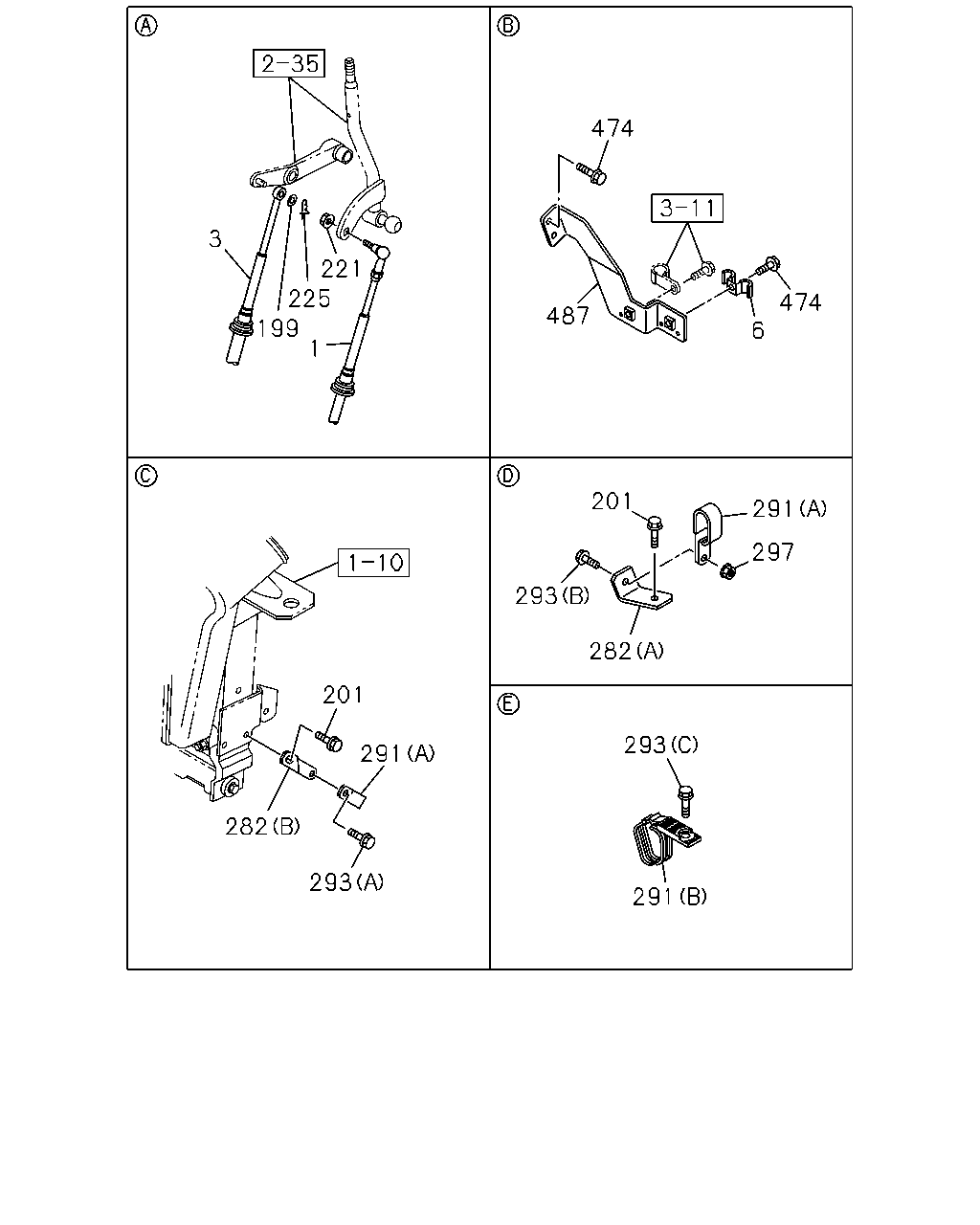

[236A] 6HK1;BRACKET AND CLIP (21 parça)

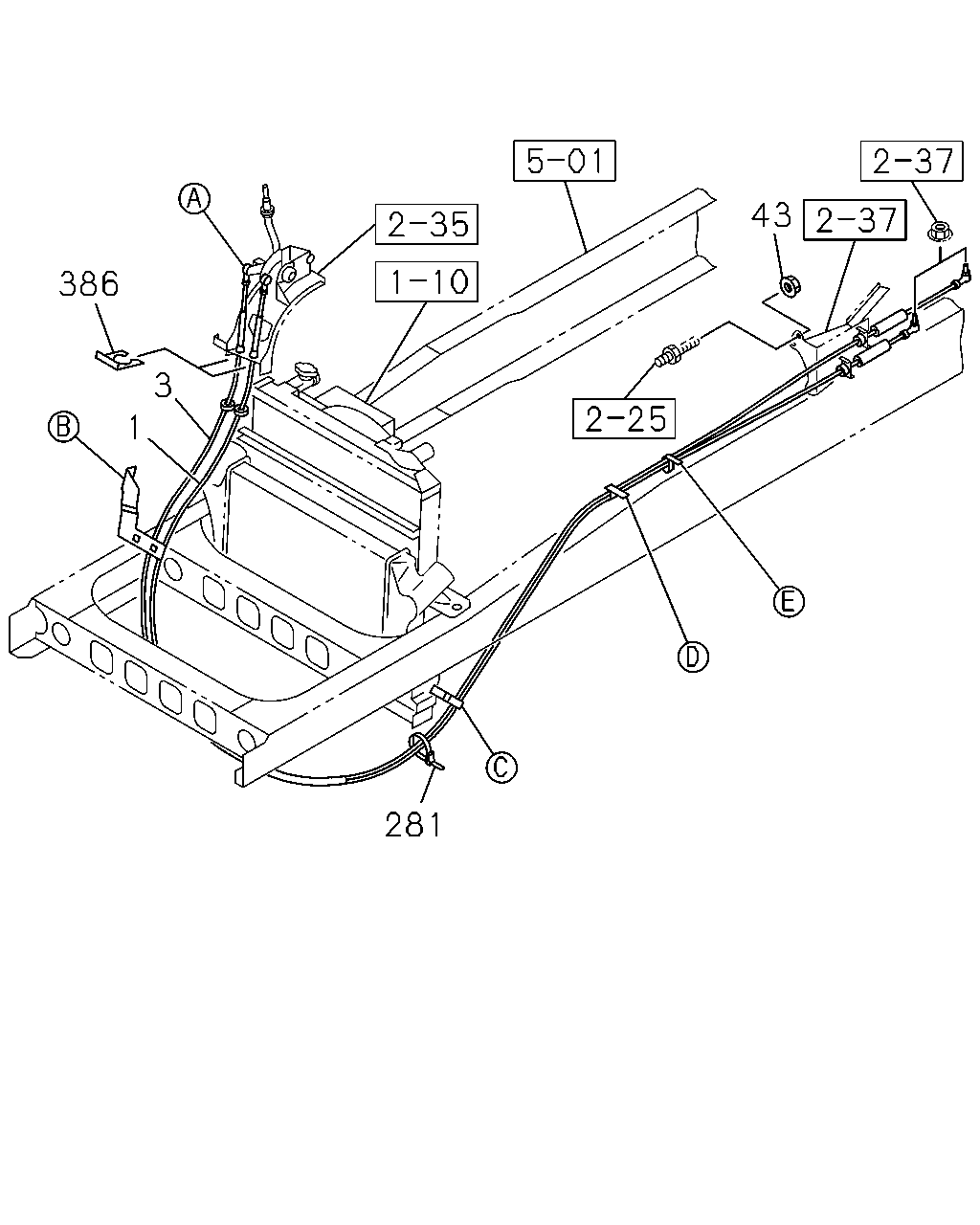

[236A] 6HK1;CABLE,TRANS CONT (7 parça)

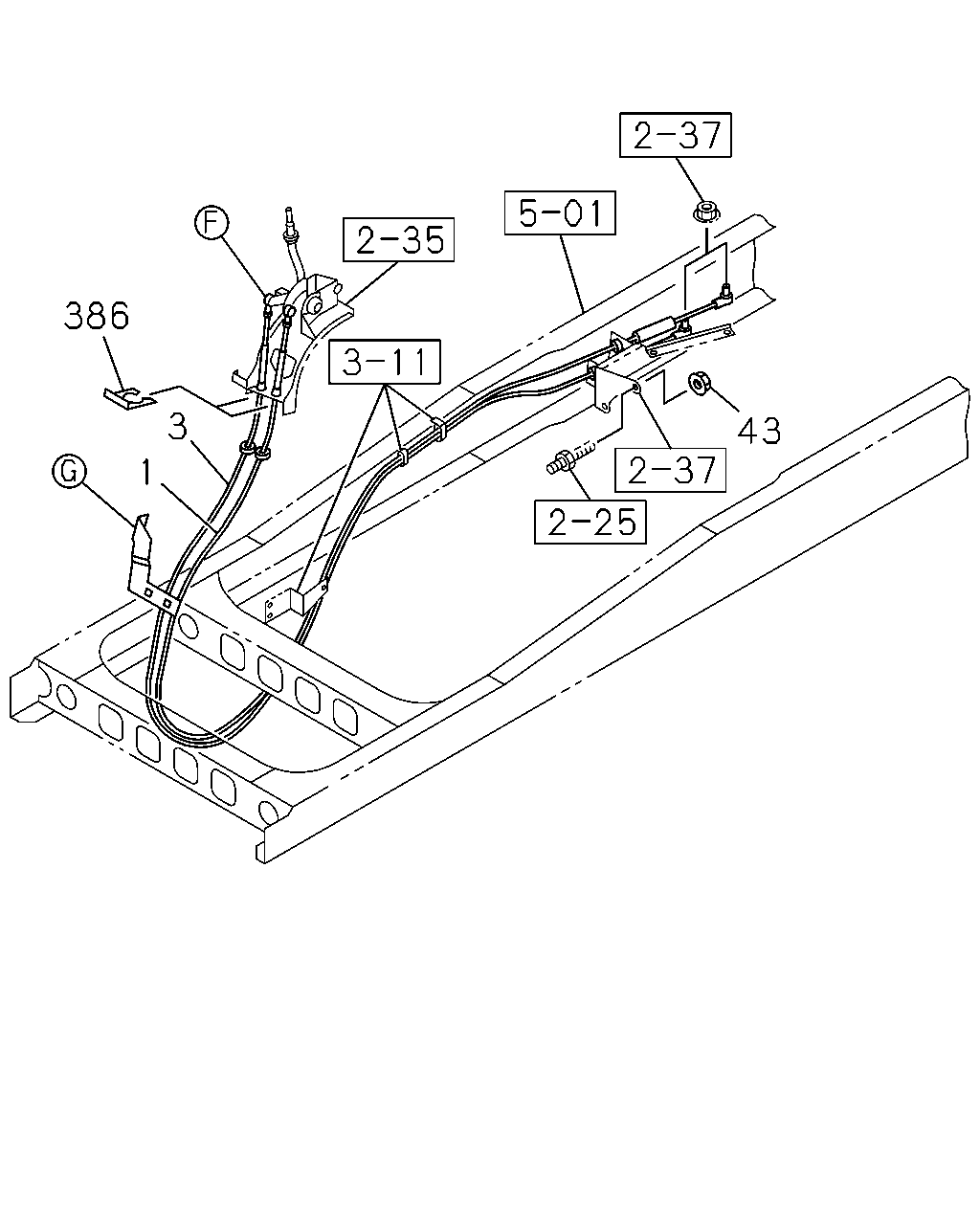

[236A] 4HK1;CABLE,TRANS CONT (6 parça)
[236A] 4HK1;BRACKET AND CLIP (11 parça)
▶
3
1
221
225
199
474
487
6
474
291
297
282
293
201
201
291
293
282
293
291
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG<RJS> L=3050
8-98231-948-1
01
1
1406-
1
CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG<82L> L=3510 THA
8-97948-242-0
01
1
1402-
3
CABLE; SELECT,TRANS CONT
4HK1-TCS ENG<RJS> L=3105
8-98231-954-0
01
1
1406-
3
CABLE; SELECT,TRANS CONT
6HK1-TCN ENG<82L> L=3690 THA
8-97948-243-0
01
1
1402-
6
CLIP; CABLE
ID=11 & 11 L=17.5 & 17.5
1-09700-739-0
01
1
1402-
199
WASHER; PL,SELECT
ID=8.4 OD=16
0-91614-508-0
01
1
1402-
201
BOLT; BRKT
6HK1-TCN ENG<82L> M8X16 FLANGE THA
0-28050-816-0
01
1
1402-
201
BOLT; BRKT
6HK1-TCN ENG<82L> M8X20 FLANGE THA
0-28050-820-0
01
1
1402-
221
NUT; SHIFT WIRE TO LEVER
M8 FLANGE
1-09440-062-1
01
1
1402-
225
PIN; SELECT CABLE
L=27.7
8-94111-137-0
01
1
1402-
282
BRACKET; TRANS SIDE
6HK1-TCN ENG<82L> (A)
1-82699-199-0
01
1
1402-
282
BRACKET; TRANS SIDE
6HK1-TCN ENG<82L> (B)
8-98010-418-0
01
1
1402-
291
CLIP; SHIFT TO SELECT,FRAME
6HK1-TCN ENG<82L> (A) ID=11X2 L=16
0-95325-026-0
02
1
1402-
291
CLIP; SHIFT TO SELECT,FRAME
6HK1-TCN ENG<82L> (B) ID=13 & 10 & 10 L=35.5
8-98023-991-0
01
1
1402-
293
BOLT; CLIP,SHIFT TO SELECT
6HK1-TCN ENG<82L> (A) M8X16 FLANGE THA
0-28050-816-0
01
1
1402-
293
BOLT; CLIP,SHIFT TO SELECT
6HK1-TCN ENG<82L> (C) M8X25 FLANGE THA
0-28050-825-0
01
1
1402-
293
BOLT; CLIP,SHIFT TO SELECT
6HK1-TCN ENG<82L> (B) M8X20 FLANGE THA
0-28650-820-0
01
1
1402-
297
NUT; CLIP
6HK1-TCN ENG<82L> M8 FLANGE THA
0-91180-108-0
01
1
1402-
474
BOLT; BRKT
M8X25 W/WASHER
0-51640-825-0
03
1
1402-
487
BRACKET; CONT CABLE
4HK1-TCS ENG<RJS>
8-98184-319-0
01
1
1406-
487
BRACKET; CONT CABLE
6HK1-TCN ENG<82L>
8-98183-009-0
01
1
1402-
386
3
1
281
43
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG<RJS> L=3050
8-98231-948-1
01
1
1406-
1
CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG<82L> L=3510 THA
8-97948-242-0
01
1
1402-
3
CABLE; SELECT,TRANS CONT
4HK1-TCS ENG<RJS> L=3105
8-98231-954-0
01
1
1406-
3
CABLE; SELECT,TRANS CONT
6HK1-TCN ENG<82L> L=3690 THA
8-97948-243-0
01
1
1402-
43
NUT; BRKT
M10 FLANGE THA
0-91180-210-0
02
1
1402-
281
CLIP; BAND
6HK1-TCN ENG<82L> L=300
1-09707-001-1
01
1
1402-
386
CLIP; CONT CABLE & TUBE
1-09700-966-1
02
1
1402-
386
3
1
43
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG<RJS> L=3050
8-98231-948-1
01
1
1406-
1
CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG<82L> L=3510 THA
8-97948-242-0
01
1
1402-
3
CABLE; SELECT,TRANS CONT
4HK1-TCS ENG<RJS> L=3105
8-98231-954-0
01
1
1406-
3
CABLE; SELECT,TRANS CONT
6HK1-TCN ENG<82L> L=3690 THA
8-97948-243-0
01
1
1402-
43
NUT; BRKT
M10 FLANGE THA
0-91180-210-0
02
1
1402-
386
CLIP; CONT CABLE & TUBE
1-09700-966-1
02
1
1402-
3
1
221
225
199
474
487
6
474
3
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG<RJS> L=3050
8-98231-948-1
01
1
1406-
1
CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG<82L> L=3510 THA
8-97948-242-0
01
1
1402-
3
CABLE; SELECT,TRANS CONT
4HK1-TCS ENG<RJS> L=3105
8-98231-954-0
01
1
1406-
3
CABLE; SELECT,TRANS CONT
6HK1-TCN ENG<82L> L=3690 THA
8-97948-243-0
01
1
1402-
6
CLIP; CABLE
ID=11 & 11 L=17.5 & 17.5
1-09700-739-0
01
1
1402-
199
WASHER; PL,SELECT
ID=8.4 OD=16
0-91614-508-0
01
1
1402-
221
NUT; SHIFT WIRE TO LEVER
M8 FLANGE
1-09440-062-1
01
1
1402-
225
PIN; SELECT CABLE
L=27.7
8-94111-137-0
01
1
1402-
474
BOLT; BRKT
M8X25 W/WASHER
0-51640-825-0
03
1
1402-
487
BRACKET; CONT CABLE
4HK1-TCS ENG<RJS>
8-98184-319-0
01
1
1406-
487
BRACKET; CONT CABLE
6HK1-TCN ENG<82L>
8-98183-009-0
01
1
1402-
