Sayfa 2-81A - Isuzu EPC

2-81A — POWER TAKE OFF; TRANSMISSION SIDE (#13336) — 208 parça

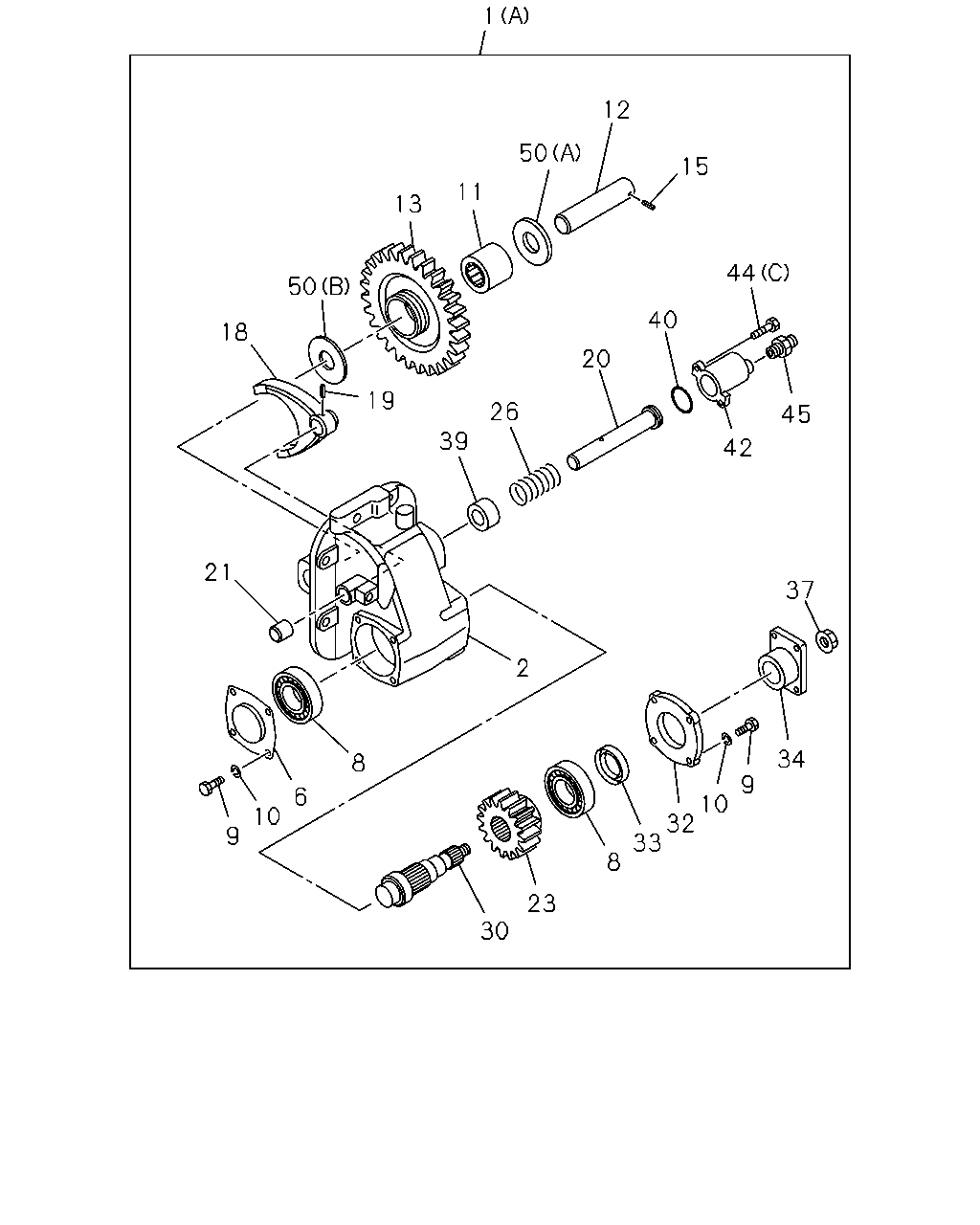

30 23 8 33 32 10 9 37 34 42 45 44 40 50 12 15 11 13 20 26 18 19 50 1 21 2 8 6 10 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-38000-326-1	01	1	0105-	●	●
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-38000-328-1	01	1	0105-			●	●
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-38000-315-1	01	1	0105-0106					●
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-38000-315-1	01	1	0107-					●	●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38111-065-0	01	1	0105-	●	●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38111-057-1	01	1	0105-			●	●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38111-081-0	01	1	0105-0106					●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38111-081-0	01	1	0107-					●	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38151-006-0	01	1	0105-	●	●	●	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	5-00098-057-0	02	1	0105-	●	●	●	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) JTEKT	1-09810-231-0	01	1	0105-0106					●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) JTEKT	1-09810-231-0	01	1	0107-					●	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) NSK	1-09810-232-0	01	1	0105-0106					●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) NSK	1-09810-232-0	01	1	0107-					●	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) JTEKT	1-09810-233-0	01	1	0105-0106					●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) JTEKT	1-09810-233-0	01	1	0107-					●	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) NSK	1-09810-234-0	01	1	0105-0106					●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) NSK	1-09810-234-0	01	1	0107-					●	●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16	9-02341-016-0	08	1	0105-0512	●	●	●	●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16	0-23801-016-0	08	1	0601-	●	●	●	●
10	WASHER; OUTPUT SHAFT COVER,SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=10.2	9-09150-510-0	08	1	0105-	●	●	●	●
11	BEARING; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-09811-144-0	01	1	0105-	●	●	●	●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38221-024-0	01	1	0105-	●	●	●	●
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=35	1-38241-056-0	01	1	0105-	●	●
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=36	1-38241-065-0	01	1	0105-			●	●
15	PIN; SPR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=16	9-09878-613-0	01	1	0105-	●	●	●	●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38361-025-0	01	1	0105-	●	●	●	●
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-09748-019-0	01	1	0105-	●	●	●	●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38371-049-1	01	1	0105-	●	●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38371-027-2	01	1	0105-			●	●
21	COVER; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-33545-001-0	01	1	0105-	●	●	●	●
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=21	1-38241-087-0	01	1	0105-	●	●	●	●
26	SPRING; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38121-004-1	01	1	0105-	●	●	●	●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38211-030-0	01	1	0105-	●	●	●	●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38111-083-0	01	1	0105-0106					●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38111-083-0	01	1	0107-					●	●
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38152-016-0	01	1	0105-	●	●	●	●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38119-040-0	01	1	0105-0512	●	●	●	●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98028-794-0	01	1	0601-	●	●	●	●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38119-035-0	01	1	0105-0106					●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38119-035-0	01	1	0107-					●	●
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38512-019-0	01	1	0105-0106	●	●	●	●	●
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38512-019-0	01	1	0107-	●	●	●	●	●	●
37	NUT; FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M16	1-38119-036-0	01	1	0105-0106	●	●	●	●	●
37	NUT; FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M16	1-38119-036-0	01	1	0107-	●	●	●	●	●	●
40	GASKET; AIR SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-09561-324-0	01	1	0105-	●	●	●	●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38377-007-0	01	1	0105-	●	●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38377-003-0	01	1	0105-			●	●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38151-021-0	01	1	0105-0106					●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38151-021-0	01	1	0107-					●	●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M10X25 FLANGE	0-28181-025-0	02	1	0105-	●	●	●	●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X16 FLANGE	0-28080-816-0	04	1	0105-0106					●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X16 FLANGE	0-28080-816-0	04	1	0107-					●	●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X25 FLANGE	0-28080-825-0	04	1	0105-0106					●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X25 FLANGE	0-28080-825-0	04	1	0107-					●	●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X30 FLANGE	0-28680-830-0	04	1	0105-0106					●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X30 FLANGE	0-28680-830-0	04	1	0107-					●	●
45	NIPPLE; AIR CYL,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M20 & PT1/4	9-09902-386-0	01	1	0105-0512	●	●
45	NIPPLE; AIR CYL,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0105-0106			●	●	●
45	NIPPLE; AIR CYL,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0107-0512			●	●	●	●
45	NIPPLE; AIR CYL,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0601-	●	●	●	●	●	●
50	WASHER; THRUST,IDLE GEAR,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-38226-045-0	01	1	0105-	●	●	●	●
50	WASHER; THRUST,IDLE GEAR,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-38226-052-0	01	1	0105-	●	●	●	●

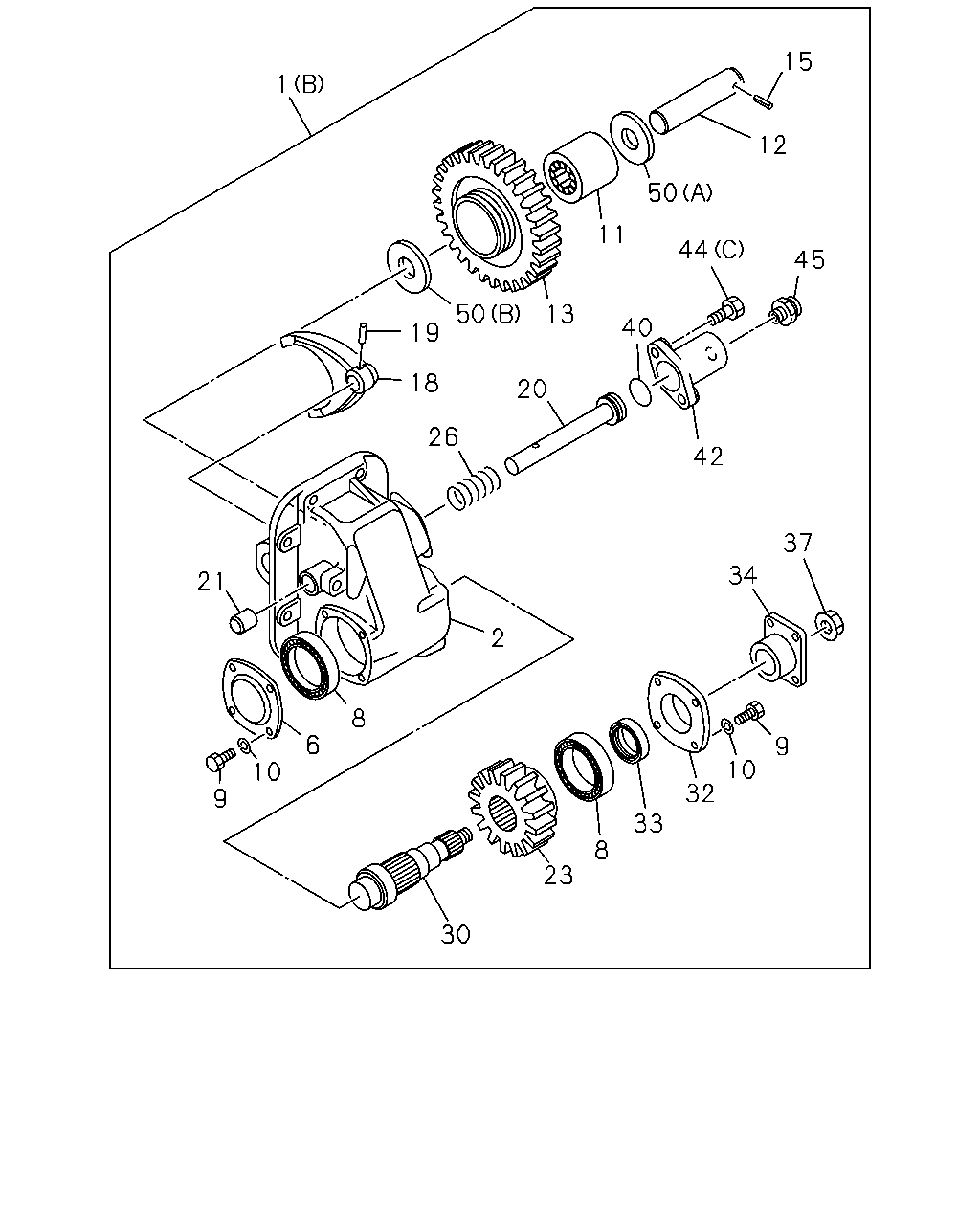

30 23 8 33 32 10 9 34 37 45 42 44 40 20 26 39 2 8 6 10 9 21 18 19 50 13 11 50 15 12 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-38000-326-1	01	1	0105-	●	●
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-38000-328-1	01	1	0105-			●	●
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-38000-315-1	01	1	0105-0106					●
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-38000-315-1	01	1	0107-					●	●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38111-065-0	01	1	0105-	●	●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38111-057-1	01	1	0105-			●	●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38111-081-0	01	1	0105-0106					●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38111-081-0	01	1	0107-					●	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38151-006-0	01	1	0105-	●	●	●	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	5-00098-057-0	02	1	0105-	●	●	●	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) JTEKT	1-09810-231-0	01	1	0105-0106					●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) JTEKT	1-09810-231-0	01	1	0107-					●	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) NSK	1-09810-232-0	01	1	0105-0106					●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) NSK	1-09810-232-0	01	1	0107-					●	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) JTEKT	1-09810-233-0	01	1	0105-0106					●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) JTEKT	1-09810-233-0	01	1	0107-					●	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) NSK	1-09810-234-0	01	1	0105-0106					●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) NSK	1-09810-234-0	01	1	0107-					●	●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16	9-02341-016-0	08	1	0105-0512	●	●	●	●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16	0-23801-016-0	08	1	0601-	●	●	●	●
10	WASHER; OUTPUT SHAFT COVER,SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=10.2	9-09150-510-0	08	1	0105-	●	●	●	●
11	BEARING; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-09811-144-0	01	1	0105-	●	●	●	●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38221-024-0	01	1	0105-	●	●	●	●
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=35	1-38241-056-0	01	1	0105-	●	●
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=36	1-38241-065-0	01	1	0105-			●	●
15	PIN; SPR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=16	9-09878-613-0	01	1	0105-	●	●	●	●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38361-025-0	01	1	0105-	●	●	●	●
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-09748-019-0	01	1	0105-	●	●	●	●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38371-049-1	01	1	0105-	●	●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38371-027-2	01	1	0105-			●	●
21	COVER; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-33545-001-0	01	1	0105-	●	●	●	●
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=21	1-38241-087-0	01	1	0105-	●	●	●	●
26	SPRING; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38121-004-1	01	1	0105-	●	●	●	●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38211-030-0	01	1	0105-	●	●	●	●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38111-083-0	01	1	0105-0106					●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38111-083-0	01	1	0107-					●	●
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38152-016-0	01	1	0105-	●	●	●	●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38119-040-0	01	1	0105-0512	●	●	●	●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98028-794-0	01	1	0601-	●	●	●	●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38119-035-0	01	1	0105-0106					●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38119-035-0	01	1	0107-					●	●
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38512-019-0	01	1	0105-0106	●	●	●	●	●
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38512-019-0	01	1	0107-	●	●	●	●	●	●
37	NUT; FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M16	1-38119-036-0	01	1	0105-0106	●	●	●	●	●
37	NUT; FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M16	1-38119-036-0	01	1	0107-	●	●	●	●	●	●
39	STOPPER; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38379-006-0	01	1	0105-			●	●
40	GASKET; AIR SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-09561-324-0	01	1	0105-	●	●	●	●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38377-007-0	01	1	0105-	●	●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38377-003-0	01	1	0105-			●	●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38151-021-0	01	1	0105-0106					●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38151-021-0	01	1	0107-					●	●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M10X25 FLANGE	0-28181-025-0	02	1	0105-	●	●	●	●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X16 FLANGE	0-28080-816-0	04	1	0105-0106					●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X16 FLANGE	0-28080-816-0	04	1	0107-					●	●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X25 FLANGE	0-28080-825-0	04	1	0105-0106					●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X25 FLANGE	0-28080-825-0	04	1	0107-					●	●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X30 FLANGE	0-28680-830-0	04	1	0105-0106					●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X30 FLANGE	0-28680-830-0	04	1	0107-					●	●
45	NIPPLE; AIR CYL,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M20 & PT1/4	9-09902-386-0	01	1	0105-0512	●	●
45	NIPPLE; AIR CYL,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0105-0106			●	●	●
45	NIPPLE; AIR CYL,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0107-0512			●	●	●	●
45	NIPPLE; AIR CYL,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0601-	●	●	●	●	●	●
50	WASHER; THRUST,IDLE GEAR,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-38226-045-0	01	1	0105-	●	●	●	●
50	WASHER; THRUST,IDLE GEAR,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-38226-052-0	01	1	0105-	●	●	●	●

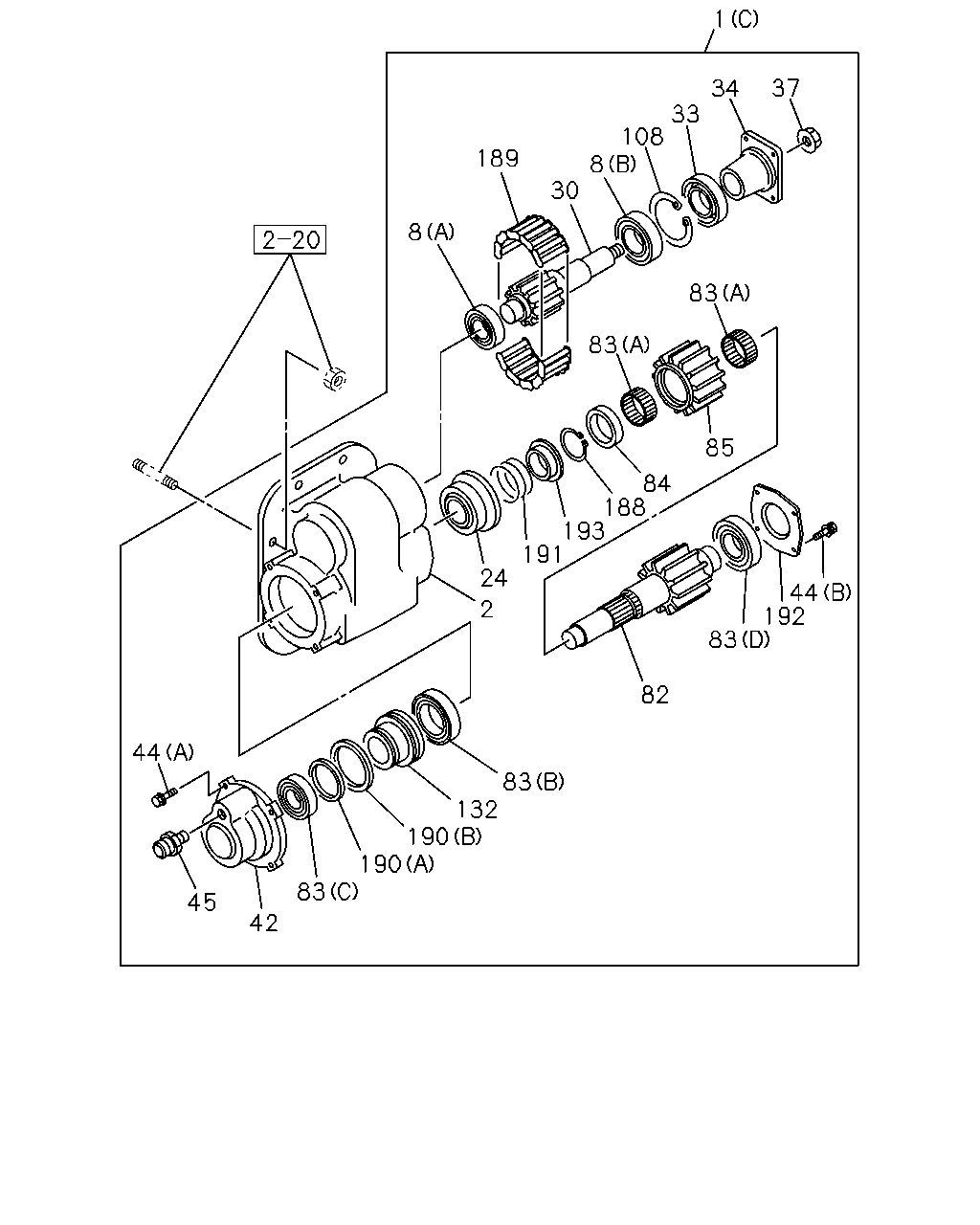

42 45 83 190 190 132 83 44 82 83 192 44 85 84 188 193 191 24 2 83 83 37 34 1 33 108 8 30 189 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-38000-326-1	01	1	0105-	●	●
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-38000-328-1	01	1	0105-			●	●
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-38000-315-1	01	1	0105-0106					●
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-38000-315-1	01	1	0107-					●	●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38111-065-0	01	1	0105-	●	●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38111-057-1	01	1	0105-			●	●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38111-081-0	01	1	0105-0106					●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38111-081-0	01	1	0107-					●	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	5-00098-057-0	02	1	0105-	●	●	●	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) JTEKT	1-09810-231-0	01	1	0105-0106					●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) JTEKT	1-09810-231-0	01	1	0107-					●	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) NSK	1-09810-232-0	01	1	0105-0106					●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) NSK	1-09810-232-0	01	1	0107-					●	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) JTEKT	1-09810-233-0	01	1	0105-0106					●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) JTEKT	1-09810-233-0	01	1	0107-					●	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) NSK	1-09810-234-0	01	1	0105-0106					●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) NSK	1-09810-234-0	01	1	0107-					●	●
24	SLEEVE; DOG CLU,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38225-009-0	01	1	0105-0106					●
24	SLEEVE; DOG CLU,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38225-009-0	01	1	0107-					●	●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38211-030-0	01	1	0105-	●	●	●	●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38111-083-0	01	1	0105-0106					●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38111-083-0	01	1	0107-					●	●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38119-040-0	01	1	0105-0512	●	●	●	●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98028-794-0	01	1	0601-	●	●	●	●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38119-035-0	01	1	0105-0106					●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38119-035-0	01	1	0107-					●	●
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38512-019-0	01	1	0105-0106	●	●	●	●	●
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38512-019-0	01	1	0107-	●	●	●	●	●	●
37	NUT; FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M16	1-38119-036-0	01	1	0105-0106	●	●	●	●	●
37	NUT; FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M16	1-38119-036-0	01	1	0107-	●	●	●	●	●	●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38377-007-0	01	1	0105-	●	●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38377-003-0	01	1	0105-			●	●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38151-021-0	01	1	0105-0106					●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38151-021-0	01	1	0107-					●	●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M10X25 FLANGE	0-28181-025-0	02	1	0105-	●	●	●	●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X16 FLANGE	0-28080-816-0	04	1	0105-0106					●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X16 FLANGE	0-28080-816-0	04	1	0107-					●	●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X25 FLANGE	0-28080-825-0	04	1	0105-0106					●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X25 FLANGE	0-28080-825-0	04	1	0107-					●	●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X30 FLANGE	0-28680-830-0	04	1	0105-0106					●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X30 FLANGE	0-28680-830-0	04	1	0107-					●	●
45	NIPPLE; AIR CYL,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M20 & PT1/4	9-09902-386-0	01	1	0105-0512	●	●
45	NIPPLE; AIR CYL,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0105-0106			●	●	●
45	NIPPLE; AIR CYL,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0107-0512			●	●	●	●
45	NIPPLE; AIR CYL,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0601-	●	●	●	●	●	●
82	SHAFT; INPUT TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38211-027-0	01	1	0105-0106					●
82	SHAFT; INPUT TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38211-027-0	01	1	0107-					●	●
83	BEARING; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) JTEKT	1-09800-259-0	01	1	0105-0106					●
83	BEARING; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) JTEKT	1-09800-259-0	01	1	0107-					●	●
83	BEARING; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) NSK	1-09800-260-0	01	1	0105-0106					●
83	BEARING; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) NSK	1-09800-260-0	01	1	0107-					●	●
83	BEARING; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) JTEKT	1-09810-233-0	01	1	0105-0106					●
83	BEARING; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) JTEKT	1-09810-233-0	01	1	0107-					●	●
83	BEARING; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) NSK	1-09810-234-0	01	1	0105-0106					●
83	BEARING; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) NSK	1-09810-234-0	01	1	0107-					●	●
83	BEARING; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-09811-397-0	02	1	0105-0106					●
83	BEARING; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-09811-397-0	02	1	0107-					●	●
83	BEARING; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-97012-835-0	01	1	0105-0106					●
83	BEARING; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-97012-835-0	01	1	0107-					●	●
84	COLLAR; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38226-057-0	01	1	0105-0106					●
84	COLLAR; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38226-057-0	01	1	0107-					●	●
85	GEAR; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38241-104-0	01	1	0105-0106					●
85	GEAR; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38241-104-0	01	1	0107-					●	●
108	RING; SNAP,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=57.9	9-09180-562-0	01	1	0105-0106					●
108	RING; SNAP,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=57.9	9-09180-562-0	01	1	0107-					●	●
132	PISTON; CYL,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38377-010-0	01	1	0105-0106					●
132	PISTON; CYL,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38377-010-0	01	1	0107-					●	●
188	RING; SNAP,INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-09588-199-0	01	1	0105-0106					●
188	RING; SNAP,INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-09588-199-0	01	1	0107-					●	●
189	CHAIN; DRIVE,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38111-082-1	01	1	0105-0106					●
189	CHAIN; DRIVE,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38111-082-1	01	1	0107-					●	●
190	CUP; PISTON,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-38152-020-0	01	1	0105-0106					●
190	CUP; PISTON,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-38152-020-0	01	1	0107-					●	●
190	CUP; PISTON,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-38152-021-0	01	1	0105-0106					●
190	CUP; PISTON,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-38152-021-0	01	1	0107-					●	●
191	SPRING; SLEEVE,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38121-005-0	01	1	0105-0106					●
191	SPRING; SLEEVE,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38121-005-0	01	1	0107-					●	●
192	COVER; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-38151-604-0	01	1	0105-0106					●
192	COVER; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-38151-604-0	01	1	0107-					●	●
193	RETAINER; SPRING TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38226-056-0	01	1	0105-0106					●
193	RETAINER; SPRING TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38226-056-0	01	1	0107-					●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
