2-30 — GEAR SHIFTER AND QUADRANT BOX (#133359) — 133 parça

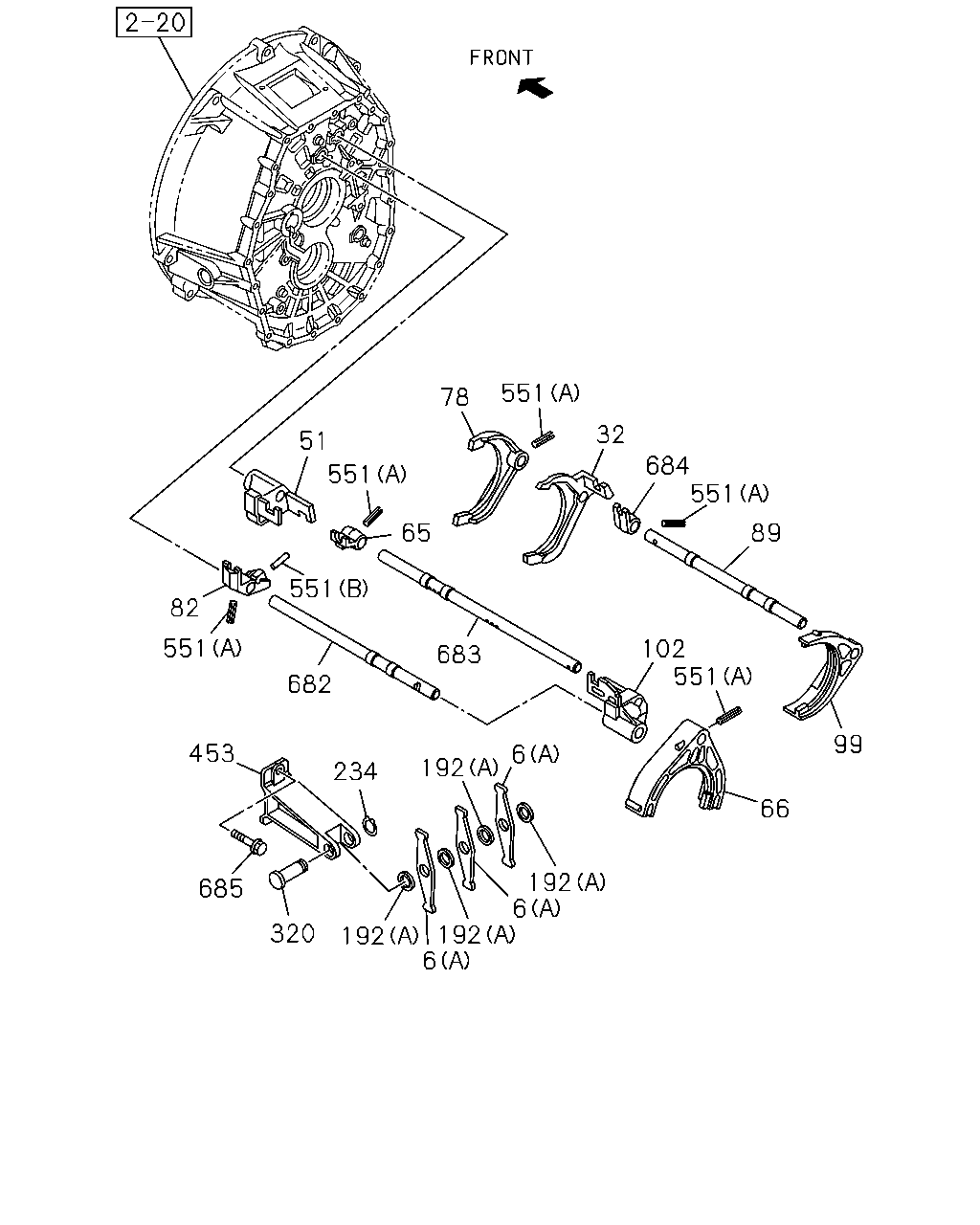

82 551 682 453 685 320 234 683 65 551 551 51 78 551 684 32 551 89 102 551 66 99 192 6 192 192 6 192 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY 4HK1-TCS ENG<RJS> (B)	8-98014-157-1	01	1	1406-
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1402-
6	LEVER; RELAY (B)	8-98022-855-0	01	1	1402-1405
6	LEVER; RELAY 6HK1-TCN ENG<82L> (B)	8-98022-855-0	01	1	1406-
32	ARM; SHIFT,1ST & 2ND	8-98236-424-1	01	1	1402-
51	BLOCK; SHIFT,1ST & 2ND	8-98074-457-1	01	1	1402-
65	BLOCK ASM; SHIFT,5TH & 6TH	8-97388-980-1	01	1	1402-
66	ARM; SHIFT,5TH & 6TH	8-97388-981-0	01	1	1402-
78	ARM; SHIFT,REV	8-97388-975-1	01	1	1402-
82	BLOCK; SHIFT,REV	8-97388-969-0	01	1	1402-
89	ROD; SHIFT,REV	8-98062-172-0	01	1	1402-
99	ARM; SHIFT,4TH & 3RD	8-98062-170-0	01	1	1402-
102	BLOCK; SHIFT,3RD & 4TH	8-97388-978-2	01	1	1402-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1402-
192	WASHER; PL (B)	8-97305-661-0	02	1	1402-
234	RING; SNAP ID=16.5	0-91800-618-0	01	1	1402-
320	SHAFT; LEVER	8-97377-928-0	01	1	1402-
453	BLOCK; RELAY LEVER	8-97377-927-1	01	1	1402-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1402-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1402-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1402-
682	ROD; SHIFT,REV,SUB	8-97388-974-0	01	1	1402-
683	ROD; SHIFT,5TH & 6TH	8-98062-173-1	01	1	1402-
684	BLOCK; SHIFT,REV,SUB	8-97388-970-0	01	1	1402-
685	BOLT; BLOCK M8X30 FLANGE	8-98034-764-0	02	1	1402-

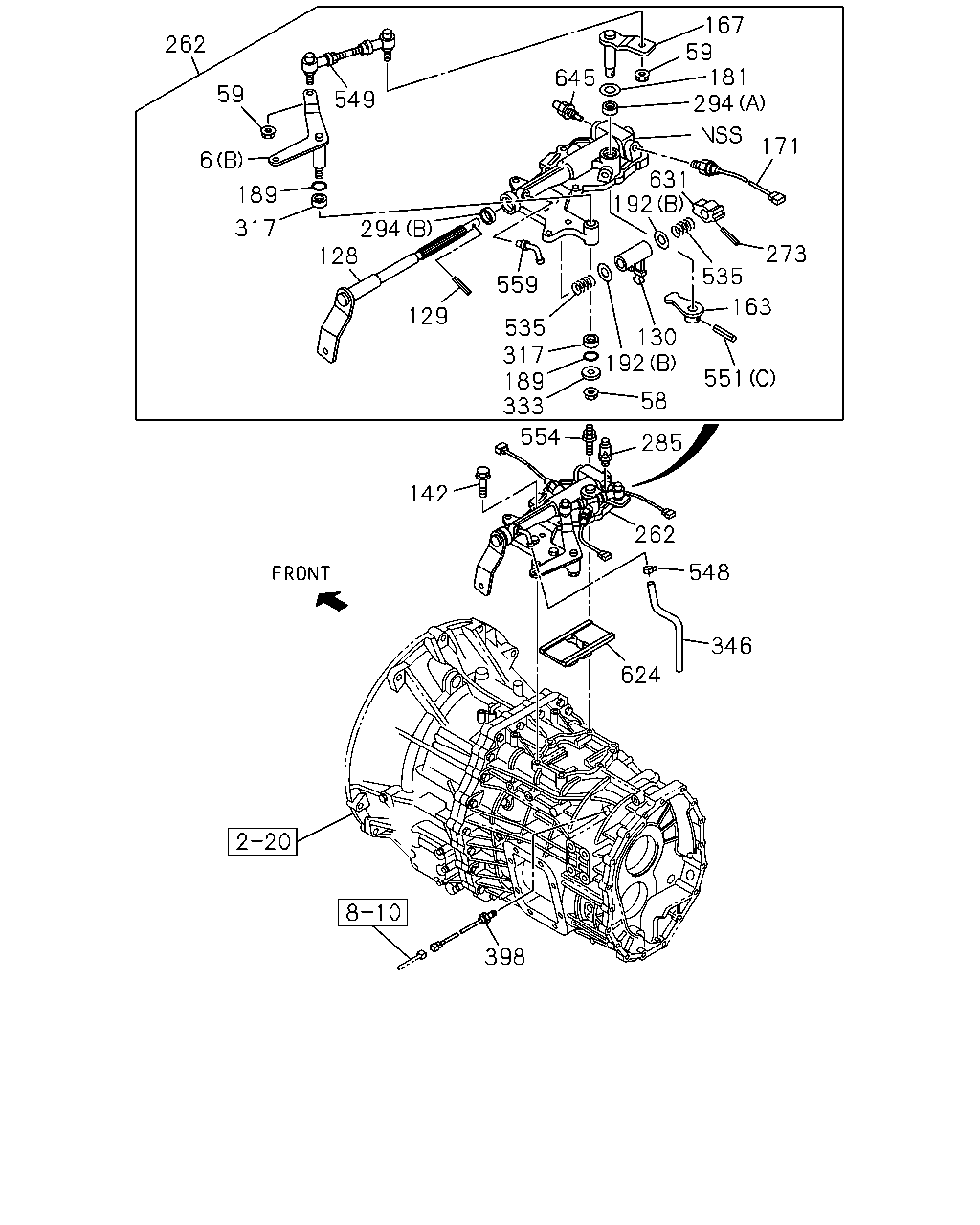

262 59 549 6 189 317 294 128 129 559 535 189 317 333 554 285 262 548 142 624 346 398 58 551 192 130 163 535 273 171 294 181 59 167 645 631 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY 4HK1-TCS ENG<RJS> (B)	8-98014-157-1	01	1	1406-
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1402-
6	LEVER; RELAY (B)	8-98022-855-0	01	1	1402-1405
6	LEVER; RELAY 6HK1-TCN ENG<82L> (B)	8-98022-855-0	01	1	1406-
58	NUT M10 FLANGE THA	0-91180-110-0	01	1	1402-
59	NUT M8 FLANGE THA	0-91180-108-0	02	1	1402-
128	LEVER; SHIFT,EXTERNAL 4HK1-TCS ENG<RJS>	8-98212-106-0	01	1	1406-
128	LEVER; SHIFT,EXTERNAL	8-97306-927-0	01	1	1402-1405
128	LEVER; SHIFT,EXTERNAL 6HK1-TCN ENG<82L>	8-97306-927-0	01	1	1406-
129	PIN; SPR,SHIFT L=30 OD=4	1-09748-031-0	01	1	1402-
130	LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	1402-
142	BOLT; QUAD BOX M8X22 FLANGE	8-97365-376-0	04	1	1402-
163	LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	1402-
167	LEVER; SELECT,EXTERNAL 4HK1-TCS ENG<RJS>	8-98021-489-0	01	1	1406-
167	LEVER; SELECT,EXTERNAL	8-98022-857-0	01	1	1402-1405
167	LEVER; SELECT,EXTERNAL 6HK1-TCN ENG<82L>	8-98022-857-0	01	1	1406-
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1402-
181	WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	1402-
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	1402-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1402-
192	WASHER; PL (B)	8-97305-661-0	02	1	1402-
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG<RJS>	8-98276-157-1	01	1	1406-
262	BOX ASM; SHIFT CONT	8-98241-010-0	01	1	1402-1404
262	BOX ASM; SHIFT CONT	8-98276-161-1	01	1	1405-1405
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG<82L>	8-98276-161-1	01	1	1406-
273	PIN; SPR,STOPPER D=4.2 L=25	8-97103-142-0	01	1	1402-
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1402-1404
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97305-662-0	01	1	1402-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97363-225-0	01	1	1402-
317	BUSHING; LEVER	1-09330-119-0	02	1	1402-
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	1402-
346	HOSE; AIR	8-97309-855-0	01	1	1405-
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1402-
535	SPRING; LEVER	8-97385-713-0	02	1	1402-
548	CLIP; HOSE	8-97031-674-0	01	1	1405-
549	ROD; LINK 4HK1-TCS ENG<RJS>	8-98023-095-0	01	1	1406-
549	ROD; LINK	8-98022-841-0	01	1	1402-1405
549	ROD; LINK 6HK1-TCN ENG<82L>	8-98022-841-0	01	1	1406-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1402-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1402-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1402-
554	STUD; CONT BOX M8X15,M8X25 L=49	8-97365-378-0	02	1	1402-
559	PIPE; BREATHER	8-97358-318-0	01	1	1405-
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1402-
631	STOPPER; SPRING 4HK1-TCS ENG<RJS>	8-98014-158-0	01	1	1406-
631	STOPPER; SPRING	8-97305-666-0	01	1	1402-1405
631	STOPPER; SPRING 6HK1-TCN ENG<82L>	8-97305-666-0	01	1	1406-
645	DETENT ASM	8-98019-536-0	01	1	1402-

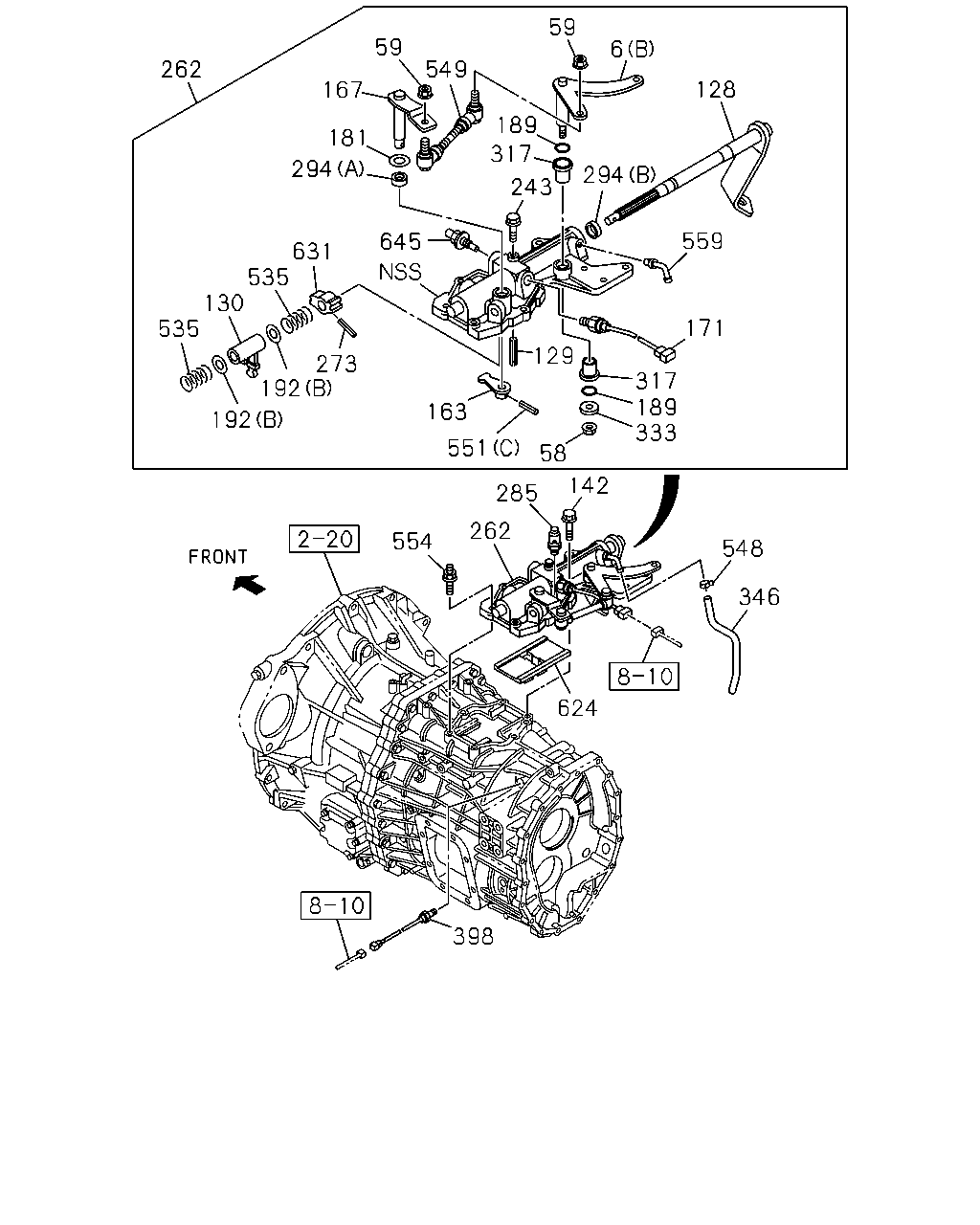

262 167 181 294 631 535 130 535 192 192 273 645 59 549 59 6 128 294 559 171 317 189 333 129 58 551 163 243 317 189 142 285 262 554 624 548 346 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY 4HK1-TCS ENG<RJS> (B)	8-98014-157-1	01	1	1406-
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1402-
6	LEVER; RELAY (B)	8-98022-855-0	01	1	1402-1405
6	LEVER; RELAY 6HK1-TCN ENG<82L> (B)	8-98022-855-0	01	1	1406-
58	NUT M10 FLANGE THA	0-91180-110-0	01	1	1402-
59	NUT M8 FLANGE THA	0-91180-108-0	02	1	1402-
128	LEVER; SHIFT,EXTERNAL 4HK1-TCS ENG<RJS>	8-98212-106-0	01	1	1406-
128	LEVER; SHIFT,EXTERNAL	8-97306-927-0	01	1	1402-1405
128	LEVER; SHIFT,EXTERNAL 6HK1-TCN ENG<82L>	8-97306-927-0	01	1	1406-
129	PIN; SPR,SHIFT L=30 OD=4	1-09748-031-0	01	1	1402-
130	LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	1402-
142	BOLT; QUAD BOX M8X22 FLANGE	8-97365-376-0	04	1	1402-
163	LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	1402-
167	LEVER; SELECT,EXTERNAL 4HK1-TCS ENG<RJS>	8-98021-489-0	01	1	1406-
167	LEVER; SELECT,EXTERNAL	8-98022-857-0	01	1	1402-1405
167	LEVER; SELECT,EXTERNAL 6HK1-TCN ENG<82L>	8-98022-857-0	01	1	1406-
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1402-
181	WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	1402-
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	1402-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1402-
192	WASHER; PL (B)	8-97305-661-0	02	1	1402-
243	BOLT; COVER 4HK1-TCS ENG<RJS> M6X12 FLANGE	1-33739-842-0	01	1	1406-
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG<RJS>	8-98276-157-1	01	1	1406-
262	BOX ASM; SHIFT CONT	8-98241-010-0	01	1	1402-1404
262	BOX ASM; SHIFT CONT	8-98276-161-1	01	1	1405-1405
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG<82L>	8-98276-161-1	01	1	1406-
273	PIN; SPR,STOPPER D=4.2 L=25	8-97103-142-0	01	1	1402-
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1402-1404
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97305-662-0	01	1	1402-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97363-225-0	01	1	1402-
317	BUSHING; LEVER	1-09330-119-0	02	1	1402-
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	1402-
346	HOSE; AIR	8-97309-855-0	01	1	1405-
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1402-
535	SPRING; LEVER	8-97385-713-0	02	1	1402-
548	CLIP; HOSE	8-97031-674-0	01	1	1405-
549	ROD; LINK 4HK1-TCS ENG<RJS>	8-98023-095-0	01	1	1406-
549	ROD; LINK	8-98022-841-0	01	1	1402-1405
549	ROD; LINK 6HK1-TCN ENG<82L>	8-98022-841-0	01	1	1406-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1402-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1402-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1402-
554	STUD; CONT BOX M8X15,M8X25 L=49	8-97365-378-0	02	1	1402-
559	PIPE; BREATHER	8-97358-318-0	01	1	1405-
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1402-
631	STOPPER; SPRING 4HK1-TCS ENG<RJS>	8-98014-158-0	01	1	1406-
631	STOPPER; SPRING	8-97305-666-0	01	1	1402-1405
631	STOPPER; SPRING 6HK1-TCN ENG<82L>	8-97305-666-0	01	1	1406-
645	DETENT ASM	8-98019-536-0	01	1	1402-

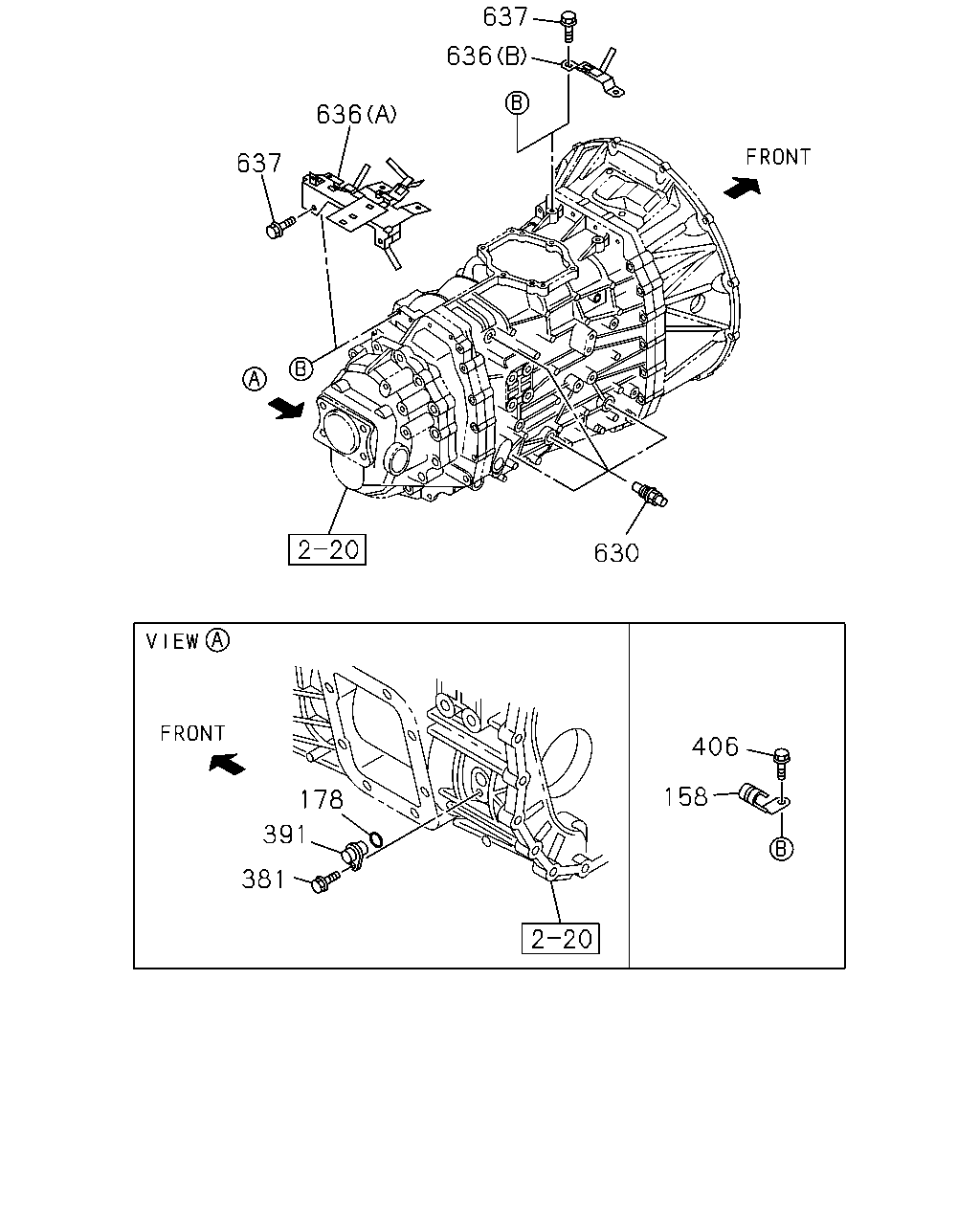

637 636 636 637 630 406 158 381 391 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
158	CLIP; HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	02	1	1402-
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T).	9-09567-113-0	01	1	1402-
381	BOLT M6X16 FLANGE THA	0-28650-616-0	01	1	1402-
391	PLUG; SW HOLE	8-97300-273-1	01	1	1402-
406	BOLT; HARNESS CLIP M8X16 FLANGE THA	0-28050-816-0	02	1	1402-
630	DETENT ASM	8-98019-536-0	04	1	1402-
636	BRACKET; CLIP 4HK1-TCS ENG<RJS> (B)	8-97610-092-1	01	1	1406-1502
636	BRACKET; CLIP (A)	8-97610-096-2	01	1	1402-1405
636	BRACKET; CLIP 6HK1-TCN ENG<82L> (A)	8-97610-096-2	01	1	1406-
637	BOLT; BRACKET M8X16 FLANGE THA	0-28050-816-0	02	1	1402-1502
637	BOLT; BRACKET 6HK1-TCN ENG<82L> M8X16 FLANGE THA	0-28050-816-0	02	1	1503-
