2-26 — MANUAL TRANSMISSION GEAR (#133358) — 109 parça

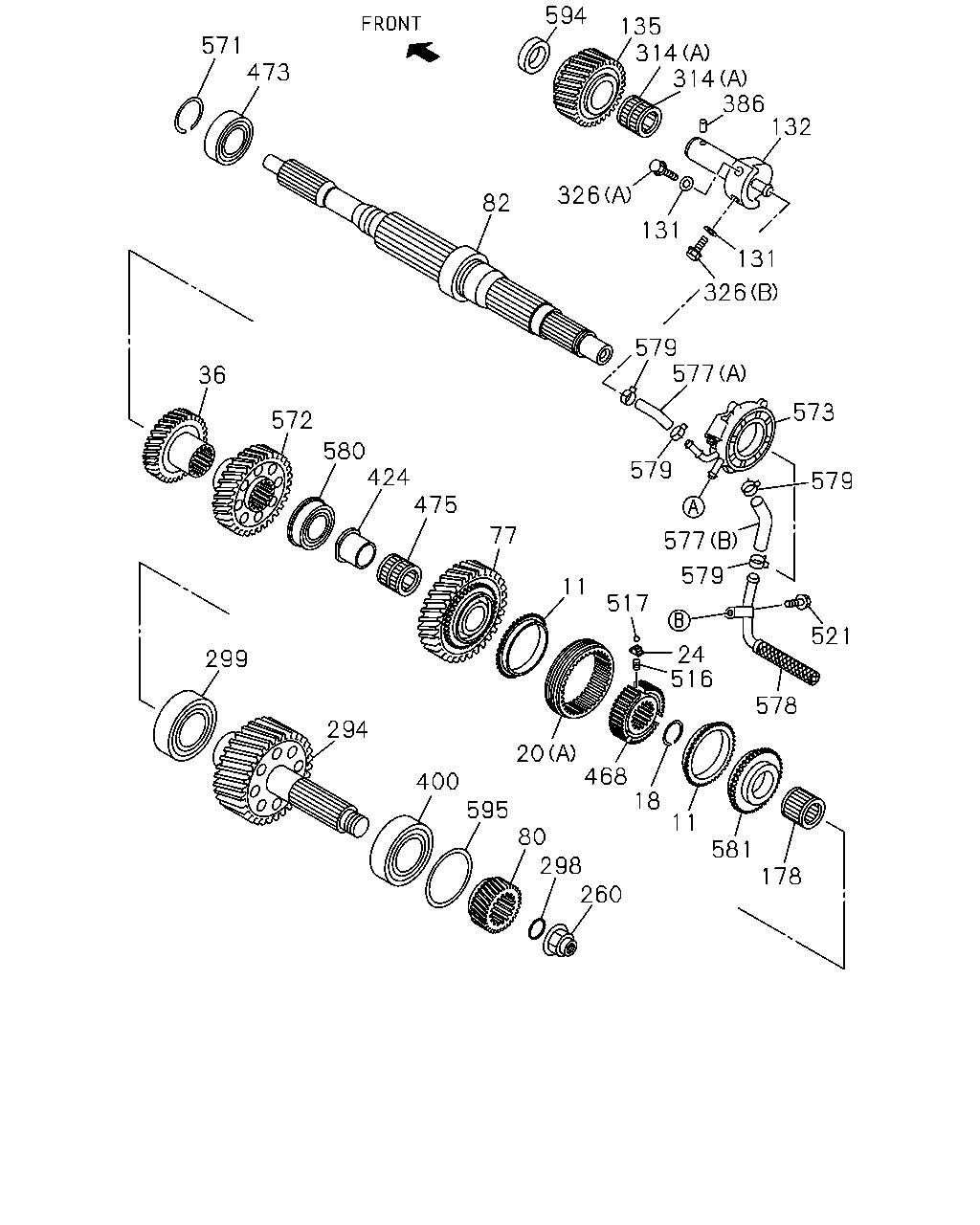

çizim 407032
571 473 82 326 135 314 314 386 132 131 131 326 579 573 579 521 579 577 577 24 516 578 517 11 77 475 424 580 572 36 299 294 400 595 80 298 260 20 468 18 11 581 178 579 594
BalonParca AdiParca NoAdetTipApplied Date
11 RING; BLOCK,5TH & 6TH
Z=45 		8-97241-306-1 02 1 1402-
18 RING; SNAP,CLU HUB
ID=35.7 T=1.8 		8-97256-855-0 01 1 1402-
20 SLEEVE
(A) Z=45 		8-98258-279-0 02 1 1402-
20 SLEEVE
(B) Z=45 		8-98034-769-0 01 1 1402-
24 BLOCK; INDEX,SYN 8-97241-313-1 09 1 1402-
36 GEAR; 3RD,MAINSHAFT
Z=29 		8-98168-499-0 01 1 1402-
77 GEAR; 6TH,MAINSHAFT
Z=46 		8-98137-256-0 01 1 1402-
80 GEAR; SPD DRIVE
Z=5 		8-97377-978-1 01 1 1402-
82 SHAFT; MAIN,TRANS
Z=13-21-19-26 		8-98245-057-0 01 1 1402-
131 GASKET; REV SHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=10.2 OD=16.0 THA 		9-09571-410-0 02 1 1402-
132 SHAFT; REV 8-98009-372-0 01 1 1402-
135 GEAR; REV IDLER
Z=27 		8-98005-601-1 01 1 1402-
178 BEARING; NEEDLE,MAINSHAFT 8-97253-099-1 01 1 1402-
260 NUT; MAINSHAFT END
M36 FLANGE 		8-98014-140-0 01 1 1402-
294 SHAFT; OUTPUT
Z=43 		8-97380-571-0 01 1 1402-
298 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5 		1-09623-380-0 01 1 1402-
299 BEARING; OUTPUT SHAFT FRT 8-97377-970-0 01 1 1402-
314 BEARING; NEEDLE,REV GEAR
(A) JTEKT 		1-09811-017-0 02 1 1402-
314 BEARING; NEEDLE,REV GEAR
(B) NSK 		8-97253-111-0 01 1 1402-
326 BOLT; REV SHAFT
(A) M10X50 FLANGE 		0-29261-050-0 01 1 1402-
326 BOLT; REV SHAFT
(B) M10X50 		8-98014-738-0 01 1 1402-
386 PIN; REV SHAFT 9-08150-408-0 01 1 1402-
400 BEARING; OUTPUT SHAFT RR 8-97377-977-0 01 1 1402-
424 COLLAR; 6TH GEAR 8-98125-318-0 01 1 1402-
468 HUB; CLU,5TH & 6TH 8-98075-734-0 01 1 1402-
473 BEARING; INPUT SHAFT 8-97377-950-0 01 1 1402-
475 BEARING; 6TH
COLLAR OD=-49.999 		8-98101-505-0 01 1 1402-
475 BEARING; 6TH
COLLAR OD=50.000- 		8-98142-265-0 01 1 1402-
516 SPRING; SYNCHRO,INDEX 8-98032-197-0 09 1 1402-
517 BALL; SYNCHRO,INDEX 8-97252-935-0 09 1 1402-
521 BOLT
M8X12 FLANGE THA 		0-28050-812-0 01 1 1402-
571 RING; SNAP,BRG 8-97377-951-0 01 1 1402-
572 GEAR; 4TH,INPUT
Z=37 		8-98168-500-0 01 1 1402-
573 PUMP ASM; OIL 8-98212-241-0 01 1 1402-
577 HOSE; OIL PUMP
(A) 		8-98033-981-0 02 1 1402-
577 HOSE; OIL PUMP
(B) 		8-98033-982-0 02 1 1402-
578 SCREEN; OIL PUMP 8-98009-345-0 02 1 1402-
579 CLAMP; HOSE
ID=16 THA 		8-97329-628-0 07 1 1402-
580 BEARING; MAINSHAFT RR 8-97377-953-0 01 1 1402-
581 CLUTCH; DOG,5TH GEAR 8-97377-956-0 01 1 1402-
594 WASHER; THRUST,REV IDLE 8-98005-633-0 01 1 1402-
595 SHIM; OUTPUT SHAFT
T=1.44 		8-97377-984-0 01 1 1402-
595 SHIM; OUTPUT SHAFT
T=1.50 		8-97377-985-0 01 1 1402-
595 SHIM; OUTPUT SHAFT
T=1.56 		8-97377-986-0 01 1 1402-
595 SHIM; OUTPUT SHAFT
T=1.62 		8-97377-987-0 01 1 1402-
595 SHIM; OUTPUT SHAFT
T=1.68 		8-97377-988-0 01 1 1402-
595 SHIM; OUTPUT SHAFT
T=1.74 		8-97377-989-0 01 1 1402-
595 SHIM; OUTPUT SHAFT
T=1.80 		8-97377-990-0 01 1 1402-
595 SHIM; OUTPUT SHAFT
T=1.86 		8-97377-991-0 01 1 1402-
595 SHIM; OUTPUT SHAFT
T=1.38 		8-98009-379-0 01 1 1402-
595 SHIM; OUTPUT SHAFT
T=1.26 		8-98022-221-0 01 1 1402-
595 SHIM; OUTPUT SHAFT
T=1.32 		8-98022-222-0 01 1 1402-

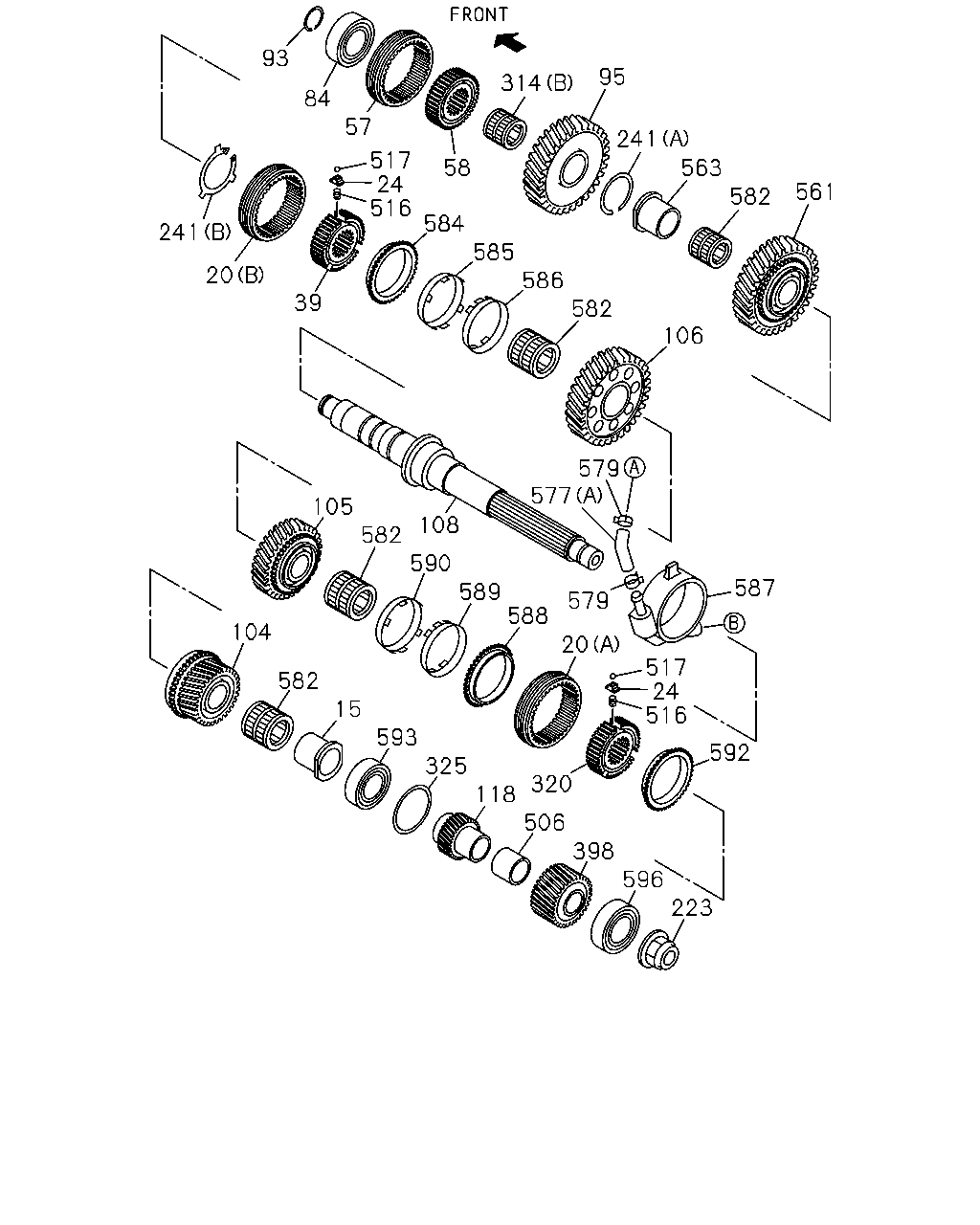

çizim 407387
93 84 57 517 24 516 584 585 586 582 106 314 95 241 563 582 561 241 20 39 105 582 590 589 588 20 579 577 579 587 517 24 516 592 104 582 15 593 325 118 320 506 398 596 223 58 108
BalonParca AdiParca NoAdetTipApplied Date
15 COLLAR; 4TH GEAR 8-98146-345-0 01 1 1402-
20 SLEEVE
(A) Z=45 		8-98258-279-0 02 1 1402-
20 SLEEVE
(B) Z=45 		8-98034-769-0 01 1 1402-
24 BLOCK; INDEX,SYN 8-97241-313-1 09 1 1402-
39 HUB; CLU,LOW & 2ND
Z=45 		8-98075-732-0 01 1 1402-1501
39 HUB; CLU,LOW & 2ND
Z=45 		8-98303-646-0 01 1 1502-
57 SLEEVE; REV
Z=45 		8-94421-871-1 01 1 1402-
58 HUB; CLU,REV
Z=45-27 		8-98005-296-0 01 1 1402-
84 BEARING; COUNTER SHAFT,FRT 8-97377-957-0 01 1 1402-
93 RING; SNAP,COUNTER FRT BRG 8-97377-958-0 01 1 1402-
95 GEAR; REV,COUNTER
Z=44 		8-98005-229-0 01 1 1402-
104 GEAR; 4TH,COUNTER
Z=29 		8-98198-297-0 01 1 1402-
105 GEAR; 3RD,COUNTER
Z=35 		8-98168-501-0 01 1 1402-
106 GEAR; 2ND,COUNTER
Z=44 		8-98140-884-0 01 1 1402-
108 SHAFT; COUNTER
Z=27-42-26 		8-98223-607-0 01 1 1402-1501
108 SHAFT; COUNTER
Z=27-42-26 		8-98303-643-0 01 1 1502-
118 GEAR; 6TH,COUNTER
Z=17 		8-98005-292-1 01 1 1402-
223 NUT; COUNTER SHAFT END
M34 FLANGE 		8-98005-894-0 01 1 1402-
241 RING; SNAP
(A) ID=46.5 T=1.8 		8-97254-743-0 01 1 1402-
241 RING; SNAP
(B) ID=96 T=2.5 		8-98009-391-0 01 1 1402-
314 BEARING; NEEDLE,REV GEAR
(A) JTEKT 		1-09811-017-0 02 1 1402-
314 BEARING; NEEDLE,REV GEAR
(B) NSK 		8-97253-111-0 01 1 1402-
320 HUB; CLU,4TH & 3RD 8-98075-733-0 01 1 1402-1501
320 HUB; CLU,4TH & 3RD 8-98303-649-0 01 1 1502-
325 SHIM; COUNTER SHAFT BRG
T=1.56 		8-97377-994-0 01 1 1402-
325 SHIM; COUNTER SHAFT BRG
T=1.62 		8-97377-995-0 01 1 1402-
325 SHIM; COUNTER SHAFT BRG
T=1.68 		8-97377-996-0 01 1 1402-
325 SHIM; COUNTER SHAFT BRG
T=1.74 		8-97377-997-0 01 1 1402-
325 SHIM; COUNTER SHAFT BRG
T=1.80 		8-97377-998-0 01 1 1402-
325 SHIM; COUNTER SHAFT BRG
T=1.26 		8-98009-373-0 01 1 1402-
325 SHIM; COUNTER SHAFT BRG
T=1.32 		8-98009-374-0 01 1 1402-
325 SHIM; COUNTER SHAFT BRG
T=1.38 		8-98009-375-0 01 1 1402-
325 SHIM; COUNTER SHAFT BRG
T=1.44 		8-98009-376-0 01 1 1402-
325 SHIM; COUNTER SHAFT BRG
T=1.50 		8-98009-377-0 01 1 1402-
325 SHIM; COUNTER SHAFT BRG
T=1.14 		8-98022-218-0 01 1 1402-
325 SHIM; COUNTER SHAFT BRG
T=1.20 		8-98022-219-0 01 1 1402-
398 GEAR; COUNTER
Z=22 		8-97380-568-0 01 1 1402-
506 COLLAR; 6TH,COUNTER 8-97377-965-0 01 1 1402-
516 SPRING; SYNCHRO,INDEX 8-98032-197-0 09 1 1402-
517 BALL; SYNCHRO,INDEX 8-97252-935-0 09 1 1402-
561 GEAR; LOW,COUNTER
Z=44 		8-98000-330-0 01 1 1402-
563 COLLAR; 1ST GEAR 8-98146-345-0 01 1 1402-
577 HOSE; OIL PUMP
(A) 		8-98033-981-0 02 1 1402-
577 HOSE; OIL PUMP
(B) 		8-98033-982-0 02 1 1402-
579 CLAMP; HOSE
ID=16 THA 		8-97329-628-0 07 1 1402-
582 BEARING; NEEDLE,COUNTER GEAR 8-97253-110-0 04 1 1402-
584 RING; BLOCK,2ND
Z=45 		8-98034-770-0 01 1 1402-
585 RING; OUTSIDE,2ND 8-97241-309-1 01 1 1402-
586 RING; INSIDE,2ND 8-97241-312-1 01 1 1402-
587 CASE; PUMP,COUNTER 8-98212-196-0 01 1 1402-1501
587 CASE; PUMP,COUNTER 8-98303-650-0 01 1 1502-
588 RING; BLOCK,3RD
Z=45 		8-97241-306-1 01 1 1402-
589 RING; OUTSIDE,3RD 8-97241-309-1 01 1 1402-
590 RING; INSIDE,3RD 8-97241-312-1 01 1 1402-
592 RING; BLOCK,4TH
Z=45 		8-97241-306-1 01 1 1402-
593 BEARING; COUNTER MIDDLE 8-97377-976-0 01 1 1402-
596 BEARING; ROOLER,COUNTER END 8-97377-968-0 01 1 1402-
