2-01 — CLUTCH (#133350) — 126 parça

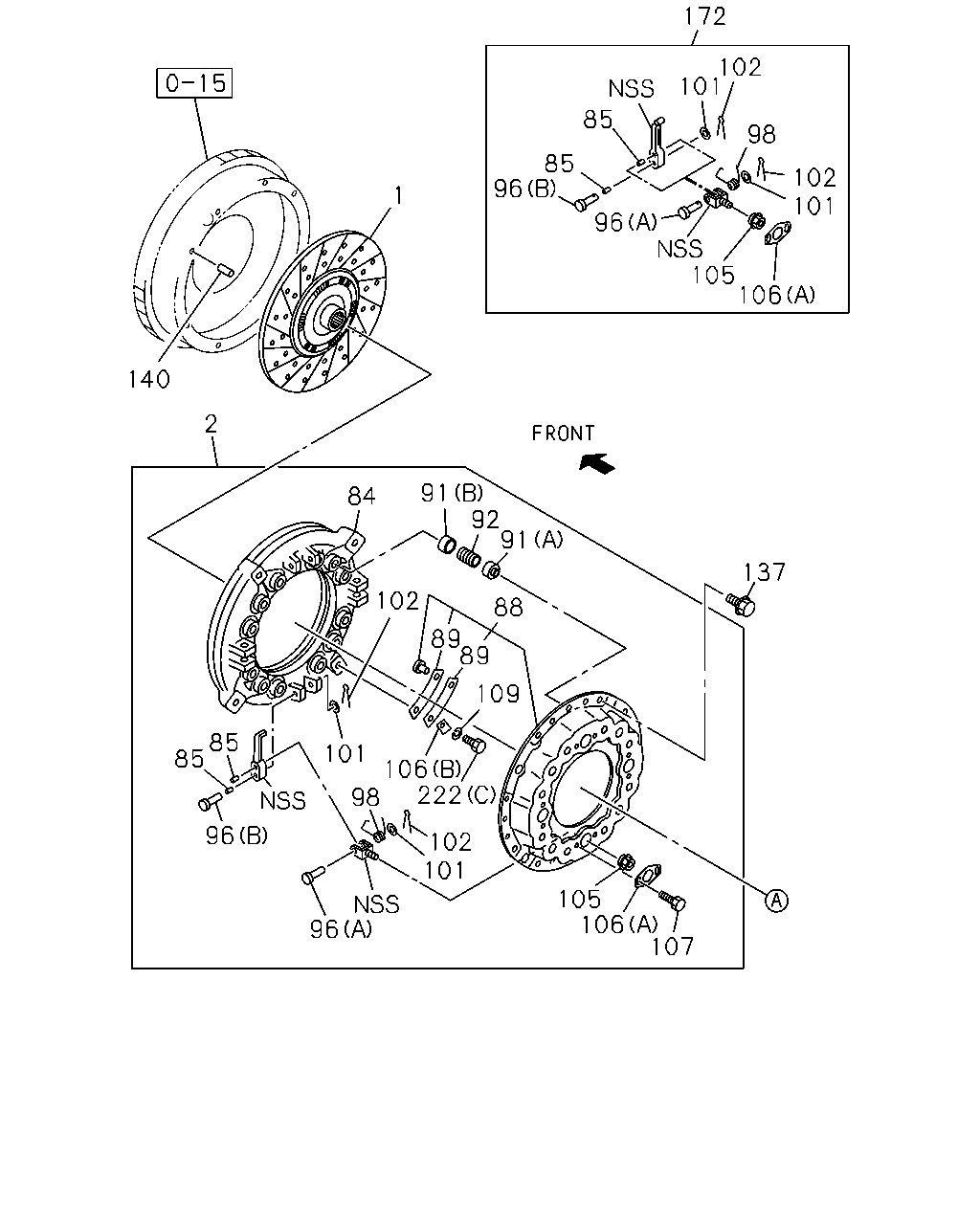

140 2 172 85 85 96 96 105 106 101 102 84 91 92 91 102 89 89 88 109 106 101 222 102 101 96 96 85 85 1 101 102 98 137 105 106 107 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DISC; CLUTCH 14" CLUTCH<WF6> BEST VALUE PARTS	1-87610-140-0	01	1	1411-
1	DISC; CLUTCH 14" CLUTCH<WF6> 14"	1-31260-040-1	01	1	1406-
1	DISC; CLUTCH 15"	1-31240-851-2	01	1	1402-1405
1	DISC; CLUTCH 15" CLUTCH<RE9> 15"	1-31240-851-2	01	1	1406-
1	DISC; CLUTCH BEST VALUE PARTS	1-87610-119-0	01	1	1402-
2	PLATE ASM; PRESSURE,CLU 14" CLUTCH<WF6> ENGINE HIGH TORQUE<Q5W>	1-31220-451-0	01	1	1406-
2	PLATE ASM; PRESSURE,CLU 14" CLUTCH<WF6> EXC. ENGINE HIGH TORQUE<Q5W>	1-31220-411-0	01	1	1406-
2	PLATE ASM; PRESSURE,CLU	1-31220-377-2	01	1	1402-1405
2	PLATE ASM; PRESSURE,CLU 15" CLUTCH<RE9>	1-31220-377-2	01	1	1406-
2	PLATE ASM; PRESSURE,CLU BEST VALUE PARTS	1-87610-146-0	01	1	1402-
2	PLATE ASM; PRESSURE,CLU 14" CLUTCH<WF6> EXC. ENGINE HIGH TORQUE<Q5W> BEST VALUE PARTS	1-87610-147-0	01	1	1406-
84	PLATE; PRESSURE 14" CLUTCH<WF6> 14"	1-31221-136-0	01	1	1406-
84	PLATE; PRESSURE 15"	1-31221-100-0	01	1	1402-1405
84	PLATE; PRESSURE 15" CLUTCH<RE9> 15"	1-31221-100-0	01	1	1406-
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	1402-
88	COVER SUB ASM; CLU 14" CLUTCH<WF6>	1-31211-038-0	01	1	1406-
89	PLATE; STRAP 14" CLUTCH<WF6>	1-31229-001-0	08	1	1406-
89	PLATE; STRAP	1-31229-050-0	16	1	1402-1405
89	PLATE; STRAP 15" CLUTCH<RE9>	1-31229-050-0	16	1	1406-
91	SEAT; SPR 14" CLUTCH<WF6> EXC. ENGINE HIGH TORQUE<Q5W> (A) ID=37 H=25	1-31219-012-0	08	1	1406-
91	SEAT; SPR 14" CLUTCH<WF6> EXC. ENGINE HIGH TORQUE<Q5W> (B) ID=37 H=15	1-31219-013-0	08	1	1406-
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	1402-1405
91	SEAT; SPR 15" CLUTCH<RE9> (A) ID=37 H=25	1-31219-012-0	12	1	1406-
91	SEAT; SPR 14" CLUTCH<WF6> ENGINE HIGH TORQUE<Q5W> (A) ID=37 H=25	1-31219-012-0	12	1	1406-
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	1402-1405
91	SEAT; SPR 15" CLUTCH<RE9> (B) ID=37 H=15	1-31219-013-0	12	1	1406-
91	SEAT; SPR 14" CLUTCH<WF6> ENGINE HIGH TORQUE<Q5W> (B) ID=37 H=15	1-31219-013-0	12	1	1406-
92	SPRING; CLU 14" CLUTCH<WF6> ENGINE HIGH TORQUE<Q5W>	1-31214-092-0	12	1	1406-
92	SPRING; CLU 14" CLUTCH<WF6> EXC. ENGINE HIGH TORQUE<Q5W>	1-31214-095-0	08	1	1406-
92	SPRING; CLU	1-31214-066-0	12	1	1402-1405
92	SPRING; CLU 15" CLUTCH<RE9>	1-31214-066-0	12	1	1406-
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	1402-
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	1402-
98	SPRING; RETURN	1-31233-003-0	04	1	1402-
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	1402-
102	PIN; SPLIT,RELEASE LEVER 14" CLUTCH<WF6> OD=2.7 L=22	9-08113-022-0	08	1	1406-
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	1402-1405
102	PIN; SPLIT,RELEASE LEVER 15" CLUTCH<RE9> OD=2.7 L=22	9-08103-022-0	08	1	1406-
105	NUT; SUPPORT	1-31235-014-0	04	1	1402-
106	PLATE; LK,LEVER SUPPORT 14" CLUTCH<WF6> (B)	1-31235-008-0	04	1	1406-
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	1402-
107	BOLT; LK PLATE	1-31239-061-0	08	1	1402-
109	WASHER; LK,STRAP 14" CLUTCH<WF6> ID=10.2	0-91510-510-0	04	1	1406-
137	BOLT; CLU COVER M10X20 FLANGE THA	0-28151-020-0	12	1	1402-
140	PIN; STRAIGHT 4HK1-TCS ENG<RJS> L=25	8-94410-361-0	02	1	1406-
172	LEVER KIT; RELEASE,CLU	1-87831-170-1	01	1	1402-
222	BOLT; STRAP 14" CLUTCH<WF6> (C)	1-31239-059-0	04	1	1406-
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	1402-1405
222	BOLT; STRAP 15" CLUTCH<RE9> (B) M10X23.2	1-09040-042-0	04	1	1406-
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	1402-1405
222	BOLT; STRAP 15" CLUTCH<RE9> (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	1406-

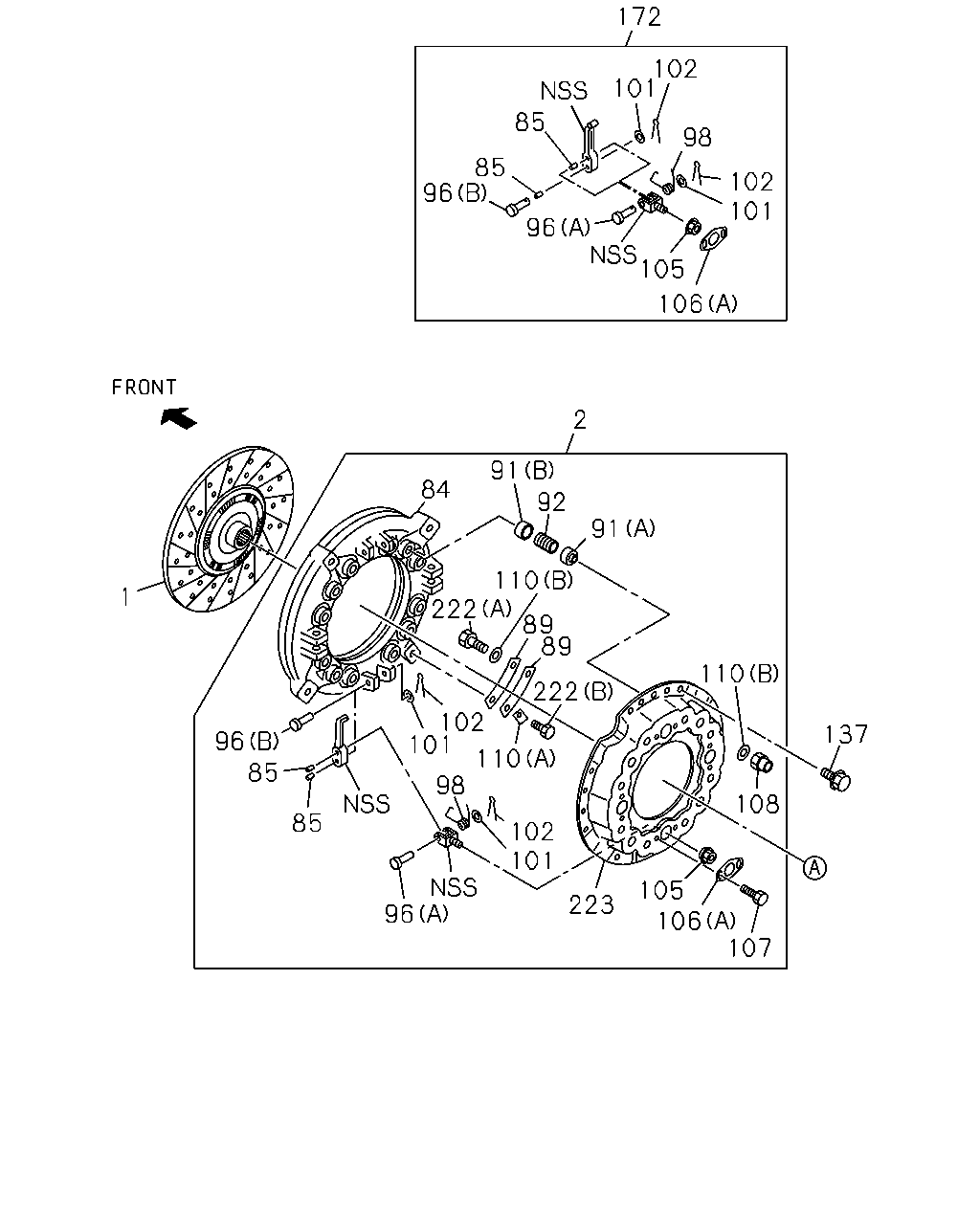

172 102 101 85 85 96 96 98 102 101 105 106 1 84 91 2 92 91 110 110 222 96 85 85 101 102 110 98 89 89 222 96 102 101 223 105 106 108 107 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DISC; CLUTCH 14" CLUTCH<WF6> BEST VALUE PARTS	1-87610-140-0	01	1	1411-
1	DISC; CLUTCH 14" CLUTCH<WF6> 14"	1-31260-040-1	01	1	1406-
1	DISC; CLUTCH 15"	1-31240-851-2	01	1	1402-1405
1	DISC; CLUTCH 15" CLUTCH<RE9> 15"	1-31240-851-2	01	1	1406-
1	DISC; CLUTCH BEST VALUE PARTS	1-87610-119-0	01	1	1402-
2	PLATE ASM; PRESSURE,CLU 14" CLUTCH<WF6> ENGINE HIGH TORQUE<Q5W>	1-31220-451-0	01	1	1406-
2	PLATE ASM; PRESSURE,CLU 14" CLUTCH<WF6> EXC. ENGINE HIGH TORQUE<Q5W>	1-31220-411-0	01	1	1406-
2	PLATE ASM; PRESSURE,CLU	1-31220-377-2	01	1	1402-1405
2	PLATE ASM; PRESSURE,CLU 15" CLUTCH<RE9>	1-31220-377-2	01	1	1406-
2	PLATE ASM; PRESSURE,CLU BEST VALUE PARTS	1-87610-146-0	01	1	1402-
2	PLATE ASM; PRESSURE,CLU 14" CLUTCH<WF6> EXC. ENGINE HIGH TORQUE<Q5W> BEST VALUE PARTS	1-87610-147-0	01	1	1406-
84	PLATE; PRESSURE 14" CLUTCH<WF6> 14"	1-31221-136-0	01	1	1406-
84	PLATE; PRESSURE 15"	1-31221-100-0	01	1	1402-1405
84	PLATE; PRESSURE 15" CLUTCH<RE9> 15"	1-31221-100-0	01	1	1406-
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	1402-
89	PLATE; STRAP 14" CLUTCH<WF6>	1-31229-001-0	08	1	1406-
89	PLATE; STRAP	1-31229-050-0	16	1	1402-1405
89	PLATE; STRAP 15" CLUTCH<RE9>	1-31229-050-0	16	1	1406-
91	SEAT; SPR 14" CLUTCH<WF6> EXC. ENGINE HIGH TORQUE<Q5W> (A) ID=37 H=25	1-31219-012-0	08	1	1406-
91	SEAT; SPR 14" CLUTCH<WF6> EXC. ENGINE HIGH TORQUE<Q5W> (B) ID=37 H=15	1-31219-013-0	08	1	1406-
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	1402-1405
91	SEAT; SPR 15" CLUTCH<RE9> (A) ID=37 H=25	1-31219-012-0	12	1	1406-
91	SEAT; SPR 14" CLUTCH<WF6> ENGINE HIGH TORQUE<Q5W> (A) ID=37 H=25	1-31219-012-0	12	1	1406-
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	1402-1405
91	SEAT; SPR 15" CLUTCH<RE9> (B) ID=37 H=15	1-31219-013-0	12	1	1406-
91	SEAT; SPR 14" CLUTCH<WF6> ENGINE HIGH TORQUE<Q5W> (B) ID=37 H=15	1-31219-013-0	12	1	1406-
92	SPRING; CLU 14" CLUTCH<WF6> ENGINE HIGH TORQUE<Q5W>	1-31214-092-0	12	1	1406-
92	SPRING; CLU 14" CLUTCH<WF6> EXC. ENGINE HIGH TORQUE<Q5W>	1-31214-095-0	08	1	1406-
92	SPRING; CLU	1-31214-066-0	12	1	1402-1405
92	SPRING; CLU 15" CLUTCH<RE9>	1-31214-066-0	12	1	1406-
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	1402-
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	1402-
98	SPRING; RETURN	1-31233-003-0	04	1	1402-
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	1402-
102	PIN; SPLIT,RELEASE LEVER 14" CLUTCH<WF6> OD=2.7 L=22	9-08113-022-0	08	1	1406-
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	1402-1405
102	PIN; SPLIT,RELEASE LEVER 15" CLUTCH<RE9> OD=2.7 L=22	9-08103-022-0	08	1	1406-
105	NUT; SUPPORT	1-31235-014-0	04	1	1402-
106	PLATE; LK,LEVER SUPPORT 14" CLUTCH<WF6> (B)	1-31235-008-0	04	1	1406-
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	1402-
107	BOLT; LK PLATE	1-31239-061-0	08	1	1402-
108	NUT; STRAP	1-09449-036-0	04	1	1402-1405
108	NUT; STRAP 15" CLUTCH<RE9>	1-09449-036-0	04	1	1406-
110	WASHER; SPECIAL,STRAP (A) T=1.2	1-31229-009-0	04	1	1402-1405
110	WASHER; SPECIAL,STRAP 15" CLUTCH<RE9> (A) T=1.2	1-31229-009-0	04	1	1406-
110	WASHER; SPECIAL,STRAP (B) T=3.2	8-97374-512-0	08	1	1402-1405
110	WASHER; SPECIAL,STRAP 15" CLUTCH<RE9> (B) T=3.2	8-97374-512-0	08	1	1406-
137	BOLT; CLU COVER M10X20 FLANGE THA	0-28151-020-0	12	1	1402-
172	LEVER KIT; RELEASE,CLU	1-87831-170-1	01	1	1402-
222	BOLT; STRAP 14" CLUTCH<WF6> (C)	1-31239-059-0	04	1	1406-
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	1402-1405
222	BOLT; STRAP 15" CLUTCH<RE9> (B) M10X23.2	1-09040-042-0	04	1	1406-
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	1402-1405
222	BOLT; STRAP 15" CLUTCH<RE9> (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	1406-
223	COVER; CLU	1-31211-019-1	01	1	1402-1405
223	COVER; CLU 15" CLUTCH<RE9>	1-31211-019-1	01	1	1406-

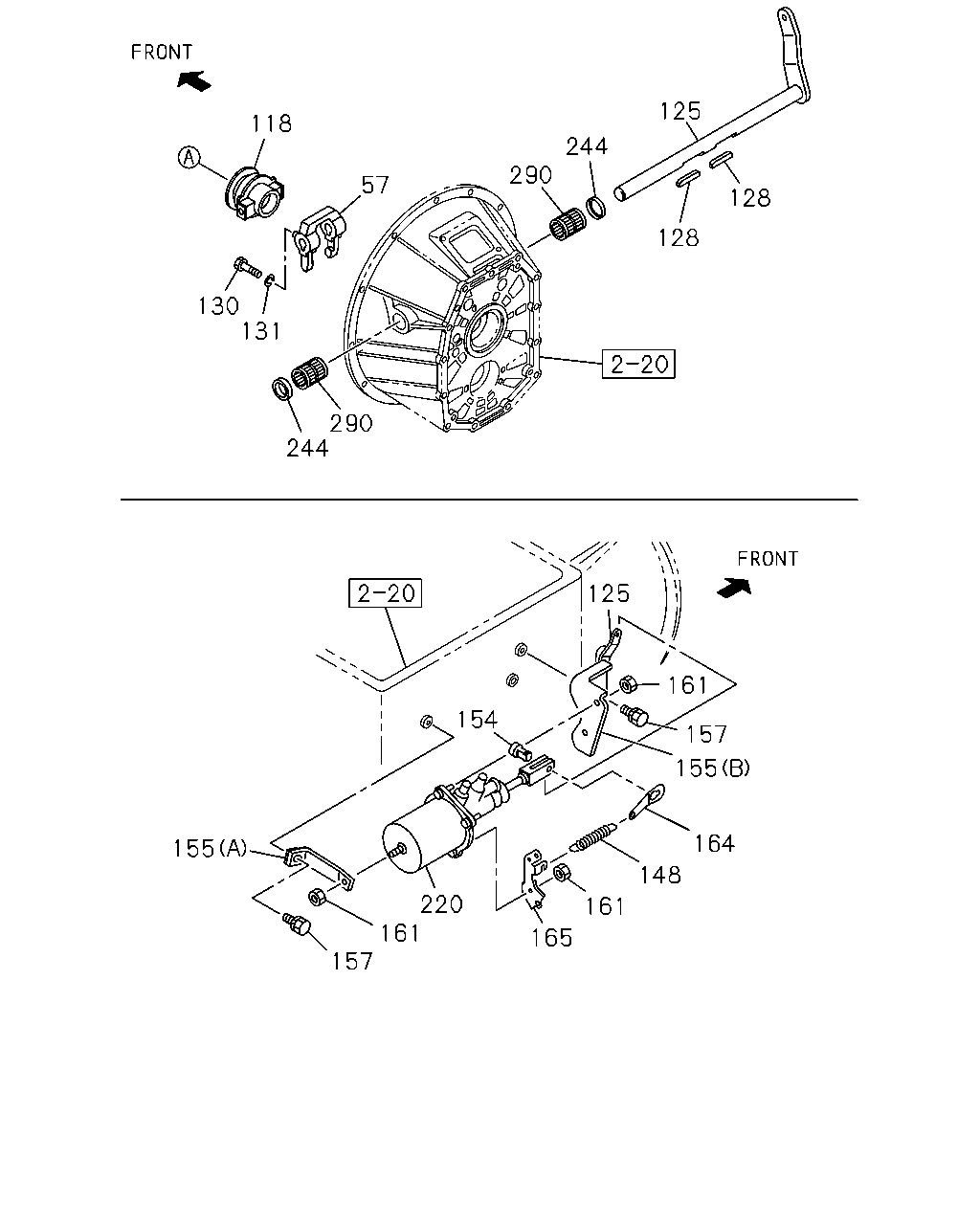

161 157 155 164 148 161 165 220 161 157 155 154 125 244 290 131 130 118 57 290 244 125 128 128

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
57	FORK; SHIFT,CLU	1-31341-048-2	01	1	1402-
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-109-0	01	1	1402-
118	BEARING; CLU RELEASE	1-31310-026-0	01	1	1402-
125	SHAFT; CLU	1-31342-335-0	01	1	1402-
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	1402-
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	1402-
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	1402-
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	1402-
154	PIN; JAW JOINT	1-31424-009-0	01	1	1402-
155	BRACKET; MINIPACK (A)	1-31429-475-1	01	1	1402-
155	BRACKET; MINIPACK (B)	1-31429-478-0	01	1	1402-
157	BOLT; BRKT M10X25 FLANGE THA	0-28751-025-0	03	1	1402-
161	NUT; BRKT M10 FLANGE THA	0-91180-210-0	05	1	1402-
164	EYE; SPRING	1-31426-041-0	01	1	1402-
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE	1-47477-789-0	01	1	1402-
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS	1-87610-089-0	01	1	1402-
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-511-2	01	1	1402-
244	SEAL; DUST ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	1402-
290	BEARING; NEEDLE NTN	1-09811-002-1	02	1	1402-
