Isuzu WW
▶
TRUCKS
▶
FTR
▶
11575 - FTR(THAI)EURO3
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-55 - EXHAUST BRAKE VALVE AND CONTROL CYLINDER
▶

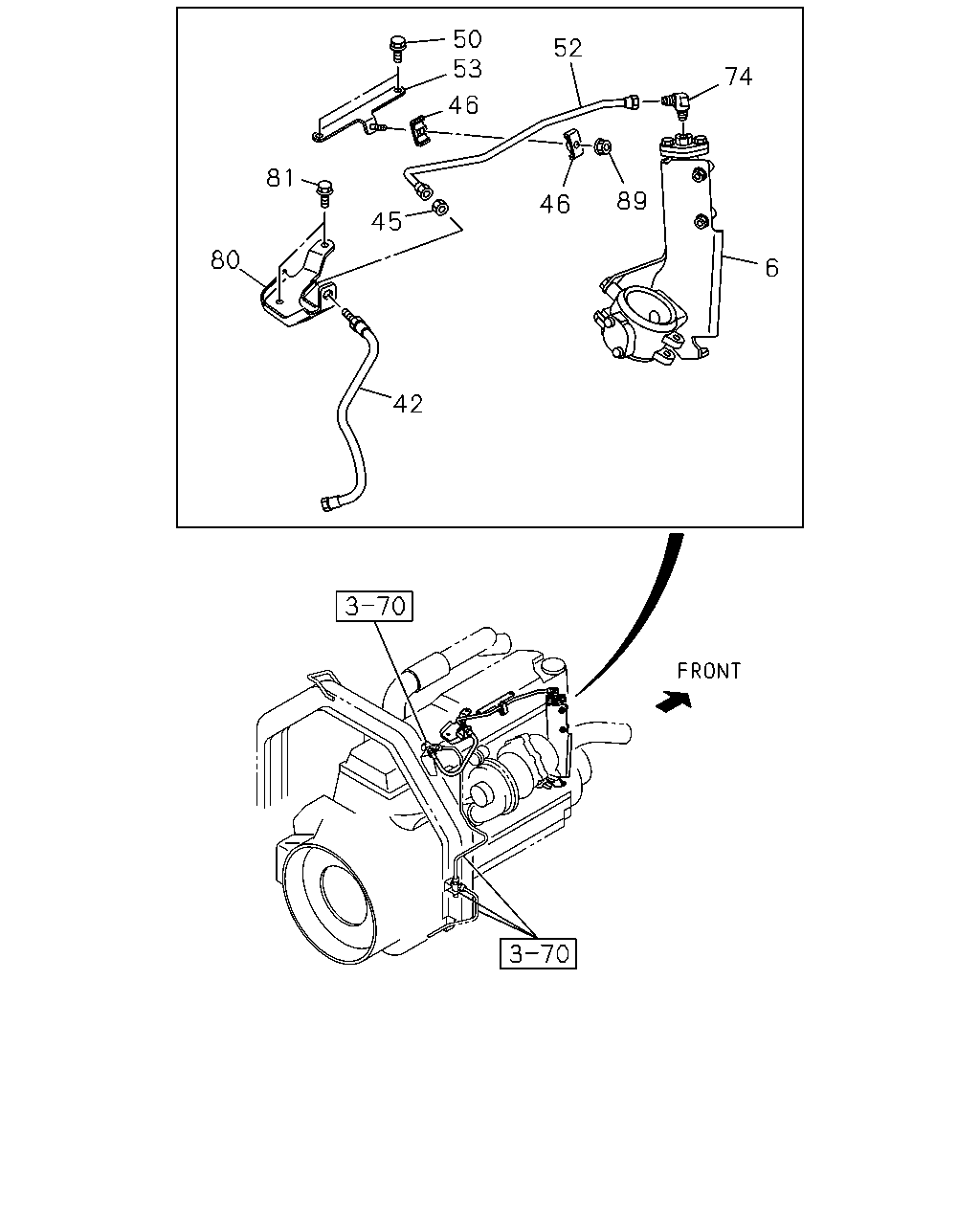

1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER
(#133349) — 32 parça
Tümü
A - 4HK1-TCS ENG
B - 6HK1-TCN ENG
◀
[155A] 6HK1 (17 parça)
[155A] 4HK1 (15 parça)
▶
50
53
46
45
81
80
42
46
52
89
74
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
6
VALVE; EXH BRAKE
8-98054-172-6
01
1
1406-
●
6
VALVE; EXH BRAKE
8-97602-527-1
01
1
1402-
●
42
HOSE; FLEX,EXH BRK
L=520
1-09363-957-0
01
1
1406-
●
42
HOSE; FLEX,EXH BRK
L=340
1-09363-622-0
01
1
1402-
●
45
NUT; FLEX HOSE
M12
9-09840-280-0
01
1
1402-
●
46
CLIP; AIR PIPE
8-98148-996-2
02
1
1402-
●
50
BOLT; BRKT
M8X12 FLANGE THA
0-28050-812-0
02
1
1402-
●
52
PIPE ASM; AIR FLEX HOSE
THA
8-97948-214-0
01
1
1402-
●
53
BRACKET; CLIP
8-98182-766-0
01
1
1402-
●
74
CONNECTOR; EXH BRK VLV
M12 & PT1/4 ELBOW
1-48629-258-0
01
1
1406-1503
●
74
CONNECTOR; EXH BRK VLV
M12 PT1/4 ELBOW
8-98299-777-0
01
1
1504-
●
74
CONNECTOR; EXH BRK VLV
M12 & PT1/4 ELBOW
1-09650-430-0
01
1
1402-
●
80
BRACKET; FLEX HOSE
1-46147-175-0
01
1
1406-
●
80
BRACKET; FLEX HOSE
8-98182-767-0
01
1
1402-
●
81
BOLT; HOSE BRKT
M8X30 FLANGE THA
0-28650-830-0
01
1
1406-
●
81
BOLT; HOSE BRKT
M8X12 FLANGE THA
0-28050-812-0
02
1
1402-
●
89
NUT; BRKT
M6 FLANGE THA
0-91180-106-0
01
1
1402-
●
82
81
80
77
71
83
42
74
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
6
VALVE; EXH BRAKE
8-98054-172-6
01
1
1406-
●
6
VALVE; EXH BRAKE
8-97602-527-1
01
1
1402-
●
42
HOSE; FLEX,EXH BRK
L=520
1-09363-957-0
01
1
1406-
●
42
HOSE; FLEX,EXH BRK
L=340
1-09363-622-0
01
1
1402-
●
71
BOLT; CLIP
M8X25 FLANGE THA
0-28650-825-0
01
1
1406-
●
74
CONNECTOR; EXH BRK VLV
M12 & PT1/4 ELBOW
1-48629-258-0
01
1
1406-1503
●
74
CONNECTOR; EXH BRK VLV
M12 PT1/4 ELBOW
8-98299-777-0
01
1
1504-
●
74
CONNECTOR; EXH BRK VLV
M12 & PT1/4 ELBOW
1-09650-430-0
01
1
1402-
●
77
NUT; CLIP
M8 FLANGE THA
0-91180-108-0
01
1
1406-
●
80
BRACKET; FLEX HOSE
1-46147-175-0
01
1
1406-
●
80
BRACKET; FLEX HOSE
8-98182-767-0
01
1
1402-
●
81
BOLT; HOSE BRKT
M8X30 FLANGE THA
0-28650-830-0
01
1
1406-
●
81
BOLT; HOSE BRKT
M8X12 FLANGE THA
0-28050-812-0
02
1
1402-
●
82
NUT; HOSE BRKT
M8 FLANGE THA
0-91180-108-0
01
1
1406-
●
83
CLIP; FLEX HOSE
ID=15 L=28
1-09701-216-0
01
1
1406-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
