Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#133348) — 189 parça

128 415 97 22 105 11 126 64 360 68 107 81 58 68 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	PIPE; EXH,RR 6HK1-TCN ENG<82L> WHEEL BASE 3600MM<36W> THA	8-97924-667-0	01	1	1402-
22	CLAMP; EXH PIPE 4HK1-TCS ENG<RJS> (B)	8-97646-674-0	01	1	1406-
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	1402-1405
22	CLAMP; EXH PIPE WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> (A) ID=80-84	1-22133-233-0	02	1	1402-1405
22	CLAMP; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (A) ID=80-84	1-22133-233-0	02	1	1402-1405
22	CLAMP; EXH PIPE 6HK1-TCN ENG<82L> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> (A) ID=80-84	1-22133-233-0	02	1	1406-
22	CLAMP; EXH PIPE 6HK1-TCN ENG<82L> TAIL PIPE SINGLE HORIZONTAL<NC2> (A) ID=80-84	1-22133-233-0	02	1	1406-
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	1406-
22	CLAMP; EXH PIPE 6HK1-TCN ENG<82L> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) THA	8-97917-678-1	01	1	1402-
58	BRACKET; EXH PIPE,RR 6HK1-TCN ENG<82L> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> THA	8-98056-460-0	01	1	1402-
64	U-BOLT; EXH PIPE,RR 6HK1-TCN ENG<82L> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A)	1-22113-100-0	01	1	1402-
64	U-BOLT; EXH PIPE,RR 6HK1-TCN ENG<82L> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) THA	8-97926-650-0	01	1	1402-
68	NUT; U BOLT 6HK1-TCN ENG<82L> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M8 FLANGE THA	0-91180-108-0	02	1	1402-
68	NUT; U BOLT 6HK1-TCN ENG<82L> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M8 FLANGE THA	0-91180-108-0	02	1	1402-
81	NUT; BRKT (A) M10 FLANGE THA	0-91180-210-0	02	1	1402-1405
81	NUT; BRKT (A) M10 FLANGE THA	0-91180-210-0	02	1	1406-
81	NUT; BRKT 4HK1-TCS ENG<RJS> (A) M10 FLANGE THA	0-91180-210-0	02	1	1406-
81	NUT; BRKT 6HK1-TCN ENG<82L> (B) M10 LOCK NUT	0-91370-010-0	01	1	1402-
81	NUT; BRKT 6HK1-TCN ENG<82L> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> (B) M10 LOCK NUT	0-91370-010-0	01	1	1402-
81	NUT; BRKT 6HK1-TCN ENG<82L> TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M10 LOCK NUT	0-91370-010-0	01	1	1402-
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (C) M8 FLANGE THA	0-91180-108-0	02	1	1402-
97	WASHER; PL,CLAMP 6HK1-TCN ENG<82L> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> ID=10.5	0-91610-710-0	01	1	1402-
105	NUT; CLAMP M10 FLANGE THA	0-91180-210-0	02	1	1402-1405
105	NUT; CLAMP WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> M10 FLANGE THA	0-91180-210-0	02	1	1402-1405
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M10 FLANGE THA	0-91180-210-0	02	1	1402-1405
105	NUT; CLAMP 6HK1-TCN ENG<82L> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> M10 FLANGE THA	0-91180-210-0	02	1	1406-
105	NUT; CLAMP 6HK1-TCN ENG<82L> TAIL PIPE SINGLE HORIZONTAL<NC2> M10 FLANGE THA	0-91180-210-0	02	1	1406-
105	NUT; CLAMP M10 FLANGE THA	0-91180-210-0	02	1	1406-
105	NUT; CLAMP 6HK1-TCN ENG<82L> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10 FLANGE THA	0-91180-210-0	01	1	1402-
107	BOLT; BRKT (A) M10X35 FLANGE THA	0-28651-035-0	04	1	1402-
107	BOLT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M8X30 FLANGE THA	0-28650-830-0	02	1	1402-
126	PIPE; EXH,RR TAILPIPE SINGLE SHORT TYPE<8JJ> THA	8-98210-836-0	01	1	1402-
128	PIPE; EXH,RR 6HK1-TCN ENG<82L> WHEEL BASE 3600MM<36W> TAIL PIPE SINGLE HORIZONTAL<NC2> THA	8-98219-144-0	01	1	1402-
360	PIECE; DIST,EXH PIPE 6HK1-TCN ENG<82L> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> THA	8-97917-674-1	01	1	1402-
415	BOLT; CLAMP 6HK1-TCN ENG<82L> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10X35 FLANGE THA	0-28651-035-0	01	1	1402-

1 12 1 20 20 476 475 476

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH 4HK1-TCS ENG<RJS> (A) THA	8-97924-565-0	01	1	1406-
1	PIPE; EXH 4HK1-TCS ENG<RJS> (B) THA	8-98206-298-0	01	1	1406-
1	PIPE; EXH 6HK1-TCN ENG<82L> (A) THA	8-98212-603-0	01	1	1402-
12	SILENCER ASM; EXH 4HK1-TCS ENG<RJS> THA	8-97926-369-0	01	1	1406-
12	SILENCER ASM; EXH 6HK1-TCN ENG<82L> THA	8-97926-409-0	01	1	1402-
20	BOLT; FLANGE,EXH PIPE 6HK1-TCN ENG<82L> M10X49.8 THA	8-97039-586-0	02	1	1402-
475	BEARING; SEAL,VIBNON,EXH PIPE 6HK1-TCN ENG<82L> OD=112 THA	1-22119-294-1	01	1	1402-
476	SPRING; VIBNON,EXH PIPE 6HK1-TCN ENG<82L> THA	8-94141-851-0	02	1	1402-

36 34 1 34 36 17 107 81 118 81 121 75 60 75 56 70 105 22 63 94 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH 4HK1-TCS ENG<RJS> (A) THA	8-97924-565-0	01	1	1406-
1	PIPE; EXH 4HK1-TCS ENG<RJS> (B) THA	8-98206-298-0	01	1	1406-
1	PIPE; EXH 6HK1-TCN ENG<82L> (A) THA	8-98212-603-0	01	1	1402-
17	BOLT; EXH PIPE 4HK1-TCS ENG<RJS> (A) M12X35 FLANGE THA	0-28051-235-0	04	1	1406-
17	BOLT; EXH PIPE 6HK1-TCN ENG<82L> (B) M12X120	1-09000-293-0	01	1	1402-
22	CLAMP; EXH PIPE 4HK1-TCS ENG<RJS> (B)	8-97646-674-0	01	1	1406-
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	1402-1405
22	CLAMP; EXH PIPE WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> (A) ID=80-84	1-22133-233-0	02	1	1402-1405
22	CLAMP; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (A) ID=80-84	1-22133-233-0	02	1	1402-1405
22	CLAMP; EXH PIPE 6HK1-TCN ENG<82L> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> (A) ID=80-84	1-22133-233-0	02	1	1406-
22	CLAMP; EXH PIPE 6HK1-TCN ENG<82L> TAIL PIPE SINGLE HORIZONTAL<NC2> (A) ID=80-84	1-22133-233-0	02	1	1406-
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	1406-
22	CLAMP; EXH PIPE 6HK1-TCN ENG<82L> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) THA	8-97917-678-1	01	1	1402-
34	WASHER; EXH PIPE 6HK1-TCN ENG<82L> ID=13 OD=24 DISH	1-09500-030-0	03	1	1402-
36	NUT; EXH PIPE 4HK1-TCS ENG<RJS> (C) M10 FLANGE THA	0-91180-210-0	02	1	1406-
36	NUT; EXH PIPE 4HK1-TCS ENG<RJS> (B) M10 FLANGE	8-97096-192-1	03	1	1406-
36	NUT; EXH PIPE 6HK1-TCN ENG<82L> (A) M12	1-09400-010-0	03	1	1402-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG<RJS> (C)	8-98206-303-0	01	1	1406-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG<RJS> (B)	8-98206-304-0	01	1	1406-
56	BRACKET; CLAMP,EXH PIPE (A) FRONT L=40 B=50 H=74	1-22139-045-0	01	1	1402-
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> (A) REAR L=40 B=50 H=74	1-22139-045-0	01	1	1402-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG<82L> TAIL PIPE SINGLE HORIZONTAL<NC2> (A) REAR L=60 B=50 H=74	8-98219-141-0	01	1	1402-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG<RJS>	8-98206-302-0	02	1	1406-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG<82L>	8-98183-955-0	01	1	1402-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG<82L> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W>	8-98183-955-0	01	1	1402-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG<82L> TAIL PIPE SINGLE HORIZONTAL<NC2>	8-98183-955-0	01	1	1402-
63	TUBE; DIST,BRKT 6HK1-TCN ENG<82L> L=11	1-22139-026-0	01	1	1402-
63	TUBE; DIST,BRKT 6HK1-TCN ENG<82L> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> L=11	1-22139-026-0	01	1	1402-
63	TUBE; DIST,BRKT 6HK1-TCN ENG<82L> TAIL PIPE SINGLE HORIZONTAL<NC2> L=11	1-22139-026-0	01	1	1402-
70	BOLT; BRKT 4HK1-TCS ENG<RJS> M10X70 FLANGE THA	0-28051-070-0	02	1	1406-
70	BOLT; BRKT 6HK1-TCN ENG<82L> M10X50	0-10856-050-0	01	1	1402-
70	BOLT; BRKT 6HK1-TCN ENG<82L> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> M10X50	0-10856-050-0	01	1	1402-
70	BOLT; BRKT 6HK1-TCN ENG<82L> TAIL PIPE SINGLE HORIZONTAL<NC2> M10X50	0-10856-050-0	01	1	1402-
75	RUBBER; SUPPORT,BRKT 6HK1-TCN ENG<82L> OD=30	1-22159-106-1	02	1	1402-
75	RUBBER; SUPPORT,BRKT 6HK1-TCN ENG<82L> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> OD=30	1-22159-106-1	02	1	1402-
75	RUBBER; SUPPORT,BRKT 6HK1-TCN ENG<82L> TAIL PIPE SINGLE HORIZONTAL<NC2> OD=30	1-22159-106-1	02	1	1402-
81	NUT; BRKT (A) M10 FLANGE THA	0-91180-210-0	02	1	1402-1405
81	NUT; BRKT (A) M10 FLANGE THA	0-91180-210-0	02	1	1406-
81	NUT; BRKT 4HK1-TCS ENG<RJS> (A) M10 FLANGE THA	0-91180-210-0	02	1	1406-
81	NUT; BRKT 6HK1-TCN ENG<82L> (B) M10 LOCK NUT	0-91370-010-0	01	1	1402-
81	NUT; BRKT 6HK1-TCN ENG<82L> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> (B) M10 LOCK NUT	0-91370-010-0	01	1	1402-
81	NUT; BRKT 6HK1-TCN ENG<82L> TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M10 LOCK NUT	0-91370-010-0	01	1	1402-
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (C) M8 FLANGE THA	0-91180-108-0	02	1	1402-
94	BOLT; CLAMP M10X40 FLANGE THA	0-28651-040-0	02	1	1402-1405
94	BOLT; CLAMP WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> M10X40 FLANGE THA	0-28651-040-0	02	1	1402-1405
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M10X40 FLANGE THA	0-28651-040-0	02	1	1402-1405
94	BOLT; CLAMP 6HK1-TCN ENG<82L> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> M10X40 FLANGE THA	0-28651-040-0	02	1	1406-
94	BOLT; CLAMP 6HK1-TCN ENG<82L> TAIL PIPE SINGLE HORIZONTAL<NC2> M10X40 FLANGE THA	0-28651-040-0	02	1	1406-
94	BOLT; CLAMP M10X40 FLANGE THA	0-28651-040-0	02	1	1406-
105	NUT; CLAMP M10 FLANGE THA	0-91180-210-0	02	1	1402-1405
105	NUT; CLAMP WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> M10 FLANGE THA	0-91180-210-0	02	1	1402-1405
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M10 FLANGE THA	0-91180-210-0	02	1	1402-1405
105	NUT; CLAMP 6HK1-TCN ENG<82L> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> M10 FLANGE THA	0-91180-210-0	02	1	1406-
105	NUT; CLAMP 6HK1-TCN ENG<82L> TAIL PIPE SINGLE HORIZONTAL<NC2> M10 FLANGE THA	0-91180-210-0	02	1	1406-
105	NUT; CLAMP M10 FLANGE THA	0-91180-210-0	02	1	1406-
105	NUT; CLAMP 6HK1-TCN ENG<82L> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10 FLANGE THA	0-91180-210-0	01	1	1402-
107	BOLT; BRKT (A) M10X35 FLANGE THA	0-28651-035-0	04	1	1402-
107	BOLT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M8X30 FLANGE THA	0-28650-830-0	02	1	1402-
118	NUT; SILENCER MTG BRKT M10 FLANGE THA	0-91180-210-0	02	1	1402-
121	WASHER; PL,BRKT 4HK1-TCS ENG<RJS> ID=11 OD=54	1-09503-154-2	02	1	1406-
121	WASHER; PL,BRKT 6HK1-TCN ENG<82L> ID=10.5 OD=32	0-91614-810-0	01	1	1402-
121	WASHER; PL,BRKT 6HK1-TCN ENG<82L> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> ID=10.5 OD=32	0-91614-810-0	01	1	1402-
121	WASHER; PL,BRKT 6HK1-TCN ENG<82L> TAIL PIPE SINGLE HORIZONTAL<NC2> ID=10.5 OD=32	0-91614-810-0	01	1	1402-

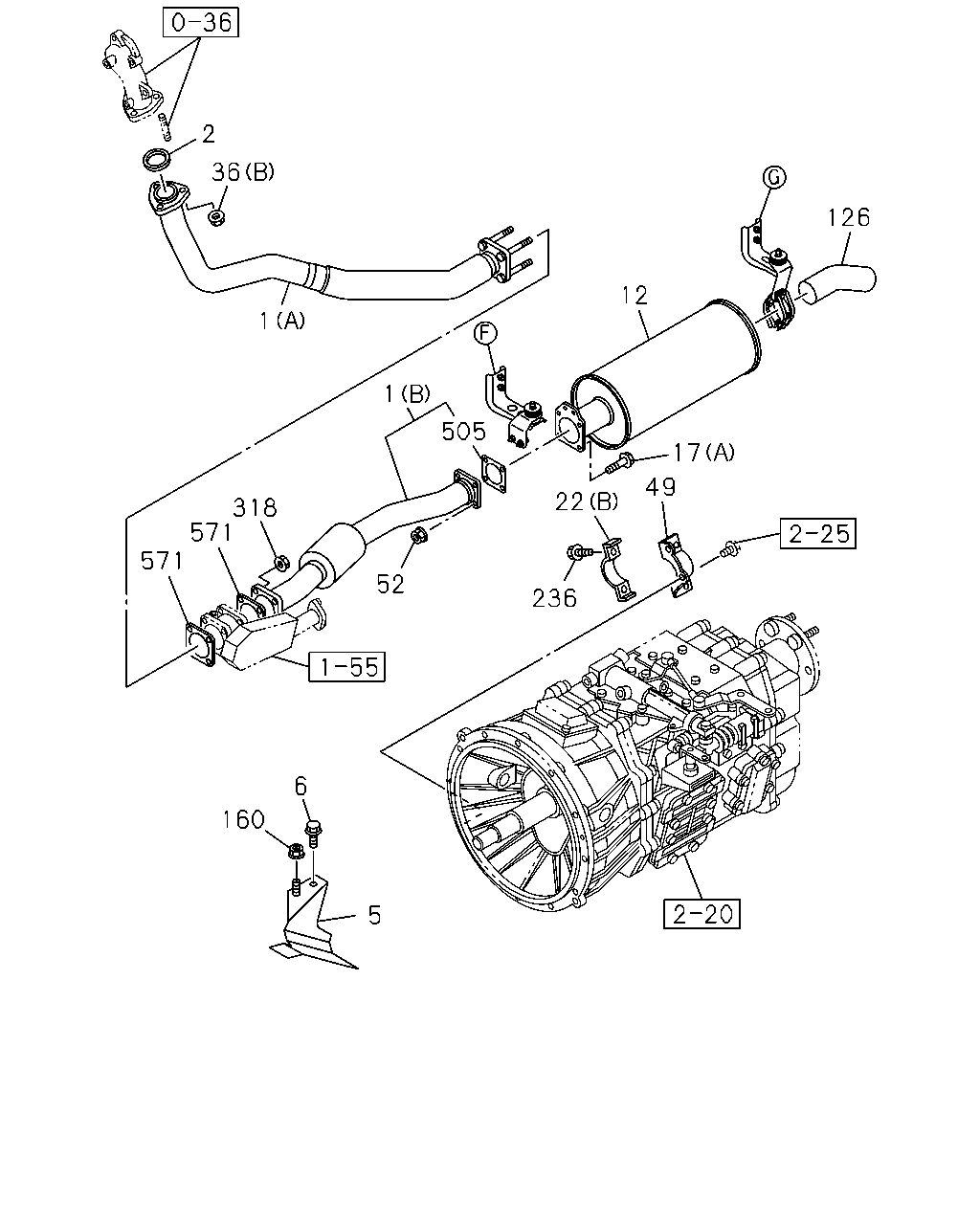

2 36 1 1 318 571 571 52 160 6 5 236 22 49 17 12 126 505

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH 4HK1-TCS ENG<RJS> (A) THA	8-97924-565-0	01	1	1406-
1	PIPE; EXH 4HK1-TCS ENG<RJS> (B) THA	8-98206-298-0	01	1	1406-
1	PIPE; EXH 6HK1-TCN ENG<82L> (A) THA	8-98212-603-0	01	1	1402-
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE). 4HK1-TCS ENG<RJS>	8-97381-455-0	01	1	1406-
5	PROTECTOR; HEAT 4HK1-TCS ENG<RJS>	8-98208-210-1	01	1	1406-
6	BOLT; HEAT PROTECTOR 4HK1-TCS ENG<RJS> M8X25 FLANGE THA	0-28650-825-0	01	1	1406-
12	SILENCER ASM; EXH 4HK1-TCS ENG<RJS> THA	8-97926-369-0	01	1	1406-
12	SILENCER ASM; EXH 6HK1-TCN ENG<82L> THA	8-97926-409-0	01	1	1402-
17	BOLT; EXH PIPE 4HK1-TCS ENG<RJS> (A) M12X35 FLANGE THA	0-28051-235-0	04	1	1406-
17	BOLT; EXH PIPE 6HK1-TCN ENG<82L> (B) M12X120	1-09000-293-0	01	1	1402-
22	CLAMP; EXH PIPE 4HK1-TCS ENG<RJS> (B)	8-97646-674-0	01	1	1406-
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	1402-1405
22	CLAMP; EXH PIPE WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> (A) ID=80-84	1-22133-233-0	02	1	1402-1405
22	CLAMP; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (A) ID=80-84	1-22133-233-0	02	1	1402-1405
22	CLAMP; EXH PIPE 6HK1-TCN ENG<82L> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> (A) ID=80-84	1-22133-233-0	02	1	1406-
22	CLAMP; EXH PIPE 6HK1-TCN ENG<82L> TAIL PIPE SINGLE HORIZONTAL<NC2> (A) ID=80-84	1-22133-233-0	02	1	1406-
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	1406-
22	CLAMP; EXH PIPE 6HK1-TCN ENG<82L> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) THA	8-97917-678-1	01	1	1402-
36	NUT; EXH PIPE 4HK1-TCS ENG<RJS> (C) M10 FLANGE THA	0-91180-210-0	02	1	1406-
36	NUT; EXH PIPE 4HK1-TCS ENG<RJS> (B) M10 FLANGE	8-97096-192-1	03	1	1406-
36	NUT; EXH PIPE 6HK1-TCN ENG<82L> (A) M12	1-09400-010-0	03	1	1402-
49	BRACKET; EXH PIPE TO TRANS 4HK1-TCS ENG<RJS>	8-98234-530-0	01	1	1406-
52	NUT; BRKT 4HK1-TCS ENG<RJS> M12 FLANGE THA	0-91180-212-0	04	1	1406-
126	PIPE; EXH,RR TAILPIPE SINGLE SHORT TYPE<8JJ> THA	8-98210-836-0	01	1	1402-
160	NUT; HEAT PROTECTOR 4HK1-TCS ENG<RJS> M8 FLANGE THA	0-91180-108-0	01	1	1406-
236	BOLT; PIPE CLAMP TO BRKT 4HK1-TCS ENG<RJS> M10X30 FLANGE THA	0-28651-030-0	02	1	1406-
318	NUT; EXH PIPE,FRT 4HK1-TCS ENG<RJS> M8 W/LK WASHER THA	8-97581-234-0	04	1	1406-
505	GASKET; CONV TO EXH PIPE 4HK1-TCS ENG<RJS>	8-98096-305-0	01	1	1406-
571	GASKET 4HK1-TCS ENG<RJS> ID=64	8-97373-108-0	02	1	1406-

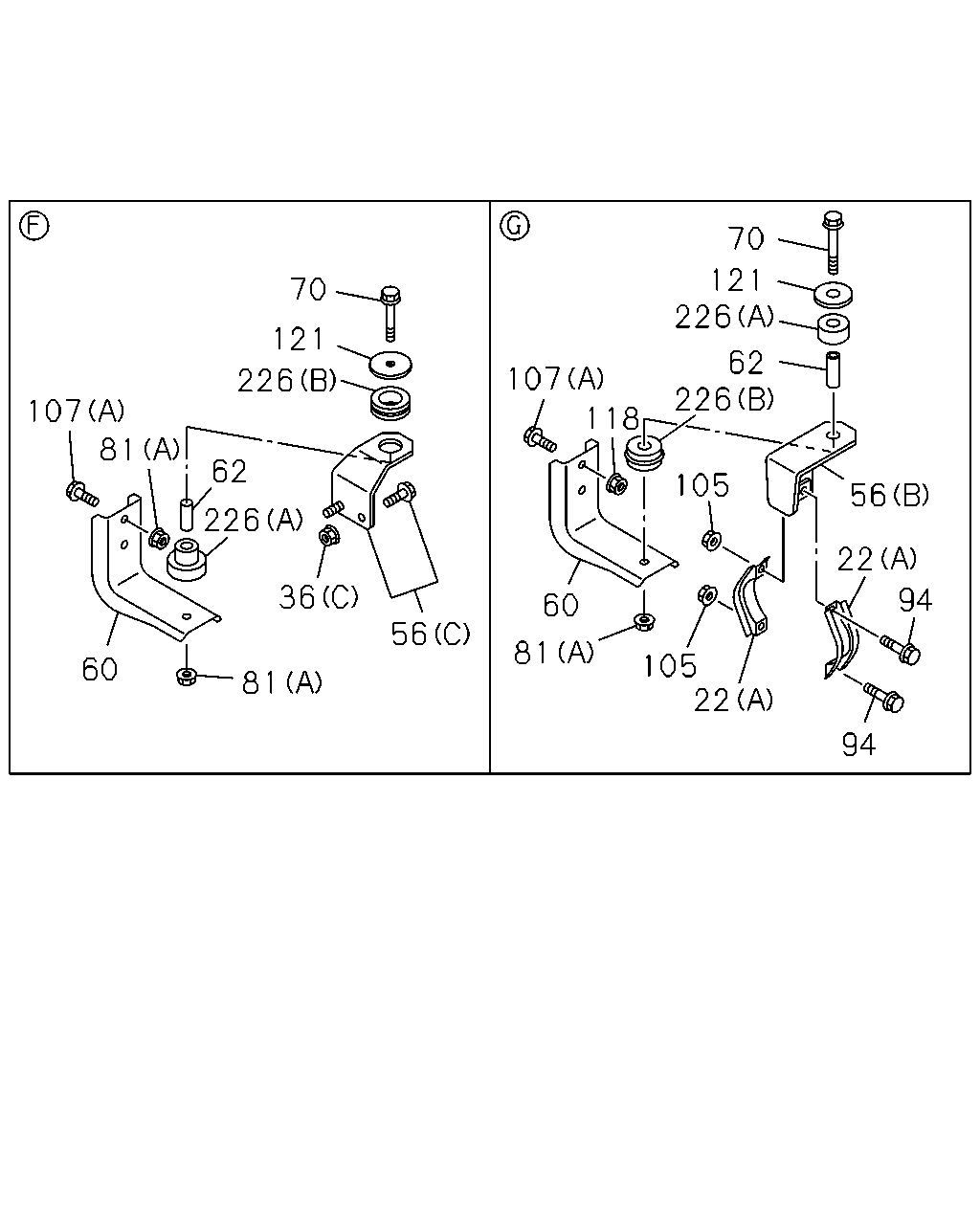

70 121 226 62 226 107 118 105 56 22 94 94 22 105 60 81 56 36 81 60 107 81 62 226 226 121 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	CLAMP; EXH PIPE 4HK1-TCS ENG<RJS> (B)	8-97646-674-0	01	1	1406-
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	1402-1405
22	CLAMP; EXH PIPE WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> (A) ID=80-84	1-22133-233-0	02	1	1402-1405
22	CLAMP; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (A) ID=80-84	1-22133-233-0	02	1	1402-1405
22	CLAMP; EXH PIPE 6HK1-TCN ENG<82L> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> (A) ID=80-84	1-22133-233-0	02	1	1406-
22	CLAMP; EXH PIPE 6HK1-TCN ENG<82L> TAIL PIPE SINGLE HORIZONTAL<NC2> (A) ID=80-84	1-22133-233-0	02	1	1406-
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	1406-
22	CLAMP; EXH PIPE 6HK1-TCN ENG<82L> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) THA	8-97917-678-1	01	1	1402-
36	NUT; EXH PIPE 4HK1-TCS ENG<RJS> (C) M10 FLANGE THA	0-91180-210-0	02	1	1406-
36	NUT; EXH PIPE 4HK1-TCS ENG<RJS> (B) M10 FLANGE	8-97096-192-1	03	1	1406-
36	NUT; EXH PIPE 6HK1-TCN ENG<82L> (A) M12	1-09400-010-0	03	1	1402-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG<RJS> (C)	8-98206-303-0	01	1	1406-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG<RJS> (B)	8-98206-304-0	01	1	1406-
56	BRACKET; CLAMP,EXH PIPE (A) FRONT L=40 B=50 H=74	1-22139-045-0	01	1	1402-
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> (A) REAR L=40 B=50 H=74	1-22139-045-0	01	1	1402-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG<82L> TAIL PIPE SINGLE HORIZONTAL<NC2> (A) REAR L=60 B=50 H=74	8-98219-141-0	01	1	1402-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG<RJS>	8-98206-302-0	02	1	1406-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG<82L>	8-98183-955-0	01	1	1402-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG<82L> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W>	8-98183-955-0	01	1	1402-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG<82L> TAIL PIPE SINGLE HORIZONTAL<NC2>	8-98183-955-0	01	1	1402-
62	TUBE; DIST,BRKT 4HK1-TCS ENG<RJS> THA	8-97948-228-0	02	1	1406-
70	BOLT; BRKT 4HK1-TCS ENG<RJS> M10X70 FLANGE THA	0-28051-070-0	02	1	1406-
70	BOLT; BRKT 6HK1-TCN ENG<82L> M10X50	0-10856-050-0	01	1	1402-
70	BOLT; BRKT 6HK1-TCN ENG<82L> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> M10X50	0-10856-050-0	01	1	1402-
70	BOLT; BRKT 6HK1-TCN ENG<82L> TAIL PIPE SINGLE HORIZONTAL<NC2> M10X50	0-10856-050-0	01	1	1402-
81	NUT; BRKT (A) M10 FLANGE THA	0-91180-210-0	02	1	1402-1405
81	NUT; BRKT (A) M10 FLANGE THA	0-91180-210-0	02	1	1406-
81	NUT; BRKT 4HK1-TCS ENG<RJS> (A) M10 FLANGE THA	0-91180-210-0	02	1	1406-
81	NUT; BRKT 6HK1-TCN ENG<82L> (B) M10 LOCK NUT	0-91370-010-0	01	1	1402-
81	NUT; BRKT 6HK1-TCN ENG<82L> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> (B) M10 LOCK NUT	0-91370-010-0	01	1	1402-
81	NUT; BRKT 6HK1-TCN ENG<82L> TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M10 LOCK NUT	0-91370-010-0	01	1	1402-
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (C) M8 FLANGE THA	0-91180-108-0	02	1	1402-
94	BOLT; CLAMP M10X40 FLANGE THA	0-28651-040-0	02	1	1402-1405
94	BOLT; CLAMP WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> M10X40 FLANGE THA	0-28651-040-0	02	1	1402-1405
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M10X40 FLANGE THA	0-28651-040-0	02	1	1402-1405
94	BOLT; CLAMP 6HK1-TCN ENG<82L> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> M10X40 FLANGE THA	0-28651-040-0	02	1	1406-
94	BOLT; CLAMP 6HK1-TCN ENG<82L> TAIL PIPE SINGLE HORIZONTAL<NC2> M10X40 FLANGE THA	0-28651-040-0	02	1	1406-
94	BOLT; CLAMP M10X40 FLANGE THA	0-28651-040-0	02	1	1406-
105	NUT; CLAMP M10 FLANGE THA	0-91180-210-0	02	1	1402-1405
105	NUT; CLAMP WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> M10 FLANGE THA	0-91180-210-0	02	1	1402-1405
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M10 FLANGE THA	0-91180-210-0	02	1	1402-1405
105	NUT; CLAMP 6HK1-TCN ENG<82L> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> M10 FLANGE THA	0-91180-210-0	02	1	1406-
105	NUT; CLAMP 6HK1-TCN ENG<82L> TAIL PIPE SINGLE HORIZONTAL<NC2> M10 FLANGE THA	0-91180-210-0	02	1	1406-
105	NUT; CLAMP M10 FLANGE THA	0-91180-210-0	02	1	1406-
105	NUT; CLAMP 6HK1-TCN ENG<82L> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10 FLANGE THA	0-91180-210-0	01	1	1402-
107	BOLT; BRKT (A) M10X35 FLANGE THA	0-28651-035-0	04	1	1402-
107	BOLT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M8X30 FLANGE THA	0-28650-830-0	02	1	1402-
118	NUT; SILENCER MTG BRKT M10 FLANGE THA	0-91180-210-0	02	1	1402-
121	WASHER; PL,BRKT 4HK1-TCS ENG<RJS> ID=11 OD=54	1-09503-154-2	02	1	1406-
121	WASHER; PL,BRKT 6HK1-TCN ENG<82L> ID=10.5 OD=32	0-91614-810-0	01	1	1402-
121	WASHER; PL,BRKT 6HK1-TCN ENG<82L> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> ID=10.5 OD=32	0-91614-810-0	01	1	1402-
121	WASHER; PL,BRKT 6HK1-TCN ENG<82L> TAIL PIPE SINGLE HORIZONTAL<NC2> ID=10.5 OD=32	0-91614-810-0	01	1	1402-
226	RUBBER; CUSHION 4HK1-TCS ENG<RJS> (A) THA	8-97948-226-0	02	1	1406-
226	RUBBER; CUSHION 4HK1-TCS ENG<RJS> (B) THA	8-97948-227-0	02	1	1406-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
