Sayfa 1-41 - Isuzu EPC

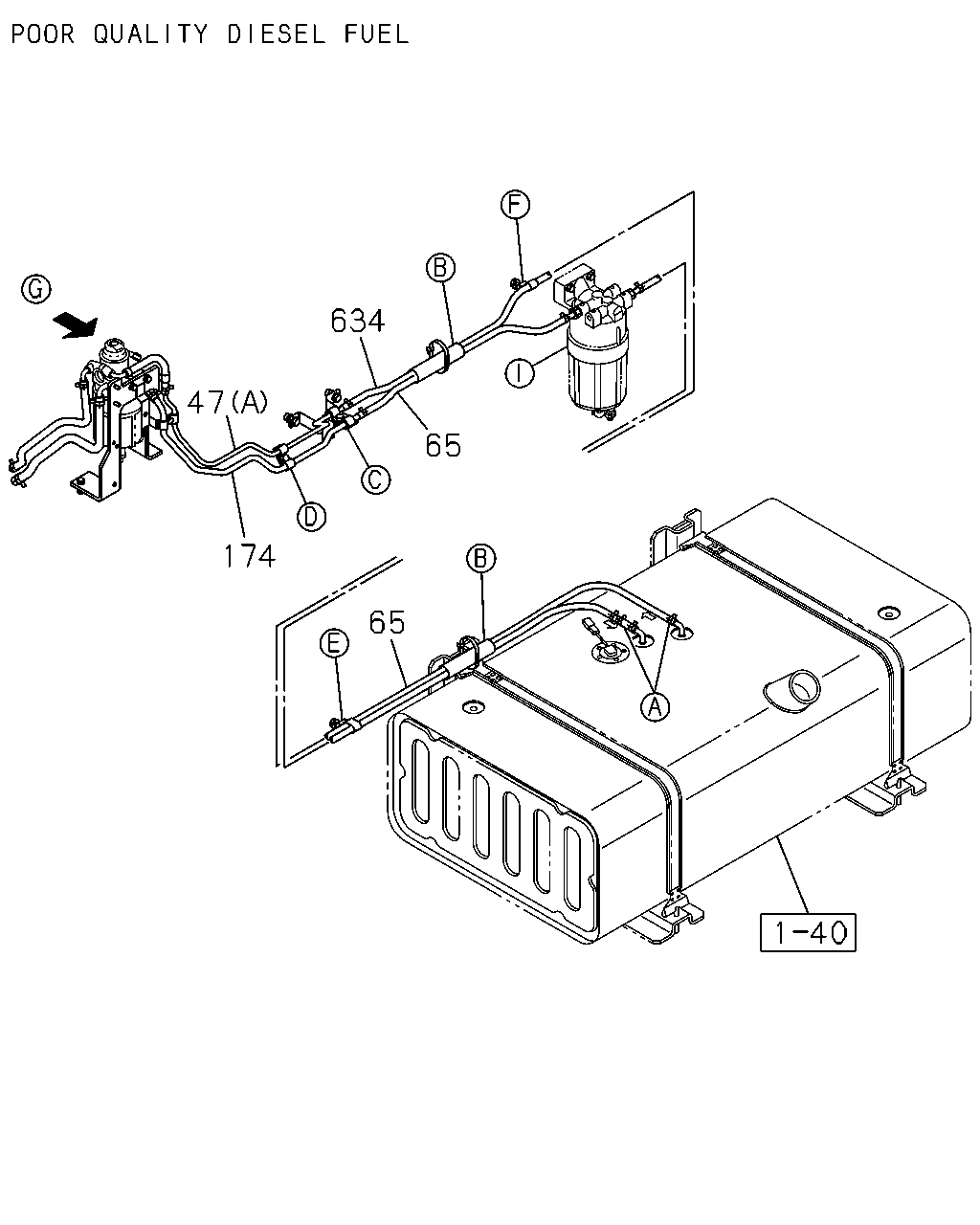

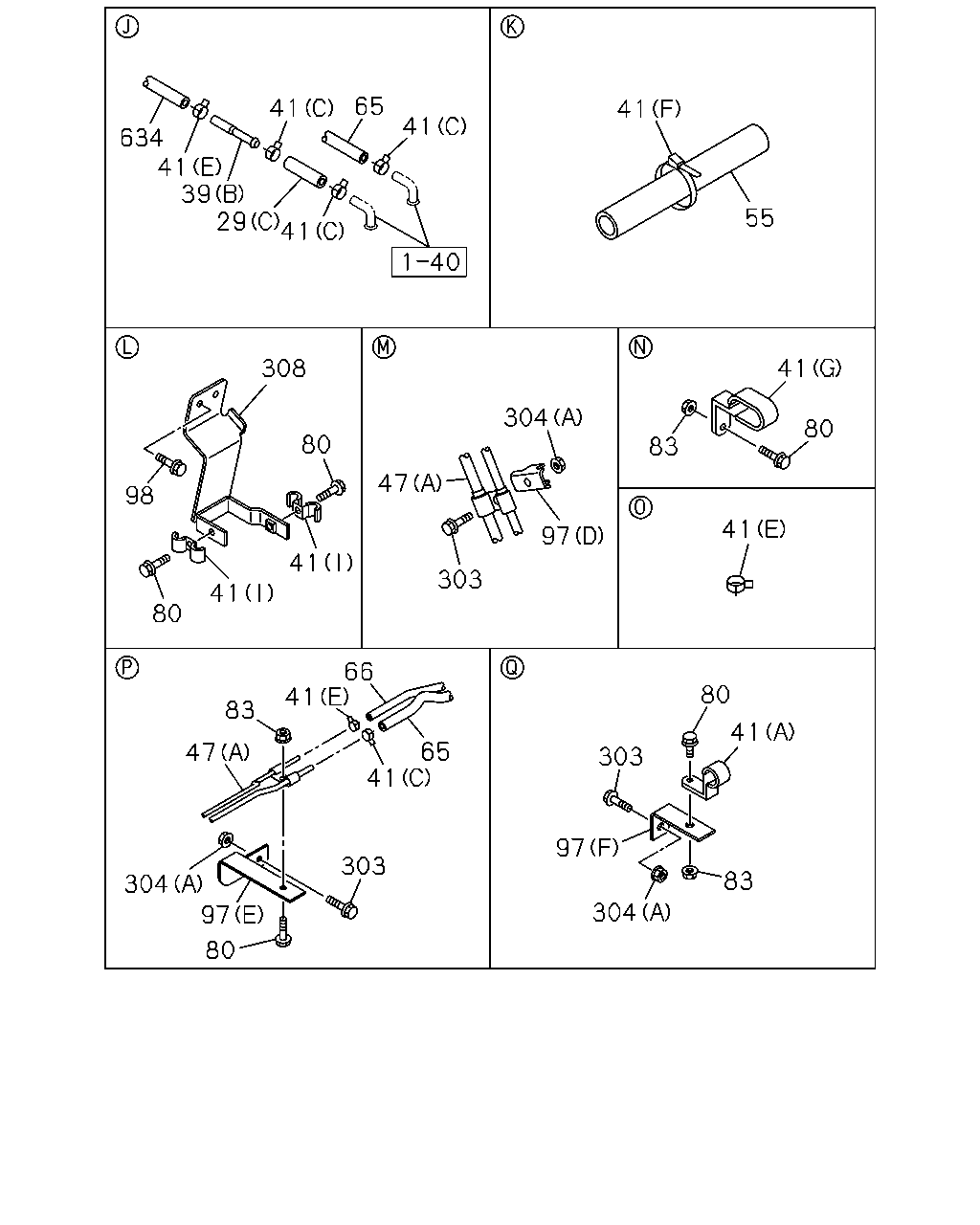

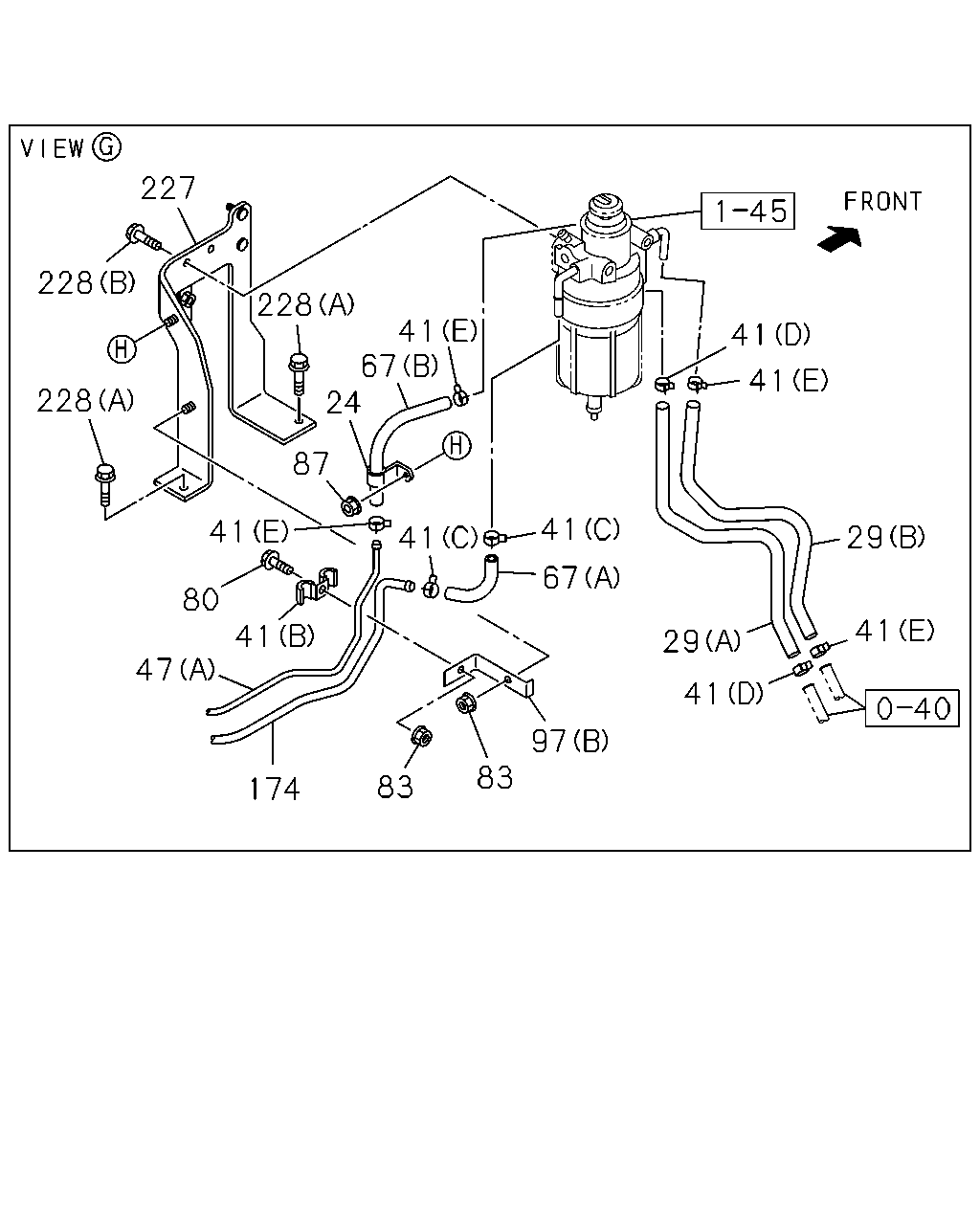

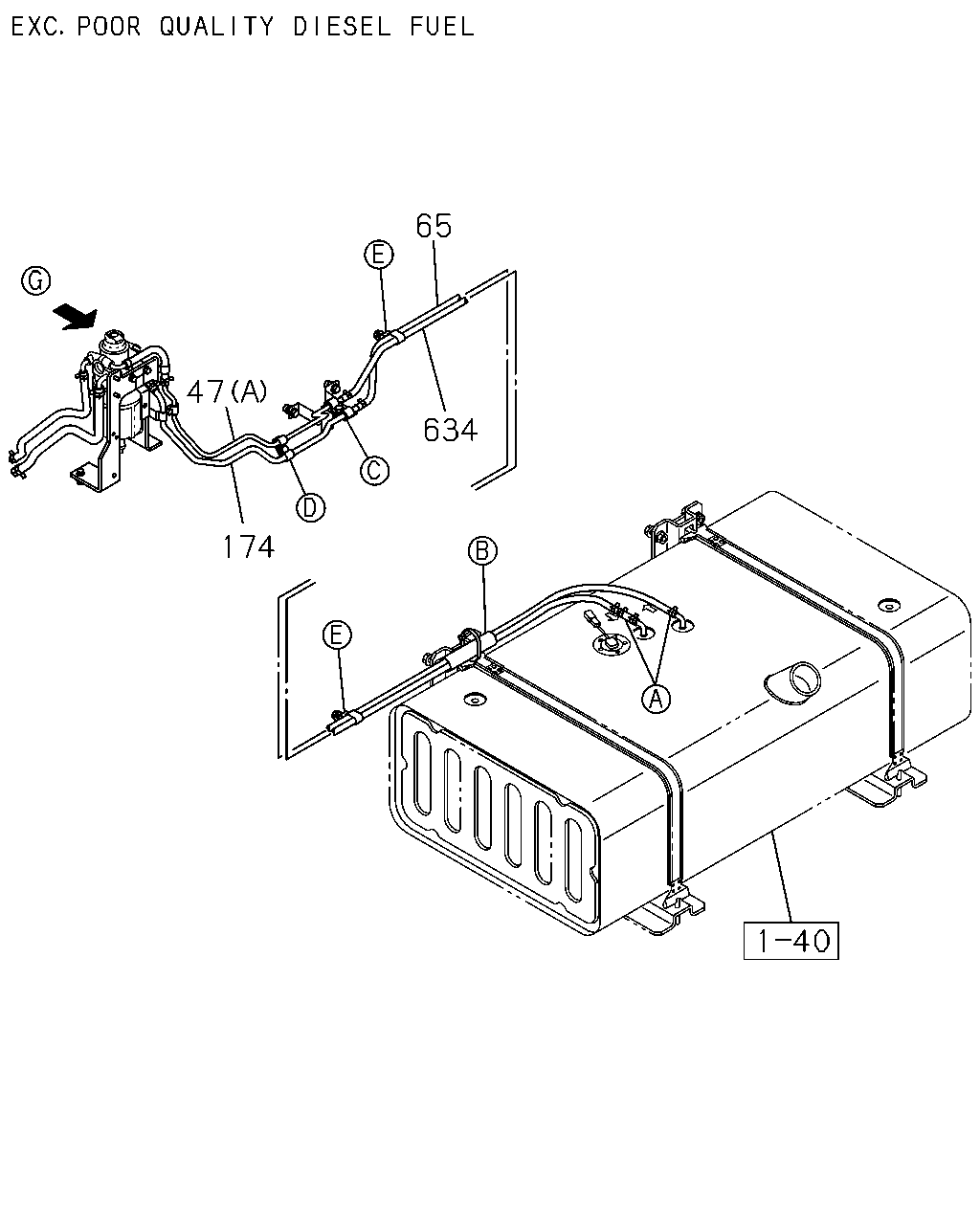

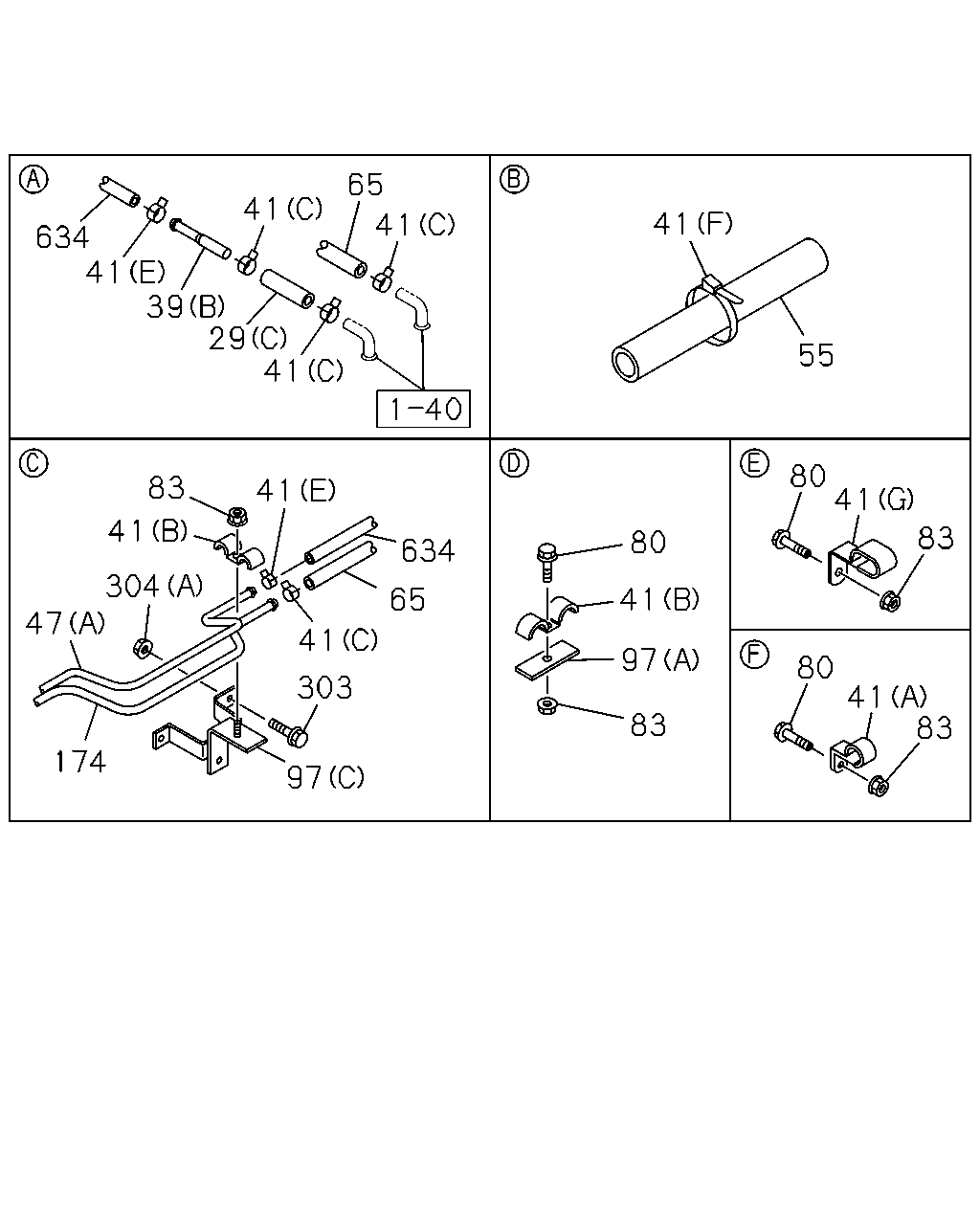

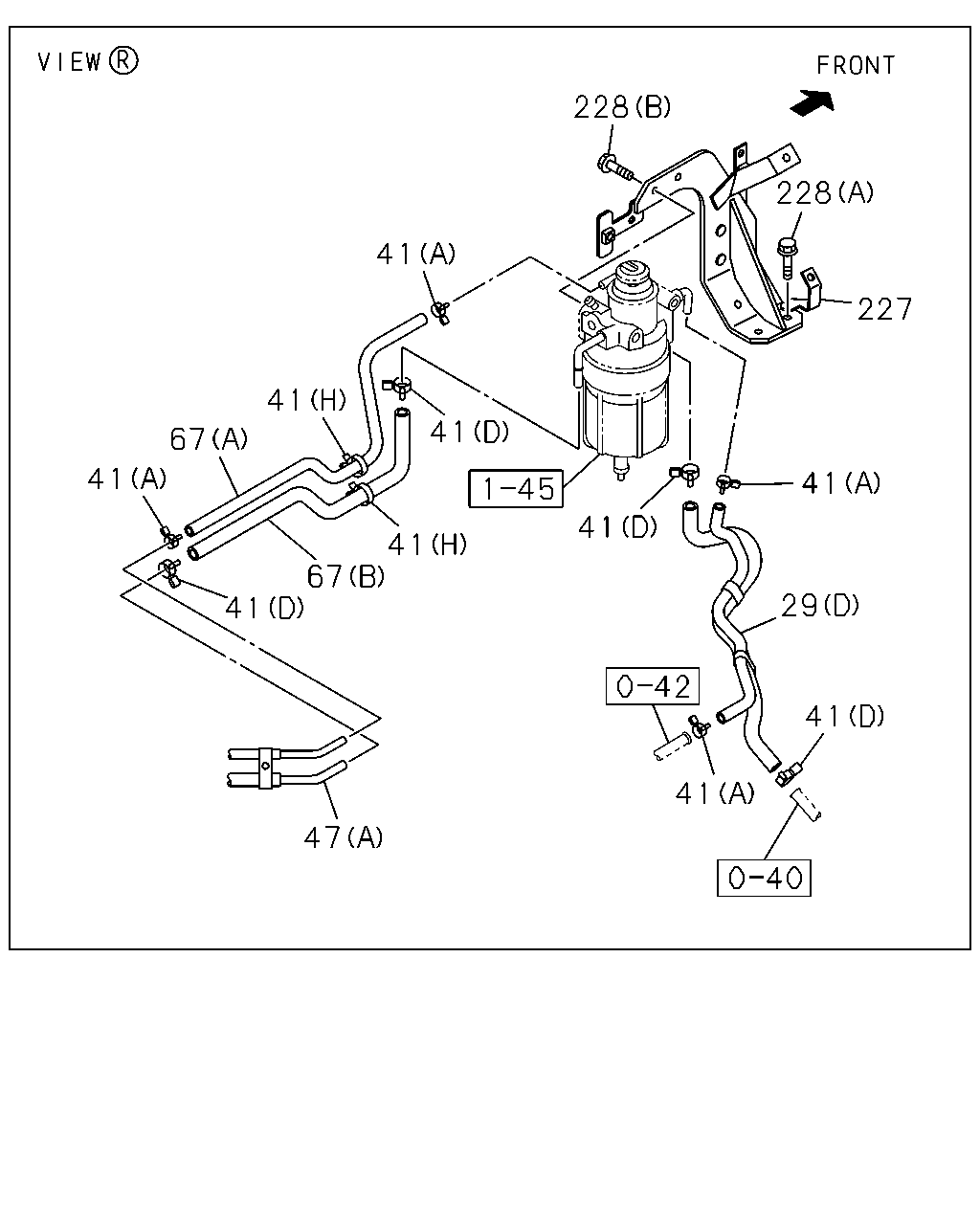

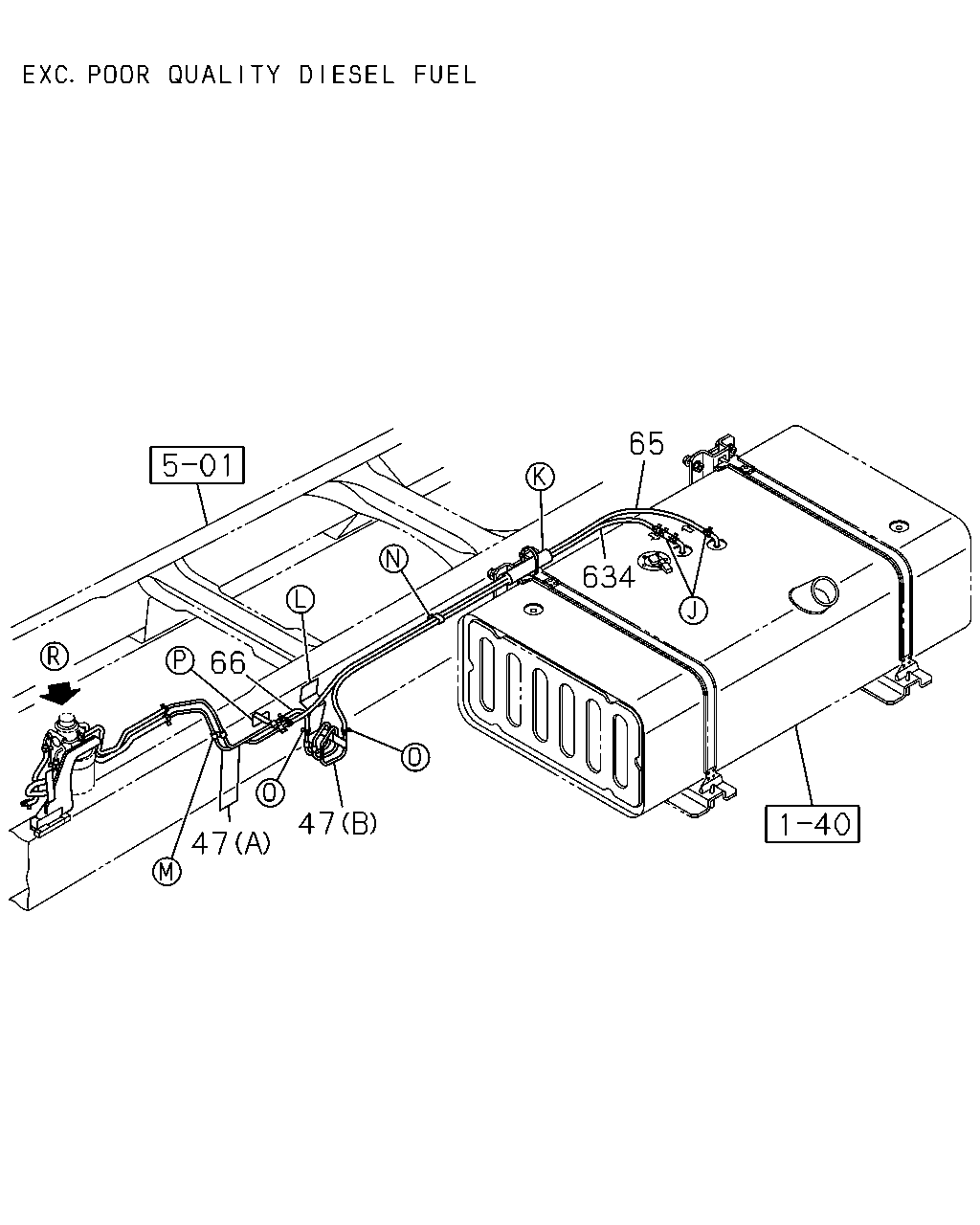

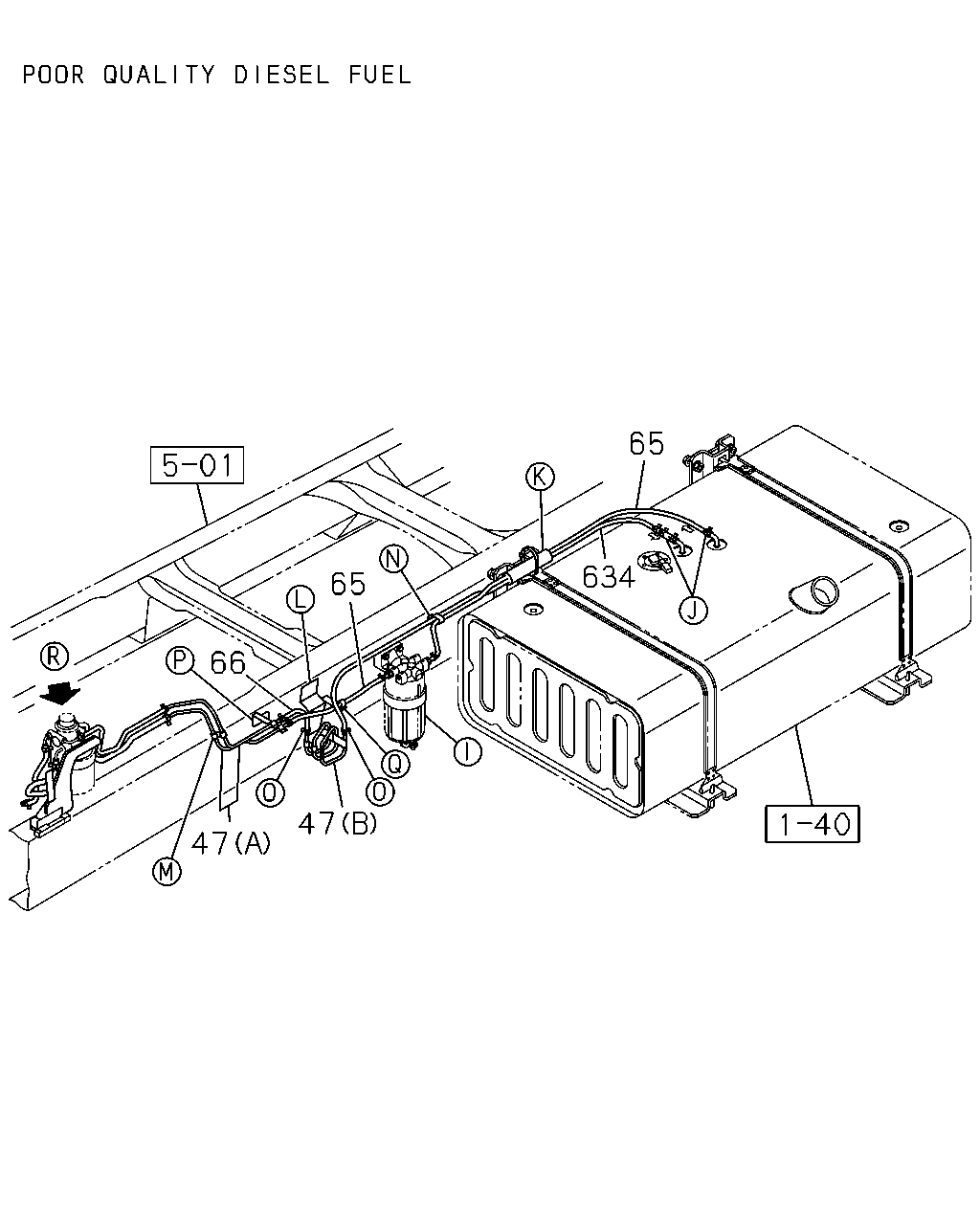

1-41 — FUEL PIPING; CHASSIS (#133346) — 379 parça

47 65 634 174

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	PIPE; FUEL,RETURN 4HK1-TCS ENG<RJS> (B)	8-98213-750-0	01	1	1406-
47	PIPE; FUEL,RETURN 4HK1-TCS ENG<RJS> (A)	8-98229-613-0	01	1	1406-
47	PIPE; FUEL,RETURN 6HK1-TCN ENG<82L> (A) L=766 THA	8-98105-178-0	01	1	1402-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG<RJS> POOR QUALITY DIESEL FUEL<KF0> L=450 SERVICED BY L=3000	0-01260-300-0	01	1	1406-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> POOR QUALITY DIESEL FUEL<KF0> L=1200 SERVICED BY L=3000	0-01260-300-0	01	1	1406-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> EXC. POOR QUALITY DIESEL FUEL<KF0> L=1800 SERVICED BY L=3000	0-01260-300-0	01	1	1406-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> EXC. POOR QUALITY DIESEL FUEL<KF0> L=1600 SERVICED BY L=3000	0-01260-300-0	01	1	1406-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> L=280 SERVICED BY L=3000	0-01260-300-0	01	1	1402-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> L=980 SERVICED BY L=3000	0-01260-300-0	01	1	1402-1405
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> POOR QUALITY DIESEL FUEL<KF0> L=980 SERVICED BY L=3000	0-01260-300-0	01	1	1406-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> L=980 SERVICED BY L=3000	0-01260-300-0	01	1	1406-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG<82L> EXC. POOR QUALITY DIESEL FUEL<KF0> L=1400 SERVICED BY L=3000	0-01260-300-0	01	1	1402-
174	PIPE; FUEL,FEED,FRT 6HK1-TCN ENG<82L> THA	8-98105-179-0	01	1	1402-
634	HOSE; RUBBER RETURN 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> L=1550 SERVICED BY L=3000	0-01558-300-0	01	1	1406-
634	HOSE; RUBBER RETURN 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> L=1350 SERVICED BY L=3000	0-01558-300-0	01	1	1406-
634	HOSE; RUBBER RETURN 6HK1-TCN ENG<82L> L=1200 SERVICED BY L=3000	0-01558-300-0	01	1	1402-

634 39 41 41 29 41 65 41 41 55 80 83 41 80 41 97 83 80 83 41 97 303 41 65 634 41 83 41 47 304 174

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	HOSE; FUEL 4HK1-TCS ENG<RJS> (D)	8-98220-011-0	01	1	1406-1406
29	HOSE; FUEL 4HK1-TCS ENG<RJS> (D)	8-98281-200-0	01	1	1406-
29	HOSE; FUEL 6HK1-TCN ENG<82L> (A) THA	8-97948-223-0	01	1	1402-
29	HOSE; FUEL 6HK1-TCN ENG<82L> (B) THA	8-97948-224-0	01	1	1402-
29	HOSE; FUEL 6HK1-TCN ENG<82L> (C) L=60	8-98009-718-0	01	1	1402-1405
29	HOSE; FUEL (C) L=60	8-98009-718-0	01	1	1406-
39	PIPE; FUEL 6HK1-TCN ENG<82L> (B) OD=10 & OD=8 L=60 THA	8-97924-060-0	01	1	1402-1405
39	PIPE; FUEL (B) OD=10 & OD=8 L=60 THA	8-97924-060-0	01	1	1406-
39	PIPE; FUEL POOR QUALITY DIESEL FUEL<KF0> (A) NPTF3/8-18 OD=10 THA	8-97948-254-0	02	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> (I) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> (H) ID=13-18 L=14.5	1-09709-290-0	02	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> (D) ID=16	8-94238-568-0	04	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> (E) ID=13	8-94238-571-0	08	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> POOR QUALITY DIESEL FUEL<KF0> (A) ID=15 H=24 L=20	1-09700-606-0	02	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> EXC. POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25	1-09701-101-0	03	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> EXC. POOR QUALITY DIESEL FUEL<KF0> (C) ID=14	1-09704-102-0	04	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> (D) ID=16	8-94238-568-0	02	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> (E) ID=13	8-94238-571-0	06	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> (A) ID=15 H=24 L=20	1-09700-606-0	01	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1402-1405
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> (C) ID=14	1-09704-102-0	08	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> (F) L=250	5-09707-030-1	02	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> EXC. POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25	1-09701-101-0	02	1	1402-1405
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25	1-09701-101-0	02	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> EXC. POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25	1-09701-101-0	02	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> EXC. POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25	1-09701-101-0	02	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> EXC. POOR QUALITY DIESEL FUEL<KF0> (C) ID=14	1-09704-102-0	06	1	1402-1405
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> POOR QUALITY DIESEL FUEL<KF0> (C) ID=14	1-09704-102-0	06	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> EXC. POOR QUALITY DIESEL FUEL<KF0> (C) ID=14	1-09704-102-0	06	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> EXC. POOR QUALITY DIESEL FUEL<KF0> (F) L=250	5-09707-030-1	01	1	1402-1405
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> (F) L=250	5-09707-030-1	01	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> EXC. POOR QUALITY DIESEL FUEL<KF0> (F) L=250	5-09707-030-1	01	1	1406-
47	PIPE; FUEL,RETURN 4HK1-TCS ENG<RJS> (B)	8-98213-750-0	01	1	1406-
47	PIPE; FUEL,RETURN 4HK1-TCS ENG<RJS> (A)	8-98229-613-0	01	1	1406-
47	PIPE; FUEL,RETURN 6HK1-TCN ENG<82L> (A) L=766 THA	8-98105-178-0	01	1	1402-
55	COVER; PIPE,FUEL TANK 6HK1-TCN ENG<82L> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	1402-1405
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	01	1	1406-
55	COVER; PIPE,FUEL TANK 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> ID=32 OD=36 L=50	1-09337-023-0	01	1	1402-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG<RJS> POOR QUALITY DIESEL FUEL<KF0> L=450 SERVICED BY L=3000	0-01260-300-0	01	1	1406-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> POOR QUALITY DIESEL FUEL<KF0> L=1200 SERVICED BY L=3000	0-01260-300-0	01	1	1406-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> EXC. POOR QUALITY DIESEL FUEL<KF0> L=1800 SERVICED BY L=3000	0-01260-300-0	01	1	1406-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> EXC. POOR QUALITY DIESEL FUEL<KF0> L=1600 SERVICED BY L=3000	0-01260-300-0	01	1	1406-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> L=280 SERVICED BY L=3000	0-01260-300-0	01	1	1402-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> L=980 SERVICED BY L=3000	0-01260-300-0	01	1	1402-1405
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> POOR QUALITY DIESEL FUEL<KF0> L=980 SERVICED BY L=3000	0-01260-300-0	01	1	1406-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> L=980 SERVICED BY L=3000	0-01260-300-0	01	1	1406-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG<82L> EXC. POOR QUALITY DIESEL FUEL<KF0> L=1400 SERVICED BY L=3000	0-01260-300-0	01	1	1402-
80	BOLT; CLIP,FUEL TANK 4HK1-TCS ENG<RJS> M8X20 FLANGE THA	0-28650-820-0	03	1	1406-
80	BOLT; CLIP,FUEL TANK 4HK1-TCS ENG<RJS> POOR QUALITY DIESEL FUEL<KF0> M8X20 FLANGE THA	0-28650-820-0	01	1	1406-
80	BOLT; CLIP,FUEL TANK 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> M8X30 FLANGE THA	0-28650-830-0	03	1	1406-
80	BOLT; CLIP,FUEL TANK 6HK1-TCN ENG<82L> M8X20 FLANGE THA	0-28650-820-0	02	1	1402-
80	BOLT; CLIP,FUEL TANK 6HK1-TCN ENG<82L> M8X30 FLANGE THA	0-28650-830-0	02	1	1402-1405
80	BOLT; CLIP,FUEL TANK 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> M8X30 FLANGE THA	0-28650-830-0	02	1	1406-
80	BOLT; CLIP,FUEL TANK 6HK1-TCN ENG<82L> M8X30 FLANGE THA	0-28650-830-0	02	1	1406-
83	NUT; CLIP,FUEL TANK 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE THA	0-91180-108-0	05	1	1406-
83	NUT; CLIP,FUEL TANK 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> EXC. POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE THA	0-91180-108-0	04	1	1406-
83	NUT; CLIP,FUEL TANK 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE THA	0-91180-108-0	04	1	1406-
83	NUT; CLIP,FUEL TANK 6HK1-TCN ENG<82L> M8 FLANGE THA	0-91180-108-0	02	1	1402-
83	NUT; CLIP,FUEL TANK 6HK1-TCN ENG<82L> M8 FLANGE THA	0-91180-108-0	03	1	1402-1405
83	NUT; CLIP,FUEL TANK 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> EXC. POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE THA	0-91180-108-0	03	1	1406-
83	NUT; CLIP,FUEL TANK 6HK1-TCN ENG<82L> M8 FLANGE THA	0-91180-108-0	03	1	1406-
97	BRACKET; CLIP 4HK1-TCS ENG<RJS> (D)	1-47475-427-1	01	1	1406-
97	BRACKET; CLIP 4HK1-TCS ENG<RJS> (E)	8-98126-612-0	01	1	1406-
97	BRACKET; CLIP 4HK1-TCS ENG<RJS> POOR QUALITY DIESEL FUEL<KF0> (F) L=90 B=25	1-47475-530-0	01	1	1406-
97	BRACKET; CLIP 6HK1-TCN ENG<82L> (A) L=50	1-47475-299-2	01	1	1402-
97	BRACKET; CLIP 6HK1-TCN ENG<82L> (B)	8-98053-654-0	01	1	1402-
97	BRACKET; CLIP 6HK1-TCN ENG<82L> (C)	8-98076-024-0	01	1	1402-
174	PIPE; FUEL,FEED,FRT 6HK1-TCN ENG<82L> THA	8-98105-179-0	01	1	1402-
303	BOLT; BRKT 4HK1-TCS ENG<RJS> M8X35 FLANGE THA	0-28650-835-0	02	1	1406-
303	BOLT; BRKT 4HK1-TCS ENG<RJS> M8X40 FLANGE THA	0-28650-840-0	01	1	1406-
303	BOLT; BRKT 4HK1-TCS ENG<RJS> POOR QUALITY DIESEL FUEL<KF0> M8X30 FLANGE THA	0-28650-830-0	01	1	1406-
303	BOLT; BRKT 6HK1-TCN ENG<82L> M8X30 FLANGE THA	0-28650-830-0	02	1	1402-
304	NUT; BRKT 4HK1-TCS ENG<RJS> POOR QUALITY DIESEL FUEL<KF0> (A) M8 FLANGE THA	0-91180-108-0	01	1	1406-
304	NUT; BRKT (A) M8 FLANGE THA	0-91180-108-0	03	1	1402-
304	NUT; BRKT POOR QUALITY DIESEL FUEL<KF0> (B) M10 FLANGE THA	0-91180-210-0	02	1	1402-
634	HOSE; RUBBER RETURN 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> L=1550 SERVICED BY L=3000	0-01558-300-0	01	1	1406-
634	HOSE; RUBBER RETURN 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> L=1350 SERVICED BY L=3000	0-01558-300-0	01	1	1406-
634	HOSE; RUBBER RETURN 6HK1-TCN ENG<82L> L=1200 SERVICED BY L=3000	0-01558-300-0	01	1	1402-

227 228 228 41 80 47 174 83 83 97 41 87 24 67 41 228 41 41 67 29 41 41 29 41 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE 6HK1-TCN ENG<82L> ID=15 H=24 L=20	1-09700-606-0	01	1	1402-
29	HOSE; FUEL 4HK1-TCS ENG<RJS> (D)	8-98220-011-0	01	1	1406-1406
29	HOSE; FUEL 4HK1-TCS ENG<RJS> (D)	8-98281-200-0	01	1	1406-
29	HOSE; FUEL 6HK1-TCN ENG<82L> (A) THA	8-97948-223-0	01	1	1402-
29	HOSE; FUEL 6HK1-TCN ENG<82L> (B) THA	8-97948-224-0	01	1	1402-
29	HOSE; FUEL 6HK1-TCN ENG<82L> (C) L=60	8-98009-718-0	01	1	1402-1405
29	HOSE; FUEL (C) L=60	8-98009-718-0	01	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> (I) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> (H) ID=13-18 L=14.5	1-09709-290-0	02	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> (D) ID=16	8-94238-568-0	04	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> (E) ID=13	8-94238-571-0	08	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> POOR QUALITY DIESEL FUEL<KF0> (A) ID=15 H=24 L=20	1-09700-606-0	02	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> EXC. POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25	1-09701-101-0	03	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> EXC. POOR QUALITY DIESEL FUEL<KF0> (C) ID=14	1-09704-102-0	04	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> (D) ID=16	8-94238-568-0	02	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> (E) ID=13	8-94238-571-0	06	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> (A) ID=15 H=24 L=20	1-09700-606-0	01	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1402-1405
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> (C) ID=14	1-09704-102-0	08	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> (F) L=250	5-09707-030-1	02	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> EXC. POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25	1-09701-101-0	02	1	1402-1405
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25	1-09701-101-0	02	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> EXC. POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25	1-09701-101-0	02	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> EXC. POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25	1-09701-101-0	02	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> EXC. POOR QUALITY DIESEL FUEL<KF0> (C) ID=14	1-09704-102-0	06	1	1402-1405
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> POOR QUALITY DIESEL FUEL<KF0> (C) ID=14	1-09704-102-0	06	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> EXC. POOR QUALITY DIESEL FUEL<KF0> (C) ID=14	1-09704-102-0	06	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> EXC. POOR QUALITY DIESEL FUEL<KF0> (F) L=250	5-09707-030-1	01	1	1402-1405
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> (F) L=250	5-09707-030-1	01	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> EXC. POOR QUALITY DIESEL FUEL<KF0> (F) L=250	5-09707-030-1	01	1	1406-
47	PIPE; FUEL,RETURN 4HK1-TCS ENG<RJS> (B)	8-98213-750-0	01	1	1406-
47	PIPE; FUEL,RETURN 4HK1-TCS ENG<RJS> (A)	8-98229-613-0	01	1	1406-
47	PIPE; FUEL,RETURN 6HK1-TCN ENG<82L> (A) L=766 THA	8-98105-178-0	01	1	1402-
67	HOSE; FUEL,DELIVERY 6HK1-TCN ENG<82L> (A) L=110 SERVICED BY L=3000	0-01260-300-0	01	1	1402-
67	HOSE; FUEL,DELIVERY 6HK1-TCN ENG<82L> (B) L=210 SERVICED BY L=3000	0-01558-300-0	01	1	1402-
67	HOSE; FUEL,DELIVERY 4HK1-TCS ENG<RJS> (A) THA	8-98206-489-0	01	1	1406-
67	HOSE; FUEL,DELIVERY 4HK1-TCS ENG<RJS> (B) THA	8-98208-821-0	01	1	1406-
80	BOLT; CLIP,FUEL TANK 4HK1-TCS ENG<RJS> M8X20 FLANGE THA	0-28650-820-0	03	1	1406-
80	BOLT; CLIP,FUEL TANK 4HK1-TCS ENG<RJS> POOR QUALITY DIESEL FUEL<KF0> M8X20 FLANGE THA	0-28650-820-0	01	1	1406-
80	BOLT; CLIP,FUEL TANK 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> M8X30 FLANGE THA	0-28650-830-0	03	1	1406-
80	BOLT; CLIP,FUEL TANK 6HK1-TCN ENG<82L> M8X20 FLANGE THA	0-28650-820-0	02	1	1402-
80	BOLT; CLIP,FUEL TANK 6HK1-TCN ENG<82L> M8X30 FLANGE THA	0-28650-830-0	02	1	1402-1405
80	BOLT; CLIP,FUEL TANK 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> M8X30 FLANGE THA	0-28650-830-0	02	1	1406-
80	BOLT; CLIP,FUEL TANK 6HK1-TCN ENG<82L> M8X30 FLANGE THA	0-28650-830-0	02	1	1406-
83	NUT; CLIP,FUEL TANK 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE THA	0-91180-108-0	05	1	1406-
83	NUT; CLIP,FUEL TANK 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> EXC. POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE THA	0-91180-108-0	04	1	1406-
83	NUT; CLIP,FUEL TANK 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE THA	0-91180-108-0	04	1	1406-
83	NUT; CLIP,FUEL TANK 6HK1-TCN ENG<82L> M8 FLANGE THA	0-91180-108-0	02	1	1402-
83	NUT; CLIP,FUEL TANK 6HK1-TCN ENG<82L> M8 FLANGE THA	0-91180-108-0	03	1	1402-1405
83	NUT; CLIP,FUEL TANK 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> EXC. POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE THA	0-91180-108-0	03	1	1406-
83	NUT; CLIP,FUEL TANK 6HK1-TCN ENG<82L> M8 FLANGE THA	0-91180-108-0	03	1	1406-
87	NUT; CLIP,FUEL HOSE 6HK1-TCN ENG<82L> M8 FLANGE THA	0-91180-108-0	01	1	1402-
97	BRACKET; CLIP 4HK1-TCS ENG<RJS> (D)	1-47475-427-1	01	1	1406-
97	BRACKET; CLIP 4HK1-TCS ENG<RJS> (E)	8-98126-612-0	01	1	1406-
97	BRACKET; CLIP 4HK1-TCS ENG<RJS> POOR QUALITY DIESEL FUEL<KF0> (F) L=90 B=25	1-47475-530-0	01	1	1406-
97	BRACKET; CLIP 6HK1-TCN ENG<82L> (A) L=50	1-47475-299-2	01	1	1402-
97	BRACKET; CLIP 6HK1-TCN ENG<82L> (B)	8-98053-654-0	01	1	1402-
97	BRACKET; CLIP 6HK1-TCN ENG<82L> (C)	8-98076-024-0	01	1	1402-
174	PIPE; FUEL,FEED,FRT 6HK1-TCN ENG<82L> THA	8-98105-179-0	01	1	1402-
227	BRACKET; FUEL SEDIMENTER 4HK1-TCS ENG<RJS>	8-98203-480-0	01	1	1406-
227	BRACKET; FUEL SEDIMENTER 6HK1-TCN ENG<82L> THA	8-97948-225-0	01	1	1402-
228	BOLT; BRKT,SEDIMENTER 6HK1-TCN ENG<82L> (A) M8X30 FLANGE THA	0-28050-830-0	02	1	1402-1405
228	BOLT; BRKT,SEDIMENTER (A) M8X30 FLANGE THA	0-28050-830-0	02	1	1406-
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE THA	0-28650-820-0	02	1	1402-
228	BOLT; BRKT,SEDIMENTER POOR QUALITY DIESEL FUEL<KF0> (C) M10X60 FLANGE THA	0-28051-060-0	02	1	1402-

65 634 47 47 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	PIPE; FUEL,RETURN 4HK1-TCS ENG<RJS> (B)	8-98213-750-0	01	1	1406-
47	PIPE; FUEL,RETURN 4HK1-TCS ENG<RJS> (A)	8-98229-613-0	01	1	1406-
47	PIPE; FUEL,RETURN 6HK1-TCN ENG<82L> (A) L=766 THA	8-98105-178-0	01	1	1402-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG<RJS> POOR QUALITY DIESEL FUEL<KF0> L=450 SERVICED BY L=3000	0-01260-300-0	01	1	1406-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> POOR QUALITY DIESEL FUEL<KF0> L=1200 SERVICED BY L=3000	0-01260-300-0	01	1	1406-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> EXC. POOR QUALITY DIESEL FUEL<KF0> L=1800 SERVICED BY L=3000	0-01260-300-0	01	1	1406-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> EXC. POOR QUALITY DIESEL FUEL<KF0> L=1600 SERVICED BY L=3000	0-01260-300-0	01	1	1406-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> L=280 SERVICED BY L=3000	0-01260-300-0	01	1	1402-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> L=980 SERVICED BY L=3000	0-01260-300-0	01	1	1402-1405
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> POOR QUALITY DIESEL FUEL<KF0> L=980 SERVICED BY L=3000	0-01260-300-0	01	1	1406-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> L=980 SERVICED BY L=3000	0-01260-300-0	01	1	1406-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG<82L> EXC. POOR QUALITY DIESEL FUEL<KF0> L=1400 SERVICED BY L=3000	0-01260-300-0	01	1	1402-
66	HOSE; FUEL,RETURN PIPE 4HK1-TCS ENG<RJS> L=200 SERVICED BY L=3000	0-01558-300-0	01	1	1406-
634	HOSE; RUBBER RETURN 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> L=1550 SERVICED BY L=3000	0-01558-300-0	01	1	1406-
634	HOSE; RUBBER RETURN 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> L=1350 SERVICED BY L=3000	0-01558-300-0	01	1	1406-
634	HOSE; RUBBER RETURN 6HK1-TCN ENG<82L> L=1200 SERVICED BY L=3000	0-01558-300-0	01	1	1402-

634 47 174 65 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	PIPE; FUEL,RETURN 4HK1-TCS ENG<RJS> (B)	8-98213-750-0	01	1	1406-
47	PIPE; FUEL,RETURN 4HK1-TCS ENG<RJS> (A)	8-98229-613-0	01	1	1406-
47	PIPE; FUEL,RETURN 6HK1-TCN ENG<82L> (A) L=766 THA	8-98105-178-0	01	1	1402-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG<RJS> POOR QUALITY DIESEL FUEL<KF0> L=450 SERVICED BY L=3000	0-01260-300-0	01	1	1406-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> POOR QUALITY DIESEL FUEL<KF0> L=1200 SERVICED BY L=3000	0-01260-300-0	01	1	1406-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> EXC. POOR QUALITY DIESEL FUEL<KF0> L=1800 SERVICED BY L=3000	0-01260-300-0	01	1	1406-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> EXC. POOR QUALITY DIESEL FUEL<KF0> L=1600 SERVICED BY L=3000	0-01260-300-0	01	1	1406-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> L=280 SERVICED BY L=3000	0-01260-300-0	01	1	1402-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> L=980 SERVICED BY L=3000	0-01260-300-0	01	1	1402-1405
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> POOR QUALITY DIESEL FUEL<KF0> L=980 SERVICED BY L=3000	0-01260-300-0	01	1	1406-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> L=980 SERVICED BY L=3000	0-01260-300-0	01	1	1406-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG<82L> EXC. POOR QUALITY DIESEL FUEL<KF0> L=1400 SERVICED BY L=3000	0-01260-300-0	01	1	1402-
174	PIPE; FUEL,FEED,FRT 6HK1-TCN ENG<82L> THA	8-98105-179-0	01	1	1402-
634	HOSE; RUBBER RETURN 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> L=1550 SERVICED BY L=3000	0-01558-300-0	01	1	1406-
634	HOSE; RUBBER RETURN 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> L=1350 SERVICED BY L=3000	0-01558-300-0	01	1	1406-
634	HOSE; RUBBER RETURN 6HK1-TCN ENG<82L> L=1200 SERVICED BY L=3000	0-01558-300-0	01	1	1402-

65 634 47 47 66 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	PIPE; FUEL,RETURN 4HK1-TCS ENG<RJS> (B)	8-98213-750-0	01	1	1406-
47	PIPE; FUEL,RETURN 4HK1-TCS ENG<RJS> (A)	8-98229-613-0	01	1	1406-
47	PIPE; FUEL,RETURN 6HK1-TCN ENG<82L> (A) L=766 THA	8-98105-178-0	01	1	1402-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG<RJS> POOR QUALITY DIESEL FUEL<KF0> L=450 SERVICED BY L=3000	0-01260-300-0	01	1	1406-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> POOR QUALITY DIESEL FUEL<KF0> L=1200 SERVICED BY L=3000	0-01260-300-0	01	1	1406-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> EXC. POOR QUALITY DIESEL FUEL<KF0> L=1800 SERVICED BY L=3000	0-01260-300-0	01	1	1406-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> EXC. POOR QUALITY DIESEL FUEL<KF0> L=1600 SERVICED BY L=3000	0-01260-300-0	01	1	1406-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> L=280 SERVICED BY L=3000	0-01260-300-0	01	1	1402-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> L=980 SERVICED BY L=3000	0-01260-300-0	01	1	1402-1405
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> POOR QUALITY DIESEL FUEL<KF0> L=980 SERVICED BY L=3000	0-01260-300-0	01	1	1406-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> L=980 SERVICED BY L=3000	0-01260-300-0	01	1	1406-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG<82L> EXC. POOR QUALITY DIESEL FUEL<KF0> L=1400 SERVICED BY L=3000	0-01260-300-0	01	1	1402-
66	HOSE; FUEL,RETURN PIPE 4HK1-TCS ENG<RJS> L=200 SERVICED BY L=3000	0-01558-300-0	01	1	1406-
634	HOSE; RUBBER RETURN 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> L=1550 SERVICED BY L=3000	0-01558-300-0	01	1	1406-
634	HOSE; RUBBER RETURN 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> L=1350 SERVICED BY L=3000	0-01558-300-0	01	1	1406-
634	HOSE; RUBBER RETURN 6HK1-TCN ENG<82L> L=1200 SERVICED BY L=3000	0-01558-300-0	01	1	1402-

228 228 227 41 29 41 41 47 41 41 41 67 41 41 67 41 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	HOSE; FUEL 4HK1-TCS ENG<RJS> (D)	8-98220-011-0	01	1	1406-1406
29	HOSE; FUEL 4HK1-TCS ENG<RJS> (D)	8-98281-200-0	01	1	1406-
29	HOSE; FUEL 6HK1-TCN ENG<82L> (A) THA	8-97948-223-0	01	1	1402-
29	HOSE; FUEL 6HK1-TCN ENG<82L> (B) THA	8-97948-224-0	01	1	1402-
29	HOSE; FUEL 6HK1-TCN ENG<82L> (C) L=60	8-98009-718-0	01	1	1402-1405
29	HOSE; FUEL (C) L=60	8-98009-718-0	01	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> (I) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> (H) ID=13-18 L=14.5	1-09709-290-0	02	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> (D) ID=16	8-94238-568-0	04	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> (E) ID=13	8-94238-571-0	08	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> POOR QUALITY DIESEL FUEL<KF0> (A) ID=15 H=24 L=20	1-09700-606-0	02	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> EXC. POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25	1-09701-101-0	03	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> EXC. POOR QUALITY DIESEL FUEL<KF0> (C) ID=14	1-09704-102-0	04	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> (D) ID=16	8-94238-568-0	02	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> (E) ID=13	8-94238-571-0	06	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> (A) ID=15 H=24 L=20	1-09700-606-0	01	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1402-1405
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> (C) ID=14	1-09704-102-0	08	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> (F) L=250	5-09707-030-1	02	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> EXC. POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25	1-09701-101-0	02	1	1402-1405
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25	1-09701-101-0	02	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> EXC. POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25	1-09701-101-0	02	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> EXC. POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25	1-09701-101-0	02	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> EXC. POOR QUALITY DIESEL FUEL<KF0> (C) ID=14	1-09704-102-0	06	1	1402-1405
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> POOR QUALITY DIESEL FUEL<KF0> (C) ID=14	1-09704-102-0	06	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> EXC. POOR QUALITY DIESEL FUEL<KF0> (C) ID=14	1-09704-102-0	06	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> EXC. POOR QUALITY DIESEL FUEL<KF0> (F) L=250	5-09707-030-1	01	1	1402-1405
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> (F) L=250	5-09707-030-1	01	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> EXC. POOR QUALITY DIESEL FUEL<KF0> (F) L=250	5-09707-030-1	01	1	1406-
47	PIPE; FUEL,RETURN 4HK1-TCS ENG<RJS> (B)	8-98213-750-0	01	1	1406-
47	PIPE; FUEL,RETURN 4HK1-TCS ENG<RJS> (A)	8-98229-613-0	01	1	1406-
47	PIPE; FUEL,RETURN 6HK1-TCN ENG<82L> (A) L=766 THA	8-98105-178-0	01	1	1402-
67	HOSE; FUEL,DELIVERY 6HK1-TCN ENG<82L> (A) L=110 SERVICED BY L=3000	0-01260-300-0	01	1	1402-
67	HOSE; FUEL,DELIVERY 6HK1-TCN ENG<82L> (B) L=210 SERVICED BY L=3000	0-01558-300-0	01	1	1402-
67	HOSE; FUEL,DELIVERY 4HK1-TCS ENG<RJS> (A) THA	8-98206-489-0	01	1	1406-
67	HOSE; FUEL,DELIVERY 4HK1-TCS ENG<RJS> (B) THA	8-98208-821-0	01	1	1406-
227	BRACKET; FUEL SEDIMENTER 4HK1-TCS ENG<RJS>	8-98203-480-0	01	1	1406-
227	BRACKET; FUEL SEDIMENTER 6HK1-TCN ENG<82L> THA	8-97948-225-0	01	1	1402-
228	BOLT; BRKT,SEDIMENTER 6HK1-TCN ENG<82L> (A) M8X30 FLANGE THA	0-28050-830-0	02	1	1402-1405
228	BOLT; BRKT,SEDIMENTER (A) M8X30 FLANGE THA	0-28050-830-0	02	1	1406-
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE THA	0-28650-820-0	02	1	1402-
228	BOLT; BRKT,SEDIMENTER POOR QUALITY DIESEL FUEL<KF0> (C) M10X60 FLANGE THA	0-28051-060-0	02	1	1402-

65 41 41 634 41 39 29 41 41 55 41 80 83 41 80 41 303 97 83 304 304 47 97 303 308 80 98 41 41 80 66 41 83 47 65 41 304 303 97 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	HOSE; FUEL 4HK1-TCS ENG<RJS> (D)	8-98220-011-0	01	1	1406-1406
29	HOSE; FUEL 4HK1-TCS ENG<RJS> (D)	8-98281-200-0	01	1	1406-
29	HOSE; FUEL 6HK1-TCN ENG<82L> (A) THA	8-97948-223-0	01	1	1402-
29	HOSE; FUEL 6HK1-TCN ENG<82L> (B) THA	8-97948-224-0	01	1	1402-
29	HOSE; FUEL 6HK1-TCN ENG<82L> (C) L=60	8-98009-718-0	01	1	1402-1405
29	HOSE; FUEL (C) L=60	8-98009-718-0	01	1	1406-
39	PIPE; FUEL 6HK1-TCN ENG<82L> (B) OD=10 & OD=8 L=60 THA	8-97924-060-0	01	1	1402-1405
39	PIPE; FUEL (B) OD=10 & OD=8 L=60 THA	8-97924-060-0	01	1	1406-
39	PIPE; FUEL POOR QUALITY DIESEL FUEL<KF0> (A) NPTF3/8-18 OD=10 THA	8-97948-254-0	02	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> (I) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> (H) ID=13-18 L=14.5	1-09709-290-0	02	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> (D) ID=16	8-94238-568-0	04	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> (E) ID=13	8-94238-571-0	08	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> POOR QUALITY DIESEL FUEL<KF0> (A) ID=15 H=24 L=20	1-09700-606-0	02	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> EXC. POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25	1-09701-101-0	03	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> EXC. POOR QUALITY DIESEL FUEL<KF0> (C) ID=14	1-09704-102-0	04	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> (D) ID=16	8-94238-568-0	02	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> (E) ID=13	8-94238-571-0	06	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> (A) ID=15 H=24 L=20	1-09700-606-0	01	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1402-1405
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> (C) ID=14	1-09704-102-0	08	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> (F) L=250	5-09707-030-1	02	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> EXC. POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25	1-09701-101-0	02	1	1402-1405
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25	1-09701-101-0	02	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> EXC. POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25	1-09701-101-0	02	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> EXC. POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25	1-09701-101-0	02	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> EXC. POOR QUALITY DIESEL FUEL<KF0> (C) ID=14	1-09704-102-0	06	1	1402-1405
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> POOR QUALITY DIESEL FUEL<KF0> (C) ID=14	1-09704-102-0	06	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> EXC. POOR QUALITY DIESEL FUEL<KF0> (C) ID=14	1-09704-102-0	06	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> EXC. POOR QUALITY DIESEL FUEL<KF0> (F) L=250	5-09707-030-1	01	1	1402-1405
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> (F) L=250	5-09707-030-1	01	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> EXC. POOR QUALITY DIESEL FUEL<KF0> (F) L=250	5-09707-030-1	01	1	1406-
47	PIPE; FUEL,RETURN 4HK1-TCS ENG<RJS> (B)	8-98213-750-0	01	1	1406-
47	PIPE; FUEL,RETURN 4HK1-TCS ENG<RJS> (A)	8-98229-613-0	01	1	1406-
47	PIPE; FUEL,RETURN 6HK1-TCN ENG<82L> (A) L=766 THA	8-98105-178-0	01	1	1402-
55	COVER; PIPE,FUEL TANK 6HK1-TCN ENG<82L> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	1402-1405
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	01	1	1406-
55	COVER; PIPE,FUEL TANK 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> ID=32 OD=36 L=50	1-09337-023-0	01	1	1402-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG<RJS> POOR QUALITY DIESEL FUEL<KF0> L=450 SERVICED BY L=3000	0-01260-300-0	01	1	1406-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> POOR QUALITY DIESEL FUEL<KF0> L=1200 SERVICED BY L=3000	0-01260-300-0	01	1	1406-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> EXC. POOR QUALITY DIESEL FUEL<KF0> L=1800 SERVICED BY L=3000	0-01260-300-0	01	1	1406-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> EXC. POOR QUALITY DIESEL FUEL<KF0> L=1600 SERVICED BY L=3000	0-01260-300-0	01	1	1406-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> L=280 SERVICED BY L=3000	0-01260-300-0	01	1	1402-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> L=980 SERVICED BY L=3000	0-01260-300-0	01	1	1402-1405
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> POOR QUALITY DIESEL FUEL<KF0> L=980 SERVICED BY L=3000	0-01260-300-0	01	1	1406-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> L=980 SERVICED BY L=3000	0-01260-300-0	01	1	1406-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG<82L> EXC. POOR QUALITY DIESEL FUEL<KF0> L=1400 SERVICED BY L=3000	0-01260-300-0	01	1	1402-
66	HOSE; FUEL,RETURN PIPE 4HK1-TCS ENG<RJS> L=200 SERVICED BY L=3000	0-01558-300-0	01	1	1406-
80	BOLT; CLIP,FUEL TANK 4HK1-TCS ENG<RJS> M8X20 FLANGE THA	0-28650-820-0	03	1	1406-
80	BOLT; CLIP,FUEL TANK 4HK1-TCS ENG<RJS> POOR QUALITY DIESEL FUEL<KF0> M8X20 FLANGE THA	0-28650-820-0	01	1	1406-
80	BOLT; CLIP,FUEL TANK 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> M8X30 FLANGE THA	0-28650-830-0	03	1	1406-
80	BOLT; CLIP,FUEL TANK 6HK1-TCN ENG<82L> M8X20 FLANGE THA	0-28650-820-0	02	1	1402-
80	BOLT; CLIP,FUEL TANK 6HK1-TCN ENG<82L> M8X30 FLANGE THA	0-28650-830-0	02	1	1402-1405
80	BOLT; CLIP,FUEL TANK 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> M8X30 FLANGE THA	0-28650-830-0	02	1	1406-
80	BOLT; CLIP,FUEL TANK 6HK1-TCN ENG<82L> M8X30 FLANGE THA	0-28650-830-0	02	1	1406-
83	NUT; CLIP,FUEL TANK 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE THA	0-91180-108-0	05	1	1406-
83	NUT; CLIP,FUEL TANK 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> EXC. POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE THA	0-91180-108-0	04	1	1406-
83	NUT; CLIP,FUEL TANK 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE THA	0-91180-108-0	04	1	1406-
83	NUT; CLIP,FUEL TANK 6HK1-TCN ENG<82L> M8 FLANGE THA	0-91180-108-0	02	1	1402-
83	NUT; CLIP,FUEL TANK 6HK1-TCN ENG<82L> M8 FLANGE THA	0-91180-108-0	03	1	1402-1405
83	NUT; CLIP,FUEL TANK 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> EXC. POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE THA	0-91180-108-0	03	1	1406-
83	NUT; CLIP,FUEL TANK 6HK1-TCN ENG<82L> M8 FLANGE THA	0-91180-108-0	03	1	1406-
97	BRACKET; CLIP 4HK1-TCS ENG<RJS> (D)	1-47475-427-1	01	1	1406-
97	BRACKET; CLIP 4HK1-TCS ENG<RJS> (E)	8-98126-612-0	01	1	1406-
97	BRACKET; CLIP 4HK1-TCS ENG<RJS> POOR QUALITY DIESEL FUEL<KF0> (F) L=90 B=25	1-47475-530-0	01	1	1406-
97	BRACKET; CLIP 6HK1-TCN ENG<82L> (A) L=50	1-47475-299-2	01	1	1402-
97	BRACKET; CLIP 6HK1-TCN ENG<82L> (B)	8-98053-654-0	01	1	1402-
97	BRACKET; CLIP 6HK1-TCN ENG<82L> (C)	8-98076-024-0	01	1	1402-
98	BOLT; BRKT,FUEL PIPE 4HK1-TCS ENG<RJS> M8X30 FLANGE THA	0-28650-830-0	02	1	1406-
303	BOLT; BRKT 4HK1-TCS ENG<RJS> M8X35 FLANGE THA	0-28650-835-0	02	1	1406-
303	BOLT; BRKT 4HK1-TCS ENG<RJS> M8X40 FLANGE THA	0-28650-840-0	01	1	1406-
303	BOLT; BRKT 4HK1-TCS ENG<RJS> POOR QUALITY DIESEL FUEL<KF0> M8X30 FLANGE THA	0-28650-830-0	01	1	1406-
303	BOLT; BRKT 6HK1-TCN ENG<82L> M8X30 FLANGE THA	0-28650-830-0	02	1	1402-
304	NUT; BRKT 4HK1-TCS ENG<RJS> POOR QUALITY DIESEL FUEL<KF0> (A) M8 FLANGE THA	0-91180-108-0	01	1	1406-
304	NUT; BRKT (A) M8 FLANGE THA	0-91180-108-0	03	1	1402-
304	NUT; BRKT POOR QUALITY DIESEL FUEL<KF0> (B) M10 FLANGE THA	0-91180-210-0	02	1	1402-
308	BRACKET; FUEL PIPE 4HK1-TCS ENG<RJS>	8-98213-361-0	01	1	1406-
634	HOSE; RUBBER RETURN 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> L=1550 SERVICED BY L=3000	0-01558-300-0	01	1	1406-
634	HOSE; RUBBER RETURN 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> L=1350 SERVICED BY L=3000	0-01558-300-0	01	1	1406-
634	HOSE; RUBBER RETURN 6HK1-TCN ENG<82L> L=1200 SERVICED BY L=3000	0-01558-300-0	01	1	1402-

304 345 39 41 279 228 345 39 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	PIPE; FUEL 6HK1-TCN ENG<82L> (B) OD=10 & OD=8 L=60 THA	8-97924-060-0	01	1	1402-1405
39	PIPE; FUEL (B) OD=10 & OD=8 L=60 THA	8-97924-060-0	01	1	1406-
39	PIPE; FUEL POOR QUALITY DIESEL FUEL<KF0> (A) NPTF3/8-18 OD=10 THA	8-97948-254-0	02	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> (I) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> (H) ID=13-18 L=14.5	1-09709-290-0	02	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> (D) ID=16	8-94238-568-0	04	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> (E) ID=13	8-94238-571-0	08	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> POOR QUALITY DIESEL FUEL<KF0> (A) ID=15 H=24 L=20	1-09700-606-0	02	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> EXC. POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25	1-09701-101-0	03	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> EXC. POOR QUALITY DIESEL FUEL<KF0> (C) ID=14	1-09704-102-0	04	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> (D) ID=16	8-94238-568-0	02	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> (E) ID=13	8-94238-571-0	06	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> (A) ID=15 H=24 L=20	1-09700-606-0	01	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1402-1405
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> (C) ID=14	1-09704-102-0	08	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> POOR QUALITY DIESEL FUEL<KF0> (F) L=250	5-09707-030-1	02	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> EXC. POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25	1-09701-101-0	02	1	1402-1405
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25	1-09701-101-0	02	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> EXC. POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25	1-09701-101-0	02	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> EXC. POOR QUALITY DIESEL FUEL<KF0> (G) ID=14X29 H=30 L=25	1-09701-101-0	02	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> EXC. POOR QUALITY DIESEL FUEL<KF0> (C) ID=14	1-09704-102-0	06	1	1402-1405
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> POOR QUALITY DIESEL FUEL<KF0> (C) ID=14	1-09704-102-0	06	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> EXC. POOR QUALITY DIESEL FUEL<KF0> (C) ID=14	1-09704-102-0	06	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> EXC. POOR QUALITY DIESEL FUEL<KF0> (F) L=250	5-09707-030-1	01	1	1402-1405
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG<RJS> (F) L=250	5-09707-030-1	01	1	1406-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG<82L> EXC. POOR QUALITY DIESEL FUEL<KF0> (F) L=250	5-09707-030-1	01	1	1406-
228	BOLT; BRKT,SEDIMENTER 6HK1-TCN ENG<82L> (A) M8X30 FLANGE THA	0-28050-830-0	02	1	1402-1405
228	BOLT; BRKT,SEDIMENTER (A) M8X30 FLANGE THA	0-28050-830-0	02	1	1406-
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE THA	0-28650-820-0	02	1	1402-
228	BOLT; BRKT,SEDIMENTER POOR QUALITY DIESEL FUEL<KF0> (C) M10X60 FLANGE THA	0-28051-060-0	02	1	1402-
279	WASHER POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26	0-91614-710-0	02	1	1402-
304	NUT; BRKT 4HK1-TCS ENG<RJS> POOR QUALITY DIESEL FUEL<KF0> (A) M8 FLANGE THA	0-91180-108-0	01	1	1406-
304	NUT; BRKT (A) M8 FLANGE THA	0-91180-108-0	03	1	1402-
304	NUT; BRKT POOR QUALITY DIESEL FUEL<KF0> (B) M10 FLANGE THA	0-91180-210-0	02	1	1402-
345	PLUG POOR QUALITY DIESEL FUEL<KF0> NPTF3/8-18	8-97329-623-0	02	1	1402-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
