1-31 — AIR DUCT (#133343) — 140 parça

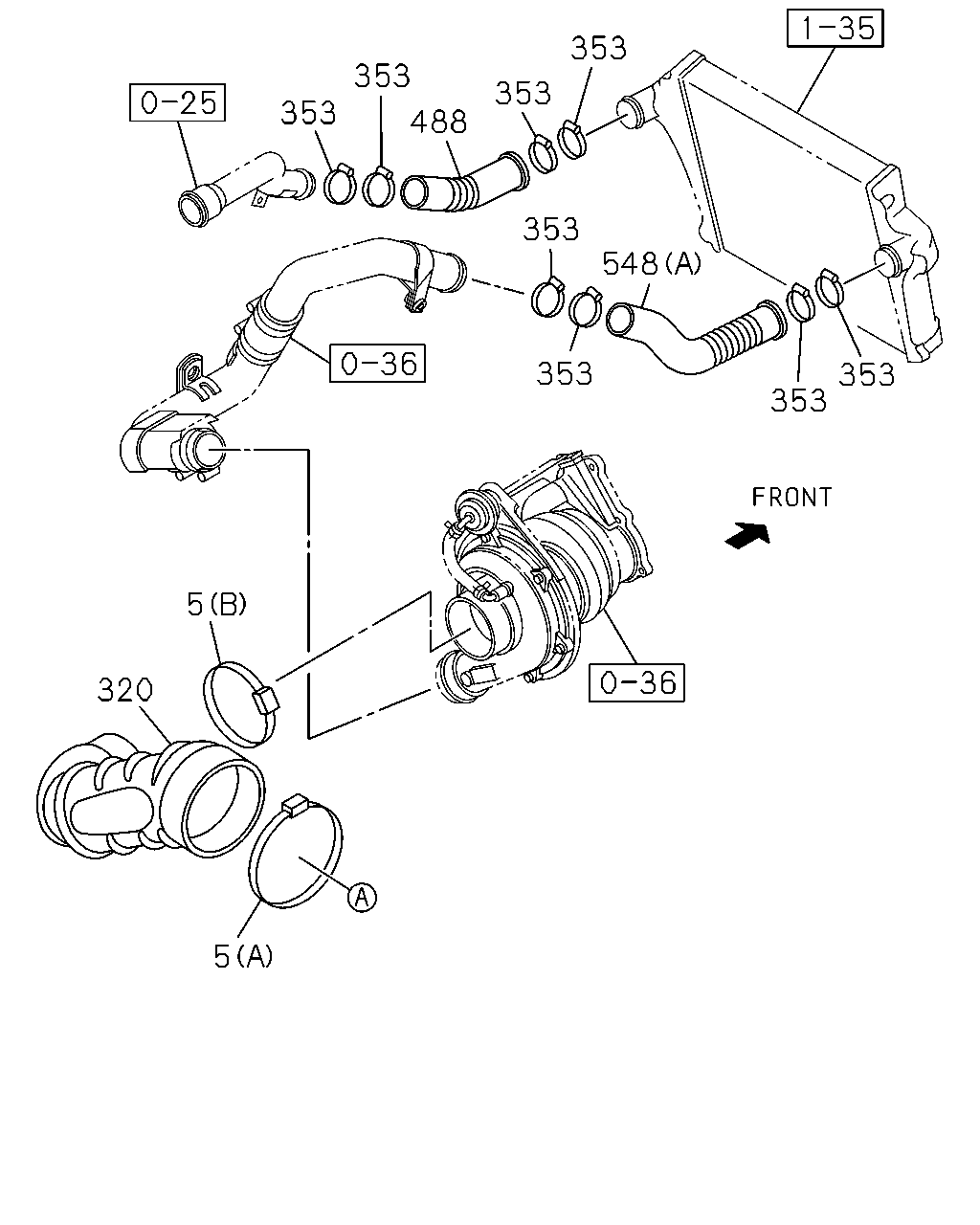

çizim 406415
5 5 320 353 353 353 548 353 353 353 488 353 353
BalonParca AdiParca NoAdetTipApplied Date A B
5 CLIP; AIR DUCT
(C) ID=55-75 		8-98133-349-0 01 1 1406- ●
5 CLIP; AIR DUCT
(A) ID=110-130 		8-98133-359-0 01 1 1402-1405 ●
5 CLIP; AIR DUCT
(A) ID=110-130 		8-98133-359-0 01 1 1406- ● ●
5 CLIP; AIR DUCT
(B) ID=90-110 		8-98133-365-0 01 1 1402- ●
320 HOSE; CONN,ACL 8-98188-580-0 01 1 1406- ●
320 HOSE; CONN,ACL
THA 		8-97948-681-0 01 1 1402- ●
353 CLIP; RUBBER HOSE
ID=60-65 		8-98096-418-0 02 1 1406- ●
353 CLIP; RUBBER HOSE
ID=65-85 		8-98133-350-0 02 1 1406- ●
353 CLIP; RUBBER HOSE
ID=55-75 		8-98133-349-0 08 1 1402- ●
488 HOSE; RUBBER,PIPE 8-98204-041-0 01 1 1406- ●
488 HOSE; RUBBER,PIPE 8-97950-126-0 01 1 1402- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(B) 		8-97950-135-0 01 1 1406- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(A) 		8-98211-753-0 01 1 1406- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(A) 		8-98181-974-1 01 1 1402- ●

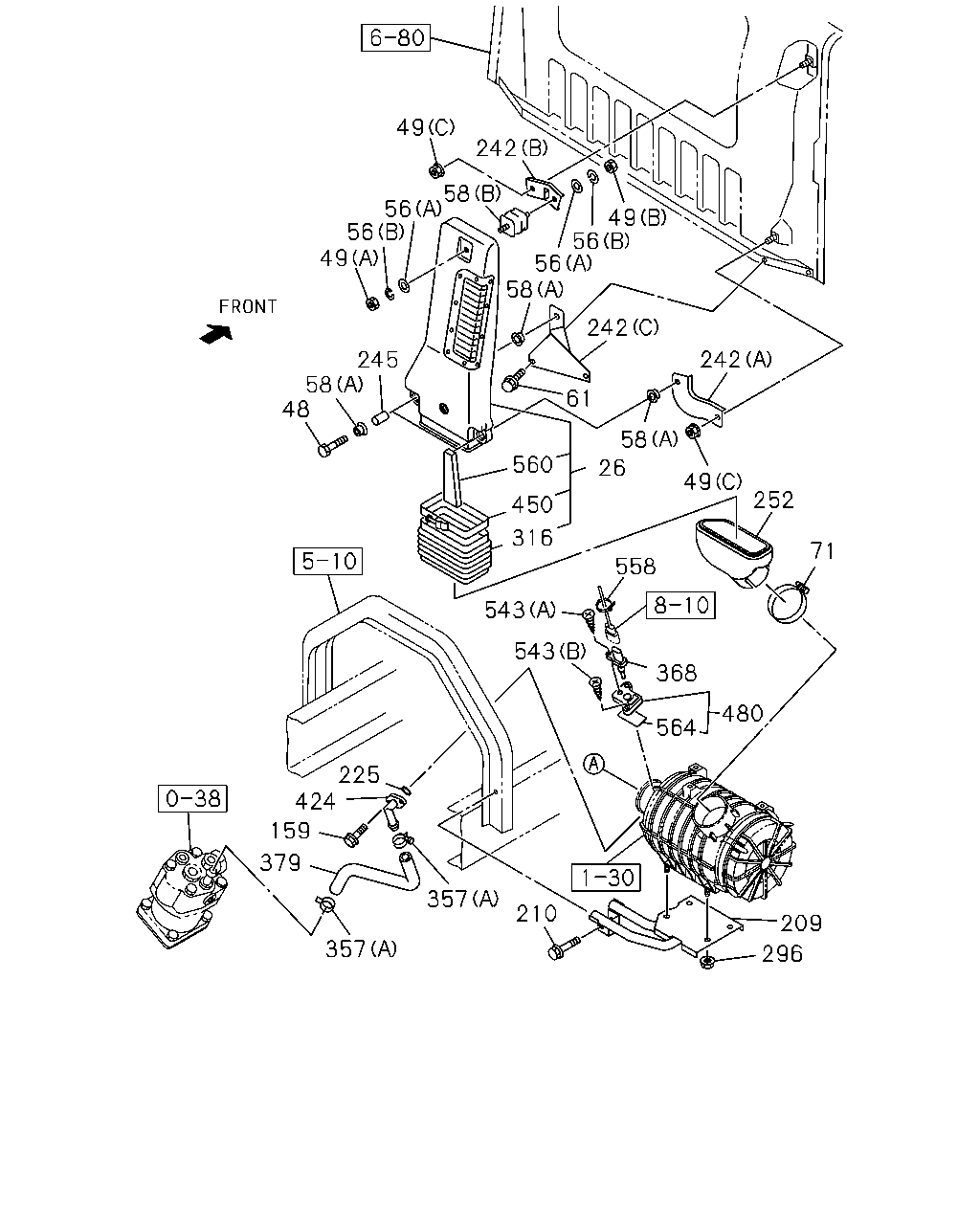

çizim 406699
296 209 210 357 357 379 424 159 225 543 543 564 480 368 558 71 252 49 242 58 26 316 450 560 61 242 49 56 56 58 242 58 56 49 56 49 245 58 48
BalonParca AdiParca NoAdetTipApplied Date A B
26 DUCT; AIR INT 8-98010-361-2 01 1 1402- ● ●
48 BOLT; AIR DUCT
M10X26 		1-09030-044-1 02 1 1402- ● ●
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 1402- ● ●
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 1402- ● ●
49 NUT; AIR DUCT
(C) M8 FLANGE 		8-94279-517-0 02 1 1402- ● ●
56 WASHER; LK,AIR INT DUCT
(B) ID=8.2 		1-09985-177-0 02 1 1402- ● ●
56 WASHER; LK,AIR INT DUCT
(A) ID=8.4 OD=22 		1-09985-188-0 02 1 1402- ● ●
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 1402- ● ●
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 1402- ● ●
61 BOLT; BRKT,AIR DUCT
M8X20 FLANGE 		8-98061-920-0 02 1 1402- ● ●
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 1402-1405 ●
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 1406- ● ●
159 BOLT; AIR PIPE
M6X16 FLANGE THA 		0-28050-616-0 02 1 1402-1405 ●
159 BOLT; AIR PIPE
M6X16 FLANGE THA 		0-28050-616-0 02 1 1406- ● ●
209 BRACKET; ACL
THA 		8-97948-148-0 01 1 1402- ● ●
210 BOLT; ACL BRKT
M10X25 FLANGE THA 		0-28651-025-0 04 1 1402- ● ●
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 1402-1405 ●
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 1406- ● ●
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1402- ● ●
242 BRACKET; AIR DUCT
(C) 		8-98019-302-1 01 1 1402- ● ●
242 BRACKET; AIR DUCT
(A) 		8-98019-304-1 01 1 1402- ● ●
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 1402- ● ●
252 DUCT; AIR INT 8-98012-861-1 01 1 1402-1405 ●
252 DUCT; AIR INT 8-98012-861-1 01 1 1406- ● ●
296 NUT; ACL
M8 FLANGE THA 		0-91180-108-0 04 1 1402- ● ●
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 1402- ● ●
357 CLIP; RUBBER HOSE
(A) ID=24 		8-98025-921-0 02 1 1406- ●
357 CLIP; RUBBER HOSE
(B) ID=65-85 		8-98133-350-0 02 1 1406- ●
357 CLIP; RUBBER HOSE
(B) ID=75-95 		8-98133-357-0 01 1 1406- ●
357 CLIP; RUBBER HOSE
(A) ID=26 		1-09707-091-0 01 1 1402- ●
357 CLIP; RUBBER HOSE
(A) ID=29.5 		8-97354-979-0 01 1 1402- ●
368 SENSOR; TEMP 8-98065-377-0 01 1 1402- ● ●
379 HOSE; RUBBER 8-98188-903-0 01 1 1406- ●
379 HOSE; RUBBER 8-97619-194-0 01 1 1402- ●
424 PIPE; AIR,INL 8-98081-837-0 01 1 1406- ●
424 PIPE; AIR,INL 8-98081-834-0 01 1 1402- ●
450 CLAMP; HOSE 9-09915-504-1 01 1 1402- ● ●
480 ADAPTER 8-98086-417-0 01 1 1402- ● ●
543 SCREW; SENSOR
(A) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1402- ● ●
543 SCREW; SENSOR
(B) M4X12 W/LK&PL WASHER THA 		0-36230-412-0 02 1 1402-1405 ● ●
543 SCREW; SENSOR
(B) M4X12 W/LK&PL WASHER THA 		0-36230-412-0 02 1 1406- ● ●
543 SCREW; SENSOR
(B) M4X12 W/LK&PL WASHER THA 		0-36230-412-0 02 1 1406- ●
558 CLIP; AIR FLOW SENSOR
L=600 		1-09707-107-1 01 1 1402- ● ●
558 CLIP; AIR FLOW SENSOR
L=250 		5-09707-030-1 02 1 1402- ● ●
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 1402- ● ●
564 GASKET; ADAPTER 8-98071-416-0 01 1 1402- ● ●

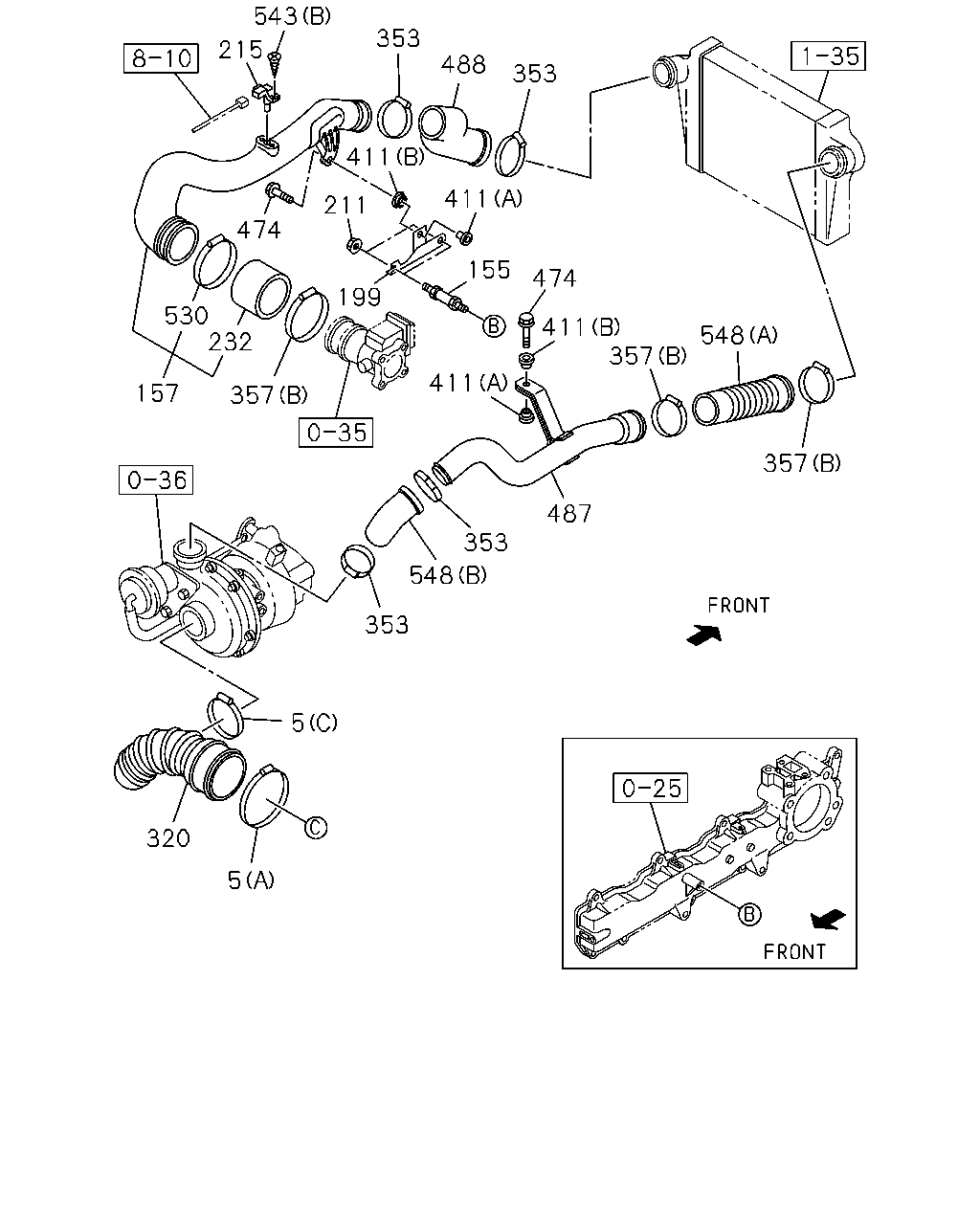

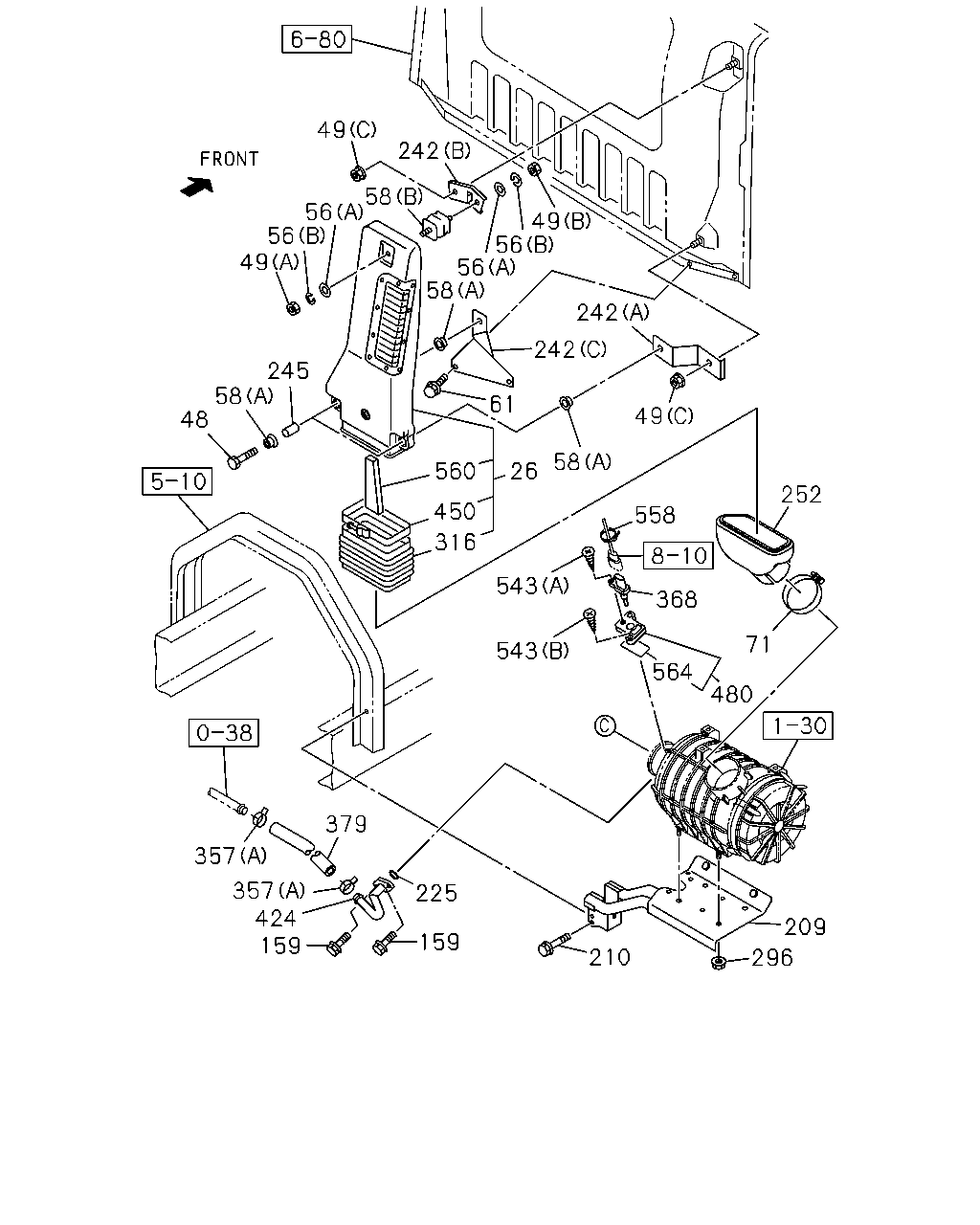

çizim 426170
543 215 353 488 353 411 411 211 474 199 155 474 411 357 548 357 487 353 548 353 5 5 320 157 357 232 530 411
BalonParca AdiParca NoAdetTipApplied Date A B
5 CLIP; AIR DUCT
(C) ID=55-75 		8-98133-349-0 01 1 1406- ●
5 CLIP; AIR DUCT
(A) ID=110-130 		8-98133-359-0 01 1 1402-1405 ●
5 CLIP; AIR DUCT
(A) ID=110-130 		8-98133-359-0 01 1 1406- ● ●
5 CLIP; AIR DUCT
(B) ID=90-110 		8-98133-365-0 01 1 1402- ●
155 BOLT; BRKT
M10X17,M10X30 L=105 		8-97233-428-0 02 1 1406- ●
157 PIPE; AIR 8-98010-719-3 01 1 1406- ●
199 BRACKET; PIPE 8-97385-293-1 01 1 1406- ●
211 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 02 1 1406- ●
215 SENSOR; MAP 8-98009-418-0 01 1 1406- ●
232 HOSE; CONN 8-98067-929-0 01 1 1406- ●
320 HOSE; CONN,ACL 8-98188-580-0 01 1 1406- ●
320 HOSE; CONN,ACL
THA 		8-97948-681-0 01 1 1402- ●
353 CLIP; RUBBER HOSE
ID=60-65 		8-98096-418-0 02 1 1406- ●
353 CLIP; RUBBER HOSE
ID=65-85 		8-98133-350-0 02 1 1406- ●
353 CLIP; RUBBER HOSE
ID=55-75 		8-98133-349-0 08 1 1402- ●
357 CLIP; RUBBER HOSE
(A) ID=24 		8-98025-921-0 02 1 1406- ●
357 CLIP; RUBBER HOSE
(B) ID=65-85 		8-98133-350-0 02 1 1406- ●
357 CLIP; RUBBER HOSE
(B) ID=75-95 		8-98133-357-0 01 1 1406- ●
357 CLIP; RUBBER HOSE
(A) ID=26 		1-09707-091-0 01 1 1402- ●
357 CLIP; RUBBER HOSE
(A) ID=29.5 		8-97354-979-0 01 1 1402- ●
411 RUBBER; CUSHION
(A) 		8-94395-766-0 02 1 1406- ●
411 RUBBER; CUSHION
(B) OD=23 		8-97105-689-6 02 1 1406- ●
474 BOLT; PIPE
M8X40 FLANGE THA 		0-28650-840-0 02 1 1406- ●
487 PIPE; TURBO TO CHARGE AIR COOLER
THA 		8-98211-755-0 01 1 1406- ●
488 HOSE; RUBBER,PIPE 8-98204-041-0 01 1 1406- ●
488 HOSE; RUBBER,PIPE 8-97950-126-0 01 1 1402- ●
530 CLAMP; AIR DUCT
ID=75-95 		8-98133-357-0 01 1 1406- ●
543 SCREW; SENSOR
(A) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1402- ● ●
543 SCREW; SENSOR
(B) M4X12 W/LK&PL WASHER THA 		0-36230-412-0 02 1 1402-1405 ● ●
543 SCREW; SENSOR
(B) M4X12 W/LK&PL WASHER THA 		0-36230-412-0 02 1 1406- ● ●
543 SCREW; SENSOR
(B) M4X12 W/LK&PL WASHER THA 		0-36230-412-0 02 1 1406- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(B) 		8-97950-135-0 01 1 1406- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(A) 		8-98211-753-0 01 1 1406- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(A) 		8-98181-974-1 01 1 1402- ●
çizim 426578
49 242 58 56 56 49 245 58 48 379 357 357 424 159 225 159 210 296 209 480 71 252 558 368 564 543 543 58 49 26 242 242 49 56 56 58 61 560 450 316
BalonParca AdiParca NoAdetTipApplied Date A B
26 DUCT; AIR INT 8-98010-361-2 01 1 1402- ● ●
48 BOLT; AIR DUCT
M10X26 		1-09030-044-1 02 1 1402- ● ●
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 1402- ● ●
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 1402- ● ●
49 NUT; AIR DUCT
(C) M8 FLANGE 		8-94279-517-0 02 1 1402- ● ●
56 WASHER; LK,AIR INT DUCT
(B) ID=8.2 		1-09985-177-0 02 1 1402- ● ●
56 WASHER; LK,AIR INT DUCT
(A) ID=8.4 OD=22 		1-09985-188-0 02 1 1402- ● ●
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 1402- ● ●
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 1402- ● ●
61 BOLT; BRKT,AIR DUCT
M8X20 FLANGE 		8-98061-920-0 02 1 1402- ● ●
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 1402-1405 ●
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 1406- ● ●
159 BOLT; AIR PIPE
M6X16 FLANGE THA 		0-28050-616-0 02 1 1402-1405 ●
159 BOLT; AIR PIPE
M6X16 FLANGE THA 		0-28050-616-0 02 1 1406- ● ●
209 BRACKET; ACL
THA 		8-97948-148-0 01 1 1402- ● ●
210 BOLT; ACL BRKT
M10X25 FLANGE THA 		0-28651-025-0 04 1 1402- ● ●
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 1402-1405 ●
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 1406- ● ●
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1402- ● ●
242 BRACKET; AIR DUCT
(C) 		8-98019-302-1 01 1 1402- ● ●
242 BRACKET; AIR DUCT
(A) 		8-98019-304-1 01 1 1402- ● ●
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 1402- ● ●
252 DUCT; AIR INT 8-98012-861-1 01 1 1402-1405 ●
252 DUCT; AIR INT 8-98012-861-1 01 1 1406- ● ●
296 NUT; ACL
M8 FLANGE THA 		0-91180-108-0 04 1 1402- ● ●
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 1402- ● ●
357 CLIP; RUBBER HOSE
(A) ID=24 		8-98025-921-0 02 1 1406- ●
357 CLIP; RUBBER HOSE
(B) ID=65-85 		8-98133-350-0 02 1 1406- ●
357 CLIP; RUBBER HOSE
(B) ID=75-95 		8-98133-357-0 01 1 1406- ●
357 CLIP; RUBBER HOSE
(A) ID=26 		1-09707-091-0 01 1 1402- ●
357 CLIP; RUBBER HOSE
(A) ID=29.5 		8-97354-979-0 01 1 1402- ●
368 SENSOR; TEMP 8-98065-377-0 01 1 1402- ● ●
379 HOSE; RUBBER 8-98188-903-0 01 1 1406- ●
379 HOSE; RUBBER 8-97619-194-0 01 1 1402- ●
424 PIPE; AIR,INL 8-98081-837-0 01 1 1406- ●
424 PIPE; AIR,INL 8-98081-834-0 01 1 1402- ●
450 CLAMP; HOSE 9-09915-504-1 01 1 1402- ● ●
480 ADAPTER 8-98086-417-0 01 1 1402- ● ●
543 SCREW; SENSOR
(A) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1402- ● ●
543 SCREW; SENSOR
(B) M4X12 W/LK&PL WASHER THA 		0-36230-412-0 02 1 1402-1405 ● ●
543 SCREW; SENSOR
(B) M4X12 W/LK&PL WASHER THA 		0-36230-412-0 02 1 1406- ● ●
543 SCREW; SENSOR
(B) M4X12 W/LK&PL WASHER THA 		0-36230-412-0 02 1 1406- ●
558 CLIP; AIR FLOW SENSOR
L=600 		1-09707-107-1 01 1 1402- ● ●
558 CLIP; AIR FLOW SENSOR
L=250 		5-09707-030-1 02 1 1402- ● ●
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 1402- ● ●
564 GASKET; ADAPTER 8-98071-416-0 01 1 1402- ● ●
