◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11575 - FTR(THAI)EURO3 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30 - AIR CLEANER ▶
1-30 — AIR CLEANER (#133342) — 11 parça

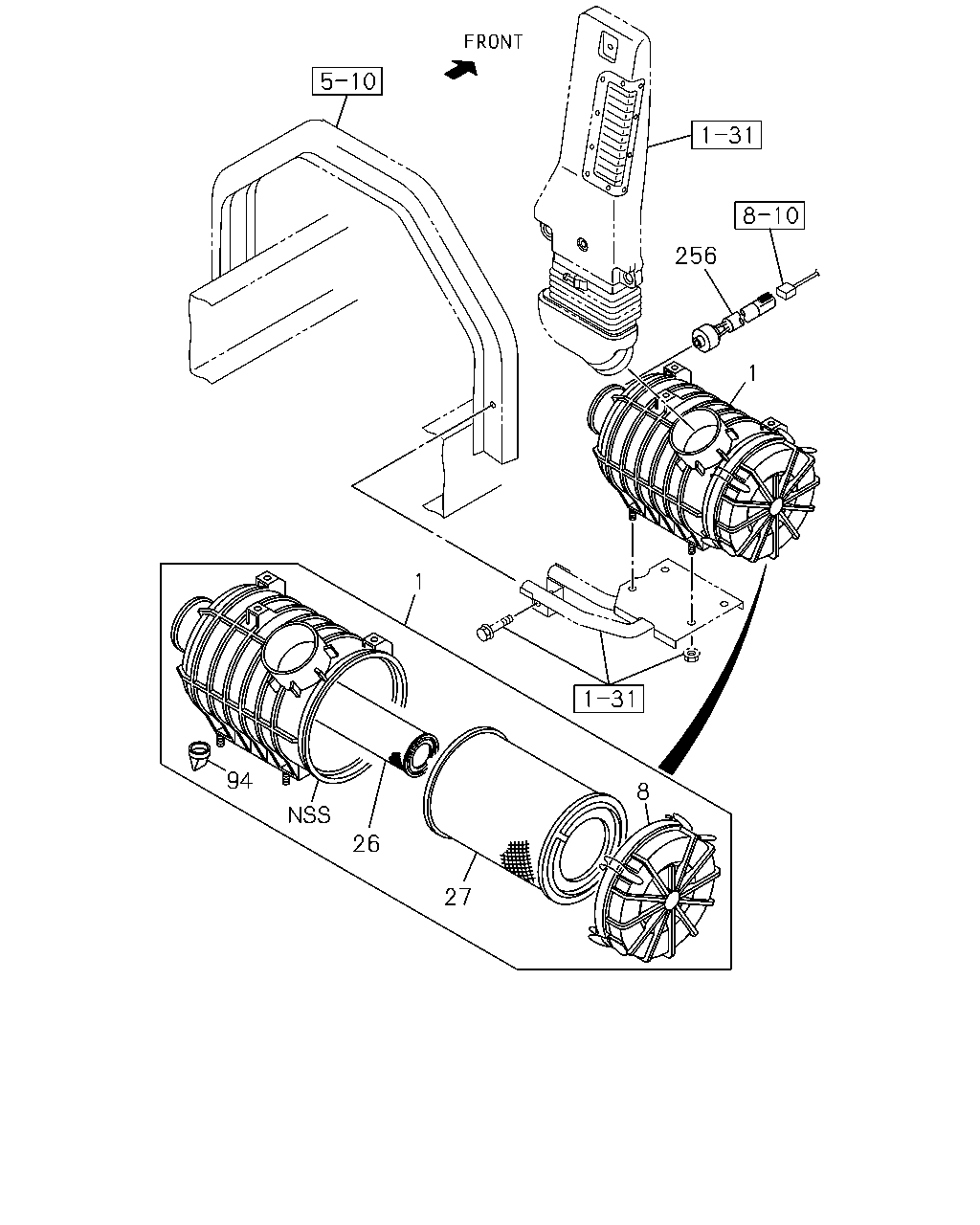

çizim 406966
8 27 26 94 1 1 256
BalonParca AdiParca NoAdetTipApplied Date A B
1 CLEANER ASM; AIR
THA 		8-97948-126-0 01 1 1402-1405 ●
1 CLEANER ASM; AIR
THA 		8-97948-126-0 01 1 1406- ● ●
8 COVER ASM; ACL
THA 		8-98066-740-0 01 1 1402-1405 ●
8 COVER ASM; ACL
THA 		8-98066-740-0 01 1 1406- ● ●
26 FILTER; ACL,INNER
THA 		8-97948-919-0 01 1 1402-1405 ●
26 FILTER; ACL,INNER
THA 		8-97948-919-0 01 1 1406- ● ●
27 FILTER; ACL,OUTER
THA 		8-97948-918-0 01 1 1402-1405 ●
27 FILTER; ACL,OUTER
THA 		8-97948-918-0 01 1 1406- ● ●
94 VALVE; VACUATOR
THA 		1-14219-279-0 01 1 1402-1405 ●
94 VALVE; VACUATOR
THA 		1-14219-279-0 01 1 1406- ● ●
256 SENSOR; AIRFLOW 8-98152-742-1 01 1 1402- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
