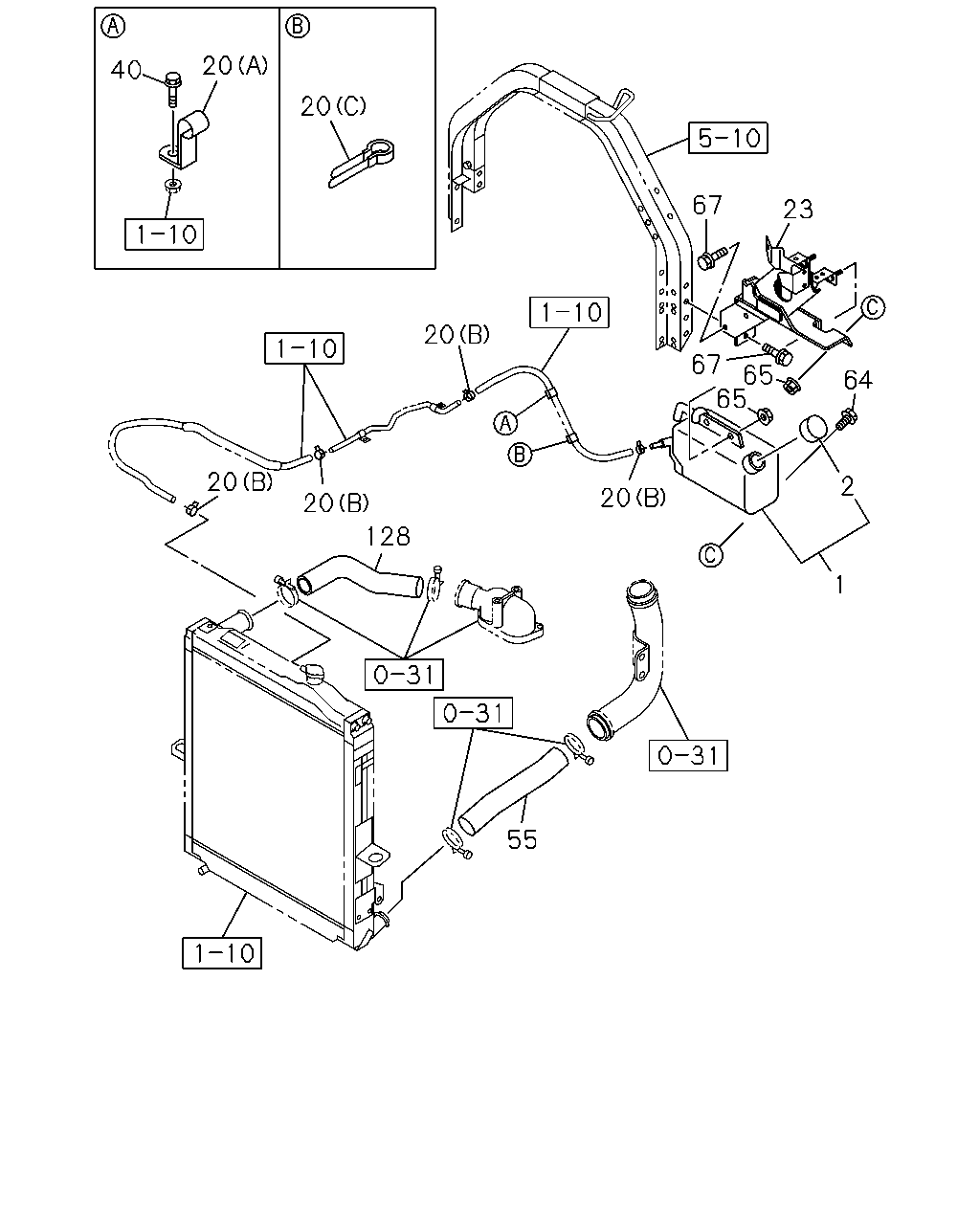

1-11 — RADIATOR HOSE AND SUB TANK (#133341) — 49 parça

40 20 20 20 20 20 128 20 67 67 23 65 65 1 2 64 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; SURGE,RAD	8-98171-757-0	01	1	1402-	●	●
2	CAP; SURGE TANK	8-98178-074-0	01	1	1402-	●	●
20	CLIP; HOSE,RAD (E) ID=13 L=20	0-95235-235-0	02	1	1406-		●
20	CLIP; HOSE,RAD (E) ID=12 L=70	1-09700-097-1	01	1	1406-		●
20	CLIP; HOSE,RAD (D) ID=11.5 & 14.5	8-94314-293-0	01	1	1406-		●
20	CLIP; HOSE,RAD (B) ID=11.5	8-97375-638-0	02	1	1406-		●
20	CLIP; HOSE,RAD (F) ID=12	8-98029-256-0	01	1	1406-		●
20	CLIP; HOSE,RAD (A) ID=13 H=40 L=25	1-09700-620-0	01	1	1402-	●
20	CLIP; HOSE,RAD (B) ID=11.5	8-97375-638-0	04	1	1402-	●
20	CLIP; HOSE,RAD (C) ID=20 L=50	9-09917-430-0	01	1	1402-1405	●	●
20	CLIP; HOSE,RAD (C) ID=20 L=50	9-09917-430-0	01	1	1406-	●	●
20	CLIP; HOSE,RAD (C) ID=20 L=50	9-09917-430-0	01	1	1406-		●
23	BRACKET; RESERVE TANK THA	8-97948-686-0	01	1	1402-	●	●
40	BOLT; CLIP M8X20 FLANGE THA	0-28650-820-0	03	1	1406-		●
40	BOLT; CLIP M8X20 FLANGE THA	0-28650-820-0	01	1	1402-	●
55	HOSE; WATER,RAD OUTLET THA	8-97924-242-1	01	1	1406-		●
55	HOSE; WATER,RAD OUTLET THA	8-97924-163-0	01	1	1402-	●
64	BOLT; BRKT,SUB TANK M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	1402-	●	●
65	NUT; BRKT,SUB TANK M8 FLANGE THA	0-91180-108-0	03	1	1402-	●	●
67	BOLT; BRKT M8X20 FLANGE THA	0-28650-820-0	03	1	1402-	●	●
128	HOSE; WATER,RAD INL THA	8-98205-873-0	01	1	1406-		●
128	HOSE; WATER,RAD INL THA	8-97924-161-0	01	1	1402-	●

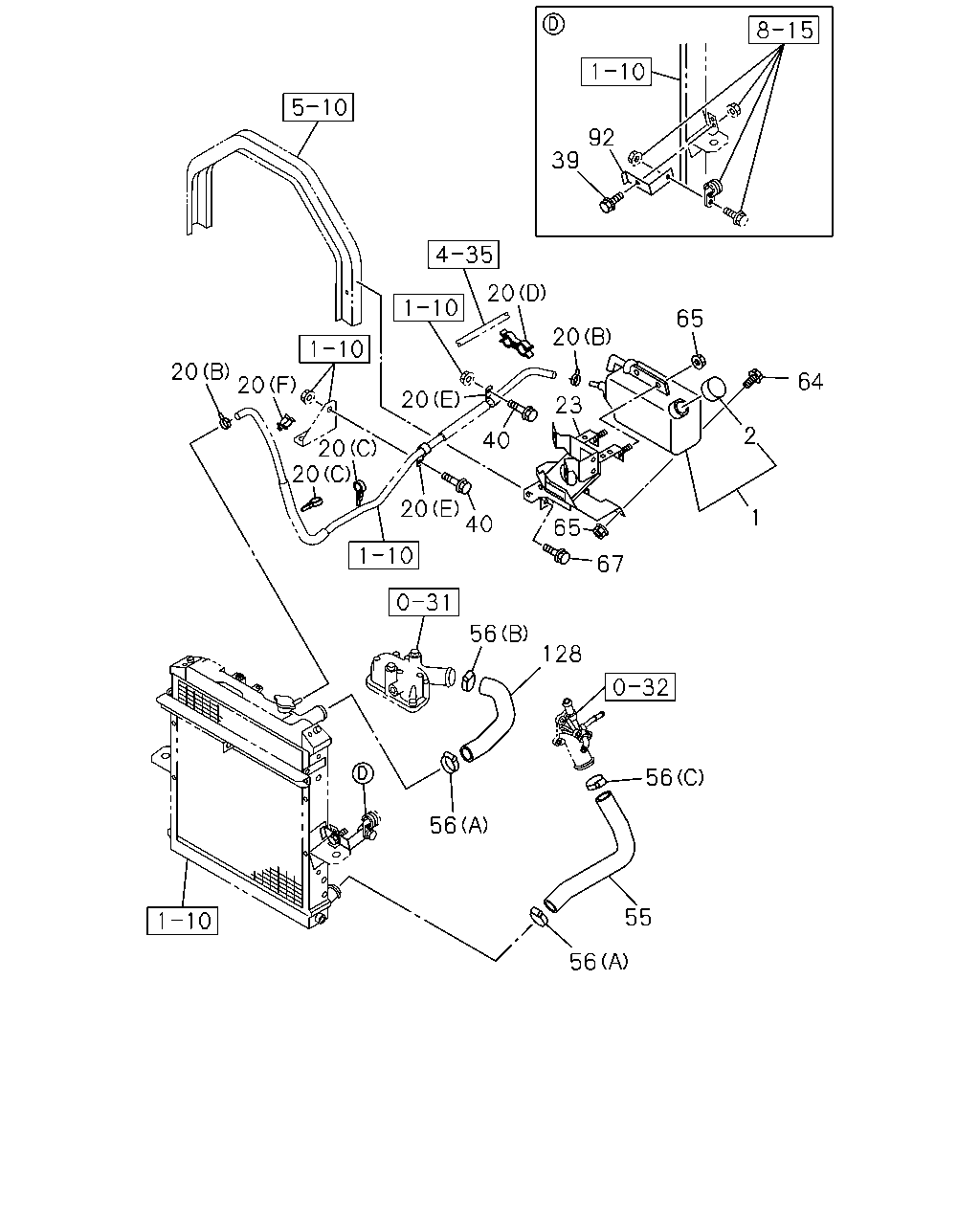

56 56 55 56 128 56 67 65 40 40 20 20 20 20 20 20 20 20 23 65 2 1 64 39 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; SURGE,RAD	8-98171-757-0	01	1	1402-	●	●
2	CAP; SURGE TANK	8-98178-074-0	01	1	1402-	●	●
20	CLIP; HOSE,RAD (E) ID=13 L=20	0-95235-235-0	02	1	1406-		●
20	CLIP; HOSE,RAD (E) ID=12 L=70	1-09700-097-1	01	1	1406-		●
20	CLIP; HOSE,RAD (D) ID=11.5 & 14.5	8-94314-293-0	01	1	1406-		●
20	CLIP; HOSE,RAD (B) ID=11.5	8-97375-638-0	02	1	1406-		●
20	CLIP; HOSE,RAD (F) ID=12	8-98029-256-0	01	1	1406-		●
20	CLIP; HOSE,RAD (A) ID=13 H=40 L=25	1-09700-620-0	01	1	1402-	●
20	CLIP; HOSE,RAD (B) ID=11.5	8-97375-638-0	04	1	1402-	●
20	CLIP; HOSE,RAD (C) ID=20 L=50	9-09917-430-0	01	1	1402-1405	●	●
20	CLIP; HOSE,RAD (C) ID=20 L=50	9-09917-430-0	01	1	1406-	●	●
20	CLIP; HOSE,RAD (C) ID=20 L=50	9-09917-430-0	01	1	1406-		●
23	BRACKET; RESERVE TANK THA	8-97948-686-0	01	1	1402-	●	●
39	BOLT; BRKT FIX EXC. ENGINE HIGH TORQUE<Q5W> M8X20 FLANGE THA	0-28650-820-0	01	1	1406-		●
40	BOLT; CLIP M8X20 FLANGE THA	0-28650-820-0	03	1	1406-		●
40	BOLT; CLIP M8X20 FLANGE THA	0-28650-820-0	01	1	1402-	●
55	HOSE; WATER,RAD OUTLET THA	8-97924-242-1	01	1	1406-		●
55	HOSE; WATER,RAD OUTLET THA	8-97924-163-0	01	1	1402-	●
56	CLIP; WATER HOSE,RAD (B) ID=52	1-09704-057-0	01	1	1406-		●
56	CLIP; WATER HOSE,RAD (A) ID=48	8-98133-956-0	02	1	1406-		●
56	CLIP; WATER HOSE,RAD (C) ID=62	8-98133-957-0	01	1	1406-		●
64	BOLT; BRKT,SUB TANK M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	1402-	●	●
65	NUT; BRKT,SUB TANK M8 FLANGE THA	0-91180-108-0	03	1	1402-	●	●
67	BOLT; BRKT M8X20 FLANGE THA	0-28650-820-0	03	1	1402-	●	●
92	BRACKET; CLIP,RUBBER HOSE EXC. ENGINE HIGH TORQUE<Q5W>	8-98055-051-0	01	1	1406-		●
128	HOSE; WATER,RAD INL THA	8-98205-873-0	01	1	1406-		●
128	HOSE; WATER,RAD INL THA	8-97924-161-0	01	1	1402-	●
