◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10874 - CXZ RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-53B - TRANSMISSION OIL COOLER SYSTEM ▶
2-53B — TRANSMISSION OIL COOLER SYSTEM (#13334) — 76 parça

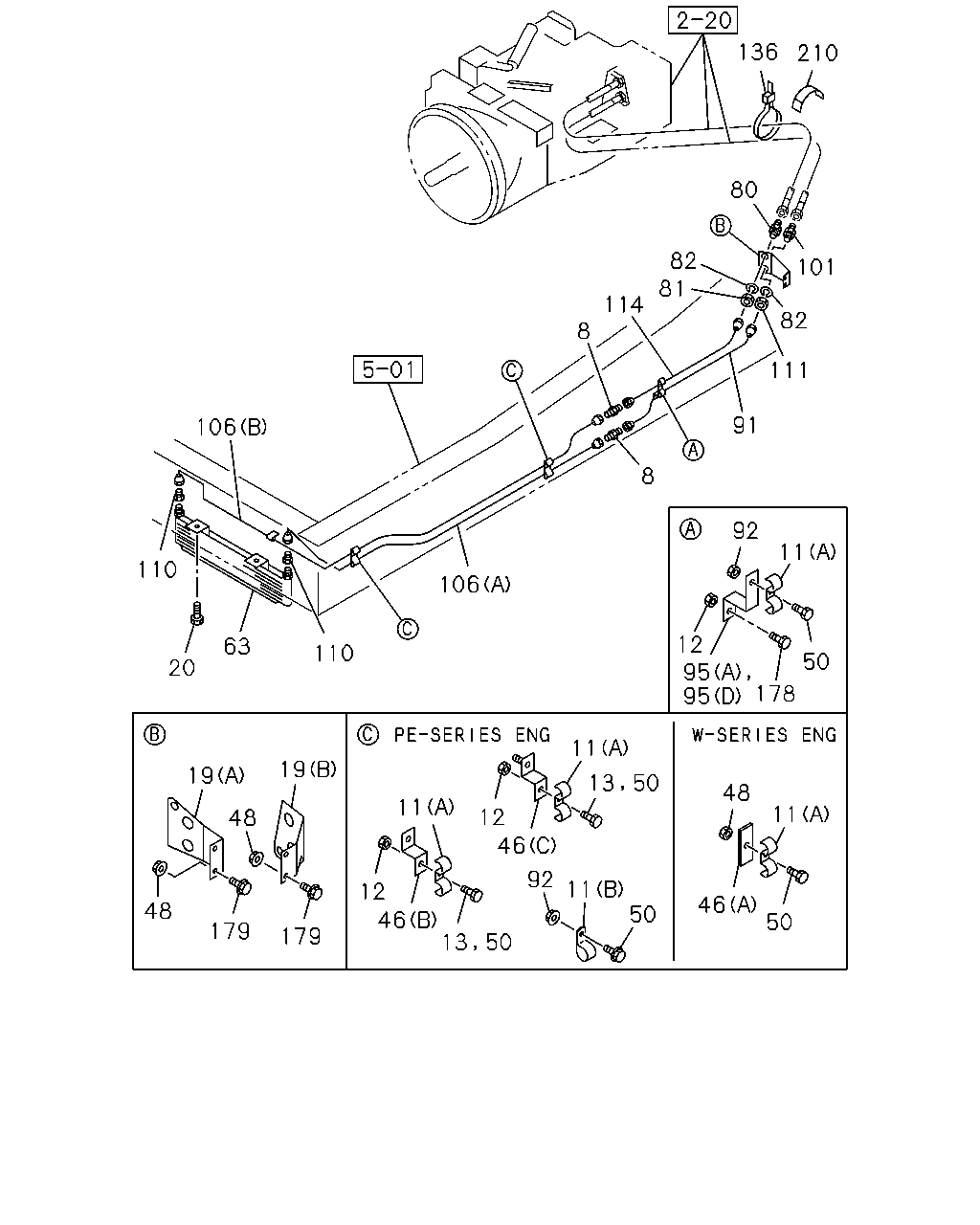

çizim 22133
50 13 46 12 11 12 46 92 11 50 50 13 11 46 50 11 48 178 95 12 95 50 11 92 91 111 82 101 80 210 136 82 81 114 8 8 110 63 20 110 106 19 19 48 179 179 48 106
BalonParca AdiParca NoAdetTipApplied Date
8 UNION
M22 		9-09233-015-1 01 1 0105-
8 UNION
M22 		9-09233-015-1 01 1 0105-
11 CLIP; PIPE
(A) ID=16 & 16 L=21.5 & 21.5 		1-09700-674-0 03 1 0105-
11 CLIP; PIPE
PE-SERIES ENG<1A0> (B) ID=16 L=20 		9-09525-535-0 01 1 0105-
12 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0105-0106
12 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0107-0602
12 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603-
12 NUT; BRKT
PE-SERIES ENG<1A0> M8 FLANGE 		0-91150-108-0 02 1 0105-0106
12 NUT; BRKT
PE-SERIES ENG<1A0> M8 FLANGE 		0-91150-108-0 02 1 0107-0602
12 NUT; BRKT
PE-SERIES ENG<1A0> M8 FLANGE 		0-91180-108-0 02 1 0603-
13 BOLT; BRKT
PE-SERIES ENG<1A0> M8X30 FLANGE 		0-28680-830-0 02 1 0105-0512
13 BOLT; BRKT
PE-SERIES ENG<1A0> M8X30 FLANGE 		0-28650-830-0 02 1 0601-
19 BRACKET; FLEX HOSE
W-SERIES ENG<1A2> (A) 		1-47479-300-0 01 1 0107-
19 BRACKET; FLEX HOSE
PE-SERIES ENG<1A0> (B) 		1-47478-648-0 01 1 0105-
19 BRACKET; FLEX HOSE
W-SERIES ENG<1A2> (A) 		1-47478-566-0 01 1 0105-0106
20 BOLT; COOLER TO BRKT
M10X20 FLANGE 		0-28081-020-0 02 1 0105-0512
20 BOLT; COOLER TO BRKT
M10X20 FLANGE 		0-28051-020-0 02 1 0601-
46 BRACKET; OIL PIPE
W-SERIES ENG<1A2> (A) L=50 		1-47475-299-2 02 1 0105-
46 BRACKET; OIL PIPE
PE-SERIES ENG<1A0> (B) 		1-47475-881-0 01 1 0105-0110
46 BRACKET; OIL PIPE
PE-SERIES ENG<1A0> (B) 		1-47477-669-1 01 1 0111-
46 BRACKET; OIL PIPE
PE-SERIES ENG<1A0> (C) 		1-47477-235-0 01 1 0105-
48 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0105-0602
48 NUT; BRKT
W-SERIES ENG<1A2> M8 FLANGE 		0-91150-108-0 02 1 0105-0602
48 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-
48 NUT; BRKT
W-SERIES ENG<1A2> M8 FLANGE 		0-91180-108-0 02 1 0603-
50 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0105-0106
50 BOLT; CLIP
PE-SERIES ENG<1A0> M8X20 FLANGE 		0-28680-820-0 01 1 0107-0110
50 BOLT; CLIP
PE-SERIES ENG<1A0> M8X20 FLANGE 		0-28680-820-0 03 1 0105-0110
50 BOLT; CLIP
PE-SERIES ENG<1A0> M8X20 FLANGE 		0-28680-820-0 02 1 0111-0512
50 BOLT; CLIP
PE-SERIES ENG<1A0> M8X20 FLANGE 		0-28650-820-0 02 1 0601-
50 BOLT; CLIP
W-SERIES ENG<1A2> M8X16 FLANGE 		0-28080-816-0 02 1 0105-0512
50 BOLT; CLIP
W-SERIES ENG<1A2> M8X16 FLANGE 		0-28050-816-0 02 1 0601-
63 COOLER; OIL 1-21700-290-0 01 1 0105-
80 UNION; FLEX HOSE
M22 & M30 STRAIGHT 		1-09664-237-0 01 1 0105-
81 NUT; UNION
M22 		9-09111-422-0 01 1 0105-0512
81 NUT; UNION
M22 		0-91111-522-0 01 1 0601-
82 WASHER; LK,UNION
ID=22.5 		9-09150-522-0 02 1 0105-0603
82 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 02 1 0604-
91 PIPE; OIL,FLEX HOSE TO UNION
PE-SERIES ENG<1A0> 		1-49164-672-0 01 1 0105-0110
91 PIPE; OIL,FLEX HOSE TO UNION
PE-SERIES ENG<1A0> 		1-49166-438-0 01 1 0111-
91 PIPE; OIL,FLEX HOSE TO UNION
W-SERIES ENG<1A2> L=911 		1-49163-072-0 01 1 0105-0106
91 PIPE; OIL,FLEX HOSE TO UNION
W-SERIES ENG<1A2> 		1-49166-215-0 01 1 0107-
92 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0105-0106
92 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0107-0602
92 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-
95 BRACKET; CLIP
(A) 		1-47475-881-0 01 1 0105-0106
95 BRACKET; CLIP
PE-SERIES ENG<1A0> (A) 		1-47475-881-0 01 1 0107-0110
95 BRACKET; CLIP
W-SERIES ENG<1A2> (D) 		1-47477-669-1 01 1 0107-0110
95 BRACKET; CLIP
(D) 		1-47477-669-1 01 1 0111-
95 BRACKET; CLIP
W-SERIES ENG<1A2> (D) 		1-47477-669-1 01 1 0111-
101 UNION; FLEX HOSE
M22 & M30 STRAIGHT 		1-09664-237-0 01 1 0105-
106 PIPE ASM; OIL,COOLER TO UNION
PE-SERIES ENG<1A0> (B) 		1-47429-504-0 01 1 0105-0110
106 PIPE ASM; OIL,COOLER TO UNION
PE-SERIES ENG<1A0> (A) 		1-49166-439-0 01 1 0111-
106 PIPE ASM; OIL,COOLER TO UNION
PE-SERIES ENG<1A0> (A) 		1-49164-613-0 01 1 0105-0110
106 PIPE ASM; OIL,COOLER TO UNION
PE-SERIES ENG<1A0> (B) 		1-49166-440-0 01 1 0111-
106 PIPE ASM; OIL,COOLER TO UNION
W-SERIES ENG<1A2> (A) L=2317 		1-49164-311-0 01 1 0105-0106
106 PIPE ASM; OIL,COOLER TO UNION
W-SERIES ENG<1A2> (A) L=2324 		1-49166-216-0 01 1 0107-0206
106 PIPE ASM; OIL,COOLER TO UNION
W-SERIES ENG<1A2> (A) L=2305 		1-49166-669-0 01 1 0207-
106 PIPE ASM; OIL,COOLER TO UNION
W-SERIES ENG<1A2> (B) L=1703 		1-49164-312-0 01 1 0105-0106
106 PIPE ASM; OIL,COOLER TO UNION
W-SERIES ENG<1A2> (B) L=1695 		1-49166-217-0 01 1 0107-
110 UNION; OIL PIPE 1-09654-398-0 02 1 0105-
111 NUT; UNION
M22 		9-09111-422-0 01 1 0105-0512
111 NUT; UNION
M22 		0-91111-522-0 01 1 0601-
114 PIPE; OIL,UNION TO FLEX HOSE
PE-SERIES ENG<1A0> L=1324 		1-49164-673-0 01 1 0105-0110
114 PIPE; OIL,UNION TO FLEX HOSE
PE-SERIES ENG<1A0> 		1-49166-441-0 01 1 0111-
114 PIPE; OIL,UNION TO FLEX HOSE
W-SERIES ENG<1A2> L=1071 		1-49163-073-0 01 1 0105-0106
114 PIPE; OIL,UNION TO FLEX HOSE
W-SERIES ENG<1A2> L=1073 		1-49166-218-0 01 1 0107-
136 CLIP; FLEX HOSE
W-SERIES ENG<1A2> L=250 		1-09707-126-0 01 1 0105-0108
136 CLIP; FLEX HOSE
W-SERIES ENG<1A2> L=250 		1-09707-126-0 01 1 0109-
178 BOLT; BRKT,CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0105-0106
178 BOLT; BRKT,CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0107-0512
178 BOLT; BRKT,CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0601-
179 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 0105-0512
179 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0601-
210 BAND; FLEX HOSE
W-SERIES ENG<1A2> L=175 		1-09707-178-0 01 1 0105-0108
210 BAND; FLEX HOSE
W-SERIES ENG<1A2> L=175 		1-09707-178-0 01 1 0109-
