1 |

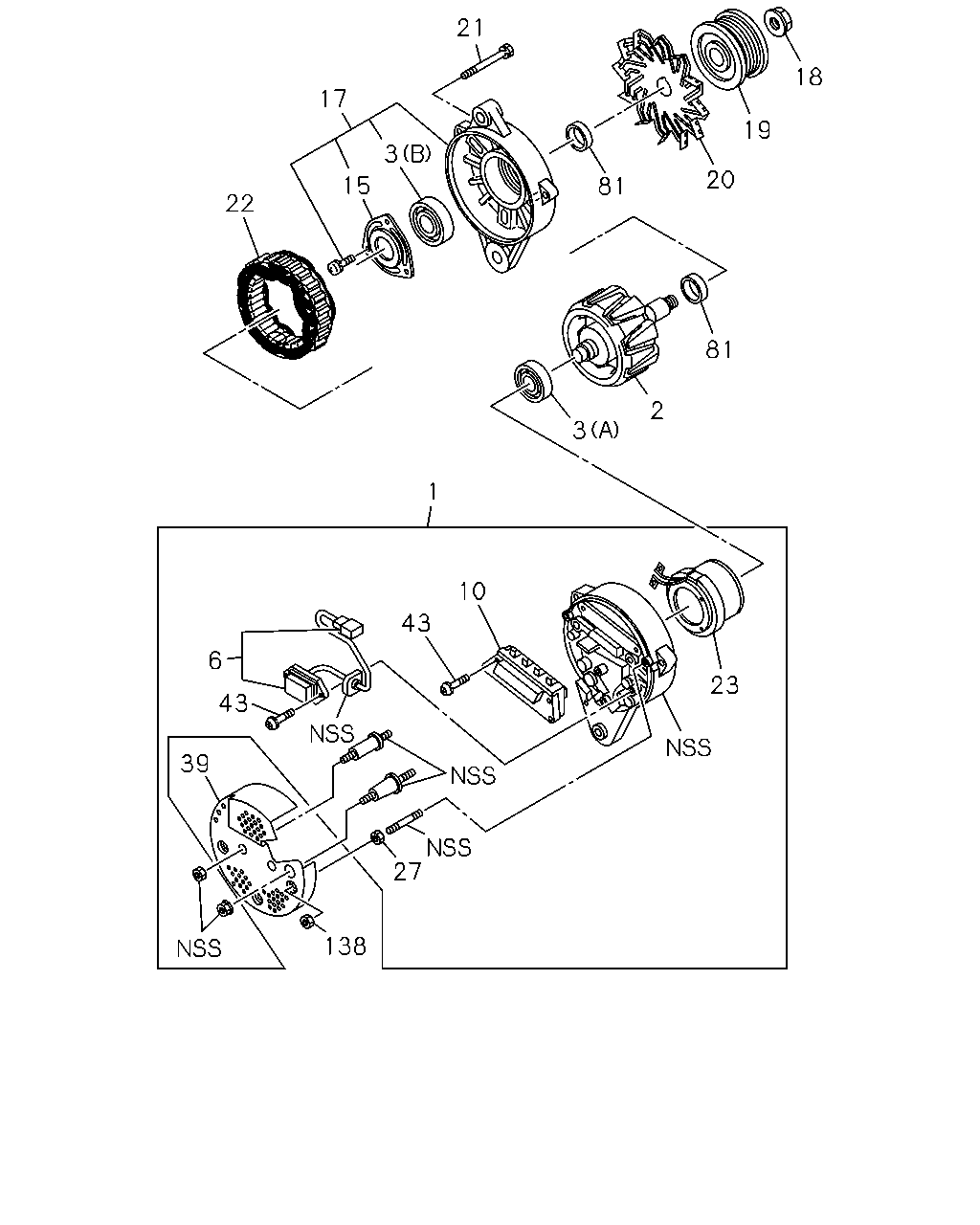

COVER ASM; RR,GEN
ASM PART: A = 8-98013-455-3, B = 8-98013-456-3,
C = 8-98013-461-4, D = 8-98013-462-4
|
8-98040-684-0 |
01 |
1 |
- |
| |
2 |
ROTOR; GEN
ASM PART: A = 8-98013-455-3, B = 8-98013-456-3,
C = 8-98013-461-4, D = 8-98013-462-4
|
8-98040-638-0 |
01 |
1 |
- |
| |
3 |
BEARING; ROTOR,GEN
(A) ASM PART: A = 8-98013-455-3, B = 8-98013-456-3,
C = 8-98013-461-4, D = 8-98013-462-4
|
1-81229-723-0 |
01 |
1 |
- |
| |
3 |
BEARING; ROTOR,GEN
(B) ASM PART: A = 8-98013-455-3, B = 8-98013-456-3,
C = 8-98013-461-4, D = 8-98013-462-4
|
1-81229-758-0 |
01 |
1 |
- |
| |
6 |
REGULATOR ASM; VOLTAGE,GEN
ASM PART: A = 8-98013-455-3, B = 8-98013-456-3,
C = 8-98013-461-4, D = 8-98013-462-4
|
8-98040-688-0 |
01 |
1 |
- |
| |
10 |
RECTIFIER; GEN
ASM PART: A = 8-98013-455-3, B = 8-98013-456-3,
C = 8-98013-461-4, D = 8-98013-462-4
|
8-98040-686-0 |
01 |
1 |
- |
| |
15 |
RETAINER; ROTOR,GEN
ASM PART: A = 8-98013-455-3, B = 8-98013-456-3,
C = 8-98013-461-4, D = 8-98013-462-4
|
1-81229-760-1 |
01 |
1 |
- |
| |
17 |
COVER ASM; FRT,GEN
ASM PART: A = 8-98013-455-3, B = 8-98013-456-3,
C = 8-98013-461-4, D = 8-98013-462-4
|
8-97382-872-0 |
01 |
1 |
- |
| |
18 |
NUT; PULLEY,GEN
ASM PART: A = 8-98013-455-3, B = 8-98013-456-3,
C = 8-98013-461-4, D = 8-98013-462-4
|
8-98040-643-0 |
01 |
1 |
- |
| |
19 |
PULLEY; GEN
ASM PART: C = 8-98013-461-4, D = 8-98013-462-4
|
8-98040-641-0 |
01 |
1 |
- |
| |
19 |
PULLEY; GEN
ASM PART: A = 8-98013-455-3, B = 8-98013-456-3
|
8-98048-005-0 |
01 |
1 |
- |
| |
20 |
FAN; GEN
ASM PART: A = 8-98013-455-3, B = 8-98013-456-3,
C = 8-98013-461-4, D = 8-98013-462-4
|
8-97382-874-0 |
01 |
1 |
- |
| |
21 |
BOLT; THROUGH,GEN
ASM PART: A = 8-98013-455-3, B = 8-98013-456-3,
C = 8-98013-461-4, D = 8-98013-462-4
|
1-81229-382-0 |
03 |
1 |
- |
| |
22 |
STATOR; GEN
ASM PART: A = 8-98013-455-3, C = 8-98013-461-4
|
8-98040-639-0 |
01 |
1 |
- |
| |
22 |
STATOR; GEN
ASM PART: B = 8-98013-456-3, D = 8-98013-462-4
|
8-98040-640-0 |
01 |
1 |
- |
| |
23 |
COIL; ROTOR GEN
ASM PART: A = 8-98013-455-3, B = 8-98013-456-3,
C = 8-98013-461-4, D = 8-98013-462-4
|
8-98040-645-0 |
01 |
1 |
- |
| |
27 |
NUT; RECTIFIER,GEN
ASM PART: A = 8-98013-455-3, B = 8-98013-456-3,
C = 8-98013-461-4, D = 8-98013-462-4
|
8-98040-687-0 |
01 |
1 |
- |
| |
39 |
COVER; END,RR COVER,GEN
ASM PART: A = 8-98013-455-3, B = 8-98013-456-3,
C = 8-98013-461-4, D = 8-98013-462-4
|
8-98181-103-0 |
01 |
1 |
- |
| |
43 |
SCREW; RR END COVER
ASM PART: A = 8-98013-455-3, B = 8-98013-456-3,
C = 8-98013-461-4, D = 8-98013-462-4
|
1-81229-476-0 |
03 |
1 |
- |
| |
81 |
SPACER; ROTOR,GEN
ASM PART: A = 8-98013-455-3, B = 8-98013-456-3,
C = 8-98013-461-4, D = 8-98013-462-4
|
8-97382-870-0 |
02 |
1 |
- |
| |
138 |
NUT; COVER,GENERATOR
ASM PART: A = 8-98013-455-3, B = 8-98013-456-3,
C = 8-98013-461-4, D = 8-98013-462-4
|
8-98040-690-0 |
03 |
1 |
- |
