0-65 — STARTER (#133337) — 77 parça

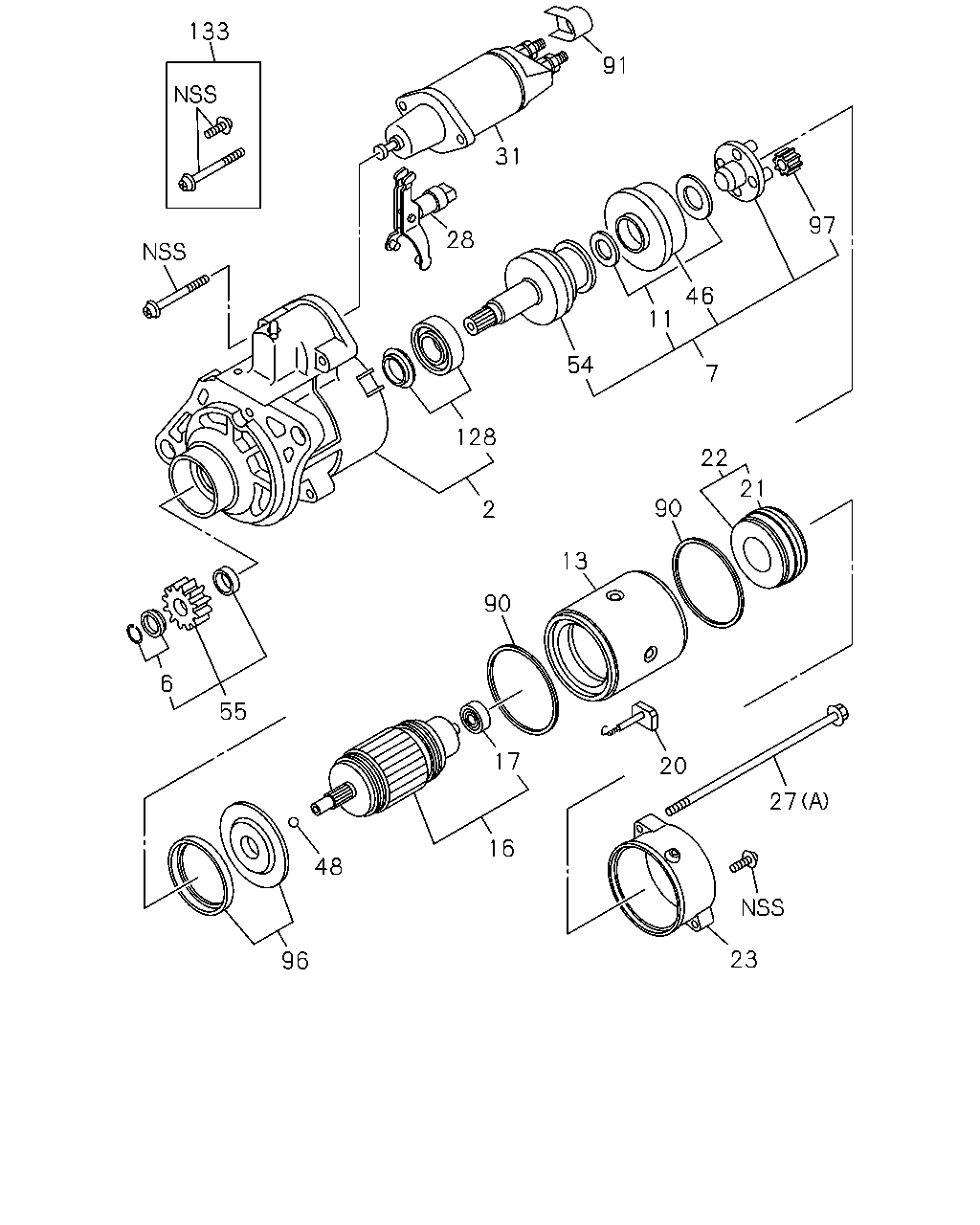

133 6 55 48 96 16 17 90 2 128 28 31 91 97 46 7 11 54 22 21 90 13 20 27 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER THA ASM PART: A = 8-97948-122-1	8-98246-657-0	01	1	-
2	CASE; PINION,STARTER ASM PART: B = 8-97948-123-0	8-98261-349-0	01	1	-
6	STOPPER; PINION STARTER THA ASM PART: B = 8-97948-123-0	8-94475-688-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: B = 8-97948-123-0	8-98245-549-0	01	1	-
7	CLUTCH ASM; PINION,STARTER THA ASM PART: A = 8-97948-122-1	8-98246-658-0	01	1	-
11	WASHER; GEAR SHAFT STARTER THA ASM PART: A = 8-97948-122-1, B = 8-97948-123-0	8-97116-484-0	01	1	-
13	YOKE; STARTER ASM PART: B = 8-97948-123-0	8-98245-552-0	01	1	-
13	YOKE; STARTER ASM PART: A = 8-97948-122-1	8-98252-444-0	01	1	-
16	ARMATURE; STARTER ASM PART: B = 8-97948-123-0	1-81121-075-0	01	1	-
16	ARMATURE; STARTER THA ASM PART: A = 8-97948-122-1	8-97231-280-0	01	1	-
17	BEARING; ARMATURE,STARTER THA ASM PART: A = 8-97948-122-1, B = 8-97948-123-0	1-81129-837-0	01	1	-
20	BRUSH; (+),STARTER ASM PART: B = 8-97948-123-0	1-81116-066-0	01	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: B = 8-97948-123-0	1-81129-768-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER THA ASM PART: A = 8-97948-122-1	8-97116-516-0	04	1	-
22	HOLDER; BRUSH STARTER ASM PART: B = 8-97948-123-0	8-98245-553-0	01	1	-
22	HOLDER; BRUSH STARTER THA ASM PART: A = 8-97948-122-1	8-98252-445-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: B = 8-97948-123-0	8-98248-764-0	01	1	-
23	COVER; RR COVER STARTER THA ASM PART: A = 8-97948-122-1	8-98252-446-0	01	1	-
27	BOLT; THROUGH,STARTER (A) ASM PART: B = 8-97948-123-0	1-81129-769-0	01	1	-
27	BOLT; THROUGH,STARTER (B), THA ASM PART: A = 8-97948-122-1	8-97116-495-0	01	1	-
27	BOLT; THROUGH,STARTER (C), THA ASM PART: A = 8-97948-122-1	8-97116-514-0	01	1	-
28	LEVER; SHIFT,STARTER ASM PART: B = 8-97948-123-0	1-81129-762-0	01	1	-
28	LEVER; SHIFT,STARTER THA ASM PART: A = 8-97948-122-1	8-97116-492-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: B = 8-97948-123-0	8-98245-551-0	01	1	-
31	SWITCH; ENGAGE STARTER THA ASM PART: A = 8-97948-122-1	8-98252-441-1	01	1	-
46	GEAR; CLU STARTER THA ASM PART: B = 8-97948-123-0	8-97116-485-0	01	1	-
46	GEAR; CLU STARTER THA ASM PART: A = 8-97948-122-1	8-97116-490-0	04	1	-
48	BALL; PINION,STARTER THA ASM PART: A = 8-97948-122-1, B = 8-97948-123-0	8-97116-515-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: B = 8-97948-123-0	1-81129-761-0	01	1	-
54	CLUTCH; PINION,STARTER THA ASM PART: A = 8-97948-122-1	8-98246-659-0	01	1	-
55	PINION; CLU,STARTER ASM PART: B = 8-97948-123-0	8-98060-835-0	01	1	-
55	PINION; CLU,STARTER ASM PART: A = 8-97948-122-1	8-98246-661-0	01	1	-
90	GASKET; ARMATURE ASM PART: B = 8-97948-123-0	1-81129-767-0	02	1	-
91	COVER; STARTER ASM PART: B = 8-97948-123-0	1-81129-764-0	01	1	-
96	GASKET; FRT CASE ASM PART: B = 8-97948-123-0	8-98248-761-0	01	1	-
96	GASKET; FRT CASE THA ASM PART: A = 8-97948-122-1	8-98252-442-0	01	1	-
97	GEAR; STARTER THA ASM PART: B = 8-97948-123-0	8-97116-490-0	04	1	-
128	BEARING; STARTER ASM PART: B = 8-97948-123-0	1-81129-758-0	01	1	-
133	SCREW SET; STARTER ASM PART: B = 8-97948-123-0	1-81129-765-0	01	1	-

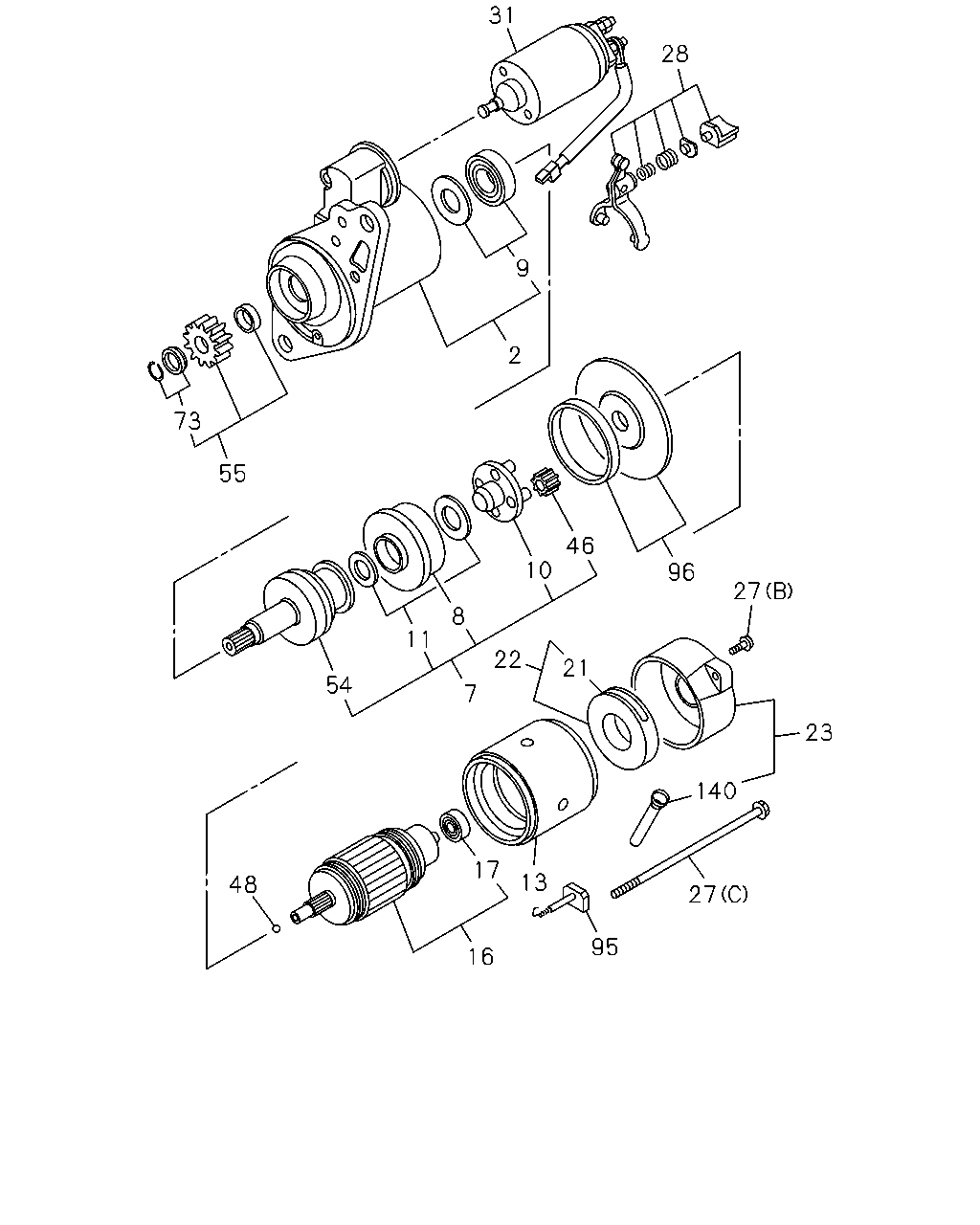

31 28 9 2 73 55 54 11 8 10 46 96 27 23 140 27 95 13 21 22 7 17 16 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER THA ASM PART: A = 8-97948-122-1	8-98246-657-0	01	1	-
2	CASE; PINION,STARTER ASM PART: B = 8-97948-123-0	8-98261-349-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: B = 8-97948-123-0	8-98245-549-0	01	1	-
7	CLUTCH ASM; PINION,STARTER THA ASM PART: A = 8-97948-122-1	8-98246-658-0	01	1	-
8	BRACKET; CENTER STARTER THA ASM PART: A = 8-97948-122-1	8-97116-485-0	01	1	-
9	BEARING; GEAR SHAFT STARTER THA ASM PART: A = 8-97948-122-1	8-97116-481-0	01	1	-
10	SHAFT; GEAR STARTER THA ASM PART: A = 8-97948-122-1	8-97178-152-0	01	1	-
11	WASHER; GEAR SHAFT STARTER THA ASM PART: A = 8-97948-122-1, B = 8-97948-123-0	8-97116-484-0	01	1	-
13	YOKE; STARTER ASM PART: B = 8-97948-123-0	8-98245-552-0	01	1	-
13	YOKE; STARTER ASM PART: A = 8-97948-122-1	8-98252-444-0	01	1	-
16	ARMATURE; STARTER ASM PART: B = 8-97948-123-0	1-81121-075-0	01	1	-
16	ARMATURE; STARTER THA ASM PART: A = 8-97948-122-1	8-97231-280-0	01	1	-
17	BEARING; ARMATURE,STARTER THA ASM PART: A = 8-97948-122-1, B = 8-97948-123-0	1-81129-837-0	01	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: B = 8-97948-123-0	1-81129-768-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER THA ASM PART: A = 8-97948-122-1	8-97116-516-0	04	1	-
22	HOLDER; BRUSH STARTER ASM PART: B = 8-97948-123-0	8-98245-553-0	01	1	-
22	HOLDER; BRUSH STARTER THA ASM PART: A = 8-97948-122-1	8-98252-445-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: B = 8-97948-123-0	8-98248-764-0	01	1	-
23	COVER; RR COVER STARTER THA ASM PART: A = 8-97948-122-1	8-98252-446-0	01	1	-
27	BOLT; THROUGH,STARTER (A) ASM PART: B = 8-97948-123-0	1-81129-769-0	01	1	-
27	BOLT; THROUGH,STARTER (B), THA ASM PART: A = 8-97948-122-1	8-97116-495-0	01	1	-
27	BOLT; THROUGH,STARTER (C), THA ASM PART: A = 8-97948-122-1	8-97116-514-0	01	1	-
28	LEVER; SHIFT,STARTER ASM PART: B = 8-97948-123-0	1-81129-762-0	01	1	-
28	LEVER; SHIFT,STARTER THA ASM PART: A = 8-97948-122-1	8-97116-492-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: B = 8-97948-123-0	8-98245-551-0	01	1	-
31	SWITCH; ENGAGE STARTER THA ASM PART: A = 8-97948-122-1	8-98252-441-1	01	1	-
46	GEAR; CLU STARTER THA ASM PART: B = 8-97948-123-0	8-97116-485-0	01	1	-
46	GEAR; CLU STARTER THA ASM PART: A = 8-97948-122-1	8-97116-490-0	04	1	-
48	BALL; PINION,STARTER THA ASM PART: A = 8-97948-122-1, B = 8-97948-123-0	8-97116-515-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: B = 8-97948-123-0	1-81129-761-0	01	1	-
54	CLUTCH; PINION,STARTER THA ASM PART: A = 8-97948-122-1	8-98246-659-0	01	1	-
55	PINION; CLU,STARTER ASM PART: B = 8-97948-123-0	8-98060-835-0	01	1	-
55	PINION; CLU,STARTER ASM PART: A = 8-97948-122-1	8-98246-661-0	01	1	-
73	STOPPER SET; PINION THA ASM PART: A = 8-97948-122-1	8-94475-688-0	01	1	-
95	BRUSH ASM; STARTER THA ASM PART: A = 8-97948-122-1	8-98252-448-0	02	1	-
96	GASKET; FRT CASE ASM PART: B = 8-97948-123-0	8-98248-761-0	01	1	-
96	GASKET; FRT CASE THA ASM PART: A = 8-97948-122-1	8-98252-442-0	01	1	-
140	GROMMET; RR COVER THA ASM PART: A = 8-97948-122-1	8-98252-447-0	01	1	-
