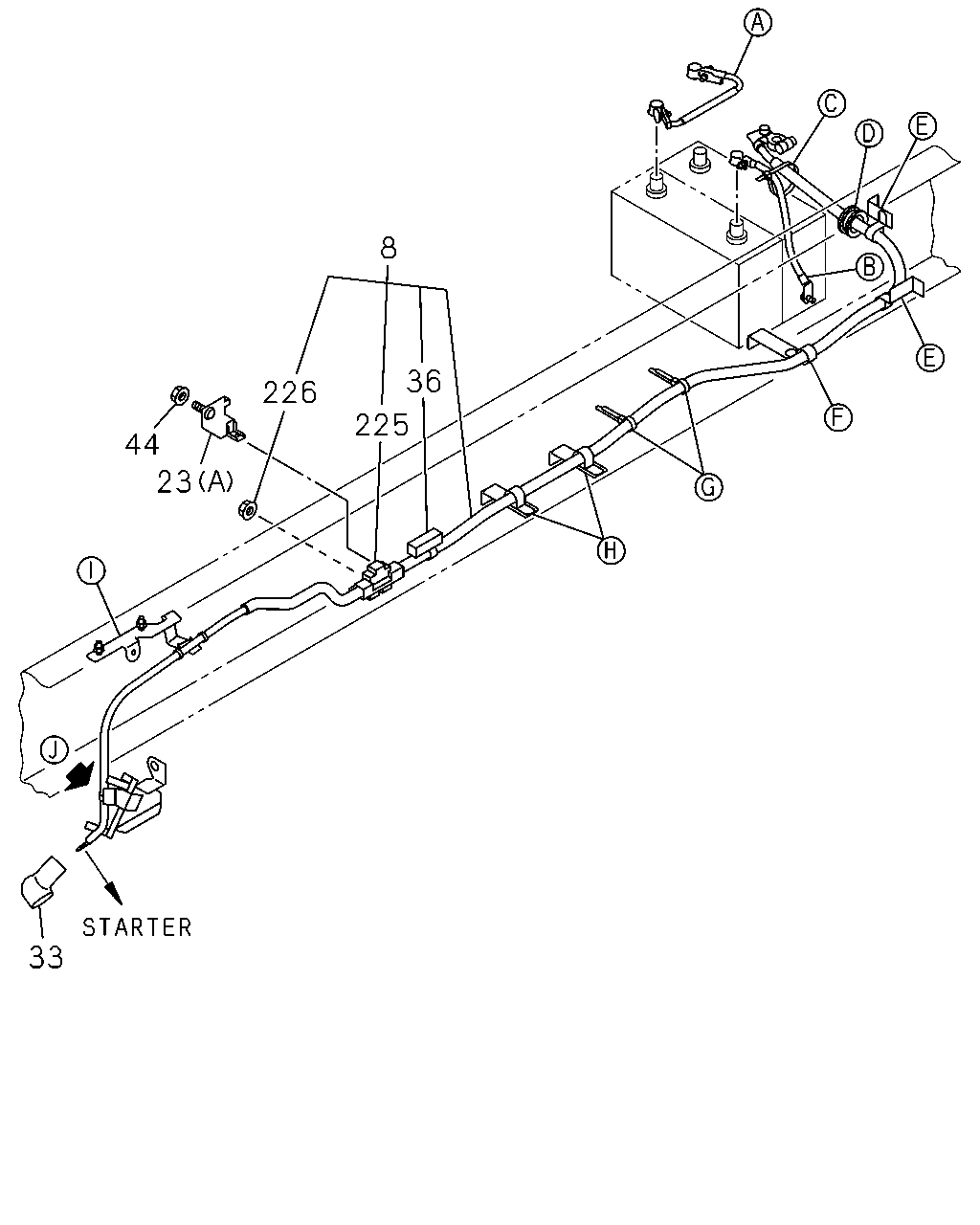

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#133336) — 124 parça

8 36 225 226 44 23 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	CABLE; BATTERY,STARTER 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> THA	8-97926-870-0	01	1	1406-
8	CABLE; BATTERY,STARTER 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> THA	8-97926-871-1	01	1	1406-
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG<82L> WHEEL BASE 3600MM<36W> THA	8-97926-436-1	01	1	1402-
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG<82L> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W> THA	8-97926-437-1	01	1	1402-
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG<82L> WHEEL BASE 5500MM<55W> THA	8-97926-438-1	01	1	1402-
23	BRACKET; CABLE CLIP TO FRAME 4HK1-TCS ENG<RJS> (G)	8-98091-358-0	02	1	1406-
23	BRACKET; CABLE CLIP TO FRAME 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> (D) L=145	1-47475-655-0	02	1	1406-
23	BRACKET; CABLE CLIP TO FRAME 6HK1-TCN ENG<82L> (E) L=95	1-82699-085-0	01	1	1402-
23	BRACKET; CABLE CLIP TO FRAME 6HK1-TCN ENG<82L> (E) L=95	1-82699-085-0	01	1	1402-
23	BRACKET; CABLE CLIP TO FRAME (A)	8-98044-882-0	01	1	1402-
23	BRACKET; CABLE CLIP TO FRAME 6HK1-TCN ENG<82L> (F)	8-98201-024-0	01	1	1402-
23	BRACKET; CABLE CLIP TO FRAME 6HK1-TCN ENG<82L> WHEEL BASE 3600MM<36W> (C)	8-97619-097-1	01	1	1402-
23	BRACKET; CABLE CLIP TO FRAME 6HK1-TCN ENG<82L> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> (D) L=145	1-47475-655-0	01	1	1402-
23	BRACKET; CABLE CLIP TO FRAME 6HK1-TCN ENG<82L> WHEEL BASE 5500MM<55W> (B) L=55	1-47475-304-0	01	1	1402-1405
23	BRACKET; CABLE CLIP TO FRAME 6HK1-TCN ENG<82L> (B) L=55	1-47475-304-0	01	1	1402-1405
23	BRACKET; CABLE CLIP TO FRAME 6HK1-TCN ENG<82L> WHEEL BASE 5500MM<55W> (B) L=55	1-47475-304-0	01	1	1406-
23	BRACKET; CABLE CLIP TO FRAME 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> (B) L=55	1-47475-304-0	01	1	1406-
23	BRACKET; CABLE CLIP TO FRAME 6HK1-TCN ENG<82L> (B) L=55	1-47475-304-0	01	1	1406-
33	CAP; INSULATOR 6HK1-TCN ENG<82L>	1-82699-431-0	01	1	1402-
36	FUSIBLE LINK; BATTERY THA	8-97615-498-1	01	1	1402-
44	NUT; BRKT M10 FLANGE THA	0-91180-210-0	01	1	1402-
225	BLOCK; TERMINAL THA	8-98029-689-0	01	1	1402-
226	NUT; FUSIBLE LINK M6 W/LK WASHER	8-94424-179-0	01	1	1402-

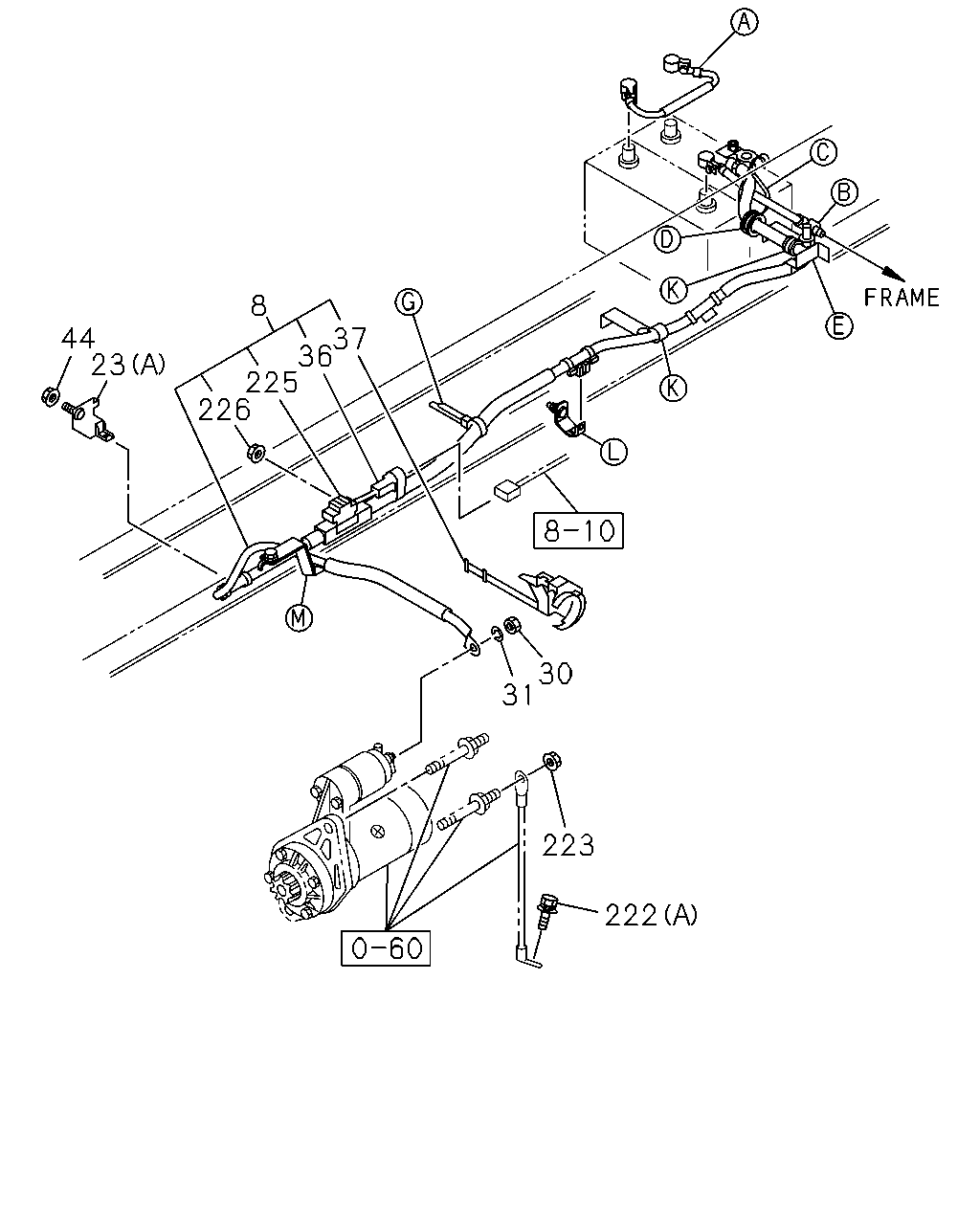

226 225 36 37 8 23 44 223 222 31 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	CABLE; BATTERY,STARTER 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> THA	8-97926-870-0	01	1	1406-
8	CABLE; BATTERY,STARTER 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> THA	8-97926-871-1	01	1	1406-
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG<82L> WHEEL BASE 3600MM<36W> THA	8-97926-436-1	01	1	1402-
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG<82L> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W> THA	8-97926-437-1	01	1	1402-
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG<82L> WHEEL BASE 5500MM<55W> THA	8-97926-438-1	01	1	1402-
23	BRACKET; CABLE CLIP TO FRAME 4HK1-TCS ENG<RJS> (G)	8-98091-358-0	02	1	1406-
23	BRACKET; CABLE CLIP TO FRAME 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> (D) L=145	1-47475-655-0	02	1	1406-
23	BRACKET; CABLE CLIP TO FRAME 6HK1-TCN ENG<82L> (E) L=95	1-82699-085-0	01	1	1402-
23	BRACKET; CABLE CLIP TO FRAME 6HK1-TCN ENG<82L> (E) L=95	1-82699-085-0	01	1	1402-
23	BRACKET; CABLE CLIP TO FRAME (A)	8-98044-882-0	01	1	1402-
23	BRACKET; CABLE CLIP TO FRAME 6HK1-TCN ENG<82L> (F)	8-98201-024-0	01	1	1402-
23	BRACKET; CABLE CLIP TO FRAME 6HK1-TCN ENG<82L> WHEEL BASE 3600MM<36W> (C)	8-97619-097-1	01	1	1402-
23	BRACKET; CABLE CLIP TO FRAME 6HK1-TCN ENG<82L> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> (D) L=145	1-47475-655-0	01	1	1402-
23	BRACKET; CABLE CLIP TO FRAME 6HK1-TCN ENG<82L> WHEEL BASE 5500MM<55W> (B) L=55	1-47475-304-0	01	1	1402-1405
23	BRACKET; CABLE CLIP TO FRAME 6HK1-TCN ENG<82L> (B) L=55	1-47475-304-0	01	1	1402-1405
23	BRACKET; CABLE CLIP TO FRAME 6HK1-TCN ENG<82L> WHEEL BASE 5500MM<55W> (B) L=55	1-47475-304-0	01	1	1406-
23	BRACKET; CABLE CLIP TO FRAME 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> (B) L=55	1-47475-304-0	01	1	1406-
23	BRACKET; CABLE CLIP TO FRAME 6HK1-TCN ENG<82L> (B) L=55	1-47475-304-0	01	1	1406-
30	NUT; CABLE,STARTER TO BATTERY 4HK1-TCS ENG<RJS> M8	0-91110-508-0	01	1	1406-
31	WASHER; LK,CABLE,STARTER TO BATTERY 4HK1-TCS ENG<RJS> ID=8.2	0-91510-508-0	01	1	1406-
36	FUSIBLE LINK; BATTERY THA	8-97615-498-1	01	1	1402-
37	CAP; TERMINAL,BATTERY CABLE 4HK1-TCS ENG<RJS> THA	8-97927-023-0	01	1	1406-
44	NUT; BRKT M10 FLANGE THA	0-91180-210-0	01	1	1402-
222	BOLT; EARTH CABLE 6HK1-TCN ENG<82L> (B) M8X16 FLANGE THA	0-28050-816-0	01	1	1402-
222	BOLT; EARTH CABLE (A) M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	1402-
223	NUT; EARTH CABLE M10 FLANGE THA	0-91180-210-0	01	1	1406-
225	BLOCK; TERMINAL THA	8-98029-689-0	01	1	1402-
226	NUT; FUSIBLE LINK M6 W/LK WASHER	8-94424-179-0	01	1	1402-

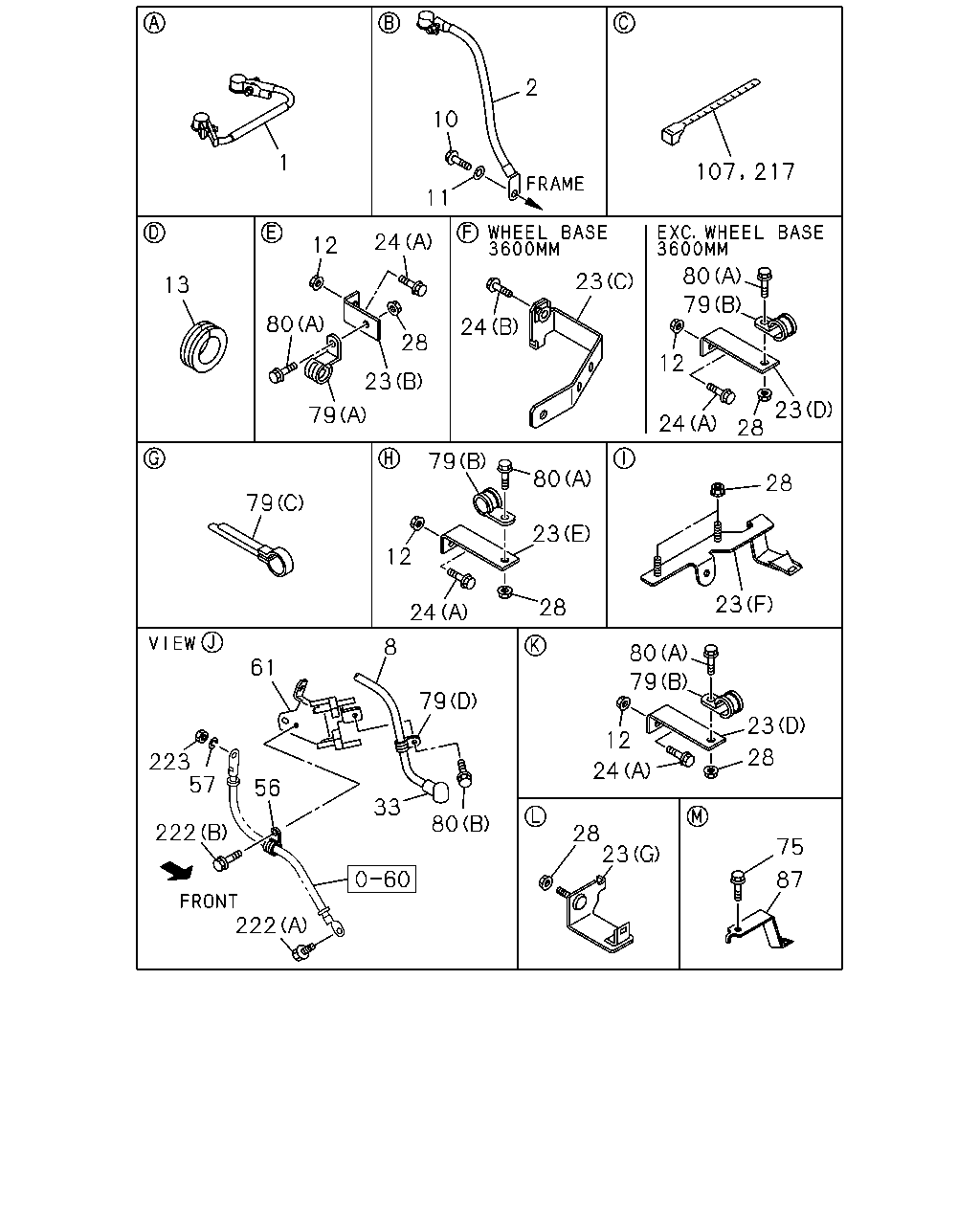

1 11 10 2 107 217 80 79 12 24 28 23 24 23 24 12 28 23 80 79 13 79 12 24 79 80 23 28 23 28 61 8 79 33 80 56 57 223 222 222 28 23 75 87 24 12 28 23 79 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CABLE; BATTERY L=280 THA	8-97922-383-0	01	1	1402-
2	CABLE; BATTERY 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> L=280 THA	8-98281-502-0	01	1	1406-
2	CABLE; BATTERY 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> L=240 THA	1-82650-403-1	01	1	1406-
2	CABLE; BATTERY 6HK1-TCN ENG<82L> L=305 THA	8-97924-521-1	01	1	1402-
8	CABLE; BATTERY,STARTER 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> THA	8-97926-870-0	01	1	1406-
8	CABLE; BATTERY,STARTER 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> THA	8-97926-871-1	01	1	1406-
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG<82L> WHEEL BASE 3600MM<36W> THA	8-97926-436-1	01	1	1402-
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG<82L> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W> THA	8-97926-437-1	01	1	1402-
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG<82L> WHEEL BASE 5500MM<55W> THA	8-97926-438-1	01	1	1402-
10	BOLT; BATTERY CABLE CLIP M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	1402-
11	WASHER; BATTERY CABLE EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1402-
12	NUT; BATTERY CABLE CLIP 6HK1-TCN ENG<82L> WHEEL BASE 3600MM<36W> M8 FLANGE THA	0-91180-108-0	03	1	1402-
12	NUT; BATTERY CABLE CLIP 6HK1-TCN ENG<82L> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> M8 FLANGE THA	0-91180-108-0	04	1	1402-
12	NUT; BATTERY CABLE CLIP 6HK1-TCN ENG<82L> WHEEL BASE 5500MM<55W> M8 FLANGE THA	0-91180-108-0	01	1	1402-1405
12	NUT; BATTERY CABLE CLIP 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> M8 FLANGE THA	0-91180-108-0	01	1	1406-
12	NUT; BATTERY CABLE CLIP 6HK1-TCN ENG<82L> WHEEL BASE 5500MM<55W> M8 FLANGE THA	0-91180-108-0	01	1	1406-
13	GROMMET; BATTERY CABLE 4HK1-TCS ENG<RJS> WHEEL BASE 5500MM<55W> ID=32 OD=40 T=23	1-09332-112-0	01	1	1406-
13	GROMMET; BATTERY CABLE 6HK1-TCN ENG<82L> ID=32 OD=40 T=18	1-09891-003-0	01	1	1402-1405
13	GROMMET; BATTERY CABLE 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W>,WHEEL BASE 4200MM<42W>, WHEELBASE 5000MM<50W> ID=32 OD=40 T=18	1-09891-003-0	01	1	1406-
13	GROMMET; BATTERY CABLE 6HK1-TCN ENG<82L> ID=32 OD=40 T=18	1-09891-003-0	01	1	1406-
23	BRACKET; CABLE CLIP TO FRAME 4HK1-TCS ENG<RJS> (G)	8-98091-358-0	02	1	1406-
23	BRACKET; CABLE CLIP TO FRAME 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> (D) L=145	1-47475-655-0	02	1	1406-
23	BRACKET; CABLE CLIP TO FRAME 6HK1-TCN ENG<82L> (E) L=95	1-82699-085-0	01	1	1402-
23	BRACKET; CABLE CLIP TO FRAME 6HK1-TCN ENG<82L> (E) L=95	1-82699-085-0	01	1	1402-
23	BRACKET; CABLE CLIP TO FRAME (A)	8-98044-882-0	01	1	1402-
23	BRACKET; CABLE CLIP TO FRAME 6HK1-TCN ENG<82L> (F)	8-98201-024-0	01	1	1402-
23	BRACKET; CABLE CLIP TO FRAME 6HK1-TCN ENG<82L> WHEEL BASE 3600MM<36W> (C)	8-97619-097-1	01	1	1402-
23	BRACKET; CABLE CLIP TO FRAME 6HK1-TCN ENG<82L> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> (D) L=145	1-47475-655-0	01	1	1402-
23	BRACKET; CABLE CLIP TO FRAME 6HK1-TCN ENG<82L> WHEEL BASE 5500MM<55W> (B) L=55	1-47475-304-0	01	1	1402-1405
23	BRACKET; CABLE CLIP TO FRAME 6HK1-TCN ENG<82L> (B) L=55	1-47475-304-0	01	1	1402-1405
23	BRACKET; CABLE CLIP TO FRAME 6HK1-TCN ENG<82L> WHEEL BASE 5500MM<55W> (B) L=55	1-47475-304-0	01	1	1406-
23	BRACKET; CABLE CLIP TO FRAME 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> (B) L=55	1-47475-304-0	01	1	1406-
23	BRACKET; CABLE CLIP TO FRAME 6HK1-TCN ENG<82L> (B) L=55	1-47475-304-0	01	1	1406-
24	BOLT; BRKT TO FRAME WHEEL BASE 3600MM<36W> (A) M8X30 FLANGE THA	0-28650-830-0	03	1	1402-
24	BOLT; BRKT TO FRAME 6HK1-TCN ENG<82L> WHEEL BASE 3600MM<36W> (B) M10X35 FLANGE THA	0-28651-035-0	01	1	1402-
24	BOLT; BRKT TO FRAME 6HK1-TCN ENG<82L> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> (A) M8X30 FLANGE THA	0-28650-830-0	04	1	1402-
24	BOLT; BRKT TO FRAME 6HK1-TCN ENG<82L> WHEEL BASE 5500MM<55W> (A) M8X30 FLANGE THA	0-28650-830-0	01	1	1402-
28	NUT; BRKT TO FRAME 4HK1-TCS ENG<RJS> M10 FLANGE THA	0-91180-210-0	02	1	1406-
28	NUT; BRKT TO FRAME 6HK1-TCN ENG<82L> M8 FLANGE THA	0-91180-108-0	02	1	1402-
28	NUT; BRKT TO FRAME WHEEL BASE 3600MM<36W> M8 FLANGE THA	0-91180-108-0	03	1	1402-
28	NUT; BRKT TO FRAME 6HK1-TCN ENG<82L> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> M8 FLANGE THA	0-91180-108-0	04	1	1402-
28	NUT; BRKT TO FRAME 6HK1-TCN ENG<82L> WHEEL BASE 5500MM<55W> M8 FLANGE THA	0-91180-108-0	01	1	1402-
33	CAP; INSULATOR 6HK1-TCN ENG<82L>	1-82699-431-0	01	1	1402-
56	CLIP; BATTERY CABLE ID=16 L=28	1-09700-872-0	01	1	1402-1402
56	CLIP; BATTERY CABLE 6HK1-TCN ENG<82L> ID=16 L=28	1-09700-872-0	01	1	1406-
57	WASHER; PL,BATTERY CABLE ID=10.5 OD=22 T=1.6	0-91610-610-0	01	1	1402-1402
57	WASHER; PL,BATTERY CABLE 6HK1-TCN ENG<82L> ID=10.5 OD=22 T=1.6	0-91610-610-0	01	1	1406-
61	BRACKET; BATTERY CABLE	8-98051-379-1	01	1	1402-1402
61	BRACKET; BATTERY CABLE 6HK1-TCN ENG<82L>	8-98051-379-1	01	1	1406-
75	BOLT; BRKT 4HK1-TCS ENG<RJS> M8X20 FLANGE THA	0-28650-820-0	01	1	1406-
79	CLIP; BATTERY CABLE 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> (C) ID=20 L=50	9-09917-430-0	03	1	1406-
79	CLIP; BATTERY CABLE 4HK1-TCS ENG<RJS> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> (C) ID=20 L=50	9-09917-430-0	06	1	1406-
79	CLIP; BATTERY CABLE 6HK1-TCN ENG<82L> (A) ID=19 L=24 H=21	1-09700-109-1	01	1	1402-1405
79	CLIP; BATTERY CABLE 6HK1-TCN ENG<82L> WHEEL BASE 5500MM<55W> (A) ID=19 L=24 H=21	1-09700-109-1	01	1	1402-1405
79	CLIP; BATTERY CABLE 6HK1-TCN ENG<82L> (A) ID=19 L=24 H=21	1-09700-109-1	01	1	1406-
79	CLIP; BATTERY CABLE 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> (A) ID=19 L=24 H=21	1-09700-109-1	01	1	1406-
79	CLIP; BATTERY CABLE 6HK1-TCN ENG<82L> WHEEL BASE 5500MM<55W> (A) ID=19 L=24 H=21	1-09700-109-1	01	1	1406-
79	CLIP; BATTERY CABLE 6HK1-TCN ENG<82L> (C) ID=20 L=70	1-09700-485-0	02	1	1402-
79	CLIP; BATTERY CABLE 6HK1-TCN ENG<82L> (D) ID=16 L=28	1-09700-872-0	01	1	1402-
79	CLIP; BATTERY CABLE 6HK1-TCN ENG<82L> WHEEL BASE 3600MM<36W> (B) ID=21 L=24	8-98019-191-0	02	1	1402-
79	CLIP; BATTERY CABLE 6HK1-TCN ENG<82L> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> (B) ID=21 L=24	8-98019-191-0	03	1	1402-
80	BOLT; BATTERY CABLE CLIP 6HK1-TCN ENG<82L> (B) M8X16 FLANGE THA	0-28050-816-0	01	1	1402-
80	BOLT; BATTERY CABLE CLIP 6HK1-TCN ENG<82L> WHEEL BASE 3600MM<36W> (A) M8X25 FLANGE THA	0-28650-825-0	03	1	1402-
80	BOLT; BATTERY CABLE CLIP 6HK1-TCN ENG<82L> WHEEL BASE 4200MM<42W>,WHEEL BASE 5000MM<50W>, WHEELBASE 5500MM<55W> (A) M8X25 FLANGE THA	0-28650-825-0	04	1	1402-
80	BOLT; BATTERY CABLE CLIP 6HK1-TCN ENG<82L> WHEEL BASE 5500MM<55W> (A) M8X25 FLANGE THA	0-28650-825-0	01	1	1402-1405
80	BOLT; BATTERY CABLE CLIP 4HK1-TCS ENG<RJS> WHEEL BASE 3600MM<36W> (A) M8X25 FLANGE THA	0-28650-825-0	01	1	1406-
80	BOLT; BATTERY CABLE CLIP 6HK1-TCN ENG<82L> WHEEL BASE 5500MM<55W> (A) M8X25 FLANGE THA	0-28650-825-0	01	1	1406-
87	BRACKET; HARNESS 4HK1-TCS ENG<RJS>	8-98126-428-0	01	1	1406-
107	CLIP; BAND L=140 THA	8-97920-656-0	01	1	1402-
217	CLIP; BAND,CABLE L=250	5-09707-030-1	01	1	1402-
222	BOLT; EARTH CABLE 6HK1-TCN ENG<82L> (B) M8X16 FLANGE THA	0-28050-816-0	01	1	1402-
222	BOLT; EARTH CABLE (A) M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	1402-
223	NUT; EARTH CABLE M10 FLANGE THA	0-91180-210-0	01	1	1406-
