0-60 — ENGINE ELECTRICAL CONTROL PARTS (#133335) — 108 parça

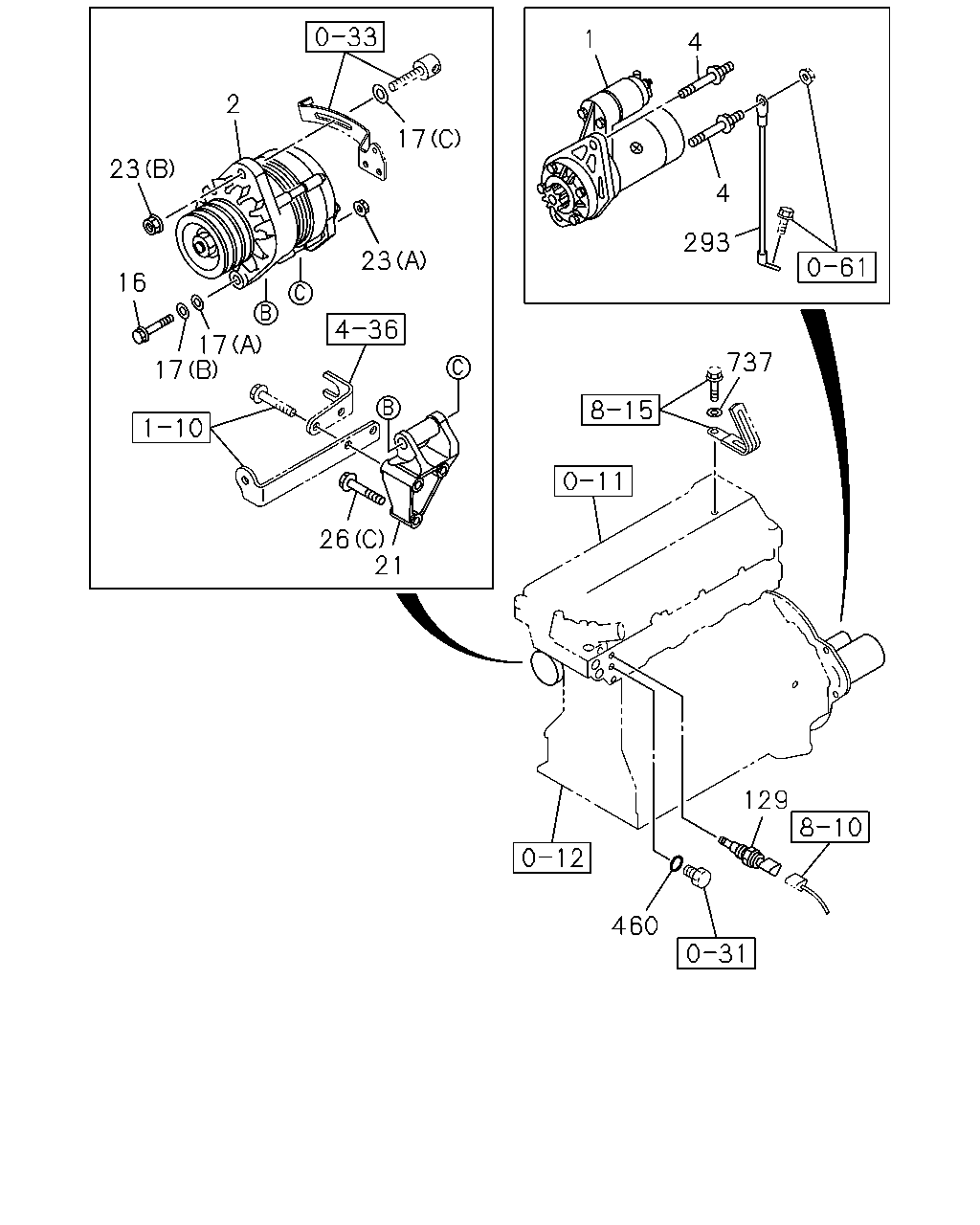

çizim 406001
23 2 17 23 17 17 16 26 21 293 4 1 4 129 460 737
BalonParca AdiParca NoAdetTipApplied Date
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 4HK1-TCS ENG<RJS> THA 		8-97948-122-1 01 1 1406-
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI THA 		8-97948-123-0 01 1 1402-1402
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 6HK1-TCN ENG<82L> 24V 5.0KW MITSUBISHI THA 		8-97948-123-1 01 1 1403-
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 4HK1-TCS ENG<RJS> GENERATOR 24V60A<KG2> 24V 60A NIKKO 		8-98013-456-3 01 1 1406-
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 4HK1-TCS ENG<RJS> GENERATOR 24V50A<K89> 24V 50A NIKKO 		8-98013-455-3 01 1 1406-
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCN ENG<82L> GENERATOR 24V50A<K89> 24V 50A NIKKO 		8-98013-461-4 01 1 1402-
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCN ENG<82L> GENERATOR 24V60A<KG2> 24V 60A NIKKO 		8-98013-462-4 01 1 1402-
4 BOLT; STARTER
4HK1-TCS ENG<RJS> M10X15,M14X82 L=110 		8-98029-095-0 02 1 1406-
16 BOLT; GEN
M14X135 		1-09000-133-1 01 1 1402-
17 WASHER; PL,GEN
(B) ID=14.2 		0-91510-514-0 01 1 1403-
17 WASHER; PL,GEN
4HK1-TCS ENG<RJS> (C) ID=12.5 OD=32 		9-09160-712-0 01 1 1406-
17 WASHER; PL,GEN
(A) ID=15 		0-91610-514-0 01 1 1402-
21 BRACKET; GEN
4HK1-TCS ENG<RJS> 		8-97381-404-0 01 1 1406-
23 NUT; GEN
(B) M12 FLANGE THA 		0-91180-112-0 01 1 1402-
23 NUT; GEN
(A) M14 THA 		0-91110-514-0 01 1 1402-
26 BOLT; GEN BRKT
4HK1-TCS ENG<RJS> (C) M10X50 FLANGE THA 		0-28151-050-0 01 1 1406-
26 BOLT; GEN BRKT
(A) M10X40 FLANGE 		0-28151-040-0 02 1 1402-1402
26 BOLT; GEN BRKT
6HK1-TCN ENG<82L> (A) M10X40 FLANGE 		0-28151-040-0 02 1 1403-
26 BOLT; GEN BRKT
(B) M10X80 FLANGE THA 		0-28151-080-0 02 1 1402-1402
26 BOLT; GEN BRKT
6HK1-TCN ENG<82L> (B) M10X80 FLANGE THA 		0-28151-080-0 02 1 1403-
26 BOLT; GEN BRKT
6HK1-TCN ENG<82L> (B) M10X80 FLANGE THA 		0-28151-080-0 02 1 1403-
129 SENSOR; GLOW PLUG,THERMO
4HK1-TCS ENG<RJS> MITSUBISHI 		8-98023-883-0 01 1 1406-1503
129 SENSOR; GLOW PLUG,THERMO
4HK1-TCS ENG<RJS> NISHIDA 		8-98260-257-0 01 1 1504-
293 CABLE; STARTER EARTH
4HK1-TCS ENG<RJS> THA 		8-97948-216-0 01 1 1406-
293 CABLE; STARTER EARTH
L=420 		8-98131-856-0 01 1 1402-1402
293 CABLE; STARTER EARTH
6HK1-TCN ENG<82L> L=420 		8-98131-856-0 01 1 1403-
460 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). 4HK1-TCS ENG<RJS> ID=16.2 		1-09630-086-0 01 1 1406-
737 WASHER; PL
4HK1-TCS ENG<RJS> ID=6.4 OD=18 		0-91610-706-0 01 1 1406-
737 WASHER; PL
4HK1-TCS ENG<RJS> ID=9 OD=18 T=5 		9-14149-173-0 01 1 1406-

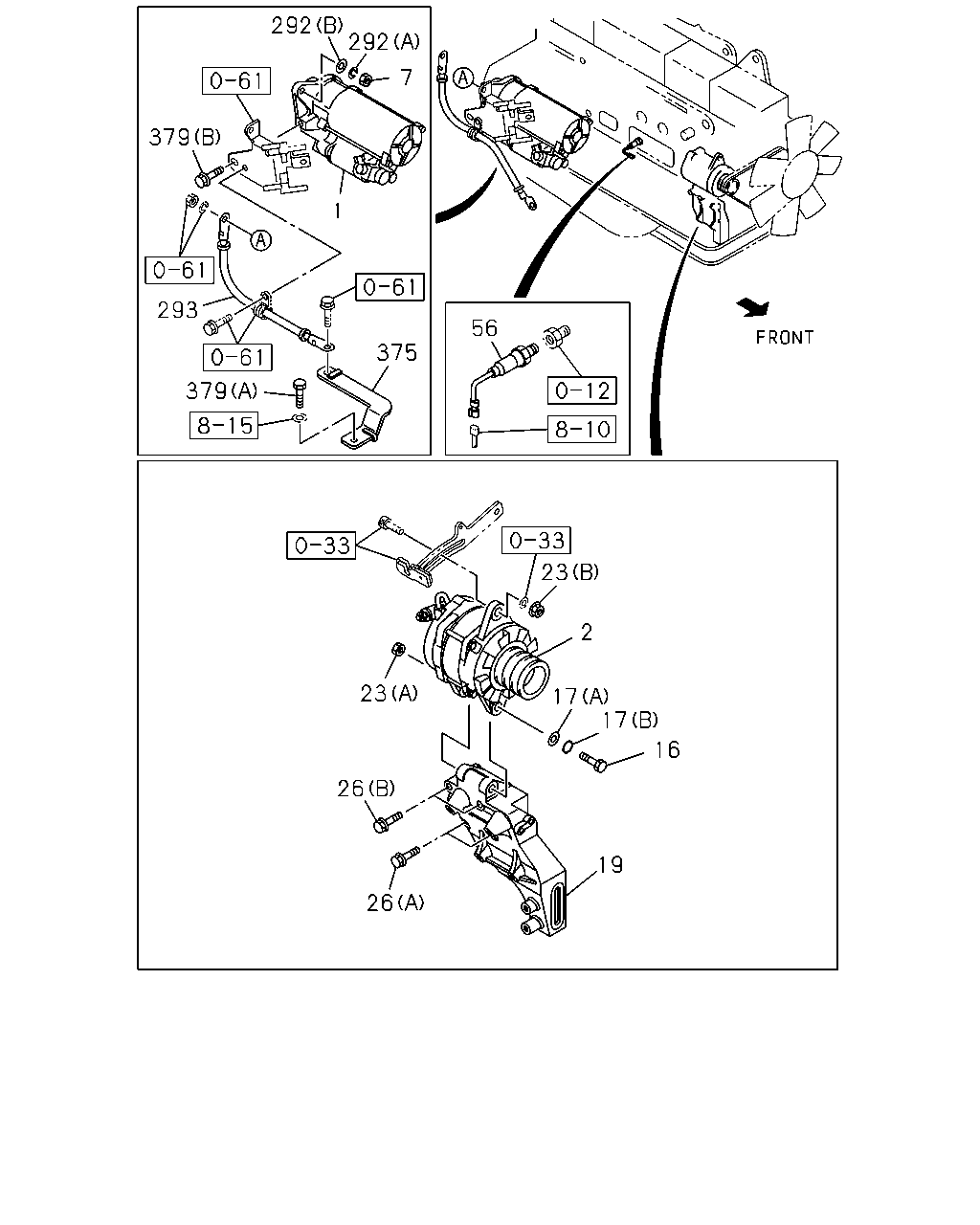

çizim 406330
56 375 293 379 379 1 7 292 292 23 23 2 17 17 16 26 26 19
BalonParca AdiParca NoAdetTipApplied Date
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 4HK1-TCS ENG<RJS> THA 		8-97948-122-1 01 1 1406-
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI THA 		8-97948-123-0 01 1 1402-1402
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 6HK1-TCN ENG<82L> 24V 5.0KW MITSUBISHI THA 		8-97948-123-1 01 1 1403-
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 4HK1-TCS ENG<RJS> GENERATOR 24V60A<KG2> 24V 60A NIKKO 		8-98013-456-3 01 1 1406-
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 4HK1-TCS ENG<RJS> GENERATOR 24V50A<K89> 24V 50A NIKKO 		8-98013-455-3 01 1 1406-
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCN ENG<82L> GENERATOR 24V50A<K89> 24V 50A NIKKO 		8-98013-461-4 01 1 1402-
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCN ENG<82L> GENERATOR 24V60A<KG2> 24V 60A NIKKO 		8-98013-462-4 01 1 1402-
7 NUT; STARTER
M14 THA 		0-91110-514-0 02 1 1402-1402
7 NUT; STARTER
6HK1-TCN ENG<82L> M14 THA 		0-91110-514-0 02 1 1403-
16 BOLT; GEN
M14X135 		1-09000-133-1 01 1 1402-
17 WASHER; PL,GEN
(B) ID=14.2 		0-91510-514-0 01 1 1403-
17 WASHER; PL,GEN
4HK1-TCS ENG<RJS> (C) ID=12.5 OD=32 		9-09160-712-0 01 1 1406-
17 WASHER; PL,GEN
(A) ID=15 		0-91610-514-0 01 1 1402-
19 BRACKET; GEN 8-98082-615-1 01 1 1402-1402
19 BRACKET; GEN
6HK1-TCN ENG<82L> 		8-98082-615-1 01 1 1403-
23 NUT; GEN
(B) M12 FLANGE THA 		0-91180-112-0 01 1 1402-
23 NUT; GEN
(A) M14 THA 		0-91110-514-0 01 1 1402-
26 BOLT; GEN BRKT
4HK1-TCS ENG<RJS> (C) M10X50 FLANGE THA 		0-28151-050-0 01 1 1406-
26 BOLT; GEN BRKT
(A) M10X40 FLANGE 		0-28151-040-0 02 1 1402-1402
26 BOLT; GEN BRKT
6HK1-TCN ENG<82L> (A) M10X40 FLANGE 		0-28151-040-0 02 1 1403-
26 BOLT; GEN BRKT
(B) M10X80 FLANGE THA 		0-28151-080-0 02 1 1402-1402
26 BOLT; GEN BRKT
6HK1-TCN ENG<82L> (B) M10X80 FLANGE THA 		0-28151-080-0 02 1 1403-
26 BOLT; GEN BRKT
6HK1-TCN ENG<82L> (B) M10X80 FLANGE THA 		0-28151-080-0 02 1 1403-
56 SWITCH; OIL PRESSURE WARNING
6HK1-TCN ENG<82L> 		1-82410-170-1 01 1 1402-
292 WASHER; LK,STARTER
6HK1-TCN ENG<82L> (B) ID=15 		0-91610-514-0 01 1 1402-
292 WASHER; LK,STARTER
(A) ID=14.2 		0-91510-514-0 01 1 1402-1402
292 WASHER; LK,STARTER
6HK1-TCN ENG<82L> (A) ID=14.2 		0-91510-514-0 01 1 1403-
293 CABLE; STARTER EARTH
4HK1-TCS ENG<RJS> THA 		8-97948-216-0 01 1 1406-
293 CABLE; STARTER EARTH
L=420 		8-98131-856-0 01 1 1402-1402
293 CABLE; STARTER EARTH
6HK1-TCN ENG<82L> L=420 		8-98131-856-0 01 1 1403-
375 BRACKET
6HK1-TCN ENG<82L> 		8-98131-726-0 01 1 1402-
379 BOLT; BRKT
6HK1-TCN ENG<82L> (B) M10X20 FLANGE THA 		0-28051-020-0 01 1 1402-
379 BOLT; BRKT
6HK1-TCN ENG<82L> (A) M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 1402-

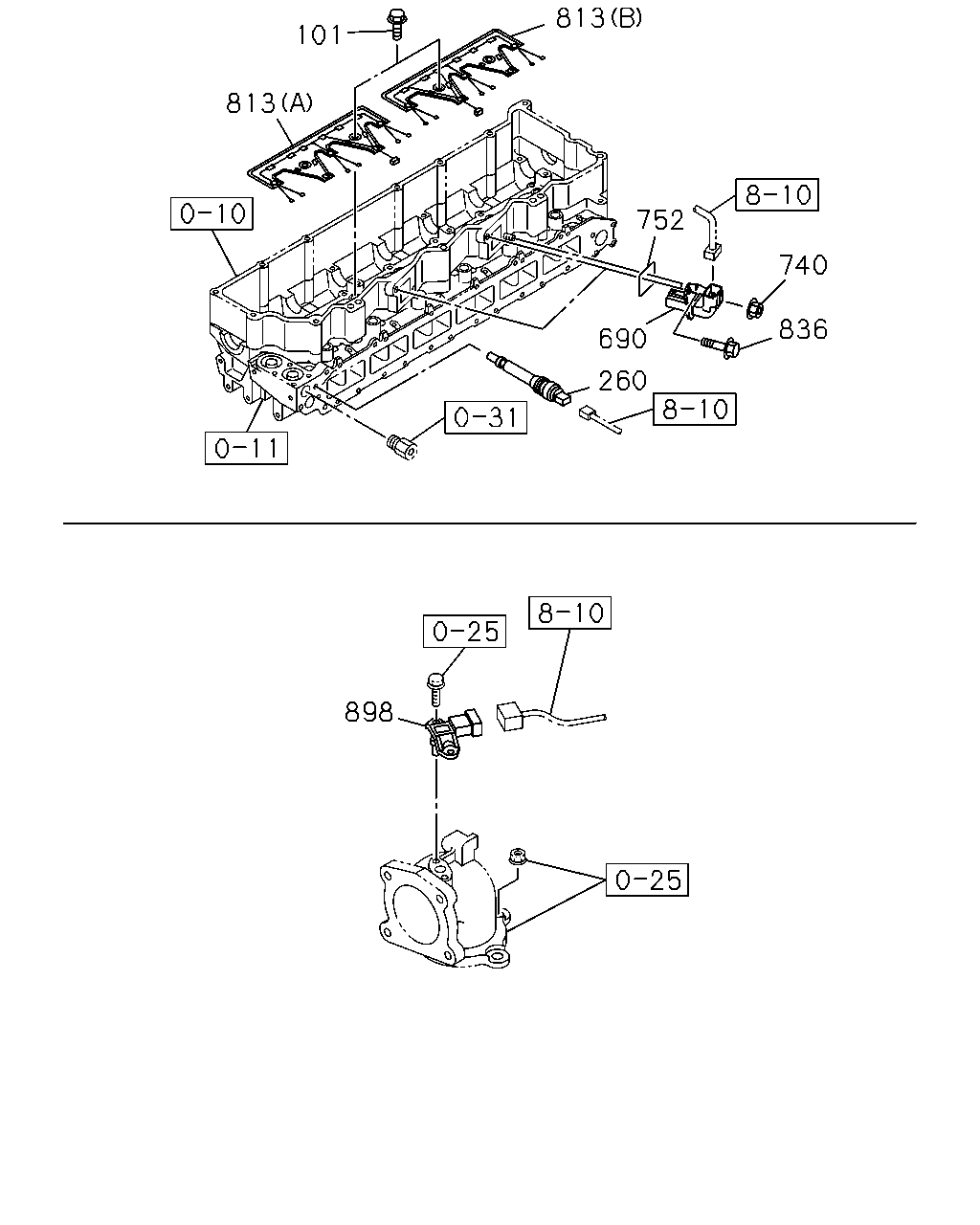

çizim 406343
101 813 813 752 740 836 690 260 898
BalonParca AdiParca NoAdetTipApplied Date
101 BOLT; HARNESS
6HK1-TCN ENG<82L> M8X40 FLANGE THA 		0-28650-840-0 04 1 1402-
260 SENSOR; WATER TEMP
6HK1-TCN ENG<82L> MITSUBISHI 		8-98023-883-0 01 1 1402-1503
260 SENSOR; WATER TEMP
6HK1-TCN ENG<82L> NISHIDA 		8-98260-257-0 01 1 1504-
690 CONNECTOR
6HK1-TCN ENG<82L> 		8-94390-858-1 02 1 1402-
740 NUT
6HK1-TCN ENG<82L> M8 FLANGE THA 		0-91180-108-0 02 1 1402-
752 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1-TCN ENG<82L> 		8-94391-310-0 02 1 1402-
813 HARNESS; INJECTOR
6HK1-TCN ENG<82L> (A) FRONT 		8-98204-717-0 01 1 1402-
813 HARNESS; INJECTOR
6HK1-TCN ENG<82L> (B) REAR 		8-98204-718-0 01 1 1402-
836 BOLT; CONNECTOR
6HK1-TCN ENG<82L> M8X12 FLANGE THA 		0-28050-812-0 02 1 1402-
898 SENSOR; BOOST
6HK1-TCN ENG<82L> 		8-98009-418-0 01 1 1402-

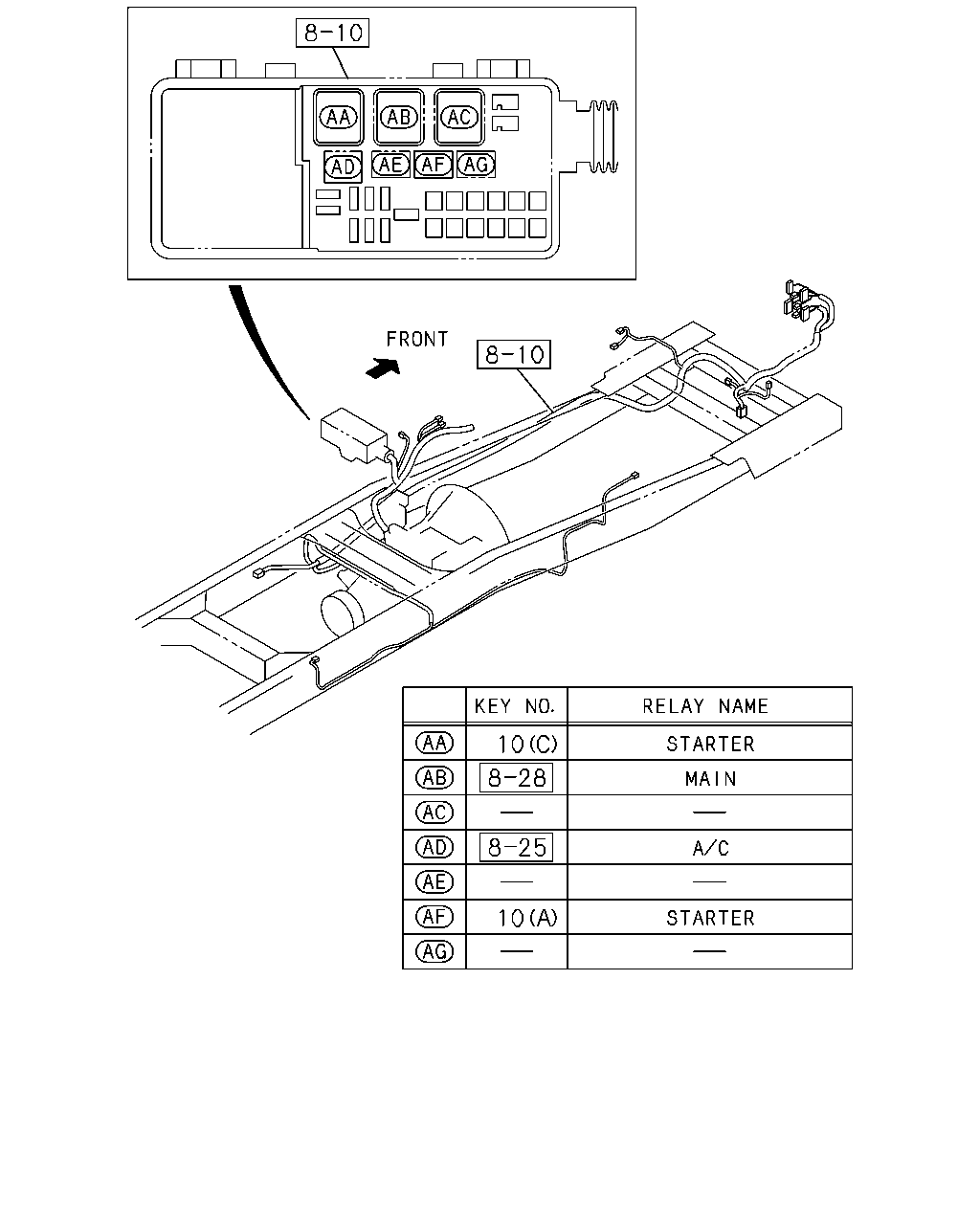

çizim 407280
10 10
BalonParca AdiParca NoAdetTipApplied Date
10 RELAY; STARTER
4HK1-TCS ENG<RJS> (C) 24V 50A 		8-97264-947-0 01 1 1406-
10 RELAY; STARTER
6HK1-TCN ENG<82L> (B) 24V NIKKO 		8-98005-631-1 01 1 1402-
10 RELAY; STARTER
(A) 24V 10A 		8-98167-173-0 01 1 1402-

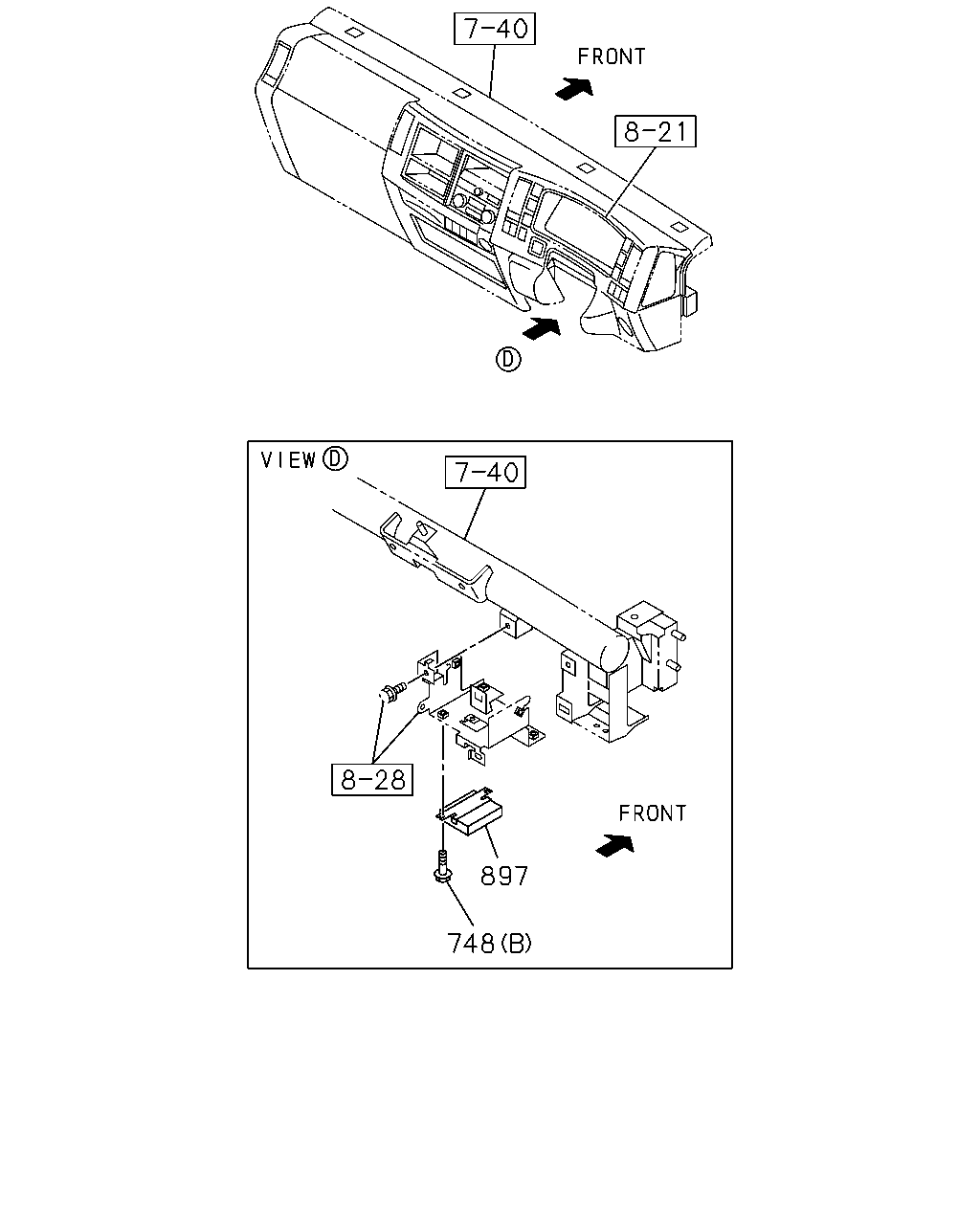

çizim 426130
897 748
BalonParca AdiParca NoAdetTipApplied Date
748 BOLT; CONT UNIT
6HK1-TCN ENG<82L> (A) M6X12 FLANGE THA 		0-28050-612-0 03 1 1402-1405
748 BOLT; CONT UNIT
(A) M6X12 FLANGE THA 		0-28050-612-0 03 1 1406-
748 BOLT; CONT UNIT
EXC. MEMORY SYSTEM RUNNING CONDITION<NCR> (B) M6X16 FLANGE THA 		0-28650-616-0 02 1 1402-
897 DRM
EXC. MEMORY SYSTEM RUNNING CONDITION<NCR> THA 		8-97948-260-1 01 1 1402-

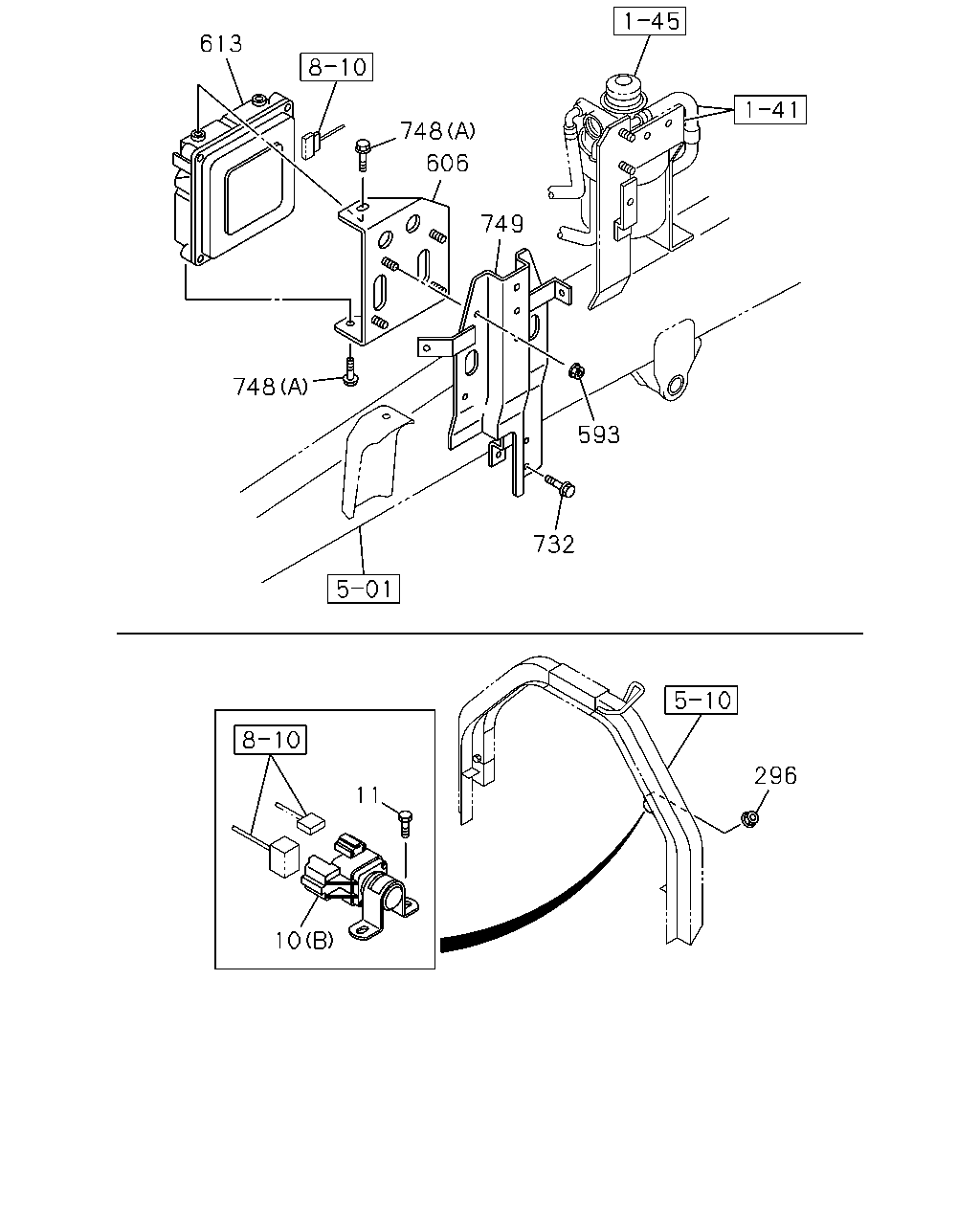

çizim 426348
613 748 606 749 748 732 11 10 296 593
BalonParca AdiParca NoAdetTipApplied Date
10 RELAY; STARTER
4HK1-TCS ENG<RJS> (C) 24V 50A 		8-97264-947-0 01 1 1406-
10 RELAY; STARTER
6HK1-TCN ENG<82L> (B) 24V NIKKO 		8-98005-631-1 01 1 1402-
10 RELAY; STARTER
(A) 24V 10A 		8-98167-173-0 01 1 1402-
11 BOLT; RELAY STARTER
6HK1-TCN ENG<82L> M8X20 FLANGE THA 		0-28650-820-0 02 1 1402-
296 NUT; RELAY,STARTER
6HK1-TCN ENG<82L> M8 FLANGE THA 		0-91180-108-0 02 1 1402-
593 NUT; BRKT
6HK1-TCN ENG<82L> M6 FLANGE THA 		0-91180-106-0 04 1 1402-1405
593 NUT; BRKT
M6 FLANGE THA 		0-91180-106-0 04 1 1406-
606 BRACKET; CONT UNIT
6HK1-TCN ENG<82L> 		1-53194-675-0 01 1 1402-1405
606 BRACKET; CONT UNIT 1-53194-675-0 01 1 1406-
613 CONTROL UNIT; ENG
4HK1-TCS ENG<RJS> THA 		8-97948-032-0 01 1 1406-
613 CONTROL UNIT; ENG
6HK1-TCN ENG<82L> THA 		8-98225-397-1 01 1 1402-
732 BOLT; BRKT
M10X30 FLANGE THA 		0-28651-030-0 03 1 1402-
748 BOLT; CONT UNIT
6HK1-TCN ENG<82L> (A) M6X12 FLANGE THA 		0-28050-612-0 03 1 1402-1405
748 BOLT; CONT UNIT
(A) M6X12 FLANGE THA 		0-28050-612-0 03 1 1406-
748 BOLT; CONT UNIT
EXC. MEMORY SYSTEM RUNNING CONDITION<NCR> (B) M6X16 FLANGE THA 		0-28650-616-0 02 1 1402-
749 STAY; CONT UNIT
4HK1-TCS ENG<RJS> 		8-98206-457-0 01 1 1406-
749 STAY; CONT UNIT
6HK1-TCN ENG<82L> 		1-53194-595-3 01 1 1402-

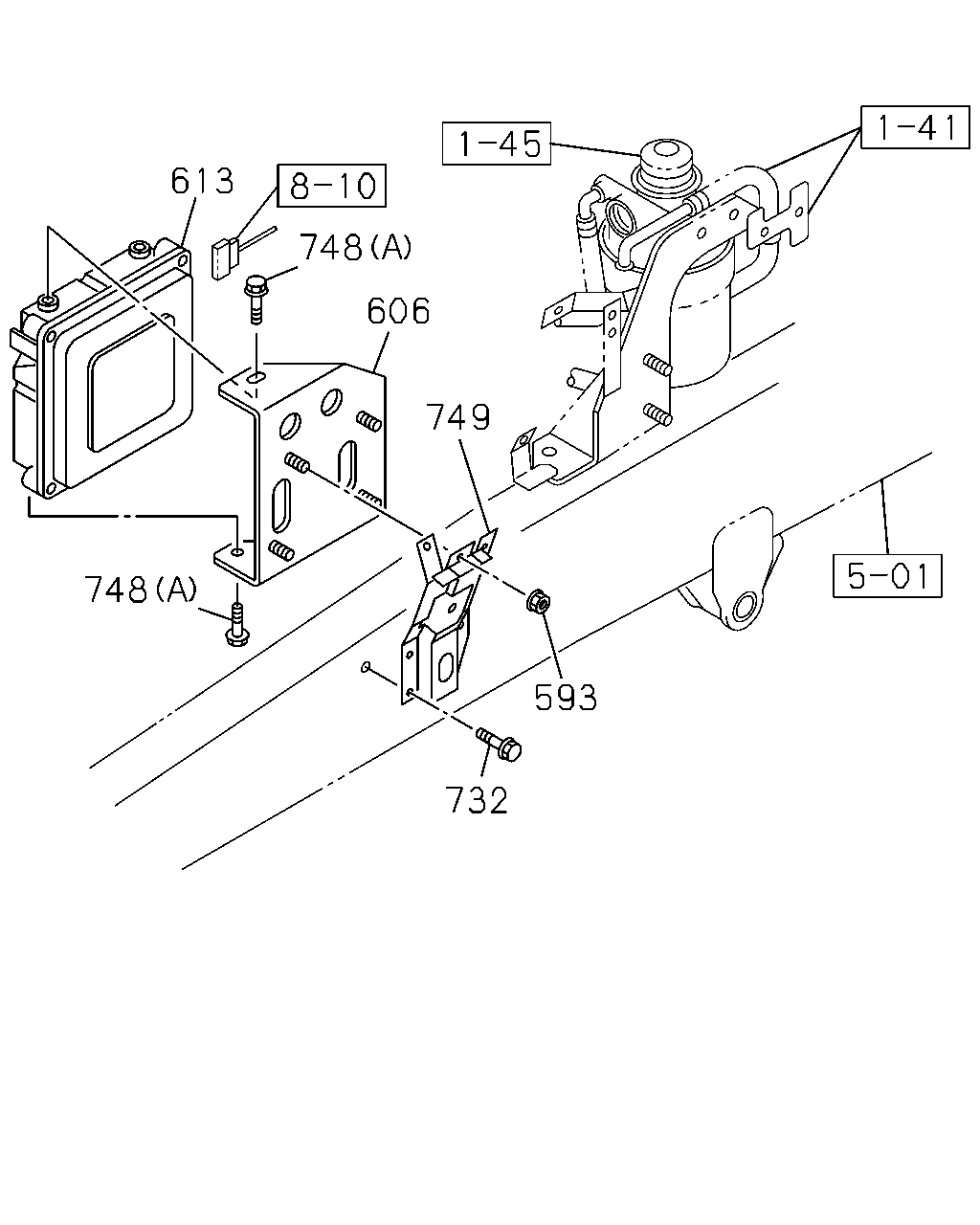

çizim 426482
613 748 606 748 749 593 732
BalonParca AdiParca NoAdetTipApplied Date
593 NUT; BRKT
6HK1-TCN ENG<82L> M6 FLANGE THA 		0-91180-106-0 04 1 1402-1405
593 NUT; BRKT
M6 FLANGE THA 		0-91180-106-0 04 1 1406-
606 BRACKET; CONT UNIT
6HK1-TCN ENG<82L> 		1-53194-675-0 01 1 1402-1405
606 BRACKET; CONT UNIT 1-53194-675-0 01 1 1406-
613 CONTROL UNIT; ENG
4HK1-TCS ENG<RJS> THA 		8-97948-032-0 01 1 1406-
613 CONTROL UNIT; ENG
6HK1-TCN ENG<82L> THA 		8-98225-397-1 01 1 1402-
732 BOLT; BRKT
M10X30 FLANGE THA 		0-28651-030-0 03 1 1402-
748 BOLT; CONT UNIT
6HK1-TCN ENG<82L> (A) M6X12 FLANGE THA 		0-28050-612-0 03 1 1402-1405
748 BOLT; CONT UNIT
(A) M6X12 FLANGE THA 		0-28050-612-0 03 1 1406-
748 BOLT; CONT UNIT
EXC. MEMORY SYSTEM RUNNING CONDITION<NCR> (B) M6X16 FLANGE THA 		0-28650-616-0 02 1 1402-
749 STAY; CONT UNIT
4HK1-TCS ENG<RJS> 		8-98206-457-0 01 1 1406-
749 STAY; CONT UNIT
6HK1-TCN ENG<82L> 		1-53194-595-3 01 1 1402-
