0-52 — OIL AND VACUUM PIPING; ENGINE
(#133333) — 37 parça
Tümü
A - 6HK1-TCN ENG
B - 4HK1-TCS ENG
◀

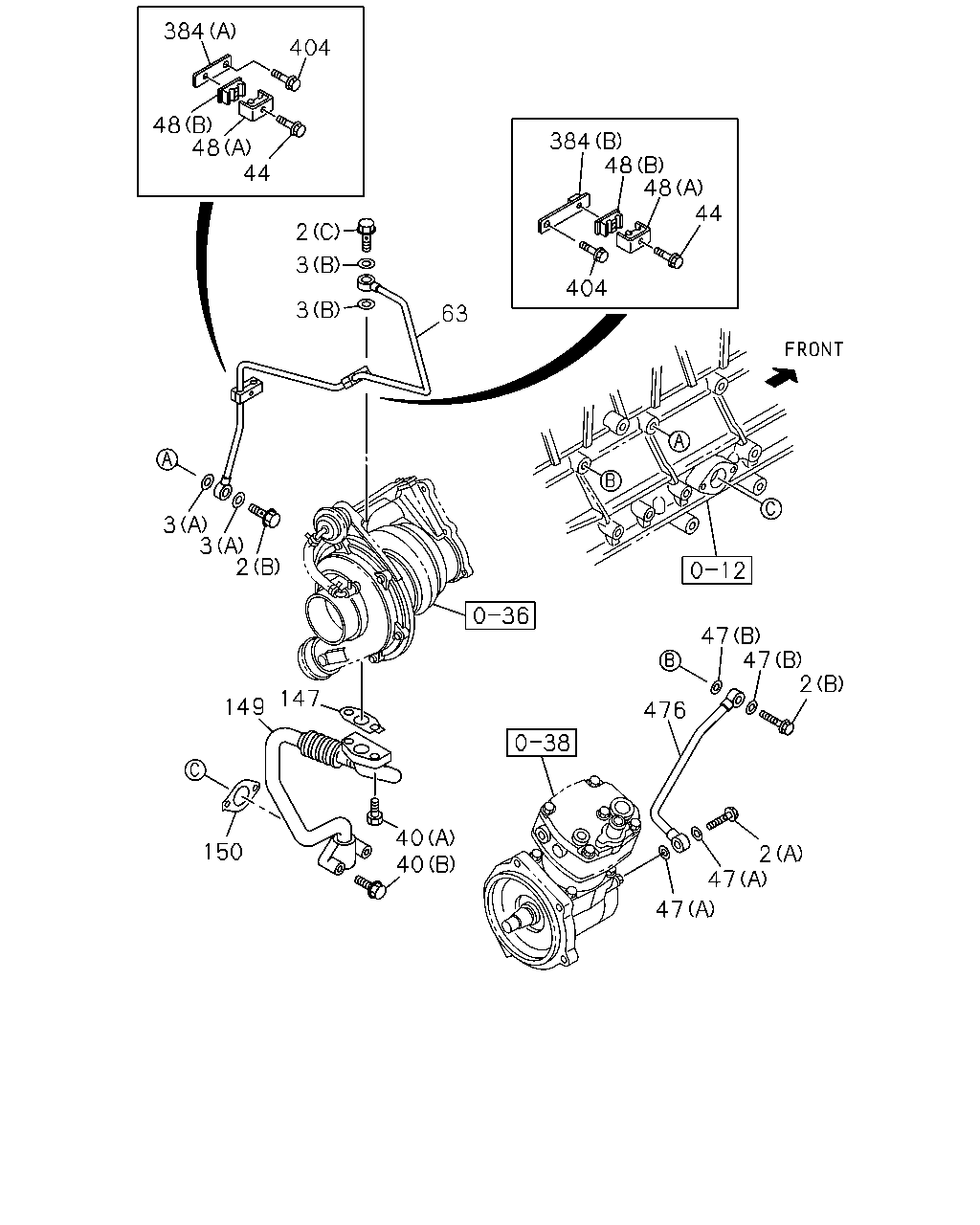

[052A] 6HK1 (24 parça)

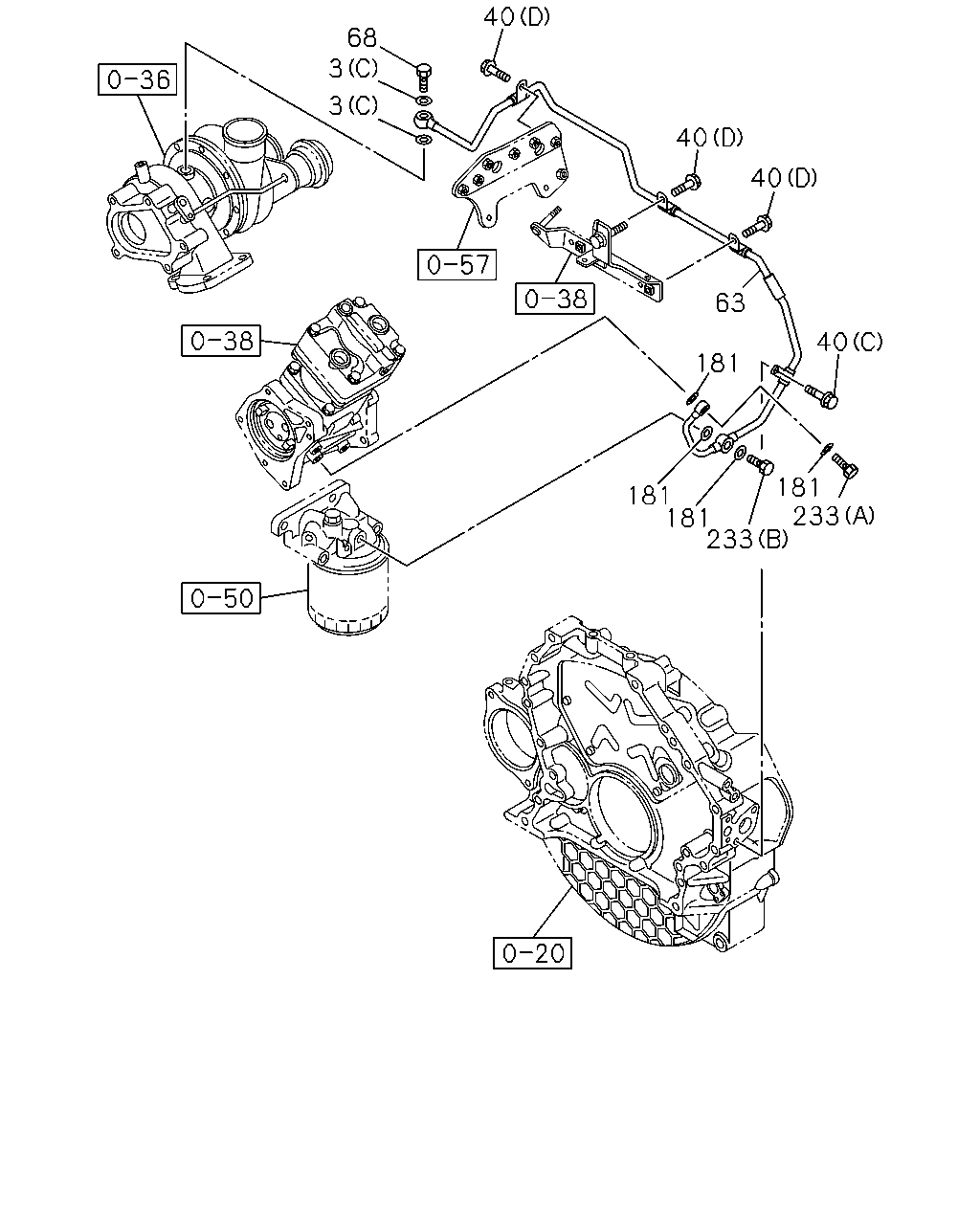

[052A] 4HK1 (13 parça)
▶
384
404
44
48
48
3
3
2
63
404
44
48
48
384
47
47
2
476
2
47
47
40
40
147
149
150
2
3
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
BOLT; EYE,OIL PIPE
(B) M14X27 FLANGE
1-09675-086-0
02
1
1402-
●
2
BOLT; EYE,OIL PIPE
(C) M12X25
5-09675-006-1
01
1
1402-
●
2
BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE
8-97372-238-0
01
1
1402-
●
3
GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=10.2 OD=16.0 THA
9-09571-410-0
02
1
1406-
●
3
GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2
8-98251-344-0
02
1
1402-
●
3
GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2
8-98251-345-0
02
1
1402-
●
40
BOLT; OIL PIPE
(C) M8X12 FLANGE THA
0-28050-812-0
01
1
1406-
●
40
BOLT; OIL PIPE
(D) M8X20 FLANGE THA
0-28050-820-0
03
1
1406-
●
40
BOLT; OIL PIPE
(A) M10X30 FLANGE
0-28151-030-0
02
1
1402-
●
40
BOLT; OIL PIPE
(B) M8X25 FLANGE THA
0-28650-825-0
02
1
1402-
●
44
BOLT; CLIP,OIL PIPE
M6X30 FLANGE
0-28050-630-0
02
1
1402-
●
47
GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2
8-98251-345-0
02
1
1402-
●
47
GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2
1-09630-083-0
02
1
1402-
●
48
CLIP; OIL PIPE
(A)
1-09701-228-3
02
1
1402-
●
48
CLIP; OIL PIPE
(B)
1-09701-229-2
02
1
1402-
●
63
PIPE; OIL,TURBOCHARGER FEED
8-98069-427-0
01
1
1406-
●
63
PIPE; OIL,TURBOCHARGER FEED
8-98074-254-0
01
1
1402-
●
147
GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE).
1-09637-058-2
01
1
1402-
●
149
PIPE; OIL RETURN,TURBOCHARGER
8-98147-092-0
01
1
1402-
●
150
GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=30
8-94394-671-0
01
1
1402-
●
384
BRACKET; CLIP,OIL PIPE,TURBOCHARGER
(A)
1-13319-020-0
01
1
1402-
●
384
BRACKET; CLIP,OIL PIPE,TURBOCHARGER
(B)
1-13319-041-0
01
1
1402-
●
404
BOLT; BRKT
M8X15
1-09000-114-0
02
1
1402-
●
476
PIPE; OIL,C/BL TO AIR CMPR
8-97608-935-0
01
1
1402-
●
68
3
3
40
40
40
63
181
40
181
233
233
181
181
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
3
GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=10.2 OD=16.0 THA
9-09571-410-0
02
1
1406-
●
3
GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2
8-98251-344-0
02
1
1402-
●
3
GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2
8-98251-345-0
02
1
1402-
●
40
BOLT; OIL PIPE
(C) M8X12 FLANGE THA
0-28050-812-0
01
1
1406-
●
40
BOLT; OIL PIPE
(D) M8X20 FLANGE THA
0-28050-820-0
03
1
1406-
●
40
BOLT; OIL PIPE
(A) M10X30 FLANGE
0-28151-030-0
02
1
1402-
●
40
BOLT; OIL PIPE
(B) M8X25 FLANGE THA
0-28650-825-0
02
1
1402-
●
63
PIPE; OIL,TURBOCHARGER FEED
8-98069-427-0
01
1
1406-
●
63
PIPE; OIL,TURBOCHARGER FEED
8-98074-254-0
01
1
1402-
●
68
BOLT; EYE,OIL PIPE,TURBOCHARGER SIDE
M10X26
8-98037-825-0
01
1
1406-
●
181
GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2
1-09630-083-0
04
1
1406-
●
233
BOLT; EYE
(A) M10X22
1-09675-028-0
01
1
1406-
●
233
BOLT; EYE
(B) M10X28
8-98037-823-0
01
1
1406-
●
