0-50 — OIL COOLER AND OIL FILTER (#133331) — 89 parça

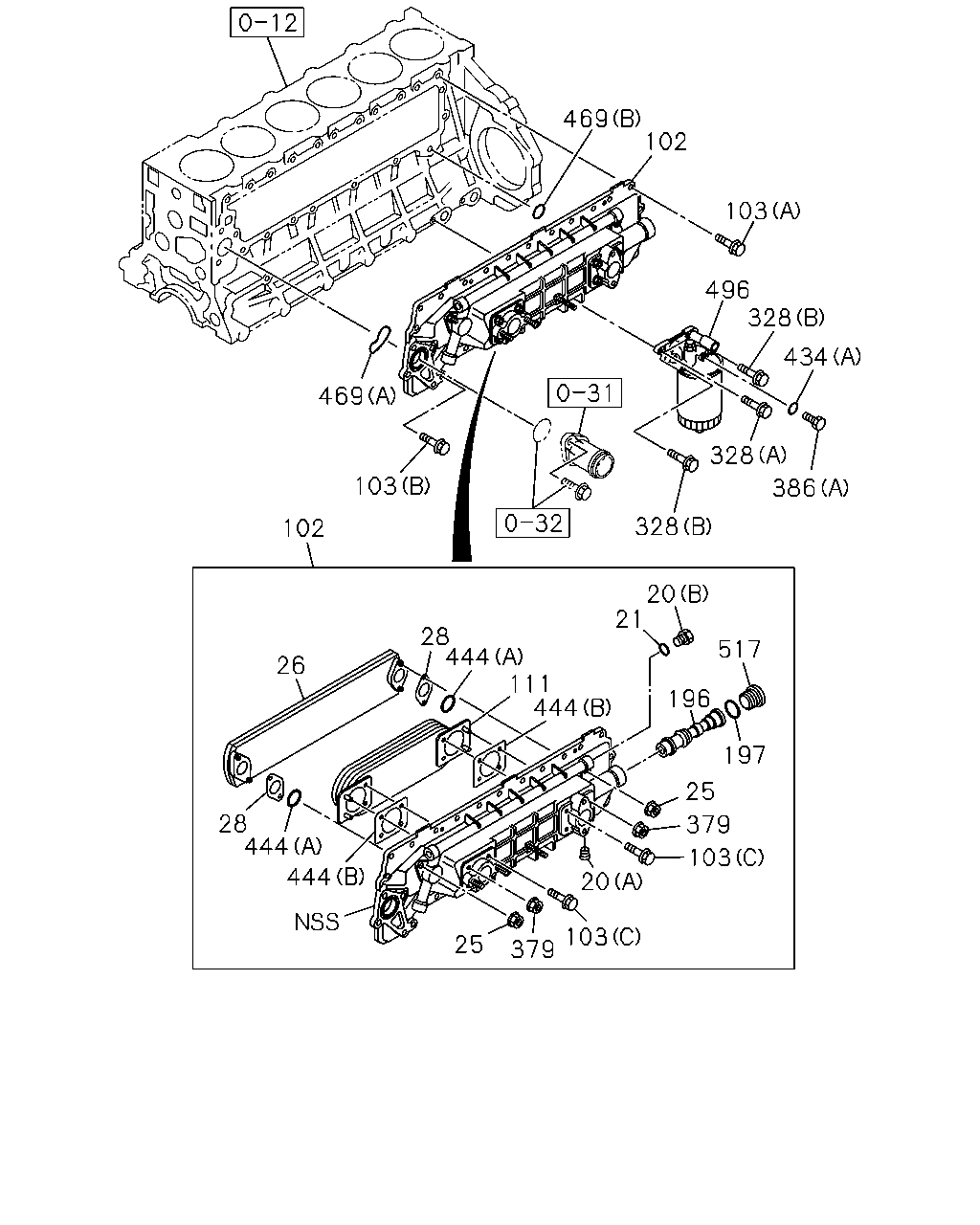

469 103 102 496 434 328 328 328 386 103 102 469 20 21 517 196 197 25 379 103 20 103 379 25 444 444 28 26 28 444 111 444

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
20	PLUG; COOLER BODY (A)	1-13219-240-0	02	1	1402-	●
20	PLUG; COOLER BODY (B)	8-97608-567-0	02	1	1402-	●
21	GASKET; PLUG	8-97608-568-0	02	1	1402-	●
25	NUT; CORE TO BODY M10 FLANGE	1-13219-324-0	04	1	1402-	●
26	CORE ASM; OIL COOLER	8-98062-207-0	01	1	1402-	●
28	GASKET; CORE TO BODY	8-94394-930-0	02	1	1402-	●
102	COOLER ASM; OIL	8-98085-312-5	01	1	1406-		●
102	COOLER ASM; OIL	8-98236-650-0	01	1	1402-	●
103	BOLT; OIL COOLER (D) M8X20 FLANGE THA	0-28050-820-0	08	1	1406-		●
103	BOLT; OIL COOLER (B) M8X35 FLANGE THA	0-28050-835-0	08	1	1406-		●
103	BOLT; OIL COOLER (B) M8X35 FLANGE THA	0-28050-835-0	03	1	1402-	●
103	BOLT; OIL COOLER (A) M8X30 FLANGE THA	0-28650-830-0	24	1	1402-	●
103	BOLT; OIL COOLER (C)	8-98251-758-0	04	1	1402-	●
111	CORE; OIL COOLER	8-97334-100-2	01	1	1406-		●
111	CORE; OIL COOLER	8-98063-863-0	01	1	1402-	●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-97600-936-0	01	1	1402-	●
197	GASKET; THERMOSTAT	8-94391-728-0	01	1	1402-	●
328	BOLT; OIL FILTER (A) M10X30 FLANGE	0-28151-030-0	02	1	1402-	●
328	BOLT; OIL FILTER (B) M10X90 FLANGE	0-28151-090-0	02	1	1402-	●
379	NUT; OIL COOLER M8 FLANGE THA	0-91180-108-0	03	1	1406-		●
379	NUT; OIL COOLER M8 FLANGE THA	0-91180-108-0	04	1	1402-	●
386	PLUG; OIL FILTER (A) M10X10	1-09604-074-0	01	1	1402-	●
386	PLUG; OIL FILTER (B)	8-98238-941-0	01	1	1402-	●
434	GASKET; PLUG,OIL FILTER (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	1402-	●
434	GASKET; PLUG,OIL FILTER (B)	8-98238-942-0	01	1	1402-	●
444	GASKET; ELEMENT TO BODY (C)	8-97384-130-0	02	1	1406-		●
444	GASKET; ELEMENT TO BODY (A) ID=38.7	1-09623-299-0	02	1	1402-	●
444	GASKET; ELEMENT TO BODY (B)	8-97601-801-0	02	1	1402-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-94338-878-1	01	1	1406-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=9.8	8-94399-339-0	01	1	1406-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (E) OD=30.2 W/PLATE	8-98045-447-0	01	1	1406-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	1402-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98045-449-0	01	1	1402-	●
496	FILTER ASM; OIL	8-97148-268-4	01	1	1406-		●
496	FILTER ASM; OIL	8-98236-649-0	01	1	1402-	●
517	PLUG; THERMOSTAT,OIL COOLER	8-94391-731-0	01	1	1402-	●

496 386 434 66 13 265 2 265 321 321 321

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	ELEMENT; OIL FILTER BEST VALUE PARTS	1-87610-064-0	01	1	1402-	●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	5-87610-031-0	01	1	1406-		●
2	ELEMENT; OIL FILTER	8-97148-270-1	01	1	1406-		●
2	ELEMENT; OIL FILTER	8-94391-049-4	01	1	1402-	●
13	VALVE; RELIEF	8-98238-944-0	01	1	1402-	●
66	SPRING; VLV	8-98238-943-0	01	1	1402-	●
265	BODY; OIL FILTER	8-97096-677-4	01	1	1406-		●
265	BODY; OIL FILTER	8-98238-939-0	01	1	1402-	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	1402-	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1	8-94399-399-0	02	1	1402-	●
386	PLUG; OIL FILTER (A) M10X10	1-09604-074-0	01	1	1402-	●
386	PLUG; OIL FILTER (B)	8-98238-941-0	01	1	1402-	●
434	GASKET; PLUG,OIL FILTER (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	1402-	●
434	GASKET; PLUG,OIL FILTER (B)	8-98238-942-0	01	1	1402-	●
496	FILTER ASM; OIL	8-97148-268-4	01	1	1406-		●
496	FILTER ASM; OIL	8-98236-649-0	01	1	1402-	●

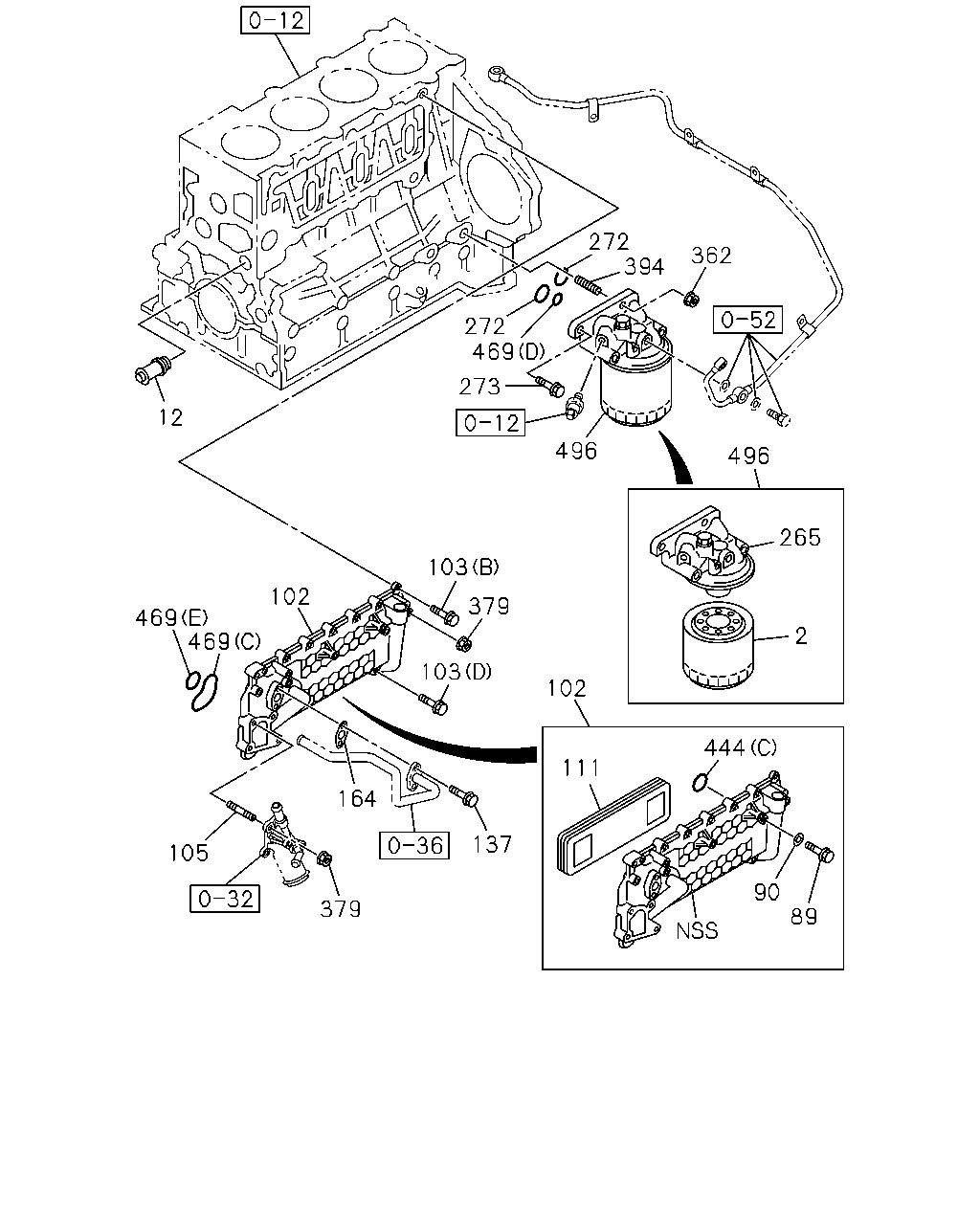

12 102 469 469 105 379 164 137 103 379 103 102 111 90 89 444 2 265 496 362 394 272 272 469 273 496

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	ELEMENT; OIL FILTER BEST VALUE PARTS	1-87610-064-0	01	1	1402-	●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	5-87610-031-0	01	1	1406-		●
2	ELEMENT; OIL FILTER	8-97148-270-1	01	1	1406-		●
2	ELEMENT; OIL FILTER	8-94391-049-4	01	1	1402-	●
12	VALVE ASM; BYPASS	8-97013-566-2	01	1	1406-		●
89	BOLT; ELEMENT TO CASE M8X16 FLANGE THA	0-28050-816-0	04	1	1406-		●
90	GASKET; BOLT,OIL COOLER	1-21729-043-0	04	1	1406-		●
102	COOLER ASM; OIL	8-98085-312-5	01	1	1406-		●
102	COOLER ASM; OIL	8-98236-650-0	01	1	1402-	●
103	BOLT; OIL COOLER (D) M8X20 FLANGE THA	0-28050-820-0	08	1	1406-		●
103	BOLT; OIL COOLER (B) M8X35 FLANGE THA	0-28050-835-0	08	1	1406-		●
103	BOLT; OIL COOLER (B) M8X35 FLANGE THA	0-28050-835-0	03	1	1402-	●
103	BOLT; OIL COOLER (A) M8X30 FLANGE THA	0-28650-830-0	24	1	1402-	●
103	BOLT; OIL COOLER (C)	8-98251-758-0	04	1	1402-	●
105	STUD; OIL COOLER M8X52 L=63	8-97016-314-0	03	1	1406-		●
111	CORE; OIL COOLER	8-97334-100-2	01	1	1406-		●
111	CORE; OIL COOLER	8-98063-863-0	01	1	1402-	●
137	BOLT M8X20 FLANGE THA	0-28650-820-0	02	1	1406-		●
164	GASKET; HTR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97146-684-0	01	1	1406-		●
265	BODY; OIL FILTER	8-97096-677-4	01	1	1406-		●
265	BODY; OIL FILTER	8-98238-939-0	01	1	1402-	●
272	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-399-0	02	1	1406-		●
273	BOLT; OIL FILTER M10X30	0-59331-030-0	03	1	1406-		●
362	NUT; OIL FILTER M10 FLANGE THA	0-91180-110-0	01	1	1406-		●
379	NUT; OIL COOLER M8 FLANGE THA	0-91180-108-0	03	1	1406-		●
379	NUT; OIL COOLER M8 FLANGE THA	0-91180-108-0	04	1	1402-	●
394	STUD; OIL FILTER M10X25 L=48.5	0-49241-025-0	01	1	1406-		●
444	GASKET; ELEMENT TO BODY (C)	8-97384-130-0	02	1	1406-		●
444	GASKET; ELEMENT TO BODY (A) ID=38.7	1-09623-299-0	02	1	1402-	●
444	GASKET; ELEMENT TO BODY (B)	8-97601-801-0	02	1	1402-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-94338-878-1	01	1	1406-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=9.8	8-94399-339-0	01	1	1406-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (E) OD=30.2 W/PLATE	8-98045-447-0	01	1	1406-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	1402-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98045-449-0	01	1	1402-	●
496	FILTER ASM; OIL	8-97148-268-4	01	1	1406-		●
496	FILTER ASM; OIL	8-98236-649-0	01	1	1402-	●
