◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11575 - FTR(THAI)EURO3 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-42 - FUEL PUMP AND PIPE ▶
0-42 — FUEL PUMP AND PIPE (#133330) — 16 parça

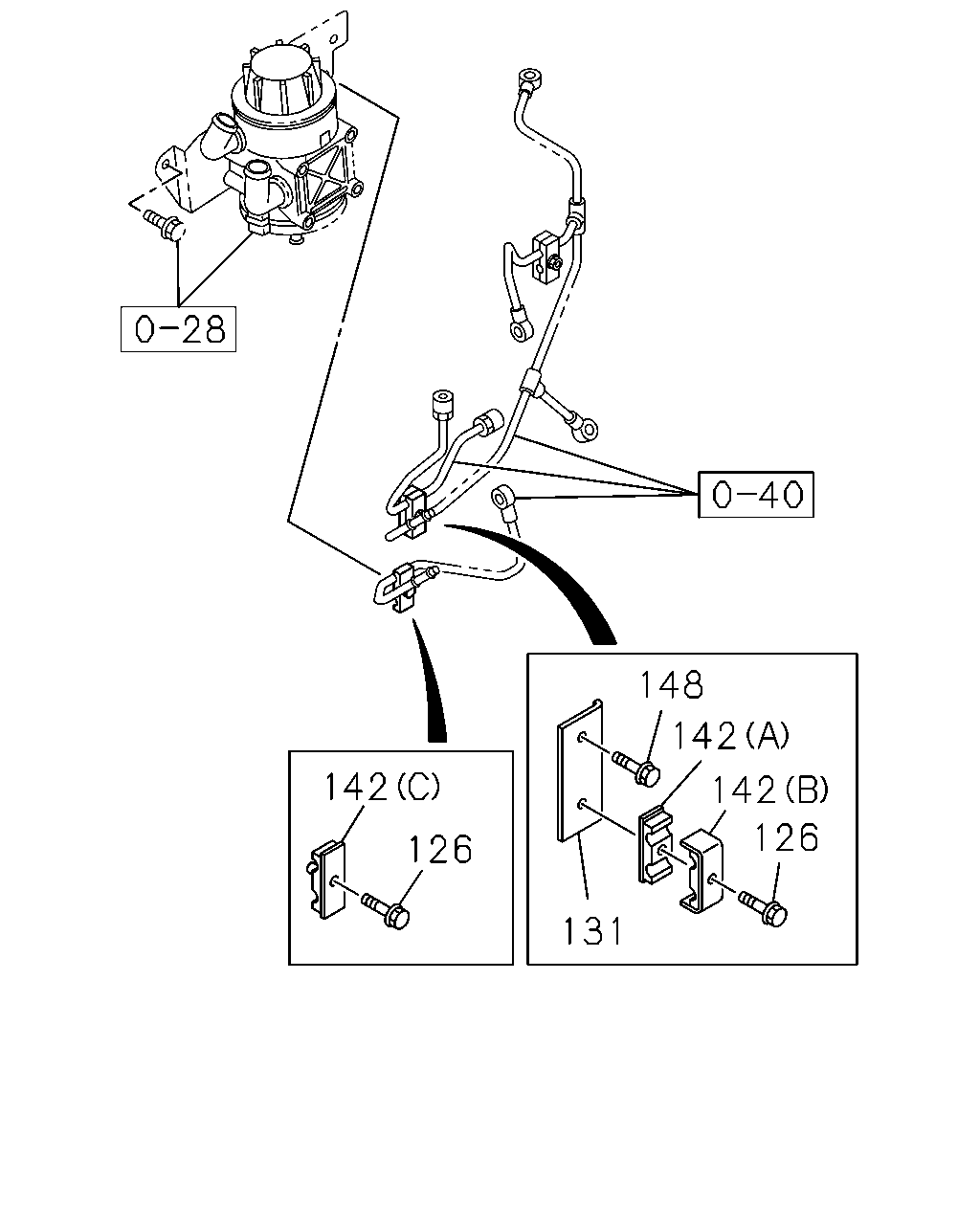

çizim 406274
142 126 131 126 142 148 142
BalonParca AdiParca NoAdetTipApplied Date A B
126 BOLT; CLIP,FUEL PIPE
M6X35 FLANGE THA 		0-28650-635-0 02 1 1402- ●
131 BRACKET; FUEL PIPE CLIP 1-15419-391-1 01 1 1402- ●
142 CLIP; FUEL PIPE
(C) L=48 		5-09709-103-0 01 1 1402- ●
142 CLIP; FUEL PIPE
(B) 		8-98000-010-2 01 1 1402- ●
142 CLIP; FUEL PIPE
(A) 		8-98000-011-2 01 1 1402- ●
148 BOLT; BRKT
M6X12 FLANGE THA 		0-28050-612-0 01 1 1406- ●
148 BOLT; BRKT
M8X12 FLANGE THA 		0-28050-812-0 01 1 1402- ●

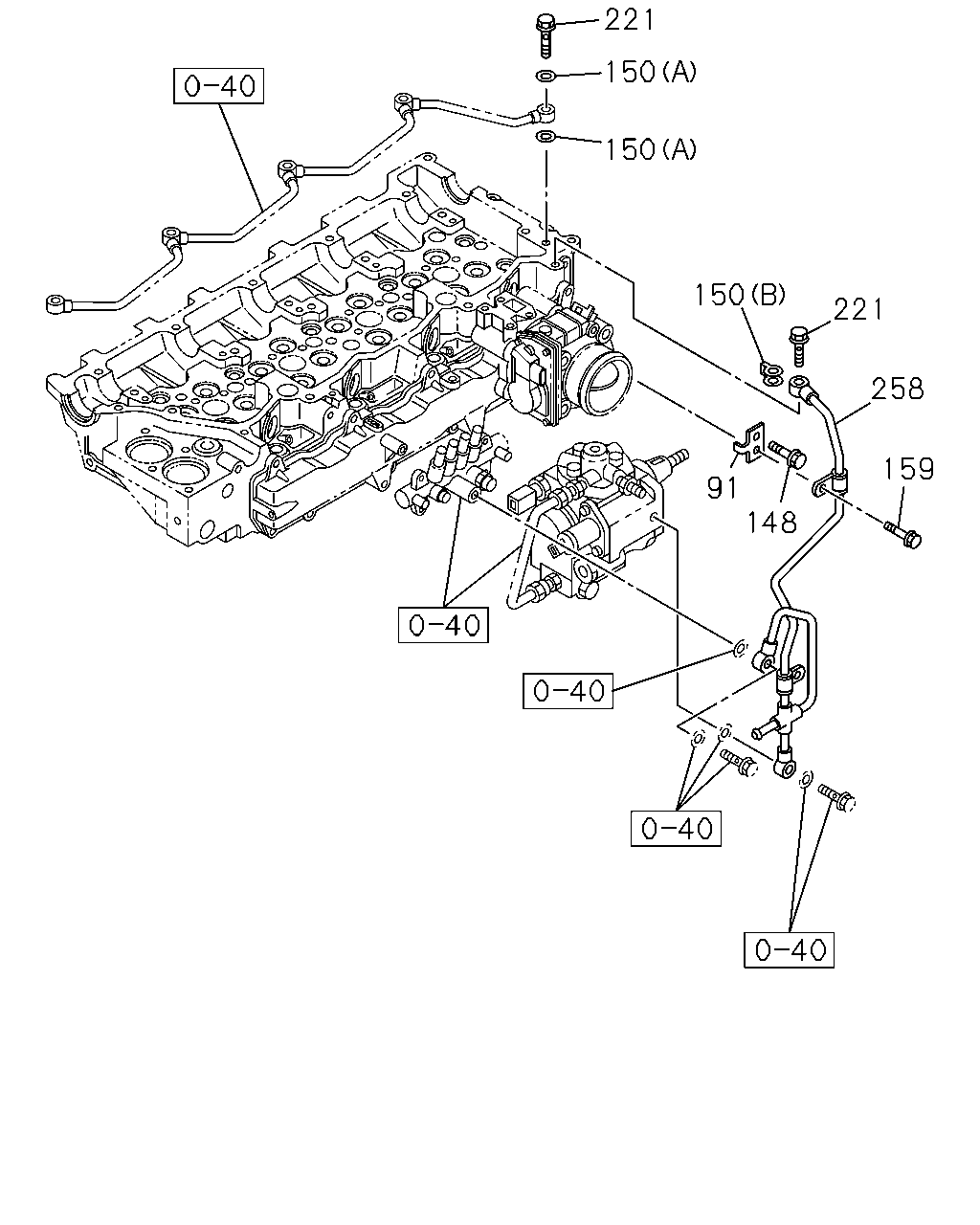

çizim 426109
221 150 150 150 221 258 159 91 148
BalonParca AdiParca NoAdetTipApplied Date A B
91 BRACKET; FUEL PIPE TO INL MANIF 8-98033-979-0 01 1 1406- ●
148 BOLT; BRKT
M6X12 FLANGE THA 		0-28050-612-0 01 1 1406- ●
148 BOLT; BRKT
M8X12 FLANGE THA 		0-28050-812-0 01 1 1402- ●
150 GASKET; FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 1406- ●
150 GASKET; FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=10.2 OD=17 		8-98079-755-0 01 1 1406- ●
159 BOLT; CLIP
M6X12 FLANGE THA 		0-28050-612-0 01 1 1406- ●
159 BOLT; CLIP
M6X16 FLANGE THA 		0-28050-616-0 01 1 1406- ●
221 BOLT; FUEL PIPE
M10X21 FLANGE 		8-94396-711-0 02 1 1406- ●
258 PIPE ASM; FUEL,LEAK OFF 8-98055-815-1 01 1 1406- ●
