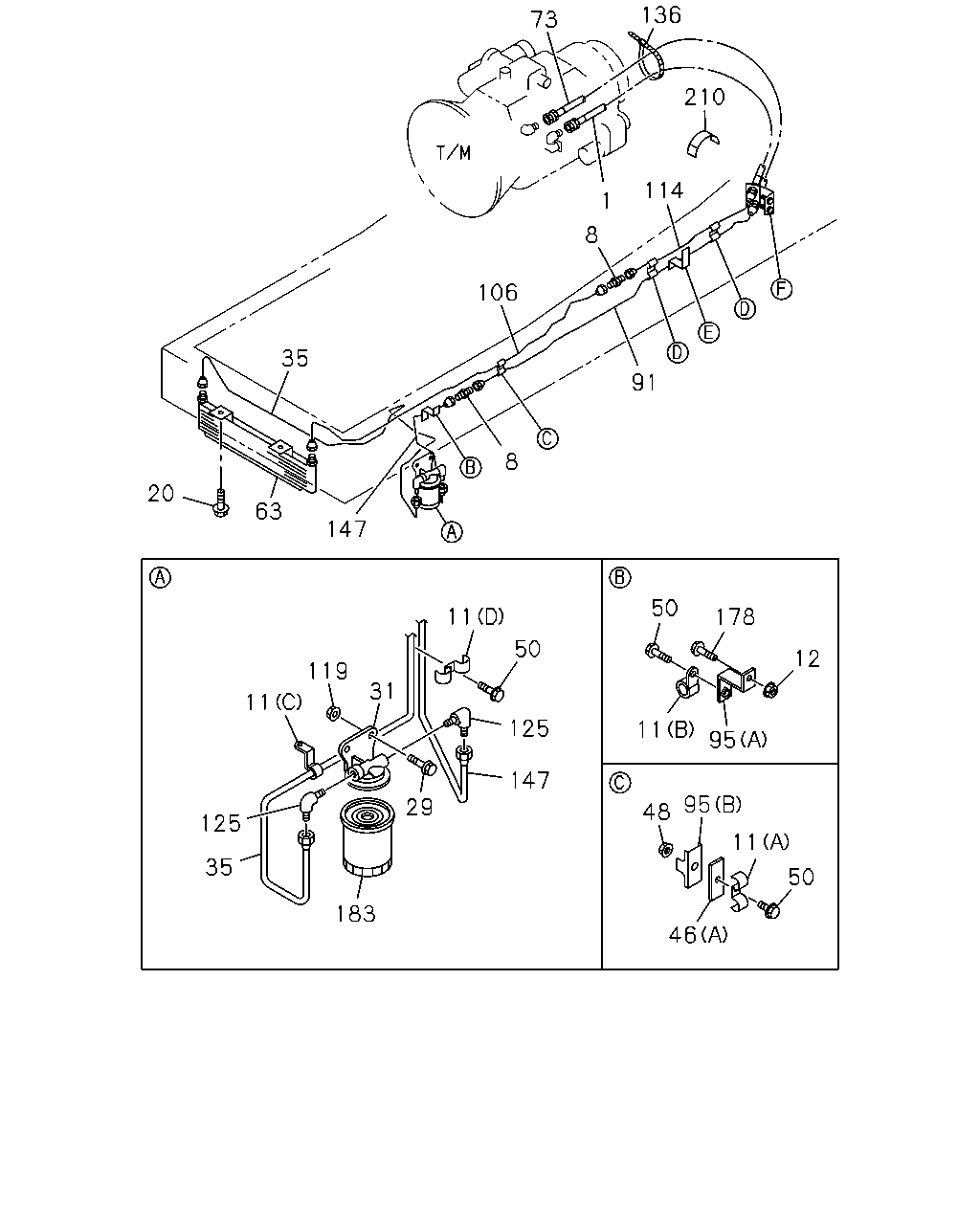

2-53A — TRANSMISSION OIL COOLER SYSTEM (#13333) — 166 parça

46 50 11 95 48 11 95 12 178 50 147 125 50 11 31 119 11 183 29 125 35 20 63 147 8 35 106 8 1 114 91 210 136 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; ATF MIXER TRUCK<RA2> L=405	1-09364-800-0	01	1	0109-
1	HOSE; ATF L=450	1-09364-625-0	01	1	0105-0108
1	HOSE; ATF EXC. MIXER TRUCK<RA2> L=450	1-09364-625-0	01	1	0109-
8	UNION M16 L=42	9-09233-010-1	02	1	0105-
11	CLIP; PIPE (B) ID=11 L=20	9-09525-035-0	02	1	0107-
11	CLIP; PIPE (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	01	1	0105-
11	CLIP; PIPE (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	01	1	0105-
11	CLIP; PIPE (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	01	1	0105-
11	CLIP; PIPE (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	01	1	0105-
11	CLIP; PIPE (D) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	0105-
11	CLIP; PIPE (D) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	0105-
11	CLIP; PIPE (C) ID=11 H=20 L=20	5-09700-351-0	01	1	0105-
11	CLIP; PIPE (B) ID=11 L=20	9-09525-035-0	01	1	0105-0106
11	CLIP; PIPE (B) ID=11 L=20	9-09525-035-0	01	1	0107-
12	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0105-0106
12	NUT; BRKT EXC. MIXER TRUCK<RA2> M8 FLANGE	0-91150-108-0	01	1	0105-0106
12	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0107-0602
12	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-
12	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0107-0602
12	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
20	BOLT; COOLER TO BRKT M10X20 FLANGE	0-28081-020-0	02	1	0105-0512
20	BOLT; COOLER TO BRKT M10X20 FLANGE	0-28051-020-0	02	1	0601-
29	BOLT; FILTER TO BRKT M10X30 FLANGE	0-28681-030-0	02	1	0105-0512
29	BOLT; FILTER TO BRKT M10X30 FLANGE	0-28651-030-0	02	1	0601-
31	BRACKET; OIL FILTER	1-33119-222-0	01	1	0105-
35	PIPE; OIL,OIL COOLER TO FILTER	1-49166-081-0	01	1	0105-0106
35	PIPE; OIL,OIL COOLER TO FILTER	1-49166-239-0	01	1	0107-
46	BRACKET; OIL PIPE (A) L=50	1-47475-299-2	02	1	0105-
48	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0105-0602
48	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
48	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	0105-0505
48	NUT; BRKT M8 FLANGE	0-91150-108-0	03	1	0506-0602
48	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0603-
50	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	03	1	0105-0512
50	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	03	1	0601-
50	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0105-0106
50	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0105-0106
50	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0105-0106
50	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0107-0110
50	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0111-0512
50	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0601-
50	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	01	1	0105-0106
50	BOLT; CLIP MIXER TRUCK<RA2> M8X45 FLANGE	0-28080-845-0	01	1	0105-0512
50	BOLT; CLIP MIXER TRUCK<RA2> M8X45 FLANGE	0-28050-845-0	01	1	0601-
50	BOLT; CLIP EXC. MIXER TRUCK<RA2> M8X16 FLANGE	0-28080-816-0	01	1	0105-0512
50	BOLT; CLIP EXC. MIXER TRUCK<RA2> M8X16 FLANGE	0-28050-816-0	01	1	0601-
63	COOLER; OIL	1-21700-290-0	01	1	0105-
73	HOSE; FLEX,TRANS MIXER TRUCK<RA2> L=405	1-09364-800-0	01	1	0109-
73	HOSE; FLEX,TRANS L=450	1-09364-625-0	01	1	0105-0108
73	HOSE; FLEX,TRANS EXC. MIXER TRUCK<RA2> L=450	1-09364-625-0	01	1	0109-
91	PIPE; OIL,FLEX HOSE TO UNION MIXER TRUCK<RA2> L=1895 SERVICED BY L=1900	1-47428-881-0	01	1	0105-0106
91	PIPE; OIL,FLEX HOSE TO UNION MIXER TRUCK<RA2> L=1901 SERVICED BY L=1900	1-47428-881-0	01	1	0107-
91	PIPE; OIL,FLEX HOSE TO UNION EXC. MIXER TRUCK<RA2> L=1789 SERVICED BY L=1900	1-47428-881-0	01	1	0105-0106
91	PIPE; OIL,FLEX HOSE TO UNION EXC. MIXER TRUCK<RA2> L=1790 SERVICED BY L=1900	1-47428-881-0	01	1	0107-
95	BRACKET; CLIP (D)	1-47479-172-0	01	1	0107-0402
95	BRACKET; CLIP (D)	1-47479-994-0	01	1	0403-
95	BRACKET; CLIP (A)	1-47475-881-0	01	1	0105-0106
95	BRACKET; CLIP (A)	1-47475-881-0	01	1	0105-0106
95	BRACKET; CLIP MIXER TRUCK<RA2> (B)	1-47475-427-1	01	1	0105-
95	BRACKET; CLIP EXC. MIXER TRUCK<RA2> (C) L=50	1-47475-299-2	01	1	0105-
95	BRACKET; CLIP (C) L=50	1-47475-299-2	01	1	0105-
95	BRACKET; CLIP EXC. MIXER TRUCK<RA2> (D)	1-47477-235-0	01	1	0105-0106
95	BRACKET; CLIP (D)	1-47477-669-1	01	1	0107-0110
95	BRACKET; CLIP (D)	1-47477-669-1	01	1	0107-0110
95	BRACKET; CLIP (D)	1-47477-669-1	01	1	0111-
95	BRACKET; CLIP (D)	1-47477-669-1	01	1	0111-
106	PIPE ASM; OIL,COOLER TO UNION	1-49164-314-0	01	1	0105-0106
106	PIPE ASM; OIL,COOLER TO UNION	1-49166-240-0	01	1	0107-
114	PIPE; OIL,UNION TO FLEX HOSE MIXER TRUCK<RA2> L=855	1-49164-823-0	01	1	0105-0106
114	PIPE; OIL,UNION TO FLEX HOSE MIXER TRUCK<RA2> L=853 SERVICED BY L=900	1-47428-873-0	01	1	0107-
114	PIPE; OIL,UNION TO FLEX HOSE EXC. MIXER TRUCK<RA2> L=739 SERVICED BY L=800	1-47428-872-0	01	1	0105-0106
114	PIPE; OIL,UNION TO FLEX HOSE EXC. MIXER TRUCK<RA2> L=733 SERVICED BY L=800	1-47428-872-0	01	1	0107-
119	NUT; FILTER TO BRKT M10 FLANGE	0-91150-210-0	02	1	0105-0602
119	NUT; FILTER TO BRKT M10 FLANGE	0-91180-210-0	02	1	0603-
125	CONNECTOR; OIL FILTER M16 & PT1/4 ELBOW	1-09650-434-0	02	1	0105-
136	CLIP; FLEX HOSE L=250	1-09707-126-0	01	1	0105-0108
147	PIPE; OIL,UNION TO FILTER	1-49166-080-0	01	1	0105-0106
147	PIPE; OIL,UNION TO FILTER	1-49166-238-0	01	1	0107-
178	BOLT; BRKT,CLIP M8X25 FLANGE	0-28680-825-0	02	1	0107-0512
178	BOLT; BRKT,CLIP M8X25 FLANGE	0-28650-825-0	02	1	0601-
178	BOLT; BRKT,CLIP M8X25 FLANGE	0-28680-825-0	01	1	0105-0106
178	BOLT; BRKT,CLIP EXC. MIXER TRUCK<RA2> M8X25 FLANGE	0-28680-825-0	01	1	0105-0106
178	BOLT; BRKT,CLIP M8X25 FLANGE	0-28680-825-0	01	1	0107-0512
178	BOLT; BRKT,CLIP M8X25 FLANGE	0-28650-825-0	01	1	0601-
183	CARTRIDGE; OIL FILTER	8-94459-700-1	01	1	0105-
210	BAND; FLEX HOSE L=175	1-09707-178-0	01	1	0105-0108

95 95 50 50 11 95 48 46 50 11 92 11 50 95 95 92 91 76 77 179 19 75 73 1 75 48 116 117 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; ATF MIXER TRUCK<RA2> L=405	1-09364-800-0	01	1	0109-
1	HOSE; ATF L=450	1-09364-625-0	01	1	0105-0108
1	HOSE; ATF EXC. MIXER TRUCK<RA2> L=450	1-09364-625-0	01	1	0109-
11	CLIP; PIPE (B) ID=11 L=20	9-09525-035-0	02	1	0107-
11	CLIP; PIPE (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	01	1	0105-
11	CLIP; PIPE (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	01	1	0105-
11	CLIP; PIPE (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	01	1	0105-
11	CLIP; PIPE (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	01	1	0105-
11	CLIP; PIPE (D) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	0105-
11	CLIP; PIPE (D) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	0105-
11	CLIP; PIPE (C) ID=11 H=20 L=20	5-09700-351-0	01	1	0105-
11	CLIP; PIPE (B) ID=11 L=20	9-09525-035-0	01	1	0105-0106
11	CLIP; PIPE (B) ID=11 L=20	9-09525-035-0	01	1	0107-
19	BRACKET; FLEX HOSE MIXER TRUCK<RA2>	1-47477-168-1	01	1	0105-
19	BRACKET; FLEX HOSE EXC. MIXER TRUCK<RA2>	1-47478-344-0	01	1	0105-
46	BRACKET; OIL PIPE (A) L=50	1-47475-299-2	02	1	0105-
48	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0105-0602
48	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
48	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	0105-0505
48	NUT; BRKT M8 FLANGE	0-91150-108-0	03	1	0506-0602
48	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0603-
50	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	03	1	0105-0512
50	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	03	1	0601-
50	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0105-0106
50	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0105-0106
50	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0105-0106
50	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0107-0110
50	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0111-0512
50	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0601-
50	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	01	1	0105-0106
50	BOLT; CLIP MIXER TRUCK<RA2> M8X45 FLANGE	0-28080-845-0	01	1	0105-0512
50	BOLT; CLIP MIXER TRUCK<RA2> M8X45 FLANGE	0-28050-845-0	01	1	0601-
50	BOLT; CLIP EXC. MIXER TRUCK<RA2> M8X16 FLANGE	0-28080-816-0	01	1	0105-0512
50	BOLT; CLIP EXC. MIXER TRUCK<RA2> M8X16 FLANGE	0-28050-816-0	01	1	0601-
73	HOSE; FLEX,TRANS MIXER TRUCK<RA2> L=405	1-09364-800-0	01	1	0109-
73	HOSE; FLEX,TRANS L=450	1-09364-625-0	01	1	0105-0108
73	HOSE; FLEX,TRANS EXC. MIXER TRUCK<RA2> L=450	1-09364-625-0	01	1	0109-
75	GASKET; FLEX HOSE,TRANS ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	0105-0108
76	NUT; FLEX HOSE M16	9-99111-416-0	01	1	0105-0512
76	NUT; FLEX HOSE M16	0-91111-516-0	01	1	0601-
77	WASHER; LK ID=16.2	9-09150-516-0	01	1	0105-0603
77	WASHER; LK ID=16.2	0-91510-516-0	01	1	0604-
91	PIPE; OIL,FLEX HOSE TO UNION MIXER TRUCK<RA2> L=1895 SERVICED BY L=1900	1-47428-881-0	01	1	0105-0106
91	PIPE; OIL,FLEX HOSE TO UNION MIXER TRUCK<RA2> L=1901 SERVICED BY L=1900	1-47428-881-0	01	1	0107-
91	PIPE; OIL,FLEX HOSE TO UNION EXC. MIXER TRUCK<RA2> L=1789 SERVICED BY L=1900	1-47428-881-0	01	1	0105-0106
91	PIPE; OIL,FLEX HOSE TO UNION EXC. MIXER TRUCK<RA2> L=1790 SERVICED BY L=1900	1-47428-881-0	01	1	0107-
92	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0107-0602
92	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0603-
92	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0105-0106
92	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0105-0106
92	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0105-0106
92	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0105-0106
92	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0107-0602
92	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0107-0602
92	NUT; CLIP MIXER TRUCK<RA2> M8 FLANGE	0-91150-108-0	01	1	0107-0602
92	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-
92	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-
92	NUT; CLIP MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	01	1	0603-
95	BRACKET; CLIP (D)	1-47479-172-0	01	1	0107-0402
95	BRACKET; CLIP (D)	1-47479-994-0	01	1	0403-
95	BRACKET; CLIP (A)	1-47475-881-0	01	1	0105-0106
95	BRACKET; CLIP (A)	1-47475-881-0	01	1	0105-0106
95	BRACKET; CLIP MIXER TRUCK<RA2> (B)	1-47475-427-1	01	1	0105-
95	BRACKET; CLIP EXC. MIXER TRUCK<RA2> (C) L=50	1-47475-299-2	01	1	0105-
95	BRACKET; CLIP (C) L=50	1-47475-299-2	01	1	0105-
95	BRACKET; CLIP EXC. MIXER TRUCK<RA2> (D)	1-47477-235-0	01	1	0105-0106
95	BRACKET; CLIP (D)	1-47477-669-1	01	1	0107-0110
95	BRACKET; CLIP (D)	1-47477-669-1	01	1	0107-0110
95	BRACKET; CLIP (D)	1-47477-669-1	01	1	0111-
95	BRACKET; CLIP (D)	1-47477-669-1	01	1	0111-
114	PIPE; OIL,UNION TO FLEX HOSE MIXER TRUCK<RA2> L=855	1-49164-823-0	01	1	0105-0106
114	PIPE; OIL,UNION TO FLEX HOSE MIXER TRUCK<RA2> L=853 SERVICED BY L=900	1-47428-873-0	01	1	0107-
114	PIPE; OIL,UNION TO FLEX HOSE EXC. MIXER TRUCK<RA2> L=739 SERVICED BY L=800	1-47428-872-0	01	1	0105-0106
114	PIPE; OIL,UNION TO FLEX HOSE EXC. MIXER TRUCK<RA2> L=733 SERVICED BY L=800	1-47428-872-0	01	1	0107-
116	NUT; BRKT,FLEX HOSE M16	9-99111-416-0	01	1	0105-0512
116	NUT; BRKT,FLEX HOSE M16	0-91111-516-0	01	1	0601-
117	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	01	1	0105-0603
117	WASHER; LK,FLEX HOSE ID=16.2	0-91510-516-0	01	1	0604-
179	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	0105-0512
179	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0601-
