0-36 — TURBOCHARGER SYSTEM (#133325) — 102 parça
çizim 406777
11 10 212 12 2 212 11 388 16 17 162 217 275 265 217 275 162 17 17 122 94 13 1 12 20 20 79 79 398 398 20 398 398 488 398 398 92 92 28 143 98 143
BalonParca AdiParca NoAdetTipApplied Date A B
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98217-251-2 01 1 1406- ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-97602-926-2 01 1 1402- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94390-044-0 01 1 1402- ●
10 WASHER; LK,TURBOCHARGER
T=2.2 		1-09556-015-0 02 1 1402- ●
11 NUT; TURBOCHARGER
M10 P=1.5 H=8 		9-09842-007-0 04 1 1406- ●
11 NUT; TURBOCHARGER
M10 		1-09420-005-0 04 1 1402- ●
12 STUD; TURBOCHARGER
(C) M10X28 		9-04731-028-0 02 1 1406- ●
12 STUD; TURBOCHARGER
(A) 		9-04130-825-0 01 1 1402- ●
12 STUD; TURBOCHARGER
(B) 		9-04731-080-0 02 1 1402- ●
13 STUD; EXH PIPE
M12X103 L=123 		8-94394-656-0 01 1 1402- ●
16 ADAPTER; EXH PIPE 8-97039-749-2 01 1 1406- ●
16 ADAPTER; EXH PIPE 8-94395-767-0 01 1 1402- ●
17 WASHER; PL,ADAPTER
T=1.9 		5-09500-012-0 06 1 1402- ●
20 PIPE; INL,TURBOCHARGER OUT
(B) 		8-97606-675-1 01 1 1402- ●
20 PIPE; INL,TURBOCHARGER OUT
(A) 		8-97618-726-2 01 1 1402-1408 ●
20 PIPE; INL,TURBOCHARGER OUT
(A) 		8-98251-577-0 01 1 1409- ●
20 PIPE; INL,TURBOCHARGER OUT
(C) 		8-97618-734-0 01 1 1402- ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT 8-94393-182-0 01 1 1402- ●
79 CLIP; RUBBER HOSE
ID=58-79 		1-09707-136-0 02 1 1402- ●
92 BOLT; INL PIPE
(B) M8X35 FLANGE THA 		0-28650-835-0 01 1 1402- ●
92 BOLT; INL PIPE
(A) M8X40 FLANGE THA 		0-28650-840-0 01 1 1402- ●
94 GASKET; INL PIPE 8-98053-830-0 01 1 1402-1402 ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET 1-09360-797-1 01 1 1402-1408 ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET 8-98245-240-0 01 1 1409- ●
122 NUT; ADAPTER
M8 		1-09400-118-1 01 1 1402- ●
143 CLIP; HOSE,TURBOCHARGER OUTLET
ID=58-79 		8-94126-771-0 02 1 1402- ●
162 BOLT; ADAPTER
M8X57 		5-09000-275-0 01 1 1406- ●
162 BOLT; ADAPTER
M8X57 		5-09000-275-0 05 1 1402- ●
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 1402- ●
217 BOLT; BRKT
M12X30 		8-94394-324-0 03 1 1402- ●
265 BRACKET; EXH PIPE 8-94395-764-2 01 1 1402- ●
275 WASHER; PL
ID=12.2 		1-09503-008-0 03 1 1402- ●
388 GASKET; EXH PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94394-248-2 01 1 1402- ●
398 MOUNTING
(F) 		8-94160-177-0 01 1 1402- ●
398 MOUNTING
(C) 		8-94390-551-1 01 1 1402- ●
398 MOUNTING
(D) 		8-94394-504-0 01 1 1402- ●
398 MOUNTING
(E) 		8-94394-529-0 01 1 1402- ●
398 MOUNTING
(A) 		8-94395-766-0 01 1 1402- ●
398 MOUNTING
(B) OD=23 		8-97105-689-6 01 1 1402- ●
488 HOSE; RUBBER 1-09360-797-1 01 1 1402-1408 ●
488 HOSE; RUBBER 8-98245-240-0 01 1 1409- ●

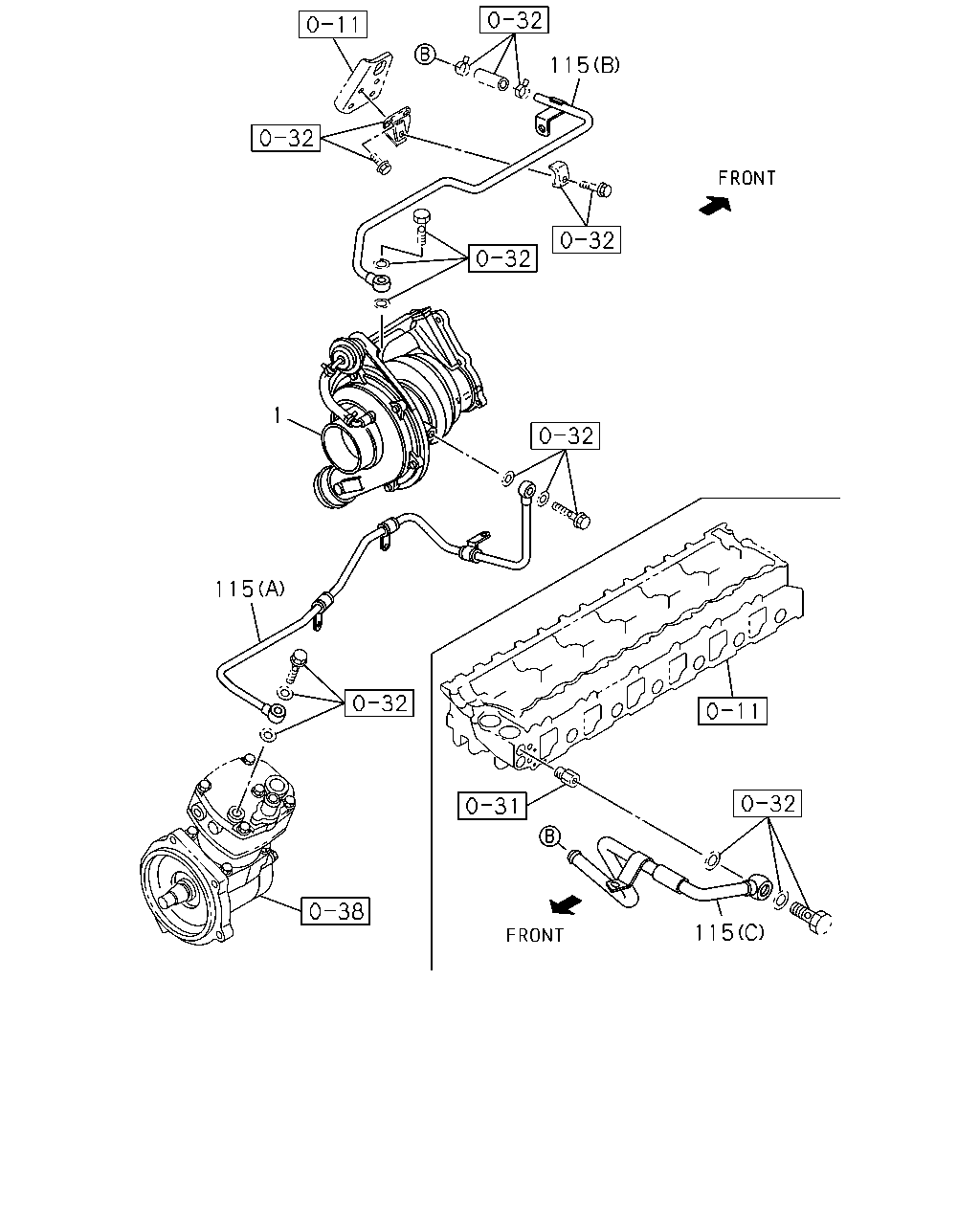

çizim 407321
115 1 115 115
BalonParca AdiParca NoAdetTipApplied Date A B
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98217-251-2 01 1 1406- ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-97602-926-2 01 1 1402- ●
115 PIPE; WATER,TURBOCHARGER OUT
(D) 		8-98063-841-0 01 1 1406- ●
115 PIPE; WATER,TURBOCHARGER OUT
(B) 		8-94392-950-0 01 1 1402- ●
115 PIPE; WATER,TURBOCHARGER OUT
(C) 		8-94395-454-4 01 1 1402- ●
115 PIPE; WATER,TURBOCHARGER OUT
(A) 		8-97618-808-0 01 1 1402- ●

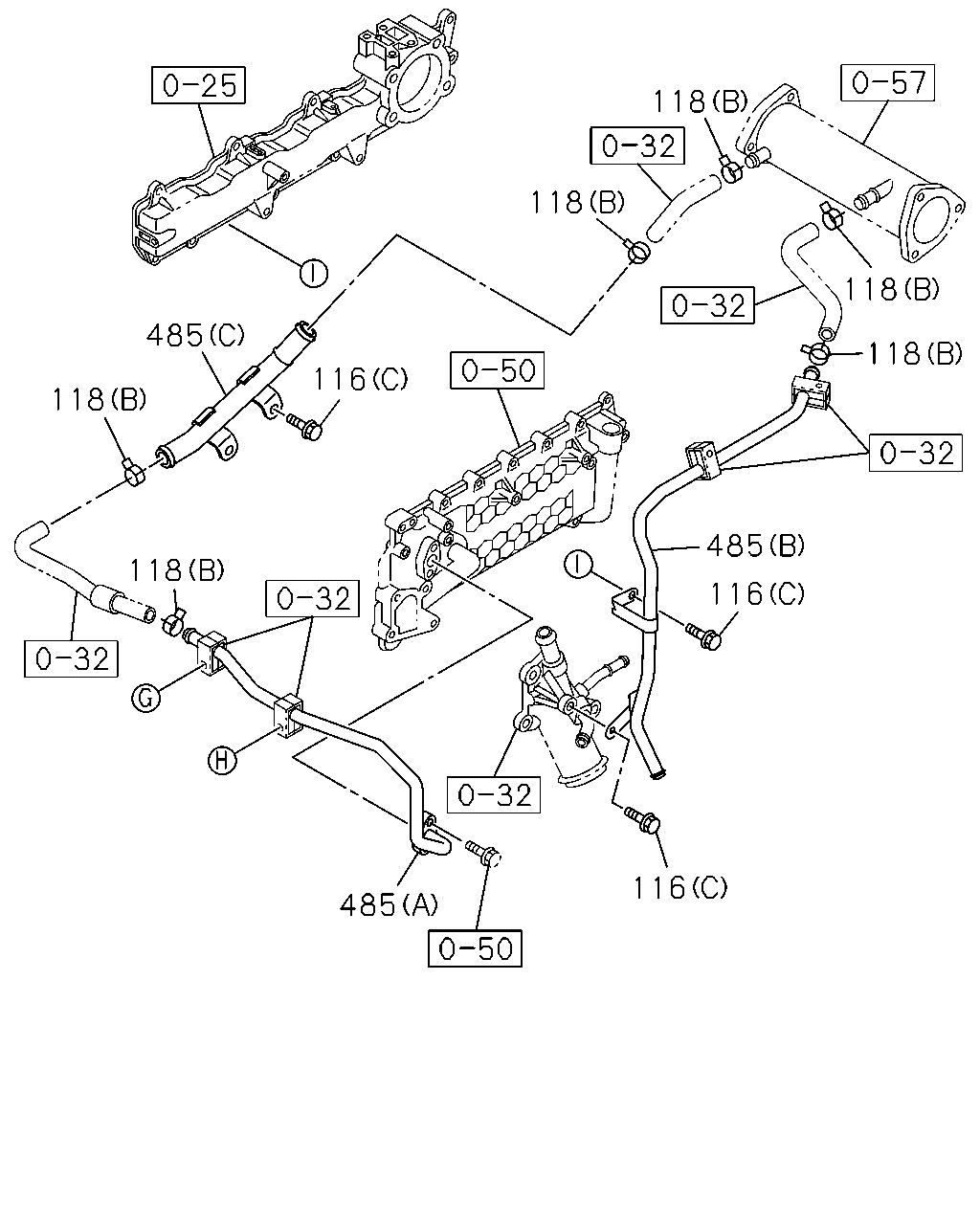

çizim 426118
485 118 118 116 118 18 118 118 485 116 116 485
BalonParca AdiParca NoAdetTipApplied Date A B
116 BOLT; WATER PIPE
(C) M8X20 FLANGE THA 		0-28650-820-0 06 1 1406- ●
116 BOLT; WATER PIPE
(B) M12X24 EYE-BOLT THA 		1-09675-081-0 02 1 1406- ●
116 BOLT; WATER PIPE
(A) M14X30 EYE-BOLT 		8-94455-144-0 01 1 1406- ●
118 CLIP; WATER HOSE
(B) ID=20 		1-09707-084-1 06 1 1406- ●
118 CLIP; WATER HOSE
(A) ID=15.5 		8-94221-519-0 06 1 1406- ●
485 PIPE; WATER EGR
(A) 		8-97376-773-0 01 1 1406- ●
485 PIPE; WATER EGR
(B) 		8-97376-775-2 01 1 1406- ●
485 PIPE; WATER EGR
(C) 		8-98064-164-0 01 1 1406- ●

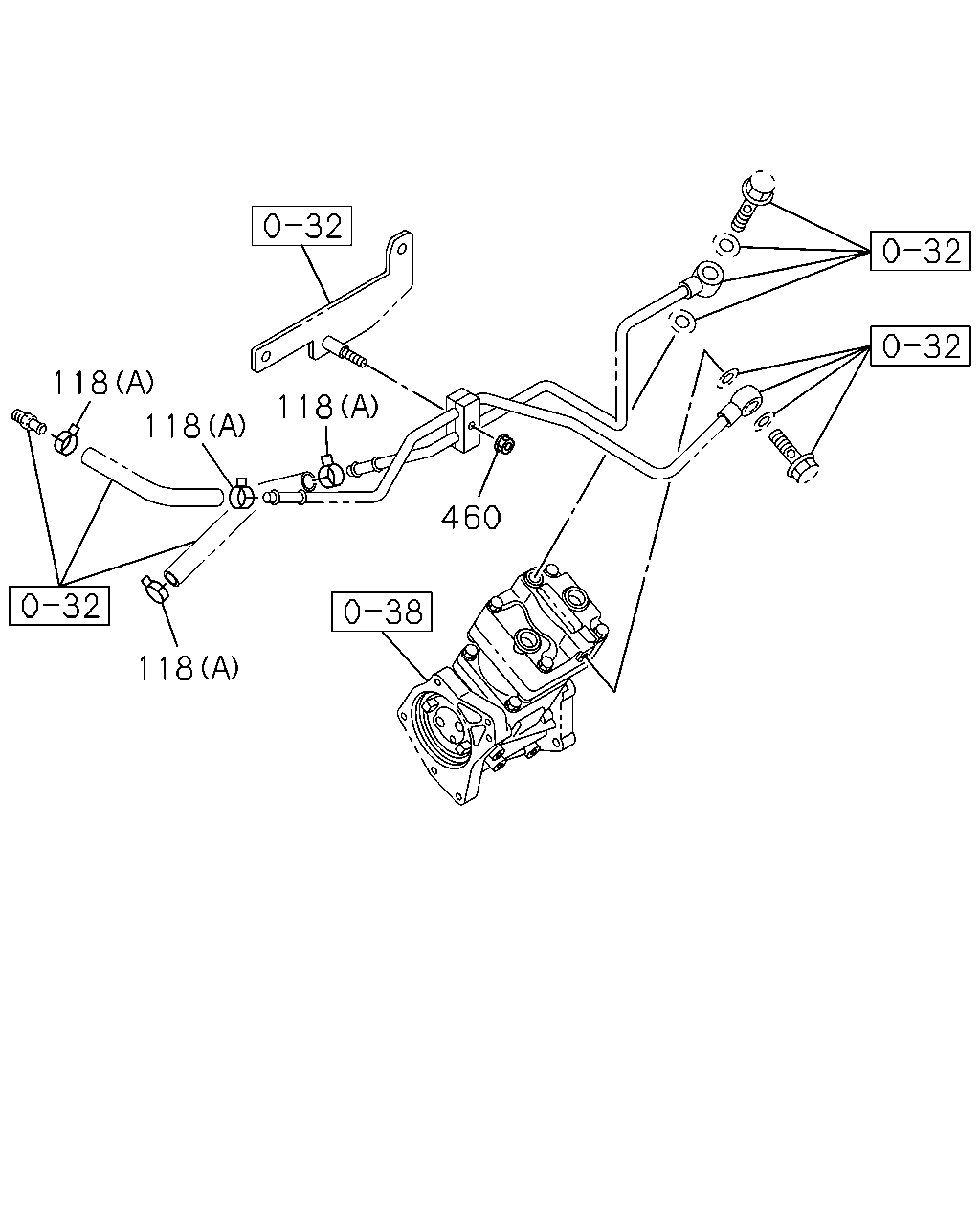

çizim 426329
118 118 118 460 118
BalonParca AdiParca NoAdetTipApplied Date A B
118 CLIP; WATER HOSE
(B) ID=20 		1-09707-084-1 06 1 1406- ●
118 CLIP; WATER HOSE
(A) ID=15.5 		8-94221-519-0 06 1 1406- ●
460 NUT; PIPE
M6 FLANGE THA 		0-91180-106-0 01 1 1406- ●

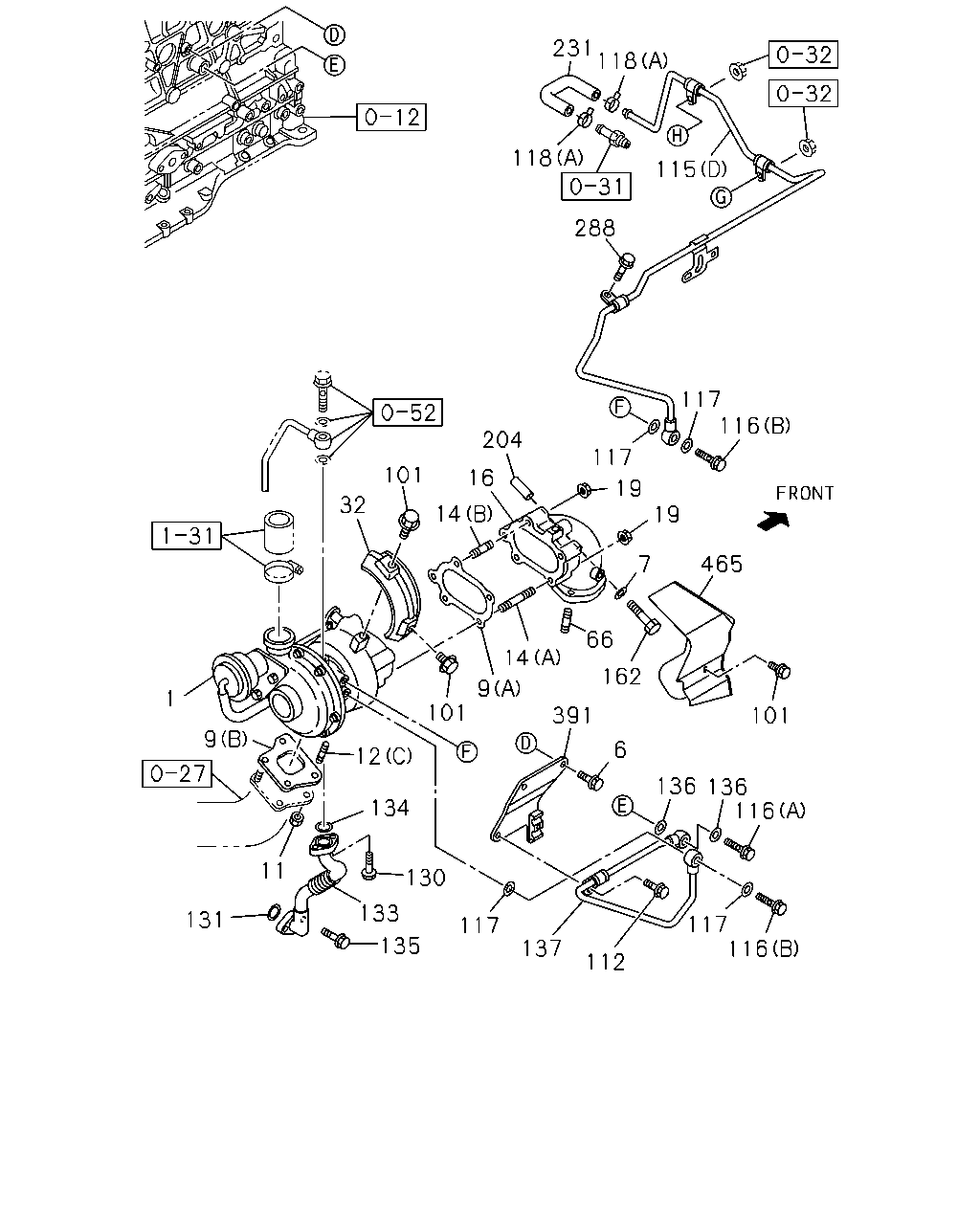

çizim 426466
231 118 118 115 288 117 116 117 19 19 204 16 101 32 14 1 131 11 134 12 101 9 14 391 6 130 133 135 117 137 112 117 116 116 136 136 101 162 66 7 465 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98217-251-2 01 1 1406- ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-97602-926-2 01 1 1402- ●
6 BOLT; BRKT TO C/BL
M8X16 FLANGE THA 		0-28050-816-0 02 1 1406- ●
7 WASHER; PL,BRKT
ID=8 OD=18 T=3 		8-94174-537-0 01 1 1406- ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) 		8-97039-777-1 01 1 1406- ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) 		8-97374-412-0 01 1 1406- ●
11 NUT; TURBOCHARGER
M10 P=1.5 H=8 		9-09842-007-0 04 1 1406- ●
11 NUT; TURBOCHARGER
M10 		1-09420-005-0 04 1 1402- ●
12 STUD; TURBOCHARGER
(C) M10X28 		9-04731-028-0 02 1 1406- ●
12 STUD; TURBOCHARGER
(A) 		9-04130-825-0 01 1 1402- ●
12 STUD; TURBOCHARGER
(B) 		9-04731-080-0 02 1 1402- ●
14 STUD; TURBOCHARGER TO EXH PIPE
(A) M8X94 L=108 		8-97019-477-0 02 1 1406- ●
14 STUD; TURBOCHARGER TO EXH PIPE
(B) M8X49 L=63 		8-97019-478-0 03 1 1406- ●
16 ADAPTER; EXH PIPE 8-97039-749-2 01 1 1406- ●
16 ADAPTER; EXH PIPE 8-94395-767-0 01 1 1402- ●
19 NUT; EXH PIPE,TURBOCHARGER
M8 FLANGE 		8-94170-486-0 05 1 1406- ●
32 PROTECTOR; HEAT,TURBOCHARGER 8-97351-168-0 01 1 1406- ●
66 STUD; EXH PIPE
M10X25 L=40 THA 		0-44011-025-0 03 1 1406- ●
101 BOLT; HEAT PROTECTOR
M6X12 W/PL WASHER 		8-98054-289-0 06 1 1406- ●
112 BOLT; CLIP
M8X16 FLANGE THA 		0-28050-816-0 01 1 1501- ●
115 PIPE; WATER,TURBOCHARGER OUT
(D) 		8-98063-841-0 01 1 1406- ●
115 PIPE; WATER,TURBOCHARGER OUT
(B) 		8-94392-950-0 01 1 1402- ●
115 PIPE; WATER,TURBOCHARGER OUT
(C) 		8-94395-454-4 01 1 1402- ●
115 PIPE; WATER,TURBOCHARGER OUT
(A) 		8-97618-808-0 01 1 1402- ●
116 BOLT; WATER PIPE
(C) M8X20 FLANGE THA 		0-28650-820-0 06 1 1406- ●
116 BOLT; WATER PIPE
(B) M12X24 EYE-BOLT THA 		1-09675-081-0 02 1 1406- ●
116 BOLT; WATER PIPE
(A) M14X30 EYE-BOLT 		8-94455-144-0 01 1 1406- ●
117 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		9-09571-412-0 04 1 1406- ●
118 CLIP; WATER HOSE
(B) ID=20 		1-09707-084-1 06 1 1406- ●
118 CLIP; WATER HOSE
(A) ID=15.5 		8-94221-519-0 06 1 1406- ●
130 BOLT; OIL PIPE TO TURBOCHARGER DRAIN
M6X20 W/LK WASHER 		0-50540-620-0 02 1 1406- ●
131 GASKET; OIL PIPE,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=30 		8-94394-671-0 01 1 1406- ●
133 PIPE; OIL DRAIN,TURBOCHARGER 8-98172-662-0 01 1 1406- ●
134 GASKET; OIL PIPE,TURBOCHARGER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8 		1-09623-462-0 01 1 1406- ●
135 BOLT; OIL PIPE TO C/BL
M8X20 FLANGE THA 		0-28050-820-0 02 1 1406- ●
136 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 		8-98251-345-0 02 1 1406- ●
137 PIPE; WATER,TURBOCHARGER IN 8-98063-007-0 01 1 1406- ●
162 BOLT; ADAPTER
M8X57 		5-09000-275-0 01 1 1406- ●
162 BOLT; ADAPTER
M8X57 		5-09000-275-0 05 1 1402- ●
204 COLLAR; PIPE ADAPTER 8-97214-384-1 01 1 1406- ●
231 HOSE; RUBBER,TURBOCHARGER OUT 8-97209-950-0 01 1 1406- ●
288 BOLT; WATER PIPE CLIP
M8X16 FLANGE THA 		0-28050-816-0 02 1 1406- ●
391 BRACKET; WATER PIPE 8-98057-168-2 01 1 1406- ●
465 PROTECTOR; HEAT,EXH ADAPTER 8-98176-248-0 01 1 1406- ●
