◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11575 - FTR(THAI)EURO3 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-32 - WATER PIPING; ENGINE ▶
0-32 — WATER PIPING; ENGINE (#133322) — 106 parça

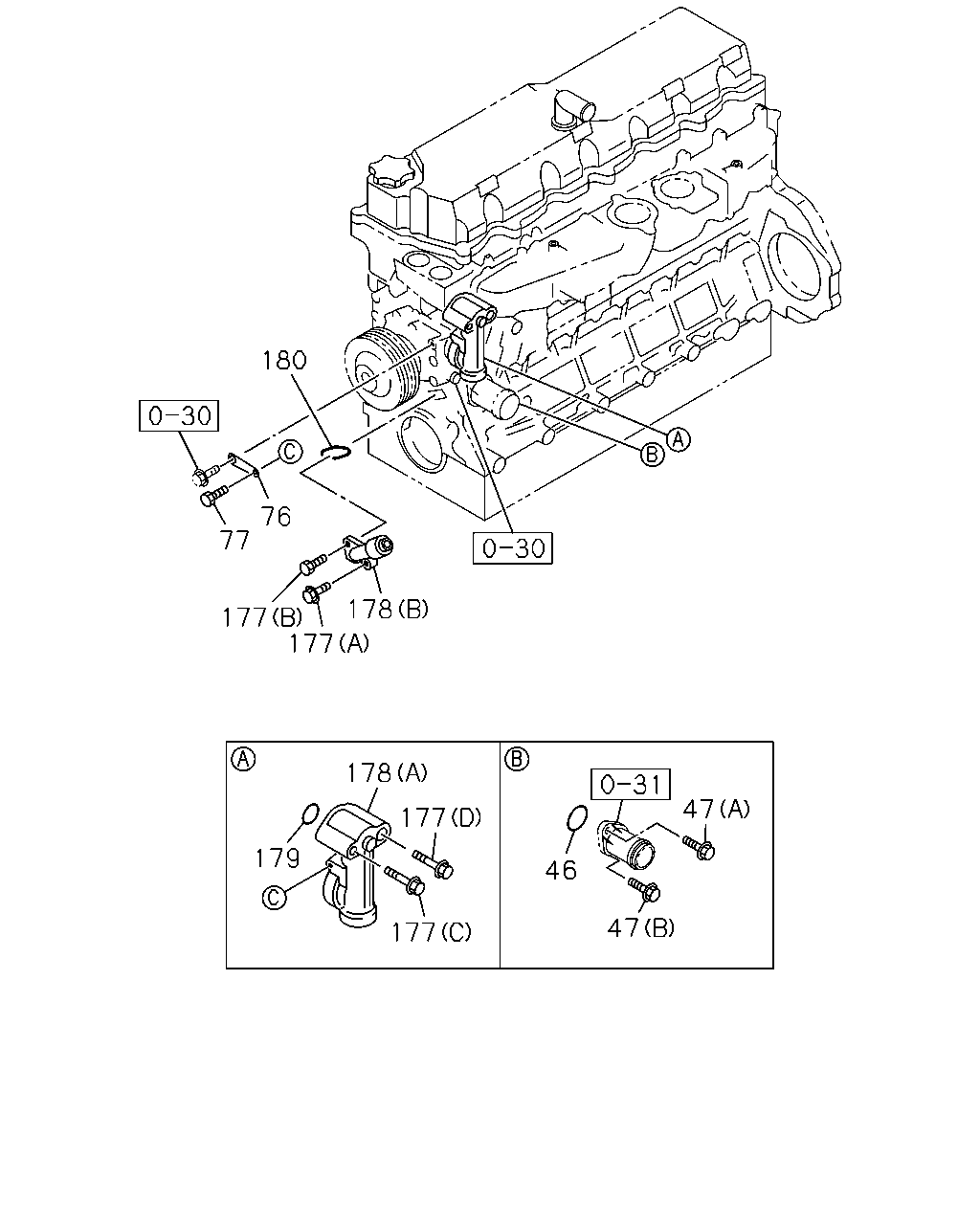

çizim 406198
180 76 77 177 177 178 178 179 177 177 46 47 47
BalonParca AdiParca NoAdetTipApplied Date A B
46 GASKET; WATER DUCT,TO OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3 		8-94396-680-2 01 1 1402- ●
47 BOLT; DUCT,TO OIL COOLER
(A) M8X45 FLANGE THA 		0-28050-845-0 01 1 1402- ●
47 BOLT; DUCT,TO OIL COOLER
(B) M8X25 FLANGE THA 		0-28650-825-0 01 1 1402- ●
76 BRACKET; WATER DUCT,PUMP 8-94394-784-0 01 1 1402- ●
77 BOLT; BRKT,WATER DUCT
M8X50 FLANGE THA 		0-28050-850-0 01 1 1402- ●
177 BOLT; WATER DUCT
(C) M8X80 FLANGE THA 		0-28050-880-0 01 1 1402- ●
177 BOLT; WATER DUCT
(B) M8X25 FLANGE THA 		0-28650-825-0 01 1 1402- ●
177 BOLT; WATER DUCT
(A) M8X65 FLANGE 		1-09044-072-1 01 1 1402- ●
177 BOLT; WATER DUCT
(D) M16X75 FLANGE 		8-94397-360-1 01 1 1402- ●
178 DUCT; WATER,BYPASS
(B) 		8-94390-644-0 01 1 1402- ●
178 DUCT; WATER,BYPASS
(A) 		8-94396-627-3 01 1 1402- ●
179 GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2 		8-94396-679-0 01 1 1402-1408 ●
179 GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2 		8-98276-756-0 01 1 1409- ●
180 GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94396-720-1 01 1 1402- ●
çizim 406210
94 94 31 206 94 94 33 24 25 31
BalonParca AdiParca NoAdetTipApplied Date A B
24 BRACKET; WATER PIPE 8-97379-140-0 01 1 1406- ●
24 BRACKET; WATER PIPE 8-98051-626-1 01 1 1402- ●
25 BOLT; WATER PIPE
M8X20 FLANGE THA 		0-28650-820-0 01 1 1402- ●
31 BOLT; CLIP
(D) M8X40 FLANGE THA 		0-28050-840-0 02 1 1406- ●
31 BOLT; CLIP
(B) M6X45 FLANGE THA 		0-28050-645-0 01 1 1402- ●
31 BOLT; CLIP
(C) M6X35 FLANGE THA 		0-28650-635-0 01 1 1402- ●
31 BOLT; CLIP
(A) M6X40 FLANGE 		0-28650-640-0 01 1 1402- ●
33 BOLT; BRKT
(D) M6X10 FLANGE THA 		0-28050-610-0 02 1 1406- ●
33 BOLT; BRKT
(B) M8X16 FLANGE THA 		0-28050-816-0 02 1 1402- ●
33 BOLT; BRKT
(A) M8X20 FLANGE THA 		0-28050-820-0 02 1 1402- ●
33 BOLT; BRKT
(C) M8X20 FLANGE THA 		0-28650-820-0 02 1 1402- ●
94 CLIP; WATER PIPE
(D) 		1-09701-180-0 01 1 1406- ●
94 CLIP; WATER PIPE
(C) ID=10 & 10 L=25 		8-94393-280-3 01 1 1406- ●
94 CLIP; WATER PIPE
(B) 		8-94396-860-0 01 1 1402- ●
94 CLIP; WATER PIPE
(A) 		8-97605-129-1 04 1 1402- ●
206 PIPE; WATER,EGR COOLER 8-98000-480-1 01 1 1402- ●

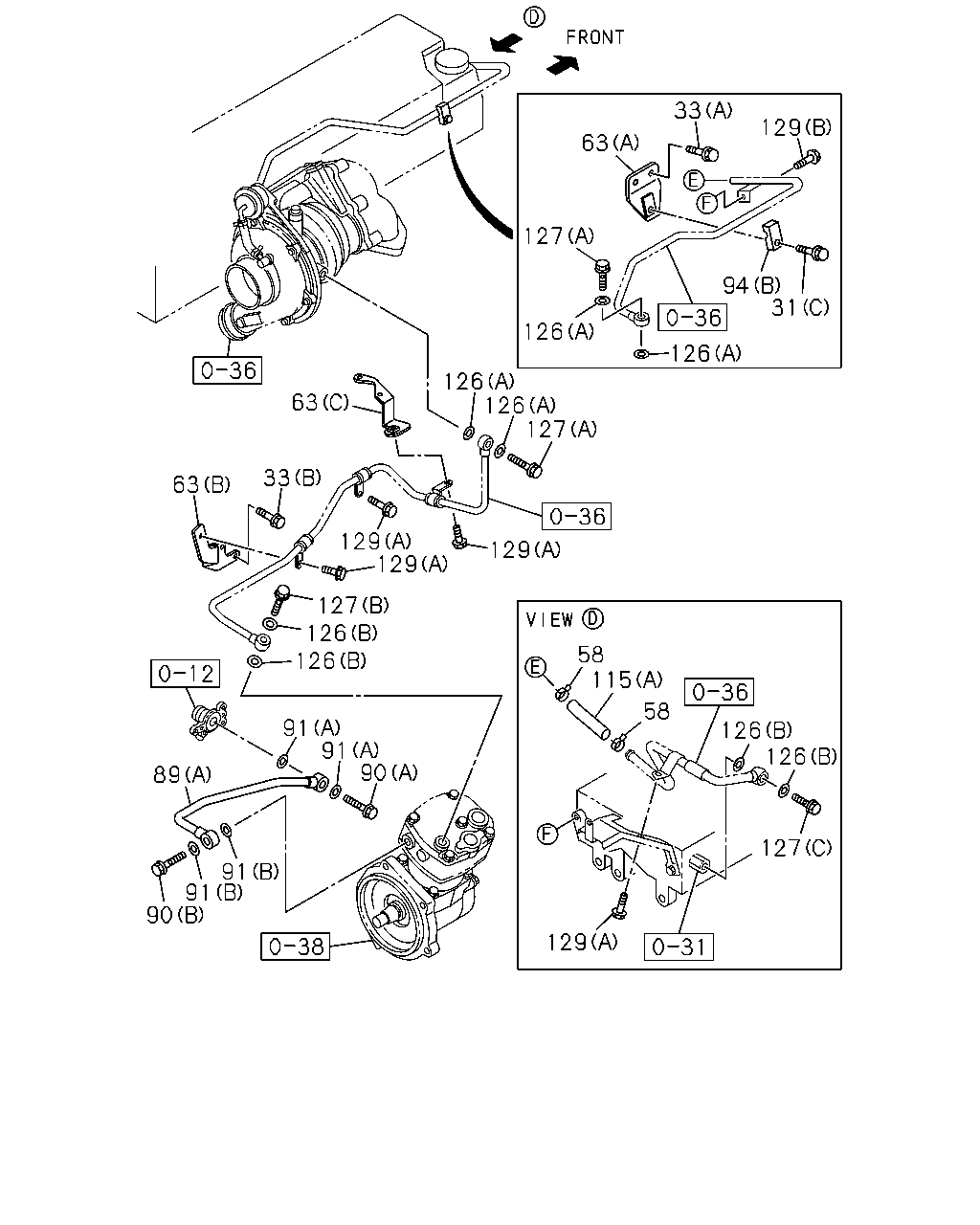

çizim 407003
63 33 129 94 31 126 127 126 126 126 127 129 129 129 63 33 63 127 126 126 91 91 90 89 91 91 90 58 115 58 126 126 127 129
BalonParca AdiParca NoAdetTipApplied Date A B
31 BOLT; CLIP
(D) M8X40 FLANGE THA 		0-28050-840-0 02 1 1406- ●
31 BOLT; CLIP
(B) M6X45 FLANGE THA 		0-28050-645-0 01 1 1402- ●
31 BOLT; CLIP
(C) M6X35 FLANGE THA 		0-28650-635-0 01 1 1402- ●
31 BOLT; CLIP
(A) M6X40 FLANGE 		0-28650-640-0 01 1 1402- ●
33 BOLT; BRKT
(D) M6X10 FLANGE THA 		0-28050-610-0 02 1 1406- ●
33 BOLT; BRKT
(B) M8X16 FLANGE THA 		0-28050-816-0 02 1 1402- ●
33 BOLT; BRKT
(A) M8X20 FLANGE THA 		0-28050-820-0 02 1 1402- ●
33 BOLT; BRKT
(C) M8X20 FLANGE THA 		0-28650-820-0 02 1 1402- ●
58 CLIP; RUBBER HOSE
ID=16 		8-94392-924-0 02 1 1402- ●
63 BRACKET; WATER PIPE
(A) 		8-94392-951-0 01 1 1402- ●
63 BRACKET; WATER PIPE
(C) 		8-98074-252-0 01 1 1402- ●
63 BRACKET; WATER PIPE
(B) 		8-98074-253-0 01 1 1402- ●
89 PIPE; WATER,AIR CMPR,IN
(B) 		8-97358-699-0 01 1 1406- ●
89 PIPE; WATER,AIR CMPR,IN
(C) 		8-97376-783-1 01 1 1406- ●
89 PIPE; WATER,AIR CMPR,IN
(A) 		8-97611-095-0 01 1 1402- ●
90 BOLT; EYE,WATER PIPE,AIR CMPR
(A) M14X27 EYE-BOLT 		1-09675-193-0 02 1 1406- ●
90 BOLT; EYE,WATER PIPE,AIR CMPR
(A) M14X27 EYE-BOLT 		1-09675-193-0 01 1 1402- ●
90 BOLT; EYE,WATER PIPE,AIR CMPR
(B) M16X28 		8-94383-489-0 01 1 1402- ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2 		8-98251-345-0 04 1 1406- ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1402- ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2 		1-09630-086-0 02 1 1402- ●
94 CLIP; WATER PIPE
(D) 		1-09701-180-0 01 1 1406- ●
94 CLIP; WATER PIPE
(C) ID=10 & 10 L=25 		8-94393-280-3 01 1 1406- ●
94 CLIP; WATER PIPE
(B) 		8-94396-860-0 01 1 1402- ●
94 CLIP; WATER PIPE
(A) 		8-97605-129-1 04 1 1402- ●
115 HOSE; RUBBER
(B) L=130 SERVICED BY L=3000 		0-03559-300-0 01 1 1406- ●
115 HOSE; RUBBER
(C) 		8-98009-361-0 01 1 1406- ●
115 HOSE; RUBBER
(A) L=60 SERVICED BY L=3000 		0-03561-300-0 01 1 1402- ●
126 GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2 		8-98251-345-0 04 1 1402- ●
126 GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2 		1-09630-086-0 04 1 1402- ●
127 BOLT; EYE
(A) M14X27 EYE-BOLT 		1-09675-193-0 02 1 1402- ●
127 BOLT; EYE
(C) M16X25 		5-09675-028-2 01 1 1402- ●
127 BOLT; EYE
(B) M16X28 		8-94383-489-0 01 1 1402- ●
129 BOLT; WATER PIPE TO BRKT
(A) M8X16 FLANGE THA 		0-28050-816-0 04 1 1402- ●
129 BOLT; WATER PIPE TO BRKT
(B) M12X20 FLANGE 		0-28151-220-0 01 1 1402- ●

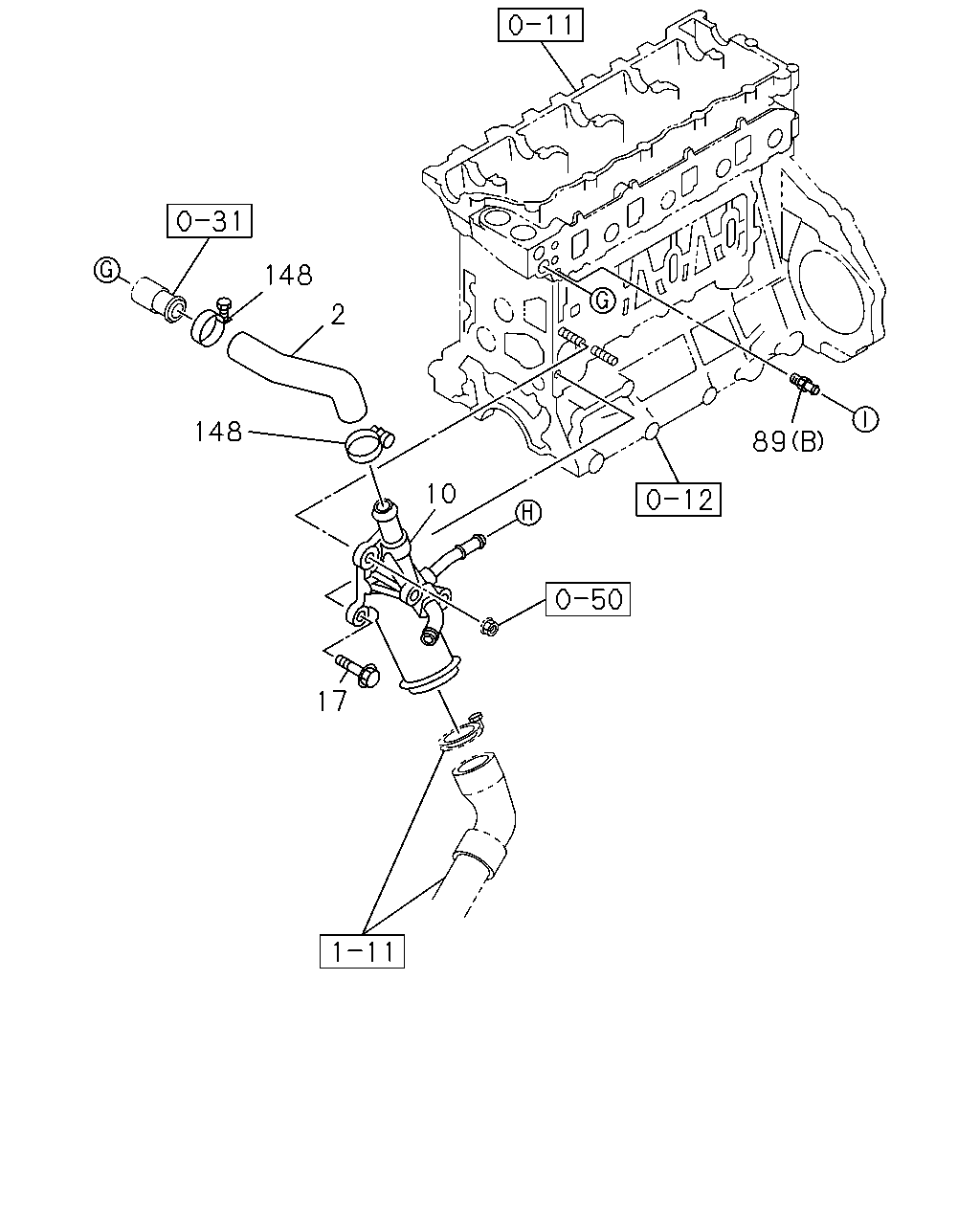

çizim 426096
148 2 148 10 89 17
BalonParca AdiParca NoAdetTipApplied Date A B
2 HOSE; WATER,BY-PASS 8-97379-228-1 01 1 1406- ●
10 PIPE; SUCTION 8-98166-995-0 01 1 1406- ●
17 BOLT; SUCTION PIPE
M8X48 FLANGE 		8-94458-473-1 01 1 1406- ●
89 PIPE; WATER,AIR CMPR,IN
(B) 		8-97358-699-0 01 1 1406- ●
89 PIPE; WATER,AIR CMPR,IN
(C) 		8-97376-783-1 01 1 1406- ●
89 PIPE; WATER,AIR CMPR,IN
(A) 		8-97611-095-0 01 1 1402- ●
148 CLIP; BYPASS HOSE
ID=30 		9-09915-315-1 02 1 1406- ●

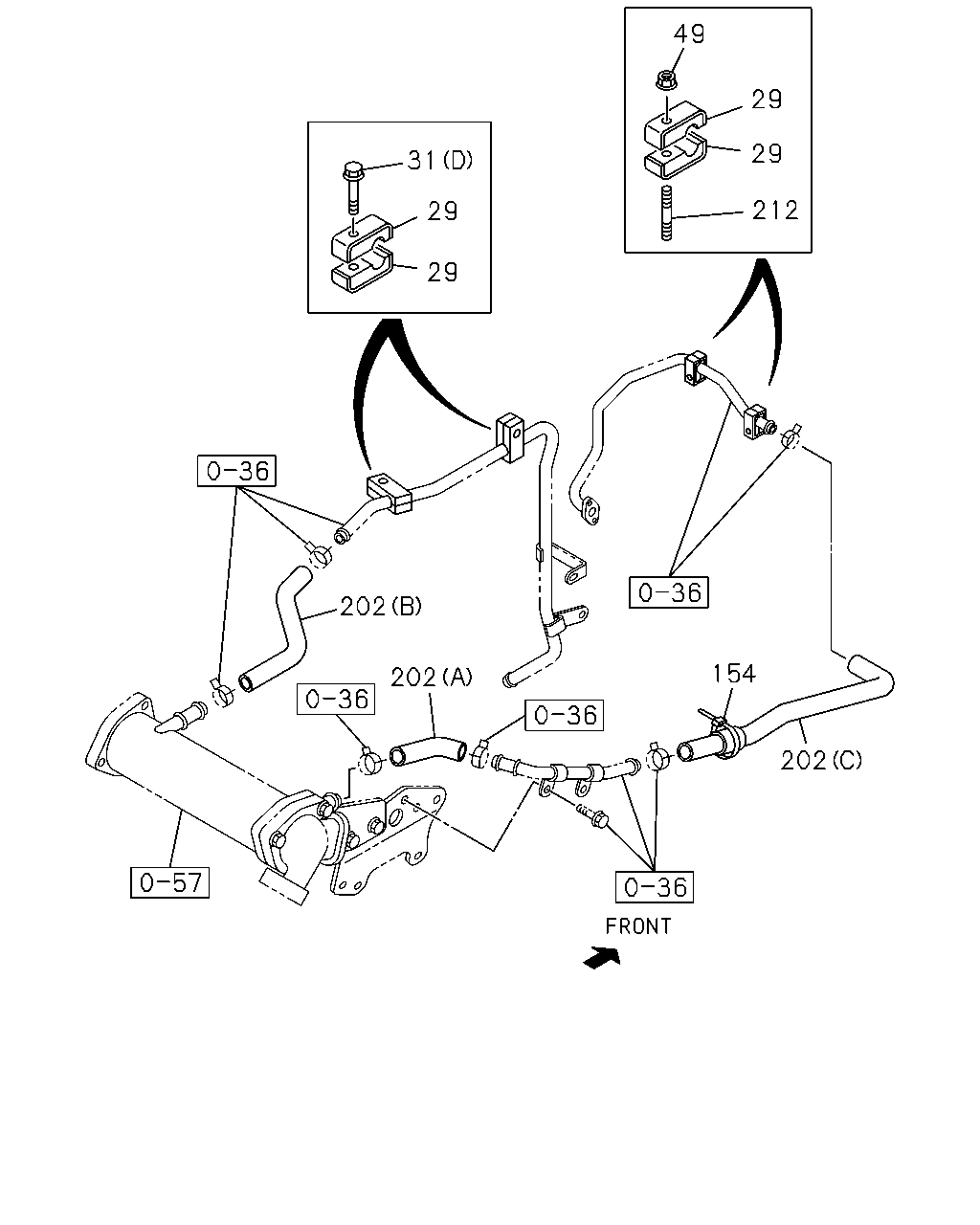

çizim 426097
31 29 29 49 29 29 212 202 202 154 202
BalonParca AdiParca NoAdetTipApplied Date A B
29 CLIP; PIPE 1-09701-284-0 08 1 1406- ●
31 BOLT; CLIP
(D) M8X40 FLANGE THA 		0-28050-840-0 02 1 1406- ●
31 BOLT; CLIP
(B) M6X45 FLANGE THA 		0-28050-645-0 01 1 1402- ●
31 BOLT; CLIP
(C) M6X35 FLANGE THA 		0-28650-635-0 01 1 1402- ●
31 BOLT; CLIP
(A) M6X40 FLANGE 		0-28650-640-0 01 1 1402- ●
49 NUT; WATER PIPE
M8 FLANGE THA 		0-91180-108-0 02 1 1406- ●
154 CLIP; WATER HOSE
L=140 		8-98216-431-0 01 1 1406- ●
202 HOSE; RUBBER,EGR COOLER
(B) 		8-97386-586-1 01 1 1406- ●
202 HOSE; RUBBER,EGR COOLER
(A) 		8-98092-382-0 01 1 1406- ●
202 HOSE; RUBBER,EGR COOLER
(C) 		8-98097-605-1 01 1 1406- ●
212 STUD; PIPE
M8X45 L=55 		8-94217-227-0 02 1 1406- ●

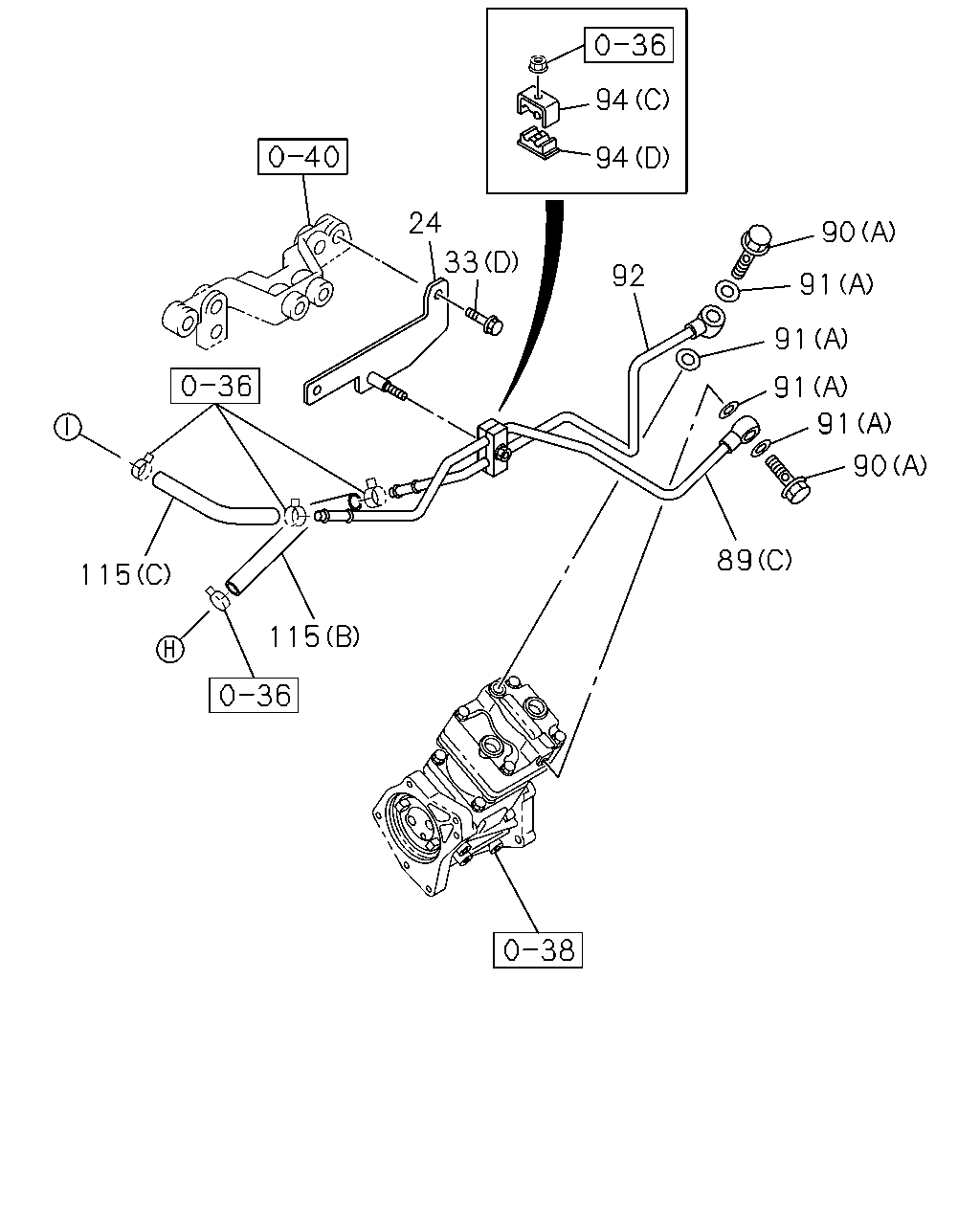

çizim 426103
94 94 92 24 33 115 115 90 91 91 91 90 91 89
BalonParca AdiParca NoAdetTipApplied Date A B
24 BRACKET; WATER PIPE 8-97379-140-0 01 1 1406- ●
24 BRACKET; WATER PIPE 8-98051-626-1 01 1 1402- ●
33 BOLT; BRKT
(D) M6X10 FLANGE THA 		0-28050-610-0 02 1 1406- ●
33 BOLT; BRKT
(B) M8X16 FLANGE THA 		0-28050-816-0 02 1 1402- ●
33 BOLT; BRKT
(A) M8X20 FLANGE THA 		0-28050-820-0 02 1 1402- ●
33 BOLT; BRKT
(C) M8X20 FLANGE THA 		0-28650-820-0 02 1 1402- ●
89 PIPE; WATER,AIR CMPR,IN
(B) 		8-97358-699-0 01 1 1406- ●
89 PIPE; WATER,AIR CMPR,IN
(C) 		8-97376-783-1 01 1 1406- ●
89 PIPE; WATER,AIR CMPR,IN
(A) 		8-97611-095-0 01 1 1402- ●
90 BOLT; EYE,WATER PIPE,AIR CMPR
(A) M14X27 EYE-BOLT 		1-09675-193-0 02 1 1406- ●
90 BOLT; EYE,WATER PIPE,AIR CMPR
(A) M14X27 EYE-BOLT 		1-09675-193-0 01 1 1402- ●
90 BOLT; EYE,WATER PIPE,AIR CMPR
(B) M16X28 		8-94383-489-0 01 1 1402- ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2 		8-98251-345-0 04 1 1406- ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1402- ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2 		1-09630-086-0 02 1 1402- ●
92 PIPE; WATER,AIR CMPR,OUT 8-97376-784-0 01 1 1406- ●
94 CLIP; WATER PIPE
(D) 		1-09701-180-0 01 1 1406- ●
94 CLIP; WATER PIPE
(C) ID=10 & 10 L=25 		8-94393-280-3 01 1 1406- ●
94 CLIP; WATER PIPE
(B) 		8-94396-860-0 01 1 1402- ●
94 CLIP; WATER PIPE
(A) 		8-97605-129-1 04 1 1402- ●
115 HOSE; RUBBER
(B) L=130 SERVICED BY L=3000 		0-03559-300-0 01 1 1406- ●
115 HOSE; RUBBER
(C) 		8-98009-361-0 01 1 1406- ●
115 HOSE; RUBBER
(A) L=60 SERVICED BY L=3000 		0-03561-300-0 01 1 1402- ●
