2-39A — POWER ASSISTOR (#13332) — 288 parça

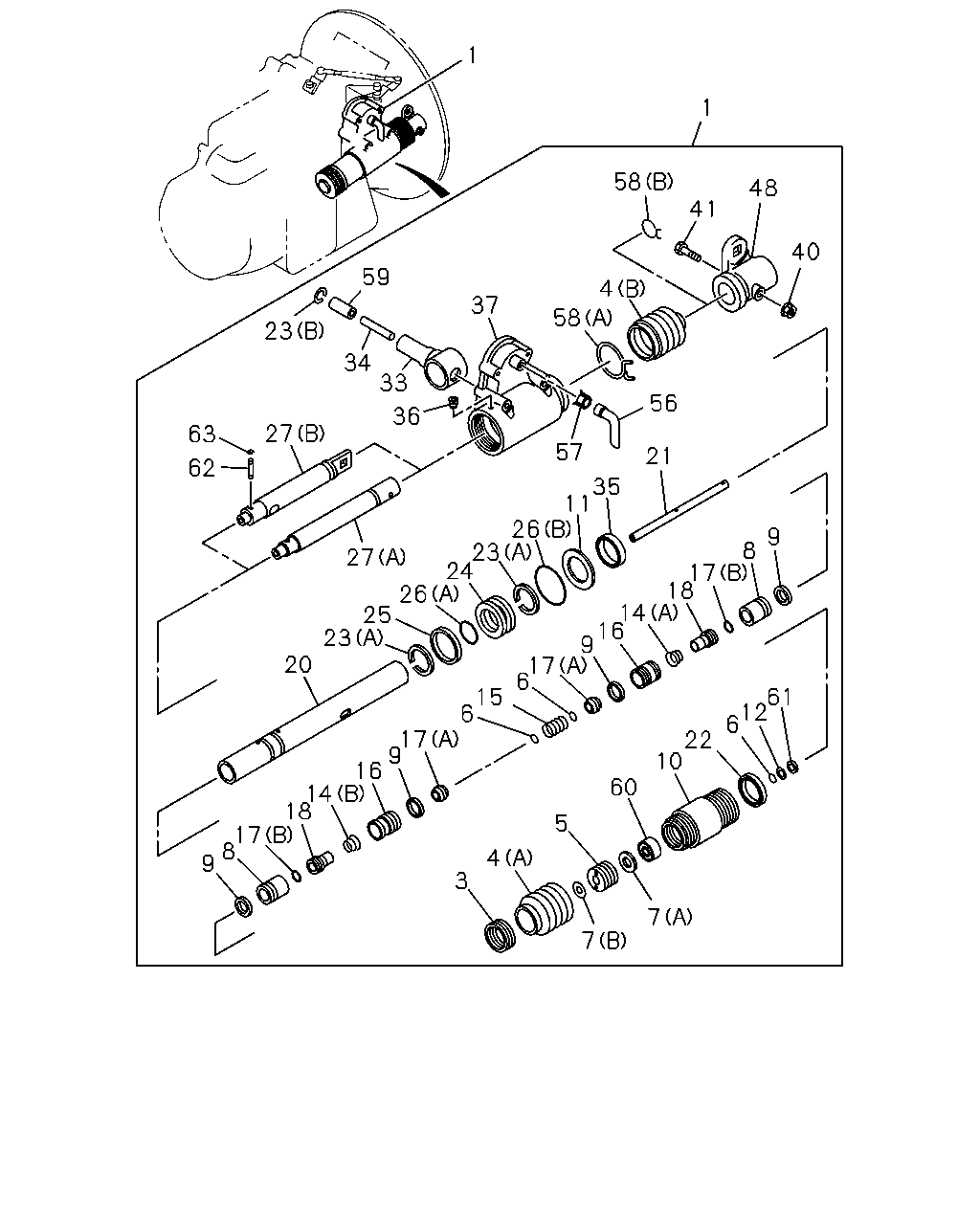

çizim 22132
7 7 3 4 5 60 10 22 6 12 61 9 8 17 18 14 16 9 17 6 15 6 17 9 16 14 18 17 8 9 20 23 25 27 26 24 23 26 11 35 21 56 57 58 4 40 48 41 1 58 1 37 59 23 33 34 36 27 63 62
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 ASSISTOR ASM; POWER,SHIFT
ASSISTOR SHIFT CONTROL<WX8> 		1-33730-271-2 01 1 0105- ● ● ●
1 ASSISTOR ASM; POWER,SHIFT
10PE1S(60L),10PE1N(61L),10PE1H(68L) ASSISTOR SHIFT CONTROL<WX8> 		1-33730-271-2 01 1 0105- ●
1 ASSISTOR ASM; POWER,SHIFT
6WA1 TC-C(55L) ASSISTOR SHIFT CONTROL<WX8> 		1-33730-269-0 01 1 0105-0201 ●
1 ASSISTOR ASM; POWER,SHIFT
6WA1 TC-C(55L) ASSISTOR SHIFT CONTROL<WX8> 		1-33730-286-0 01 1 0202- ●
1 ASSISTOR ASM; POWER,SHIFT 1-33730-270-0 01 1 0105-0106 ●
1 ASSISTOR ASM; POWER,SHIFT 1-33730-270-1 01 1 0107- ● ●
3 NUT; LK,ROD
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-025-0 01 1 0105-0106 ● ● ● ●
3 NUT; LK,ROD 1-33739-025-0 01 1 0105-0106 ●
3 NUT; LK,ROD
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-025-0 01 1 0107- ● ● ● ●
3 NUT; LK,ROD 1-33739-025-0 01 1 0107- ● ●
4 BOOT; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33738-101-0 01 1 0109-0109 ● ● ●
4 BOOT; POWER SHIFTER
10PE1S(60L),10PE1N(61L),10PE1H(68L) ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33738-101-0 01 1 0109-0109 ●
4 BOOT; POWER SHIFTER
(B) 		1-33738-101-0 01 1 0109-0109 ● ●
4 BOOT; POWER SHIFTER
(B) 		1-33738-101-0 01 1 0110-0201 ● ●
4 BOOT; POWER SHIFTER
6WA1 TC-C(55L) ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33738-101-0 01 1 0202- ●
4 BOOT; POWER SHIFTER
(B) 		1-33738-101-0 01 1 0202- ● ●
4 BOOT; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33739-038-0 01 1 0105-0106 ● ● ● ●
4 BOOT; POWER SHIFTER
(A) 		1-33739-038-0 01 1 0105-0106 ●
4 BOOT; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33739-038-0 01 1 0107- ● ● ● ●
4 BOOT; POWER SHIFTER
(A) 		1-33739-038-0 01 1 0107- ● ●
4 BOOT; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33739-571-0 01 1 0105-0106 ● ● ● ●
4 BOOT; POWER SHIFTER
(B) 		1-33739-571-0 01 1 0105-0106 ●
4 BOOT; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33739-571-0 01 1 0107-0108 ● ● ● ●
4 BOOT; POWER SHIFTER
(B) 		1-33739-571-0 01 1 0107-0108 ● ●
4 BOOT; POWER SHIFTER
6WA1 TC-C(55L) ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33739-571-0 01 1 0109-0109 ●
4 BOOT; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33739-571-0 01 1 0110-0201 ● ● ● ●
4 BOOT; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33739-571-0 01 1 0202- ● ● ●
4 BOOT; POWER SHIFTER
10PE1S(60L),10PE1N(61L),10PE1H(68L) ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33739-571-0 01 1 0202- ●
5 CONNECTOR; CYL
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-596-0 01 1 0105-0106 ● ● ● ●
5 CONNECTOR; CYL 1-33739-596-0 01 1 0105-0106 ●
5 CONNECTOR; CYL
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-596-0 01 1 0107- ● ● ● ●
5 CONNECTOR; CYL 1-33739-596-0 01 1 0107- ● ●
6 GASKET
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-013-0 03 1 0105-0106 ● ● ● ●
6 GASKET 1-33739-013-0 03 1 0105-0106 ●
6 GASKET
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-013-0 03 1 0107- ● ● ● ●
6 GASKET 1-33739-013-0 03 1 0107- ● ●
7 FILTER; AIR
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33738-036-0 01 1 0105-0106 ● ● ● ●
7 FILTER; AIR
(B) 		1-33738-036-0 01 1 0105-0106 ●
7 FILTER; AIR
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33738-036-0 01 1 0107- ● ● ● ●
7 FILTER; AIR
(B) 		1-33738-036-0 01 1 0107- ● ●
7 FILTER; AIR
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33739-033-0 01 1 0105-0106 ● ● ● ●
7 FILTER; AIR
(A) 		1-33739-033-0 01 1 0105-0106 ●
7 FILTER; AIR
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33739-033-0 01 1 0107- ● ● ● ●
7 FILTER; AIR
(A) 		1-33739-033-0 01 1 0107- ● ●
8 TUBE
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-560-0 02 1 0105-0106 ● ● ● ●
8 TUBE 1-33739-560-0 02 1 0105-0106 ●
8 TUBE
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-560-0 02 1 0107- ● ● ● ●
8 TUBE 1-33739-560-0 02 1 0107- ● ●
9 RING; SQUARE
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-086-0 04 1 0105-0106 ● ● ● ●
9 RING; SQUARE 1-33739-086-0 04 1 0105-0106 ●
9 RING; SQUARE
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-086-0 04 1 0107- ● ● ● ●
9 RING; SQUARE 1-33739-086-0 04 1 0107- ● ●
10 CYLINDER; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-352-0 01 1 0105- ● ● ● ●
10 CYLINDER; POWER SHIFTER 1-33739-605-0 01 1 0105-0106 ●
10 CYLINDER; POWER SHIFTER 1-33739-605-0 01 1 0107- ● ●
11 PLATE; CYL
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-108-0 01 1 0105- ● ● ● ●
11 PLATE; CYL 1-33739-600-0 01 1 0105-0106 ●
11 PLATE; CYL 1-33739-600-0 01 1 0107- ● ●
12 RING; RET
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-016-0 01 1 0105-0106 ● ● ● ●
12 RING; RET 1-33739-016-0 01 1 0105-0106 ●
12 RING; RET
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-016-0 01 1 0107- ● ● ● ●
12 RING; RET 1-33739-016-0 01 1 0107- ● ●
14 SPRING; VALVE LIFTER
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33739-347-0 01 1 0105-0106 ● ● ● ●
14 SPRING; VALVE LIFTER
(A) 		1-33739-347-0 01 1 0105-0106 ●
14 SPRING; VALVE LIFTER
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33739-347-0 01 1 0107- ● ● ● ●
14 SPRING; VALVE LIFTER
(A) 		1-33739-347-0 01 1 0107- ● ●
14 SPRING; VALVE LIFTER
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33739-354-0 01 1 0105-0106 ● ● ● ●
14 SPRING; VALVE LIFTER
(B) 		1-33739-354-0 01 1 0105-0106 ●
14 SPRING; VALVE LIFTER
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33739-354-0 01 1 0107- ● ● ● ●
14 SPRING; VALVE LIFTER
(B) 		1-33739-354-0 01 1 0107- ● ●
15 SPRING; VALVE SEAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-014-0 01 1 0105-0106 ● ● ● ●
15 SPRING; VALVE SEAL 1-33739-014-0 01 1 0105-0106 ●
15 SPRING; VALVE SEAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-014-0 01 1 0107- ● ● ● ●
15 SPRING; VALVE SEAL 1-33739-014-0 01 1 0107- ● ●
16 SEAT; VALVE
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-067-0 02 1 0105-0106 ● ● ● ●
16 SEAT; VALVE 1-33739-067-0 02 1 0105-0106 ●
16 SEAT; VALVE
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-067-0 02 1 0107- ● ● ● ●
16 SEAT; VALVE 1-33739-067-0 02 1 0107- ● ●
17 SEAL ASM; VALVE
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33739-012-0 02 1 0105-0106 ● ● ● ●
17 SEAL ASM; VALVE
(A) 		1-33739-012-0 02 1 0105-0106 ●
17 SEAL ASM; VALVE
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33739-012-0 02 1 0107- ● ● ● ●
17 SEAL ASM; VALVE
(A) 		1-33739-012-0 02 1 0107- ● ●
17 SEAL ASM; VALVE
ASSISTOR SHIFT CONTROL<WX8> (B) 		9-83335-055-0 02 1 0105-0106 ● ● ● ●
17 SEAL ASM; VALVE
(B) 		9-83335-055-0 02 1 0105-0106 ●
17 SEAL ASM; VALVE
ASSISTOR SHIFT CONTROL<WX8> (B) 		9-83335-055-0 02 1 0107- ● ● ● ●
17 SEAL ASM; VALVE
(B) 		9-83335-055-0 02 1 0107- ● ●
18 LIFTER; VALVE
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-586-0 02 1 0105-0106 ● ● ● ●
18 LIFTER; VALVE 1-33739-586-0 02 1 0105-0106 ●
18 LIFTER; VALVE
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-586-0 02 1 0107- ● ● ● ●
18 LIFTER; VALVE 1-33739-586-0 02 1 0107- ● ●
20 ROD ASM; W/CAP
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-599-0 01 1 0105-0106 ● ● ● ●
20 ROD ASM; W/CAP 1-33739-599-0 01 1 0105-0106 ●
20 ROD ASM; W/CAP
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-599-0 01 1 0107- ● ● ● ●
20 ROD ASM; W/CAP 1-33739-599-0 01 1 0107- ● ●
21 PIPE; AIR,POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-960-0 01 1 0105- ● ● ●
21 PIPE; AIR,POWER SHIFTER
10PE1S(60L),10PE1N(61L),10PE1H(68L) ASSISTOR SHIFT CONTROL<WX8> 		1-33739-960-0 01 1 0105- ●
21 PIPE; AIR,POWER SHIFTER
6WA1 TC-C(55L) ASSISTOR SHIFT CONTROL<WX8> 		1-33739-598-0 01 1 0105-0106 ●
21 PIPE; AIR,POWER SHIFTER 1-33739-598-0 01 1 0105-0106 ●
21 PIPE; AIR,POWER SHIFTER
6WA1 TC-C(55L) ASSISTOR SHIFT CONTROL<WX8> 		1-33739-598-0 01 1 0107- ●
21 PIPE; AIR,POWER SHIFTER 1-33739-598-0 01 1 0107- ● ●
22 SEAL; OIL
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-353-0 01 1 0105-0106 ● ● ● ●
22 SEAL; OIL 1-33739-353-0 01 1 0105-0106 ●
22 SEAL; OIL
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-353-0 01 1 0107- ● ● ● ●
22 SEAL; OIL 1-33739-353-0 01 1 0107- ● ●
23 RING; RET
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33739-022-0 02 1 0105-0106 ● ● ● ●
23 RING; RET
(A) 		1-33739-022-0 02 1 0105-0106 ●
23 RING; RET
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33739-022-0 02 1 0107- ● ● ● ●
23 RING; RET
(A) 		1-33739-022-0 02 1 0107- ● ●
23 RING; RET
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33739-564-0 01 1 0105-0106 ● ● ● ●
23 RING; RET
(B) 		1-33739-564-0 01 1 0105-0106 ●
23 RING; RET
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33739-564-0 01 1 0107- ● ● ● ●
23 RING; RET
(B) 		1-33739-564-0 01 1 0107- ● ●
24 PISTON
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-499-0 01 1 0105- ● ● ● ●
24 PISTON 1-33739-601-0 01 1 0105-0106 ●
24 PISTON 1-33739-601-0 01 1 0107- ● ●
25 RING; "X",PISTON
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-350-0 01 1 0105- ● ● ● ●
25 RING; "X",PISTON 1-33739-613-0 01 1 0105-0106 ●
25 RING; "X",PISTON 1-33739-613-0 01 1 0107- ● ●
26 GASKET
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33739-122-0 01 1 0105- ● ● ● ●
26 GASKET
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33739-124-0 01 1 0105-0106 ● ● ● ●
26 GASKET
(A) 		1-33739-124-0 01 1 0105-0106 ●
26 GASKET
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33739-124-0 01 1 0107- ● ● ● ●
26 GASKET
(A) 		1-33739-124-0 01 1 0107- ● ●
26 GASKET
(B) 		1-33739-604-0 01 1 0105-0106 ●
26 GASKET
(B) 		1-33739-604-0 01 1 0107- ● ●
27 ROD; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33739-959-0 01 1 0105- ● ● ●
27 ROD; POWER SHIFTER
10PE1S(60L),10PE1N(61L),10PE1H(68L) ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33739-959-0 01 1 0105- ●
27 ROD; POWER SHIFTER
6WA1 TC-C(55L) ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33739-597-0 01 1 0105-0106 ●
27 ROD; POWER SHIFTER
(A) 		1-33739-597-0 01 1 0105-0106 ●
27 ROD; POWER SHIFTER
6WA1 TC-C(55L) ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33739-597-0 01 1 0107- ●
27 ROD; POWER SHIFTER
(A) 		1-33739-597-0 01 1 0107- ● ●
33 STRIKER; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-609-0 01 1 0105-0106 ● ● ● ●
33 STRIKER; POWER SHIFTER 1-33739-609-0 01 1 0105-0106 ●
33 STRIKER; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-609-0 01 1 0107- ● ● ● ●
33 STRIKER; POWER SHIFTER 1-33739-609-0 01 1 0107- ● ●
34 PIN; STRAIGHT,POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-575-0 01 1 0105-0106 ● ● ● ●
34 PIN; STRAIGHT,POWER SHIFTER 1-33739-575-0 01 1 0105-0106 ●
34 PIN; STRAIGHT,POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-575-0 01 1 0107- ● ● ● ●
34 PIN; STRAIGHT,POWER SHIFTER 1-33739-575-0 01 1 0107- ● ●
35 GASKET; CUP
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-073-0 01 1 0105-0106 ● ● ● ●
35 GASKET; CUP 1-33739-073-0 01 1 0105-0106 ●
35 GASKET; CUP
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-073-0 01 1 0107- ● ● ● ●
35 GASKET; CUP 1-33739-073-0 01 1 0107- ● ●
36 SCREW; SET
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-040-0 01 1 0105-0106 ● ● ● ●
36 SCREW; SET 1-33739-040-0 01 1 0105-0106 ●
36 SCREW; SET
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-040-0 01 1 0107- ● ● ● ●
36 SCREW; SET 1-33739-040-0 01 1 0107- ● ●
37 HOUSING; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-606-0 01 1 0105- ● ● ● ●
37 HOUSING; POWER SHIFTER 1-33739-603-0 01 1 0105-0106 ●
37 HOUSING; POWER SHIFTER 1-33739-603-0 01 1 0107- ● ●
40 NUT; LEVER
6WA1 TC-C(55L) ASSISTOR SHIFT CONTROL<WX8> 		1-33739-940-0 01 1 0105-0106 ●
40 NUT; LEVER 1-33739-940-0 01 1 0105-0106 ●
40 NUT; LEVER
6WA1 TC-C(55L) ASSISTOR SHIFT CONTROL<WX8> 		1-33739-940-0 01 1 0107- ●
40 NUT; LEVER 1-33739-940-0 01 1 0107- ● ●
41 BOLT; SET,LEVER
6WA1 TC-C(55L) ASSISTOR SHIFT CONTROL<WX8> 		1-33739-939-0 01 1 0105-0106 ●
41 BOLT; SET,LEVER 1-33739-939-0 01 1 0105-0106 ●
41 BOLT; SET,LEVER
6WA1 TC-C(55L) ASSISTOR SHIFT CONTROL<WX8> 		1-33739-939-0 01 1 0107- ●
41 BOLT; SET,LEVER 1-33739-939-0 01 1 0107- ● ●
48 LEVER; CONT,CABLE
6WA1 TC-C(55L) ASSISTOR SHIFT CONTROL<WX8> 		1-33739-591-1 01 1 0105-0106 ●
48 LEVER; CONT,CABLE 1-33739-591-1 01 1 0105-0106 ●
48 LEVER; CONT,CABLE
6WA1 TC-C(55L) ASSISTOR SHIFT CONTROL<WX8> 		1-33739-591-1 01 1 0107- ●
48 LEVER; CONT,CABLE 1-33739-591-1 01 1 0107- ● ●
56 HOSE; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-570-0 01 1 0105-0106 ● ● ● ●
56 HOSE; POWER SHIFTER 1-33739-570-0 01 1 0105-0106 ●
56 HOSE; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-570-0 01 1 0107- ● ● ● ●
56 HOSE; POWER SHIFTER 1-33739-570-0 01 1 0107- ● ●
57 CLAMP; HOSE
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-569-0 01 1 0105-0106 ● ● ● ●
57 CLAMP; HOSE 1-33739-569-0 01 1 0105-0106 ●
57 CLAMP; HOSE
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-569-0 01 1 0107- ● ● ● ●
57 CLAMP; HOSE 1-33739-569-0 01 1 0107- ● ●
58 CLAMP; BOOT
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33739-977-0 01 1 0105- ● ● ●
58 CLAMP; BOOT
10PE1S(60L),10PE1N(61L),10PE1H(68L) ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33739-977-0 01 1 0105- ●
58 CLAMP; BOOT
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33739-562-0 01 1 0105-0106 ● ● ● ●
58 CLAMP; BOOT
(A) 		1-33739-562-0 01 1 0105-0106 ●
58 CLAMP; BOOT
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33739-562-0 01 1 0107-0108 ● ● ● ●
58 CLAMP; BOOT
(A) 		1-33739-562-0 01 1 0107-0108 ● ●
58 CLAMP; BOOT
6WA1 TC-C(55L) ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33739-562-0 01 1 0109-0109 ●
58 CLAMP; BOOT
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33739-562-0 01 1 0110-0201 ● ● ● ●
58 CLAMP; BOOT
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33739-562-0 01 1 0202- ● ● ●
58 CLAMP; BOOT
10PE1S(60L),10PE1N(61L),10PE1H(68L) ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33739-562-0 01 1 0202- ●
59 SHIM; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> 		1-33738-102-0 01 1 0109-0201 ● ● ●
59 SHIM; POWER SHIFTER
10PE1S(60L),10PE1N(61L),10PE1H(68L) ASSISTOR SHIFT CONTROL<WX8> 		1-33738-102-0 01 1 0109-0201 ●
59 SHIM; POWER SHIFTER 1-33738-102-0 01 1 0109-0201 ● ●
59 SHIM; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> 		1-33738-102-0 01 1 0202- ● ● ● ●
59 SHIM; POWER SHIFTER 1-33738-102-0 01 1 0202- ● ●
59 SHIM; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-563-0 01 1 0105-0106 ● ● ● ●
59 SHIM; POWER SHIFTER 1-33739-563-0 01 1 0105-0106 ●
59 SHIM; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-563-0 01 1 0107-0108 ● ● ● ●
59 SHIM; POWER SHIFTER 1-33739-563-0 01 1 0107-0108 ● ●
59 SHIM; POWER SHIFTER
6WA1 TC-C(55L) ASSISTOR SHIFT CONTROL<WX8> 		1-33739-563-0 01 1 0109-0201 ●
60 COLLAR; CYL
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-595-0 01 1 0105-0106 ● ● ● ●
60 COLLAR; CYL 1-33739-595-0 01 1 0105-0106 ●
60 COLLAR; CYL
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-595-0 01 1 0107- ● ● ● ●
60 COLLAR; CYL 1-33739-595-0 01 1 0107- ● ●
61 PLATE; VLV LIFTER
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-581-0 01 1 0105-0106 ● ● ● ●
61 PLATE; VLV LIFTER 1-33739-581-0 01 1 0105-0106 ●
61 PLATE; VLV LIFTER
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-581-0 01 1 0107- ● ● ● ●
61 PLATE; VLV LIFTER 1-33739-581-0 01 1 0107- ● ●
62 PIN; PIPE
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-566-0 01 1 0105- ● ● ●
62 PIN; PIPE
10PE1S(60L),10PE1N(61L),10PE1H(68L) ASSISTOR SHIFT CONTROL<WX8> 		1-33739-566-0 01 1 0105- ●
63 CLAMP; CYL
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-565-0 01 1 0105- ● ● ●
63 CLAMP; CYL
10PE1S(60L),10PE1N(61L),10PE1H(68L) ASSISTOR SHIFT CONTROL<WX8> 		1-33739-565-0 01 1 0105- ●

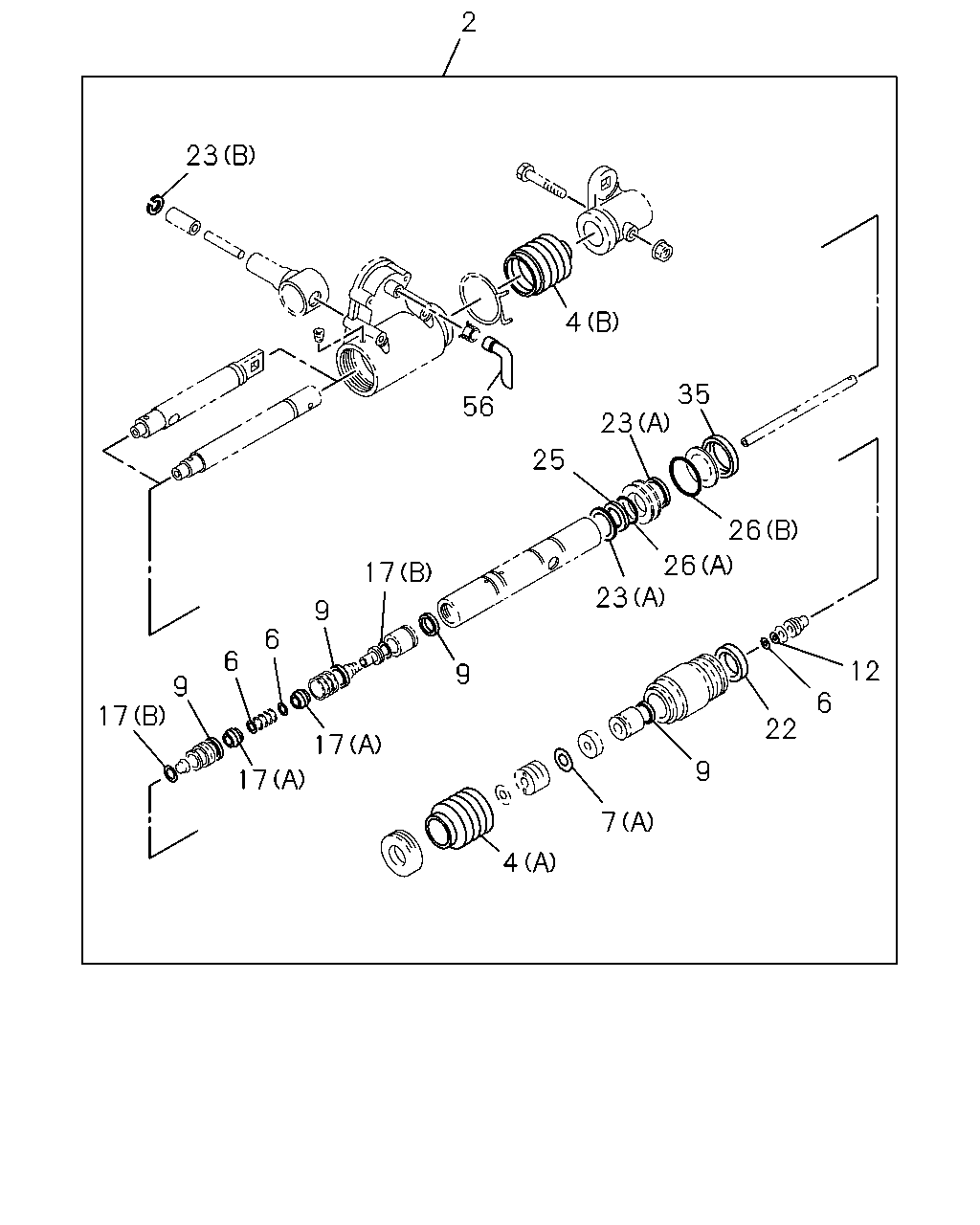

çizim 79626
4 7 9 6 22 12 26 26 23 9 17 17 17 6 9 9 6 17 25 23 35 4 56 23 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 REPAIR KIT; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> 		1-33738-107-0 01 1 0109-0109 ● ● ●
2 REPAIR KIT; POWER SHIFTER
10PE1S(60L),10PE1N(61L),10PE1H(68L) ASSISTOR SHIFT CONTROL<WX8> 		1-33738-107-0 01 1 0109-0109 ●
2 REPAIR KIT; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> 		1-85572-128-0 01 1 0110- ● ● ●
2 REPAIR KIT; POWER SHIFTER
10PE1S(60L),10PE1N(61L),10PE1H(68L) ASSISTOR SHIFT CONTROL<WX8> 		1-85572-128-0 01 1 0110- ●
2 REPAIR KIT; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-608-0 01 1 0105-0108 ● ● ● ●
2 REPAIR KIT; POWER SHIFTER
6WA1 TC-C(55L) ASSISTOR SHIFT CONTROL<WX8> 		1-33739-608-0 01 1 0109-0201 ●
2 REPAIR KIT; POWER SHIFTER
6WA1 TC-C(55L) ASSISTOR SHIFT CONTROL<WX8> 		1-33738-107-0 01 1 0202- ●
2 REPAIR KIT; POWER SHIFTER 1-33739-607-0 01 1 0105-0106 ●
2 REPAIR KIT; POWER SHIFTER 1-33739-607-0 01 1 0107-0108 ● ●
2 REPAIR KIT; POWER SHIFTER 1-33738-106-0 01 1 0109- ● ●
4 BOOT; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33738-101-0 01 1 0109-0109 ● ● ●
4 BOOT; POWER SHIFTER
10PE1S(60L),10PE1N(61L),10PE1H(68L) ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33738-101-0 01 1 0109-0109 ●
4 BOOT; POWER SHIFTER
(B) 		1-33738-101-0 01 1 0109-0109 ● ●
4 BOOT; POWER SHIFTER
(B) 		1-33738-101-0 01 1 0110-0201 ● ●
4 BOOT; POWER SHIFTER
6WA1 TC-C(55L) ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33738-101-0 01 1 0202- ●
4 BOOT; POWER SHIFTER
(B) 		1-33738-101-0 01 1 0202- ● ●
4 BOOT; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33739-038-0 01 1 0105-0106 ● ● ● ●
4 BOOT; POWER SHIFTER
(A) 		1-33739-038-0 01 1 0105-0106 ●
4 BOOT; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33739-038-0 01 1 0107- ● ● ● ●
4 BOOT; POWER SHIFTER
(A) 		1-33739-038-0 01 1 0107- ● ●
4 BOOT; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33739-571-0 01 1 0105-0106 ● ● ● ●
4 BOOT; POWER SHIFTER
(B) 		1-33739-571-0 01 1 0105-0106 ●
4 BOOT; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33739-571-0 01 1 0107-0108 ● ● ● ●
4 BOOT; POWER SHIFTER
(B) 		1-33739-571-0 01 1 0107-0108 ● ●
4 BOOT; POWER SHIFTER
6WA1 TC-C(55L) ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33739-571-0 01 1 0109-0109 ●
4 BOOT; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33739-571-0 01 1 0110-0201 ● ● ● ●
4 BOOT; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33739-571-0 01 1 0202- ● ● ●
4 BOOT; POWER SHIFTER
10PE1S(60L),10PE1N(61L),10PE1H(68L) ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33739-571-0 01 1 0202- ●
6 GASKET
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-013-0 03 1 0105-0106 ● ● ● ●
6 GASKET 1-33739-013-0 03 1 0105-0106 ●
6 GASKET
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-013-0 03 1 0107- ● ● ● ●
6 GASKET 1-33739-013-0 03 1 0107- ● ●
7 FILTER; AIR
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33738-036-0 01 1 0105-0106 ● ● ● ●
7 FILTER; AIR
(B) 		1-33738-036-0 01 1 0105-0106 ●
7 FILTER; AIR
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33738-036-0 01 1 0107- ● ● ● ●
7 FILTER; AIR
(B) 		1-33738-036-0 01 1 0107- ● ●
7 FILTER; AIR
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33739-033-0 01 1 0105-0106 ● ● ● ●
7 FILTER; AIR
(A) 		1-33739-033-0 01 1 0105-0106 ●
7 FILTER; AIR
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33739-033-0 01 1 0107- ● ● ● ●
7 FILTER; AIR
(A) 		1-33739-033-0 01 1 0107- ● ●
9 RING; SQUARE
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-086-0 04 1 0105-0106 ● ● ● ●
9 RING; SQUARE 1-33739-086-0 04 1 0105-0106 ●
9 RING; SQUARE
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-086-0 04 1 0107- ● ● ● ●
9 RING; SQUARE 1-33739-086-0 04 1 0107- ● ●
12 RING; RET
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-016-0 01 1 0105-0106 ● ● ● ●
12 RING; RET 1-33739-016-0 01 1 0105-0106 ●
12 RING; RET
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-016-0 01 1 0107- ● ● ● ●
12 RING; RET 1-33739-016-0 01 1 0107- ● ●
17 SEAL ASM; VALVE
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33739-012-0 02 1 0105-0106 ● ● ● ●
17 SEAL ASM; VALVE
(A) 		1-33739-012-0 02 1 0105-0106 ●
17 SEAL ASM; VALVE
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33739-012-0 02 1 0107- ● ● ● ●
17 SEAL ASM; VALVE
(A) 		1-33739-012-0 02 1 0107- ● ●
17 SEAL ASM; VALVE
ASSISTOR SHIFT CONTROL<WX8> (B) 		9-83335-055-0 02 1 0105-0106 ● ● ● ●
17 SEAL ASM; VALVE
(B) 		9-83335-055-0 02 1 0105-0106 ●
17 SEAL ASM; VALVE
ASSISTOR SHIFT CONTROL<WX8> (B) 		9-83335-055-0 02 1 0107- ● ● ● ●
17 SEAL ASM; VALVE
(B) 		9-83335-055-0 02 1 0107- ● ●
22 SEAL; OIL
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-353-0 01 1 0105-0106 ● ● ● ●
22 SEAL; OIL 1-33739-353-0 01 1 0105-0106 ●
22 SEAL; OIL
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-353-0 01 1 0107- ● ● ● ●
22 SEAL; OIL 1-33739-353-0 01 1 0107- ● ●
23 RING; RET
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33739-022-0 02 1 0105-0106 ● ● ● ●
23 RING; RET
(A) 		1-33739-022-0 02 1 0105-0106 ●
23 RING; RET
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33739-022-0 02 1 0107- ● ● ● ●
23 RING; RET
(A) 		1-33739-022-0 02 1 0107- ● ●
23 RING; RET
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33739-564-0 01 1 0105-0106 ● ● ● ●
23 RING; RET
(B) 		1-33739-564-0 01 1 0105-0106 ●
23 RING; RET
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33739-564-0 01 1 0107- ● ● ● ●
23 RING; RET
(B) 		1-33739-564-0 01 1 0107- ● ●
25 RING; "X",PISTON
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-350-0 01 1 0105- ● ● ● ●
25 RING; "X",PISTON 1-33739-613-0 01 1 0105-0106 ●
25 RING; "X",PISTON 1-33739-613-0 01 1 0107- ● ●
26 GASKET
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33739-122-0 01 1 0105- ● ● ● ●
26 GASKET
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33739-124-0 01 1 0105-0106 ● ● ● ●
26 GASKET
(A) 		1-33739-124-0 01 1 0105-0106 ●
26 GASKET
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33739-124-0 01 1 0107- ● ● ● ●
26 GASKET
(A) 		1-33739-124-0 01 1 0107- ● ●
26 GASKET
(B) 		1-33739-604-0 01 1 0105-0106 ●
26 GASKET
(B) 		1-33739-604-0 01 1 0107- ● ●
35 GASKET; CUP
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-073-0 01 1 0105-0106 ● ● ● ●
35 GASKET; CUP 1-33739-073-0 01 1 0105-0106 ●
35 GASKET; CUP
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-073-0 01 1 0107- ● ● ● ●
35 GASKET; CUP 1-33739-073-0 01 1 0107- ● ●
56 HOSE; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-570-0 01 1 0105-0106 ● ● ● ●
56 HOSE; POWER SHIFTER 1-33739-570-0 01 1 0105-0106 ●
56 HOSE; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-570-0 01 1 0107- ● ● ● ●
56 HOSE; POWER SHIFTER 1-33739-570-0 01 1 0107- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
