0-14 — CAMSHAFT AND VALVE (#133313) — 161 parça

107 112 101 111 107 112 111 101 101 107 112 111 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

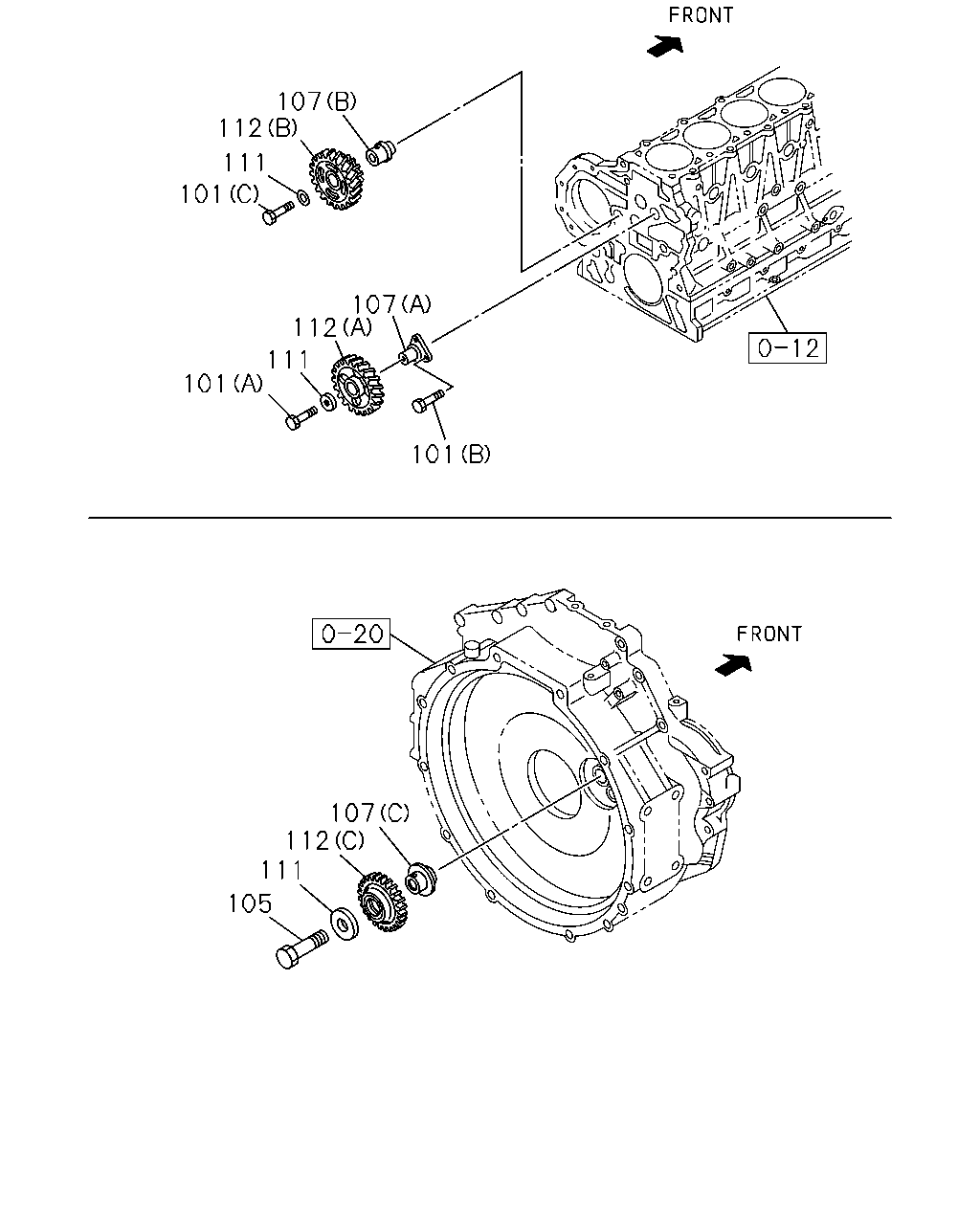

101	BOLT; THRUST COLLAR (E) M14X25	0-23951-425-0	01	1	1406-	●
101	BOLT; THRUST COLLAR (D) M14X36.5	8-94372-221-1	01	1	1406-	●
101	BOLT; THRUST COLLAR (C) M14X60	0-16956-460-0	01	1	1402-		●
101	BOLT; THRUST COLLAR (A) M14X30	0-23951-430-0	01	1	1402-		●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	1402-1405		●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	1406-	●	●
105	BOLT; IDLE GEAR SHAFT M14X60	0-16956-460-0	01	1	1406-	●
105	BOLT; IDLE GEAR SHAFT M14X65	8-97066-798-0	01	1	1402-		●
107	SHAFT; IDLE GEAR (D)	8-97186-398-1	01	1	1406-	●
107	SHAFT; IDLE GEAR (C)	8-94334-682-1	01	1	1402-1405		●
107	SHAFT; IDLE GEAR (C)	8-94334-682-1	01	1	1406-	●	●
107	SHAFT; IDLE GEAR (A)	8-97350-021-0	01	1	1402-1405		●
107	SHAFT; IDLE GEAR (A)	8-97350-021-0	01	1	1406-	●	●
107	SHAFT; IDLE GEAR (B)	8-98060-780-0	01	1	1402-1405		●
107	SHAFT; IDLE GEAR (B)	8-98060-780-0	01	1	1406-	●	●
111	COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	04	1	1406-	●
111	COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	03	1	1402-		●
112	GEAR; IDLE (E) Z=34	8-97120-005-1	01	1	1406-	●
112	GEAR; IDLE (D) Z=41	8-97606-929-0	01	1	1406-	●
112	GEAR; IDLE (B) Z=72-60-30	8-97600-586-1	01	1	1402-1402		●
112	GEAR; IDLE (B) Z=72-60-30	8-98254-970-0	01	1	1403-1405		●
112	GEAR; IDLE (B) Z=72-60-30	8-98254-970-0	01	1	1406-	●	●
112	GEAR; IDLE (A) Z=61	8-97606-767-0	01	1	1402-1405		●
112	GEAR; IDLE (A) Z=61	8-97606-767-0	01	1	1406-	●	●
112	GEAR; IDLE (C) Z=34	8-97606-771-0	01	1	1402-		●

75 53 84 78 83 81 95 212 63 61 62 65 65 71 68 72 71 4 5 71 72 68 71 65 65 83 81 78 75 61 62 65 65 71 68 72 71 5 212 63 65 65 71 72 71 68 4 37 37 37 37 38 37 37 37 37 1 9 8 7 115 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

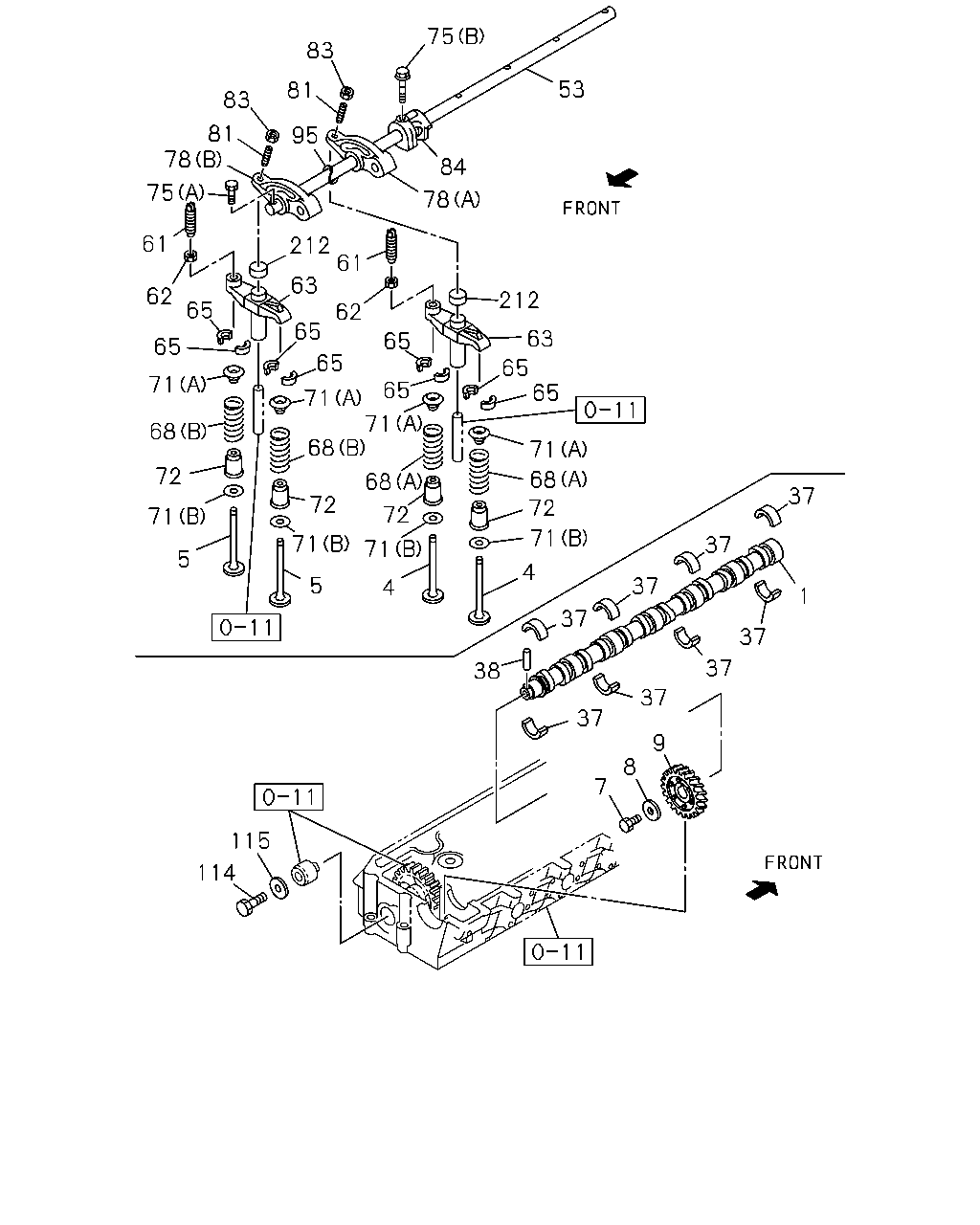

1	CAMSHAFT	8-97262-166-0	01	1	1406-	●
1	CAMSHAFT	8-98227-261-1	01	1	1402-		●
4	VALVE; INL	8-94395-882-2	08	1	1406-	●
4	VALVE; INL	8-94395-882-2	12	1	1402-		●
5	VALVE; EXH	8-97209-876-4	08	1	1406-	●
5	VALVE; EXH	8-97209-876-4	12	1	1402-		●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	1402-1405		●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	1406-	●	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	1402-		●
9	GEAR; CM/SHF Z=35	8-98018-935-3	01	1	1406-	●
9	GEAR; CM/SHF Z=35	8-98018-934-3	01	1	1402-		●
37	METAL; CM/SHF B=16	8-97386-189-0	10	1	1406-	●
37	METAL; CM/SHF UPPER B=16	8-97386-189-0	04	1	1402-		●
37	METAL; CM/SHF LOWER B=26	8-97602-699-0	04	1	1402-		●
38	PIN; CAM BRG SET	8-94399-487-0	01	1	1402-		●
53	SHAFT; ROCKER ARM	8-97389-921-0	01	1	1406-	●
53	SHAFT; ROCKER ARM	8-97389-918-0	01	1	1402-		●
61	SCREW; ADJ,BRIDGE M8X21	8-94394-803-0	08	1	1406-	●
61	SCREW; ADJ,BRIDGE M8X21	8-94394-803-0	12	1	1402-		●
62	NUT; ADJ SCREW LK BRIDGE M8 FLANGE	9-09844-574-0	08	1	1406-	●
62	NUT; ADJ SCREW LK BRIDGE M8 FLANGE	9-09844-574-0	12	1	1402-		●
63	BRIDGE	8-94392-002-3	08	1	1406-	●
63	BRIDGE	8-94392-002-3	12	1	1402-		●
65	COLLAR; SPLIT	5-12565-004-0	32	1	1406-	●
65	COLLAR; SPLIT	5-12565-004-0	48	1	1402-		●
68	SPRING; VLV (B) EXHAUST MARK RED	8-97210-682-0	08	1	1406-	●
68	SPRING; VLV (A) INLET MARK BLUE	8-97352-888-0	08	1	1406-	●
68	SPRING; VLV (B) EXHAUST MARK RED	8-97210-682-0	12	1	1402-		●
68	SPRING; VLV (A) INLET MARK BLUE	8-97352-888-0	12	1	1402-		●
71	SEAT; SPR (A) UPPER OD=32.8 T=12.75	8-94390-783-2	16	1	1406-	●
71	SEAT; SPR (B) LOWER ID=14.3 T=1.0	8-94391-468-0	16	1	1406-	●
71	SEAT; SPR (A) UPPER OD=32.8 T=12.75	8-94390-783-2	24	1	1402-		●
71	SEAT; SPR (B) LOWER ID=14.3 T=1.0	8-94391-468-0	24	1	1402-		●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97376-720-0	16	1	1406-	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97376-720-0	24	1	1402-		●
75	BOLT; BRKT (A) M8X40 FLANGE THA	0-28050-840-0	02	1	1402-		●
75	BOLT; BRKT (B) M10X62 FLANGE	8-94393-131-0	05	1	1402-		●
78	ARM; ROCKER (A) INLET	8-97306-421-3	04	1	1406-	●
78	ARM; ROCKER (B) EXHAUST	8-97306-424-3	04	1	1406-	●
78	ARM; ROCKER (A) INLET	8-97306-421-3	06	1	1402-		●
78	ARM; ROCKER (B) EXHAUST	8-97306-424-3	06	1	1402-		●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	08	1	1406-	●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	12	1	1402-		●
83	NUT; ADJ SCREW,LK M10	0-91111-510-0	08	1	1406-	●
83	NUT; ADJ SCREW,LK M10	0-91111-510-0	12	1	1402-		●
84	BRACKET; ROCKER SHAFT,INTER	8-94395-836-2	05	1	1402-		●
95	SPRING; ROCKER SHAFT	8-94392-999-0	04	1	1406-	●
95	SPRING; ROCKER SHAFT	8-94392-999-0	06	1	1402-		●
114	BOLT; IDLE GEAR M14X36.5	8-94372-221-1	01	1	1402-		●
115	WASHER; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	01	1	1402-		●
212	CAP; ADJ SCREW	8-94396-015-2	12	1	1402-		●

112 206 107 111 101 102 267 350 269 107 206 112 111 117 111 101 206 112 107 101 112 111 102 224 223 107 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

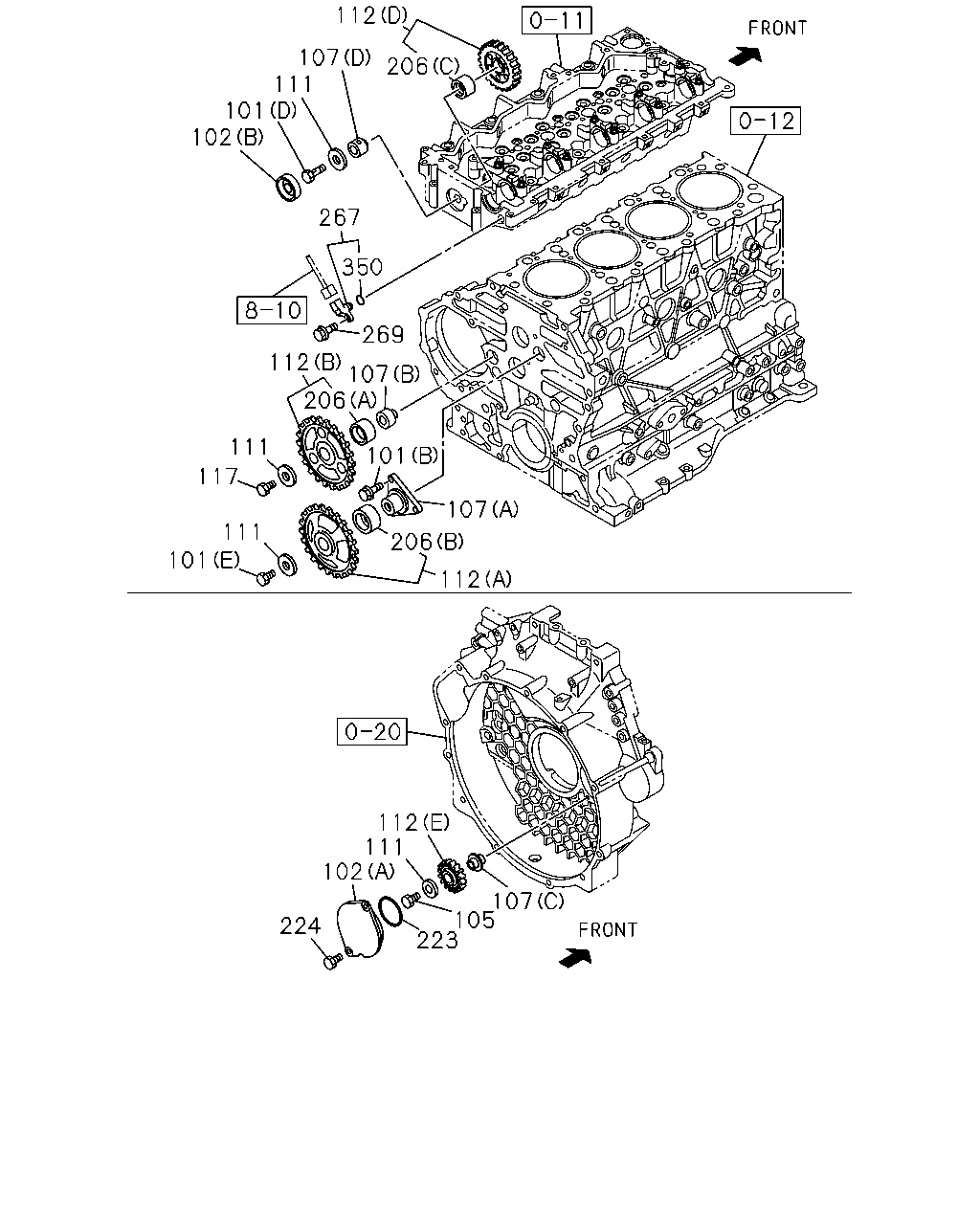

101	BOLT; THRUST COLLAR (E) M14X25	0-23951-425-0	01	1	1406-	●
101	BOLT; THRUST COLLAR (D) M14X36.5	8-94372-221-1	01	1	1406-	●
101	BOLT; THRUST COLLAR (C) M14X60	0-16956-460-0	01	1	1402-		●
101	BOLT; THRUST COLLAR (A) M14X30	0-23951-430-0	01	1	1402-		●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	1402-1405		●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	1406-	●	●
102	COVER; IDLE GEAR (A)	8-94334-681-1	01	1	1406-	●
102	COVER; IDLE GEAR (B) OD=51	8-97096-826-0	01	1	1406-	●
105	BOLT; IDLE GEAR SHAFT M14X60	0-16956-460-0	01	1	1406-	●
105	BOLT; IDLE GEAR SHAFT M14X65	8-97066-798-0	01	1	1402-		●
107	SHAFT; IDLE GEAR (D)	8-97186-398-1	01	1	1406-	●
107	SHAFT; IDLE GEAR (C)	8-94334-682-1	01	1	1402-1405		●
107	SHAFT; IDLE GEAR (C)	8-94334-682-1	01	1	1406-	●	●
107	SHAFT; IDLE GEAR (A)	8-97350-021-0	01	1	1402-1405		●
107	SHAFT; IDLE GEAR (A)	8-97350-021-0	01	1	1406-	●	●
107	SHAFT; IDLE GEAR (B)	8-98060-780-0	01	1	1402-1405		●
107	SHAFT; IDLE GEAR (B)	8-98060-780-0	01	1	1406-	●	●
111	COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	04	1	1406-	●
111	COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	03	1	1402-		●
112	GEAR; IDLE (E) Z=34	8-97120-005-1	01	1	1406-	●
112	GEAR; IDLE (D) Z=41	8-97606-929-0	01	1	1406-	●
112	GEAR; IDLE (B) Z=72-60-30	8-97600-586-1	01	1	1402-1402		●
112	GEAR; IDLE (B) Z=72-60-30	8-98254-970-0	01	1	1403-1405		●
112	GEAR; IDLE (B) Z=72-60-30	8-98254-970-0	01	1	1406-	●	●
112	GEAR; IDLE (A) Z=61	8-97606-767-0	01	1	1402-1405		●
112	GEAR; IDLE (A) Z=61	8-97606-767-0	01	1	1406-	●	●
112	GEAR; IDLE (C) Z=34	8-97606-771-0	01	1	1402-		●
117	BOLT; FLANGE M14X65 FLANGE	8-97113-167-0	01	1	1406-	●
206	BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT.	8-98255-899-0	01	1	1406-	●
206	BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	8-97606-768-0	01	1	1406-	●
206	BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT.	8-97606-770-0	01	1	1406-	●
223	GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	1-09623-423-0	01	1	1406-	●
224	BOLT; COVER M8X16 FLANGE THA	0-28050-816-0	02	1	1406-	●
267	SENSOR; CAM ANGLE	8-98019-024-0	01	1	1406-	●
269	BOLT; SENSOR M6X12 FLANGE THA	0-28050-612-0	01	1	1406-	●
350	GASKET; SENSOR,CAM ANGLE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=18.8	8-97369-404-0	01	1	1406-	●

57 83 81 81 83 87 82 62 61 63 65 65 65 65 71 68 72 72 68 71 71 71 5 4 5 71 72 71 68 65 65 62 61 96 78 53 95 82 78 63 65 71 65 68 71 72 4 37 37 37 37 37 1 12 9 45 7 37 37 37 37 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

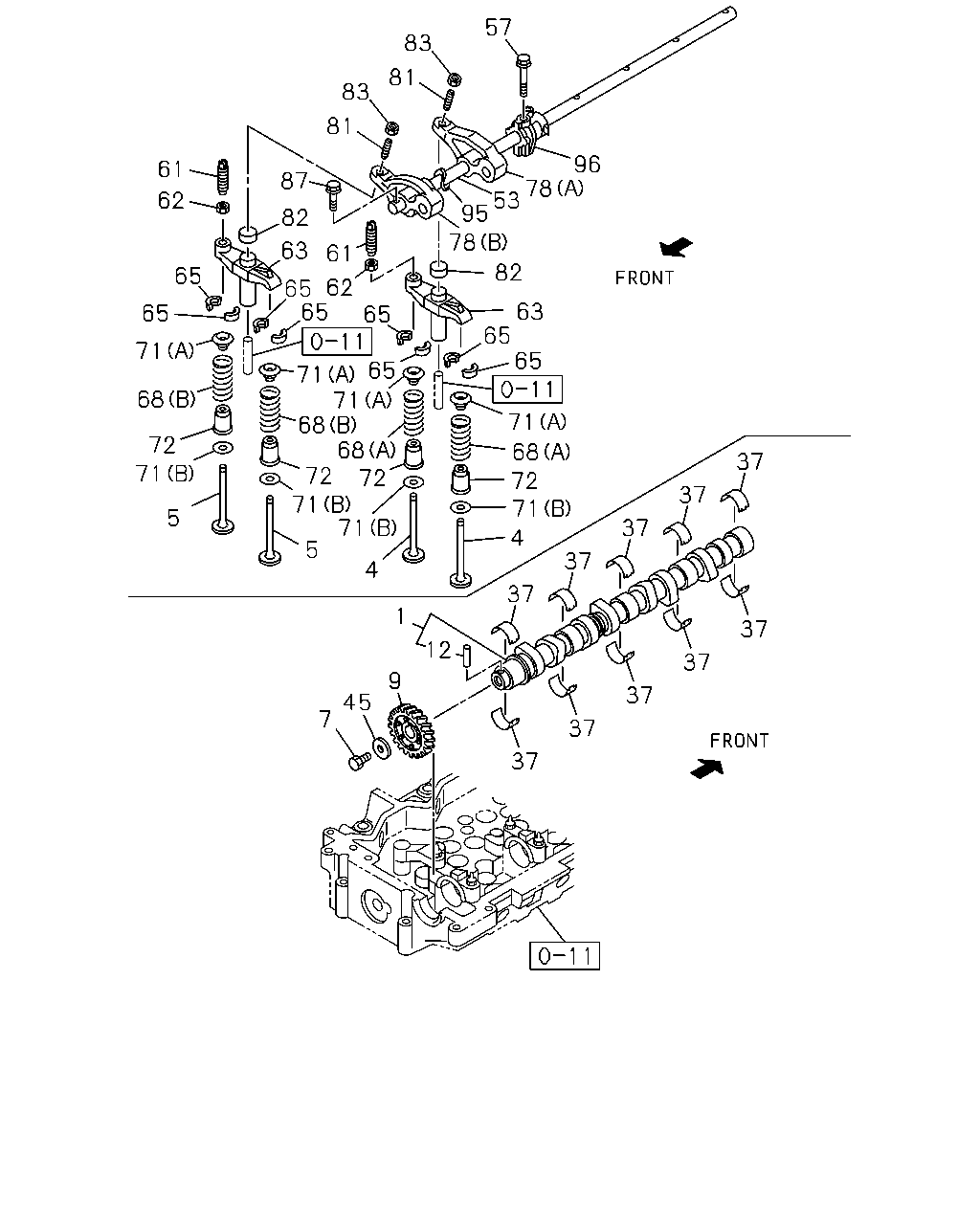

1	CAMSHAFT	8-97262-166-0	01	1	1406-	●
1	CAMSHAFT	8-98227-261-1	01	1	1402-		●
4	VALVE; INL	8-94395-882-2	08	1	1406-	●
4	VALVE; INL	8-94395-882-2	12	1	1402-		●
5	VALVE; EXH	8-97209-876-4	08	1	1406-	●
5	VALVE; EXH	8-97209-876-4	12	1	1402-		●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	1402-1405		●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	1406-	●	●
9	GEAR; CM/SHF Z=35	8-98018-935-3	01	1	1406-	●
9	GEAR; CM/SHF Z=35	8-98018-934-3	01	1	1402-		●
12	KEY; CAM GEAR SET	8-94399-487-0	02	1	1406-	●
37	METAL; CM/SHF B=16	8-97386-189-0	10	1	1406-	●
37	METAL; CM/SHF UPPER B=16	8-97386-189-0	04	1	1402-		●
37	METAL; CM/SHF LOWER B=26	8-97602-699-0	04	1	1402-		●
45	WASHER; GEAR CAM ID=14.5	9-09851-850-3	01	1	1406-	●
53	SHAFT; ROCKER ARM	8-97389-921-0	01	1	1406-	●
53	SHAFT; ROCKER ARM	8-97389-918-0	01	1	1402-		●
57	BOLT; ROCKER ARM BRKT M10X62 FLANGE	8-94393-131-0	03	1	1406-	●
61	SCREW; ADJ,BRIDGE M8X21	8-94394-803-0	08	1	1406-	●
61	SCREW; ADJ,BRIDGE M8X21	8-94394-803-0	12	1	1402-		●
62	NUT; ADJ SCREW LK BRIDGE M8 FLANGE	9-09844-574-0	08	1	1406-	●
62	NUT; ADJ SCREW LK BRIDGE M8 FLANGE	9-09844-574-0	12	1	1402-		●
63	BRIDGE	8-94392-002-3	08	1	1406-	●
63	BRIDGE	8-94392-002-3	12	1	1402-		●
65	COLLAR; SPLIT	5-12565-004-0	32	1	1406-	●
65	COLLAR; SPLIT	5-12565-004-0	48	1	1402-		●
68	SPRING; VLV (B) EXHAUST MARK RED	8-97210-682-0	08	1	1406-	●
68	SPRING; VLV (A) INLET MARK BLUE	8-97352-888-0	08	1	1406-	●
68	SPRING; VLV (B) EXHAUST MARK RED	8-97210-682-0	12	1	1402-		●
68	SPRING; VLV (A) INLET MARK BLUE	8-97352-888-0	12	1	1402-		●
71	SEAT; SPR (A) UPPER OD=32.8 T=12.75	8-94390-783-2	16	1	1406-	●
71	SEAT; SPR (B) LOWER ID=14.3 T=1.0	8-94391-468-0	16	1	1406-	●
71	SEAT; SPR (A) UPPER OD=32.8 T=12.75	8-94390-783-2	24	1	1402-		●
71	SEAT; SPR (B) LOWER ID=14.3 T=1.0	8-94391-468-0	24	1	1402-		●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97376-720-0	16	1	1406-	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97376-720-0	24	1	1402-		●
78	ARM; ROCKER (A) INLET	8-97306-421-3	04	1	1406-	●
78	ARM; ROCKER (B) EXHAUST	8-97306-424-3	04	1	1406-	●
78	ARM; ROCKER (A) INLET	8-97306-421-3	06	1	1402-		●
78	ARM; ROCKER (B) EXHAUST	8-97306-424-3	06	1	1402-		●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	08	1	1406-	●
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	12	1	1402-		●
82	CAP; ROCKER SHAFT	8-94396-015-2	08	1	1406-	●
83	NUT; ADJ SCREW,LK M10	0-91111-510-0	08	1	1406-	●
83	NUT; ADJ SCREW,LK M10	0-91111-510-0	12	1	1402-		●
87	BOLT; ROCKER SHAFT M8X40 FLANGE THA	0-28050-840-0	02	1	1406-	●
95	SPRING; ROCKER SHAFT	8-94392-999-0	04	1	1406-	●
95	SPRING; ROCKER SHAFT	8-94392-999-0	06	1	1402-		●
96	BRACKET; ROCKER ARM SHAFT	8-97334-414-0	03	1	1406-	●
