◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11575 - FTR(THAI)EURO3 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-13 - OIL PAN AND LEVEL GAUGE ▶
0-13 — OIL PAN AND LEVEL GAUGE (#133312) — 56 parça

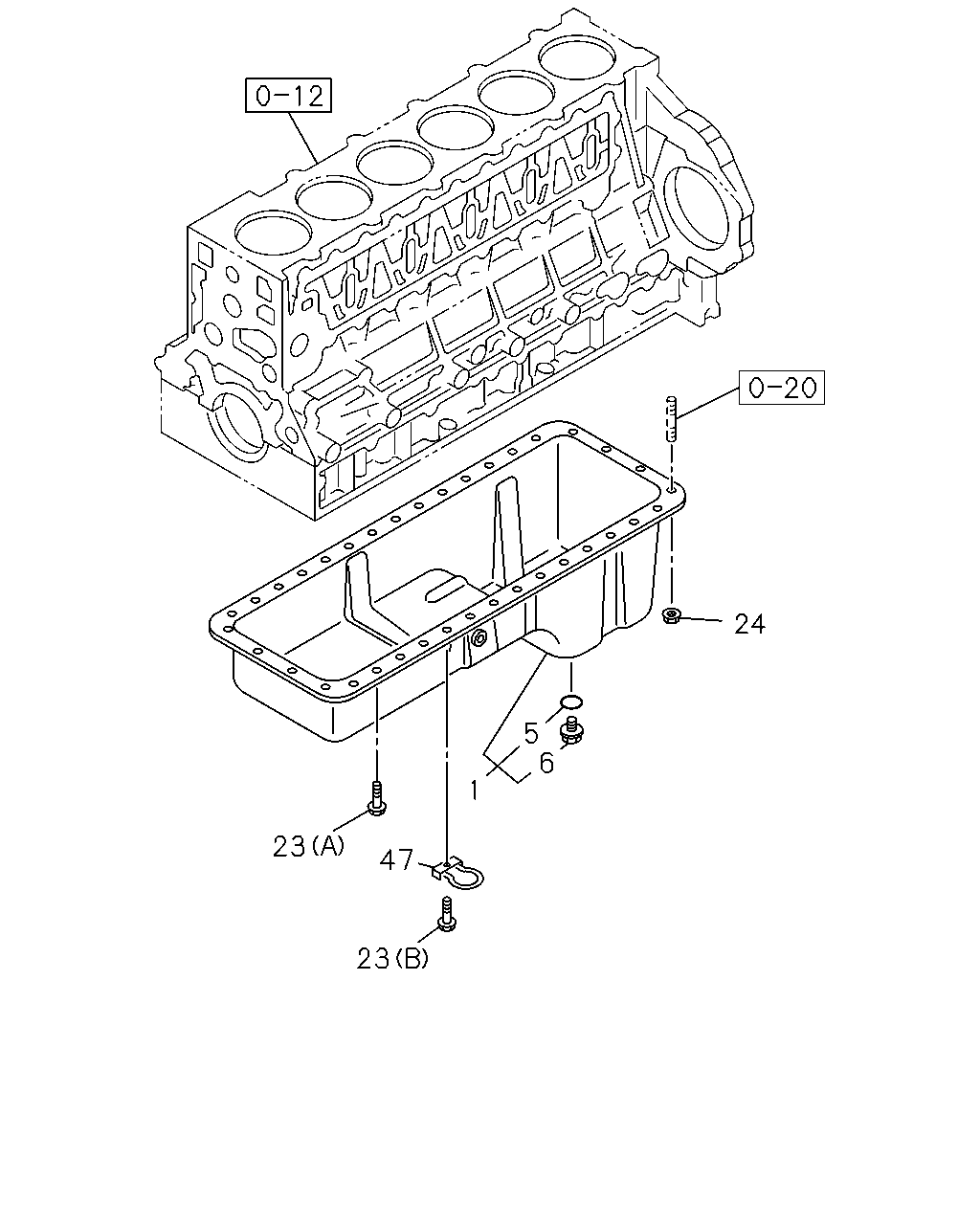

çizim 406094
23 23 47 1 5 6 24
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAN ASM; OIL 8-98191-050-0 01 1 1406- ●
1 PAN ASM; OIL 8-98179-005-0 01 1 1402- ●
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4 		1-09623-057-0 01 1 1402- ●
6 PLUG; OIL DRAIN 9-09662-012-0 01 1 1402- ●
23 BOLT; OIL PAN
(D) M8X14 W/SCOTCH GRIP 		8-97047-004-1 01 1 1406- ●
23 BOLT; OIL PAN
(C) M8X14 		8-97047-005-0 18 1 1406- ●
23 BOLT; OIL PAN
(A) M8X18 FLANGE 		0-28080-818-0 28 1 1402- ●
23 BOLT; OIL PAN
(B) M8X28 FLANGE 		8-97329-626-0 02 1 1402- ●
24 NUT; OIL PAN
M8 W/LK WASHER THA 		8-97581-234-0 07 1 1406- ●
24 NUT; OIL PAN
M8 FLANGE THA 		0-91180-108-0 04 1 1402- ●
47 CLIP; HOSE,AIR BREATHER 1-11369-115-0 01 1 1402-1503 ●
47 CLIP; HOSE,AIR BREATHER 8-98303-447-0 01 1 1504- ●
çizim 406113
49 10 8 2 192 193 193 10 8 9 9
BalonParca AdiParca NoAdetTipApplied Date A B
2 GAUGE; OIL LEVEL 8-98179-979-0 01 1 1406-1406 ●
2 GAUGE; OIL LEVEL 8-98245-516-0 01 1 1407- ●
2 GAUGE; OIL LEVEL 8-98092-600-0 01 1 1402- ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(C) 		8-98179-498-0 01 1 1406- ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(D) 		8-98009-115-1 01 1 1406- ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(B) 		8-98063-554-0 01 1 1402- ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(A) 		8-98084-773-0 01 1 1402- ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		1-09623-469-0 02 1 1402- ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		1-09623-469-0 02 1 1406- ●
10 BOLT; GUIDE TUBE
(C) M6X12 FLANGE THA 		0-28050-612-0 01 1 1406- ●
10 BOLT; GUIDE TUBE
(B) M10X35 FLANGE 		0-28151-035-0 01 1 1402- ●
10 BOLT; GUIDE TUBE
(A) M8X20 FLANGE THA 		0-28650-820-0 01 1 1402- ● ●
49 NUT; GUIDE TUBE
M8 FLANGE THA 		0-91180-108-0 01 1 1402- ● ●
192 HOSE; GUIDE TUBE 8-98206-931-0 01 1 1406- ●
192 HOSE; GUIDE TUBE
L=463 		8-98054-844-1 01 1 1402- ●
193 CLIP; HOSE,GUIDE TUBE
ID=17 		1-09707-158-0 02 1 1402- ● ●

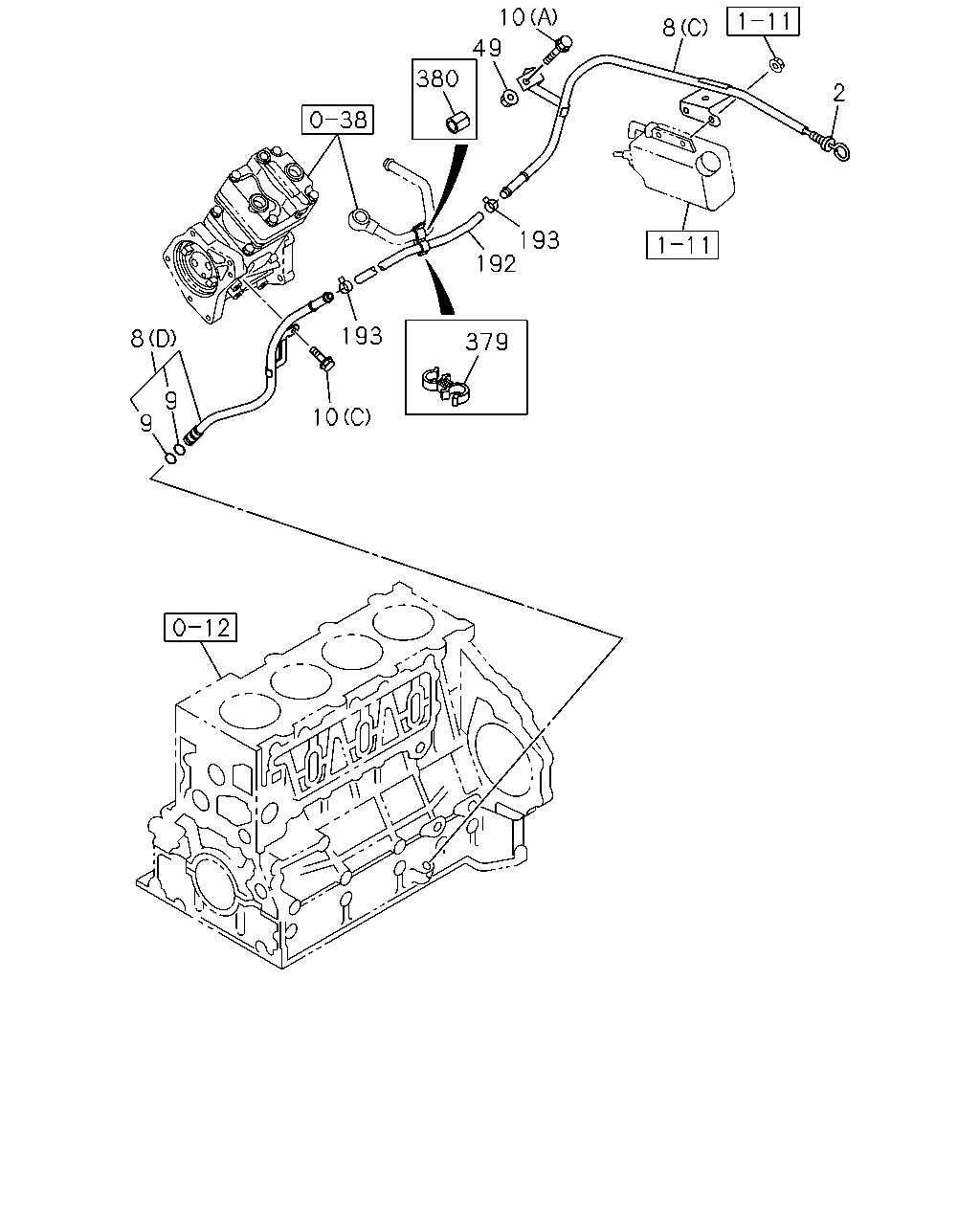

çizim 426061
10 49 8 2 193 192 379 193 10 8 9 9 380
BalonParca AdiParca NoAdetTipApplied Date A B
2 GAUGE; OIL LEVEL 8-98179-979-0 01 1 1406-1406 ●
2 GAUGE; OIL LEVEL 8-98245-516-0 01 1 1407- ●
2 GAUGE; OIL LEVEL 8-98092-600-0 01 1 1402- ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(C) 		8-98179-498-0 01 1 1406- ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(D) 		8-98009-115-1 01 1 1406- ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(B) 		8-98063-554-0 01 1 1402- ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(A) 		8-98084-773-0 01 1 1402- ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		1-09623-469-0 02 1 1402- ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		1-09623-469-0 02 1 1406- ●
10 BOLT; GUIDE TUBE
(C) M6X12 FLANGE THA 		0-28050-612-0 01 1 1406- ●
10 BOLT; GUIDE TUBE
(B) M10X35 FLANGE 		0-28151-035-0 01 1 1402- ●
10 BOLT; GUIDE TUBE
(A) M8X20 FLANGE THA 		0-28650-820-0 01 1 1402- ● ●
49 NUT; GUIDE TUBE
M8 FLANGE THA 		0-91180-108-0 01 1 1402- ● ●
192 HOSE; GUIDE TUBE 8-98206-931-0 01 1 1406- ●
192 HOSE; GUIDE TUBE
L=463 		8-98054-844-1 01 1 1402- ●
193 CLIP; HOSE,GUIDE TUBE
ID=17 		1-09707-158-0 02 1 1402- ● ●
379 CLIP; PIPE TO HOSE
ID=18 & 18 		8-94323-068-0 01 1 1406- ●
380 PROTECTOR; PIPE
ID=18 L=40 		8-98070-445-0 01 1 1406- ●

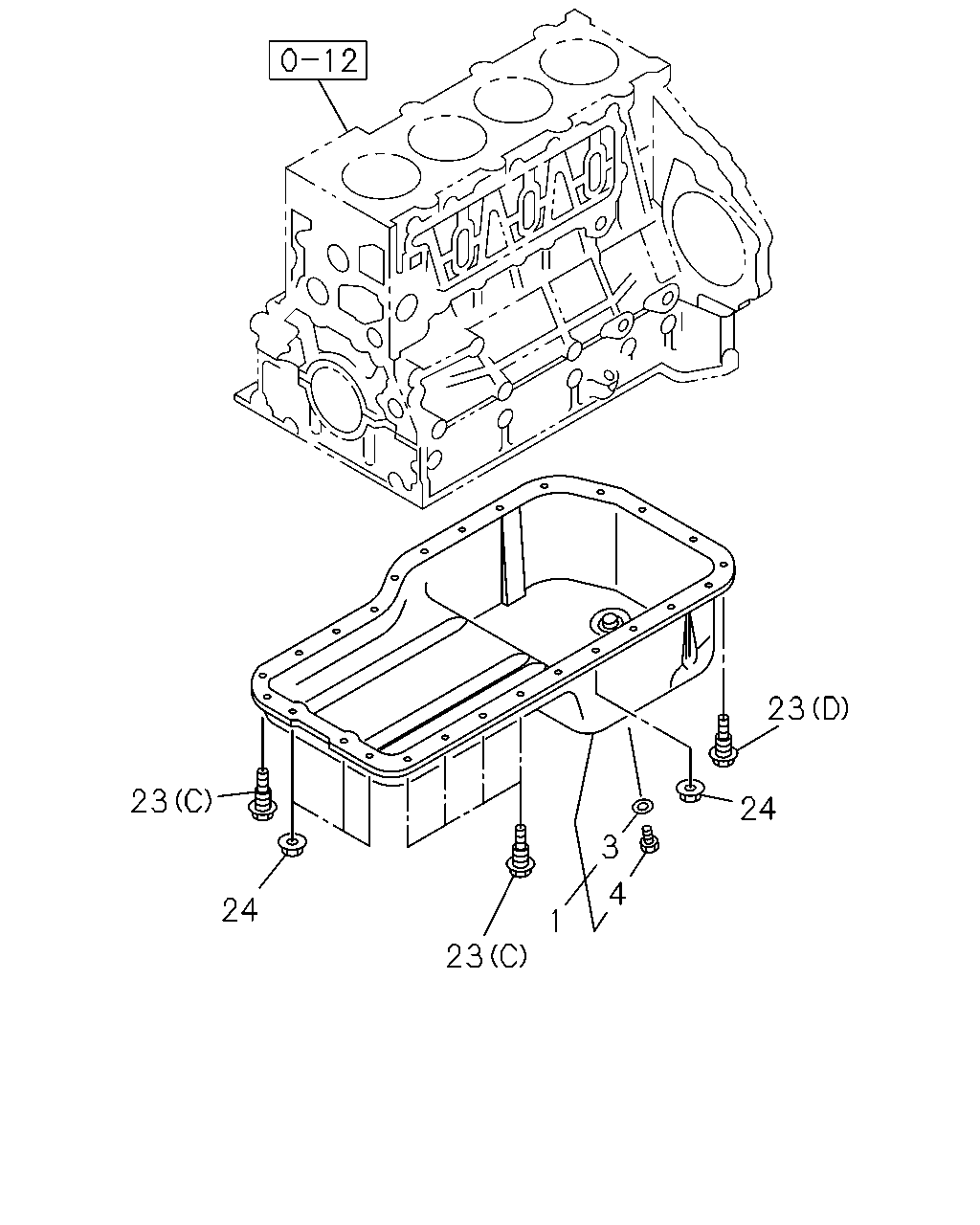

çizim 426068
23 24 23 3 4 24 23 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAN ASM; OIL 8-98191-050-0 01 1 1406- ●
1 PAN ASM; OIL 8-98179-005-0 01 1 1402- ●
3 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 1406- ●
4 PLUG; DRAIN,OIL
M14X14 		8-94152-613-0 01 1 1406- ●
23 BOLT; OIL PAN
(D) M8X14 W/SCOTCH GRIP 		8-97047-004-1 01 1 1406- ●
23 BOLT; OIL PAN
(C) M8X14 		8-97047-005-0 18 1 1406- ●
23 BOLT; OIL PAN
(A) M8X18 FLANGE 		0-28080-818-0 28 1 1402- ●
23 BOLT; OIL PAN
(B) M8X28 FLANGE 		8-97329-626-0 02 1 1402- ●
24 NUT; OIL PAN
M8 W/LK WASHER THA 		8-97581-234-0 07 1 1406- ●
24 NUT; OIL PAN
M8 FLANGE THA 		0-91180-108-0 04 1 1402- ●
