0-12 — CYLINDER BLOCK (#133311) — 116 parça

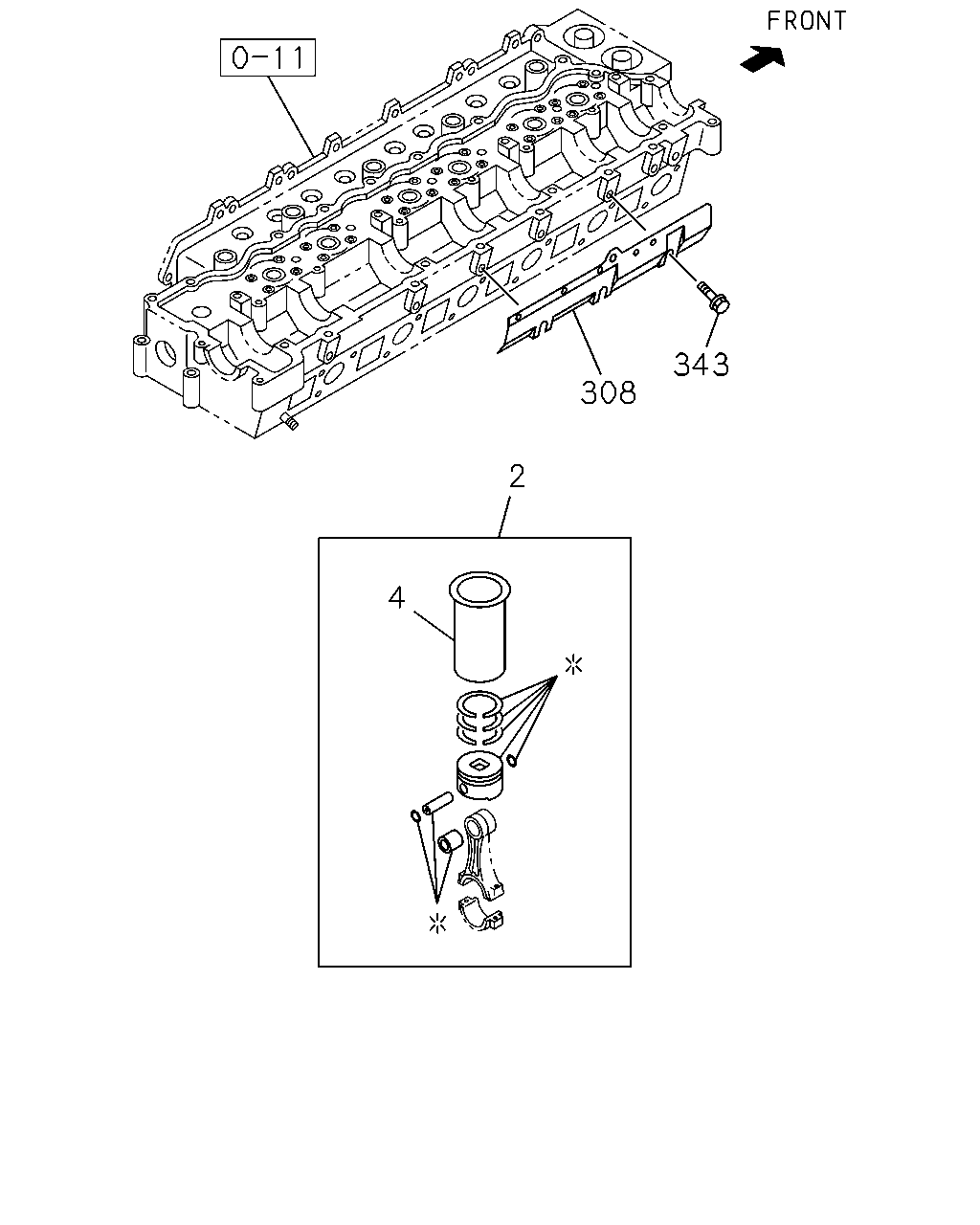

343 308 2 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	LINER SET; ENG CYL GRADE=1X	1-87814-728-0	04	1	1406-	●
2	LINER SET; ENG CYL GRADE=3X	1-87814-729-0	04	1	1406-	●
2	LINER SET; ENG CYL GRADE=1X	1-87813-119-6	06	1	1402-		●
2	LINER SET; ENG CYL GRADE=3X	1-87813-120-6	06	1	1402-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-1	04	1	1406-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-1	04	1	1406-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-98014-046-1	06	1	1402-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-98014-047-1	06	1	1402-		●
308	PROTECTOR; HEAT,HD COVER	8-94390-997-0	01	1	1402-		●
343	BOLT; HEAT PROTECTOR M8X12 FLANGE THA	0-28050-812-0	03	1	1402-		●

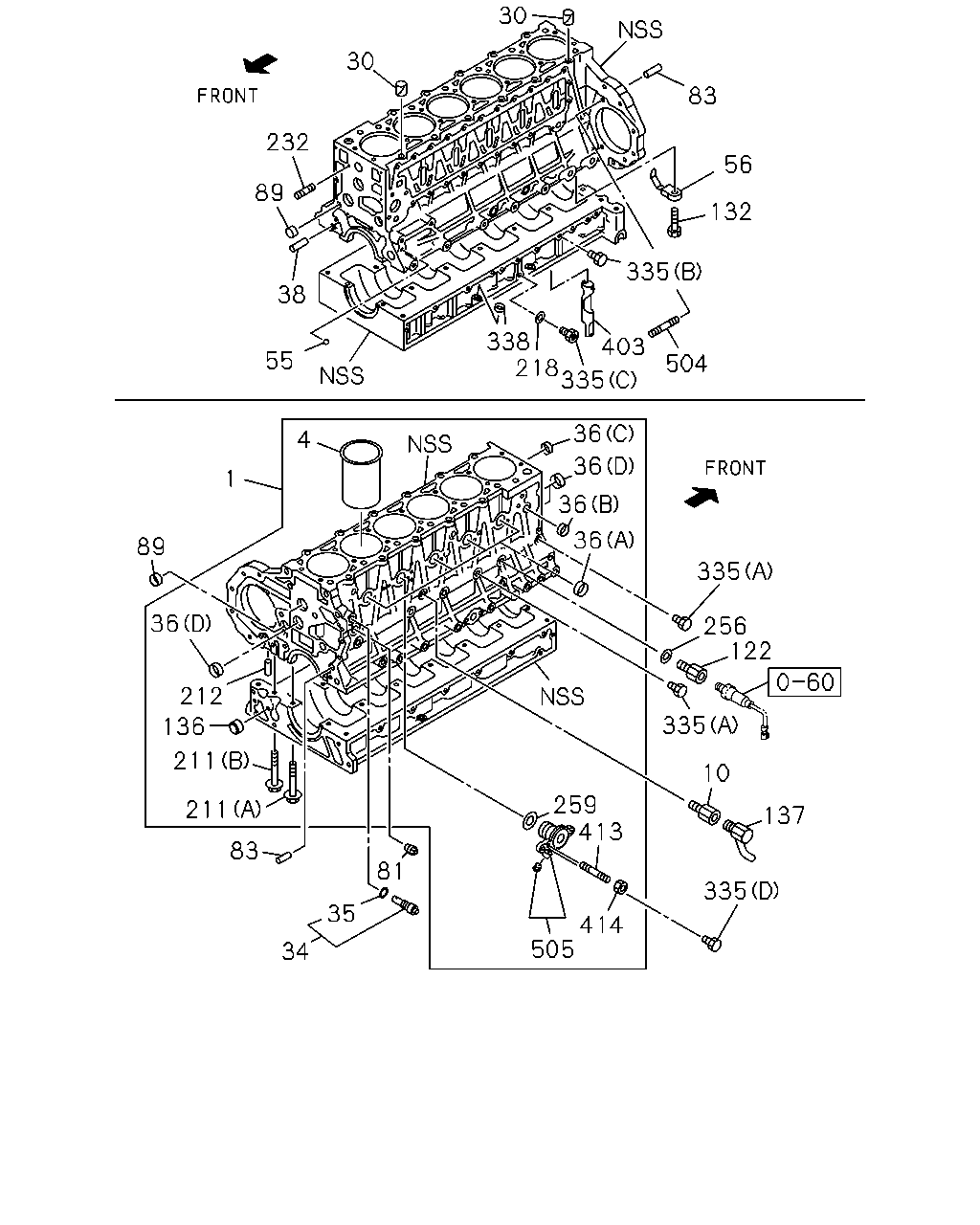

30 30 232 89 38 55 4 1 89 36 212 136 211 211 83 34 35 81 505 414 413 259 36 36 36 36 335 256 122 335 10 137 335 504 335 218 338 403 335 132 56 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOCK ASM; CYL	8-98204-528-0	01	1	1406-	●
1	BLOCK ASM; CYL	8-98206-966-0	01	1	1402-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-1	04	1	1406-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-1	04	1	1406-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-98014-046-1	06	1	1402-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-98014-047-1	06	1	1402-		●
10	CONNECTOR; WATER DRAIN	8-94396-378-0	01	1	1402-		●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	1402-		●
34	VALVE; OIL RELIEF	8-97328-859-0	01	1	1406-	●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	1402-		●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=23.3	8-94173-412-0	01	1	1406-	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	1402-		●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	04	1	1402-		●
36	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	01	1	1402-		●
36	CUP; SEALING,WATER JACKET (C) OD=25	8-94399-005-0	01	1	1402-		●
36	CUP; SEALING,WATER JACKET (D) OD=40	8-97096-824-0	04	1	1402-		●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	1402-		●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	01	1	1402-		●
56	JET; OIL,PISTON COOLING	8-98173-342-0	04	1	1406-	●
56	JET; OIL,PISTON COOLING	8-98173-342-0	06	1	1402-		●
81	PLUG; WATER JACKET PT3/8	8-94397-338-0	01	1	1402-		●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	1402-		●
89	CUP; SEALING,OIL GALLERY OD=20	9-11129-128-0	03	1	1402-1405		●
89	CUP; SEALING,OIL GALLERY OD=20	9-11129-128-0	03	1	1406-	●	●
122	ADAPTER; OIL PRESSURE SWITCH	8-97603-667-0	01	1	1402-		●
132	VALVE; CHECK,OIL M10X18.5	8-97329-618-0	04	1	1406-	●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	1402-		●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-98091-566-0	02	1	1406-	●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-98091-566-0	02	1	1402-		●
137	COCK; DRAIN,WATER	8-94393-716-1	01	1	1402-		●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	17	1	1406-	●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-97077-638-0	10	1	1406-	●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	1402-		●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-97077-638-0	14	1	1402-		●
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	1406-	●
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	1402-		●
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2	8-98251-344-0	01	1	1402-		●
232	STUD; WATER PUMP M8X55 L=67	0-41010-855-0	03	1	1402-		●
256	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	01	1	1402-		●
259	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7	1-09623-184-0	01	1	1402-		●
335	PLUG; C/BL,SIDE (E) M14X18	8-98038-403-0	01	1	1406-	●
335	PLUG; C/BL,SIDE (C) M12X10	5-13265-001-0	01	1	1402-		●
335	PLUG; C/BL,SIDE (D) M14	8-94399-225-0	01	1	1402-		●
335	PLUG; C/BL,SIDE (A) M14X16.5	8-97329-617-0	02	1	1402-1405		●
335	PLUG; C/BL,SIDE (A) M14X16.5	8-97329-617-0	02	1	1406-	●	●
335	PLUG; C/BL,SIDE (B) M8X10	8-98003-416-0	01	1	1402-		●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	02	1	1402-		●
403	GUIDE; GALLERY	8-94395-351-1	01	1	1402-		●
413	STUD; ADAPTER M8X30 L=41	0-41010-830-0	02	1	1402-		●
414	NUT; ADAPTER M8 FLANGE THA	0-91180-208-0	02	1	1402-		●
504	STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	1402-		●
505	ADAPTER; WATER FEED	8-97611-854-0	01	1	1402-		●

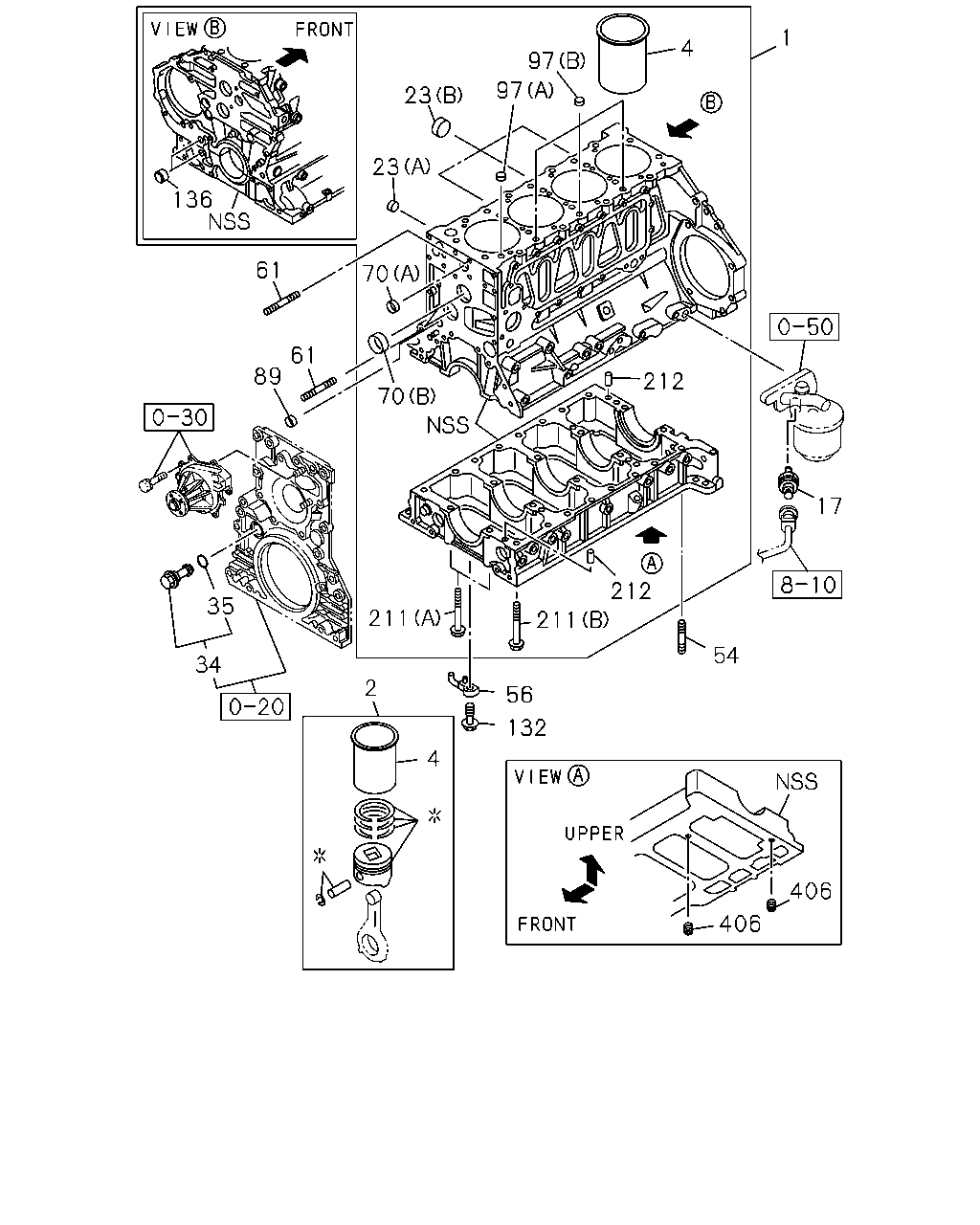

2 4 56 132 54 406 406 211 211 34 35 89 136 61 61 212 17 212 70 70 23 23 4 1 97 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOCK ASM; CYL	8-98204-528-0	01	1	1406-	●
1	BLOCK ASM; CYL	8-98206-966-0	01	1	1402-		●
2	LINER SET; ENG CYL GRADE=1X	1-87814-728-0	04	1	1406-	●
2	LINER SET; ENG CYL GRADE=3X	1-87814-729-0	04	1	1406-	●
2	LINER SET; ENG CYL GRADE=1X	1-87813-119-6	06	1	1402-		●
2	LINER SET; ENG CYL GRADE=3X	1-87813-120-6	06	1	1402-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-1	04	1	1406-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-1	04	1	1406-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-98014-046-1	06	1	1402-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-98014-047-1	06	1	1402-		●
17	SWITCH; OIL PRESSURE	8-97176-230-0	01	1	1406-	●
23	CUP; SEALING,C/BL FRT & RR (A) OD=25	1-09600-016-0	01	1	1406-	●
23	CUP; SEALING,C/BL FRT & RR (B) OD=45	8-97036-550-1	03	1	1406-	●
34	VALVE; OIL RELIEF	8-97328-859-0	01	1	1406-	●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	1402-		●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=23.3	8-94173-412-0	01	1	1406-	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	1402-		●
54	STUD; OIL PAN TO BLOCK M8X20 L=38	8-97021-431-0	03	1	1406-	●
56	JET; OIL,PISTON COOLING	8-98173-342-0	04	1	1406-	●
56	JET; OIL,PISTON COOLING	8-98173-342-0	06	1	1402-		●
61	PIN; STRAIGHT L=22	8-94483-674-0	04	1	1406-	●
70	CUP; SEALING,FRT & RR (A) OD=25	1-09600-016-0	01	1	1406-	●
70	CUP; SEALING,FRT & RR (B) OD=40	8-97096-824-0	04	1	1406-	●
89	CUP; SEALING,OIL GALLERY OD=20	9-11129-128-0	03	1	1402-1405		●
89	CUP; SEALING,OIL GALLERY OD=20	9-11129-128-0	03	1	1406-	●	●
97	CUP; SEALING (A) OD=16	5-11129-006-0	01	1	1406-	●
97	CUP; SEALING (C) OD=12	8-97036-335-1	01	1	1406-	●
97	CUP; SEALING (B) OD=22	8-97209-609-0	03	1	1406-	●
132	VALVE; CHECK,OIL M10X18.5	8-97329-618-0	04	1	1406-	●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	1402-		●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-98091-566-0	02	1	1406-	●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-98091-566-0	02	1	1402-		●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	17	1	1406-	●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-97077-638-0	10	1	1406-	●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	1402-		●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-97077-638-0	14	1	1402-		●
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	1406-	●
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	1402-		●
406	PLUG; CRANK CASE PT3/8	5-09605-005-0	02	1	1406-	●

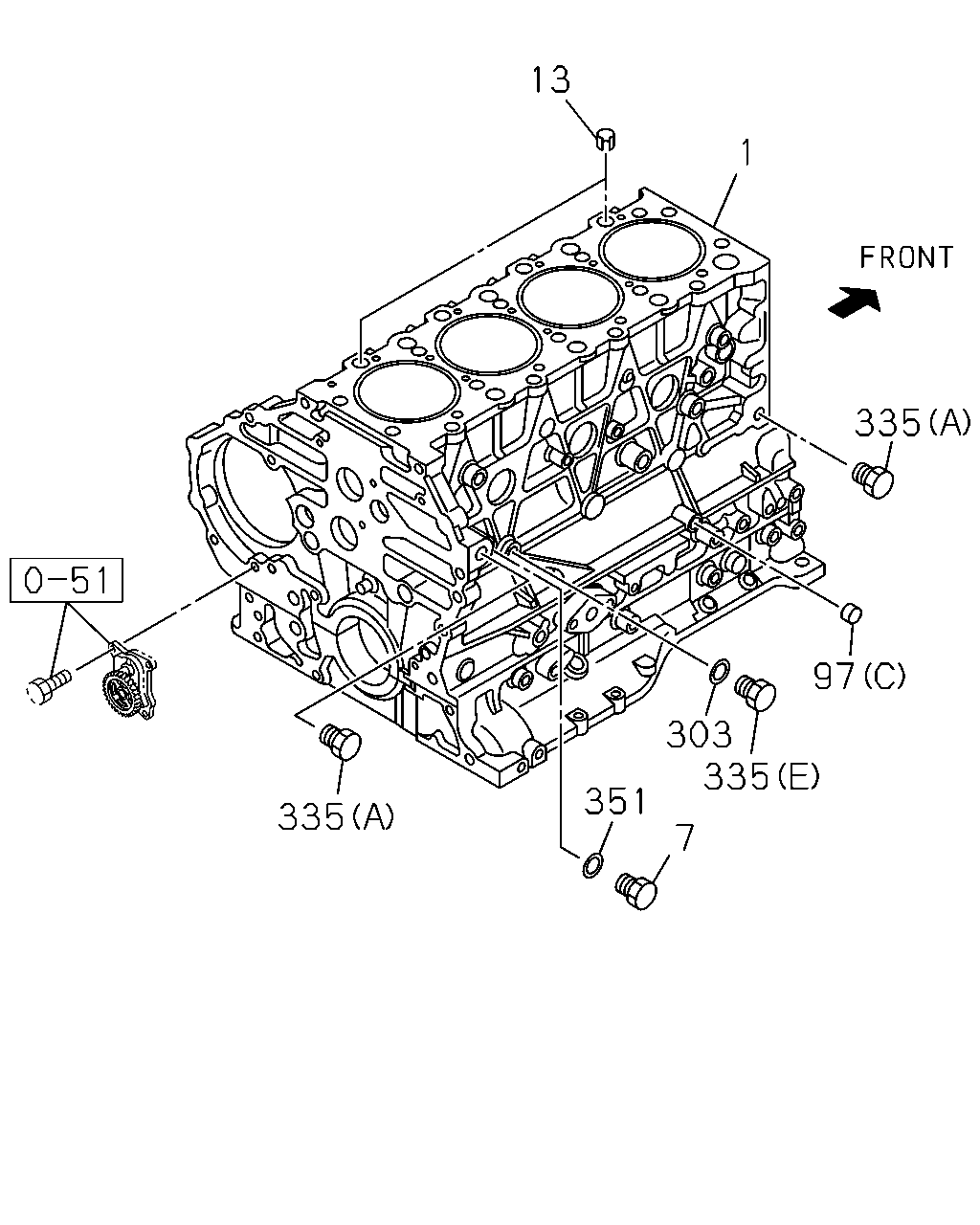

13 1 335 97 335 303 351 7 335

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOCK ASM; CYL	8-98204-528-0	01	1	1406-	●
1	BLOCK ASM; CYL	8-98206-966-0	01	1	1402-		●
7	PLUG; WATER DRAIN M10X10	8-97352-537-0	01	1	1406-	●
13	DOWEL; C/BL TO HD OD=18.15	8-94399-688-1	02	1	1406-	●
97	CUP; SEALING (A) OD=16	5-11129-006-0	01	1	1406-	●
97	CUP; SEALING (C) OD=12	8-97036-335-1	01	1	1406-	●
97	CUP; SEALING (B) OD=22	8-97209-609-0	03	1	1406-	●
303	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	8-98251-345-0	01	1	1406-	●
335	PLUG; C/BL,SIDE (E) M14X18	8-98038-403-0	01	1	1406-	●
335	PLUG; C/BL,SIDE (C) M12X10	5-13265-001-0	01	1	1402-		●
335	PLUG; C/BL,SIDE (D) M14	8-94399-225-0	01	1	1402-		●
335	PLUG; C/BL,SIDE (A) M14X16.5	8-97329-617-0	02	1	1402-1405		●
335	PLUG; C/BL,SIDE (A) M14X16.5	8-97329-617-0	02	1	1406-	●	●
335	PLUG; C/BL,SIDE (B) M8X10	8-98003-416-0	01	1	1402-		●
351	GASKET; COCK,WATER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	1406-	●
