0-11 — CYLINDER HEAD (#133310) — 126 parça

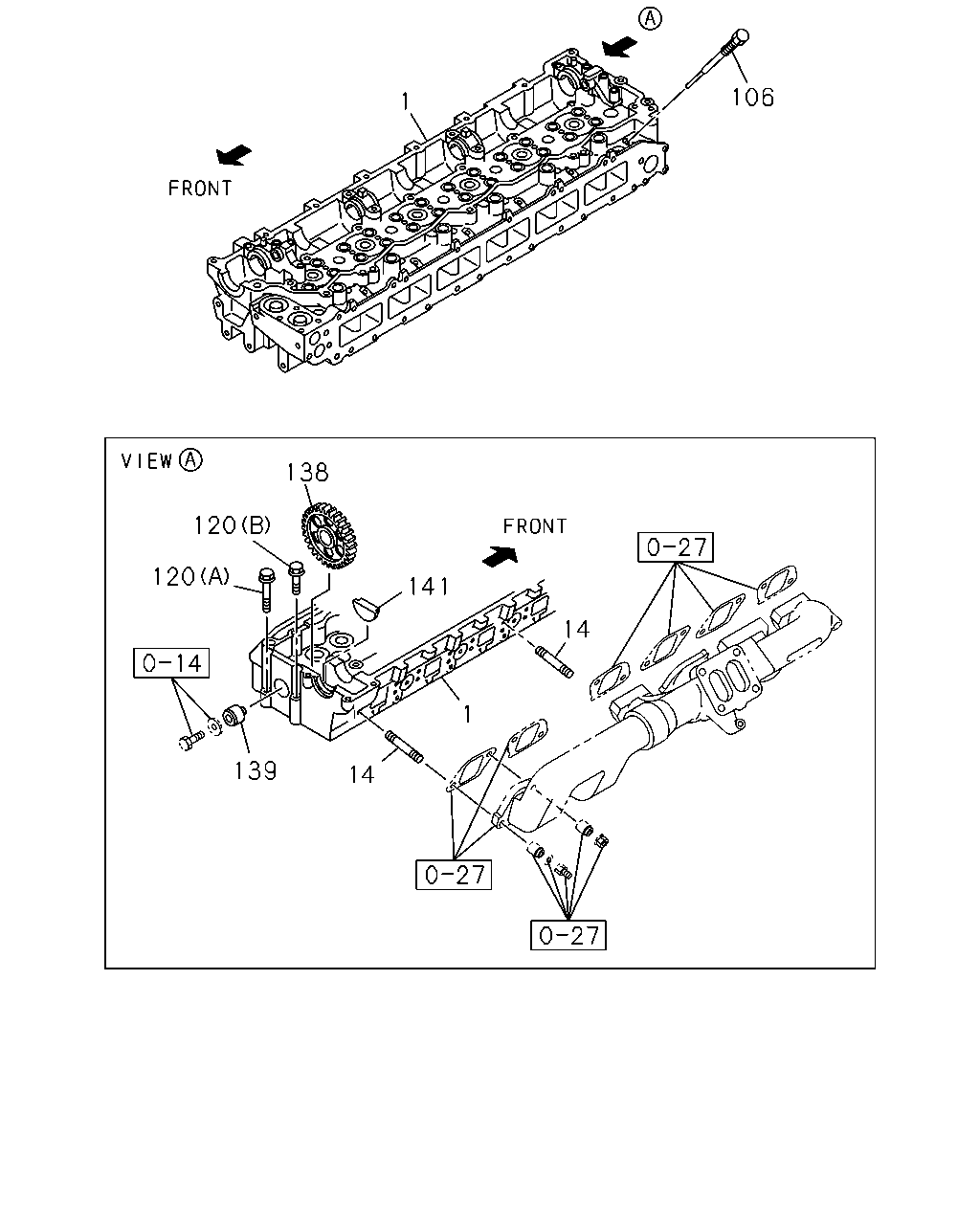

1 106 138 120 120 141 14 1 14 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HEAD ASM; CYL	8-98170-620-0	01	1	1406-	●
1	HEAD ASM; CYL	8-98243-824-0	01	1	1402-		●
14	STUD; EXH MANIF M10X60 L=75	8-94397-286-0	02	1	1406-	●
14	STUD; EXH MANIF M10X60 L=75	8-94397-286-0	12	1	1402-		●
106	PLUG; GLOW PLUG HOLE	8-94392-236-0	04	1	1406-	●
106	PLUG; GLOW PLUG HOLE	8-94392-236-0	06	1	1402-		●
120	BOLT; CYL HD TO HSG (A) M10X73	8-94399-554-0	01	1	1402-		●
120	BOLT; CYL HD TO HSG (B) M10X43	8-94399-555-0	01	1	1402-		●
138	GEAR; IDLE Z=41	8-98058-321-1	01	1	1402-		●
139	SHAFT; IDLE GEAR	8-97606-990-1	01	1	1402-		●
141	PLUG; RUBBER,CYL HD	8-98163-813-0	02	1	1402-		●

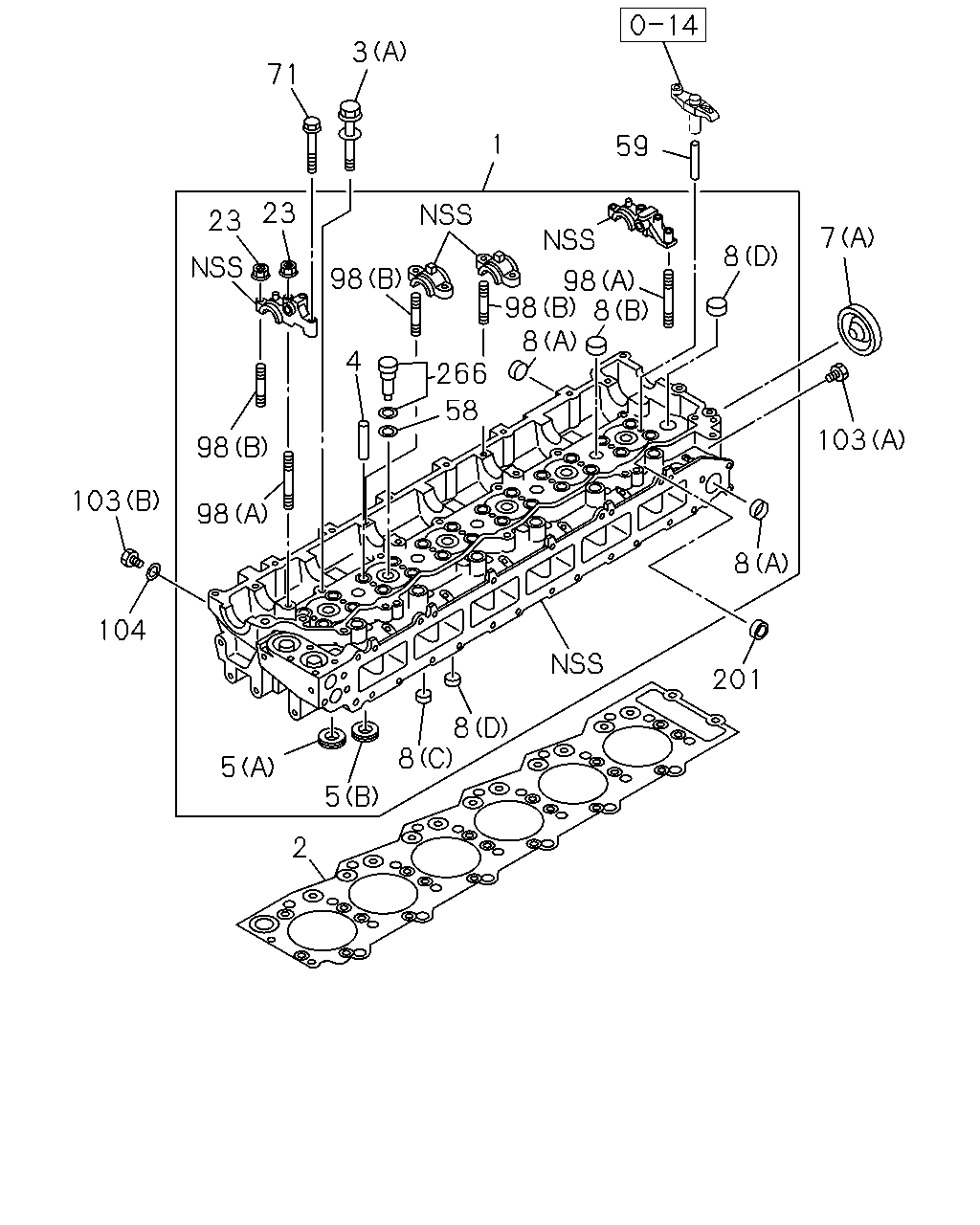

3 71 23 23 98 98 98 103 104 5 2 5 8 8 4 1 59 98 98 266 58 8 8 8 7 103 8 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HEAD ASM; CYL	8-98170-620-0	01	1	1406-	●
1	HEAD ASM; CYL	8-98243-824-0	01	1	1402-		●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE	8-98244-823-0	02	1	1406-	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE	8-98244-824-0	02	1	1406-	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE	8-98244-825-0	02	1	1406-	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97601-819-5	01	1	1402-		●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE	8-98244-823-0	01	1	1406-	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE	8-98244-824-0	01	1	1406-	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE	8-98244-825-0	01	1	1406-	●
3	BOLT; CYL HD TO BLOCK (B) M10X73	8-94399-554-0	01	1	1406-	●
3	BOLT; CYL HD TO BLOCK (C) M10X43	8-94399-555-0	01	1	1406-	●
3	BOLT; CYL HD TO BLOCK (A) M14X115 W/FLANGE	8-97077-638-0	18	1	1406-1503	●
3	BOLT; CYL HD TO BLOCK (A) M14X115 W/FLANGE	8-98260-005-0	18	1	1504-	●
3	BOLT; CYL HD TO BLOCK (A) M14X115 W/FLANGE	8-97077-638-0	26	1	1402-1407		●
3	BOLT; CYL HD TO BLOCK (A) M14X115 W/FLANGE	8-98260-005-0	26	1	1408-		●
4	GUIDE; VLV L=57	8-97376-719-2	16	1	1406-	●
4	GUIDE; VLV L=57	8-97376-719-2	24	1	1402-		●
5	SEAT; VLV INSERT (A) INLET ID=32 OD=38	8-98028-874-0	08	1	1406-	●
5	SEAT; VLV INSERT (B) EXHAUST ID=31 OD=38	8-98028-875-0	08	1	1406-	●
5	SEAT; VLV INSERT (A) INLET ID=32 OD=38	8-98028-874-0	12	1	1402-		●
5	SEAT; VLV INSERT (B) EXHAUST ID=31 OD=38	8-98028-875-0	12	1	1402-		●
7	CUP; SEALING,CYL HEAD (B) OD=25	1-09600-016-0	04	1	1406-	●
7	CUP; SEALING,CYL HEAD (C) OD=16	5-11129-006-0	05	1	1406-	●
7	CUP; SEALING,CYL HEAD (E) OD=32	8-97096-821-0	05	1	1406-	●
7	CUP; SEALING,CYL HEAD (D) OD=20	9-11129-128-0	07	1	1406-	●
7	CUP; SEALING,CYL HEAD (A) OD=51	8-97096-826-0	01	1	1402-		●
8	CUP; SEALING,WATER JACKET (A) OD=32	1-09600-012-2	07	1	1402-		●
8	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	06	1	1402-		●
8	CUP; SEALING,WATER JACKET (C) OD=16	5-11129-006-0	07	1	1402-		●
8	CUP; SEALING,WATER JACKET (D) OD=20	9-11129-128-0	11	1	1402-		●
23	NUT; CAM BRKT M8 FLANGE THA	0-91180-208-0	10	1	1406-	●
23	NUT; CAM BRKT M8 FLANGE THA	0-91180-208-0	08	1	1402-		●
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=26.4	8-97604-916-0	04	1	1406-	●
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=26.4	8-97604-916-0	06	1	1402-		●
59	GUIDE; BRIDGE	8-97381-603-1	08	1	1406-	●
59	GUIDE; BRIDGE	8-97381-603-1	12	1	1402-		●
71	BOLT; CAM BRKT M8X35 FLANGE THA	0-28050-835-0	02	1	1402-1405		●
71	BOLT; CAM BRKT M8X35 FLANGE THA	0-28050-835-0	02	1	1406-	●	●
98	STUD; CAM BRKT (A) M8X54 L=79	8-94322-512-2	02	1	1402-		●
98	STUD; CAM BRKT (B) M8X41 L=66	8-94322-513-2	06	1	1402-		●
103	PLUG; HD (A) M8X10	8-98003-416-0	01	1	1402-		●
103	PLUG; HD (B) M14X14	9-09862-156-0	01	1	1402-		●
104	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	8-98251-345-0	01	1	1402-		●
201	GASKET; SLEEVE,INJ PUMP ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09639-034-0	04	1	1406-	●
201	GASKET; SLEEVE,INJ PUMP ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09639-034-0	06	1	1402-		●
266	SLEEVE ASM; NOZZLE HOLDER	8-98018-462-0	06	1	1402-		●
266	SLEEVE ASM; NOZZLE HOLDER	8-98018-462-0	04	1	1406-	●

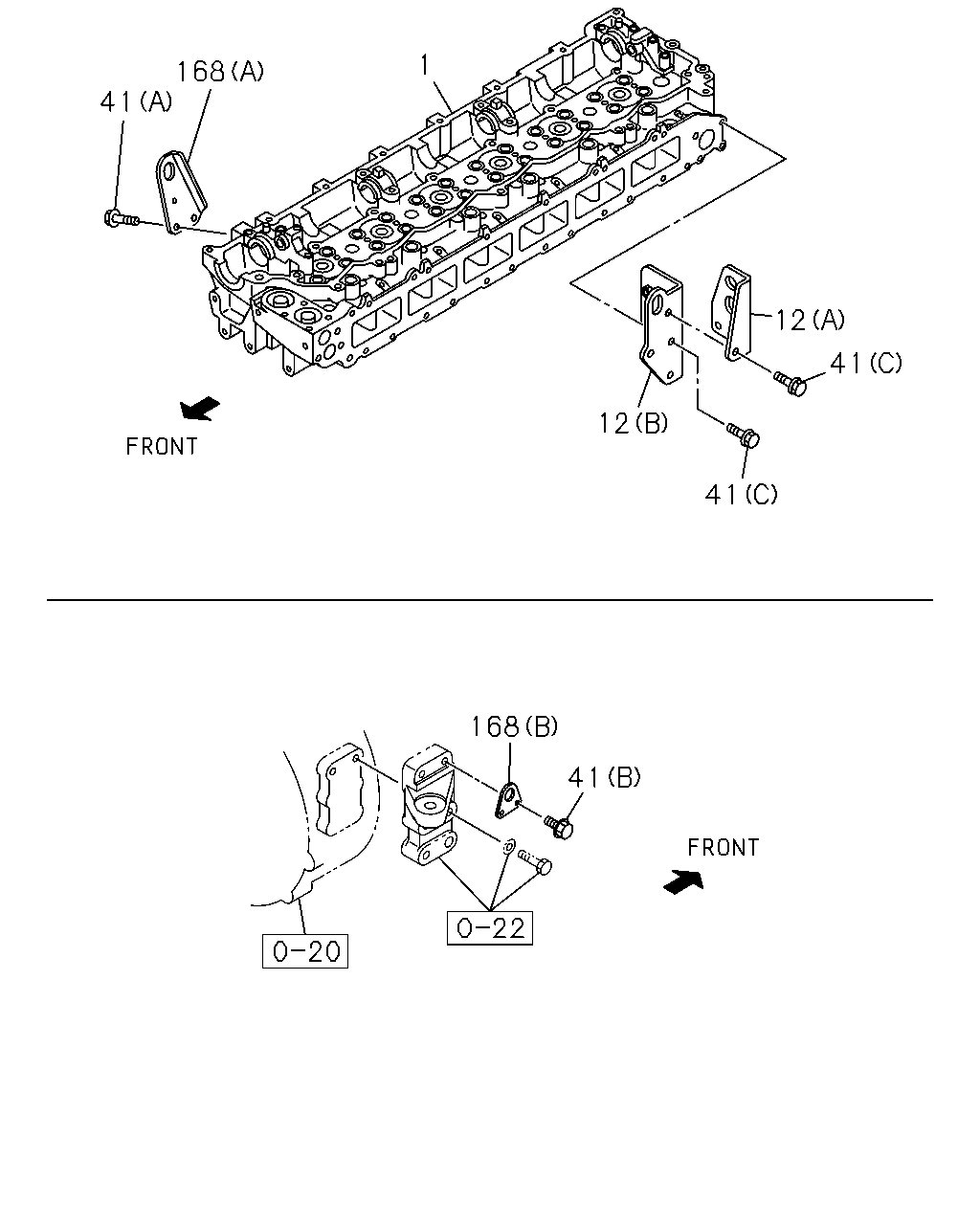

41 168 1 12 12 41 41 168 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HEAD ASM; CYL	8-98170-620-0	01	1	1406-	●
1	HEAD ASM; CYL	8-98243-824-0	01	1	1402-		●
12	HANGER; ENG,RR (A)	8-97600-639-1	01	1	1402-		●
12	HANGER; ENG,RR (B)	8-98167-925-0	01	1	1402-		●
41	BOLT; ENG HANGER (A) M10X20 FLANGE THA	0-28151-020-0	02	1	1402-		●
41	BOLT; ENG HANGER (B) M10X25 FLANGE THA	0-28751-025-0	02	1	1402-		●
41	BOLT; ENG HANGER (C) M12X30 FLANGE	0-28751-230-0	06	1	1402-		●
168	HANGER; ENG,FRT (C)	8-97383-001-1	01	1	1406-	●
168	HANGER; ENG,FRT (A)	8-94394-071-2	01	1	1402-		●
168	HANGER; ENG,FRT (B)	8-94394-398-1	01	1	1402-		●

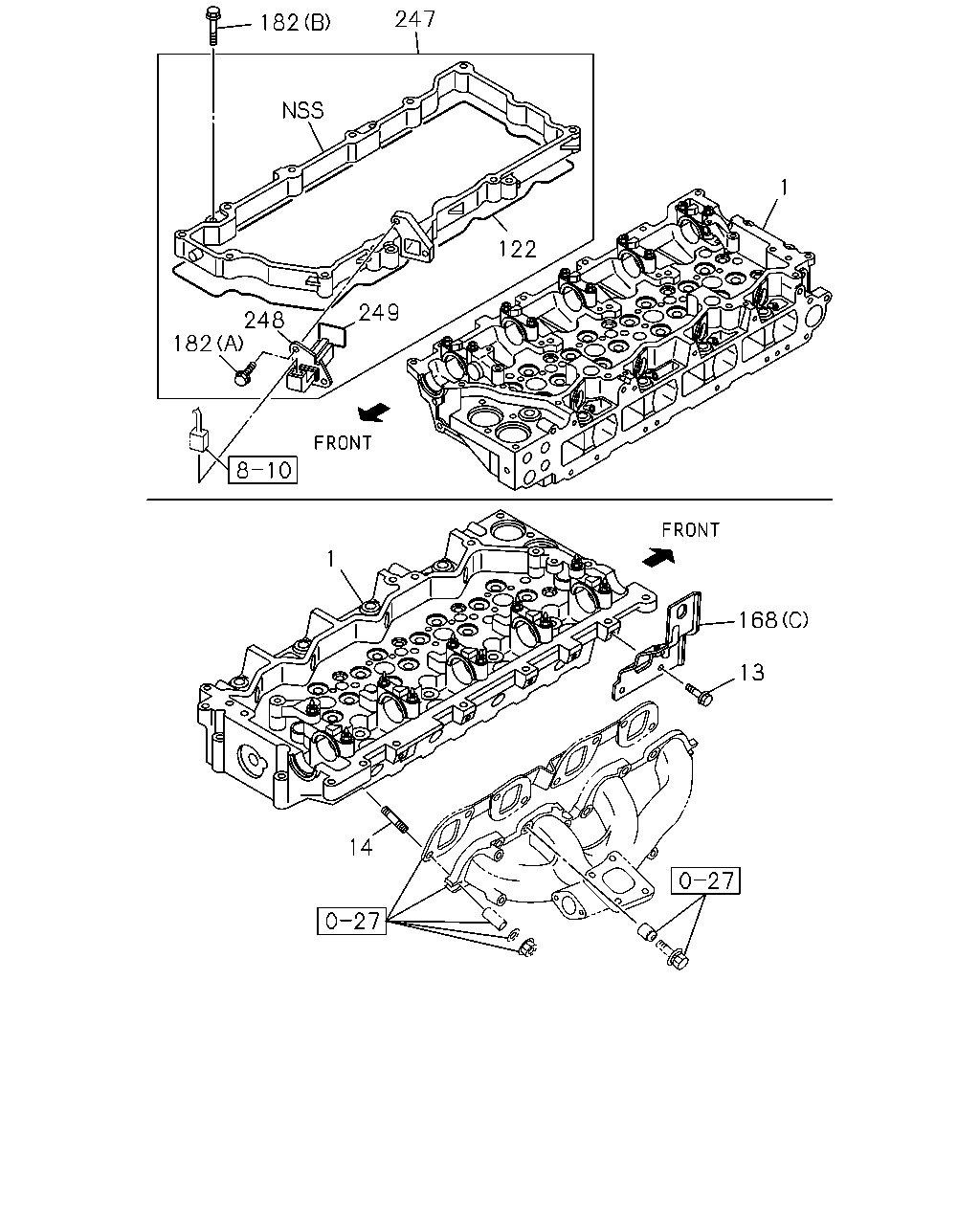

182 247 249 248 182 122 1 1 14 13 168

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HEAD ASM; CYL	8-98170-620-0	01	1	1406-	●
1	HEAD ASM; CYL	8-98243-824-0	01	1	1402-		●
13	BOLT; HANGER M10X20 FLANGE THA	0-28151-020-0	02	1	1406-	●
14	STUD; EXH MANIF M10X60 L=75	8-94397-286-0	02	1	1406-	●
14	STUD; EXH MANIF M10X60 L=75	8-94397-286-0	12	1	1402-		●
122	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97331-360-1	01	1	1406-	●
168	HANGER; ENG,FRT (C)	8-97383-001-1	01	1	1406-	●
168	HANGER; ENG,FRT (A)	8-94394-071-2	01	1	1402-		●
168	HANGER; ENG,FRT (B)	8-94394-398-1	01	1	1402-		●
182	BOLT; CASE (A) M8X12 FLANGE THA	0-28050-812-0	02	1	1406-	●
182	BOLT; CASE (B) M8X45 FLANGE THA	0-28050-845-0	04	1	1406-	●
247	CASE; CYL HEAD,C/H COVER	8-97331-362-1	01	1	1406-	●
248	CONNECTOR	8-94390-858-1	01	1	1406-	●
249	GASKET; CONNECTOR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94391-310-0	01	1	1406-	●

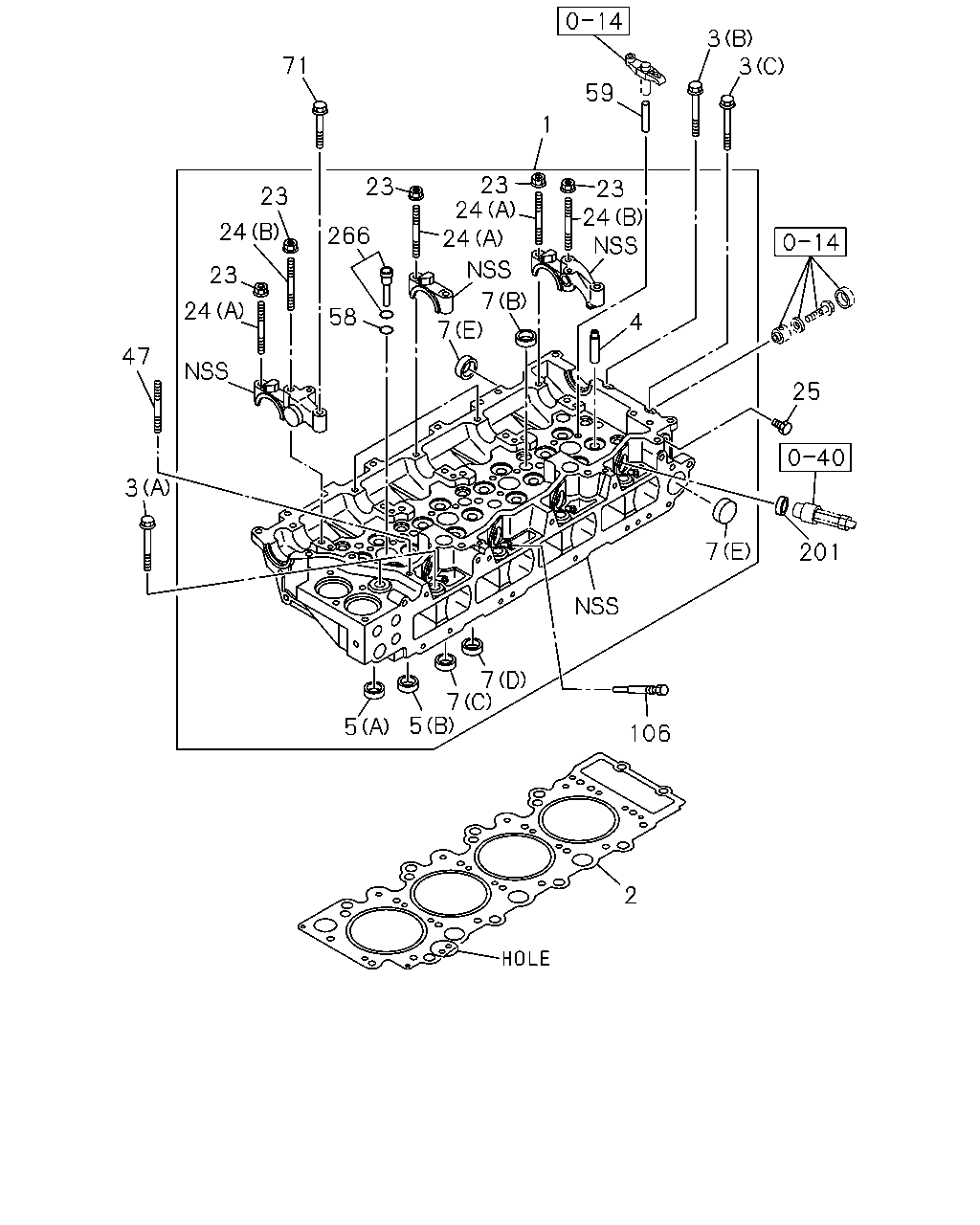

71 23 23 24 23 24 47 3 58 266 23 24 24 23 1 59 3 3 7 7 4 25 201 7 7 7 5 5 106 2 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HEAD ASM; CYL	8-98170-620-0	01	1	1406-	●
1	HEAD ASM; CYL	8-98243-824-0	01	1	1402-		●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE	8-98244-823-0	02	1	1406-	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE	8-98244-824-0	02	1	1406-	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE	8-98244-825-0	02	1	1406-	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97601-819-5	01	1	1402-		●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE	8-98244-823-0	01	1	1406-	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE	8-98244-824-0	01	1	1406-	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE	8-98244-825-0	01	1	1406-	●
3	BOLT; CYL HD TO BLOCK (B) M10X73	8-94399-554-0	01	1	1406-	●
3	BOLT; CYL HD TO BLOCK (C) M10X43	8-94399-555-0	01	1	1406-	●
3	BOLT; CYL HD TO BLOCK (A) M14X115 W/FLANGE	8-97077-638-0	18	1	1406-1503	●
3	BOLT; CYL HD TO BLOCK (A) M14X115 W/FLANGE	8-98260-005-0	18	1	1504-	●
3	BOLT; CYL HD TO BLOCK (A) M14X115 W/FLANGE	8-97077-638-0	26	1	1402-1407		●
3	BOLT; CYL HD TO BLOCK (A) M14X115 W/FLANGE	8-98260-005-0	26	1	1408-		●
4	GUIDE; VLV L=57	8-97376-719-2	16	1	1406-	●
4	GUIDE; VLV L=57	8-97376-719-2	24	1	1402-		●
5	SEAT; VLV INSERT (A) INLET ID=32 OD=38	8-98028-874-0	08	1	1406-	●
5	SEAT; VLV INSERT (B) EXHAUST ID=31 OD=38	8-98028-875-0	08	1	1406-	●
5	SEAT; VLV INSERT (A) INLET ID=32 OD=38	8-98028-874-0	12	1	1402-		●
5	SEAT; VLV INSERT (B) EXHAUST ID=31 OD=38	8-98028-875-0	12	1	1402-		●
7	CUP; SEALING,CYL HEAD (B) OD=25	1-09600-016-0	04	1	1406-	●
7	CUP; SEALING,CYL HEAD (C) OD=16	5-11129-006-0	05	1	1406-	●
7	CUP; SEALING,CYL HEAD (E) OD=32	8-97096-821-0	05	1	1406-	●
7	CUP; SEALING,CYL HEAD (D) OD=20	9-11129-128-0	07	1	1406-	●
7	CUP; SEALING,CYL HEAD (A) OD=51	8-97096-826-0	01	1	1402-		●
23	NUT; CAM BRKT M8 FLANGE THA	0-91180-208-0	10	1	1406-	●
23	NUT; CAM BRKT M8 FLANGE THA	0-91180-208-0	08	1	1402-		●
24	STUD; CM/SHF BRKT (B) M8X54 L=79	8-94322-512-2	02	1	1406-	●
24	STUD; CM/SHF BRKT (A) M8X41 L=66	8-94322-513-2	08	1	1406-	●
25	PLUG; CYL HD M8X10	8-98003-416-0	01	1	1406-	●
47	STUD; CYL HD M8X60 L=72	0-49140-860-0	02	1	1406-	●
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=26.4	8-97604-916-0	04	1	1406-	●
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=26.4	8-97604-916-0	06	1	1402-		●
59	GUIDE; BRIDGE	8-97381-603-1	08	1	1406-	●
59	GUIDE; BRIDGE	8-97381-603-1	12	1	1402-		●
71	BOLT; CAM BRKT M8X35 FLANGE THA	0-28050-835-0	02	1	1402-1405		●
71	BOLT; CAM BRKT M8X35 FLANGE THA	0-28050-835-0	02	1	1406-	●	●
106	PLUG; GLOW PLUG HOLE	8-94392-236-0	04	1	1406-	●
106	PLUG; GLOW PLUG HOLE	8-94392-236-0	06	1	1402-		●
201	GASKET; SLEEVE,INJ PUMP ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09639-034-0	04	1	1406-	●
201	GASKET; SLEEVE,INJ PUMP ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09639-034-0	06	1	1402-		●
266	SLEEVE ASM; NOZZLE HOLDER	8-98018-462-0	06	1	1402-		●
266	SLEEVE ASM; NOZZLE HOLDER	8-98018-462-0	04	1	1406-	●
