Sayfa 2-37 - Isuzu EPC

2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#13331) — 440 parça

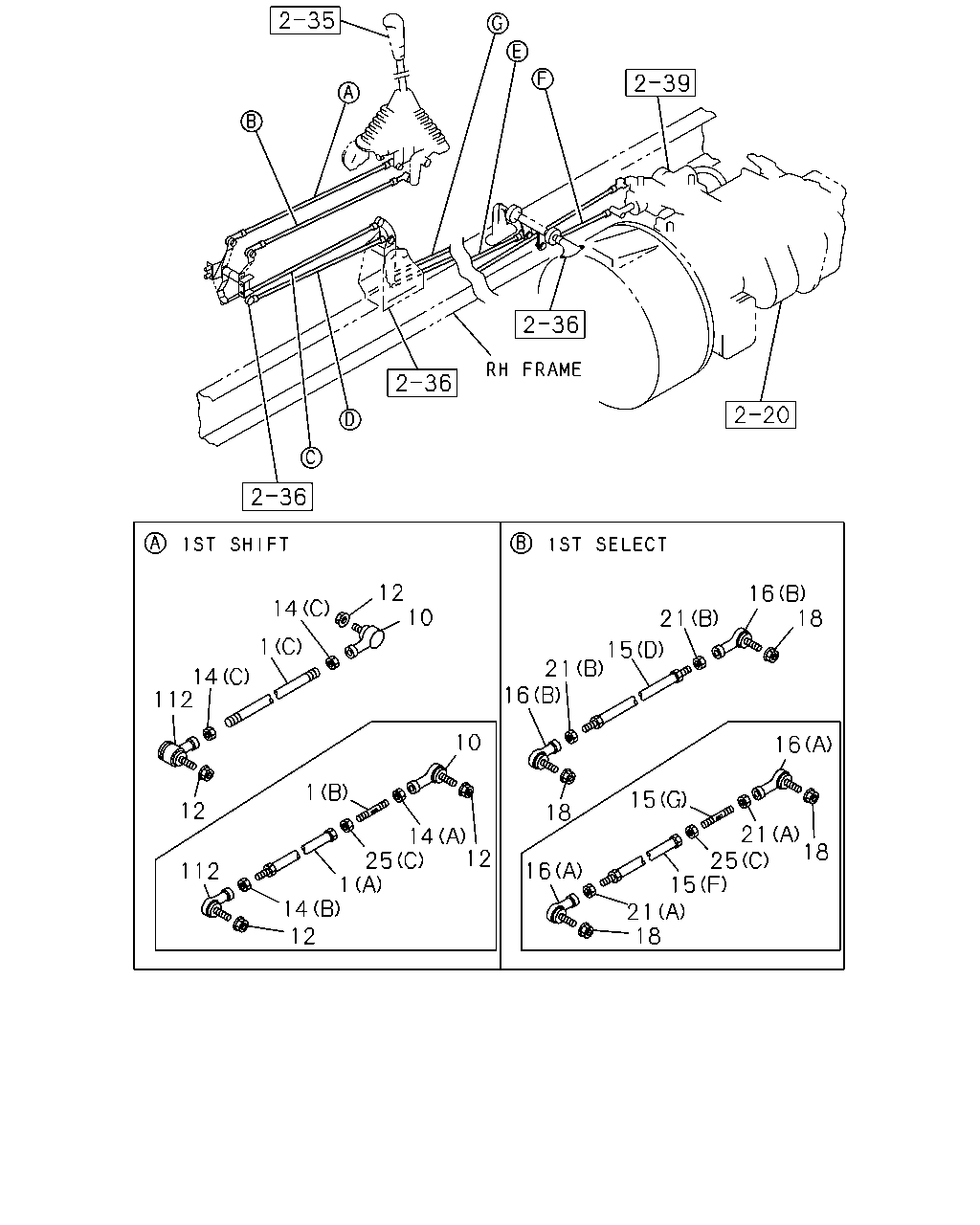

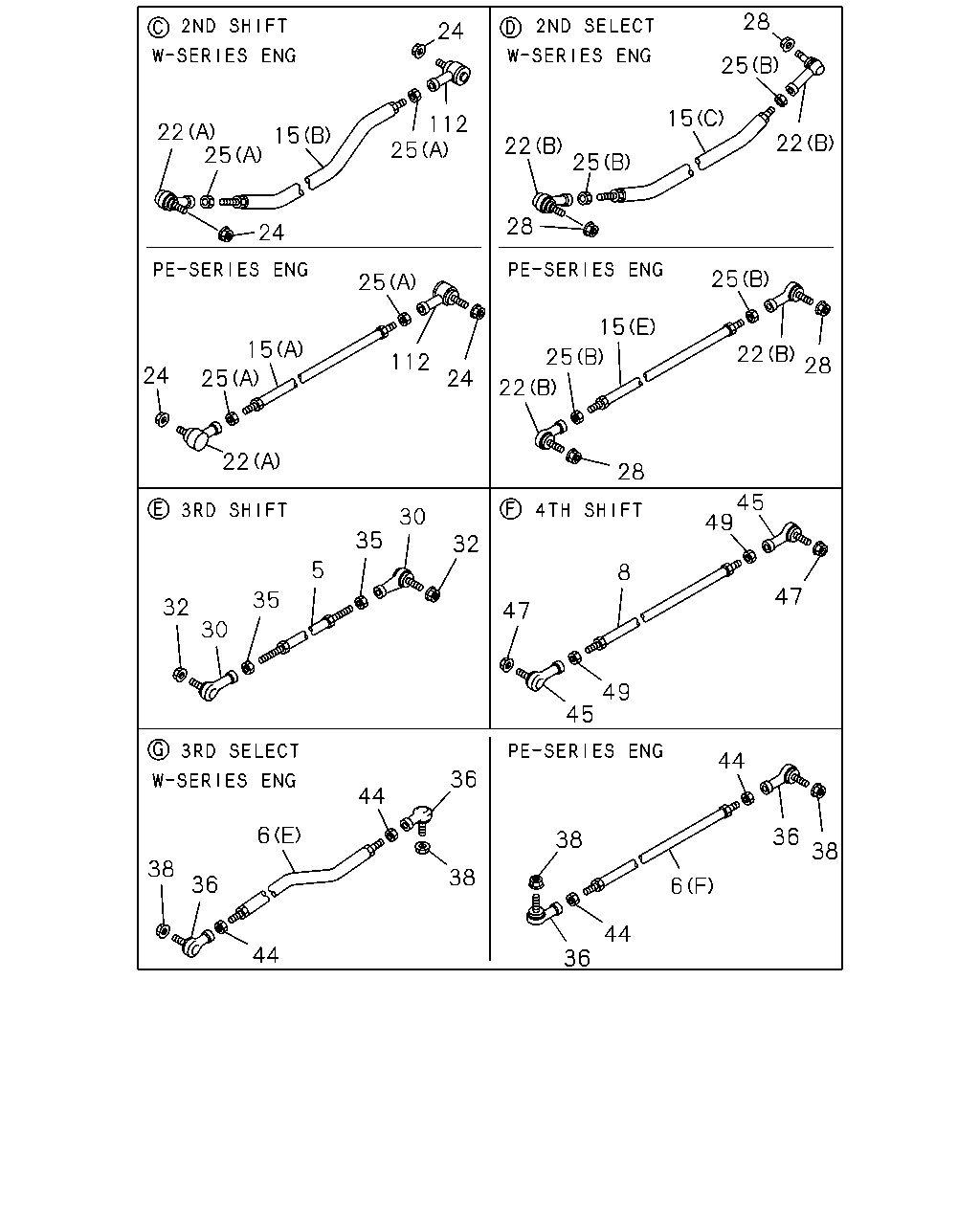

45 49 47 8 47 49 45 22 28 25 15 25 22 28 25 112 24 15 25 22 24 32 30 35 5 35 30 32 36 38 44 6 36 38 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	ROD; LINK,3RD SHIFT CAB UP +110MM<TGG> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> L=1120	1-33652-603-0	01	1	0105-	●	●
5	ROD; LINK,3RD SHIFT MIXER TRUCK<RA2> CAB UP +110MM<TGG> W-SERIES ENG<1A2> L=1190	1-33652-922-0	01	1	0105-	●	●
5	ROD; LINK,3RD SHIFT MIXER TRUCK<RA2> W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> L=1170	1-33652-547-0	01	1	0105-	●	●
5	ROD; LINK,3RD SHIFT W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG> L=1110	1-33652-623-0	01	1	0105-	●	●
5	ROD; LINK,3RD SHIFT 10PE1S(60L),10PE1N(61L),10PE1H(68L) L=855	1-33652-321-0	01	1	0105-	●	●
6	ROD; LINK,3RD SELECT CAB UP +110MM<TGG> FULLER M/T<X9B> W-SERIES ENG<1A2> (D) L=1637	1-33652-980-1	01	1	0105-	●	●
6	ROD; LINK,3RD SELECT CAB UP +110MM<TGG> MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2>,CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY) (E) L=1608	1-33652-985-1	01	1	0105-0106	●	●
6	ROD; LINK,3RD SELECT CAB UP +110MM<TGG> MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY) (E) L=1608	1-33652-985-1	01	1	0107-	●	●
6	ROD; LINK,3RD SELECT CAB UP +110MM<TGG> ZF M/T<X9E> W-SERIES ENG<1A2> (A) L=1454	1-33671-700-1	01	1	0105-	●	●
6	ROD; LINK,3RD SELECT CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) CAB UP +110MM<TGG> MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> (E) L=1649	1-33652-925-1	01	1	0105-0106	●	●
6	ROD; LINK,3RD SELECT CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ,CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) CAB UP +110MM<TGG> MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> (E) L=1649	1-33652-925-1	01	1	0107-	●	●
6	ROD; LINK,3RD SELECT MIXER TRUCK<RA2> CAB UP +110MM<TGG> MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> W-SERIES ENG<1A2> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH 15.5" TWIN PLATE SPICER(TEY) (E) L=1679	1-33652-987-1	01	1	0105-0106	●	●
6	ROD; LINK,3RD SELECT MIXER TRUCK<RA2> CAB UP +110MM<TGG> MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> W-SERIES ENG<1A2> EXC. CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE (TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH 15.5" TWIN PLATE SPICER(TEY) (E) L=1679	1-33652-987-1	01	1	0107-	●	●
6	ROD; LINK,3RD SELECT MIXER TRUCK<RA2> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY) CAB UP +110MM<TGG> MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> W-SERIES ENG<1A2> (E) L=1721	1-33652-984-1	01	1	0105-0106	●	●
6	ROD; LINK,3RD SELECT MIXER TRUCK<RA2> CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ,CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY) CAB UP +110MM<TGG> MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> W-SERIES ENG<1A2> (E) L=1721	1-33652-984-1	01	1	0107-	●	●
6	ROD; LINK,3RD SELECT MIXER TRUCK<RA2> MJD7 M/T<X9J>,MJA7 M/T<X9Q> W-SERIES ENG<1A2> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH 15.5" TWIN PLATE SPICER(TEY),CAB UP +110MM<TGG> (E) L=1668	1-33652-983-1	01	1	0105-0106	●	●
6	ROD; LINK,3RD SELECT MIXER TRUCK<RA2> MJD7 M/T<X9J>,MJA7 M/T<X9Q> W-SERIES ENG<1A2> EXC. CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE (TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH 15.5" TWIN PLATE SPICER(TEY),CAB UP +110MM<TGG> (E) L=1668	1-33652-983-1	01	1	0107-	●	●
6	ROD; LINK,3RD SELECT MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2>,CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY),C AB UP +110MM<TGG> (E) L=1599	1-33652-916-1	01	1	0105-0106	●	●
6	ROD; LINK,3RD SELECT MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY), CAB UP +110MM<TGG> (E) L=1599	1-33652-916-1	01	1	0107-	●	●
6	ROD; LINK,3RD SELECT ZF M/T<X9E> W-SERIES ENG<1A2> (B) L=125	1-33671-570-0	01	1	0105-	●	●
6	ROD; LINK,3RD SELECT 10PE1S(60L),10PE1N(61L),10PE1H(68L) ZF M/T<X9E> (B) L=125	1-33671-570-0	01	1	0105-	●	●
6	ROD; LINK,3RD SELECT ZF M/T<X9E> W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (C) L=1419	1-33652-981-0	01	1	0105-	●	●
6	ROD; LINK,3RD SELECT ZF M/T<X9E> W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (A) L=1443	1-33671-789-0	01	1	0105-	●	●
6	ROD; LINK,3RD SELECT 10PE1S(60L),10PE1N(61L),10PE1H(68L) ASSISTOR SHIFT CONTROL<WX8> MAL5 M/T<X9F>,MAG6 M/T<X9T> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 15.5"TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY) (F) L=1242	1-33652-950-0	01	1	0105-0106	●	●
6	ROD; LINK,3RD SELECT 10PE1S(60L),10PE1N(61L),10PE1H(68L) ASSISTOR SHIFT CONTROL<WX8> MAL5 M/T<X9F>,MAG6 M/T<X9T> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY) (F) L=1242	1-33652-950-0	01	1	0107-	●	●
6	ROD; LINK,3RD SELECT 10PE1S(60L),10PE1N(61L),10PE1H(68L) ASSISTOR SHIFT CONTROL<WX8> MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 15.5"TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY) (F) L=1396	1-33652-913-1	01	1	0105-0106	●	●
6	ROD; LINK,3RD SELECT 10PE1S(60L),10PE1N(61L),10PE1H(68L) ASSISTOR SHIFT CONTROL<WX8> MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY) (F) L=1396	1-33652-913-1	01	1	0107-	●	●
6	ROD; LINK,3RD SELECT 10PE1S(60L),10PE1N(61L),10PE1H(68L) MAL5 M/T<X9F>,MAG6 M/T<X9T> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 15.5"TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY),ASSISTOR SHIFT CONTROL<WX8> (F) L=1250	1-33652-978-0	01	1	0105-0106	●	●
6	ROD; LINK,3RD SELECT 10PE1S(60L),10PE1N(61L),10PE1H(68L) MAL5 M/T<X9F>,MAG6 M/T<X9T> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY),ASSISTOR SHIFT CONTROL<WX8> (F) L=1250	1-33652-978-0	01	1	0107-	●	●
6	ROD; LINK,3RD SELECT 10PE1S(60L),10PE1N(61L),10PE1H(68L) MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 15.5"TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY),ASSISTOR SHIFT CONTROL<WX8> (F) L=1405	1-33652-876-0	01	1	0105-0106	●	●
6	ROD; LINK,3RD SELECT 10PE1S(60L),10PE1N(61L),10PE1H(68L) MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY),ASSISTOR SHIFT CONTROL<WX8> (F) L=1405	1-33652-876-0	01	1	0107-	●	●
6	ROD; LINK,3RD SELECT 10PE1S(60L),10PE1N(61L),10PE1H(68L) ZF M/T<X9E> (A) L=1220	1-33671-792-1	01	1	0105-	●	●
8	ROD; LINK,4TH SHIFT ASSISTOR SHIFT CONTROL<WX8> MAL5 M/T<X9F>,MAG6 M/T<X9T> PE-SERIES ENG<1A0> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 15.5"TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY) L=210	1-33652-878-0	01	1	0105-0106	●	●
8	ROD; LINK,4TH SHIFT ASSISTOR SHIFT CONTROL<WX8> MAL5 M/T<X9F>,MAG6 M/T<X9T> PE-SERIES ENG<1A0> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY) L=210	1-33652-878-0	01	1	0107-	●	●
8	ROD; LINK,4TH SHIFT ASSISTOR SHIFT CONTROL<WX8> MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> PE-SERIES ENG<1A0> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 15.5"TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY) L=360	1-33652-649-1	01	1	0105-0106	●	●
8	ROD; LINK,4TH SHIFT ASSISTOR SHIFT CONTROL<WX8> MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> PE-SERIES ENG<1A0> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY) L=360	1-33652-649-1	01	1	0107-	●	●
8	ROD; LINK,4TH SHIFT CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> W-SERIES ENG<1A2> L=370	1-33652-654-1	01	1	0105-0106	●	●
8	ROD; LINK,4TH SHIFT CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ,CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> W-SERIES ENG<1A2> L=370	1-33652-654-1	01	1	0107-	●	●
8	ROD; LINK,4TH SHIFT FULLER M/T<X9B> W-SERIES ENG<1A2> L=480	1-33652-730-0	01	1	0105-	●	●
8	ROD; LINK,4TH SHIFT MAL5 M/T<X9F>,MAG6 M/T<X9T> PE-SERIES ENG<1A0> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 15.5"TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY),ASSISTOR SHIFT CONTROL<WX8> L=337	1-33652-767-1	01	1	0105-0106	●	●
8	ROD; LINK,4TH SHIFT MAL5 M/T<X9F>,MAG6 M/T<X9T> PE-SERIES ENG<1A0> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY),ASSISTOR SHIFT CONTROL<WX8> L=337	1-33652-767-1	01	1	0107-	●	●
8	ROD; LINK,4TH SHIFT MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> PE-SERIES ENG<1A0> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 15.5"TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY),ASSISTOR SHIFT CONTROL<WX8> L=490	1-33652-749-0	01	1	0105-0106	●	●
8	ROD; LINK,4TH SHIFT MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> PE-SERIES ENG<1A0> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY),ASSISTOR SHIFT CONTROL<WX8> L=490	1-33652-749-0	01	1	0107-	●	●
8	ROD; LINK,4TH SHIFT MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> W-SERIES ENG<1A2> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH 15.5" TWIN PLATE SPICER(TEY) L=330	1-33652-653-1	01	1	0105-0106	●	●
8	ROD; LINK,4TH SHIFT MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> W-SERIES ENG<1A2> EXC. CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE (TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH 15.5" TWIN PLATE SPICER(TEY) L=330	1-33652-653-1	01	1	0107-	●	●
8	ROD; LINK,4TH SHIFT ZF M/T<X9E> PE-SERIES ENG<1A0> L=523	1-33652-858-1	01	1	0105-	●	●
8	ROD; LINK,4TH SHIFT ZF M/T<X9E> W-SERIES ENG<1A2> L=485	1-33652-859-1	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT CAB UP +110MM<TGG> W-SERIES ENG<1A2> (B) L=474	1-33652-803-1	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT CAB UP +110MM<TGG> W-SERIES ENG<1A2> (C) L=423	1-33652-804-2	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT MJA7 M/T<X9Q> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (D) L=435	1-33652-696-0	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT EXC. MJA7 M/T<X9Q> (D) L=435	1-33652-696-0	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (F) L=345	1-33652-736-0	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (G) L=88	1-33652-740-0	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT PE-SERIES ENG<1A0> (E) L=440	1-33652-672-0	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT PE-SERIES ENG<1A0> (A) L=490	1-33652-700-0	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (B) L=490	1-33652-780-1	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (C) L=428	1-33652-781-2	01	1	0105-	●	●
22	JOINT; BALL,SCREW,LINK ROD PE-SERIES ENG<1A0> (B) SELECT	1-09760-108-0	02	1	0105-	●	●
22	JOINT; BALL,SCREW,LINK ROD PE-SERIES ENG<1A0>,W-SERIES ENG<1A2> (A) SHIFT	1-09760-125-0	01	1	0105-	●	●
22	JOINT; BALL,SCREW,LINK ROD W-SERIES ENG<1A2> (B) SELECT	1-09760-109-0	02	1	0105-	●	●
24	NUT; 2ND LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	0105-	●	●
25	NUT; LK,RIGHT SCREW,LINK ROD PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (C) M10 LH THREAD	9-09840-167-0	02	1	0105-	●	●
25	NUT; LK,RIGHT SCREW,LINK ROD PE-SERIES ENG<1A0> (B) M8	9-09111-408-0	02	1	0105-0512	●	●
25	NUT; LK,RIGHT SCREW,LINK ROD PE-SERIES ENG<1A0> (B) M8	0-91111-508-0	02	1	0601-	●	●
25	NUT; LK,RIGHT SCREW,LINK ROD PE-SERIES ENG<1A0>,W-SERIES ENG<1A2> (A) M12	9-99111-412-0	02	1	0105-0512	●	●
25	NUT; LK,RIGHT SCREW,LINK ROD PE-SERIES ENG<1A0>,W-SERIES ENG<1A2> (A) M12	0-91111-512-0	02	1	0601-	●	●
25	NUT; LK,RIGHT SCREW,LINK ROD W-SERIES ENG<1A2> (B) M10	9-09111-410-0	02	1	0105-0512	●	●
25	NUT; LK,RIGHT SCREW,LINK ROD W-SERIES ENG<1A2> (B) M10	0-91111-510-0	02	1	0601-	●	●
28	NUT; 2ND LINK ROD M8 FLANGE	1-09440-062-1	02	1	0105-	●	●
30	JOINT; BALL,RIGHT SCREW,LINK ROD 10PE1S(60L),10PE1N(61L),10PE1H(68L)	1-09760-124-0	02	1	0105-	●	●
30	JOINT; BALL,RIGHT SCREW,LINK ROD W-SERIES ENG<1A2>	1-09760-124-0	02	1	0105-	●	●
32	NUT; 3RD LINK ROD M10 FLANGE	1-09440-061-0	02	1	0105-	●	●
35	NUT; LK,RIGHT SCREW,LINK ROD 10PE1S(60L),10PE1N(61L),10PE1H(68L) M10	9-09111-410-0	02	1	0105-0512	●	●
35	NUT; LK,RIGHT SCREW,LINK ROD W-SERIES ENG<1A2> M10	9-09111-410-0	02	1	0105-0512	●	●
35	NUT; LK,RIGHT SCREW,LINK ROD 10PE1S(60L),10PE1N(61L),10PE1H(68L) M10	0-91111-510-0	02	1	0601-	●	●
35	NUT; LK,RIGHT SCREW,LINK ROD W-SERIES ENG<1A2> M10	0-91111-510-0	02	1	0601-	●	●
36	JOINT; BALL,RIGHT SCREW,LINK ROD W-SERIES ENG<1A2> ISUZU M/T<X9A>,FULLER M/T<X9B>	1-09760-124-0	02	1	0105-0106	●	●
36	JOINT; BALL,RIGHT SCREW,LINK ROD 10PE1S(60L),10PE1N(61L),10PE1H(68L)	1-09760-124-0	02	1	0105-0106	●	●
36	JOINT; BALL,RIGHT SCREW,LINK ROD W-SERIES ENG<1A2> ISUZU M/T<X9A>,FULLER M/T<X9B>	1-09760-124-0	02	1	0107-	●	●
36	JOINT; BALL,RIGHT SCREW,LINK ROD 10PE1S(60L),10PE1N(61L),10PE1H(68L) ZF M/T<X9E>	1-09760-124-0	02	1	0107-	●	●
36	JOINT; BALL,RIGHT SCREW,LINK ROD ZF M/T<X9E> W-SERIES ENG<1A2>	1-09760-124-0	01	1	0105-	●	●
36	JOINT; BALL,RIGHT SCREW,LINK ROD ZF M/T<X9E> W-SERIES ENG<1A2>	1-09760-124-0	01	1	0105-	●	●
38	NUT; 3RD LINK ROD M10 FLANGE	1-09440-061-0	02	1	0105-	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD W-SERIES ENG<1A2> ISUZU M/T<X9A>,FULLER M/T<X9B> M10	9-09111-410-0	02	1	0105-0106	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD 10PE1S(60L),10PE1N(61L),10PE1H(68L) ZF M/T<X9E> M10	9-09111-410-0	02	1	0105-0106	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD 10PE1S(60L),10PE1N(61L),10PE1H(68L) MAL5 M/T<X9F>,MAG6 M/T<X9T> M10	9-09111-410-0	02	1	0105-0106	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD 10PE1S(60L),10PE1N(61L),10PE1H(68L) MJA7 M/T<X9Q>,MJA6 M/T<X9S> EXC. ASSISTOR SHIFT CONTROL<WX8> M10	9-09111-410-0	02	1	0105-0106	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD 10PE1S(60L),10PE1N(61L),10PE1H(68L) ZF M/T<X9E> M10	9-09111-410-0	02	1	0107-0512	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD 10PE1S(60L),10PE1N(61L),10PE1H(68L) ISUZU M/T<X9A> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY),ASSISTOR SHIFT CONTROL<WX8> M10	9-09111-410-0	02	1	0107-0512	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD 10PE1S(60L),10PE1N(61L),10PE1H(68L) ZF M/T<X9E> M10	0-91111-510-0	02	1	0601-	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD 10PE1S(60L),10PE1N(61L),10PE1H(68L) ISUZU M/T<X9A> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY),ASSISTOR SHIFT CONTROL<WX8> M10	0-91111-510-0	02	1	0601-	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD ZF M/T<X9E> W-SERIES ENG<1A2> M10	9-09111-410-0	01	1	0105-0512	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD ZF M/T<X9E> W-SERIES ENG<1A2> M10	9-09111-410-0	01	1	0105-0512	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD ZF M/T<X9E> W-SERIES ENG<1A2> M10	0-91111-510-0	01	1	0601-	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD ZF M/T<X9E> W-SERIES ENG<1A2> M10	0-91111-510-0	01	1	0601-	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD 10PE1S(60L),10PE1N(61L),10PE1H(68L) ASSISTOR SHIFT CONTROL<WX8> MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 15.5"TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY) M8	9-09111-408-0	02	1	0105-0106	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD 10PE1S(60L),10PE1N(61L),10PE1H(68L) ASSISTOR SHIFT CONTROL<WX8> MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY) M8	9-09111-408-0	02	1	0107-0512	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD 10PE1S(60L),10PE1N(61L),10PE1H(68L) ASSISTOR SHIFT CONTROL<WX8> MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY) M8	0-91111-508-0	02	1	0601-	●	●
45	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-125-0	02	1	0105-	●	●
47	NUT; 4TH LINK ROD M10 FLANGE	1-09440-061-0	02	1	0105-	●	●
49	NUT; LK,RIGHT SCREW,LINK ROD M12	9-99111-412-0	02	1	0105-0512	●	●
49	NUT; LK,RIGHT SCREW,LINK ROD M12	0-91111-512-0	02	1	0601-	●	●
112	JOINT; RUBBER PE-SERIES ENG<1A0>,W-SERIES ENG<1A2>	1-33670-413-1	01	1	0105-	●	●
112	JOINT; RUBBER	1-33670-413-1	01	1	0105-	●	●

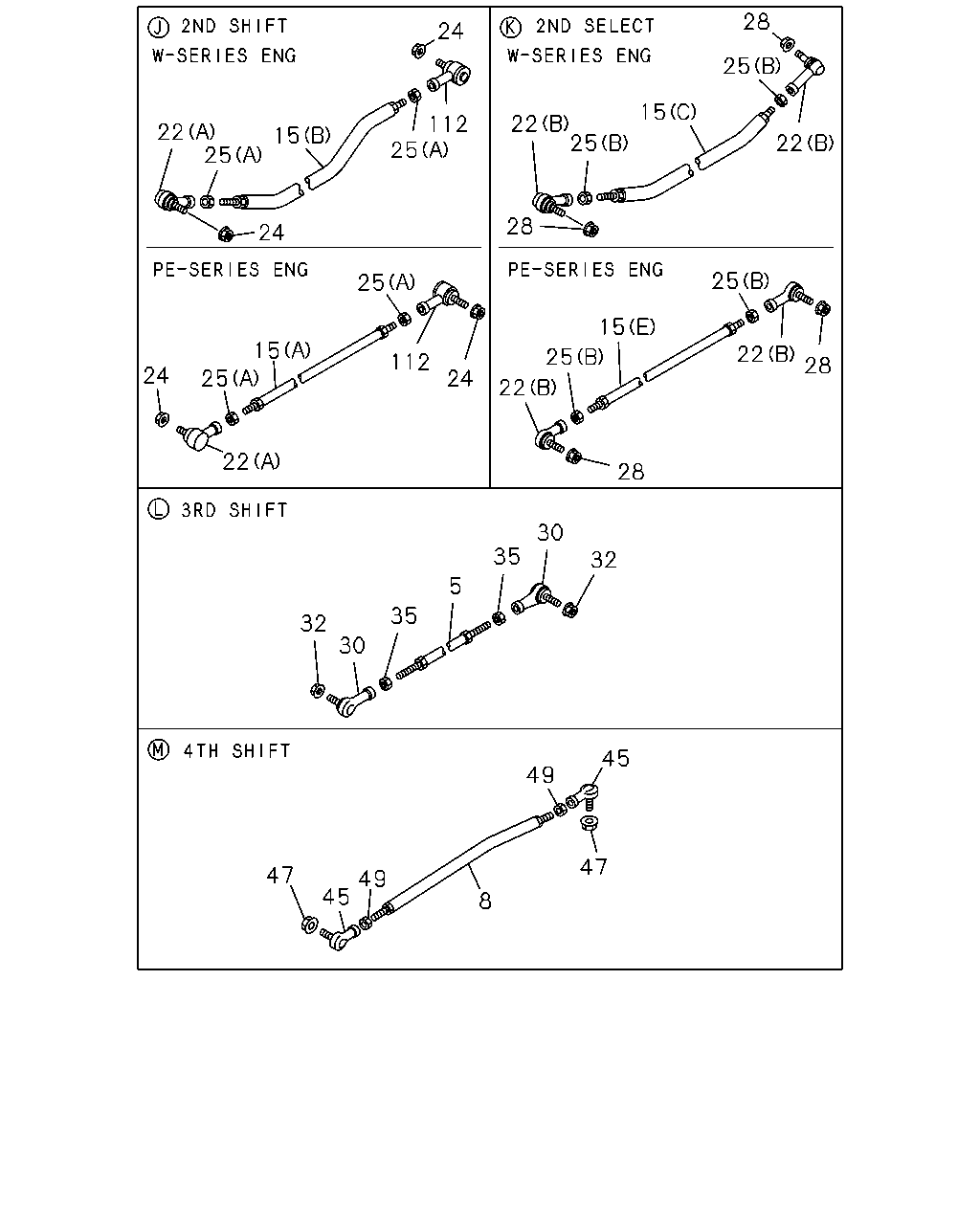

47 45 49 8 49 45 47 32 30 35 5 35 30 32 28 28 22 25 15 25 22 24 112 25 15 25 24 22 24 25 22 15 25 112 24 22 28 25 15 25 28 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	ROD; LINK,3RD SHIFT CAB UP +110MM<TGG> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> L=1120	1-33652-603-0	01	1	0105-	●	●
5	ROD; LINK,3RD SHIFT MIXER TRUCK<RA2> CAB UP +110MM<TGG> W-SERIES ENG<1A2> L=1190	1-33652-922-0	01	1	0105-	●	●
5	ROD; LINK,3RD SHIFT MIXER TRUCK<RA2> W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> L=1170	1-33652-547-0	01	1	0105-	●	●
5	ROD; LINK,3RD SHIFT W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG> L=1110	1-33652-623-0	01	1	0105-	●	●
5	ROD; LINK,3RD SHIFT 10PE1S(60L),10PE1N(61L),10PE1H(68L) L=855	1-33652-321-0	01	1	0105-	●	●
8	ROD; LINK,4TH SHIFT ASSISTOR SHIFT CONTROL<WX8> MAL5 M/T<X9F>,MAG6 M/T<X9T> PE-SERIES ENG<1A0> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 15.5"TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY) L=210	1-33652-878-0	01	1	0105-0106	●	●
8	ROD; LINK,4TH SHIFT ASSISTOR SHIFT CONTROL<WX8> MAL5 M/T<X9F>,MAG6 M/T<X9T> PE-SERIES ENG<1A0> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY) L=210	1-33652-878-0	01	1	0107-	●	●
8	ROD; LINK,4TH SHIFT ASSISTOR SHIFT CONTROL<WX8> MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> PE-SERIES ENG<1A0> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 15.5"TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY) L=360	1-33652-649-1	01	1	0105-0106	●	●
8	ROD; LINK,4TH SHIFT ASSISTOR SHIFT CONTROL<WX8> MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> PE-SERIES ENG<1A0> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY) L=360	1-33652-649-1	01	1	0107-	●	●
8	ROD; LINK,4TH SHIFT CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> W-SERIES ENG<1A2> L=370	1-33652-654-1	01	1	0105-0106	●	●
8	ROD; LINK,4TH SHIFT CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ,CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> W-SERIES ENG<1A2> L=370	1-33652-654-1	01	1	0107-	●	●
8	ROD; LINK,4TH SHIFT FULLER M/T<X9B> W-SERIES ENG<1A2> L=480	1-33652-730-0	01	1	0105-	●	●
8	ROD; LINK,4TH SHIFT MAL5 M/T<X9F>,MAG6 M/T<X9T> PE-SERIES ENG<1A0> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 15.5"TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY),ASSISTOR SHIFT CONTROL<WX8> L=337	1-33652-767-1	01	1	0105-0106	●	●
8	ROD; LINK,4TH SHIFT MAL5 M/T<X9F>,MAG6 M/T<X9T> PE-SERIES ENG<1A0> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY),ASSISTOR SHIFT CONTROL<WX8> L=337	1-33652-767-1	01	1	0107-	●	●
8	ROD; LINK,4TH SHIFT MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> PE-SERIES ENG<1A0> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 15.5"TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY),ASSISTOR SHIFT CONTROL<WX8> L=490	1-33652-749-0	01	1	0105-0106	●	●
8	ROD; LINK,4TH SHIFT MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> PE-SERIES ENG<1A0> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY),ASSISTOR SHIFT CONTROL<WX8> L=490	1-33652-749-0	01	1	0107-	●	●
8	ROD; LINK,4TH SHIFT MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> W-SERIES ENG<1A2> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH 15.5" TWIN PLATE SPICER(TEY) L=330	1-33652-653-1	01	1	0105-0106	●	●
8	ROD; LINK,4TH SHIFT MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> W-SERIES ENG<1A2> EXC. CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE (TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH 15.5" TWIN PLATE SPICER(TEY) L=330	1-33652-653-1	01	1	0107-	●	●
8	ROD; LINK,4TH SHIFT ZF M/T<X9E> PE-SERIES ENG<1A0> L=523	1-33652-858-1	01	1	0105-	●	●
8	ROD; LINK,4TH SHIFT ZF M/T<X9E> W-SERIES ENG<1A2> L=485	1-33652-859-1	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT CAB UP +110MM<TGG> W-SERIES ENG<1A2> (B) L=474	1-33652-803-1	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT CAB UP +110MM<TGG> W-SERIES ENG<1A2> (C) L=423	1-33652-804-2	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT MJA7 M/T<X9Q> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (D) L=435	1-33652-696-0	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT EXC. MJA7 M/T<X9Q> (D) L=435	1-33652-696-0	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (F) L=345	1-33652-736-0	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (G) L=88	1-33652-740-0	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT PE-SERIES ENG<1A0> (E) L=440	1-33652-672-0	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT PE-SERIES ENG<1A0> (A) L=490	1-33652-700-0	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (B) L=490	1-33652-780-1	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (C) L=428	1-33652-781-2	01	1	0105-	●	●
22	JOINT; BALL,SCREW,LINK ROD PE-SERIES ENG<1A0> (B) SELECT	1-09760-108-0	02	1	0105-	●	●
22	JOINT; BALL,SCREW,LINK ROD PE-SERIES ENG<1A0>,W-SERIES ENG<1A2> (A) SHIFT	1-09760-125-0	01	1	0105-	●	●
22	JOINT; BALL,SCREW,LINK ROD W-SERIES ENG<1A2> (B) SELECT	1-09760-109-0	02	1	0105-	●	●
24	NUT; 2ND LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	0105-	●	●
25	NUT; LK,RIGHT SCREW,LINK ROD PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (C) M10 LH THREAD	9-09840-167-0	02	1	0105-	●	●
25	NUT; LK,RIGHT SCREW,LINK ROD PE-SERIES ENG<1A0> (B) M8	9-09111-408-0	02	1	0105-0512	●	●
25	NUT; LK,RIGHT SCREW,LINK ROD PE-SERIES ENG<1A0> (B) M8	0-91111-508-0	02	1	0601-	●	●
25	NUT; LK,RIGHT SCREW,LINK ROD PE-SERIES ENG<1A0>,W-SERIES ENG<1A2> (A) M12	9-99111-412-0	02	1	0105-0512	●	●
25	NUT; LK,RIGHT SCREW,LINK ROD PE-SERIES ENG<1A0>,W-SERIES ENG<1A2> (A) M12	0-91111-512-0	02	1	0601-	●	●
25	NUT; LK,RIGHT SCREW,LINK ROD W-SERIES ENG<1A2> (B) M10	9-09111-410-0	02	1	0105-0512	●	●
25	NUT; LK,RIGHT SCREW,LINK ROD W-SERIES ENG<1A2> (B) M10	0-91111-510-0	02	1	0601-	●	●
28	NUT; 2ND LINK ROD M8 FLANGE	1-09440-062-1	02	1	0105-	●	●
30	JOINT; BALL,RIGHT SCREW,LINK ROD 10PE1S(60L),10PE1N(61L),10PE1H(68L)	1-09760-124-0	02	1	0105-	●	●
30	JOINT; BALL,RIGHT SCREW,LINK ROD W-SERIES ENG<1A2>	1-09760-124-0	02	1	0105-	●	●
32	NUT; 3RD LINK ROD M10 FLANGE	1-09440-061-0	02	1	0105-	●	●
35	NUT; LK,RIGHT SCREW,LINK ROD 10PE1S(60L),10PE1N(61L),10PE1H(68L) M10	9-09111-410-0	02	1	0105-0512	●	●
35	NUT; LK,RIGHT SCREW,LINK ROD W-SERIES ENG<1A2> M10	9-09111-410-0	02	1	0105-0512	●	●
35	NUT; LK,RIGHT SCREW,LINK ROD 10PE1S(60L),10PE1N(61L),10PE1H(68L) M10	0-91111-510-0	02	1	0601-	●	●
35	NUT; LK,RIGHT SCREW,LINK ROD W-SERIES ENG<1A2> M10	0-91111-510-0	02	1	0601-	●	●
45	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-125-0	02	1	0105-	●	●
47	NUT; 4TH LINK ROD M10 FLANGE	1-09440-061-0	02	1	0105-	●	●
49	NUT; LK,RIGHT SCREW,LINK ROD M12	9-99111-412-0	02	1	0105-0512	●	●
49	NUT; LK,RIGHT SCREW,LINK ROD M12	0-91111-512-0	02	1	0601-	●	●
112	JOINT; RUBBER PE-SERIES ENG<1A0>,W-SERIES ENG<1A2>	1-33670-413-1	01	1	0105-	●	●
112	JOINT; RUBBER	1-33670-413-1	01	1	0105-	●	●

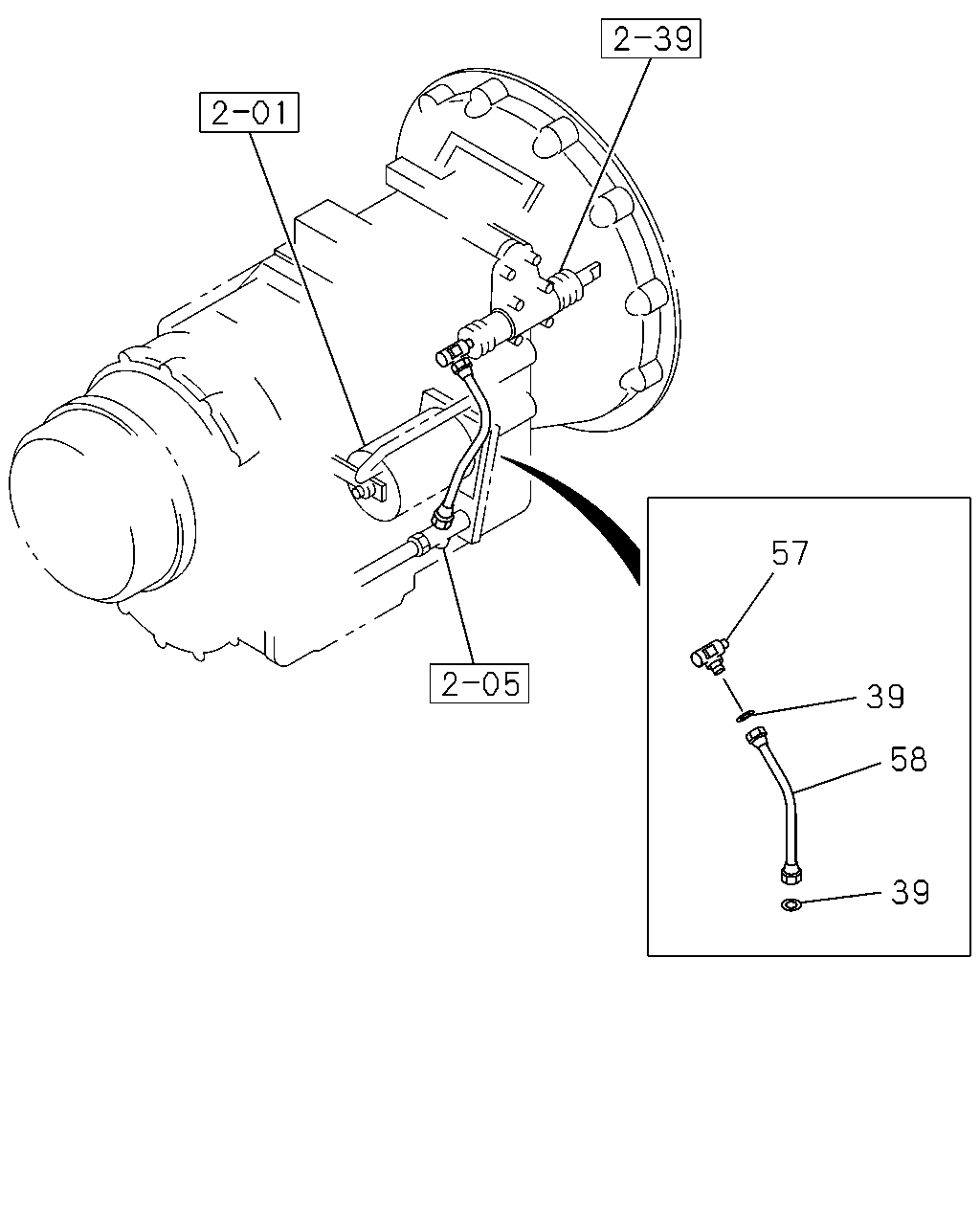

39 58 39 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	GASKET; FLEX HOSE ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> ID=11 OD=18	9-09572-510-0	02	1	0105-	●	●
57	NIPPLE; POWER ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M20 & PT1/4 ELBOW	1-09660-681-0	01	1	0105-	●	●
58	HOSE; FLEX,POWER ASSISTOR CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ASSISTOR SHIFT CONTROL<WX8> MJD7 M/T<X9J> L=300	0-07150-300-0	01	1	0109-	●	●
58	HOSE; FLEX,POWER ASSISTOR ASSISTOR SHIFT CONTROL<WX8> MAL5 M/T<X9F>,MAG6 M/T<X9T> PE-SERIES ENG<1A0> L=230	0-07150-230-0	01	1	0105-	●	●
58	HOSE; FLEX,POWER ASSISTOR ASSISTOR SHIFT CONTROL<WX8> MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> L=360	0-07150-360-0	01	1	0105-0108	●	●
58	HOSE; FLEX,POWER ASSISTOR ASSISTOR SHIFT CONTROL<WX8> MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> EXC. CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE (TBU) L=360	0-07150-360-0	01	1	0109-	●	●

38 36 44 38 6 44 36 38 36 44 36 38 44 6 30 32 35 5 35 30 32 47 8 49 45 47 49 45 28 22 25 15 25 22 28 24 112 25 15 25 24 22 24 25 22 15 25 112 24 22 28 25 15 25 28 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	ROD; LINK,3RD SHIFT CAB UP +110MM<TGG> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> L=1120	1-33652-603-0	01	1	0105-	●	●
5	ROD; LINK,3RD SHIFT MIXER TRUCK<RA2> CAB UP +110MM<TGG> W-SERIES ENG<1A2> L=1190	1-33652-922-0	01	1	0105-	●	●
5	ROD; LINK,3RD SHIFT MIXER TRUCK<RA2> W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> L=1170	1-33652-547-0	01	1	0105-	●	●
5	ROD; LINK,3RD SHIFT W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG> L=1110	1-33652-623-0	01	1	0105-	●	●
5	ROD; LINK,3RD SHIFT 10PE1S(60L),10PE1N(61L),10PE1H(68L) L=855	1-33652-321-0	01	1	0105-	●	●
6	ROD; LINK,3RD SELECT CAB UP +110MM<TGG> FULLER M/T<X9B> W-SERIES ENG<1A2> (D) L=1637	1-33652-980-1	01	1	0105-	●	●
6	ROD; LINK,3RD SELECT CAB UP +110MM<TGG> MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2>,CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY) (E) L=1608	1-33652-985-1	01	1	0105-0106	●	●
6	ROD; LINK,3RD SELECT CAB UP +110MM<TGG> MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY) (E) L=1608	1-33652-985-1	01	1	0107-	●	●
6	ROD; LINK,3RD SELECT CAB UP +110MM<TGG> ZF M/T<X9E> W-SERIES ENG<1A2> (A) L=1454	1-33671-700-1	01	1	0105-	●	●
6	ROD; LINK,3RD SELECT CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) CAB UP +110MM<TGG> MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> (E) L=1649	1-33652-925-1	01	1	0105-0106	●	●
6	ROD; LINK,3RD SELECT CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ,CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) CAB UP +110MM<TGG> MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> (E) L=1649	1-33652-925-1	01	1	0107-	●	●
6	ROD; LINK,3RD SELECT MIXER TRUCK<RA2> CAB UP +110MM<TGG> MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> W-SERIES ENG<1A2> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH 15.5" TWIN PLATE SPICER(TEY) (E) L=1679	1-33652-987-1	01	1	0105-0106	●	●
6	ROD; LINK,3RD SELECT MIXER TRUCK<RA2> CAB UP +110MM<TGG> MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> W-SERIES ENG<1A2> EXC. CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE (TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH 15.5" TWIN PLATE SPICER(TEY) (E) L=1679	1-33652-987-1	01	1	0107-	●	●
6	ROD; LINK,3RD SELECT MIXER TRUCK<RA2> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY) CAB UP +110MM<TGG> MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> W-SERIES ENG<1A2> (E) L=1721	1-33652-984-1	01	1	0105-0106	●	●
6	ROD; LINK,3RD SELECT MIXER TRUCK<RA2> CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ,CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY) CAB UP +110MM<TGG> MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> W-SERIES ENG<1A2> (E) L=1721	1-33652-984-1	01	1	0107-	●	●
6	ROD; LINK,3RD SELECT MIXER TRUCK<RA2> MJD7 M/T<X9J>,MJA7 M/T<X9Q> W-SERIES ENG<1A2> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH 15.5" TWIN PLATE SPICER(TEY),CAB UP +110MM<TGG> (E) L=1668	1-33652-983-1	01	1	0105-0106	●	●
6	ROD; LINK,3RD SELECT MIXER TRUCK<RA2> MJD7 M/T<X9J>,MJA7 M/T<X9Q> W-SERIES ENG<1A2> EXC. CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE (TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH 15.5" TWIN PLATE SPICER(TEY),CAB UP +110MM<TGG> (E) L=1668	1-33652-983-1	01	1	0107-	●	●
6	ROD; LINK,3RD SELECT MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2>,CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY),C AB UP +110MM<TGG> (E) L=1599	1-33652-916-1	01	1	0105-0106	●	●
6	ROD; LINK,3RD SELECT MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY), CAB UP +110MM<TGG> (E) L=1599	1-33652-916-1	01	1	0107-	●	●
6	ROD; LINK,3RD SELECT ZF M/T<X9E> W-SERIES ENG<1A2> (B) L=125	1-33671-570-0	01	1	0105-	●	●
6	ROD; LINK,3RD SELECT 10PE1S(60L),10PE1N(61L),10PE1H(68L) ZF M/T<X9E> (B) L=125	1-33671-570-0	01	1	0105-	●	●
6	ROD; LINK,3RD SELECT ZF M/T<X9E> W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (C) L=1419	1-33652-981-0	01	1	0105-	●	●
6	ROD; LINK,3RD SELECT ZF M/T<X9E> W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (A) L=1443	1-33671-789-0	01	1	0105-	●	●
6	ROD; LINK,3RD SELECT 10PE1S(60L),10PE1N(61L),10PE1H(68L) ASSISTOR SHIFT CONTROL<WX8> MAL5 M/T<X9F>,MAG6 M/T<X9T> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 15.5"TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY) (F) L=1242	1-33652-950-0	01	1	0105-0106	●	●
6	ROD; LINK,3RD SELECT 10PE1S(60L),10PE1N(61L),10PE1H(68L) ASSISTOR SHIFT CONTROL<WX8> MAL5 M/T<X9F>,MAG6 M/T<X9T> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY) (F) L=1242	1-33652-950-0	01	1	0107-	●	●
6	ROD; LINK,3RD SELECT 10PE1S(60L),10PE1N(61L),10PE1H(68L) ASSISTOR SHIFT CONTROL<WX8> MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 15.5"TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY) (F) L=1396	1-33652-913-1	01	1	0105-0106	●	●
6	ROD; LINK,3RD SELECT 10PE1S(60L),10PE1N(61L),10PE1H(68L) ASSISTOR SHIFT CONTROL<WX8> MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY) (F) L=1396	1-33652-913-1	01	1	0107-	●	●
6	ROD; LINK,3RD SELECT 10PE1S(60L),10PE1N(61L),10PE1H(68L) MAL5 M/T<X9F>,MAG6 M/T<X9T> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 15.5"TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY),ASSISTOR SHIFT CONTROL<WX8> (F) L=1250	1-33652-978-0	01	1	0105-0106	●	●
6	ROD; LINK,3RD SELECT 10PE1S(60L),10PE1N(61L),10PE1H(68L) MAL5 M/T<X9F>,MAG6 M/T<X9T> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY),ASSISTOR SHIFT CONTROL<WX8> (F) L=1250	1-33652-978-0	01	1	0107-	●	●
6	ROD; LINK,3RD SELECT 10PE1S(60L),10PE1N(61L),10PE1H(68L) MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 15.5"TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY),ASSISTOR SHIFT CONTROL<WX8> (F) L=1405	1-33652-876-0	01	1	0105-0106	●	●
6	ROD; LINK,3RD SELECT 10PE1S(60L),10PE1N(61L),10PE1H(68L) MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY),ASSISTOR SHIFT CONTROL<WX8> (F) L=1405	1-33652-876-0	01	1	0107-	●	●
6	ROD; LINK,3RD SELECT 10PE1S(60L),10PE1N(61L),10PE1H(68L) ZF M/T<X9E> (A) L=1220	1-33671-792-1	01	1	0105-	●	●
8	ROD; LINK,4TH SHIFT ASSISTOR SHIFT CONTROL<WX8> MAL5 M/T<X9F>,MAG6 M/T<X9T> PE-SERIES ENG<1A0> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 15.5"TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY) L=210	1-33652-878-0	01	1	0105-0106	●	●
8	ROD; LINK,4TH SHIFT ASSISTOR SHIFT CONTROL<WX8> MAL5 M/T<X9F>,MAG6 M/T<X9T> PE-SERIES ENG<1A0> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY) L=210	1-33652-878-0	01	1	0107-	●	●
8	ROD; LINK,4TH SHIFT ASSISTOR SHIFT CONTROL<WX8> MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> PE-SERIES ENG<1A0> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 15.5"TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY) L=360	1-33652-649-1	01	1	0105-0106	●	●
8	ROD; LINK,4TH SHIFT ASSISTOR SHIFT CONTROL<WX8> MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> PE-SERIES ENG<1A0> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY) L=360	1-33652-649-1	01	1	0107-	●	●
8	ROD; LINK,4TH SHIFT CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> W-SERIES ENG<1A2> L=370	1-33652-654-1	01	1	0105-0106	●	●
8	ROD; LINK,4TH SHIFT CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ,CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> W-SERIES ENG<1A2> L=370	1-33652-654-1	01	1	0107-	●	●
8	ROD; LINK,4TH SHIFT FULLER M/T<X9B> W-SERIES ENG<1A2> L=480	1-33652-730-0	01	1	0105-	●	●
8	ROD; LINK,4TH SHIFT MAL5 M/T<X9F>,MAG6 M/T<X9T> PE-SERIES ENG<1A0> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 15.5"TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY),ASSISTOR SHIFT CONTROL<WX8> L=337	1-33652-767-1	01	1	0105-0106	●	●
8	ROD; LINK,4TH SHIFT MAL5 M/T<X9F>,MAG6 M/T<X9T> PE-SERIES ENG<1A0> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY),ASSISTOR SHIFT CONTROL<WX8> L=337	1-33652-767-1	01	1	0107-	●	●
8	ROD; LINK,4TH SHIFT MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> PE-SERIES ENG<1A0> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 15.5"TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY),ASSISTOR SHIFT CONTROL<WX8> L=490	1-33652-749-0	01	1	0105-0106	●	●
8	ROD; LINK,4TH SHIFT MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> PE-SERIES ENG<1A0> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY),ASSISTOR SHIFT CONTROL<WX8> L=490	1-33652-749-0	01	1	0107-	●	●
8	ROD; LINK,4TH SHIFT MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> W-SERIES ENG<1A2> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH 15.5" TWIN PLATE SPICER(TEY) L=330	1-33652-653-1	01	1	0105-0106	●	●
8	ROD; LINK,4TH SHIFT MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> W-SERIES ENG<1A2> EXC. CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE (TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH 15.5" TWIN PLATE SPICER(TEY) L=330	1-33652-653-1	01	1	0107-	●	●
8	ROD; LINK,4TH SHIFT ZF M/T<X9E> PE-SERIES ENG<1A0> L=523	1-33652-858-1	01	1	0105-	●	●
8	ROD; LINK,4TH SHIFT ZF M/T<X9E> W-SERIES ENG<1A2> L=485	1-33652-859-1	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT CAB UP +110MM<TGG> W-SERIES ENG<1A2> (B) L=474	1-33652-803-1	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT CAB UP +110MM<TGG> W-SERIES ENG<1A2> (C) L=423	1-33652-804-2	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT MJA7 M/T<X9Q> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (D) L=435	1-33652-696-0	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT EXC. MJA7 M/T<X9Q> (D) L=435	1-33652-696-0	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (F) L=345	1-33652-736-0	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (G) L=88	1-33652-740-0	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT PE-SERIES ENG<1A0> (E) L=440	1-33652-672-0	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT PE-SERIES ENG<1A0> (A) L=490	1-33652-700-0	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (B) L=490	1-33652-780-1	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (C) L=428	1-33652-781-2	01	1	0105-	●	●
22	JOINT; BALL,SCREW,LINK ROD PE-SERIES ENG<1A0> (B) SELECT	1-09760-108-0	02	1	0105-	●	●
22	JOINT; BALL,SCREW,LINK ROD PE-SERIES ENG<1A0>,W-SERIES ENG<1A2> (A) SHIFT	1-09760-125-0	01	1	0105-	●	●
22	JOINT; BALL,SCREW,LINK ROD W-SERIES ENG<1A2> (B) SELECT	1-09760-109-0	02	1	0105-	●	●
24	NUT; 2ND LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	0105-	●	●
25	NUT; LK,RIGHT SCREW,LINK ROD PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (C) M10 LH THREAD	9-09840-167-0	02	1	0105-	●	●
25	NUT; LK,RIGHT SCREW,LINK ROD PE-SERIES ENG<1A0> (B) M8	9-09111-408-0	02	1	0105-0512	●	●
25	NUT; LK,RIGHT SCREW,LINK ROD PE-SERIES ENG<1A0> (B) M8	0-91111-508-0	02	1	0601-	●	●
25	NUT; LK,RIGHT SCREW,LINK ROD PE-SERIES ENG<1A0>,W-SERIES ENG<1A2> (A) M12	9-99111-412-0	02	1	0105-0512	●	●
25	NUT; LK,RIGHT SCREW,LINK ROD PE-SERIES ENG<1A0>,W-SERIES ENG<1A2> (A) M12	0-91111-512-0	02	1	0601-	●	●
25	NUT; LK,RIGHT SCREW,LINK ROD W-SERIES ENG<1A2> (B) M10	9-09111-410-0	02	1	0105-0512	●	●
25	NUT; LK,RIGHT SCREW,LINK ROD W-SERIES ENG<1A2> (B) M10	0-91111-510-0	02	1	0601-	●	●
28	NUT; 2ND LINK ROD M8 FLANGE	1-09440-062-1	02	1	0105-	●	●
30	JOINT; BALL,RIGHT SCREW,LINK ROD 10PE1S(60L),10PE1N(61L),10PE1H(68L)	1-09760-124-0	02	1	0105-	●	●
30	JOINT; BALL,RIGHT SCREW,LINK ROD W-SERIES ENG<1A2>	1-09760-124-0	02	1	0105-	●	●
32	NUT; 3RD LINK ROD M10 FLANGE	1-09440-061-0	02	1	0105-	●	●
35	NUT; LK,RIGHT SCREW,LINK ROD 10PE1S(60L),10PE1N(61L),10PE1H(68L) M10	9-09111-410-0	02	1	0105-0512	●	●
35	NUT; LK,RIGHT SCREW,LINK ROD W-SERIES ENG<1A2> M10	9-09111-410-0	02	1	0105-0512	●	●
35	NUT; LK,RIGHT SCREW,LINK ROD 10PE1S(60L),10PE1N(61L),10PE1H(68L) M10	0-91111-510-0	02	1	0601-	●	●
35	NUT; LK,RIGHT SCREW,LINK ROD W-SERIES ENG<1A2> M10	0-91111-510-0	02	1	0601-	●	●
36	JOINT; BALL,RIGHT SCREW,LINK ROD W-SERIES ENG<1A2> ISUZU M/T<X9A>,FULLER M/T<X9B>	1-09760-124-0	02	1	0105-0106	●	●
36	JOINT; BALL,RIGHT SCREW,LINK ROD 10PE1S(60L),10PE1N(61L),10PE1H(68L)	1-09760-124-0	02	1	0105-0106	●	●
36	JOINT; BALL,RIGHT SCREW,LINK ROD W-SERIES ENG<1A2> ISUZU M/T<X9A>,FULLER M/T<X9B>	1-09760-124-0	02	1	0107-	●	●
36	JOINT; BALL,RIGHT SCREW,LINK ROD 10PE1S(60L),10PE1N(61L),10PE1H(68L) ZF M/T<X9E>	1-09760-124-0	02	1	0107-	●	●
36	JOINT; BALL,RIGHT SCREW,LINK ROD ZF M/T<X9E> W-SERIES ENG<1A2>	1-09760-124-0	01	1	0105-	●	●
36	JOINT; BALL,RIGHT SCREW,LINK ROD ZF M/T<X9E> W-SERIES ENG<1A2>	1-09760-124-0	01	1	0105-	●	●
38	NUT; 3RD LINK ROD M10 FLANGE	1-09440-061-0	02	1	0105-	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD W-SERIES ENG<1A2> ISUZU M/T<X9A>,FULLER M/T<X9B> M10	9-09111-410-0	02	1	0105-0106	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD 10PE1S(60L),10PE1N(61L),10PE1H(68L) ZF M/T<X9E> M10	9-09111-410-0	02	1	0105-0106	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD 10PE1S(60L),10PE1N(61L),10PE1H(68L) MAL5 M/T<X9F>,MAG6 M/T<X9T> M10	9-09111-410-0	02	1	0105-0106	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD 10PE1S(60L),10PE1N(61L),10PE1H(68L) MJA7 M/T<X9Q>,MJA6 M/T<X9S> EXC. ASSISTOR SHIFT CONTROL<WX8> M10	9-09111-410-0	02	1	0105-0106	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD 10PE1S(60L),10PE1N(61L),10PE1H(68L) ZF M/T<X9E> M10	9-09111-410-0	02	1	0107-0512	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD 10PE1S(60L),10PE1N(61L),10PE1H(68L) ISUZU M/T<X9A> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY),ASSISTOR SHIFT CONTROL<WX8> M10	9-09111-410-0	02	1	0107-0512	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD 10PE1S(60L),10PE1N(61L),10PE1H(68L) ZF M/T<X9E> M10	0-91111-510-0	02	1	0601-	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD 10PE1S(60L),10PE1N(61L),10PE1H(68L) ISUZU M/T<X9A> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY),ASSISTOR SHIFT CONTROL<WX8> M10	0-91111-510-0	02	1	0601-	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD ZF M/T<X9E> W-SERIES ENG<1A2> M10	9-09111-410-0	01	1	0105-0512	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD ZF M/T<X9E> W-SERIES ENG<1A2> M10	9-09111-410-0	01	1	0105-0512	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD ZF M/T<X9E> W-SERIES ENG<1A2> M10	0-91111-510-0	01	1	0601-	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD ZF M/T<X9E> W-SERIES ENG<1A2> M10	0-91111-510-0	01	1	0601-	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD 10PE1S(60L),10PE1N(61L),10PE1H(68L) ASSISTOR SHIFT CONTROL<WX8> MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 15.5"TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY) M8	9-09111-408-0	02	1	0105-0106	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD 10PE1S(60L),10PE1N(61L),10PE1H(68L) ASSISTOR SHIFT CONTROL<WX8> MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY) M8	9-09111-408-0	02	1	0107-0512	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD 10PE1S(60L),10PE1N(61L),10PE1H(68L) ASSISTOR SHIFT CONTROL<WX8> MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY) M8	0-91111-508-0	02	1	0601-	●	●
45	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-125-0	02	1	0105-	●	●
47	NUT; 4TH LINK ROD M10 FLANGE	1-09440-061-0	02	1	0105-	●	●
49	NUT; LK,RIGHT SCREW,LINK ROD M12	9-99111-412-0	02	1	0105-0512	●	●
49	NUT; LK,RIGHT SCREW,LINK ROD M12	0-91111-512-0	02	1	0601-	●	●
112	JOINT; RUBBER PE-SERIES ENG<1A0>,W-SERIES ENG<1A2>	1-33670-413-1	01	1	0105-	●	●
112	JOINT; RUBBER	1-33670-413-1	01	1	0105-	●	●

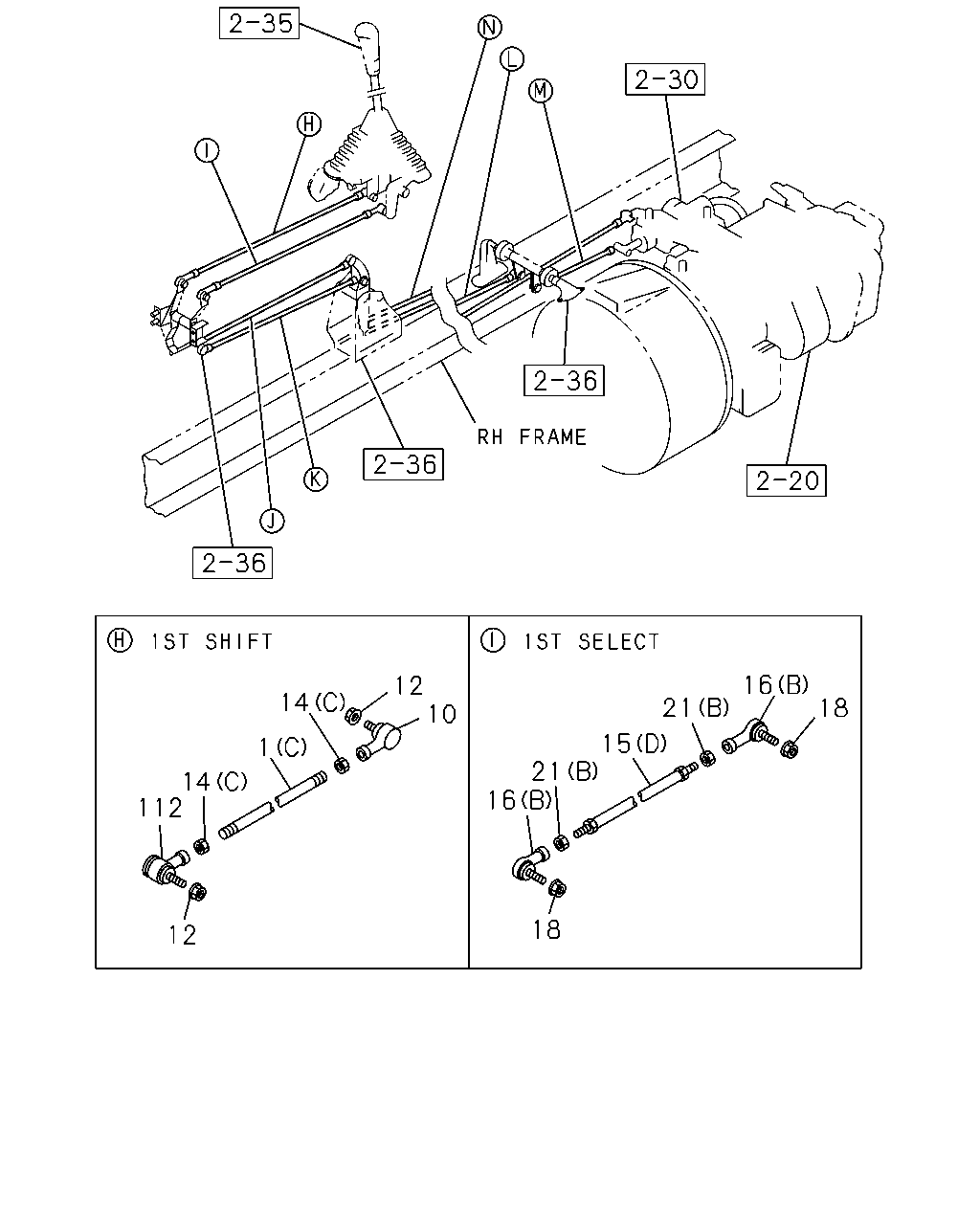

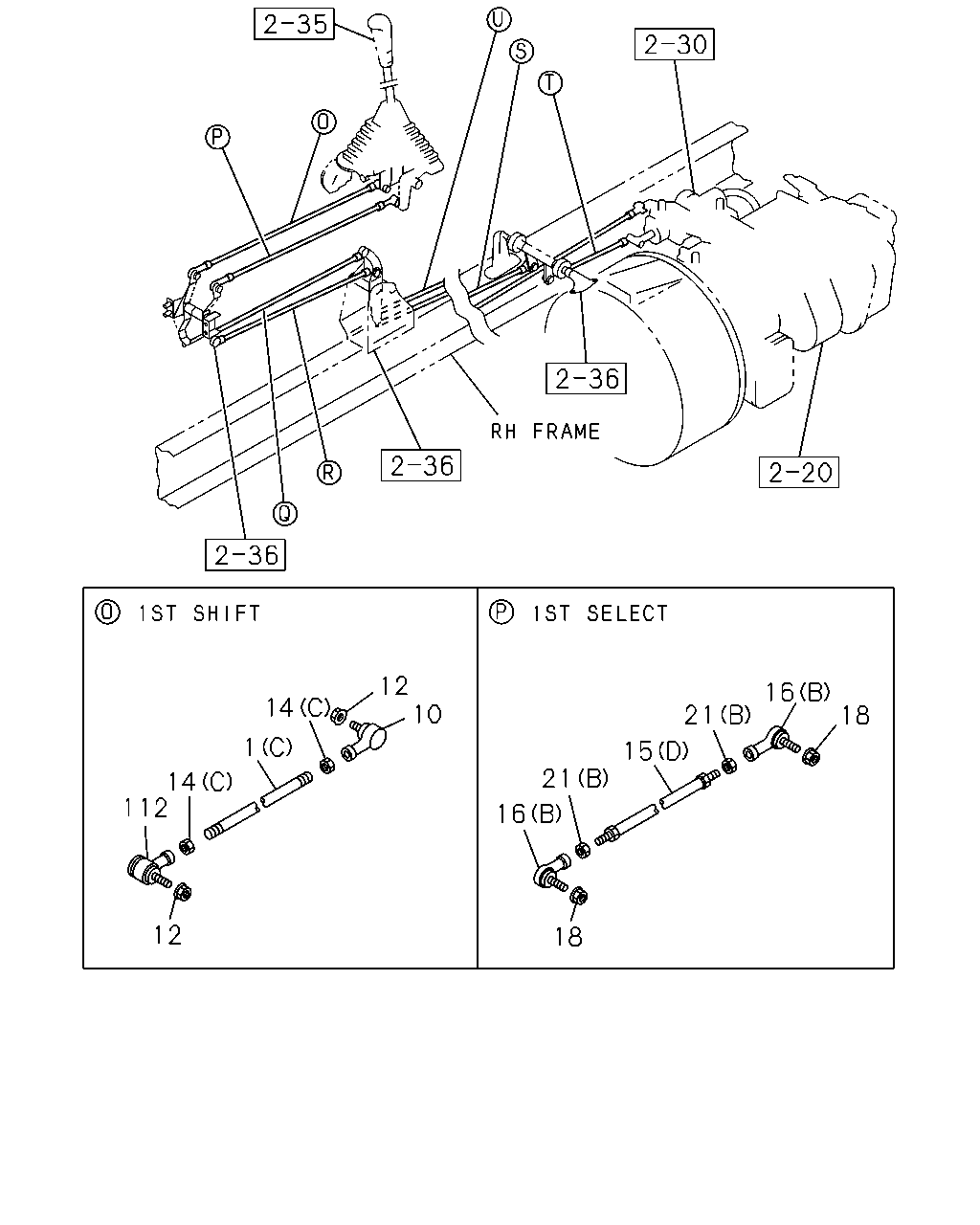

18 21 15 25 18 21 16 15 16 18 18 16 21 15 21 16 12 10 14 25 1 1 14 12 112 12 112 14 14 1 12 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	ROD; LINK,1ST SHIFT MJA7 M/T<X9Q> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (C) L=480	9-08401-248-0	01	1	0105-	●	●
1	ROD; LINK,1ST SHIFT EXC. MJA7 M/T<X9Q> (C) L=480	9-08401-248-0	01	1	0105-	●	●
1	ROD; LINK,1ST SHIFT PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (A) L=421	1-33652-738-0	01	1	0105-	●	●
1	ROD; LINK,1ST SHIFT PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (B) L=88	1-33652-740-0	01	1	0105-	●	●
10	JOINT ASM; BALL,SELECT ROD MJA7 M/T<X9Q> EXC. PARKING BRAKE VALVE LEVER TYPE<W48>	1-09760-125-0	01	1	0105-	●	●
10	JOINT ASM; BALL,SELECT ROD EXC. MJA7 M/T<X9Q>	1-09760-125-0	01	1	0105-	●	●
10	JOINT ASM; BALL,SELECT ROD PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q>	1-09760-124-0	01	1	0105-	●	●
12	NUT; 1ST LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	0105-	●	●
14	NUT; LK,RIGHT SCREW,LINK ROD MJA7 M/T<X9Q> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (C) M12	9-99111-412-0	02	1	0105-0512	●	●
14	NUT; LK,RIGHT SCREW,LINK ROD EXC. MJA7 M/T<X9Q> (C) M12	9-99111-412-0	02	1	0105-0512	●	●
14	NUT; LK,RIGHT SCREW,LINK ROD MJA7 M/T<X9Q> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (C) M12	0-91111-512-0	02	1	0601-	●	●
14	NUT; LK,RIGHT SCREW,LINK ROD EXC. MJA7 M/T<X9Q> (C) M12	0-91111-512-0	02	1	0601-	●	●
14	NUT; LK,RIGHT SCREW,LINK ROD PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (A) M10	9-09111-410-0	01	1	0105-0512	●	●
14	NUT; LK,RIGHT SCREW,LINK ROD PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (A) M10	0-91111-510-0	01	1	0601-	●	●
14	NUT; LK,RIGHT SCREW,LINK ROD PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (B) M12	9-99111-412-0	01	1	0105-0512	●	●
14	NUT; LK,RIGHT SCREW,LINK ROD PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (B) M12	0-91111-512-0	01	1	0601-	●	●
15	ROD; LINK 1ST SHIFT CAB UP +110MM<TGG> W-SERIES ENG<1A2> (B) L=474	1-33652-803-1	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT CAB UP +110MM<TGG> W-SERIES ENG<1A2> (C) L=423	1-33652-804-2	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT MJA7 M/T<X9Q> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (D) L=435	1-33652-696-0	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT EXC. MJA7 M/T<X9Q> (D) L=435	1-33652-696-0	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (F) L=345	1-33652-736-0	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (G) L=88	1-33652-740-0	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT PE-SERIES ENG<1A0> (E) L=440	1-33652-672-0	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT PE-SERIES ENG<1A0> (A) L=490	1-33652-700-0	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (B) L=490	1-33652-780-1	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (C) L=428	1-33652-781-2	01	1	0105-	●	●
16	JOINT ASM; BALL,CONT ROD MJA7 M/T<X9Q> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-09760-108-0	02	1	0105-	●	●
16	JOINT ASM; BALL,CONT ROD EXC. MJA7 M/T<X9Q> (B)	1-09760-108-0	02	1	0105-	●	●
16	JOINT ASM; BALL,CONT ROD PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (A)	1-09760-109-0	02	1	0105-	●	●
18	NUT; 1ST LINK ROD M8 FLANGE	1-09440-062-1	02	1	0105-	●	●
21	NUT; LK,RIGHT SCREW,LINK ROD MJA7 M/T<X9Q> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B) M8	9-09111-408-0	02	1	0105-0512	●	●
21	NUT; LK,RIGHT SCREW,LINK ROD EXC. MJA7 M/T<X9Q> (B) M8	9-09111-408-0	02	1	0105-0512	●	●
21	NUT; LK,RIGHT SCREW,LINK ROD MJA7 M/T<X9Q> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B) M8	0-91111-508-0	02	1	0601-	●	●
21	NUT; LK,RIGHT SCREW,LINK ROD EXC. MJA7 M/T<X9Q> (B) M8	0-91111-508-0	02	1	0601-	●	●
21	NUT; LK,RIGHT SCREW,LINK ROD PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (A) M10	9-09111-410-0	02	1	0105-0512	●	●
21	NUT; LK,RIGHT SCREW,LINK ROD PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (A) M10	0-91111-510-0	02	1	0601-	●	●
25	NUT; LK,RIGHT SCREW,LINK ROD PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (C) M10 LH THREAD	9-09840-167-0	02	1	0105-	●	●
25	NUT; LK,RIGHT SCREW,LINK ROD PE-SERIES ENG<1A0> (B) M8	9-09111-408-0	02	1	0105-0512	●	●
25	NUT; LK,RIGHT SCREW,LINK ROD PE-SERIES ENG<1A0> (B) M8	0-91111-508-0	02	1	0601-	●	●
25	NUT; LK,RIGHT SCREW,LINK ROD PE-SERIES ENG<1A0>,W-SERIES ENG<1A2> (A) M12	9-99111-412-0	02	1	0105-0512	●	●
25	NUT; LK,RIGHT SCREW,LINK ROD PE-SERIES ENG<1A0>,W-SERIES ENG<1A2> (A) M12	0-91111-512-0	02	1	0601-	●	●
25	NUT; LK,RIGHT SCREW,LINK ROD W-SERIES ENG<1A2> (B) M10	9-09111-410-0	02	1	0105-0512	●	●
25	NUT; LK,RIGHT SCREW,LINK ROD W-SERIES ENG<1A2> (B) M10	0-91111-510-0	02	1	0601-	●	●
112	JOINT; RUBBER PE-SERIES ENG<1A0>,W-SERIES ENG<1A2>	1-33670-413-1	01	1	0105-	●	●
112	JOINT; RUBBER	1-33670-413-1	01	1	0105-	●	●

6 38 36 44 121 6 6 36 44 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	ROD; LINK,3RD SELECT CAB UP +110MM<TGG> FULLER M/T<X9B> W-SERIES ENG<1A2> (D) L=1637	1-33652-980-1	01	1	0105-	●	●
6	ROD; LINK,3RD SELECT CAB UP +110MM<TGG> MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2>,CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY) (E) L=1608	1-33652-985-1	01	1	0105-0106	●	●
6	ROD; LINK,3RD SELECT CAB UP +110MM<TGG> MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY) (E) L=1608	1-33652-985-1	01	1	0107-	●	●
6	ROD; LINK,3RD SELECT CAB UP +110MM<TGG> ZF M/T<X9E> W-SERIES ENG<1A2> (A) L=1454	1-33671-700-1	01	1	0105-	●	●
6	ROD; LINK,3RD SELECT CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) CAB UP +110MM<TGG> MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> (E) L=1649	1-33652-925-1	01	1	0105-0106	●	●
6	ROD; LINK,3RD SELECT CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ,CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) CAB UP +110MM<TGG> MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> (E) L=1649	1-33652-925-1	01	1	0107-	●	●
6	ROD; LINK,3RD SELECT MIXER TRUCK<RA2> CAB UP +110MM<TGG> MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> W-SERIES ENG<1A2> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH 15.5" TWIN PLATE SPICER(TEY) (E) L=1679	1-33652-987-1	01	1	0105-0106	●	●
6	ROD; LINK,3RD SELECT MIXER TRUCK<RA2> CAB UP +110MM<TGG> MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> W-SERIES ENG<1A2> EXC. CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE (TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH 15.5" TWIN PLATE SPICER(TEY) (E) L=1679	1-33652-987-1	01	1	0107-	●	●
6	ROD; LINK,3RD SELECT MIXER TRUCK<RA2> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY) CAB UP +110MM<TGG> MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> W-SERIES ENG<1A2> (E) L=1721	1-33652-984-1	01	1	0105-0106	●	●
6	ROD; LINK,3RD SELECT MIXER TRUCK<RA2> CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ,CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY) CAB UP +110MM<TGG> MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> W-SERIES ENG<1A2> (E) L=1721	1-33652-984-1	01	1	0107-	●	●
6	ROD; LINK,3RD SELECT MIXER TRUCK<RA2> MJD7 M/T<X9J>,MJA7 M/T<X9Q> W-SERIES ENG<1A2> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH 15.5" TWIN PLATE SPICER(TEY),CAB UP +110MM<TGG> (E) L=1668	1-33652-983-1	01	1	0105-0106	●	●
6	ROD; LINK,3RD SELECT MIXER TRUCK<RA2> MJD7 M/T<X9J>,MJA7 M/T<X9Q> W-SERIES ENG<1A2> EXC. CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE (TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH 15.5" TWIN PLATE SPICER(TEY),CAB UP +110MM<TGG> (E) L=1668	1-33652-983-1	01	1	0107-	●	●
6	ROD; LINK,3RD SELECT MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2>,CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY),C AB UP +110MM<TGG> (E) L=1599	1-33652-916-1	01	1	0105-0106	●	●
6	ROD; LINK,3RD SELECT MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY), CAB UP +110MM<TGG> (E) L=1599	1-33652-916-1	01	1	0107-	●	●
6	ROD; LINK,3RD SELECT ZF M/T<X9E> W-SERIES ENG<1A2> (B) L=125	1-33671-570-0	01	1	0105-	●	●
6	ROD; LINK,3RD SELECT 10PE1S(60L),10PE1N(61L),10PE1H(68L) ZF M/T<X9E> (B) L=125	1-33671-570-0	01	1	0105-	●	●
6	ROD; LINK,3RD SELECT ZF M/T<X9E> W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (C) L=1419	1-33652-981-0	01	1	0105-	●	●
6	ROD; LINK,3RD SELECT ZF M/T<X9E> W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (A) L=1443	1-33671-789-0	01	1	0105-	●	●
6	ROD; LINK,3RD SELECT 10PE1S(60L),10PE1N(61L),10PE1H(68L) ASSISTOR SHIFT CONTROL<WX8> MAL5 M/T<X9F>,MAG6 M/T<X9T> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 15.5"TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY) (F) L=1242	1-33652-950-0	01	1	0105-0106	●	●
6	ROD; LINK,3RD SELECT 10PE1S(60L),10PE1N(61L),10PE1H(68L) ASSISTOR SHIFT CONTROL<WX8> MAL5 M/T<X9F>,MAG6 M/T<X9T> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY) (F) L=1242	1-33652-950-0	01	1	0107-	●	●
6	ROD; LINK,3RD SELECT 10PE1S(60L),10PE1N(61L),10PE1H(68L) ASSISTOR SHIFT CONTROL<WX8> MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 15.5"TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY) (F) L=1396	1-33652-913-1	01	1	0105-0106	●	●
6	ROD; LINK,3RD SELECT 10PE1S(60L),10PE1N(61L),10PE1H(68L) ASSISTOR SHIFT CONTROL<WX8> MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY) (F) L=1396	1-33652-913-1	01	1	0107-	●	●
6	ROD; LINK,3RD SELECT 10PE1S(60L),10PE1N(61L),10PE1H(68L) MAL5 M/T<X9F>,MAG6 M/T<X9T> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 15.5"TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY),ASSISTOR SHIFT CONTROL<WX8> (F) L=1250	1-33652-978-0	01	1	0105-0106	●	●
6	ROD; LINK,3RD SELECT 10PE1S(60L),10PE1N(61L),10PE1H(68L) MAL5 M/T<X9F>,MAG6 M/T<X9T> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY),ASSISTOR SHIFT CONTROL<WX8> (F) L=1250	1-33652-978-0	01	1	0107-	●	●
6	ROD; LINK,3RD SELECT 10PE1S(60L),10PE1N(61L),10PE1H(68L) MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 15.5"TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY),ASSISTOR SHIFT CONTROL<WX8> (F) L=1405	1-33652-876-0	01	1	0105-0106	●	●
6	ROD; LINK,3RD SELECT 10PE1S(60L),10PE1N(61L),10PE1H(68L) MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY),ASSISTOR SHIFT CONTROL<WX8> (F) L=1405	1-33652-876-0	01	1	0107-	●	●
6	ROD; LINK,3RD SELECT 10PE1S(60L),10PE1N(61L),10PE1H(68L) ZF M/T<X9E> (A) L=1220	1-33671-792-1	01	1	0105-	●	●
36	JOINT; BALL,RIGHT SCREW,LINK ROD W-SERIES ENG<1A2> ISUZU M/T<X9A>,FULLER M/T<X9B>	1-09760-124-0	02	1	0105-0106	●	●
36	JOINT; BALL,RIGHT SCREW,LINK ROD 10PE1S(60L),10PE1N(61L),10PE1H(68L)	1-09760-124-0	02	1	0105-0106	●	●
36	JOINT; BALL,RIGHT SCREW,LINK ROD W-SERIES ENG<1A2> ISUZU M/T<X9A>,FULLER M/T<X9B>	1-09760-124-0	02	1	0107-	●	●
36	JOINT; BALL,RIGHT SCREW,LINK ROD 10PE1S(60L),10PE1N(61L),10PE1H(68L) ZF M/T<X9E>	1-09760-124-0	02	1	0107-	●	●
36	JOINT; BALL,RIGHT SCREW,LINK ROD ZF M/T<X9E> W-SERIES ENG<1A2>	1-09760-124-0	01	1	0105-	●	●
36	JOINT; BALL,RIGHT SCREW,LINK ROD ZF M/T<X9E> W-SERIES ENG<1A2>	1-09760-124-0	01	1	0105-	●	●
38	NUT; 3RD LINK ROD M10 FLANGE	1-09440-061-0	02	1	0105-	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD W-SERIES ENG<1A2> ISUZU M/T<X9A>,FULLER M/T<X9B> M10	9-09111-410-0	02	1	0105-0106	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD 10PE1S(60L),10PE1N(61L),10PE1H(68L) ZF M/T<X9E> M10	9-09111-410-0	02	1	0105-0106	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD 10PE1S(60L),10PE1N(61L),10PE1H(68L) MAL5 M/T<X9F>,MAG6 M/T<X9T> M10	9-09111-410-0	02	1	0105-0106	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD 10PE1S(60L),10PE1N(61L),10PE1H(68L) MJA7 M/T<X9Q>,MJA6 M/T<X9S> EXC. ASSISTOR SHIFT CONTROL<WX8> M10	9-09111-410-0	02	1	0105-0106	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD 10PE1S(60L),10PE1N(61L),10PE1H(68L) ZF M/T<X9E> M10	9-09111-410-0	02	1	0107-0512	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD 10PE1S(60L),10PE1N(61L),10PE1H(68L) ISUZU M/T<X9A> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY),ASSISTOR SHIFT CONTROL<WX8> M10	9-09111-410-0	02	1	0107-0512	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD 10PE1S(60L),10PE1N(61L),10PE1H(68L) ZF M/T<X9E> M10	0-91111-510-0	02	1	0601-	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD 10PE1S(60L),10PE1N(61L),10PE1H(68L) ISUZU M/T<X9A> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY),ASSISTOR SHIFT CONTROL<WX8> M10	0-91111-510-0	02	1	0601-	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD ZF M/T<X9E> W-SERIES ENG<1A2> M10	9-09111-410-0	01	1	0105-0512	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD ZF M/T<X9E> W-SERIES ENG<1A2> M10	9-09111-410-0	01	1	0105-0512	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD ZF M/T<X9E> W-SERIES ENG<1A2> M10	0-91111-510-0	01	1	0601-	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD ZF M/T<X9E> W-SERIES ENG<1A2> M10	0-91111-510-0	01	1	0601-	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD 10PE1S(60L),10PE1N(61L),10PE1H(68L) ASSISTOR SHIFT CONTROL<WX8> MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 15.5"TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY) M8	9-09111-408-0	02	1	0105-0106	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD 10PE1S(60L),10PE1N(61L),10PE1H(68L) ASSISTOR SHIFT CONTROL<WX8> MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY) M8	9-09111-408-0	02	1	0107-0512	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD 10PE1S(60L),10PE1N(61L),10PE1H(68L) ASSISTOR SHIFT CONTROL<WX8> MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),CLUTCH 15.5" TWIN PLATE SPICER(TEY) M8	0-91111-508-0	02	1	0601-	●	●
121	BOLT; LINK ROD ZF M/T<X9E>	1-09044-103-0	02	1	0105-	●	●

18 16 21 15 21 16 18 10 12 14 1 14 112 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	ROD; LINK,1ST SHIFT MJA7 M/T<X9Q> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (C) L=480	9-08401-248-0	01	1	0105-	●	●
1	ROD; LINK,1ST SHIFT EXC. MJA7 M/T<X9Q> (C) L=480	9-08401-248-0	01	1	0105-	●	●
1	ROD; LINK,1ST SHIFT PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (A) L=421	1-33652-738-0	01	1	0105-	●	●
1	ROD; LINK,1ST SHIFT PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (B) L=88	1-33652-740-0	01	1	0105-	●	●
10	JOINT ASM; BALL,SELECT ROD MJA7 M/T<X9Q> EXC. PARKING BRAKE VALVE LEVER TYPE<W48>	1-09760-125-0	01	1	0105-	●	●
10	JOINT ASM; BALL,SELECT ROD EXC. MJA7 M/T<X9Q>	1-09760-125-0	01	1	0105-	●	●
10	JOINT ASM; BALL,SELECT ROD PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q>	1-09760-124-0	01	1	0105-	●	●
12	NUT; 1ST LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	0105-	●	●
14	NUT; LK,RIGHT SCREW,LINK ROD MJA7 M/T<X9Q> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (C) M12	9-99111-412-0	02	1	0105-0512	●	●
14	NUT; LK,RIGHT SCREW,LINK ROD EXC. MJA7 M/T<X9Q> (C) M12	9-99111-412-0	02	1	0105-0512	●	●
14	NUT; LK,RIGHT SCREW,LINK ROD MJA7 M/T<X9Q> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (C) M12	0-91111-512-0	02	1	0601-	●	●
14	NUT; LK,RIGHT SCREW,LINK ROD EXC. MJA7 M/T<X9Q> (C) M12	0-91111-512-0	02	1	0601-	●	●
14	NUT; LK,RIGHT SCREW,LINK ROD PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (A) M10	9-09111-410-0	01	1	0105-0512	●	●
14	NUT; LK,RIGHT SCREW,LINK ROD PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (A) M10	0-91111-510-0	01	1	0601-	●	●
14	NUT; LK,RIGHT SCREW,LINK ROD PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (B) M12	9-99111-412-0	01	1	0105-0512	●	●
14	NUT; LK,RIGHT SCREW,LINK ROD PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (B) M12	0-91111-512-0	01	1	0601-	●	●
15	ROD; LINK 1ST SHIFT CAB UP +110MM<TGG> W-SERIES ENG<1A2> (B) L=474	1-33652-803-1	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT CAB UP +110MM<TGG> W-SERIES ENG<1A2> (C) L=423	1-33652-804-2	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT MJA7 M/T<X9Q> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (D) L=435	1-33652-696-0	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT EXC. MJA7 M/T<X9Q> (D) L=435	1-33652-696-0	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (F) L=345	1-33652-736-0	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (G) L=88	1-33652-740-0	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT PE-SERIES ENG<1A0> (E) L=440	1-33652-672-0	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT PE-SERIES ENG<1A0> (A) L=490	1-33652-700-0	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (B) L=490	1-33652-780-1	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (C) L=428	1-33652-781-2	01	1	0105-	●	●
16	JOINT ASM; BALL,CONT ROD MJA7 M/T<X9Q> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-09760-108-0	02	1	0105-	●	●
16	JOINT ASM; BALL,CONT ROD EXC. MJA7 M/T<X9Q> (B)	1-09760-108-0	02	1	0105-	●	●
16	JOINT ASM; BALL,CONT ROD PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (A)	1-09760-109-0	02	1	0105-	●	●
18	NUT; 1ST LINK ROD M8 FLANGE	1-09440-062-1	02	1	0105-	●	●
21	NUT; LK,RIGHT SCREW,LINK ROD MJA7 M/T<X9Q> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B) M8	9-09111-408-0	02	1	0105-0512	●	●
21	NUT; LK,RIGHT SCREW,LINK ROD EXC. MJA7 M/T<X9Q> (B) M8	9-09111-408-0	02	1	0105-0512	●	●
21	NUT; LK,RIGHT SCREW,LINK ROD MJA7 M/T<X9Q> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B) M8	0-91111-508-0	02	1	0601-	●	●
21	NUT; LK,RIGHT SCREW,LINK ROD EXC. MJA7 M/T<X9Q> (B) M8	0-91111-508-0	02	1	0601-	●	●
21	NUT; LK,RIGHT SCREW,LINK ROD PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (A) M10	9-09111-410-0	02	1	0105-0512	●	●
21	NUT; LK,RIGHT SCREW,LINK ROD PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (A) M10	0-91111-510-0	02	1	0601-	●	●
112	JOINT; RUBBER PE-SERIES ENG<1A0>,W-SERIES ENG<1A2>	1-33670-413-1	01	1	0105-	●	●
112	JOINT; RUBBER	1-33670-413-1	01	1	0105-	●	●

18 16 21 15 21 16 18 12 10 14 1 14 112 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	ROD; LINK,1ST SHIFT MJA7 M/T<X9Q> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (C) L=480	9-08401-248-0	01	1	0105-	●	●
1	ROD; LINK,1ST SHIFT EXC. MJA7 M/T<X9Q> (C) L=480	9-08401-248-0	01	1	0105-	●	●
1	ROD; LINK,1ST SHIFT PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (A) L=421	1-33652-738-0	01	1	0105-	●	●
1	ROD; LINK,1ST SHIFT PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (B) L=88	1-33652-740-0	01	1	0105-	●	●
10	JOINT ASM; BALL,SELECT ROD MJA7 M/T<X9Q> EXC. PARKING BRAKE VALVE LEVER TYPE<W48>	1-09760-125-0	01	1	0105-	●	●
10	JOINT ASM; BALL,SELECT ROD EXC. MJA7 M/T<X9Q>	1-09760-125-0	01	1	0105-	●	●
10	JOINT ASM; BALL,SELECT ROD PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q>	1-09760-124-0	01	1	0105-	●	●
12	NUT; 1ST LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	0105-	●	●
14	NUT; LK,RIGHT SCREW,LINK ROD MJA7 M/T<X9Q> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (C) M12	9-99111-412-0	02	1	0105-0512	●	●
14	NUT; LK,RIGHT SCREW,LINK ROD EXC. MJA7 M/T<X9Q> (C) M12	9-99111-412-0	02	1	0105-0512	●	●
14	NUT; LK,RIGHT SCREW,LINK ROD MJA7 M/T<X9Q> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (C) M12	0-91111-512-0	02	1	0601-	●	●
14	NUT; LK,RIGHT SCREW,LINK ROD EXC. MJA7 M/T<X9Q> (C) M12	0-91111-512-0	02	1	0601-	●	●
14	NUT; LK,RIGHT SCREW,LINK ROD PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (A) M10	9-09111-410-0	01	1	0105-0512	●	●
14	NUT; LK,RIGHT SCREW,LINK ROD PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (A) M10	0-91111-510-0	01	1	0601-	●	●
14	NUT; LK,RIGHT SCREW,LINK ROD PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (B) M12	9-99111-412-0	01	1	0105-0512	●	●
14	NUT; LK,RIGHT SCREW,LINK ROD PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (B) M12	0-91111-512-0	01	1	0601-	●	●
15	ROD; LINK 1ST SHIFT CAB UP +110MM<TGG> W-SERIES ENG<1A2> (B) L=474	1-33652-803-1	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT CAB UP +110MM<TGG> W-SERIES ENG<1A2> (C) L=423	1-33652-804-2	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT MJA7 M/T<X9Q> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (D) L=435	1-33652-696-0	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT EXC. MJA7 M/T<X9Q> (D) L=435	1-33652-696-0	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (F) L=345	1-33652-736-0	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (G) L=88	1-33652-740-0	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT PE-SERIES ENG<1A0> (E) L=440	1-33652-672-0	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT PE-SERIES ENG<1A0> (A) L=490	1-33652-700-0	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (B) L=490	1-33652-780-1	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (C) L=428	1-33652-781-2	01	1	0105-	●	●
16	JOINT ASM; BALL,CONT ROD MJA7 M/T<X9Q> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-09760-108-0	02	1	0105-	●	●
16	JOINT ASM; BALL,CONT ROD EXC. MJA7 M/T<X9Q> (B)	1-09760-108-0	02	1	0105-	●	●
16	JOINT ASM; BALL,CONT ROD PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (A)	1-09760-109-0	02	1	0105-	●	●
18	NUT; 1ST LINK ROD M8 FLANGE	1-09440-062-1	02	1	0105-	●	●
21	NUT; LK,RIGHT SCREW,LINK ROD MJA7 M/T<X9Q> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B) M8	9-09111-408-0	02	1	0105-0512	●	●
21	NUT; LK,RIGHT SCREW,LINK ROD EXC. MJA7 M/T<X9Q> (B) M8	9-09111-408-0	02	1	0105-0512	●	●
21	NUT; LK,RIGHT SCREW,LINK ROD MJA7 M/T<X9Q> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B) M8	0-91111-508-0	02	1	0601-	●	●
21	NUT; LK,RIGHT SCREW,LINK ROD EXC. MJA7 M/T<X9Q> (B) M8	0-91111-508-0	02	1	0601-	●	●
21	NUT; LK,RIGHT SCREW,LINK ROD PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (A) M10	9-09111-410-0	02	1	0105-0512	●	●
21	NUT; LK,RIGHT SCREW,LINK ROD PARKING BRAKE VALVE LEVER TYPE<W48> MJA7 M/T<X9Q> (A) M10	0-91111-510-0	02	1	0601-	●	●
112	JOINT; RUBBER PE-SERIES ENG<1A0>,W-SERIES ENG<1A2>	1-33670-413-1	01	1	0105-	●	●
112	JOINT; RUBBER	1-33670-413-1	01	1	0105-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
