◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11574 - FRR THAILAND EURO3 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-80 - WINDSHIELD WIPER AND WASHER ▶
8-80 — WINDSHIELD WIPER AND WASHER (#133304) — 42 parça

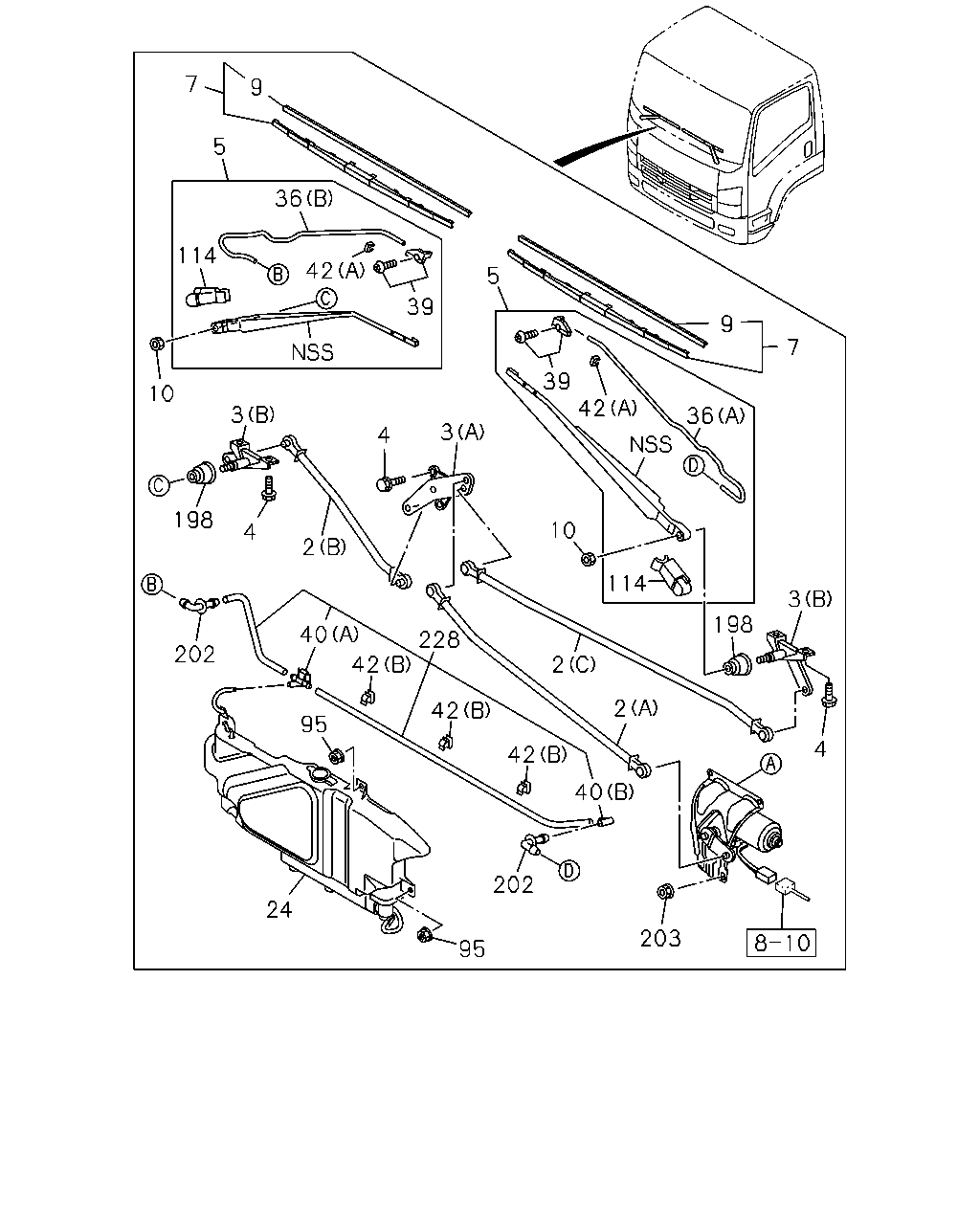

çizim 406754
7 9 5 36 114 42 39 5 10 3 198 4 2 4 3 39 42 36 9 7 3 198 114 10 2 2 4 203 202 40 42 42 228 42 40 95 202 24 95
BalonParca AdiParca NoAdetTipApplied Date
2 LINK; FRT WIPER
(B) 		8-98257-285-0 01 1 1402-
2 LINK; FRT WIPER
(C) 		8-98078-809-0 01 1 1402-
2 LINK; FRT WIPER
(A) 		8-98078-811-0 01 1 1402-
3 PIVOT ASM; FRT WIPER
(A) 		8-98078-815-0 01 1 1402-
3 PIVOT ASM; FRT WIPER
(B) 		8-98078-816-1 02 1 1402-
4 BOLT; WIPER LINK TO BODY
M8X20 FLANGE THA 		0-28650-820-0 07 1 1402-
5 ARM; WIPER 8-98078-819-1 01 1 1402-
5 ARM; WIPER 8-98078-820-1 01 1 1402-
7 BLADE; WIPER 1-83315-045-2 01 1 1402-
7 BLADE; WIPER 1-83315-046-2 01 1 1402-
7 BLADE; WIPER
BEST VALUE PARTS 		5-87610-035-0 02 1 1402-
9 RUBBER; FRT WIPER BLADE
L=550 		1-83355-014-0 02 1 1402-
10 NUT; WIPER ARM TO WIPER PIVOT
M10 		1-09984-120-0 02 1 1402-
24 TANK ASM; WASHER
THA 		8-97927-039-0 01 1 1402-
36 HOSE; WASHER
(B) 		1-86810-098-0 01 1 1402-
36 HOSE; WASHER
(C) THA 		8-97927-045-0 01 1 1402-
36 HOSE; WASHER
(A) 		8-98078-824-0 01 1 1402-
39 NOZZLE; WINDSHIELD WASHER 1-83315-085-0 01 1 1402-
39 NOZZLE; WINDSHIELD WASHER 1-83315-086-0 01 1 1402-
40 JOINT; WASHER HOSE
(B) 		8-97307-026-0 01 1 1402-
40 JOINT; WASHER HOSE
(A) 		8-97855-163-0 01 1 1402-
42 CLIP; WASHER HOSE
(A) 		1-86810-044-0 02 1 1402-
42 CLIP; WASHER HOSE
(B) 		8-98039-708-0 03 1 1402-
95 NUT; WASHER TANK
M6 FLANGE THA 		0-91180-106-0 04 1 1402-
114 COVER; FRT WIPER ARM 1-83318-126-0 01 1 1402-
114 COVER; FRT WIPER ARM 1-83318-127-0 01 1 1402-
198 COVER; PIVOT,WIPER 8-98038-892-1 02 1 1402-
202 GROMMET; WIPER 1-86815-003-2 02 1 1402-
203 NUT; WIPER MOTOR
M8 FLANGE THA 		0-91180-208-0 04 1 1402-
228 HOSE ASM; WASHER 8-98039-704-0 01 1 1402-

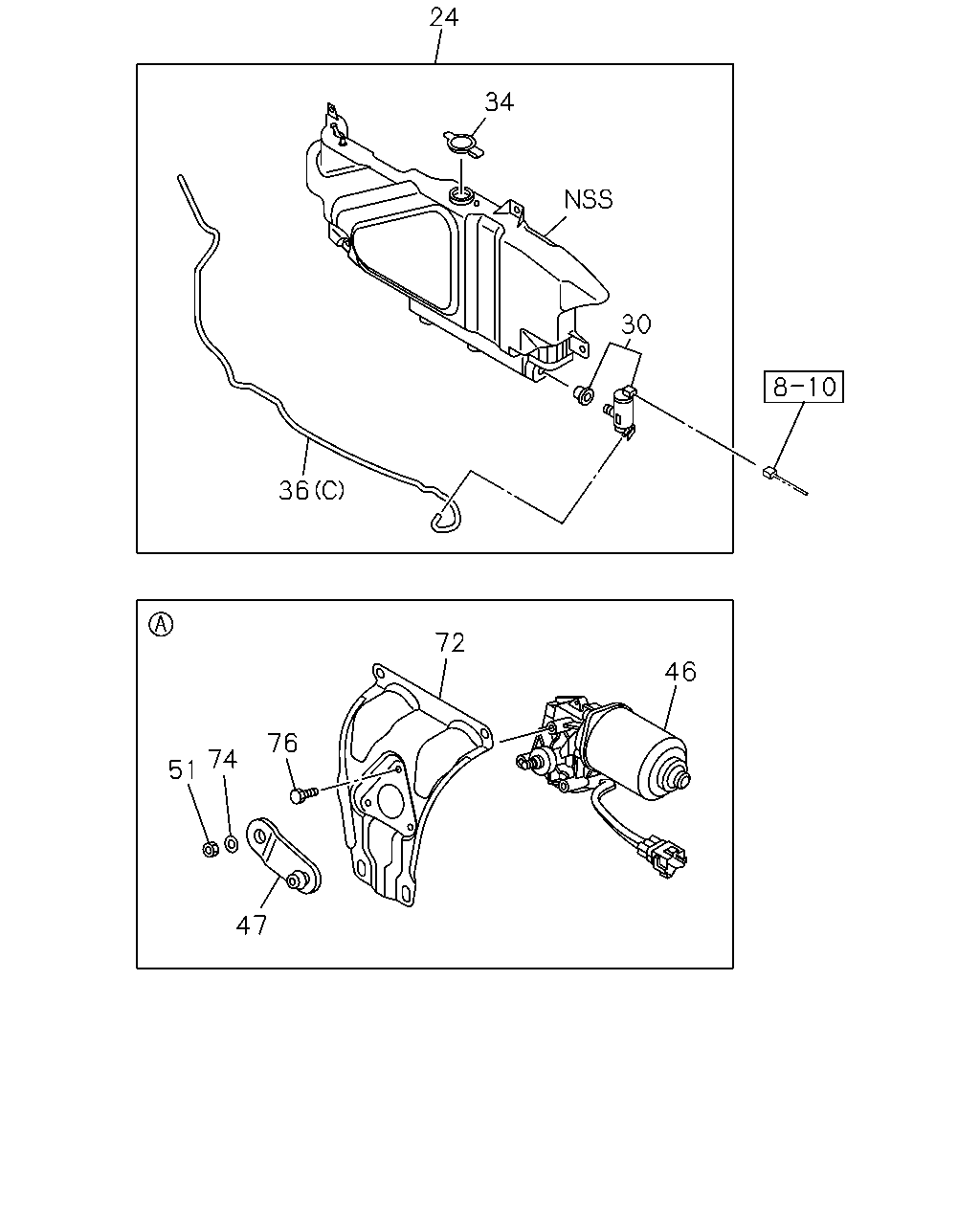

çizim 408361
24 34 30 46 72 36 76 74 51 47
BalonParca AdiParca NoAdetTipApplied Date
24 TANK ASM; WASHER
THA 		8-97927-039-0 01 1 1402-
30 MOTOR ASM; FRT WASHER TANK
THA 		8-97927-042-0 01 1 1402-
34 CAP; WASHER TANK
THA 		8-97927-044-0 01 1 1402-
36 HOSE; WASHER
(B) 		1-86810-098-0 01 1 1402-
36 HOSE; WASHER
(C) THA 		8-97927-045-0 01 1 1402-
36 HOSE; WASHER
(A) 		8-98078-824-0 01 1 1402-
46 MOTOR ASM; FRT WINDSHIELD WIPER 8-98078-806-1 01 1 1402-
47 ARM; CRANK,WIPER MOTOR 8-98078-805-0 01 1 1402-
51 NUT; WIPER MOTOR LINK 1-83319-012-0 01 1 1402-
72 BRACKET; WIPER MOTOR 8-98078-807-0 01 1 1402-
74 WASHER; ARM TO MOTOR 1-83319-011-0 01 1 1402-
76 SCREW; BRKT TO WIPER MOTOR 1-83319-043-0 03 1 1402-
